USER MANUAL Bravia KDL42W808A SONY

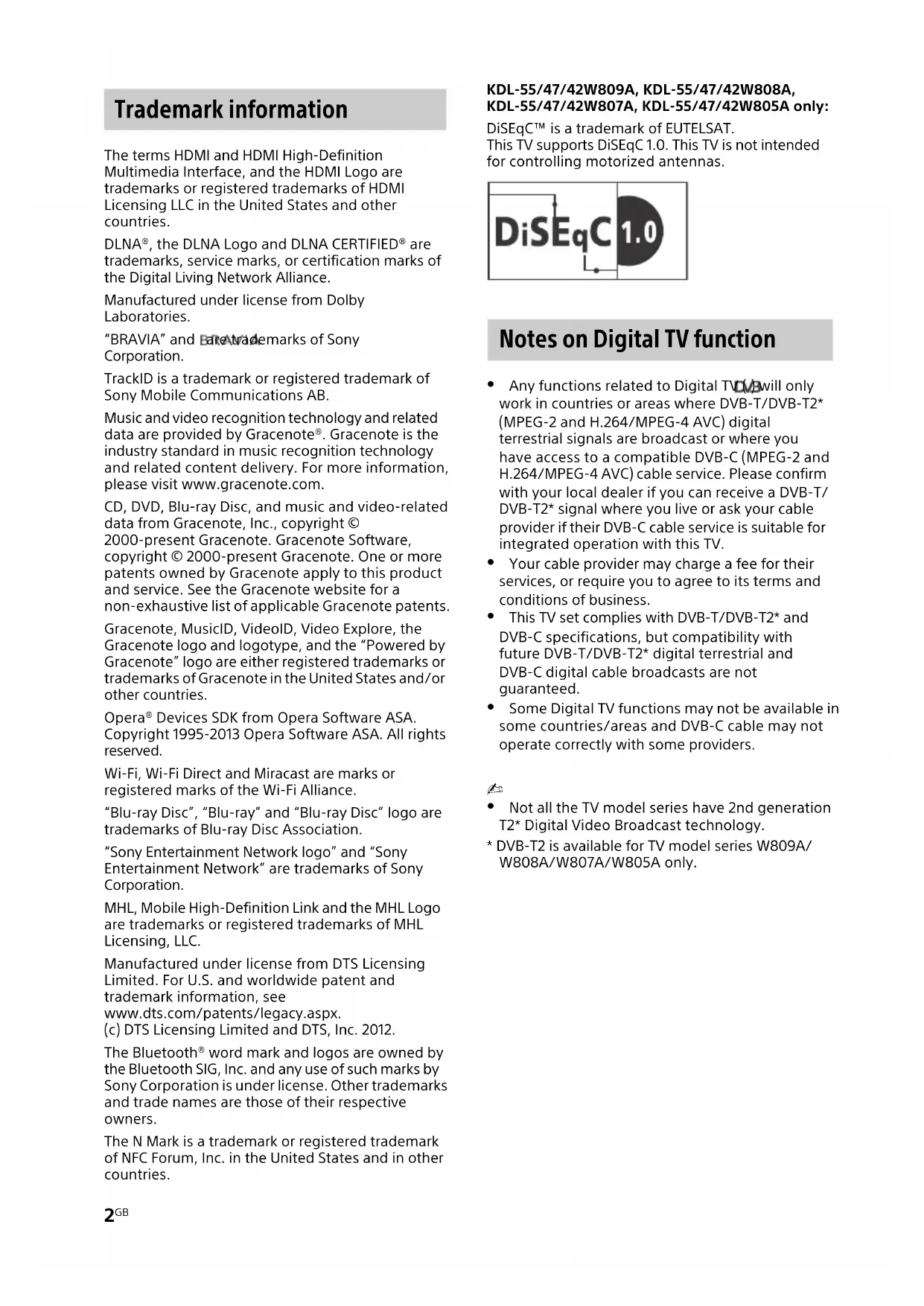

GB The terms HDMI and HDMI High-Definition

Multimedia Interface, and the HDMI Logo are

trademarks or registered trademarks of HDMI Licensing LLC in the United States and other

DLNA®, the DLNA Logo and DLNA CERTIFIED® are

trademarks, service marks, or certification marks of

the Digital Living Network Alliance.

Manufactured under license from Dolby

“BRAVIA” and are trademarks of Sony

TrackID is a trademark or registered trademark of

Sony Mobile Communications AB.

Music and video recognition technology and related

data are provided by Gracenote®. Gracenote is the

industry standard in music recognition technology

and related content delivery. For more information,

please visit www.gracenote.com.

CD, DVD, Blu-ray Disc, and music and video-related

data from Gracenote, Inc., copyright ©

2000-present Gracenote. Gracenote Software,

copyright © 2000-present Gracenote. One or more

patents owned by Gracenote apply to this product

and service. See the Gracenote website for a

non-exhaustive list of applicable Gracenote patents.

Gracenote, MusicID, VideoID, Video Explore, the

Gracenote logo and logotype, and the “Powered by

Gracenote” logo are either registered trademarks or

trademarks of Gracenote in the United States and/or

Wi-Fi, Wi-Fi Direct and Miracast are marks or

registered marks of the Wi-Fi Alliance.

“Blu-ray Disc”, “Blu-ray” and “Blu-ray Disc” logo are

trademarks of Blu-ray Disc Association.

“Sony Entertainment Network logo” and “Sony

Entertainment Network” are trademarks of Sony

MHL, Mobile High-Definition Link and the MHL Logo

are trademarks or registered trademarks of MHL Licensing, LLC.

Manufactured under license from DTS Licensing

Limited. For U.S. and worldwide patent and

trademark information, see

www.dts.com/patents/legacy.aspx.

(c) DTS Licensing Limited and DTS, Inc. 2012.

The Bluetooth® word mark and logos are owned by

the Bluetooth SIG, Inc. and any use of such marks by

Sony Corporation is under license. Other trademarks

and trade names are those of their respective

The N Mark is a trademark or registered trademark

of NFC Forum, Inc. in the United States and in other

KDL-55/47/42W809A, KDL-55/47/42W808A,

KDL-55/47/42W807A, KDL-55/47/42W805A only:

DiSEqC™ is a trademark of EUTELSAT.

This TV supports DiSEqC 1.0. This TV is not intended

for controlling motorized antennas.

 Any functions related to Digital TV ( ) will only

work in countries or areas where DVB-T/DVB-T2*

(MPEG-2 and H.264/MPEG-4 AVC) digital

terrestrial signals are broadcast or where you

have access to a compatible DVB-C (MPEG-2 and

H.264/MPEG-4 AVC) cable service. Please confirm

with your local dealer if you can receive a DVB-T/

DVB-T2* signal where you live or ask your cable

provider if their DVB-C cable service is suitable for

integrated operation with this TV.

 Your cable provider may charge a fee for their

services, or require you to agree to its terms and

conditions of business.

 This TV set complies with DVB-T/DVB-T2* and

DVB-C specifications, but compatibility with

future DVB-T/DVB-T2* digital terrestrial and

DVB-C digital cable broadcasts are not

 Some Digital TV functions may not be available in

some countries/areas and DVB-C cable may not

operate correctly with some providers.

 Not all the TV model series have 2nd generation

T2* Digital Video Broadcast technology.

* DVB-T2 is available for TV model series W809A/

W808A/W807A/W805A only.

GB GB Troubleshooting

When the illumination LED is flashing

in red, count how many times it

flashes (interval time is three

Press "/1 on the TV to turn it off, disconnect

the AC power cord (mains lead), and inform

your dealer or Sony service centre of how the

indicator flashes (number of flashes).

When the illumination LED is not

flashing, check the items in the tables

Also refer to “Troubleshooting” in the

i-Manual. If the problem persists, have your

TV serviced by qualified service personnel.

There is no picture (screen is dark) and

 Check the antenna (aerial)/cable connection.

 Connect the TV to the AC power (mains), and

press "/1 on the TV or remote.

Some programmes cannot be tuned.

 Check the antenna (aerial) or dish.

For satellite models only:

 The satellite cable might be short-circuited or

there might be connection problems of the

cable. Check the cable connection and then turn

the TV off with the Mains power On/Off switch,

and turn it on again.

 The frequency that you entered is out of range.

Consult the received satellite broadcasting

There is no Cable TV services

 Check the cable connection or tuning

 Attempt the “Digital Auto Tuning” by selecting

“Antenna” instead of “Cable”.

The remote does not function.

 Replace the batteries.

 Your TV may be in SYNC mode.

Press SYNC MENU, select “TV Control” and then

select “Home (Menu)” or “Options” to control

The “Parental Lock” password has

 Enter 9999 for the PIN code. (PIN code 9999 is

The TV surrounds become warm.

 When the TV is used for an extended period, the

TV surrounds become warm.

You may feel hot when touching there by the

Frozen audio or video, a blank screen,

or the TV does not respond to TV or

 Perform a simple reset of the TV by unplugging

the AC power cord for two minutes, then plug it

The CH+/–,  +/–, ///, , and

HOME buttons cannot be located on

 See below illustration for location of the buttons

The illumination LED is turned on.

 If you do not wish to light up the illumination

LED, you can turn it off.

Press HOME, then select “Settings” t “System

Settings” t “General Set-up” t “Illumination

LED” t “Off”. You can also press OPTIONS,

then select “Illumination LED” t “Off”.

Analogue: Depending on your country/area

Analogue: PAL, SECAM, NTSC3.58, NTSC4.43

Digital: Refer to the i-Manual.

Analogue: UHF/VHF/Cable, Depending on your

country/area selection.

Digital: UHF/VHF/Cable, Depending on your

country/area selection.

Satellite: IF Frequency 950-2150 MHz (except

Antenna (aerial) cable

including audio/video input, RGB input and TV

1080i (50, 60 Hz), 720p (50, 60 Hz)

Audio: Two channel linear PCM: 32, 44.1 and

48 kHz, 16, 20 and 24 bits, Dolby Digital

ARC (Audio Return Channel) (HDMI IN 1 only)

MHL (Common with HDMI 2)

Video (2D): 1080p (30 Hz), 1080/24p, 1080i (50,

60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p,

Over-Under 1080p (30 Hz), 1080/24p, 1080i (50,

60 Hz), 720p (50, 60 Hz)

Audio: Two channel linear PCM: 32, 44.1 and

48 kHz, 16, 20 and 24 bits, Dolby Digital

DIGITAL AUDIO OUT (OPTICAL)

Digital optical jack (Two channel linear PCM,

USB HDD device port ( 1 only), USB port

CAM (Conditional Access Module) slot

10BASE-T/100BASE-TX connector (Depending on

the operating environment of the network,

connection speed may differ. 10BASE-T/

100BASE-TX communication rate and

communication quality are not guaranteed for

Supplied accessories

Refer to “What’s in the box” in Quick Start Guide.

Optional accessories

Camera and Microphone Unit: CMU-BR200/CMU-

0 ºC - 40 ºC Operating humidity

10% - 80% RH (non-condensing)5

GB GB Power and others

220 V – 240 V AC, 50 Hz

Energy Efficiency Class

KDL-42W80xA: A Screen size (measured diagonally) (Approx.)

in “Home”/“Standard” mode

Standby power consumption*

0.25 W (15 W in software/EPG update mode)

1,920 dots (horizontal) × 1,080 lines (vertical)

with Table-Top Stand

with Table-Top Stand

Energy consumption per year, based on the

power consumption of the television operating

4 hours per day for 365 days. The actual energy

consumption will depend on how the television

Specified standby power is reached after the TV

finishes necessary internal processes.

 The "x" that appears in the model name

corresponds to a numeric digit, related to design,

colour or TV system.

 Do not remove the dummy card from TV CAM

(Conditional Access Module) slot other than to

insert a smart card fitted in CAM.

 Optional accessories availability depends on

countries/region/TV model/stock.

 Design and specifications are subject to change

programme satellite.

ARC (Audio Return Channel) (HDMI IN 1

DIGITAL AUDIO OUT (OPTICAL)

KDL-55W80xA: 79,0 W KDL-47W80xA: 66,0 W KDL-42W80xA: 61,0 W

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

Lado a lado 1080/24p, 1080i (50, 60 Hz), 720p (50,

DIGITAL AUDIO OUT (OPTICAL)

DIGITAL AUDIO OUT (OPTICAL)

KDL-55W80xA: 79,0 W KDL-47W80xA: 66,0 W KDL-42W80xA: 61,0 W

Afmetingen (ong.) (b × h × d)

Analog: PAL, SECAM, NTSC3.58, NTSC4.43

Video (2D): 1080p (30 Hz), 1080/24p, 1080i (50,

DIGITAL AUDIO OUT (OPTICAL)

KDL-55W80xA: 79,0 W KDL-47W80xA: 66,0 W KDL-42W80xA: 61,0 W

o logótipo Gracenote e o logo “Powered by

(c) DTS Licensing Limited e DTS, Inc. 2012.

48 kHz, 16, 20 e 24 bits, Dolby Digital

Áudio: PCM linear de dois canais: 32, 44,1 e

48 kHz, 16, 20 e 24 bits, Dolby Digital

DIGITAL AUDIO OUT (OPTICAL)

Tomada digital ótica (PCM linear de dois canais,

KDL-55W80xA: 79,0 W KDL-47W80xA: 66,0 W KDL-42W80xA: 61,0 W

“Il logo Sony Entertainment Network” e “Sony

(c) DTS Licensing Limited e DTS, Inc. 2012.

Analogico: PAL, SECAM, NTSC3.58, NTSC4.43

ARC (Audio Return Channel) (solo HDMI IN 1)

MHL (Comune con HDMI 2)

Video (2D): 1080p (30 Hz), 1080/24p, 1080i (50,

Sotto-sopra 1080p (30 Hz), 1080/24p, 1080i (50,

Audio: PCM lineare due canali: 32, 44,1 e 48kHz,

DIGITAL AUDIO OUT (OPTICAL)

KDL-55W80xA: 79,0 W KDL-47W80xA: 66,0 W KDL-42W80xA: 61,0 W

Dimensioni (approssimative) (l × a × p)

Video (2D): 1080p (30 Hz), 1080/24p, 1080i (50,

DIGITAL AUDIO OUT (OPTICAL)

KDL-55W80xA: 79,0 W KDL-47W80xA: 66,0 W KDL-42W80xA: 61,0 W

Analog: PAL, SECAM, NTSC3.58, NTSC4.43

Over-under 1080p (30, 50, 60 Hz), 1080/24p,

Video (2D): 1080p (30 Hz), 1080/24p, 1080i (50,

Over-under 1080p (30 Hz), 1080/24p, 1080i (50,

Lyd: To-kanals lineær PCM: 32, 44,1 og 48 kHz, 16,

DIGITAL AUDIO OUT (OPTICAL)

KDL-55W80xA: 79,0 W KDL-47W80xA: 66,0 W KDL-42W80xA: 61,0 W

Katkaise television virta television "/1-

Video (2D): 1080p (30 Hz), 1080/24p, 1080i (50,

DIGITAL AUDIO OUT (OPTICAL)

KDL-55W80xA: 79,0 W KDL-47W80xA: 66,0 W KDL-42W80xA: 61,0 W

for Digital Living Network Alliance.

Analog: PAL, SECAM, NTSC3.58, NTSC4.43

Over-under 1080p (30, 50, 60 Hz), 1080/24p,

Video (2D): 1080p (30 Hz), 1080/24p, 1080i (50,

Over-under 1080p (30 Hz), 1080/24p, 1080i (50,

Lyd: Tokanals lineær PCM: 32, 44,1 og 48 kHz,

DIGITAL AUDIO OUT (OPTICAL)

KDL-55W80xA: 79,0 W KDL-47W80xA: 66,0 W KDL-42W80xA: 61,0 W

(c) DTS Licensing Limited i DTS, Inc. 2012.

Wideo (2D): 1080p (30 Hz), 1080/24p, 1080i (50,

DIGITAL AUDIO OUT (OPTICAL)

KDL-55W80xA: 79,0 W KDL-47W80xA: 66,0 W KDL-42W80xA: 61,0 W

(c) DTS Licensing Limited a DTS, Inc. 2012.

Video (2D): 1080p (30 Hz), 1080/24p, 1080i (50,

Nad/pod 1080p (30 Hz), 1080/24p, 1080i (50,

Audio: dvoukanálové lineární PCM: 32, 44,1 a

DIGITAL AUDIO OUT (OPTICAL)

KDL-55W80xA: 79,0 W KDL-47W80xA: 66,0 W KDL-42W80xA: 61,0 W

(c) DTS Licensing Limited a DTS, Inc. 2012.

Video (2D): 1080p (30 Hz), 1080/24p, 1080i (50,

DIGITAL AUDIO OUT (OPTICAL)

KDL-55W80xA: 79,0 W KDL-47W80xA: 66,0 W KDL-42W80xA: 61,0 W

DIGITAL AUDIO OUT (OPTICAL)

KDL-55W80xA: 79,0 W KDL-47W80xA: 66,0 W KDL-42W80xA: 61,0 W

(c) DTS Licensing Limited şi DTS, Inc. 2012.

Analogic: PAL, SECAM, NTSC3.58, NTSC4.43

Alăturate 1080p (50, 60 Hz), 1080/24p,

Video (2D): 1080p (30 Hz), 1080/24p, 1080i (50,

Alăturate 1080/24p, 1080i (50, 60 Hz), 720p (50,

DIGITAL AUDIO OUT (OPTICAL)

KDL-55W80xA: 79,0 W KDL-47W80xA: 66,0 W KDL-42W80xA: 61,0 W

(c) DTS Licensing Limited и DTS, Inc. 2012 г.

48 kHz, 16, 20 и 24 bits, Dolby Digital

Аудио: Двуканален линеен PCM: 32, 44,1 и

48 kHz, 16, 20 и 24 bits, Dolby Digital

DIGITAL AUDIO OUT (OPTICAL)

Цифров оптичен жак (Двуканален линеен PCM,

KDL-55W80xA: 79,0 W KDL-47W80xA: 66,0 W KDL-42W80xA: 61,0 W

DIGITAL AUDIO OUT (OPTICAL)

KDL-55W80xA: 79,0 W KDL-47W80xA: 66,0 W KDL-42W80xA: 61,0 W

DLNA®, DLNA Logosu ve DLNA CERTIFIED®, Digital

Gracenote logosu ve logo simgesi ve “Powered by

(c) DTS Licensing Limited ve DTS, Inc. 2012.

Analog: PAL, SECAM, NTSC3.58, NTSC4.43

Kare Paketleme 1080p (30 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (30, 50, 60 Hz),

Yan Yana 1080p (50, 60 Hz), 1080/24p,

Video (2D): 1080p (30 Hz), 1080/24p, 1080i (50,

Yan Yana 1080/24p, 1080i (50, 60 Hz), 720p (50,

DIGITAL AUDIO OUT (OPTICAL)

KDL-55W80xA: 79,0 W KDL-47W80xA: 66,0 W KDL-42W80xA: 61,0 W

(c) DTS Licensing Limited и DTS, Inc. 2012.

DIGITAL AUDIO OUT (OPTICAL)

KDL-47W80xA: 66,0 Вт

DIGITAL AUDIO OUT (OPTICAL)

KDL-47W80xA: 66,0 Вт

можуть бути змінені без попередження.4-464-007-11(1)

© 2013 Sony Corporation

For useful information about Sony products

Pour obtenir les informations utiles concernant les
