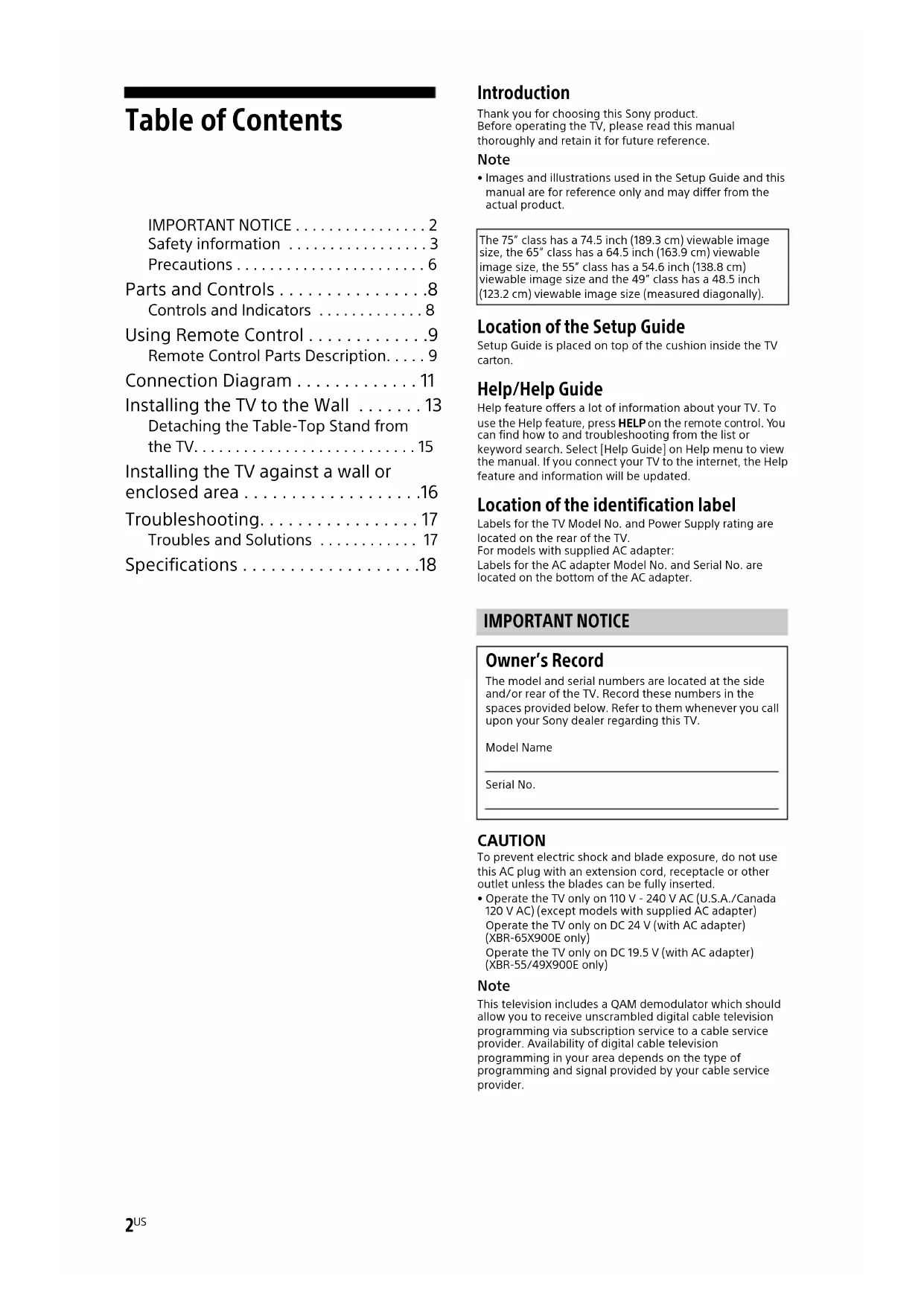

USER MANUAL XBR65X900E SONY

Detaching the Table-Top Stand from

the TV. . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Installing the TV against a wall or

Specifications . . . . . . . . . . . . . . . . . . .18

Introduction Thank you for choosing this Sony product.Before operating the TV, please read this manual thoroughly and retain it for future reference. Note • Images and illustrations used in the Setup Guide and this manual are for reference only and may differ from the actual product. Location of the Setup Guide Setup Guide is placed on top of the cushion inside the TV carton. Help/Help Guide Help feature offers a lot of information about your TV. To use the Help feature, press HELP on the remote control. You can find how to and troubleshooting from the list or keyword search. Select [Help Guide] on Help menu to view the manual. If you connect your TV to the internet, the Help feature and information will be updated. Location of the identification label Labels for the TV Model No. and Power Supply rating are located on the rear of the TV.For models with supplied AC adapter:Labels for the AC adapter Model No. and Serial No. are located on the bottom of the AC adapter. CAUTION To prevent electric shock and blade exposure, do not use this AC plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted. • Operate the TV only on 110 V - 240 V AC (U.S.A./Canada 120 V AC) (except models with supplied AC adapter)

Operate the TV only on DC 24 V (with AC adapter) (XBR-65X900E only) Operate the TV only on DC 19.5 V (with AC adapter) (XBR-55/49X900E only) Note This television includes a QAM demodulator which should allow you to receive unscrambled digital cable television programming via subscription service to a cable service provider. Availability of digital cable television programming in your area depends on the type of programming and signal provided by your cable service provider.The 75” class has a 74.5 inch (189.3 cm) viewable image size, the 65” class has a 64.5 inch (163.9 cm) viewable image size, the 55” class has a 54.6 inch (138.8 cm) viewable image size and the 49” class has a 48.5 inch (123.2 cm) viewable image size (measured diagonally).

IMPORTANT NOTICE Owner’s Record The model and serial numbers are located at the side and/or rear of the TV. Record these numbers in the spaces provided below. Refer to them whenever you call upon your Sony dealer regarding this TV.Model NameSerial No.3

US D:\_SONY TV\SY160244_KHKS UC2 RG\4690447121_US\010COVTOC.fm masterpage: Right

US FCC Related Information

This equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to Part 15 of

the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and

can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause

harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be

determined by turning the equipment off and on, the user

is encouraged to try to correct the interference by one or

more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and

• Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician

Safety and Regulatory

This device complies with Industry Canada’s licence-

exempt RSSs. Operation is subject to the following two

(1) This device may not cause interference; and

(2) This device must accept any interference, including

interference that may cause undesired operation of the

To prevent radio interference to the licensed service, this

device is intended to be operated indoors and away from

windows to provide maximum shielding. Equipment (or its

transmit antenna) that is installed outdoors is subject to

5 GHz bands are restricted to indoor operations only.

This equipment complies with FCC/IC radiation exposure

limits set forth for an uncontrolled environment and meets

the FCC radio frequency (RF) Exposure Guidelines and

RSS-102 of the IC radio frequency (RF) Exposure rules. This

equipment should be installed and operated keeping the

radiator at least 20cm or more away from person’s body

(excluding extremities: hands, wrists, feet and ankles).

This device and its antenna(s) must not be co-located or

operating with any other antenna or transmitter except

High-power radars are allocated as primary users (i.e.

priority users) of the bands 5250-5350 MHz and 5650-

5850 MHz and that these radars could cause interference

and/or damage to LE-LAN devices.

WARNING Never place a television set in an unstable location. A

television set may fall, causing serious personal injury or

death. Many injuries, particularly to children, can be

avoided by taking simple precautions such as:

 Using cabinets or stands recommended by the

manufacturer of the television set.

 Only using furniture that can safely support the television

 Ensuring the television set is not overhanging the edge

of the supporting furniture.

 Not placing the television set on tall furniture (for

example, cupboards or bookcases) without anchoring

both the furniture and the television set to a suitable

 Not placing the television set on cloth or other materials

that may be located between the television set and

supporting furniture.

 Educating children about the dangers of climbing on

furniture to reach the television set or its controls.

If your existing television set is being retained and

relocated, the same considerations as above should be

NOTE ON AC ADAPTER (models with

supplied AC adapter only)

To reduce the risk of fire or electric shock, do not expose

this apparatus to rain or moisture.

To prevent fire or shock hazard, do not place objects filled

with liquids, such as vases, on the apparatus.

Do not install this equipment in a confined space, such as a

bookshelf or similar unit.

• Please ensure that the AC power outlet is installed near

the equipment and shall be easily accessible.

• Be sure to use the supplied AC adapter and AC power

cord. Otherwise it may cause a malfunction.

• Connect the AC adapter to an easily accessible AC power

• Do not coil the AC power cord

around the AC adapter. The

core wire may be cut and/or

it may cause a malfunction of

• Do not touch the AC adapter with wet hands.

• If you notice an abnormality in the AC adapter, disconnect

it from the AC power outlet immediately.

• The set is not disconnected from the AC source as long as

it is connected to the AC power outlet, even if the set

itself has been turned off.

• As the AC adapter will become warm when it is used for a

long time, you may feel hot when touching it by hand.

Before setting up your TV Some TV models are packaged with a detached Table-Top

Stand so you can mount your TV to a wall right away. See

page 13 (Installing the TV to the Wall) if you want to mount

the TV to a wall. If you are not mounting the TV to a wall,

you will need to attach the Table-Top Stand. You will need a

Phillips screwdriver (not supplied) and the supplied screws

to complete the task. Look for the Setup Guide.

Be sure to consider the following while setting up your TV:

• Disconnect all cables when carrying the TV.

• Carry the TV with the adequate number of people; larger

size TVs require two or more people.

• Correct hand placement while carrying the TV is very

important for safety and to avoid damage.

Declaration of Conformity

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) this device must accept any interference received,

including interference that may cause undesired

Pursuant to FCC regulations, you are cautioned that any

changes or modifications not expressly approved in this

manual could void your authority to operate this

XBR-75/65/55/49X900E XBR-75/65X850E

• Ensure your TV has adequate ventilation, see page 16.

• For best picture quality, do not expose the screen to direct

illumination or sunlight.

• Avoid installing the TV in a room with reflective wall and

• Avoid moving the TV from a cold area to a warm area.

Sudden room temperature changes may cause moisture

condensation. This may cause the TV to show poor

picture and/or poor color. Should this occur, allow

moisture to evaporate completely before powering the TV

Securing the TV Sony strongly recommends taking

measures to prevent the TV from

Unsecured TVs may topple and result

in property damage, serious bodily

injury or even death.

Preventing the TV from Toppling

• Secure the TV to a wall and/or Stand.

• Do not allow children to play or climb on furniture and TV

• Avoid placing or hanging items on the TV.

• Never install the TV on:

 slippery, unstable and/or uneven surfaces.

 furniture that can easily be used as steps, such as a

• Install the TV where it cannot be pulled, pushed, or

• Install the TV so that the TV's Table-Top Stand does not

protrude out from the Stand (not supplied). If the Table-

Top Stand protrudes out from the Stand, it may cause TV

set to topple over, fall down, and cause personal injury or

XBR-75/65/55/49X900E XBR-75/65X850E

• Route all AC power cords and connecting cables so that

they are not accessible to curious children.

Recommended Measures to Secure the

TV Consider the following measures when securing your TV to

a Stand (not supplied).

1 Secure the Stand for the TV.

Make sure the Stand can adequately support the weight

of the TV. Use two angle braces (not supplied) to secure

the Stand. For each angle brace use the appropriate

• Attach one side of the angle brace to the wall stud.

• Attach the other side to the Stand.

2 Secure the TV to the Stand.

Use the optional hardware listed as follows (not

• M6 machine screws (screwed into the TV’s rear cover).

• A screw or similar (attach it to the Stand).

• Rope or chain (strong enough to support the weight of

the TV). Make sure that there is no excess slack in the

XBR-75/65/55/49X900E XBR-75X850E XBR-65X850E The length of the M6 machine screw differs depending

on the rope or chain diameter. Please see below

Screw hole on the rear cover

(previously removed)

Rope or chain (not supplied)

Screw (not supplied)

Screw (not supplied)

Screw hole on the rear cover

(previously removed)

Rope or chain (not supplied)

3 Anchor the TV to the wall by using bolts, wall anchor and

XBR-75/65/55/49X900E XBR-75/65X850E Please see below illustration for M6 eye bolt length.

• Your TV is shipped with screws attached to the rear of the

TV depending on the TV model. (They are fastened in the

screw holes for wall mounting.) Be sure to remove the

upper two screws prior to anchoring the TV to a wall.

• Securing the TV to the Stand without securing the TV and

the Stand to the wall provides minimum protection

against the TV toppling over. For further protection, be

sure to follow the three measures recommended.

How to care for your BRAVIA TV Safety is very important. Please read and follow the safety

documentation (Safety Booklet) separately provided.

Unplug the TV and other

connected equipment from

the wall outlet before you

begin cleaning your TV.

• Wipe the LCD screen gently

• Stubborn stains may be

removed with a cloth

slightly moistened with a

solution of mild soap and

• If using a chemically

pretreated cloth, please follow the instruction provided

• Never spray water or detergent directly on the TV set. It

may drip to the bottom of the screen or exterior parts and

enter the TV set, and may cause damage to the TV set.

• Never use strong solvents such as a thinner, alcohol or

benzine for cleaning.

• Do not plug in the TV into the wall outlet until the

moisture from cleaning has evaporated.

• Do not touch the TV if your hand is covered in any

chemical substance such as hand cream or sunblock.

The TV should also be placed on a stable surface to prevent

it from toppling over

(see page 4). If you have young

children or pets at home, check regularly to ensure the TV is

Recommendation for an F type plug

Projection of the inner wire from the connection part must

be less than 1.5 mm.

M6 eye bolts (not supplied)

M6 eye bolts (not supplied)

(Reference drawing for an F type plug)

US The following chart shows the high-definition (HD) and standard-definition (SD) video formats supported by your BRAVIA TV

*1 For details of supported formats, refer to the “Specifications” in this manual.

*2 For supported PC formats refer to the Help Guide.

The BRAVIA® 4K TV Experience

Thank you for choosing Sony! Your new BRAVIA® TV

opens the door to the “4K TV Experience.” This

document will help you get the most out of your TV.

Please take a moment to register your TV at:

U.S.A.: http://productregistration.sony.com

Canada: http://www.sony.ca/registration

Four Steps to a 4K TV Experience

Set, Source, Sound, and Setup.

Now that you have made the best selection in LED

backlit LCD TV technology, be sure to remove all of the

accessories from the packaging before setting up your

To experience the stunning detail of your BRAVIA TV,

you need access to HD programming.

• Upgrade your signal or content source to high-

definition (4K) by contacting your HD service provider.

• Bring the astonishing resolution of your Sony 4K Ultra

HD TV to life with Sony 4K Ultra HD Media Player. (The

availability depends on region)

• Receive over-the-air HD broadcasts with an HD-

quality antenna connected directly to the back of your

Visit http://www.antennaweb.org for more

information on antenna selection and setup.

• Discover the wealth of entertainment now available

on super-high resolution Blu-ray Disc™ player and

other Sony HD equipment.

Complete the high-definition experience with a BRAVIA Sync™ surround sound system or A/V receiver from

Install your TV and connect your sources. See page 11

for sample connection diagrams. To help assure the

highest quality for your 4K experience, use Sony HDMI

(High-Definition Multimedia Interface) cables.

To learn more about 4K TV, visit:

When the TV is off, Press  to power on. When the TV is on, Press and hold  to power off.Press  repeatedly to change the function, then press + or – button to:•Adjust the volume.• Select the channel.• Select the input source of TV.  Remote Control sensor* / Light

/ Illumination LED The illumination LED lights up or blinks according to the status of the TV. For more information, refer to the Help Guide.* Do not place anything near the sensor. Controls and Indicators

US Using Remote Control The remote control shape, location, availability and function of remote control button may vary depending on your region/country/TV model.  INPUT Display and select the input source. (Microphone) Use Voice Function. (e.g., Search various content by voice.) POWER Turn on or turn off the TV (standby mode). SYNC MENU Display the BRAVIA Sync Menu.  Number buttons

Use with the 0-9 buttons to select digital channels. DISPLAY Display information about the channel/program/input you are viewing. Remote Control Parts Description

Access the “Google Play” online service.

NETFLIX (Only on limited region/

Access the “NETFLIX” online service.

Execute corresponding function at that

 ACTION MENU Display a list of contextual functions.

• Switch to a TV channel or input from

• Turn on the TV to display TV channel

GUIDE Display the digital program guide.

BACK Return to previous screen.

HOME Display the TV Home Menu.

DISCOVER Bring up the Content Bar to search for

JUMP Jump back and forth between two

channels or inputs. The TV alternates

between the current channel or input

and the last channel or input that was

MUTING Mute the sound. Press again to restore

 AUDIO Change the language for the program

currently being viewed.

Operate media contents on TV and

connected BRAVIA Sync-compatible

SUBTITLE/CC Turn subtitles on or off (when the

PIC OFF Turn the picture off, while sound

Guidelines for IR Remote Control

• Point your remote control directly at

the IR sensor located on your TV.

• Make sure that no objects are blocking

the path between the remote control

and the IR sensor on your TV.

• Fluorescent lamps can interfere with

your remote control; try turning off the

• If you are having problems with the

remote control, reinsert or replace your

batteries and make sure that they are

For more information on connections, refer to the Help Guide by pressing HELP on the

Note • When connecting the cable to the Cable/Antenna input, finger tighten only, over tightening the connection can damage the TV.

Headphone/Home Audio System/SubwooferDigital still camera/Camcorder/USB storage mediaHDMI DeviceHome Audio System with ARC/HDMI DeviceCable/AntennaHome Audio System with Optical Audio InputDVD player with component outputRouterIR BlasterVCR/Video game equipment/DVD player/CamcorderHDMI DeviceVCR/Video game equipment/DVD player/CamcorderSet Top Box/ ControllerDVI-HDMI Adapter/HDMI DeviceSet Top Box/ ControllerDVI-Audio Out12

• Connecting a large USB device may

interfere with other connected

• When connecting a large USB device,

connect to the USB 1 port.

• Supports 3-pole stereo mini jack only.

• To listen to the TV's sound through

the connected equipment, press

HOME. Select [Settings]  [Sound]

 [Headphone/Audio out] and then

select the desired item.

• If the device has a DVI jack, connect it

to HDMI IN 1 through a DVI - HDMI

adaptor interface (not supplied), and

connect the device's audio out jack to

• If connecting a digital audio system

that is compatible with Audio Return

Channel (ARC) technology, use HDMI IN 3. If not, an additional connection

with DIGITAL AUDIO OUT (OPTICAL) is

• For a composite connection, use an

• These jacks are for receiving the

external control signal. Enables

extended control of the TV using

RS-232C via the RS-232C and IR IN

RS-232C: connect to the RS-232C

terminal of the home controller.

IR IN: connect to the IR out terminal

of the home controller.

• Take care to not connect to

headphones or an external audio

*1 When connecting mono equipment, connect to

the L (MONO) audio jack (socket).

*2 Only on limited region/country/TV model.

US Installing the TV to the Wall

This TV’s instruction manual only shows the steps on preparing the installation of the TV

before installing to the wall.

Your TV can be mounted on a wall using a Wall-Mount Bracket (not supplied) out of the box

as packaged. If the Table-Top Stand is attached to the TV, the TV may require detaching the

Table-Top Stand; see page 15 (Detaching the Table-Top Stand from the TV).

Prepare the TV for the Wall-Mount Bracket before making cable connections.

For product protection and safety reasons, Sony strongly recommends that installation of

your TV on the wall be performed by qualified professionals. Do not attempt to install it

• Follow the instruction guide provided with the Wall-Mount Bracket for your model.

Sufficient expertise is required in installing this TV, especially to determine the

strength of the wall for withstanding the TV’s weight.

• The length of the screw for Wall-Mount Bracket differs depending on the Wall-Mount

Bracket thickness. Please see below illustration.

• Be sure to store the unused screws and Table-Top Stand in a safe place until you are

ready to attach the Table-Top Stand. Keep the screws away from small children.

Note • Read the supplied Safety Booklet for additional safety information.

1 Remove the screws from the rear of the TV.

2 Attach the Wall-Mount Bracket (not supplied) using the screws (not supplied).

Note • If using an electric screwdriver, set the torque at approximately 1.5 N·m {15 kgf·cm}.

Screw (not supplied)

XBR-75/65X850E Wall-Mount Bracket

Screw (not supplied)15

XBR-75X900E / 75X850E / 65X900E / 65X850E / 55X900E / 49X900E

US To detach the Table-Top Stand from the TV, remove the screws .

XBR-75/65/55/49X900E XBR-75/65X850E Note

• Do not remove the Table-Top Stand for any reason other than to install corresponding accessories on the

• Be sure the TV is vertical before turning on. To avoid uneven picture uniformity do not power on the TV

with the LCD panel facing down.

• When attaching the Table-Top Stand again, be sure to fasten the screws (previously removed) to the

original holes on the rear of the TV.

Detaching the Table-Top Stand from the TV16

US D:\_SONY TV\SY160244_KHKS UC2 RG\4690447121_US\030ADD_US.fm masterpage: Left

XBR-75X900E / 75X850E / 65X900E / 65X850E / 55X900E / 49X900E

Installing the TV against a wall or enclosed area

• Never cover the ventilation holes or insert anything in the cabinet.

• Leave space around the TV set as shown below.

• Inadequate ventilation can lead to overheating of the TV and may cause damage to your TV or cause a

Leave at least this much space around the set.

Installed with stand 4 inches 11

8 inches(10 cm) (10 cm)(6 cm)

Installed on the wall

Leave at least this much space around the set. 4 inches4 inches (10 cm)4 inches 11

8 inches(30 cm)(10 cm) (10 cm)

Never install the TV set as follows:

Air circulation is blocked. Air circulation is blocked.

General troubleshooting for issues like:

black screen, no sound, frozen picture, TV

does not respond, or network is lost, do the

1 Restart your TV by pressing the power

button on the remote control until a

message appears. The TV will restart. If

the TV does not recover, try unplugging

the TV from the AC power cord for two

minutes and then plug it in again.

2 Refer to the Help menu by pressing HELP

on the remote control.

3 Connect your TV to the Internet and

perform a software update.

4 Visit Sony support website (information

provided on the front cover).

5 Perform the factory data reset. Refer to

“How to reset the TV to factory settings”

When [A new TV system software update

is available...] message is displayed.

Sony strongly recommends you to update

the TV software by selecting [Update Now].

These software updates improve your TV

performance or add new features.

The following screen with [Updating…] will

appear and the illumination LED flashes

white while software is updating.

Do not unplug the AC power cord during

the software update. If you do, the software

update may not finish completely, and it

may cause a software malfunction.

Software updates can take up to 15

When you plug in TV, the TV may not be

able to turn on for a while even if you

press the power button on the remote

It takes time to initialize the system. Wait

for about one minute, then operate it

How to reset the TV to factory settings

WARNING: The reset will clear all of your

customized settings including the parental

lock for broadcast setting.  Turn on the TV. You can reset the TV to factory settings by pressing HOME, then

 [Storage & reset] 

[Factory data reset].  To force factory data reset, unplug the AC power cord. Press and hold both  and –

buttons on the TV, then plug in the AC power

cord. Release both buttons when the

illumination LED blinks in green.  For security purposes, be sure to remove all personal and account information before

discarding, selling or passing your TV to

someone else by: unlinking/unregistering,

signing out of and deactivating all network

services as well as factory reset the TV.

Troubles and Solutions

When the illumination LED is flashing in

red.  Count how many times it flashes (interval time is three seconds).

Reboot the TV by disconnecting the AC

power cord from the TV for two minutes,

then turn on the TV.

If the problem persists, disconnect the AC

power cord, and contact Sony Customer

Support (information provided on the front

cover) with the number of times the

illumination LED flashes.

There is no picture (screen is dark) and no

sound.  Check the cable/antenna connection. Connect the TV to AC power, and press the  button on the TV or POWER button on the

Some programs cannot be tuned.  Check the cable/antenna connection. The remote control does not function.  Replace the batteries. Updating...18

XBR-75X900E / 75X850E / 65X900E / 65X850E / 55X900E / 49X900E

The parental lock for broadcast password

 Enter 4357 for the password and select

The restricted profile password has been

 Perform the force factory data reset. Refer to

How to reset the TV to factory settings”

The TV and its surroundings become

 When the TV is used for an extended period

of time, the TV and its surroundings may

become warm to the touch. This is not a

malfunction of the TV.

NTSC: American TV standard

ATSC (8VSB terrestrial): ATSC compliant 8VSB QAM on cable: ANSI/SCTE 07 2000 (Does not

include CableCARD functionality)

LCD (Liquid Crystal Display) Panel, LED Backlight

10 W + 10 W Wireless technology

Video input (common phono pin with Y

HDMI IN 1/2/3/4 (Support 4K resolution,

88.2, 96, 176.4 and 192 kHz, 16, 20 and 24

bits, Dolby Digital, Dolby Digital Plus and DTS ARC (Audio Return Channel) (HDMI IN 3

(Two channel linear PCM: 48 kHz, 16 bits,

US DIGITAL AUDIO OUT (OPTICAL)

Digital optical jack (Two channel linear PCM:

48 kHz, 16 bits, Dolby Digital, DTS)

Headphone, Audio output, Subwoofer

USB port 1 and 2 support High Speed USB

USB port 3 supports Super Speed USB

(Connection speed may differ depending on

the network environment. 10BASE-T/

100BASE-TX communication rate and

communication quality are not guaranteed

Refer to the Help Guide for supported

DC IN 24 V (XBR-65X900E only)

AC adapter input (24 V DC)

DC IN 19.5 V (XBR-55/49X900E only)

AC adapter input (19.5 V DC)

REMOTE RS-232C mini jack, IR IN mini jack

These jacks are for receiving the external

Operating temperature

except model with supplied AC adapter

110 V - 240 V AC, 50/60 Hz (U.S.A./Canada

models with supplied AC adapter only

24 V DC with AC adapter (XBR-65X900E only)

19.5 V DC with AC adapter (XBR-55/49X900E

Less than 0.50 W with 120 V AC and less than

0.50 W with 240 V AC Screen size (inches measured diagonally)

XBR-75X900E: 74.5 inches (75” class)

XBR-75X850E: 74.5 inches (75” class)

XBR-65X900E: 64.5 inches (65” class)

XBR-65X850E: 64.5 inches (65” class)

XBR-55X900E: 54.6 inches (55” class)

XBR-49X900E: 48.5 inches (49” class)

wall-mount hole pattern

XBR-49X900E: 200 × 200 mm

wall-mount screw size (mm)

M6 (length: see diagram on page 13.)20

US D:\_SONY TV\SY160244_KHKS UC2 RG\4690447121_US\040TRO_US.fm masterpage: Left

XBR-49X900E: 12.6 kg / 27.8 lb.

*1 Only on limited region/country/TV model.

*2 Specified standby power is reached after

the TV finishes necessary internal

*3 Standby power consumption will increase

when your TV is connected to the network.

Note • Optional accessories availability depends on countries/region/TV model/stock.• Design and specifications are subject to change without notice. Licensing Information

• The terms HDMI and HDMI High-

Definition Multimedia Interface, and

the HDMI Logo are trademarks or

registered trademarks of HDMI Licensing LLC in the United States and

• Manufactured under license from

Dolby Laboratories. Dolby, Dolby

Audio, and the double-D symbol are

trademarks of Dolby Laboratories.

•“BRAVIA” and , S-Force,

Motionflow, BRAVIA Sync, and are

VideoID, Gracenote Video Explore, the

Gracenote logo and logotype, and the

“Powered by Gracenote” logo are

either registered trademarks or

trademarks of Gracenote in the United

States and/or other countries.

• Opera® Devices SDK. Copyright 1995-

2016 Opera TV AS. All rights reserved.

• Wi-Fi, Wi-Fi Direct, Miracast, Wi-Fi

Protected Setup and Wi-Fi CERTIFIED Logo are trademarks or registered

trademarks of Wi-Fi Alliance.

• For DTS patents, see

http://patents.dts.com. Manufactured

under license from DTS, Inc. DTS, the

Symbol, & DTS and the Symbol

together are registered trademarks,

and DTS Digital Surround is a

trademark of DTS, Inc. © DTS, Inc. All

• The Bluetooth® word mark and logos

are registered trademarks owned by

the Bluetooth SIG, Inc. and any use of

such marks by Sony Corporation is

under license. Other trademarks and

trade names are those of their

• TUXERA is a registered trademark of

Tuxera Inc. in the US and other

Canada applicables aux appareils radio exempts de licence.

DTS ARC (Audio Return Channel) (HDMI IN 3

DIGITAL AUDIO OUT (OPTICAL)

mention « Powered by Gracenote »

• Wi-Fi, Wi-Fi Direct, Miracast, Wi-Fi

© 2017 Sony Corporation Printed in Mexico

Be sure to register your TV.

Your TV is capable of receiving software updates. For the

latest information about software updates for your TV, visit:

http://www.sony.com/tvsupport

http://www.sony.ca/support

NOTE: If your TV is connected to the Internet, you can check

for software updates by pressing HELP, and select [System

http://www.sony.ca/support
