SA 2966 - Toaster SEVERIN - Free user manual and instructions

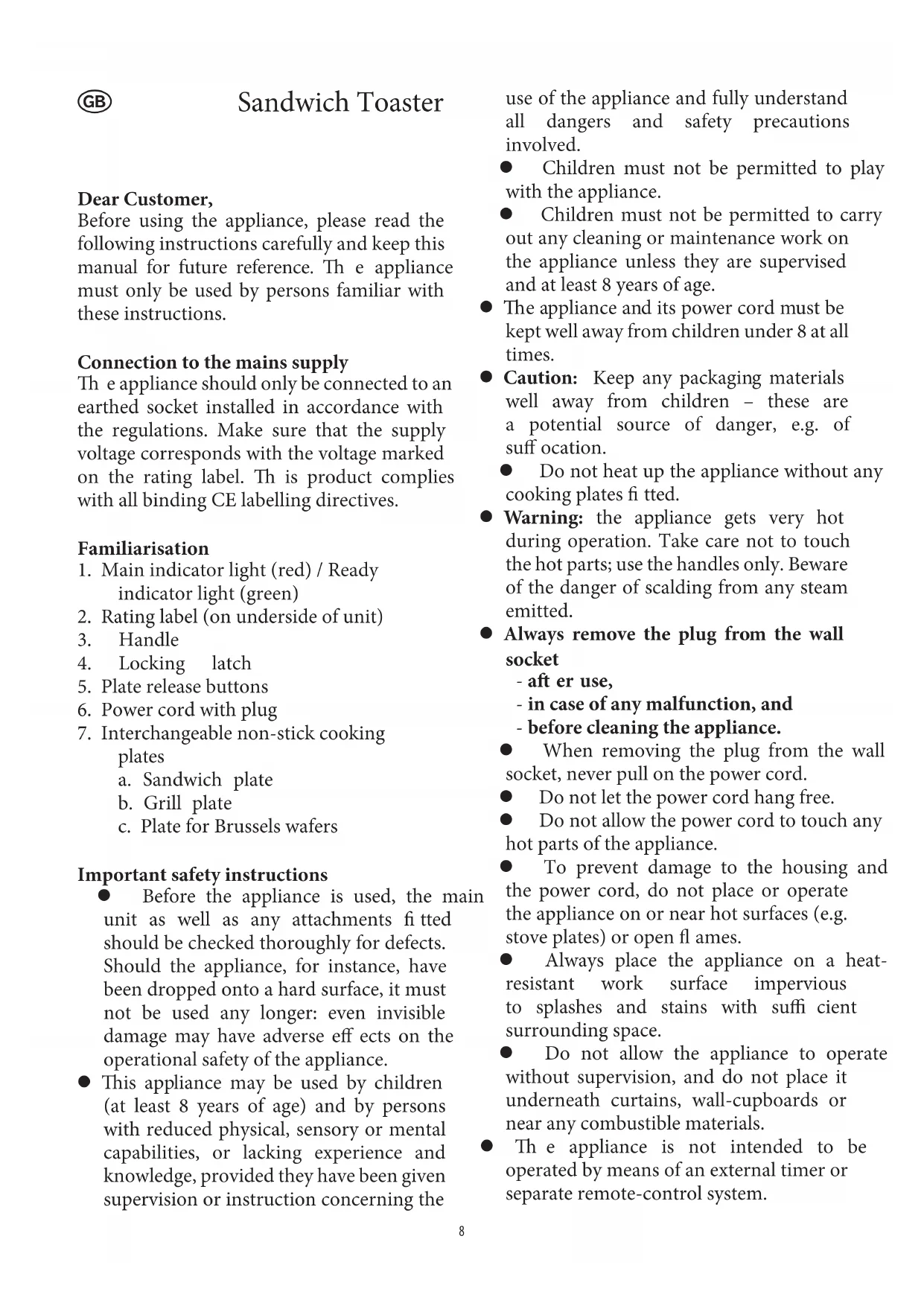

USER MANUAL SA 2966 SEVERIN

Before using the appliance, please read the following instructions carefully and keep this manual for future reference. The appliance must only be used by persons familiar with these instructions.

Connection to the mains supply

The appliance should only be connected to an earthed socket installed in accordance with the regulations. Make sure that the supply voltage corresponds with the voltage marked on the rating label. Th is product complies with all binding CE labelling directives.

Familiarisation

1. Main indicator light (red) / Ready indicator light (green)
2. Rating label (on underside of unit)
3. Handle
4. Locking latch
5. Plate release buttons
6. Power cord with plug
7. Interchangeable non-stick cooking plates

a. Sandwich plate

b. Grill plate

c. Plate for Brussels wafers

Important safety instructions

- Before the appliance is used, the main unit as well as any attachments fitted should be checked thoroughly for defects. Should the appliance, for instance, have been dropped onto a hard surface, it must not be used any longer: even invisible damage may have adverse effects on the operational safety of the appliance.

- This appliance may be used by children (at least 8 years of age) and by persons with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, provided they have been given supervision or instruction concerning the

use of the appliance and fully understand all dangers and safety precautions involved.

● Children must not be permitted to play with the appliance.

● Children must not be permitted to carry out any cleaning or maintenance work on the appliance unless they are supervised and at least 8 years of age.

• The appliance and its power cord must be kept well away from children under 8 at all times.
• Caution: Keep any packaging materials well away from children – these are a potential source of danger, e.g. of suffocation.

- Do not heat up the appliance without any cooking plates fitted.

• Warning: the appliance gets very hot during operation. Take care not to touch the hot parts; use the handles only. Beware of the danger of scalding from any steam emitted.
  ● Always remove the plug from the wall socket

• aft er use,

• in case of any malfunction, and

• before cleaning the appliance.

• When removing the plug from the wall socket, never pull on the power cord.

• Do not let the power cord hang free.
• Do not allow the power cord to touch any hot parts of the appliance.
• To prevent damage to the housing and the power cord, do not place or operate the appliance on or near hot surfaces (e.g. stove plates) or open flames.
  ● Always place the appliance on a heat-resistant work surface impervious to splashes and stains with sufficient surrounding space.
• Do not allow the appliance to operate without supervision, and do not place it underneath curtains, wall-cupboards or near any combustible materials.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

- No responsibility is accepted if damage results from improper use, or if these instructions are not complied with.

correctly inserted and are safely locked.

● This appliance is intended for domestic or similar applications, such as

• in shops, offi ces and other similar working environments,
• in agricultural areas,
• by customers in hotels, motels etc. and similar establishments,
• in bed-and breakfast type environments.

- In order to comply with safety regulations and to avoid hazards, repairs of electrical appliances must be carried out by qualified personnel, including the replacement of the power cord. If repairs are needed, please send the appliance to one of our customer service departments. The addresses can be found in the appendix to this manual.

First use

- Allow the appliance, with each set of plates in succession, to heat up for about 10 minutes with the two halves closed. Th is will remove the smell typically encountered when fi rst switching on any sandwich toaster. Ensure suffi cient ventilation.

- Clean the appliance and the plates aft erwards as described in Cleaning and Care.

Changing the cooking plates

● Always allow sufficient time for the unit to cool down before any plates are changed.
- To change the plates, unlatch the handle and open the appliance.
- Slide the plate release buttons towards the handle remove the plate in the same direction.
- Insert the plates desired, ensuring that the protruding studs on the plate are safely engaged in the corresponding recesses on the appliance. Push the plates down until they are heard locking into place.

- Before the appliance is switched on, ensure that the new plates have been –

Operation

- Fit the cooking plates required to the appliance and close it.

- Insert the plug into a suitable wall outlet. The red main indicator light comes on.

- Once the operating temperature has been reached, the green indicator light comes on and shows the appliance is ready for use.

- Open the appliance.

- Place the prepared food or sandwiches onto the lower housing element and close the upper housing element.

- The locking latch is used only when making sandwiches. Use the handle to press down on the upper housing element and engage the locking latch.

- We recommend the following cooking times:

- approx. 2-4 minutes for sandwiches, - approx. 4-5 minutes for wafers.

Note: Depending on the recipe, and the texture and temperature of the dough, the cooking times for waffles may vary.

- For grilling, the cooking times largely depend on the food type.

- Open the appliance and take out the food. In order to prevent the non-stick cooking plates from being damaged, do not use sharp or pointed objects while placing or removing food.

- Always remove the plug from the wall socket after use and allow the appliance to cool down before cleaning.

Cleaning and care

- Before cleaning, remove the plug from the wall socket and wait until the appliance has cooled down with the cooking plates open.

● To avoid the risk of electric shock, do not clean the appliance with water and do not immerse it in water.

- Do not use abrasives or harsh cleaning solutions.

The exterior surfaces of the appliance may

be cleaned with a damp, lint-free cloth.

- For easy cleaning, the non-stick coated plates can be removed and cleaned using hot water and a mild detergent. Ensure they are thoroughly dried aft erwards.

Recipes

Sandwiches

- Before toasting, always lightly butter outside of the bread and place the slices with the buttered side against the cooking plates. The butter helps the browning process and makes it easier to remove the toast from the cooking plates.

- The filling (cheese, ham etc.) should be cut to match the sandwich shape. Ensure that the filling does not overlap the slice of bread.

Ham and cheese sandwich

Ingredients:

4 slices sandwich bread, 4 slices of lean cooked ham, 2 slices of Dutch cheese, paprika powder.

Preparation:

Put one slice of ham and one of cheese on to 2 of the bread slices, season with paprika and then cover with the two remaining slices of ham and bread.

Cheese sandwich

Ingredients:

4 slices sandwich-bread, 65g butter, 125g of grated cheese, 2 egg yolks, salt, paprika powder, finely chopped parsley.

Preparation:

Beat the butter until creamy smooth, add grated cheese and egg yolk, season with salt, paprika and parsley. Spread the cheese mixture onto 2 slices of bread. Cover with the 2 remaining pieces of bread.

Tuna fi sh sandwich

Ingredients:

4 slices sandwich bread, 1 tin of tuna, 4 slices cheese, 6-8 stuff ed olives (sliced).

Preparation:

Butter the outside of each piece of bread, add 2 slices of cheese, the tuna and sliced olives, cover with the two remaining pieces of bread.

Waffl es

- The plates should be lightly greased before the waffle dough is put on.

Brussels waffl es

theIngredients:

100g butter, 125g fl our, 1 tbsp sugar, 1 tsp vanilla powder (unsweetened), salt, 250ml milk, 4 egg yolks, 4 egg whites.

Preparation:

Melt the butter. Put the fl our into a bowl and mix it together with the sugar, vanilla powder and a pinch of salt. Stir in the milk and butter – allow it to cool down fi rst – and continue until the dough is smooth. Add the egg yolks and mix thoroughly. Whip the egg white until it is fi rm and then fold it gently into the dough.

Once they are baked, sprinkle the waffl es with icing sugar and serve with cream, vanilla ice cream, honey or fruit.

Disposal

Do not dispose of old or defective appliances in domestic garbage; this should only be done through public collection points.

Guarantee

Th is product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. Th is guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

Th is guarantee naturally does not cover wear

and tear, nor breakables such as glass and ceramic items, bulbs etc. Th is guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.
