USER MANUAL SPF71ES SAMSUNG
Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register
Model ____ Serial No. ____

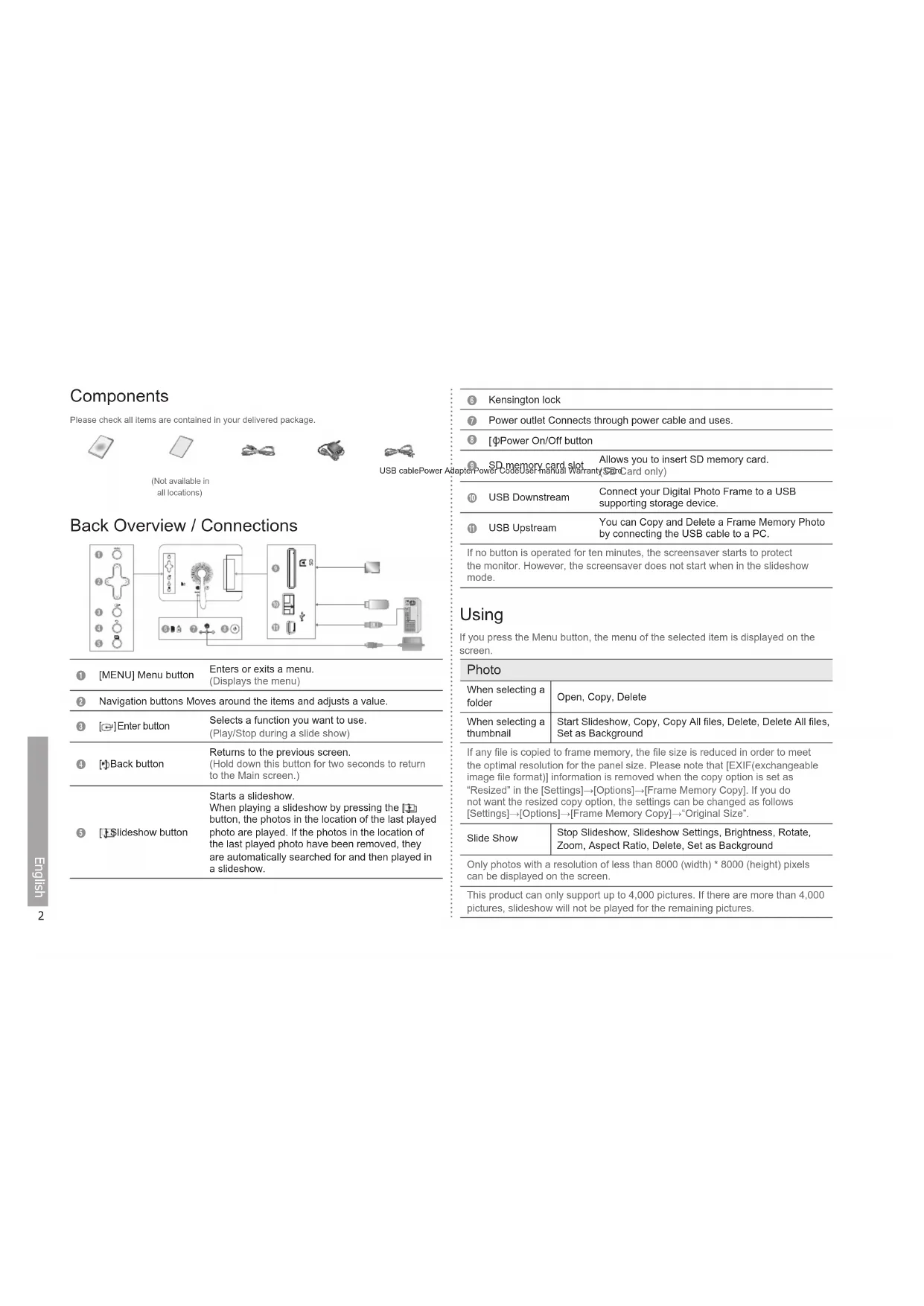

Please check all items are contained in your delivered package.
(Not available in all locations)

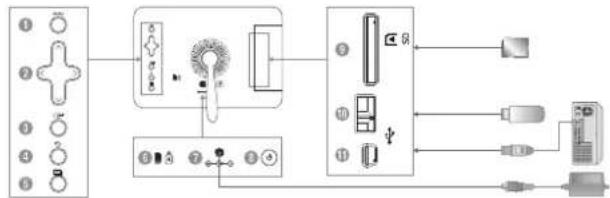

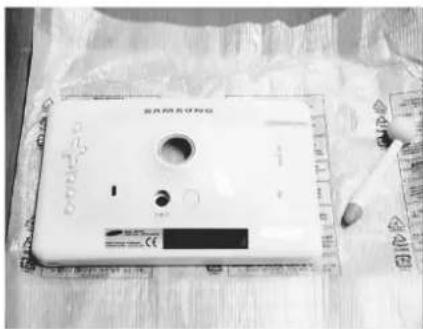

Back Overview / Connections
① [MENU] Menu button
Enters or exits a menu. (Displays the menu)
② Navigation buttons Moves around the items and adjusts a value.
| 3 | [→] Enter button | Selects a function you want to use.(Play/Stop during a slide show) |
| 4 | [→] Back button | Returns to the previous screen.(Hold down this button for two seconds to return to the Main screen.) |
| 5 | [→] Slideshow button | Starts a slideshow.When playing a slideshow by pressing the [→] button, the photos in the location of the last played photo are played. If the photos in the location of the last played photo have been removed, they are automatically searched for and then played in a slideshow. |
6 Kensington lock
7 Power outlet Connects through power cable and uses.
8 [Power On/Off button
SD memory card slot Allows you to insert SD memory card. Power Code User manual Warranty Card only)
⑩ USB Downstream
Connect your Digital Photo Frame to a USB supporting storage device.
USB Upstream
You can Copy and Delete a Frame Memory Photo by connecting the USB cable to a PC.
If no button is operated for ten minutes, the screensaver starts to protect the monitor. However, the screensaver does not start when in the slideshow mode.
Using
If you press the Menu button, the menu of the selected item is displayed on the screen.
| When selecting a folder | Open, Copy, Delete |
| When selecting a thumbnail | Start Slideshow, Copy, Copy All files, Delete, Delete All files, Set as Background |
| If any file is copied to frame memory, the file size is reduced in order to meet the optimal resolution for the panel size. Please note that [EXIF(exchangeable image file format)] information is removed when the copy option is set as "Resized" in the [Settings]→[Options]→[Frame Memory Copy]. If you do not want the resized copy option, the settings can be changed as follows [Settings]→[Options]→[Frame Memory Copy]→"Original Size". | |
| Slide Show | Stop Slideshow, Slideshow Settings, Brightness, Rotate, Zoom, Aspect Ratio, Delete, Set as Background |
Only photos with a resolution of less than 8000 (width) * 8000 (height) pixels can be displayed on the screen.
This product can only support up to 4,000 pictures. If there are more than 4,000 pictures, slideshow will not be played for the remaining pictures.
| Clock | |
| Date and Time, Time Format, Date Format, Clock Type | |
| Settings | |
| Options | Language, Brightness, Auto Fit Portrait Photo, Frame Memory Copy |
| Preference | Starting Mode, Screen Saver, Home Background, Auto Picture On/Off |
| Update/Reset Firmware Update, Reset Settings, Product Information | |
Updating the firmware
| Preparations | |
| • Digital Photo Frame, Firmware update file, SD card or USB memory stick | |
| Updating | |
| 1 | Please visit the Download Center (http://www.samsung.com) and download the firmware by searching the model name. |
| 2 | Please download appropriate firmware and decompress it. |
| 3 | Please copy the decompress file (***.isp) to either an SD card or USB memory stick and connect to the Digital Photo Frame. |
| 4 | Please select [Settings]→[Update/Reset]→[Firmware Update] for firmware update. |
| 5 | When update is completed, please turn off, then turn on the Digital Photo Frame. |
| The firmware version can be checked through [Settings]→[Update/Reset]→[Product Information]. | |
Troubleshooting
| Symptoms Causes and Actions | |
| I have connected an external storage device but it is not recognized. | Check the connection between product and external storage.Connect to PC and check the operation state. |
| It takes time to display the next photo. | When the resolution is high or the file size is large, it takes some time to display on the screen. |
Specifications
| Items Specifications | |||
| Model Name SPF-71E SPF-71ES | |||
| Panel | Type 7 inch (17 cm) TFT (Analog) | ||
| Resolution 480 x 234 | |||
| Supported Formats JPEG (Progressive,CMYK JPEG is not supported.) | |||
| Built-in Memory 120 MB 1 GB | |||
| USB | Host (USB 1.1) / Device (USB 2.0) | Host (USB 2.0) / Device (USB 2.0) | |
| Power | Rating External | DC power adapter (12 V) | |
| Consumption | Normal mode : 4.8 WPower off mode : under 1 W | ||
| General | Dimensions(W x H x D) | 217.5 mm x 156.5 mm x 43 mm(8.56 inch x 6.16 inch x 1.69 inch) | |
| Weight 496.3 g | (1.09 lbs) | ||
| The product design may differ according to the model, and specifications are subject to change without prior notice for product performance enhancement. | |||
Important Safety Instructions
WARNING: RISK OF ELECTRIC SHOCK DO NOT OPEN.
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER • (OR BACK). THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO QUALIFIED PERSONNEL.
The slots and openings in the cabinet and in the back or bottom are provided • for necessary ventilation. To ensure reliable operation of this apparatus, and to protect it from overheating, these slots and openings must never be blocked or covered.
- Do not cover the slots and openings with a cloth or other materials.
- Do not block the slots and openings by placing this apparatus on a bed, sofa, rug or other similar surface.
- Do not place this apparatus in a confined space, such as a bookcase, or builtin cabinet, unless proper ventilation is provided.
Do not place this apparatus near or over a radiator or heat resistor, or where it is exposed to direct sunlight.
Do not place a water containing vessel(vases etc.) on this apparatus, as this can result in a risk of fire or electric shock.
Do not expose this apparatus to rain or place it near water(near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool etc.). If this apparatus accidentally gets wet, unplug it and contact an authorized dealer immediately. Make sure to pull out the power cord from the outlet before cleaning.
Do not overload wall outlets, extension cords or adaptors beyond their capacity, since this can result in fire or electric shock.
Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plug end, adaptors and the point where they exit from the appliance. To protect this apparatus from a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system.
This will prevent damage to the set due to lightning and power line surges. Before connecting the AC power cord to the DC adaptor outlet, make sure the voltage designation of the DC adaptor corresponds to the local electrical supply. Never insert anything metallic into the open parts of this apparatus. Doing so many create a danger of electric shock.
To avoid electric shock, never touch the inside of this apparatus. Only a qualified technician should open this apparatus.
Make sure to plug the power cord in until it is firmly inserted. When removing the power cord, make sure to hold the power plug when pulling the plug from the outlet. Do not touch the power cord with wet hands.
If this apparatus does not operate normally - in particular, if there are any unusual sounds or smells coming from it
- unplug it immediately and contact an authorized dealer or service center.
- Be sure to contact an authorized service center, when installing your set in a location with heavy dust, high or low temperatures, high humidity, chemical substances and where it operates for 24 hours such as the airport, the train station etc. Failure to do so may cause serious damage to your set.
- Use only a properly grounded plug and receptacle.
- An improper ground may cause electric shock or equipment damage. (Class I Equipment only.)
To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.
- Do not allow children to hang onto the product.
- Store the accessories (battery, etc.) in a location safely out of the reach of children.
- Do not install the product in an unstable location such as a shaky self, a slanted floor or a location exposed to vibration.
- Do not drop or impart any shock to the product. If the product is damaged, disconnect the power cord and contact a service center.
- Unplug the power cord from the power outlet and wipe the product using a soft, dry cloth. Do not use any chemicals such as wax, benzene, alcohol, thinners, insecticide, air freshener, lubricant or detergent. This may damage the appearance or erase the printing on the product.
- Apparatus shall not be exposed to dripping or splashing.
WARNING - TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES- OR OTHER OPEN FLAMES AWAY FROM THIS PRODUCT AT ALL TIMES.
