USER MANUAL 322200 PRINCESS

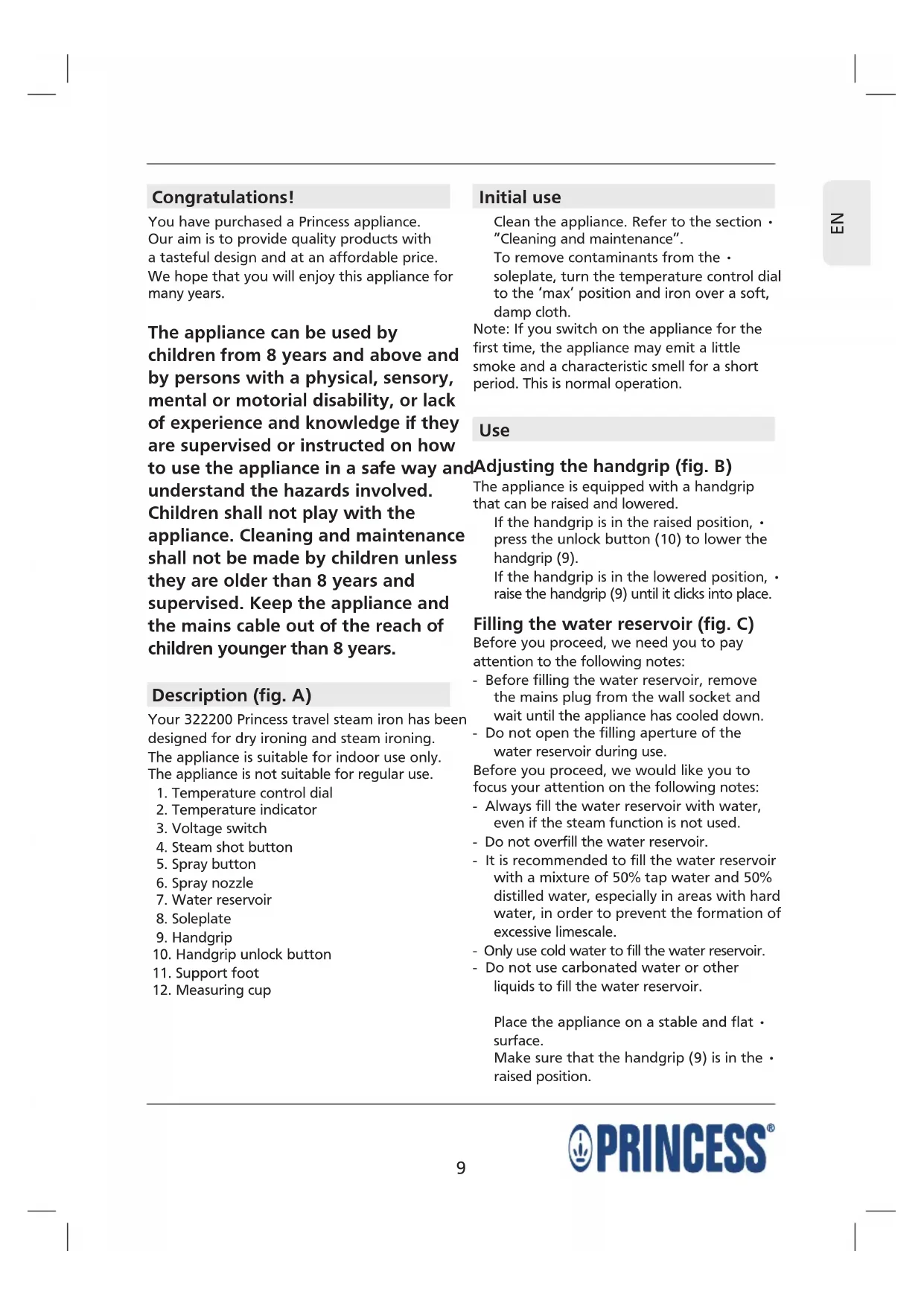

You have purchased a Princess appliance. Our aim is to provide quality products with a tasteful design and at an affordable price. We hope that you will enjoy this appliance for many years.

The appliance can be used by children from 8 years and above and by persons with a physical, sensory, mental or motorial disability, or lack of experience and knowledge if they are supervised or instructed on how to use the appliance in a safe way an understand the hazards involved. Children shall not play with the appliance. Cleaning and maintenance shall not be made by children unless they are older than 8 years and supervised. Keep the appliance and the mains cable out of the reach of children younger than 8 years.

Description (fig. A)

Your 322200 Princess travel steam iron has been designed for dry ironing and steam ironing. The appliance is suitable for indoor use only. The appliance is not suitable for regular use.

1. Temperature control dial
2. Temperature indicator
3. Voltage switch
4. Steam shot button
5. Spray button
6. Spray nozzle
7. Water reservoir
8. Soleplate
9. Handgrip
10. Handgrip unlock button
11. Support foot
12. Measuring cup

Initial use

Clean the appliance. Refer to the section "Cleaning and maintenance".

To remove contaminants from the - soleplate, turn the temperature control dial to the 'max' position and iron over a soft, damp cloth.

Note: If you switch on the appliance for the first time, the appliance may emit a little smoke and a characteristic smell for a short period. This is normal operation.

Use

Adjusting the handgrip (fig. B)

The appliance is equipped with a handgrip that can be raised and lowered.

If the handgrip is in the raised position, press the unlock button (10) to lower the handgrip (9).

If the handgrip is in the lowered position, raise the handgrip (9) until it clicks into place.

Filling the water reservoir (fig. C)

Before you proceed, we need you to pay attention to the following notes:

• Before filling the water reservoir, remove the mains plug from the wall socket and wait until the appliance has cooled down.
• Do not open the filling aperture of the water reservoir during use.

Before you proceed, we would like you to focus your attention on the following notes:

• Always fill the water reservoir with water, even if the steam function is not used.
• Do not overfill the water reservoir.
• It is recommended to fill the water reservoir with a mixture of 50% tap water and 50% distilled water, especially in areas with hard water, in order to prevent the formation of excessive limescale.
• Only use cold water to fill the water reservoir.
• Do not use carbonated water or other liquids to fill the water reservoir.

Place the appliance on a stable and flat surface.

Make sure that the handgrip (9) is in the raised position.

Open the cover (13).

Fill the water reservoir (7) with water up to the maximum mark on the measuring cup (12).

Close the cover (13).

Setting the voltage (fig. A)

Before use, the appliance must be set to the correct voltage: 115V or 230V. The voltage must be set using the voltage switch.

Before you proceed, we need you to pay attention to the following notes:

• Before inserting the mains plug into the wall socket, make sure that the voltage switch is set to the correct voltage.

Move the voltage switch (3) to the left to set the voltage to 115V.

Move the voltage switch (3) to the right to set the voltage to 230V .

Setting the temperature

(fig.A,D & E)

The temperature must be set according to the type of fabric.

Before you proceed, we need you to pay attention to the following notes:

• Always turn the temperature control dial to the 'min' position before inserting the mains plug into the wall socket or removing the mains plug from the wall socket.

Turn the temperature control dial (1) clockwise to increase the temperature.

The temperature indicator (2) remains on during the process. The temperature indicator (2) goes off when the soleplate

(8) has reached the required temperature.

Turn the temperature control dial (1) counterclockwise to decrease the

temperature. The temperature indicator (2) remains on during the process. The temperature indicator (2) goes off when the soleplate (8) has reached the require temperature.

Label Type of fabric Temperature (fig. E) (fig. D)

A The fabric must not be ironed.
B Synthetic (acryl, modacrylic, polypropylene, polyurethane) A
C Synthetic (acetate, triacetate) B
C Synthetic (metal, nylon, polyester, viscose) B
C Silk B
C Wool B
C Cotton C (dry ironing)

steam ironing)

D Linen C (dry ironi)

steam ironing)

Hints for use

Make sure that the handgrip (9) is in the raised position. Fill the water reservoir (7) with water.
- Place the appliance with the support feet (11) on a stable and flat surface.
- Insert the mains plug into the wall socket.
- Turn the temperature control dial (1) to set the required temperature. The iron starts heating. The temperature indicator (2) remains on during the process.
- If the temperature indicator (2) goes off, the soleplate (8) has reached the required temperature. The appliance is ready for use.
- If you interrupt the process, place the appliance with the support feet (11) on a stable and flat surface.
After use, turn the temperature control dial (1) to the 'min' position.
- Place the appliance with the support feet (11) on a stable and flat surface.
- Remove the mains plug from the wall socket.
- Allow the appliance to cool down completely.

Spray function (fig. A)

For dry ironing, the spray button can be used to spray water on the fabric.

Before you proceed, we would like you to focus your attention on the following notes:

• Do not use the spray function for steam ironing.

Shortly press the spray button (5) for a vaporised spray.

Keep the spray button (5) pressed for a dense spray.

Note: For delicate fabrics, moisten the fabric using the spray function before use or put a damp cloth between the soleplate and the fabric. Do not use the spray function on silk or synthetic fabrics in order to prevent staining.

Steam shot function (fig. A)

For steam ironing, the steam shot button can be used to supply a shot of steam that can penetrate the fabric and remove the most stubborn creases.

Before you proceed, we would like you to focus your attention on the following notes:

• Do not use the steam shot function for dry ironing.

Press the steam shot button (4) once to supply a shot of steam.

Press the steam shot button (4) at intervals to iron vertically (curtains, hung garments, etc.).

Note: The steam shot function can only be used at high temperatures. Do not use the steam shot function when the temperature indicator comes on. Only use the steam shot function again when the temperature indicator goes off.

Ironing tips

Start ironing with a low temperature to reduce the ironing time and eliminate the risk of scorching the fabric.

It is recommended to use low temperatures for fabrics that have unusual finishes (sequins, embroidery, etc.).

If the fabric is mixed (e.g. 40% cotton, 60% synthetic), choose the temperature for the fabric requiring the lowest temperature.

If you do not know the composition of the fabric, determine the temperature by testing on a hidden corner of the fabric.

Start ironing with a low temperature and gradually increase the temperature.

If the fabric is not completely dry, the ironing process will become smoother. Always iron silk fabrics when they are damp.

Do not iron areas with traces of perspiration or other marks in order to prevent staining. It is recommended to iron silk, woolen or synthetic fabrics inside out.

It is recommended to iron velvet fabrics in the direction of the fibre without exerting pressure on the appliance.

Cleaning and maintenance

Before you proceed, we need you to pay attention to the following notes:

• Before cleaning or maintenance, always switch off the appliance, remove the mains plug from the wall socket and wait until the appliance has cooled down.
• Do not immerse the appliance in water or any other liquids for cleaning.

Before you proceed, we would like you to focus your attention on the following notes:

• Do not use aggressive or abrasive cleaning agents to clean the appliance.

• Do not use sharp objects to clean the

• appliance.

Regularly check the appliance for possible damage.

Regularly check the water reservoir for possible leakage.

Clean the appliance after each use:

• Empty the water reservoir.
• Remove limescale and other contaminants from the soleplate with a damp cloth and a non-abrasive cleaning agent.
  Clean the housing of the iron with a soft, damp cloth.

Descaling the appliance

The appliance must be descaled after every 25 uses. If the appliance must be descaled, use a suitable descending agent. Special descending agents are available from our service station.

Note: Princess will not be responsible for any damage caused by descending agents.

Damage caused by not regularly descending the appliance is not covered by the guarantee.

Before you proceed, we need you to pay attention to the following notes:

• Before descending the appliance, always switch off the appliance, remove the mains plug from the wall socket and wait until the appliance has cooled down.
• Do not immerse the appliance in water or any other liquids for cleaning.

Before you proceed, we would like you to focus your attention on the following notes:

• Be careful when descending the appliance to prevent damage to furniture or clothing.
• Do not use vinegar or vinegar concentrate to descale the appliance.
• Do not use citric acid to descale the appliance.

Remove the mains plug from the wall socket. Fill the water reservoir with water.

Keep the steam shot button pressed until no more water comes out of the holes in the soleplate.

Storage

Make sure that the water reservoir is empty.
Make sure that the handgrip is in the lowered position.

Store the appliance in the upright position to prevent damage to the soleplate.

Store the appliance in the original packaging when not in use.

Store the appliance in a dry and frost-free place, out of the reach of children.

Safety instructions

General safety

Read the manual carefully before use. Keep the manual for future reference.

Only use the appliance and the accessories for their intended purposes. Do not use the appliance and the accessories for other purposes than described in the manual.

Do not use the appliance if any part or any accessory is damaged or defective. If a part or an accessory is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent.

Do not use the appliance near bathtubs, showers, basins or other vessels containing water.

Do not immerse the appliance in water or other liquids. If the appliance is immersed in water or other liquids, do not remove the appliance with your hands. Immediately remove the mains plug from the wall socket. If the appliance is immersed in water or other liquids, do not use the appliance again.

Electrical safety

Before use, always check that the mains - voltage is the same as the voltage on the rating plate of the appliance.

The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Connect the appliance to an earthed wall - socket. If necessary, use an earthed extension cable of a suitable diameter (at least 3 × 1 ~mm^2 ).

• For additional protection, install a residual current device (RCD) with a rated residual operating current that does not exceed 30mA .
• Make sure that water cannot enter the contact plugs of the mains cable and the extension cable.
  Always fully unwind the mains cable and the extension cable.
  Make sure that the mains cable does not hang over the edge of a worktop and cannot be caught accidentally or tripped over. Keep the mains cable away from heat, oil and sharp edges.
• Do not use the appliance if the mains cable or the mains plug is damaged or defective. If the mains cable or the mains plug is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent.
• Do not pull the mains cable to disconnect the mains plug from the mains.
• Disconnect the mains plug from the mains when the appliance is not in use, before assembly or disassembly and before cleaning and maintenance.

Safety instructions for travel steam irons

The iron is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking.

Always check clothing labels for ironing - instructions. Always observe the ironing instructions.

Do not iron over zips, buttons, rivets in jeans, etc. to prevent damage to the soleplate.

Do not use the appliance outdoors.

Always protect the appliance from water or excessive humidity.

Make sure that your hands are dry before touching the appliance.

The accessible surfaces of the appliance can become very hot during use. Do not touch the accessible surfaces. Only touch the handgrips when the accessible surfaces are hot.

Beware of hot parts. Do not touch the soleplate and the iron holder. The soleplate and the iron holder become very hot during use.

Be careful with hot steam to avoid burns. Do not point the soleplate at yourself or other persons during use.

Do not leave the appliance unattended with the hot soleplate touching fabrics or highly flammable surfaces.

Do not leave the appliance unattended when the mains plug is connected to the mains.

Make sure that the appliance cannot fall when the iron is placed on the support feet.

Store the appliance in a dry place when not in use. Make sure that children do not have access to stored appliances.

U.K. Wiring instructions

The wires in the mains lead are coloured in accordance with the following code:

BLUE NEUTRAL

BROWN LIVE

GREEN/YELLOW EARTH

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.

The wire which is coloured GREEN/YELLOW must be connected to the terminal which is marked with the letter E or (12) and is coloured GREEN or GREEN/YELLOW.

If a 13Amp (BS1363) plug is used, a 13Amp (BS1362) fuse must be fitted, or if any other type of plug is used, a 13Amp fuse must be fitted, either in the plug or adaptor, or on the distribution board.

Warning! This appliance must be earthed.

Disclaimer

Subject to change; specifications can be changed without further notice.
