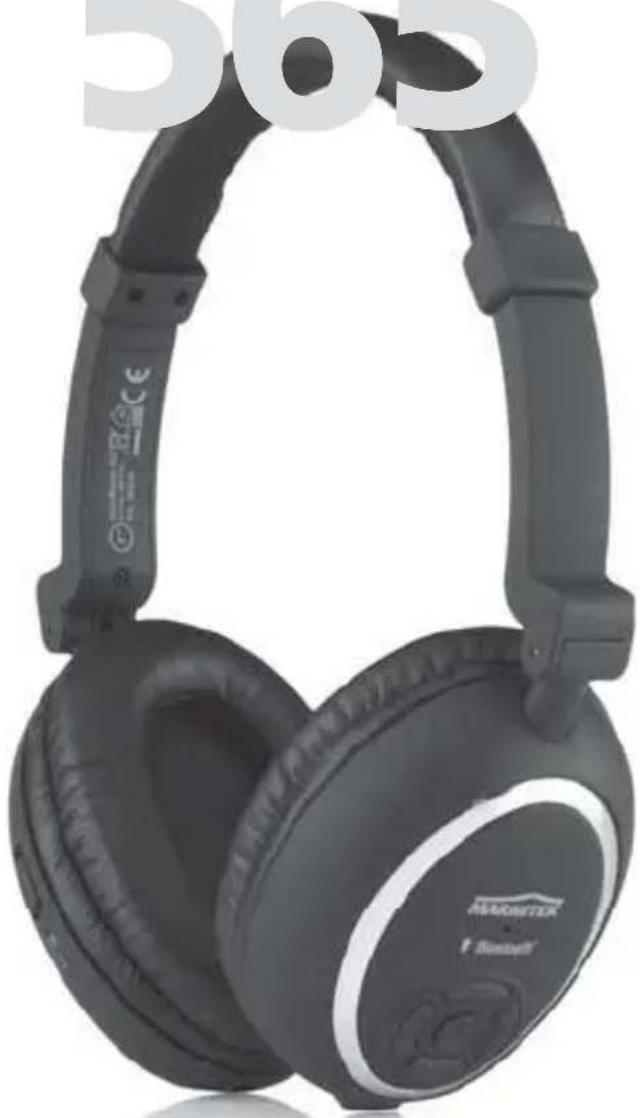

USER MANUAL BoomBoom 565 MARMITEK

Active Noise Control Headphones

USER MANUAL 3

• Do not expose the components of your system to extremely high temperatures or bright light sources.
• In case of improper usage or if you have altered and repaired the product yourself, all guarantees expire. Marmitek does not accept responsibility in the case of improper usage of the product or when the product is used for purposes other than specified. Marmitek does not accept responsibility for additional damage other than that covered by the legal product responsibility.
• This product is not a toy. Keep out of reach of children.
  -Warnings or announcements may go unnoticed when you are using the headphones. You should be aware of ambient sounds while wearing the headphones, and recognise them as needed.
• Avoid using headphones/speakers with the volume turned up for an extended period of time. Doing so may damage your hearing. It is advisable to keep the volume at a moderate level at all times.
• The built-in rechargeable battery is not replaceable. Do not remove or replace the battery. Dispose of unit properly. Do not dispose unit in trash or fire.

TABLE OF CONTENTS

SAFETYWARNINGS 3
TABLE OF CONTENTS 4
INTRODUCTION 5
ACTIVE NOISE CONTROL 5
SET CONTENTS 6
OVERVIEW 6
FIRSTUSE. 7
WEARING STYLE 7
PAIRING BLUETOOTH DEVICES (ONE-OFF) 8
VOLUME CONTROL 8
TURNING OFF BLUETOOTH AUDIO 8
TURNING ON BLUETOOTH AUDIO 9
ACTIVE NOISE CONTROL 9
CALL FEATURE 9
MAKING A CALL 9
ANSWERING A CALL 9
ENDING A CALL 9
BATTERY RUNNING LOW. 10
CONNECTING WITH AN AUDIO CABLE 10
FREQUENTLY ASKED QUESTIONS 11
TECHNICAL DATA 12

INTRODUCTION

Congratulations on your purchase of the Marmitek BoomBoom 565. This Bluetooth headphones allows you to play music from a sound source that is equipped with Bluetooth technology without having to connect the source using cables. This could involve a PC or a laptop with a Bluetooth USB dongle, a mobile phone that supports Bluetooth, an Android phone, an Android Tablet, an iPhone, an iPad or a Mac.

The BoomBoom 565 has a range of about 10 metres, allowing you to organise your music in the same room or in an adjoining room.

ACTIVE NOISE CONTROL

The BoomBoom 565 is equipped with Active Noise Control (NC). This greatly reduces ambient noise, which allows you to enjoy all the sounds produced by the BoomBoom 565. With Active Noise Control enabled, you will only hear the sound that the BoomBoom 565 is supposed to produce, instead of planes, whirring computer fans or the air conditioner. With Active Noise Control, a small microphone, placed in each ear pad, picks up ambient noise. This is used to produce a counter sound which actively suppresses the ambient noise. To ensure the best possible sound quality, the Active Noise Control electronics are completely separated from the Bluetooth connection electronics and the audio amplification, and even come with their own rechargeable battery.

This allows you to use Active Noise Control and the Bluetooth function completely independently of each other.

The BoomBoom 565 is also equipped with a wired audio connection. This enables you, for example, to use the BoomBoom 565 with the supplied Airline Adapter in an airplane. (Bluetooth off, but Active Noise Control on.)

SET CONTENTS

1 x BoomBoom 565 HiFi Bluetooth Headset with NC
1 x Micro USB-to-USB cable
1 x Audio cable with 3.5mm jack plug
1x 3.5 mm 1/8-inch Airline Adapter
1 x Travel Case
1 x set of instructions in English, German, French, Spanish, Italian, Dutch.

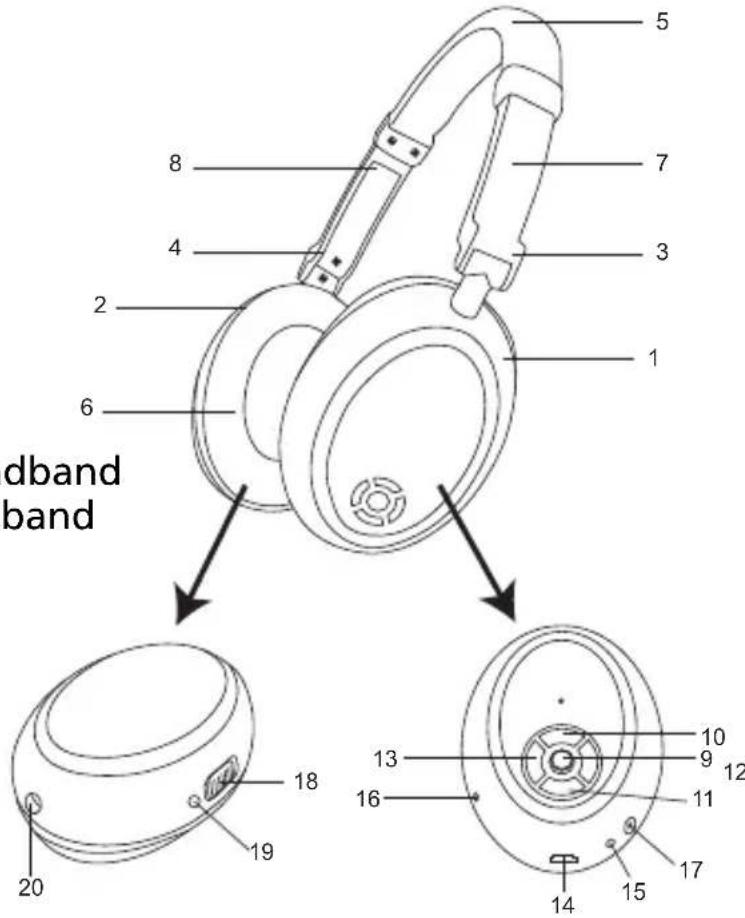

OVERVIEW

1. Right ear pad
   2.Left ear pad
2. Right pivot ear pad
3. Left pivot ear pad
4. Soft headband
5. Breathable ear pads
6. Right arm adjustable headband
7. Left arm adjustable headband
8. Multi-Function button
9. Volume +
10. Volume -
11. Next
12. Previous
13. Micro USB Jack
14. Charging LED
15. Bluetooth LED
16. Microphone
17. Active Noise Control switch
18. Active Noise Control power supply LED
19. 3.5mm Jack Plug socket

LED Indication instructions
Operation / State LED status indication method / result
Power on blue LED flashes slowly press the Multi-function key for 5s
Pairing mode blue LED flashes quickly press the power button for 5s
Switch off blue LED flashes, then disappears	press the power button for 5s
Charging indicator red LED on USB cable connected
Charged	red LED	disappears
Connection blue LED flashes slowly flashes	every
No connection blue LED flashes quickly flashes every 0.5s
Calls	blue LED flashes	press the Multi-function key to answer
Busy	blue LED flashes flashes every 5s

FIRSTUSE

The BoomBoom 565 has two built-in rechargeable batteries.

We recommend completely charging the batteries before using the device for the first time. Connect the supplied USB cable to the BoomBoom 565 and a PC, Mac or USB power adapter. The red LED will light up.

The device may take up to 4 hours to charge for the first time. Once the BoomBoom 565 batteries are completely charged, the red LED will switch off.

WEARING STYLE

Watch the left and right indicators on the outside of the headband. Please make sure that the operating buttons are always on the right hand side while wearing the BoomBoom 565.

Adjust the fit of the BoomBoom 565 by changing the length of the headband near the ear pads.

The ear pads may be rotated 90 degrees, allowing you to easily carry and store the BoomBoom 565.

PAIRING BLUETOOTH DEVICES (ONE-OFF)

The BoomBoom 565 is able to remember up to 8 paired devices. As a result, it is not necessary to pair a device every time you connect it. If a 9^th device is paired with the BoomBoom 565, the device which has been originally paired with the BoomBoom 565 will be deleted from its memory.

1. Make sure the BoomBoom 565 is turned off.
2. Press and hold the Multi-function [9] button for 5 seconds to put the BoomBoom 565 in pairing mode. Release the Multi-function button as soon as the blue LED flashes.
3. Turn on a device that supports Bluetooth, such as an iPod, iPhone, Android or mp3 player and go to: Settings > General > Bluetooth. Click ON 'Bluetooth' and the BoomBoom 565 will appear on the device. Click on 'BoomBoom 565'. The device is now connected and paired with the headphones. If the device prompts for a pairing code, enter:"0000".

VOLUME CONTROL

1. Tap VOLUME+ [10] to increase the volume. When maximum volume has been reached, a tone indicator will sound.
2. Tap VOLUME- [11] to decrease the volume. When minimal volume has been reached, a tone indicator will sound.
3. Press Next [12] or Previous [13] to listen to the next/previous track.

TURNING OFF BLUETOOTH AUDIO

Press and hold the power button for 5 seconds to turn off the BoomBoom 565.

The headphones will turn off automatically after 10 minutes when no device is connected to it.

The blue LED will turn off.

TURNING ON BLUETOOTH AUDIO

Press and hold the Multi-function button for 5 seconds. The blue LED light will start flashing rapidly.

The BoomBoom 565 will then automatically link to the last device it was connected to. When connected, the blue LED lights will start to flash at a slow rate. Only one device can be connected at the same time to the BoomBoom 565. If your device does not connect automatically, go to the device's Bluetooth settings and select the BoomBoom 565. A connection will then be made.

ACTIVE NOISE CONTROL

Active Noise Control can be switched on or off using the NC switch. If the green LED is on, Active Noise Control is activated.

Active Noise Control works completely independently from the audio section. To ensure the best quality, NC even has its own power supply. You may also use Active Noise Control with the BoomBoom 565's Bluetooth audio section deactivated (to reduce ambient noise), or while using the cabled BoomBoom 565.

CALL FEATURE

MAKING A CALL

When making a call from your mobile phone, the call will (depending on the phone settings) be transferred to your headphones automatically once a connection has been made.

ANSWERING A CALL

Press the Multi-function button [9] briefly to accept the call. The music will be paused and the call will be transferred.

ENDING A CALL

Press the Multi-function button [9] briefly or end the call on your phone. The music will continue to play automatically.

BATTERY RUNNING LOW

When the battery of the BoomBoom 565 is running low, you will hear an audio warning. After 3 to 5 minutes the BoomBoom 565 will automatically switch off. When the Active Noise Control battery is empty, the Active Noise Control LED remains off after activation. Follow the steps as described earlier to recharge the battery.

CONNECTING WITH AN AUDIO CABLE

The Bluetooth connection can be switched to a wired connection by plugging the cable into the 3.5mm audio jack. This may be useful when the battery has run out and you still want to use headphones. Press and hold the Multi-function button for 5 seconds to turn OFF the BoomBoom 565 if it is still on. Now, use the supplied audio cable to connect the BoomBoom 565 to the headphones connector of your audio source. It is not possible to use the function keys in the wired connection mode. However, Active Noise Control can be activated using the switch [18]. Simply detach the 3.5mm audio connector and press the power button for 5 seconds to return to the Bluetooth connection.

Frequently ASKED QUESTIONS

I can't connect my BoomBoom 565.

Check the following:

1. Ensure that the battery is fully charged.
2. Ensure that the Bluetooth function on your mobile telephone is on (check your phone's manual for reference).
3. Ensure that the distance between your mobile phone and the BoomBoom 565 is no greater than 10 metres and that there are no large obstacles in the way.

Can I link numerous devices to my BoomBoom 565?

You can link up to 8 devices to your BoomBoom 565. If the BoomBoom 565 is switched on, it will automatically connect to the last connected device.

Do you have other questions that have not been resolved by the above information? Please go to www.marmitek.com

Environmental Information for Customers in the European Union

European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The

symbol indicates that this product should be disposed of separately from regular household waste streams. It is your responsibility to dispose of this and other electric and electronic equipment via designated collection facilities appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product.

TECHNICAL DATA

Bluetooth Frequency 2.402-2.480GHz

Bluetooth version 3,0

Supported Bluetooth profiles A2DP, AVRCP,HFP ,HSP

Supported Codec SBC, AAC, MP3

Range Up to 10 metres open field

Battery 2 x Li-ion Polymer

• Battery Capacity 300mAh
• Battery Charging Voltage 5V
• Charger Time 3-4 hours max

• Battery Life 1. ANC - 15 hours

• Bluetooth - 7.5 hours

• Standby: 200 hours "

audio input DC3.5 female

Operation on headphones and audio source

Phone functions answer call, end call

Audio functions Volume+, Volume-, Next song, previous

song, power, Active Noise Control ON/OFF

Headband fully adjustable

Weight 140g.

Operation temperature 0^ +45^

Storage temperature -10°C ~ +45°C

Microphone

Microphone unit 6mm x 2.7mm

Sensitivity -38dB+/-3dB

Directional sensitivity Omni-directional With Zero Voice Distortion

Technique

Impedance ≤ 2,2 Kohm

Frequency response 20-20,000Hz

Drivers

Driver diameter 40 mm

Impedance 32 Ohm

Sensitivity 105dB+/-3dB

Total Harmonic Distortion ANC ON, ANC OFF: 0.1%

Output power 30mW RMS

Output power 50mW PMPO

Transducer Principle (closed or open): closed

Ear coupling: Over-the-ear (circumaural)

Signal To Noise Ratio ≥ 95dB

Frequency response 20Hz-20,000Hz

Size

Overall: 200 × 185 × 40 ~mm (unit)

Ear Cushion Outside: 67 × 89 × 13mm

SICHERHEITSHINWEISE

Casque over-the-ear (circumaural)

Uso Auriculares over-the-ear (circumaural)

Proporción postal/interferencia ≥ 95dB

Versione Bluetooth 3,0

Profili Bluetooth supportati A2DP, AVRCP,HFP ,HSP

Codec supportati SBC, AAC, MP3

VEILIGHEIDSWAARSCHUWINGEN

Driver diameter 40 mm

Impedantie 32 Ohm

DECLARATION OF CONFORMITY

Hereby, Marmitek BV, declares that this BOOMBOOM 565 is in compliance with the essential requirements and other relevant provisions of the following Directives:

Directive 1999/5/EC of the European Parliament and of the Council of 9 March

1999 on radio equipment and telecommunications terminal equipment and the

mutual recognition of their conformity

Directive 2004/108/ec of the european parliament and of the council of 15

December 2004 on the approximation of the laws of the Member States relating to

electromagnetic compatibility

Directive 2006/95/EC of the European Parliament and of the Council of 12

December 2006 on the harmonisation of the laws of Member States relating to

electrical equipment designed for use within certain voltage limits

Directive 2002/95/EC of the European Parliament and of the Council of 27 January

2003 on the restriction of the use of certain hazardous substances in electrical and

electronic equipment

Marmitek is a trademark of Pattitude B.V.

BoomBoom 565 is a trademark of Marmitek B.V.

Copyright and all other proprietary rights in the content (including but not limited to model numbers, software, audio, video, text and photographs) rests with Marmitek B.V. Any use of the Content, but without limitation, distribution, reproduction, modification, display or transmission without the prior written consent of Marmitek is strictly prohibited. All copyright and other proprietary notices shall be retained on all reproductions.
