USER MANUAL DU6111E GORENJE

EN Instruction on mounting and use

den Kundendienst wendet.8

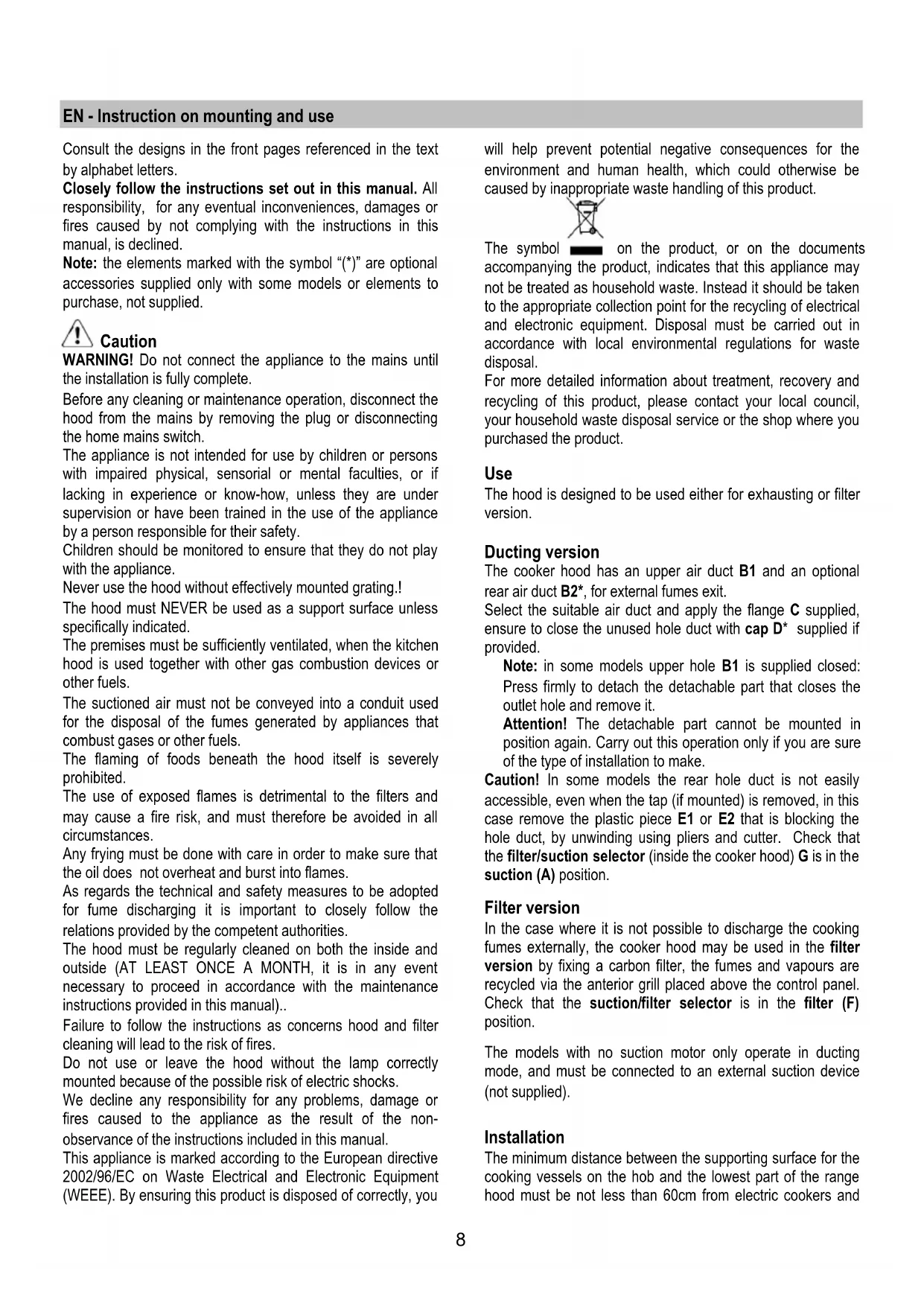

EN - Instruction on mounting and use

Consult the designs in the front pages referenced in the text

by alphabet letters.

Closely follow the instructions set out in this manual. All

responsibility, for any eventual inconveniences, damages or

fires caused by not complying with the instructions in this

manual, is declined.

Note: the elements marked with the symbol “(*)” are optional

accessories supplied only with some models or elements to

purchase, not supplied.

WARNING! Do not connect the appliance to the mains until

the installation is fully complete.

Before any cleaning or maintenance operation, disconnect the

hood from the mains by removing the plug or disconnecting

the home mains switch.

The appliance is not intended for use by children or persons

with impaired physical, sensorial or mental faculties, or if

lacking in experience or know-how, unless they are under

supervision or have been trained in the use of the appliance

by a person responsible for their safety.

Children should be monitored to ensure that they do not play

Never use the hood without effectively mounted grating.!

The hood must NEVER be used as a support surface unless

specifically indicated.

The premises must be sufficiently ventilated, when the kitchen

hood is used together with other gas combustion devices or

The suctioned air must not be conveyed into a conduit used

for the disposal of the fumes generated by appliances that

combust gases or other fuels.

The flaming of foods beneath the hood itself is severely

The use of exposed flames is detrimental to the filters and

may cause a fire risk, and must therefore be avoided in all

Any frying must be done with care in order to make sure that

the oil does not overheat and burst into flames.

As regards the technical and safety measures to be adopted

for fume discharging it is important to closely follow the

relations provided by the competent authorities.

The hood must be regularly cleaned on both the inside and

outside (AT LEAST ONCE A MONTH, it is in any event

necessary to proceed in accordance with the maintenance

instructions provided in this manual)..

Failure to follow the instructions as concerns hood and filter

cleaning will lead to the risk of fires.

Do not use or leave the hood without the lamp correctly

mounted because of the possible risk of electric shocks.

We decline any responsibility for any problems, damage or

fires caused to the appliance as the result of the non-

observance of the instructions included in this manual.

This appliance is marked according to the European directive

2002/96/EC on Waste Electrical and Electronic Equipment

(WEEE). By ensuring this product is disposed of correctly, you

will help prevent potential negative consequences for the

environment and human health, which could otherwise be

caused by inappropriate waste handling of this product.

on the product, or on the documents

accompanying the product, indicates that this appliance may

not be treated as household waste. Instead it should be taken

to the appropriate collection point for the recycling of electrical

and electronic equipment. Disposal must be carried out in

accordance with local environmental regulations for waste

For more detailed information about treatment, recovery and

recycling of this product, please contact your local council,

your household waste disposal service or the shop where you

purchased the product.

The hood is designed to be used either for exhausting or filter

The cooker hood has an upper air duct B1 and an optional

rear air duct B2*, for external fumes exit.

Select the suitable air duct and apply the flange C supplied,

ensure to close the unused hole duct with cap D* supplied if

Note: in some models upper hole B1 is supplied closed:

Press firmly to detach the detachable part that closes the

outlet hole and remove it.

Attention! The detachable part cannot be mounted in

position again. Carry out this operation only if you are sure

of the type of installation to make.

Caution! In some models the rear hole duct is not easily

accessible, even when the tap (if mounted) is removed, in this

case remove the plastic piece E1 or E2 that is blocking the

hole duct, by unwinding using pliers and cutter. Check that

the filter/suction selector (inside the cooker hood) G is in the

suction (A) position.

In the case where it is not possible to discharge the cooking

fumes externally, the cooker hood may be used in the filter

version by fixing a carbon filter, the fumes and vapours are

recycled via the anterior grill placed above the control panel.

Check that the suction/filter selector is in the filter (F)

The models with no suction motor only operate in ducting

mode, and must be connected to an external suction device

The minimum distance between the supporting surface for the

cooking vessels on the hob and the lowest part of the range

hood must be not less than 60cm from electric cookers and9

75cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a

greater distance, this must be adhered to.

Electrical connection

The mains power supply must correspond to the rating

indicated on the plate situated inside the hood. If provided with

a plug connect the hood to a socket in compliance with current

regulations and positioned in an accessible area. If it not fitted

with a plug (direct mains connection) or if the plug is not

located in an accessible area apply a bi-polar switch in

accordance with standards which assures the complete

disconnection of the mains under conditions relating to over-

current category III, in accordance with installation instructions.

Warning: Before re-connecting the hood circuit to the mains

supply and checking the efficient function, always check that

the mains cable is correctly assembled.

The cooker hood may be installed on the wall or on the base

of a cabinet; if supplied, use the hole gauge H to drill the

correct distance, otherwise lean the cooker hood on the wall

or on the base of the cabinet and mark the holes with a pencil.

Wall mounting - Insert the wall screw anchors J in the drilled

holes and the two K screws in the upper drill holes, remove

the grill and hook the cooker hood to the 2 screws, finally from

the inside, insert the third screw L and lock them all in.

Cabinet fixing - Affix the cooker hood with the 4 M screws

from inside the cabinet.

The hood is fitted with a control panel with aspiration speed

selection control and a light switch to control cooking area

Use the high suction speed in cases of concentrated kitchen

vapours. It is recommended that the cooker hood suction is

switched on for 5 minutes prior to cooking and to leave in

operation during cooking and for another 15 minutes

approximately after terminating cooking.

Always open the vapour catcher N*.

If your product is provided with an electrically or mechanically

activated valve, the keys and/or the buttons and/or the

handles available are for controlling the lights and for opening

and closing the valve.

ATTENTION! Before performing any maintenance operation,

isolate the hood from the electrical supply by switching off at

the connector and removing the connector fuse.

Or if the appliance has been connected through a plug and

socket, then the plug must be removed from the socket.

The cooker hood should be cleaned regularly (at least with the

same frequency with which you carry out maintenance of the

fat filters) internally and externally. Clean using the cloth

dampened with neutral liquid detergent. Do not use abrasive

products. DO NOT USE ALCOHOL!

Failure to carry out the basic cleaning recommendations of the

cooker hood and replacement of the filters may cause fire

Therefore, we recommend oserving these instructions.

The manufacturer declines all responsibility for any damage to

the motor or any fire damage linked to inappropriate

maintenance or failure to observe the above safety

Traps cooking grease particles.

If situated inside the support grill, it may be one of the

Paper filter must be replaced once a month or if colouring

appears on upper side, in such cases the colouring is evident

through the grill openings.

Sponge filter should be washed with hot soapy water once a

month and replaced every 5 to 6 washes.

Metallic filter must be cleaned once a month, with non

abrasive detergents, by hand or in dishwasher on low

temperature and short cycle.

When washed in a dishwasher, the grease filter may discolour

slightly, but this does not affect its filtering capacity.

In order to remove the grease filter open the grill via the P

hooks and free the R1 or R2 stoppers.

The self-supporting metal filter does not include a support

grill, in order to remove the filter – pull the release springs P4

backwards and slide the filter downwards.

Charcoal filter (filter version only)

It absorbs unpleasant odours caused by cooking.

The saturation of the activated charcoal occurs after

more or less prolonged use, depending on the type of

cooking and the regularity of cleaning of the grease

In any case it is necessary to replace the cartridge at least

The carbon filter may NOT be washed or regenerated.

It may be one of the following types:

Rectangular S1 or S2 or S3:

Mounting (S1 or S2) : insert the rear side T and hook further

Mounting (S3): Remove the cover W by rotating the O knobs

to 90° , then close the cover. Proceed in the inverse for

Circular (V1-V2-V3-various models):

Bayonet mount position the filter in the middle of the motor

protection grill covering ensuring that the reference to X1 or

X2 or X3 on the carbon filter match the Y1 or Y2 references

on the conveyor, then turn clockwise; in case of dismounting

turn anticlockwise, if provided with a Z tape remember to

gently lift first.10

Disconnect the hood from the electricity.

Warning! Prior to touching the light bulbs ensure they are

Replacing lightbulbs 40W - Unscrew the damaged light bulb

and replace with an incandescent oval light bulb with a

maximum of 40W E14. Remove the grill in order to reach the

Replacing the halogen bulbs - Access the light compartment

– extract the lamp cover by levering it off with a small

screwdriver or similar tool.

Replace the damaged light bulb. Only use halogen bulbs of

20W max (G4), making sure you do not touch them with your

hands. Close the lamp cover (it will snap shut).

If the lights do not work, make sure that the lamps are fitted

properly into their housings before you call for technical
