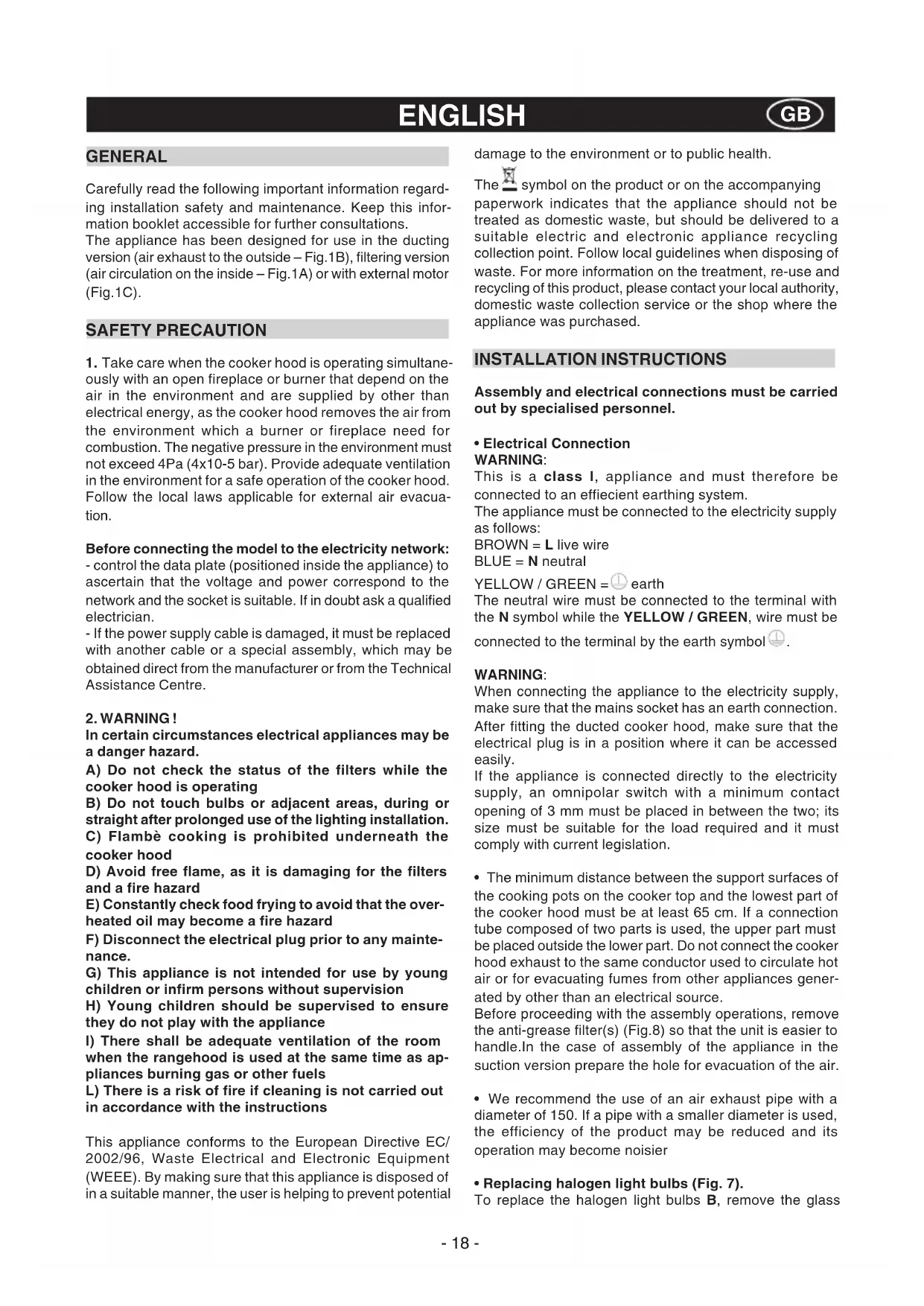

GENERAL Carefully read the following important information regard-

ing installation safety and maintenance. Keep this infor-

mation booklet accessible for further consultations.

The appliance has been designed for use in the ducting

version (air exhaust to the outside – Fig.1B), filtering version

(air circulation on the inside – Fig.1A) or with external motor

1. Take care when the cooker hood is operating simultane-

ously with an open fireplace or burner that depend on the

air in the environment and are supplied by other than

electrical energy, as the cooker hood removes the air from

the environment which a burner or fireplace need for

combustion. The negative pressure in the environment must

not exceed 4Pa (4x10-5 bar). Provide adequate ventilation

in the environment for a safe operation of the cooker hood.

Follow the local laws applicable for external air evacua-

Before connecting the model to the electricity network:

- control the data plate (positioned inside the appliance) to

ascertain that the voltage and power correspond to the

network and the socket is suitable. If in doubt ask a qualified

- If the power supply cable is damaged, it must be replaced

with another cable or a special assembly, which may be

obtained direct from the manufacturer or from the Technical

In certain circumstances electrical appliances may be

A) Do not check the status of the filters while the

cooker hood is operating

B) Do not touch bulbs or adjacent areas, during or

straight after prolonged use of the lighting installation.

C) Flambè cooking is prohibited underneath the

D) Avoid free flame, as it is damaging for the filters

E) Constantly check food frying to avoid that the over-

heated oil may become a fire hazard

F) Disconnect the electrical plug prior to any mainte-

G) This appliance is not intended for use by young

children or infirm persons without supervision

H) Young children should be supervised to ensure

they do not play with the appliance

I) There shall be adequate ventilation of the room

when the rangehood is used at the same time as ap-

pliances burning gas or other fuels

L) There is a risk of fire if cleaning is not carried out

in accordance with the instructions

This appliance conforms to the European Directive EC/

2002/96, Waste Electrical and Electronic Equipment

(WEEE). By making sure that this appliance is disposed of

in a suitable manner, the user is helping to prevent potential

damage to the environment or to public health.

symbol on the product or on the accompanying

paperwork indicates that the appliance should not be

treated as domestic waste, but should be delivered to a

suitable electric and electronic appliance recycling

collection point. Follow local guidelines when disposing of

waste. For more information on the treatment, re-use and

recycling of this product, please contact your local authority,

domestic waste collection service or the shop where the

appliance was purchased.

INSTALLATION INSTRUCTIONS Assembly and electrical connections must be carried

out by specialised personnel.

• Electrical Connection

This is a class I, appliance and must therefore be

connected to an effiecient earthing system.

The appliance must be connected to the electricity supply

The neutral wire must be connected to the terminal with

the N symbol while the YELLOW / GREEN, wire must be

connected to the terminal by the earth symbol

When connecting the appliance to the electricity supply,

make sure that the mains socket has an earth connection.

After fitting the ducted cooker hood, make sure that the

electrical plug is in a position where it can be accessed

If the appliance is connected directly to the electricity

supply, an omnipolar switch with a minimum contact

opening of 3 mm must be placed in between the two; its

size must be suitable for the load required and it must

comply with current legislation.

• The minimum distance between the support surfaces of

the cooking pots on the cooker top and the lowest part of

the cooker hood must be at least 65 cm. If a connection

tube composed of two parts is used, the upper part must

be placed outside the lower part. Do not connect the cooker

hood exhaust to the same conductor used to circulate hot

air or for evacuating fumes from other appliances gener-

ated by other than an electrical source.

Before proceeding with the assembly operations, remove

the anti-grease filter(s) (Fig.8) so that the unit is easier to

handle.In the case of assembly of the appliance in the

suction version prepare the hole for evacuation of the air.

• We recommend the use of an air exhaust pipe with a

diameter of 150. If a pipe with a smaller diameter is used,

the efficiency of the product may be reduced and its

operation may become noisier

• Replacing halogen light bulbs (Fig. 7).

To replace the halogen light bulbs B, remove the glass

pane C using a lever action on the relevant cracks.

Replace the bulbs with new ones of the same type.

Caution: do not touch the light bulb with bare hands.

• FIXING TO THE WALL Drill the holes A respecting the distances indicated (Fig.2).

Fix the appliance to the wall and align it in horizontal

position to the wall units. When the appliance has been

adjusted, definitely fix the hood using the screws A (Fig.5).

For the various installations use screws and screw anchors

suited to the type of wall (e.g. reinforced concrete, plaster-

board, etc.). If the screws and screw anchors are provided

with the product, check that they are suitable for the type

of wall on which the hood is to be fixed.

• FIXING THE DECORATIVE TELESCOPIC FLUE Arrange the electrical power supply within the dimensions

of the decorative flue. If your appliance is to be installed in

the ducting version or in the version with external motor,

prepare the air exhaust opening. Adjust the width of the

support bracket of the upper flue (Fig.3). Then fix it to the

ceiling using the screws A (Fig.3) in such a way that it is in

line with your hood and respecting the distance from the

ceiling indicated in Fig.2. Connect the flange C to the air

exhaust hole using a connection pipe (Fig.5).

Insert the upper flue into the lower flue. Fix the lower flue

to the hood using the screws B provided (Fig.5), extract

the upper flue up to the bracket and fix it with the screws B

If your appliance has the lower connections indicated as

in Fig. 4 A, the fixing to be carried out is that shown in Fig.

6 A To transform the hood from a ducting version into a filter-

ing version, ask your dealer for the charcoal filters and

follow the installation instructions.

• FILTERING VERSION Install the hood and the two flues as described in the

paragraph for installation of the hood in ducting version.

To assemble the filtering flue refer to the instructions con-

tained in the kit. If the kit is not provided, order it from your

dealer as accessory. The charcoal filters must be fitted in

the ducting unit located inside the hood (Fig.9-10).

• We recommend that the cooker hood is switched on before

any food is cooked. We also recommend that the appliance

is left running for 15 minutes after the food is cooked, in

order to thoroughly eliminate all contaminated air.

The effective performance of the cooker hood depends on

constant maintenance; the anti-grease filter and the active

carbon filter both require special attention.

• The anti-grease filter is used to trap any grease particles

suspended in the air, therefore is subject to saturation (the

time it takes for the filter to become saturated depends on

the way in which the appliance is used).

The acrylic filter, which is found resting on the grille, should

be replaced when the text, visible through the grille,

changes colour and the ink spreads; the new filter should

be fitted in such a way that the text can be seen through

the grille from outside the cooker hood.

If the filters do not have any text on them, or if metal filters

or aluminium panel filters are used, they should be washed

every 2 months in order to prevent the risk of fire. To wash

the filters, proceed as follows:

- Remove the filter from the grille and wash it using a

solution of water and neutral liquid detergent, leaving the

- Rinse thoroughly with warm water and leave to dry.

The metal filters and/or aluminium panel are also

dishwasher safe. If the filters are made using aluminium,

or if an aluminium panel is used, after a few washes the

colour may change. This does not mean they have to be

If the replacement and washing instructions are not

followed, the anti-grease filters may present a fire hazard.

• The active carbon filters are used to purify the air which

is released back into the room. The filters are not washable

or re-usable and must be replaced at least once every four

months. The active carbon filter saturation level depends

on the frequency with which the appliance is used, the type

of cooking performed and the regularity with which the anti-

grease filters are cleaned.

• Remove build-up from the fan and other surfaces of the

cooker hood regularly using a cloth moistened with

denatured alcohol or non-abrasive neutral liquid detergent.

• The light on the cooker hood is designed for use during

cooking and not for general room illumination. Extended

use of the light reduces the average duration of the bulb.

Push-button A = on/off lights switch

Push-button B = on/off cooker hood switch. The appli-

ance switches on at speed level 1, If the cooker hood is

on depress the push-button for 2 sec. to switch off the

cooker hood. If the cooker hood is at speed level 1 it will

not be necessary to depress the push-button to switch the

cooker hood off. Decreases the motor speed.

Display C = indicates the motor speed level selected and

activates the timer.

Push-button D = switches on the cooker hood. Increases

the motor speed. Touching the key at 3rd speed, the in-

tensive function runs for 10', then the appliance go back to

work at the original speed. During this function the display

Key E = The Timer times the functions on activation for 15

minutes, after which they are switched off. The Timer is

deactivated by re-pressing Key E. When the Timer is acti-

vated the decimal point must flash on the display. The Timer

cannot be activated if the intensive speed is functioning.

The “clean air” function is activated by pressing key E for

2 seconds when the appliance is switched off. This switches

the motor on for 10 minutes every hour at the first speed.

During functioning a rotary movement of the peripheral

segments must be visualised on the display. When this time

has passed the motor switches off and the fixed letter “C”

must be visualised on the display until the motor re-starts

after 50 minutes for another 10 minutes and so on. Press

any key apart from the light keys to return to normal

functioning. Press key E to deactivate the function.

• Active carbon/grease filter saturation:

- When display item C flashes, at a speed where it

alternates with the letter F (e.g. 1 and F), the grease filters

- When display item C flashes, at a speed where it

alternates with the letter A (e.g. 1 and A), the carbon filters

After the clean filter has been positioned correctly, the- 20 -

electronic memory must be reset by pressing button A for

approximately 5 seconds, until the indication F or A shown

on the display C stops flashing.

• COMMANDS: ELECTRONIC (Fig.15A):

A = LIGHT B = OFF/SPEED I C = SPEED II D = SPEED III E = AUTOMATIC STOP TIMER – 15 minutes (*)

F = FILTER SATURATION RESET LIGHT When the “filter saturation” light flashes, the anti-grease

filters must be washed. When the light comes on without

flashing, the anti-grease filters must be washed and the

carbon filters replaced (in case of operation whit the recy-

cling version). When this operation has been completed,

press the key to reset it.

(Fig.15B) ELECTRONICthe key symbols are explained

A = LIGHT B = OFF C = SPEED I D = SPEED II E = SPEED III F = AUTOMATIC STOP TIMER - 15 minutes (*)

• If your appliance does not have the INTENSIVE speed

function, press key E for two seconds and it will be activated

for 10 minutes after which it will return to the previously

set speed. When the function is active the LED flashes. To

interrupt it before the 10 minutes have expired press key E

• By pressing key F for two seconds (with the hood switched

off) the “clean air” function is activated. This function

switches the appliance on for ten minutes every hour at

the first speed. As soon as this function is activated the

motor starts up at the first speed for ten minutes, During

this time key F and key C must flash at the same time.

After ten minutes the motor switches off and the LED of

key F remains switched on with a fixed light until the motor

starts up again at the first speed after fifty minutes and

keys F and C start to flash again for ten minutes and so

By pressing any key for the exclusion of the hood light the

hood will return immediately to its normal functioning (e.g.

if key D is pressed the “clean air” function is deactivated

and the motor moves to the 2nd speed straight away. By

pressing key B the function is deactivated).

(*) The “automatic stop timer” delays stopping of the

hood, which will continue functioning for 15 minutes at the

operating speed set at the time this function is activated.

• Active carbon/grease filter saturation:

- When button A flashes at a frequency of 2 seconds

grease filters must be cleaned.

- When button A flashes at a frequency of 0.5 seconds,

the carbon filters must be replaced.

After the clean filter has been replaced, the electronic

memory must be reset by pressing button A for

approximately 5 seconds, until the light on the button stops

•COMMANDS: (Fig.11-12A)MECHANICAL_(Fig.12B)

Elliptic the key symbols are explained below:

A = LIGHT B = OFF C = SPEED I D = SPEED II E = SPEED III G = MOTOR WORKING indicator

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR EVENTUAL DAMAGES CAUSED BY BREACHING THE ABOVE WARNINGS.- 21 -

ELEKTRISCHE AANSLUITING WAARSCHUWING:
