Unpacking your telephone

When unpacking, ensure that the following elements are included:

1 x Barbie corded phone
1 x handset coil cord
1 x telephone line cable
1 x telephone base station
1 x instruction manual

WARNING: All packaging materials, such as tape, plastic sheets, wire ties and tags are not part of this telephone and should be discarded.

Telephone description

1. Handset coil cord jack
2. Microphone
3. FLASH key

Press the FLASH key to generate temporarily a timed break of 100ms onto the line; you can use this function for special service. (e.g. call waiting function).

4.Keypad
5. Earpiece
6. Wall mount recess

To hang the handset when the telephone has been wall mounted.

1. MUTE key

During a call, press and hold down this key to mute the mouth-piece (the person on the other end won't be able to hear you anymore). Release the key to resume conversation.

1. REDIAL key

Press this key to repeat a call to the last number dialled.

1. PAUSE key

Press this key to insert a pause. You may need this key if you are using your telephone on a PBX.

Use this switch to set the ringer volume between "H" (high) and "Low" (L).

1. Ringer volume
2. Telephone line cord jack
3. Base station coil cord jack

13. Extra parking hook

The extra hook on the top of the cradle allows you to hang the handset for a moment (in case you need to leave the telephone momentarily during a call).

14. Parking hook

The parking hook holds the handset when the telephone has been wall mounted.

Instructions before use

The CP050BBi1 can be wall mounted (using the template page 12) or placed on a level surface, in a position where:

• The telephone line cable is connected to a telephone wall socket or to an extension socket.
• It is not close to a sink, bath or shower, or anywhere else where it might get wet

Electrical safety

• DO NOT let the CP050BBi1 get wet. Electrical equipment can cause serious injury if used while you are wet or standing in water.
• If the CP050BBi1 ever falls into water, DO NOT retrieve it until you have unplugged the telephone line plug from the telephone socket; then pull it out by the unplugged cable.

Connection and conditions for use

You can connect your CP050BBi1 to a direct exchange line (DEL) — a line connected to a local exchange, with its own phone number; to an extension socket connected to a DEL; or to an extension on an approved compatible PBX. Do not connect the CP050BBi1 as an extension to a payphone.

Installation

Please read the following instructions before installation

Each item of telephone equipment (phones, fax machines, etc.) has a ringer equivalence numbers (REN).

The REN of all instruments (phones, fax machines, etc.) connected to an exchange line must not add up to more than 4 — otherwise, one or more of them may not ring and/or answer calls correctly. CP050BBi1 has a REN of 1, and most other telephones have a REN of 1 unless marked otherwise.

Use the telephone line cable supplied with your CP050BBi1- do not use any other telephone line cord

Making and answering calls

Make a call

1. Lift the handset and wait for the dial tone.
2. Dial the telephone number using the keypad.

Answering a call

When the telephone rings, just lift the handset to answer the call.

REDIAL

To make a repeat call to the last number you dialed:

1. Lift the handset and wait for the dial tone.
2. Press the REDIAL key.

MUTE

While you are on a call, to mute the mouthpiece: Press and hold MUTE.

Wall mounting instructions

Please read carefully the instructions on this template before you start to wall mount your telephone. If you prefer, you can place it on a level surface.

BE CAREFUL - Check that there are no electrical wires hidden in the wall.

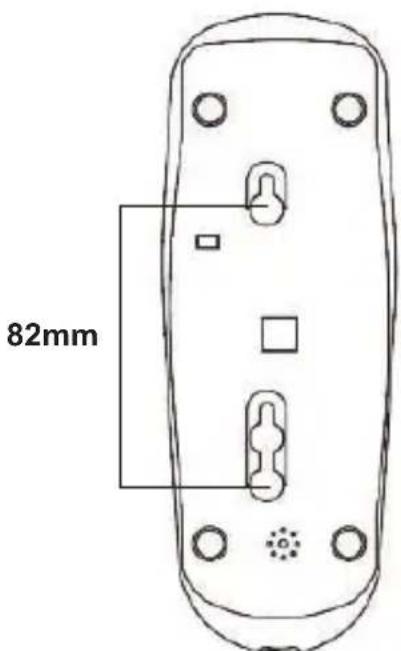

1. Mark the fixing centers on the wall. The marks should be 82mm apart.
2. Screw in the screws at the two marked locations, leaving approximately 7mm (1/4") between the wall and the screw head.
3. Tuck the telephone line cord into the grooves of the cradle.
4. Hang the cradle on the screws using the wall mounting slots on the underside of the unit. You may need to remove the telephone from the wall and tighten the screws so that the cradle is securely fixed and does not wobble.
5. Place the handset on the cradle using the base's parking hook and the parking recess under the earpiece on the handset.

Troubleshooting

The CP050BBi1 must be serviced by trained engineers. NEVER attempt any repairs or adjustments yourself: you could make the problem worse and invalidate the warranty.

ALWAYS check first that:

• You have followed all the instructions of this manual to install and set up your CP050BBi1.
• All connectors are firmly inserted in their sockets

If the phone does not ring:

• Make sure that your CP050BBi1 is fully plugged into the telephone line socket.
• Check that the ringer volume switch on the underside of the base is set to "H".
• Check that the total REN value of all equipment connected to your telephone line is no more than 4. Disconnect one or more telephones and see whether that helps.

If you cannot make a call:

• Make sure that your CP050BBi1 is fully plugged into the telephone line socket.
• Disconnect all other instruments connected to the same line as the CP050BBi1 and see whether you can make a call.
• Disconnect the CP050BBi1from the telephone line and plug a different telephone into the socket. Try making a call. If this works, the line is OK.
• If you are using a two-way socket adapter, remove it and plug a telephone directly into the socket. If the call now works, the adapter may be faulty.
• If you cannot make a call, the fault may be on the exchange line. Contact the service provider.

If the volume in the earpiece is low when you are on a call:

Make sure you're holding the earpiece correctly over your ear.

If you still cannot identify the cause of the problem, contact the Lexibook Help Line: 0808 1003015.

Technical details

Temperature range: Operating: 0^ to 40^ Storage: -10^ to 70^

Approvals: EN55022, EN55024, EN60950-1, TBR38, ES203021

PBX compatibility: Pause length: 3.6 seconds. Signaling type: DTMF (dual-tone multi-frequency), also called tone dialing.

Maintenance

Do not clean any part of your CP050BBi1 with benzene, thinner or other solvent chemicals — this may cause permanent damage which is not covered by the warranty. When necessary, clean it with a damp cloth. Keep your CP050BBi1 away from hot, humid conditions or strong sunlight, and do not let it get wet. Every effort has been made to ensure high standards of reliability for your CP050BBi1, however, if something does go wrong, please do not try to repair it yourself — consult your supplier or the Lexibook Help Line.

Warranty

NOTE: Please keep this instruction manual, it contains important information. This product is covered by our 1-year warranty.

For any claim under the warranty or after sale service, please contact your distributor and present a valid proof of purchase. Our warranty covers any manufacturing material and workmanship defect, with the exception of any deterioration arising from the non-observation of the instruction manual or from any careless action implemented on this item (such as dismantling, exposition to heat and humidity, etc.). It is recommended to keep the packaging for any further reference.

In a bid to keep improving our services, we could implement modification on the colours and the details of the product shown on the packaging.

Reference: CP050BBi1

©2008 Barbie, Inc. All rights Reserved.

©2008 LEXIBOOK®

Lexibook UK Ltd,

Unit 10 Petersfield Industrial Estate,

Bedford Road, Petersfield,

Hampshire, GU32 3QA, United Kingdom.

Helpline: 0808 1003015,

http://www.lexibook.com

Environmental Protection

Unwanted electrical appliances can be recycled and should not be discarded along with regular household waste! Please actively support the conservation of resources and help protect the environment by returning this appliance to a collection centre (if available).

Designed en developed in Europe - Made in China

EC Declaration of Conformity

LXB

Lexibook® S.A.

Declare under our sole responsibility that the following product:

Kind of product: Coreded Telephone

Reference /type designation: CP050BBi1

Is (are) in conformity with the following relevant harmonised standards:

EN 55022:1998 TBR38

EN 55024:1998 ICTR37

EN 60950-1:2001

ES203021
