USER MANUAL Living LV1TX AUDIO PRO

, the Audio Pro logotype, the ‘a’ symbol, and ace-bass

are all registered trademarks of Audio Pro AB, Sweden. All rights reserved. Audio Pro follows a policy of continuous advancement in development. Specifications may be changed without notice. www.audiopro.com www.audiopro.se EmbracingSound

is the single-point loudspeaker technology for consumers and professionals alike to experience more of the recording with better resolution and clarity than ever before. Thanks to the unique speaker placement and an ingenious signal treatment, the stereo signal is optimized to reach our ears instead of separate speakers. Just sit back and experience more of your music and maybe you will find new favorites, as well as, making excursions into music genres that you where totally unfamiliar with before. For further information please visit www.embracingsound.com. The trademark EmbracingSound

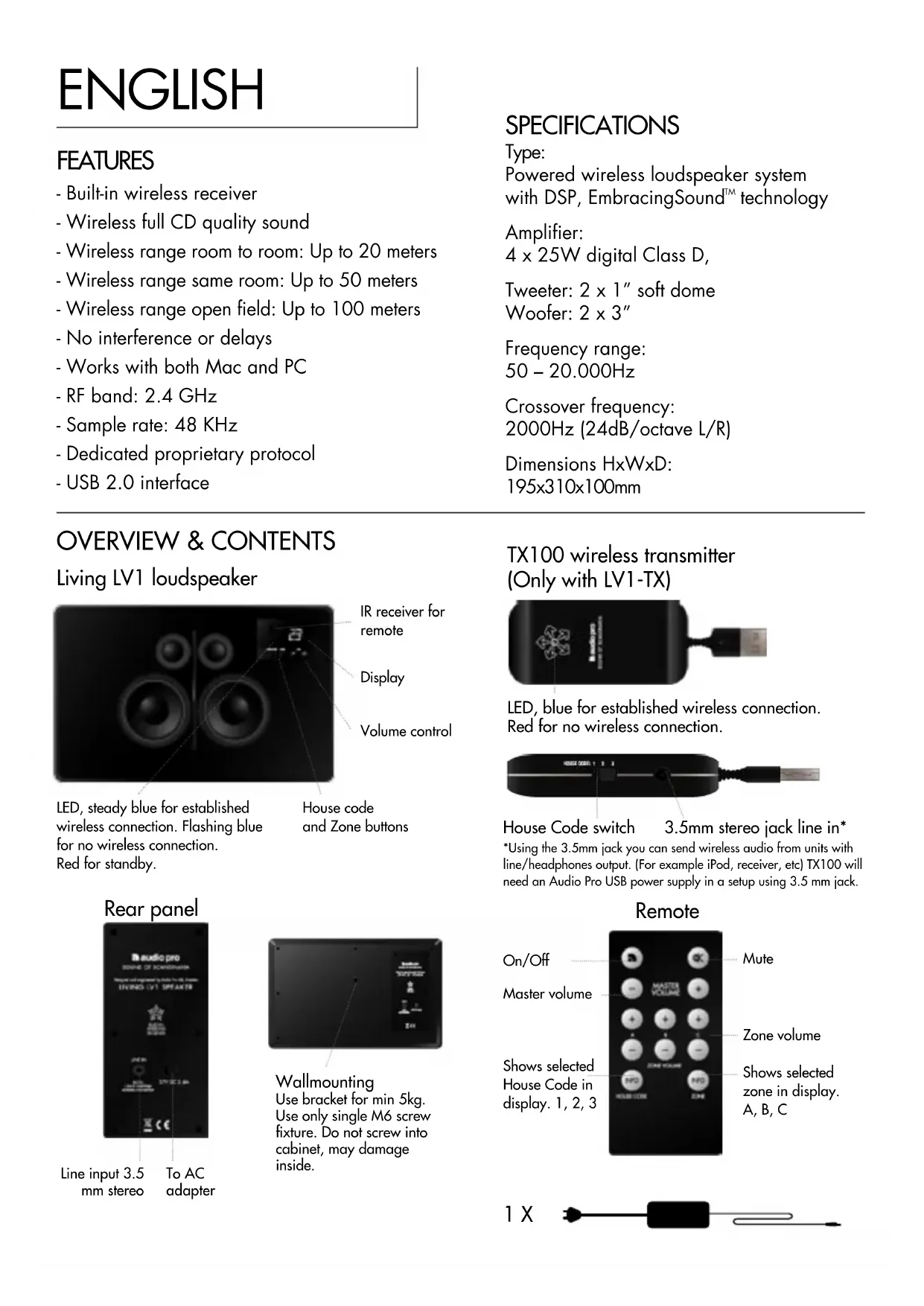

technology Amplifier: 4 x 25W digital Class D, Tweeter: 2 x 1” soft dome Woofer: 2 x 3” Frequency range: 50 – 20.000Hz Crossover frequency: 2000Hz (24dB/octave L/R) Dimensions HxWxD: 195x310x100mm FEATURES - Built-in wireless receiver - Wireless full CD quality sound - Wireless range room to room: Up to 20 meters - Wireless range same room: Up to 50 meters - Wireless range open field: Up to 100 meters - No interference or delays - Works with both Mac and PC - RF band: 2.4 GHz - Sample rate: 48 KHz - Dedicated proprietary protocol - USB 2.0 interface Remote On/Off Mute Shows selected zone in display. A, B, CShows selected House Code in display. 1, 2, 3Master volumeZone volume TX100 wireless transmitter (Only with LV1-TX) House Code switch LED, blue for established wireless connection. Red for no wireless connection. 3.5mm stereo jack line in* *Using the 3.5mm jack you can send wireless audio from units with line/headphones output. (For example iPod, receiver, etc) TX100 will need an Audio Pro USB power supply in a setup using 3.5 mm jack. Wallmounting Use bracket for min 5kg.Use only single M6 screw fixture. Do not screw into cabinet, may damage inside.

BASIC CONNECTION On rear panel of LV1 is a 3.5mm line input. Connect devices directly with cable. Connect iPod/iPhone/iPad dock, compu- ter, cellphone, etc. Note: Connecting a device to line in will override wireless connection. Disconnect cable to play wirelessly again. Mac setUp

1. Connect TX100 transmitter to a free USB socket.

2. Go to System Preferences, choose Sound under Hardware.

3. Click Output in menu, choose “USB Headset”.

Done! You can now send audio from your computer. pc setUp Please do following setup before using music playing software (for example iTunes or Spotify).

1. Connect TX100 transmitter to a free USB socket. Wait until software has been installed.

(See lower right hand corner, message window will open when sound device is ready to use.) Done! You can now send audio from your computer. For some PC computers ( i e Windows 7) you may need to perform these settings:

2. Click Start button, go to Control Panel and choose Sound & Sound devices.

3. Under playback of audio, default unit, choose “USB Headset”.

Done! You can now send audio from your computer. Before connecting to computer, see Mac or PC setup.

1. Connect the TX100 transmitter to the computer.

2. Connect LV1 speaker to 230V outlet.

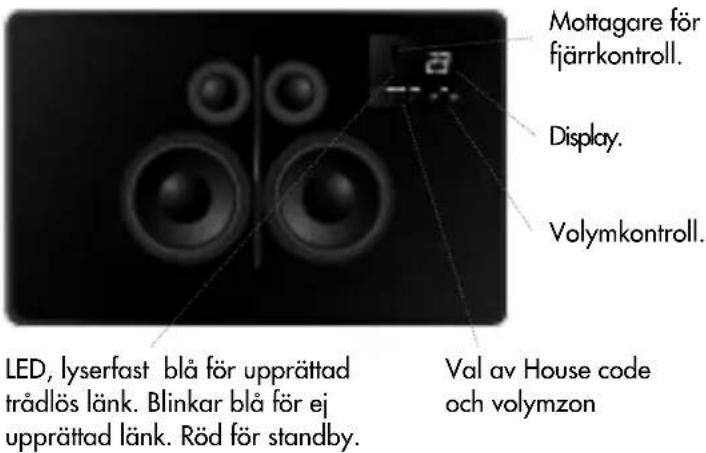

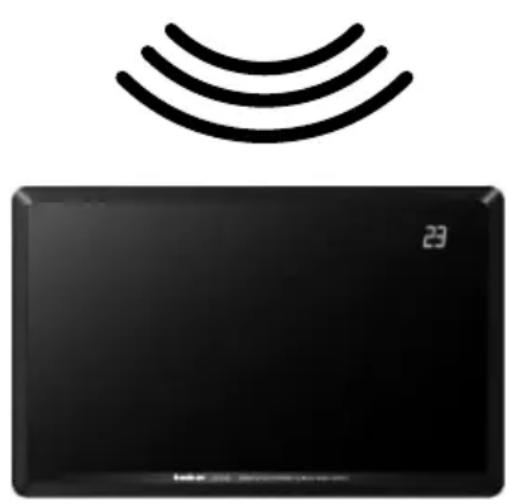

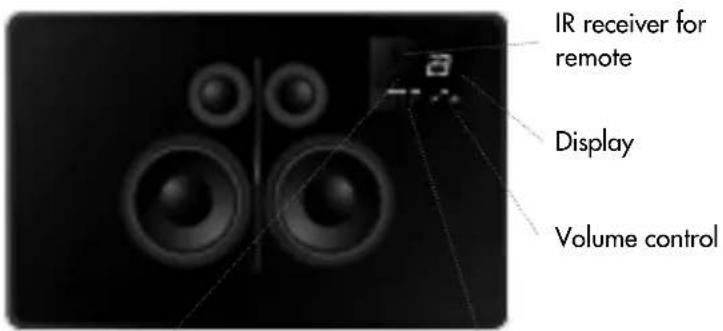

Done! Play your music on your computer. WIRELESS STATUS: LED lights up blue on speaker and transmitter when wireless connection is established. LED flashes blue on speaker when no wireless connection is established. Note: Make sure that speaker and transmitter are using same House Code (channel 1, 2 or 3). If speakers are in standby mode, LED is red even though wireless connection is established. LED turns blue when speakers receives signal.DISPLAY AND BUTTONS JOIN LV1 WITH EXISTING AUDIO PRO NETWORK TABLE STAND Under grille you will find display, IR receiver for remote, LED status indicator, volume, setting channel (House Code), and setting volume zone (Zone).

1. VOL; volume, + to increase; – to decrease.

2. HOUSE CODE: one push displays chosen channel (1, 2,

3). Further pushes changes channel 1>2>3 and back to 1.

3. ZONE: one push displays chosen volume zone (A, B, C).

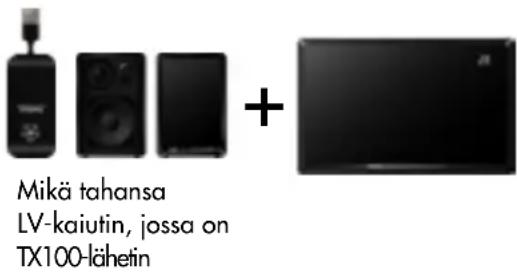

Further pushes changes channel A>B>C and back to A. Note: Display only shows information for 3 seconds after setting (on buttons or with remote). Then it is turned off. To avoid early reflections in flat surfaces, place LV1 on the enclosed table stand. The angle of the stand reduces reflections. Use if placed on large flat surface, like table, sideboard, kitchen bench. If you already own other LV speakers and a TX100 transmitter, let LV1 join your existing network like this:

1. Place LV1 within range of transmitter, connect to power.

2. Set to same channel (House Code) as transmitter.

3. Done! LV1 is now part of your wireless network.

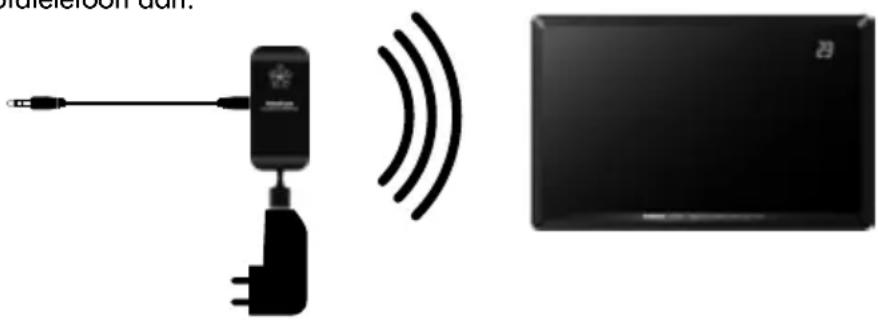

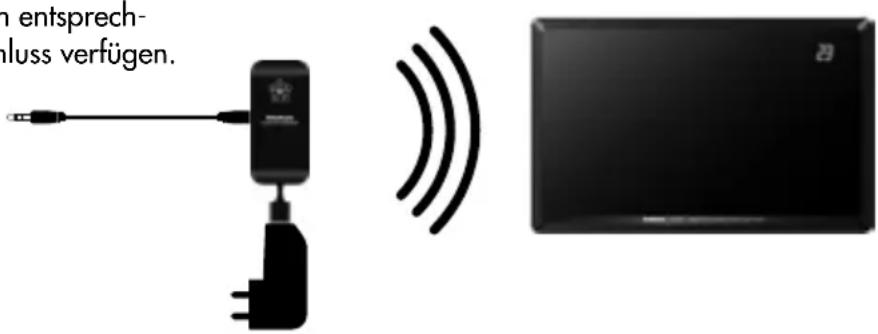

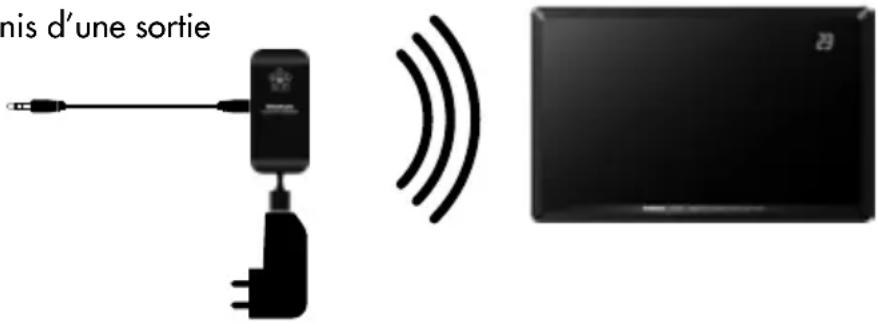

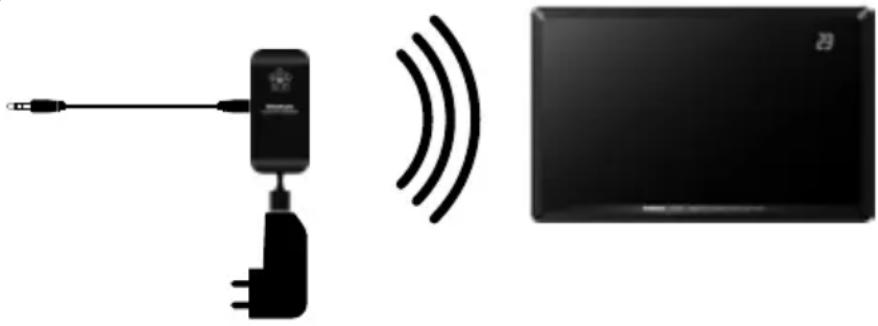

The TX100 transmitter has a sound input on its side to connect to a 3.5mm stereo cable. You can connect any device with sound output/headphones to the transmitter. Computer, mp3-player, iPod/ iPhone/iPad dock, cellphone, stereo/receiver, cd-player, radio, etc. TX100 contains an advanced Burr-Brown A/D converter for best sound reproduction. The transmitter TX100 must be powered by an USB power adaptor if connected by cable (sold separately). Connect all devices with sound output/ headphones. Examples: iPod/iPhone/iPad dock Cellphone CD-player Network player Stereo/receiver TVHoUse coDe 2 HoUse coDe 3 HoUse coDe 1 Note:

1. Set to same House Code on both transmitter and loudspeaker to make wireless connection.

2. You can add as many LV-speakers as you want in each House Code, within range of transmitter.

3. House Codes are the same for all speakers in the Living-series.

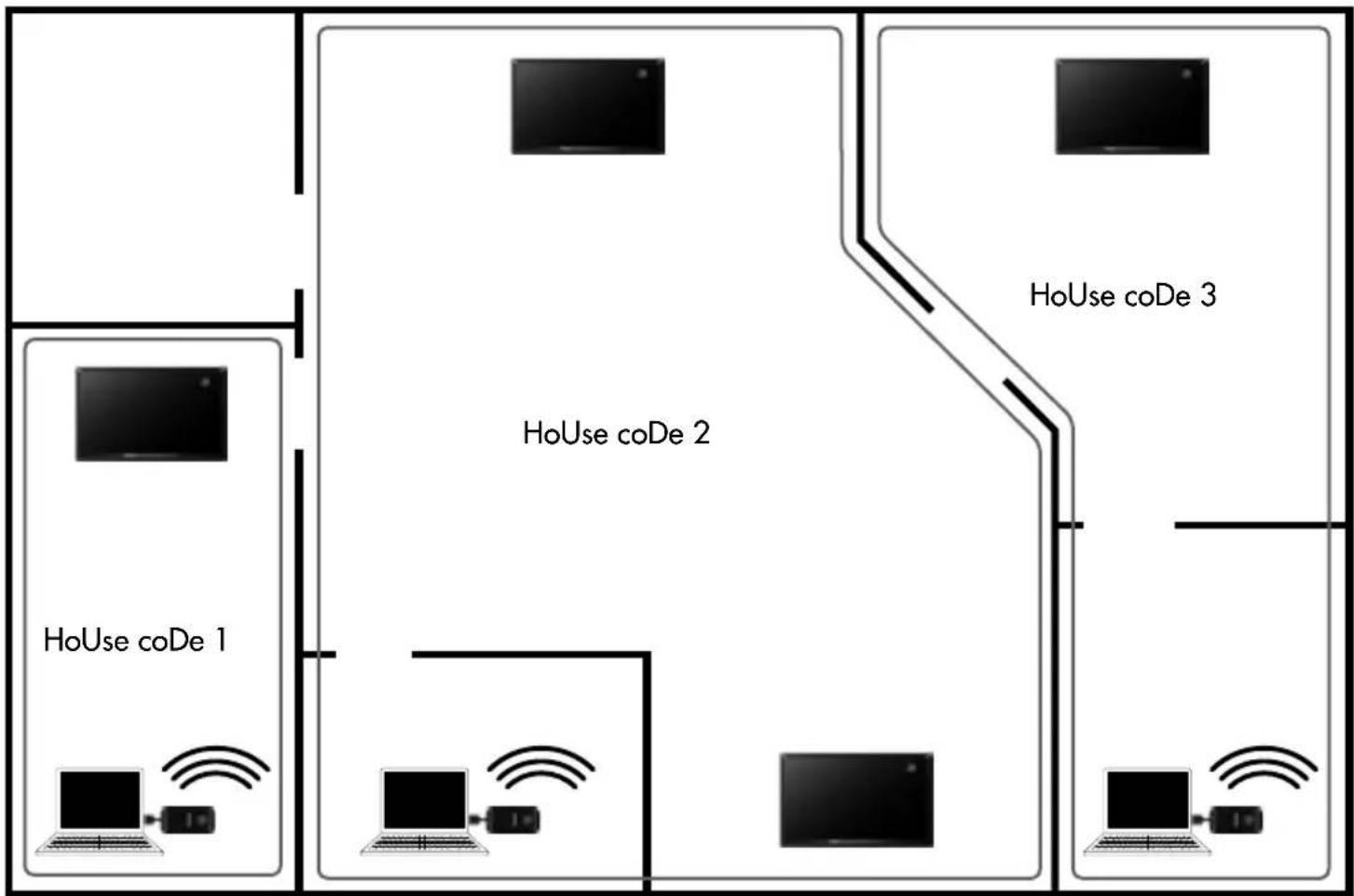

You can use Living LV1, LV2, LV3 or LV-SUB in the same wireless network. SETTING CHANNEL (HOUSE CODE): MULtirooM cHanneLs, pLay froM Different soUrces at tHe saMe tiMe By House Codes (1, 2, 3), the audio network can be divided in up to three separate channels. This feature allows you to play different music from different sound sources (with 3 transmitters). You can play all channels at the same time to different LV speakers in your home. House Code switch on side of transmitter TX100. Set to same number as the speakers you want to play wirelessly to. House Code button on front of LV1. One push to display current channel. Change House Code by pushing again. 1, 2, 3 and back to 1. House Code number is displayed. When channel is selected, display will turn black after 3 seconds. Reset speaker to factory settings: Hold House Code button on speaker pressed while pushing VOL + button.(HoUse coDe 1) Zone a Zone B Zone c voL voL voL House Code button on front of LV1. One push to display current channel. Change House Code by pushing again. 1, 2, 3 and back to 1. House Code number is displayed. When channel is selected, display will turn black after 3 seconds. MULTIROOM VOLUME ZONES, DIFFERENT LEVELS IN DIFFERENT ROOMS

1. Each channel (House Code) can be divided in up to three zones (A, B and C).

2. In zones you can adjust volume, on/off and mute individually in each zone.

Master volume on remote will adjust volume in all zones at the same time.

3. A zone does not have to be one room, can be whole housefloor or departments (within range of transmitter).

Volume zones works with all speakers in the Living series. Use Living LV1, LV2, LV3 and LV-SUB in same zones.

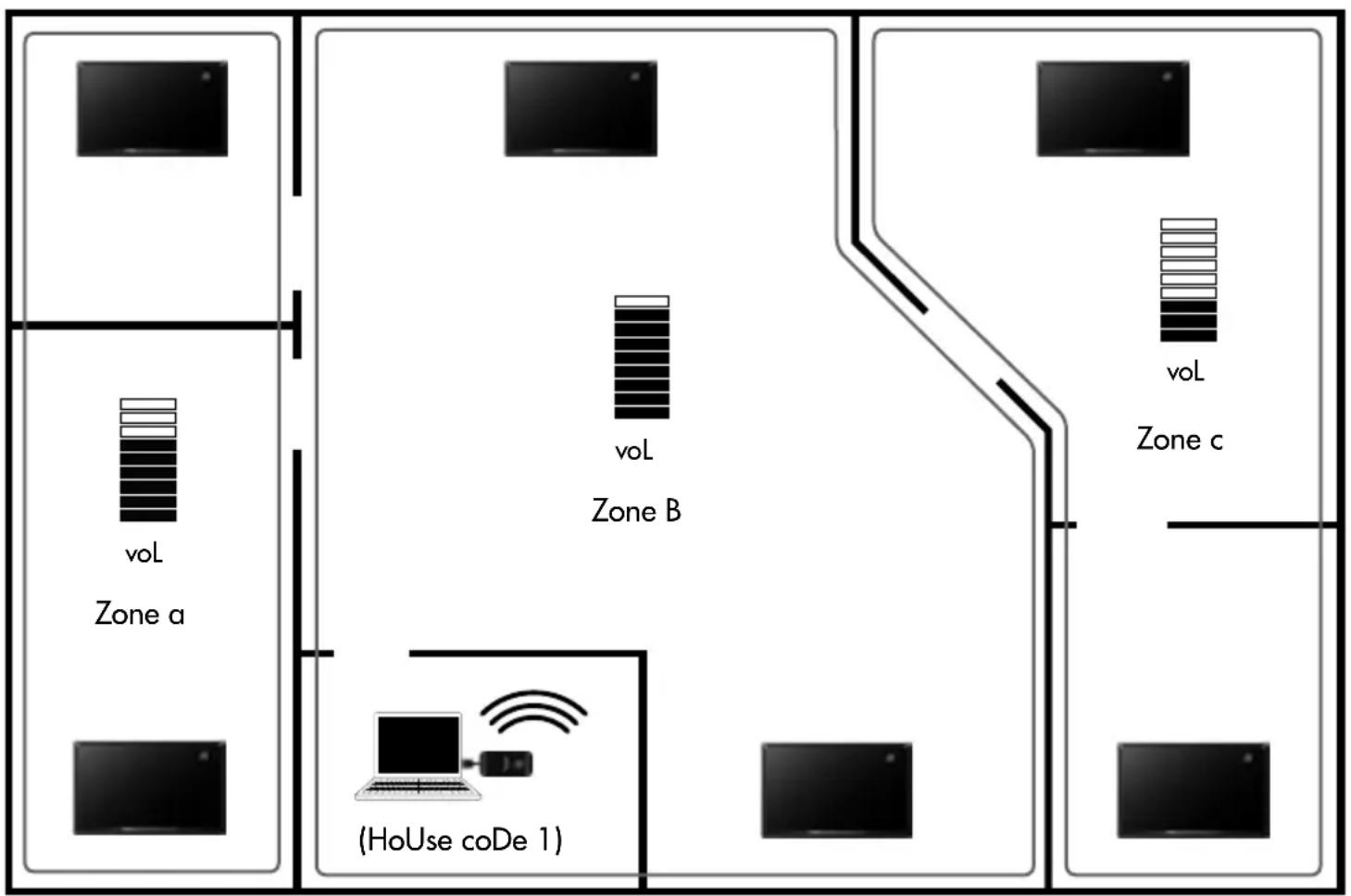

You can extend your audio network with infinate number of LV-speakers. But you might not always want the same volume level in all your rooms. Volume zones solves this. Each channel (House Code) can be divided in up to 3 volume zones. Each zone can have its own volume level. One level in the livingroom, another in the kitchen. You can adjust volume on all speakers at the same time with Master volume. You can have as many LV speakers in each zone as you like, or just one speaker. Zone volume is adjusted by the remote control. Zone button on the front of LV1. One push to display current zone. Change zone by pushing again. A, B, C and back to A. Zone letter is displayed. When zone is selected, display will turn black after 3 seconds. Reset speaker to factory settings: Hold House Code button on speaker pressed while pushing VOL + button.IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accord-

ance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat

registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Protect the power cord from being walked on or pinched

particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

10. Only use attachments/accessories specified by the

11. Unplug this apparatus during lightning storms or when

unused for long periods of time.

12. Refer all servicing to qualified service personnel. Servic-

ing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

13. Damage Requiring Service

Unplug the apparatus from the wall outlet and refer servicing to qualified service personnel under thee following conditions: A. When the power-supply cord or plug is damaged, B. If liquid has been spilled, or objects have fallen into the apparatus, C. If the apparatus has been exposed to rain or water, D. If the apparatus does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjust- ment of other controls may result in damage and will often require extensive work by a qualified technician to restore the apparatus to its normal operation, E. If the apparatus has been dropped or damaged in any way, and F. When the apparatus exhibits a distinct change in perform- ance this indicates a need for service.

14. Object and Liquid Entry

Never push objects of any kind into the apparatus through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases shall be placed on the apparatus. Don’t put candles or other burning objects on top of this unit.

Always consider the environmental issues and follow local regulations when disposing of batteries.

16. If you install the apparatus in a built-in installation, such as

a bookcase or rack, ensure that there is adequate ventilation. Leave 20 cm (8”) of free space at the top and sides and 10 cm (4”) at the rear. The rear edge of the shelf or board above the apparatus shall be set 10 cm (4”) away from the rear panel or wall, creating a flue-like gap for warm air to escape.

17. The power supply and power cord for this apparatus is

intended for indoor use only.

SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.FRANÇAIS DESCRIPTIF Type: Système de haut-parleurs sans fil avec DSP, utilisant la technologie EmbracingSound

On rear panel of LV1 is a 3.5mm line input. Connect devices directly with cable. Connect iPod/iPhone/iPad dock, compu- ter, cellphone, etc. Note: Connecting a device to line in will override wireless connection. Disconnect cable to play wireless again. Mac-asetUkset
