Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

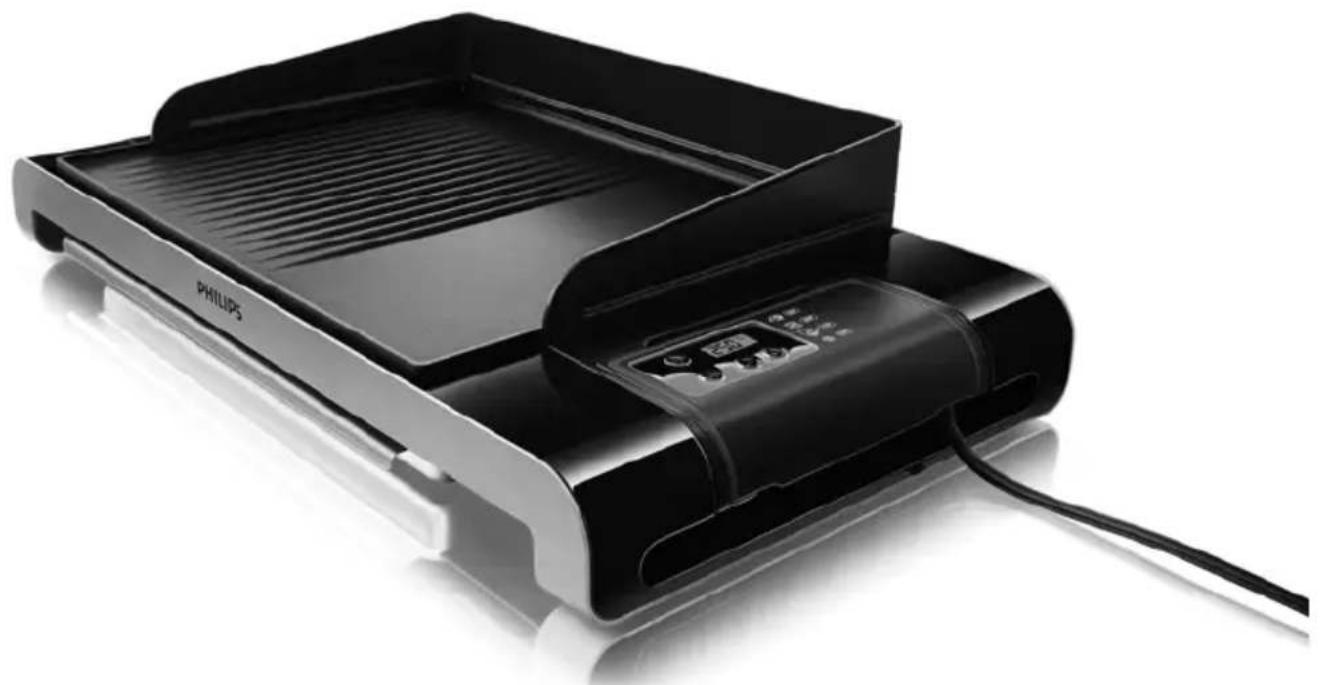

Your new grill with drip tray allows you to prepare all kinds of tasty food almost smoke-free. Grilling with this appliance is easy because of the large grilling surface.

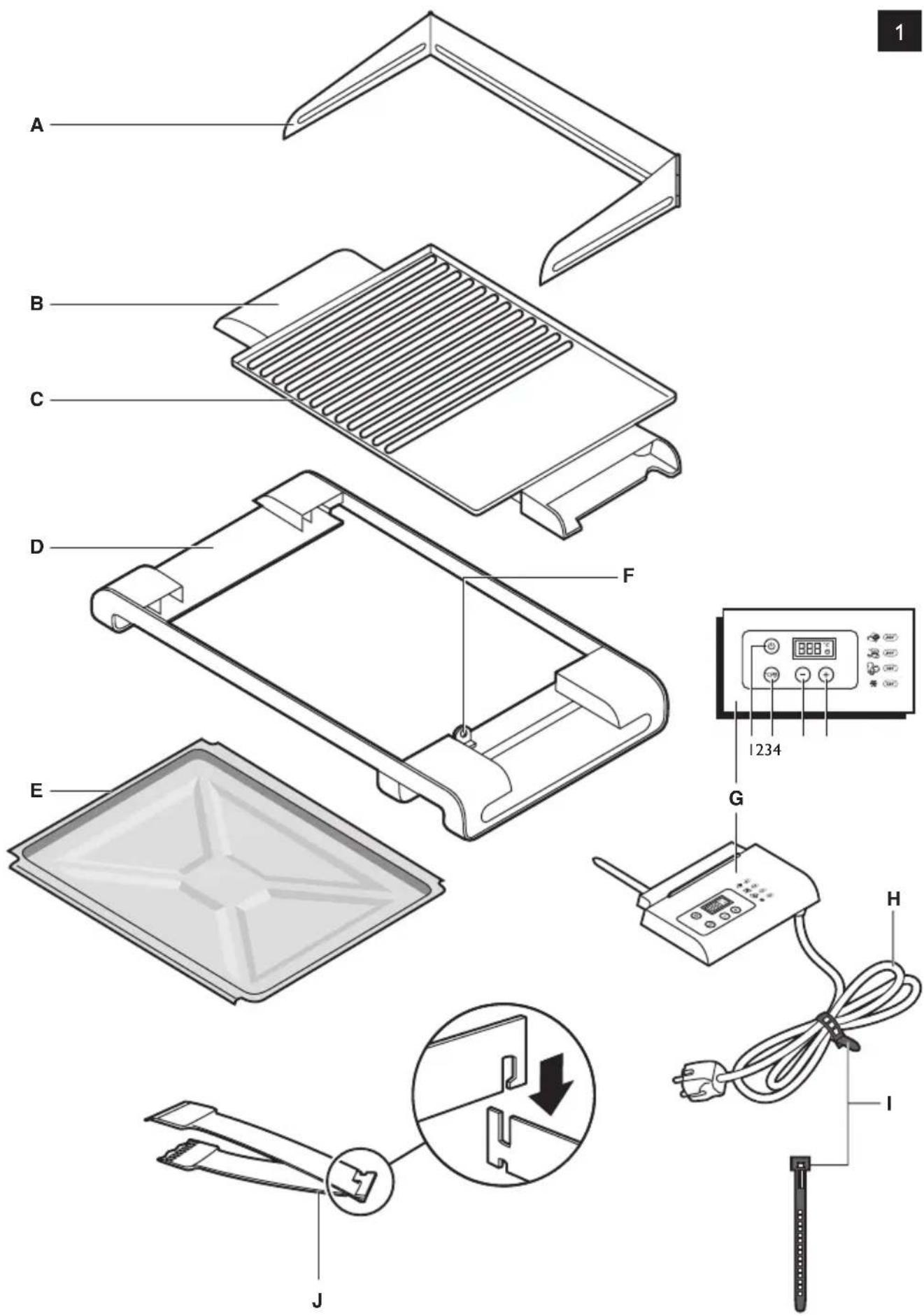

General description (Fig. 1)

A Splatter guard
B Cool-touch handgrips
C Dishwasher-safe non-stick grilling plate
D Base
E Drip tray
F Thermostat unit socket
G Thermostat unit

1 On/off button
2 Mode button to set temperature or timer
3 - button to decrease temperature or time
4 + button to increase temperature or time

H Mains cord

I Cord strap
J Two-in-one spatula and tongs

Also included: Recipe booklet

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Danger

• Do not immerse the thermostat unit with mains cord in water or any other liquid.

Warning

• Check if the voltage indicated on the bottom of the appliance corresponds to the local mains voltage before you connect the appliance.
• Do not use the appliance if the plug, the mains cord or the appliance itself is damaged.
• If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.
• Only connect the appliance to an earthed wall socket.
• Keep the mains cord away from hot surfaces.
• Do not let the mains cord hang over the edge of the table or worktop on which the appliance stands.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

• Never let the appliance operate unattended.

• Never connect this appliance to an external timer switch in order to avoid a hazardous situation.

• Always make sure the drip tray is in place before you start grilling.

• Never leave the spatula/tongs on the grilling plate when it is hot.

Caution

• Always insert the thermostat unit into the appliance before you put the plug in the wall socket.

• Only use the thermostat unit supplied.

• Make sure that the inside of the thermostat unit socket is completely dry before you insert the thermostat unit.

• Put the appliance on a flat, stable surface with sufficient free space around it.
• Always make sure the splatter guard is in place before you start grilling. Do not remove the splatter guard during grilling.

• Do not remove the drip tray during grilling.

• Make sure the drip tray is filled with water at least up to the MIN level before you start using the appliance.

• Always preheat the plate before you put any food on it.

• The accessible surfaces may become hot when the appliance operates.
• Be careful of spattering fat when you grill fatty meat or sausages.
• Always unplug the appliance after use.
• Always switch off the appliance after use and remove the mains plug from the wall socket before you remove the thermostat unit from the thermostat unit socket.
• Always clean the appliance after use.
• Let the appliance cool down completely before you remove the plate, clean the appliance or put it away.
• Never touch the plate with sharp or abrasive items, as this damages the non-stick coating.
• Make sure you reassemble the plate properly after you have removed it.
• This appliance is only intended for indoor use. Do not use it outdoors.

Electromagnetic fields (EMF)

This Philips appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.

Before first use

1 Remove any stickers and wipe the body of the appliance with a damp cloth.
2 Clean the appliance and the plate thoroughly (see chapter 'Cleaning').

Using the appliance

Note: The appliance may produce some smoke when you use it for the first time. This is normal.

1 Slide the drip tray into the base (Fig. 2).
Note: The drip tray can only be slid into the base in one way.
2 Fill the drip tray with water up to the minimum level indication (MIN) (Fig. 3).

• The water in the drip tray helps to prevent food particles from getting burnt.

• To make cleaning easier, you can line the drip tray with aluminium foil before you fill it with water.

• When you line the drip tray, make sure the foil does not hang over the sides of the tray, as this prevents proper air circulation.

Place the grilling plate into the slots in the base (Fig. 4).

Note: The grilling plate only fits in the base in one way.
4 Insert the thermostat unit into the thermostat unit socket in the side of the appliance. (Fig. 5)
5 Place the splatter guard on the appliance. (Fig. 6)

The splatter guard prevents oil and grease from splattering onto the worktop.

Note: The splatter guard only fits onto the appliance in one way.

ENGLISH8

6 Press the On/off button to switch on the appliance.

The temperature symbol on the display lights up and the default temperature of 250^ flashes on the display as long as the appliance is heating up.

7 To adjust the temperature, press the + or - button.

The maximum temperature that can be set is 250^ and the minimum temperature that can be set is 75^ .

The temperature increases or decreases by 25^ every time you press the + or - button.
- When the appliance has heated up to the set temperature, the temperature on the display stops flashing.
8 If you want to use the timer, press the temperature/timer button (Fig. 7).

Note: If you want to switch to setting the temperature again, press the temperature/timer button again.

The default time of 0 minutes is shown on the display.

9 To set the timer, press the + or - button.

The maximum time that can be set is 30 minutes.

The time increases or decreases by 1 minute every time you press the ^+ or - button.
10 Use the spatula/tons provided to place the ingredients on the grilling plate.

Be careful: the grilling plate is hot!

Note: Use the spatula with the serrated end for the ribbed section of the plate and use the spatula with the straight end for the flat section of the plate.

11 Turn the food from time to time with the spatula/tons provided.
12 When the food is done, remove it from the grilling plate.

Use the spatula/tongs provided to remove the food. Do not use metal, sharp or abrasive kitchen utensils.
13 For optimal results, remove excess oil from the grilling plate with a piece of kitchen paper. Loosen any caked food or grease carefully with the spatulas provided and remove it from the plate before you grill the next batch of food.
14 To continue grilling, place the next batch of food on the grilling plate To stop grilling, press the on/off button and remove the mains plug from the wall socket.

Note: If you do not use the + and - buttons to adjust the temperature or the timer for 45 minutes, the appliance switches off automatically for safety reasons.

Grilling times

In the table at the end of this booklet you find some types of food you can cook on this table grill. The table shows which temperature to select and how long the food has to be grilled. The time required to heat up the appliance has not been included in the grilling times indicated in the table. The grilling time and temperature depend on the type of food that you prepare (e.g. meat), its thickness and its temperature and also on your own taste. You can also refer to the indications on the thermostat unit.

Tips

• You can find a number of inspiring recipes in the recipe booklet. You can also visit our website (www.philips.com/kitchen) for more inspiration and product information.

• The ribbed section of the grilling plate is ideal for preparing meat and poultry (Fig. 8).

• The flat section of the grilling plate is ideal for preparing fish, eggs, ham, mushrooms, tomatoes, onions, etc. It is also handy for keeping food hot (Fig. 9).

• You can also use the table grill as a thermostatically controlled hotplate that automatically keeps your dishes at the required temperature. Cover the ribbed section of the plate with aluminium

foil with the shiny side facing upwards. Then set the temperature control to position 100 or 125^ .

• You can use the timer to remind you to turn the food from time to time. For example, after you place steaks on the grilling plate, you can set the timer to 2 minutes. When the 2 minutes have elapsed, you can turn over the steaks. You can then set the timer to 2 minutes again to grill the other side of the steaks.
• Tender pieces of meat are best suited for grilling.
• Pieces of meat such as steaks or spare rib chops become more tender if marinated overnight.
• Turn the food from time to time with the spatula/tongs provided to ensure that it remains juicy inside and does not dry out. Do not use any metal tools like forks or grill tongs as they damage the non-stick coating of the grilling plate.
• Do not turn the grilled food too frequently. When the items are brown on both sides, grill them at a lower temperature to ensure they do not dry out and are cooked more evenly.
• If you want to defrost frozen food, wrap the frozen food in aluminium foil and set the temperature control to position 150 or 175^ . Turn the food from time to time. The defrosting time depends on the weight of the food.
• When you prepare satay, chicken, pork or veal, first sear the meat at a high temperature (250^) . If necessary, you can then set the temperature control one position lower and grill the food until it is done.
• When you make satay or kebab, soak bamboo or wooden skewers in water to prevent them from getting scorched during grilling. Do not use metal skewers.

• Sausages tend to burst when they are being grilled. To prevent this, punch a few holes in them with a fork.

• Fresh meat gives better grilling results than frozen or defrosted meat. Do not put salt on the meat until after you have grilled it. This helps to keep the meat juicy. For the best result, make sure the pieces of meat you prepare are not too thick (approx. 1.5cm).

This table grill is not suitable for grilling breadcrumbed food.

Cleaning (Fig. 10)

Important: never use abrasive cleaning agents and materials, as this damages the non-stick coating of the plate.

Do not immerse the thermostat unit with mains cord in water or any other liquid.

1 Press the on/off button to switch off the appliance.
2 Unplug the appliance and let it cool down.
3 Pull the thermostat unit out of the appliance and remove the splatter guard (Fig. 11).
4 Remove excess oil from the grilling plate with a piece of kitchen paper.
5 Lift the grilling plate from the base by its handgrips (Fig. 12).

Note: If the thermostat unit is still inserted into the appliance, you cannot remove the grilling plate.
Soak the grilling plate in hot water with some washing-up liquid for five minutes or drizzle some lemon juice onto the grilling plate. This loosens any caked food or grease.
7 Slide the drip tray out of the base (Fig. 13).

Note: The drip tray can only be slid out of the base in one way.

8 See the separate cleaning table for further cleaning instructions.
9 After cleaning, dry the grilling plate, splatter guard, drip tray and spatula/tongs.

ENGLISH10

The inside of the thermostat unit socket must be completely dry before you reinsert the thermostat unit into it. To dry the socket, wipe the inside with a dry cloth. If necessary, shake out excess water first.

10 Reassemble the appliance.

Storage

1 Leave the thermostat unit in the grill. Wind the cord and fix it with the cord strap (Fig. 14).
Store the grill in upright position on a dry and level surface (Fig. 15).

Note: Make sure that the stoppers are at the bottom, so that the drip tray cannot fall out of the appliance.

Environment

• Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment (Fig. 16).

Guarantee & service

If you need service or information or if you have a problem, please visit the Philips website at www.philips.com or contact the Philips Consumer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Consumer Care Centre in your country, go to your local Philips dealer.

Food table (Fig. 17)

Troubleshooting

This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, contact the Consumer Care Centre in your country.

Problem Possible cause Solution

The appliance The plug is not properly Put the plug properly in the wall socket. does not work. inserted into the wall socket.

The thermostat unit is not Insert the thermostat fully into the inserted properly into appliance. appliance and then put the plug in the wall socket.

The mains cord is damaged. If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.

The appliance The first few times you use the This is normal. After you have used the produces smoke. appliance, it may produce some appliance a few times, the appliance stops smoke. smoke. producing smoke.

Problem Possible cause Solution
	Food or grease has caked onto the grilling plate.	Carefully clean the grilling plate after each use. You can remove residues by soaking the plate in hot water with some washing-up liquid for five minutes. This will loosen any caked food or grease.
The food is not grilled properly (too raw or burnt).	You have set a too low or too high temperature and/or you have grilled not grilled the food long enough or you have grilled it too long.	Set a lower or higher temperature and/or grill the food for a longer or shorter period. See the table at the end of this booklet for the recommended temperature and grilling time for various types of food.
During grilling, fat or juice drips onto the worktop	You have not put the drip tray in the base.	Put the drip tray in the base.
During grilling, fat or juice splatters onto the worktop	You have not put the splatter guard on the appliance.	Put the splatter guard on the appliance.
	You are grilling ingredients that contain a lot of fat or juice.	Clean the worktop with a damp cloth after grilling.
The table grill switches off in the middle of the grilling process	The table grill has been on for more than 45 minutes. If you do not use the + and - buttons to adjust the temperature or the timer for 45 minutes after you switch on the appliance, the appliance switches off automatically for safety reasons.	To continue cooking, you have to press the temperature/timer button or the + or - button.
The message 'Err' appears on the display.	The appliance is unable to reach the set temperature and therefore the heating element switches off.	Unplug the appliance and let it cool down. Then put the plug back into the wall socket, switch on the appliance and let it heat up again. If the message 'Err' appears on the display again, contact the Consumer Care Centre in your country.
