USER MANUAL EasyLife FC8130 PHILIPS

Always here to help you

Register your product and get support at

Congratulations on your purchase and welcome to Philips! To fully benet from the support that

Philips offers, register your product at www.philips.com/welcome.

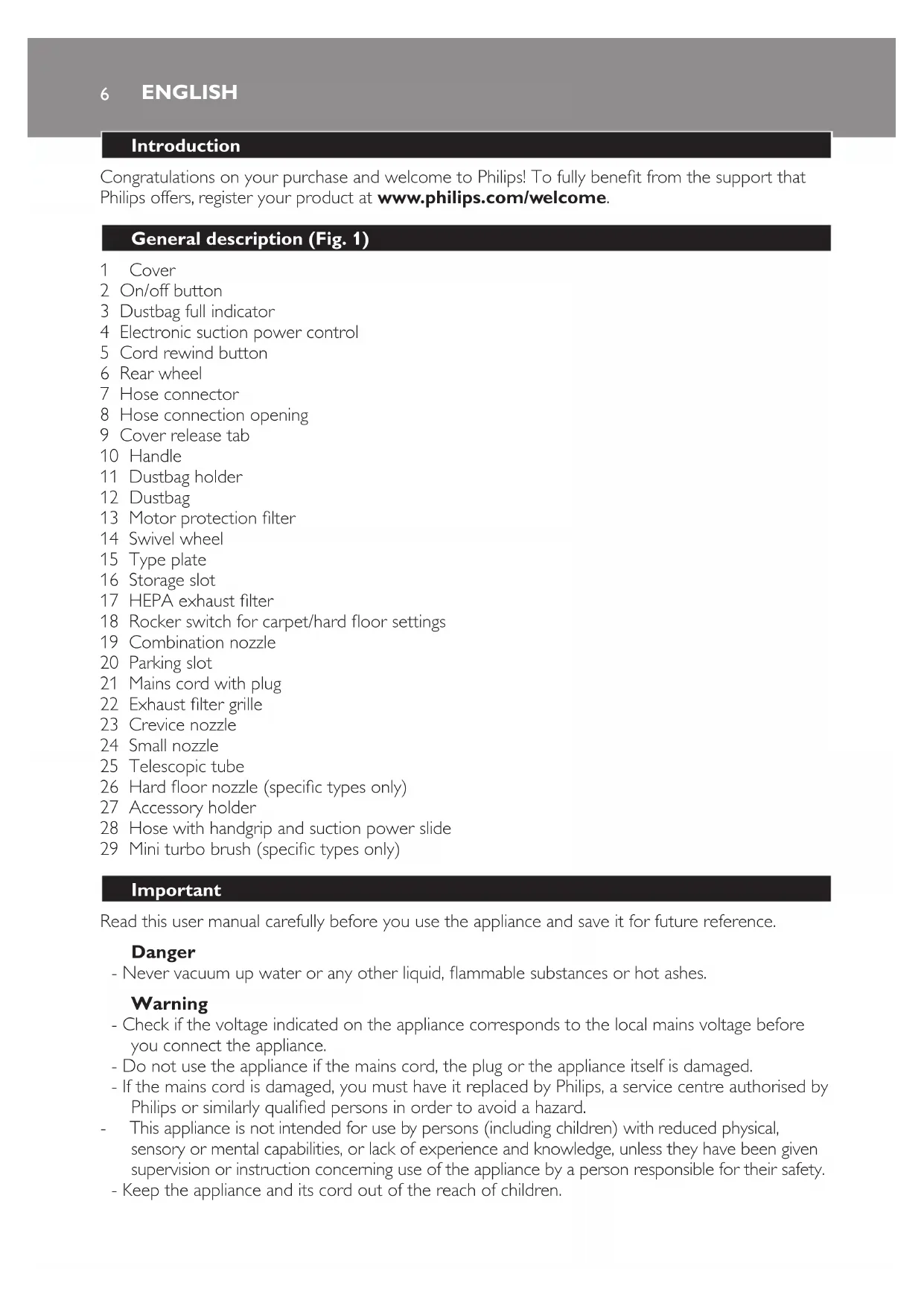

General description (Fig. 1)

4 Electronic suction power control

8 Hose connection opening

21 Mains cord with plug

26 Hard oor nozzle (specic types only)

28 Hose with handgrip and suction power slide

29 Mini turbo brush (specic types only)

Read this user manual carefully before you use the appliance and save it for future reference.

- Never vacuum up water or any other liquid, ammable substances or hot ashes.

- Check if the voltage indicated on the appliance corresponds to the local mains voltage before

you connect the appliance.

- Do not use the appliance if the mains cord, the plug or the appliance itself is damaged.

- If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by

Philips or similarly qualied persons in order to avoid a hazard.

- This appliance is not intended for use by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Keep the appliance and its cord out of the reach of children.

ENGLISH- The plug must be removed from the socket-outlet before cleaning or maintaining the appliance.

- Do not point the hose, the tube or any other accessory at the eyes or ears nor put it in your mouth.

- Do not use the appliance and the mini turbo brush on pets.

- Do not vacuum up large objects as this may cause the air passage in the tube or hose to

- When you use the vacuum cleaner to vacuum ashes, ne sand, lime, cement dust and similar

substances, the pores of the dustbag and the motor protection lter become clogged. If you notice

a strong decrease in suction power, replace the dustbag and clean the motor protection lter.

- Always unplug the appliance before you replace the dustbag or clean the lters and assemble or

disassemble accessories.

- Never use the appliance without the motor protection lter. This could damage the motor and

shorten the life of the appliance.

- Only use Philips s-bag

disposable synthetic dustbags or the reusable dustbag. Using other types

or brands of dustbags might cause damage to the vacuum cleaner.

- To guarantee optimal dust retention and performance of the vacuum cleaner, always replace the

lters with original Philips lters of the correct type.

Electromagnetic elds (EMF)

This Philips appliance complies with all applicable standards and regulations regarding exposure to

electromagnetic elds.

1 To connect the hose, push it into the appliance (‘click’) (Fig. 2).

2 To disconnect the hose, press the release buttons (1) and pull the hose connector out of the

hose connection opening (2). (Fig. 3)

1 To connect the tube to the handgrip of the hose, insert the narrow section into the wider

section while turning a little (Fig. 4).

To disconnect the tube, pull while turning a little.

2 Adjustthetelescopictubetothelengthyoundmostcomfortableduringvacuuming.

Press the slide on the tube (1) and push the lower tube part downwards or pull it upwards

You can use the combination nozzle on carpet (with the brush strips folded in) or on hard oors

(with the brush strips folded out).

- To clean hard oors, push the rocker switch on top of the combination nozzle with your foot to

make the brush strips come out of the nozzle housing. (Fig. 6)

- To clean carpet, push the rocker switch on the other side to make the brush strips disappear

into the housing. (Fig. 7)

Hard oor nozzle (specic types only)

- The hard oor nozzle is designed for gentle cleaning of hard oors (Fig. 8).

ENGLISH 7Accessory holder

You can store two accessories in the accessory holder at the same time.

1 Connect the accessory holder to the tube (1) and then connect the handgrip of te hose to

the accessory holder (2) (Fig. 9).

2 To store accessories in the accessory holder, push them onto the holder (Fig. 10).

Crevice nozzle and small nozzle

1 Connectthecrevicenozzleorthesmallnozzletothehandgripofthehoseortothetube.

To do this, insert the handgrip or tube into the accessory while turning a little. (Fig. 11)

- Use the crevice nozzle to clean narrow corners or hard-to-reach places.

- Use the small nozzle to clean small areas, e.g. the seats of chairs and sofas.

Mini turbo brush (specic types only)

The mini turbo brush is specially designed to effectively pick up animal hairs and uff from furniture

and mattresses. The unique brush inside the mini turbo brush loosens the hairs from the fabric so

that they can be picked up by the vacuum cleaner. The mini turbo brush can be attached to the

handgrip of the hose or to the telescopic tube.

1 To attach the mini turbo brush, insert it into the handgrip or the telescopic tube while

turning it a little.

1 Pull the cord out of the appliance and insert the mains plug into the wall socket.

2 Press the on/off button on top of the appliance with your foot to switch on the appliance.

Note: If you want to pause for a moment, insert the ridge on the nozzle into the parking slot to park

the tube in a convenient position (Fig. 13).

Note: You can carry the vacuum cleaner by the handle at the front of the appliance (Fig. 14).

Adjusting suction power

You can adjust the suction power with:

- the suction power slide on the handgrip (Fig. 15).

- the electronic suction power control on the vacuum cleaner (Fig. 16).

Cleaning and maintenance

Theplugmustberemovedfromthesocket-outletbeforecleaningormaintainingtheappliance.

1 Switchoffandunplugtheappliancebeforeyouremoveandcleananyparts.

2 Clean the appliance and its parts with a damp cloth.

Donotcleananypartofthevacuumcleanerinthedishwasher.

ENGLISH8Cleaning the motor protection lter

To maintain optimal performance, clean the motor protection lter at least once a year.

1 Pullthecoverupwardstoopenit(Fig.17).

2 Lift the dustbag holder out of the appliance. (Fig. 18)

Make sure you hold the dustbag upright when you lift it out of the appliance.

3 Pullthelterholderwiththemotorprotectionlteroutoftheappliance.(Fig.19)

4 Takethemotorprotectionlteroutoftheholder.Shakethemotorprotectionlterovera

dustbin to clean it.

5 Putthelterinthelterholderandslidethelterholderbackintotheappliance.

6 Put the dustbag holder back into the appliance.

To clean the brush inside the mini turbo brush, follow the steps below.

1 Rotatethebrushinsidetheminiturbobrushuntilthecuttinggroovefacesyou.Useapairof

scissorstocutthehairs,threadsetc.thathavecollectedaroundthebrush.(Fig.20)

2 Removeuff,hairsandotherdirtfromthebrush.

1 Switch off and unplug the appliance.

3 Puttheapplianceinuprightposition.Toattachthenozzletotheappliance,inserttheridgeon

Note: To ensure stable storage of the telescopic tube, adjust the tube to the shortest length.

Theplugmustberemovedfromthesocket-outletbeforecleaningormaintainingtheappliance.

Replacing the dustbag

- Replace the dustbag as soon as the dustbag-full indicator has changed colour permanently,

i.e. even when the nozzle is not placed on the oor (Fig. 22).

1 Switch off and unplug the appliance.

2 Pullthecoverupwardstoopenit.

3 Lift the dustbag holder out of the appliance.

Make sure you hold the dustbag upright when you lift it out of the appliance.

4 Pullatthecardboardtagtoremovethefulldustbagfromtheholder(Fig.23).

, When you do this, the dustbag is sealed automatically.

5 Slidethecardboardfrontofthenewdustbagintothetwogroovesofthedustbagholderas

far as possible. (Fig. 24)

ENGLISH 96 Putthedustbagholderbackintothevacuumcleaner(Fig.25).

Note: If no dustbag has been inserted, you cannot close the cover.

7 Pushthecoverdownwardstocloseit.

Replacing the HEPA exhaust lter

Replace the HEPA exhaust lter every 6 months.

1 ToopentheHEPAexhaustltergrille,grabthetabsandpullthegrilleupwardstoremoveit

from the appliance (Fig. 26).

3 PlacethenewHEPAexhaustlterintotheappliance.

slots in the appliance (1). Then press the tabs downwards until the grille locks into place

(2) (‘click’) (Fig. 27).

Ordering accessories

To buy accessories or spare parts (such as dustbags, lters and additional nozzles),

visit www.shop.philips.com/service or go to your Philips dealer. You can also contact the Philips

Consumer Care Centre in your country (see the worldwide guarantee leaet for contact details).

- Philips Classic s-bag

synthetic dustbags are available under type number FC8021.

- Philips Clinic s-bag

high ltration synthetic dustbags are available under type number FC8022.

- Philips Anti-odour s-bag

synthetic dustbags are available under type number FC8023.

- Reusable dustbags (some countries only) are available under code number 4322 004 93370.

Note: Please visit www.s-bag.com for more information about the s-bag.

Ordering lters and accessories

- HEPA exhaust lters are available under type number FC8070.

- Do not throw away the appliance with the normal household waste at the end of its life, but

hand it in at an ofcial collection point for recycling. By doing this, you help to preserve the

environment (Fig. 28).

Guarantee and support

If you need information or support, please visit www.philips.com/support or read the separate

worldwide guarantee leaet.

ENGLISH10Troubleshooting

This chapter summarises the most common problems you could encounter with the appliance. If

you are unable to solve the problem with the information below, visit www.philips.com/support

for a list of frequently asked questions or contact the Consumer Care Centre in your country.

1 Thesuctionpowerisinsufcient

- Perhaps the dustbag is full.

If necessary, empty the dustbag.

- Perhaps the lters need to be cleaned or replaced.

If necessary, clean or replace the lters.

- Perhaps the suction power slide on the handgrip is open.

- Perhaps the electronic suction power control is set to a low setting.

Set the control to a higher setting.

- Perhaps the nozzle, tube or hose is blocked up. (Fig. 29)

To remove the obstruction, disconnect the blocked-up item and connect it (as far as possible)

the other way round. Switch on the vacuum cleaner to force the air through the blocked-up item in

2 Specictypesonly:hairsareentangledaroundthebrushinsidetheminiturbobrush.
