Brand	Philips
Model	Aqua Plus XC8055
Product type	Stick vacuum cleaner with mopping function
Power supply	Rechargeable Li-Ion battery, mains adapter
Charging time	Approximately 6 hours
Power modes	3 (Eco, Normal, Turbo modes)
Water tank capacity	370 ml
Floor type recognition function	Yes, can be turned on/off
Display	Digital display with battery, power, filter indicators
LED lighting	Adjustable (nozzle, handheld vacuum, accessories)
Included accessories	PrecisionPower intelligent nozzle, Turbo mini-brush, crevice tool, combination tool, soft brush, upholstery tool, water tank with microfiber mopping pad
Filter	Washable foam filter, recommended replacement every 6 months
Frequent maintenance	Empty dust bin after each use, clean water tank
Periodic maintenance	Clean filter every month, descale water tank every month, clean rotating brush
Operating temperature	5°C to 40°C
Safety	Do not vacuum liquids except with the mop module, do not look directly at LEDs, use original adapter
Replacement parts	Filter XV1681/01, mopping pad XV1700/01, Philips floor cleaner XV1792
Error codes	Display of codes (E1 to E5, i4 to i10) for diagnostics

Frequently Asked Questions - Aqua Plus XC8055 PHILIPS

How to charge the device?

Place the device on the wall mount or plug the adapter directly into the handheld vacuum. Full charging takes approximately 6 hours. The display shows the charge percentage.

Can I use the mop module on a carpet?

No, the mop module is designed only for sealed hard floors (tiles, varnished parquet, linoleum, etc.). Do not use it on rugs or carpets.

How to clean the filter?

Remove the filter by turning it counterclockwise, then rinse the foam filter under water until clear. Squeeze it out and let it dry 24 hours before reinstalling.

What to do if the device does not turn on?

Check that the battery is charged and inserted correctly. If an error code appears, refer to Troubleshooting. For example, code E3 indicates a too high temperature: move the device to a cooler room.

How to empty the dust bin?

Turn off the device, tilt it at 45°, then press the unlock button to remove the bin. Lift the cyclone, empty the bin, and reassemble by aligning the parts.

How to enable floor type recognition?

Press the Menu button, navigate to the "Floor type recognition" option, confirm with the Menu button. A green icon appears on the screen. This function is only available with the power nozzle attached.

What cleaning product to use in the water tank?

Use only a low-foaming or non-foaming liquid cleaner dilutable in water, such as Philips floor cleaner XV1792. Add maximum 10 ml to the 370 ml tank.

How to descale the water tank?

Pour a mixture of water and descaling liquid into the tank, close it and shake. Let sit 12 hours upright, then rinse thoroughly.

What does error code E2 mean?

Code E2 indicates the device is being used at a too low temperature. Move it to a warmer room (between 5°C and 40°C).

How to replace the rotating brush of the nozzle?

Turn off the device. Locate the button on the side of the nozzle, press and turn to open. Remove the brush and cap, clean or replace, then reassemble until you hear a click.

USER MANUAL Aqua Plus XC8055 PHILIPS

Black Philips vacuum cleaner with attached circuit board base, shown against a dark blue background (no text or symbols visible on the device itself)

English 6

Bahasa Indonesia 38

Bahasa Melayu 70

Čeština 103

Crnogorski 135

Dansk 167

Deutsch 199

Eesti 232

Español 264

Français 297

Hrvatski 330

Italiano 362

Latviešu 395

Lietuviškai 427

Magyar 459

Nederlands 492

Norsk 525

Polski 557

Português 590

Română 623

Shqip 655

Slovenščina 687

Slovensky 719

Srpski 751

Suomi 783

Svenska 815

Tiếng Việt 847

Türkçe 879

Ελληνικά 911

Български 945

Македонски 979

Українська 1013

ภาษาไทย 1046

简体中文 1081

繁體中文 1114

한국어 1145

1177 العربية

Contents

Introduction 6

General description 6

Before first use 7

Installing the wall mount 7

Preparing for use 8

Using the appliance 9

Assembling the appliance 9

Vacuuming soft and hard floors 10

Vacuuming while mopping hard floors 11

Versatile usage and accessories 14

Customizations and additional information 17

After use – Maintenance 19

Frequent maintenance after each cleaning cycle 19

Periodic maintenance intermittently 22

Replacement 30

User interface signals and their meaning 31

Troubleshooting 32

Dry cleaning 32

Wet cleaning 36

Introduction

Thank you for buying this product! To fully benefit from the support that we offer, register your product at www.philips.com/mycordlessvacuum-8000s.

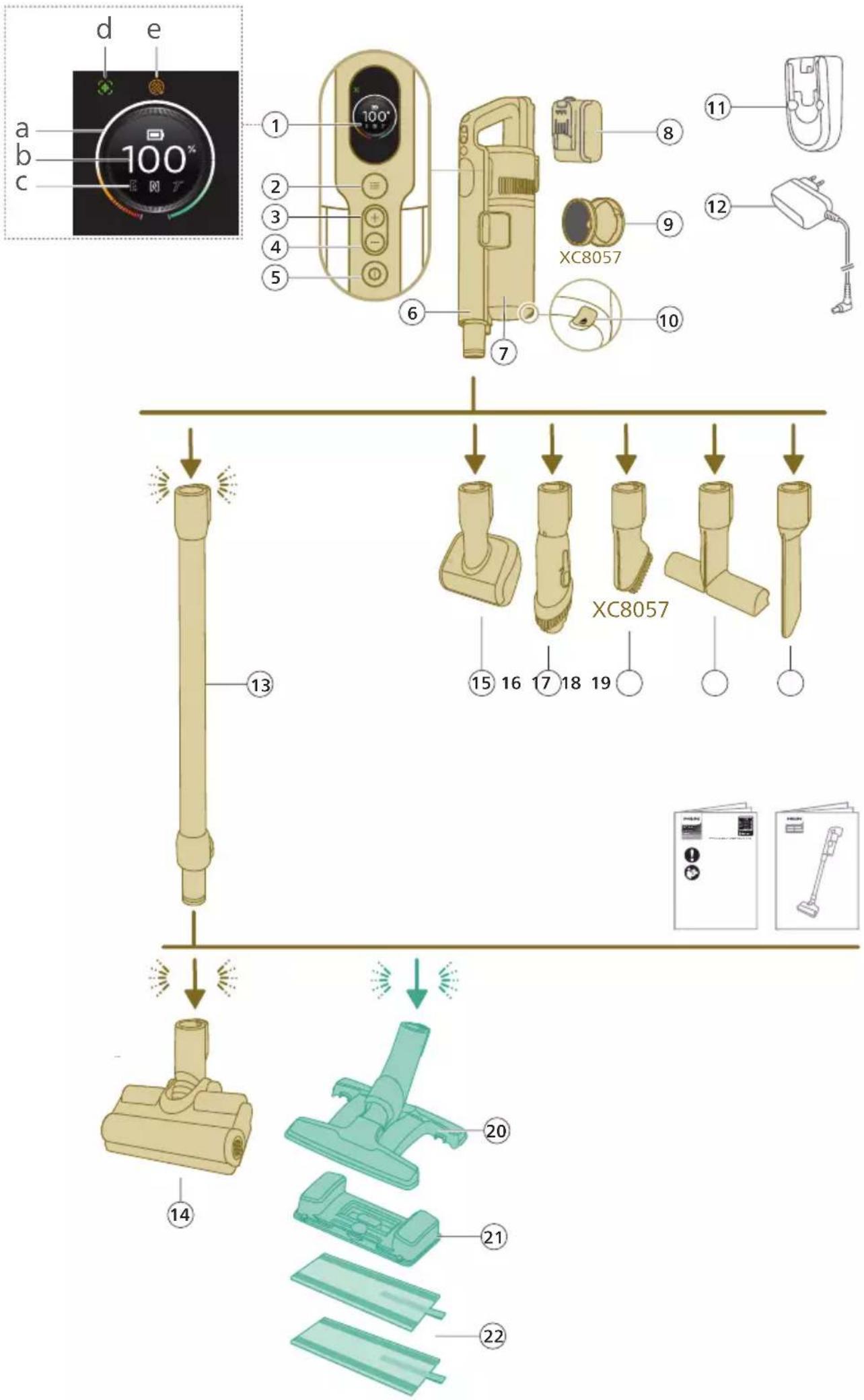

General description

1 Digital display

a Ring indicator of battery level

b Percentage of battery level

c Selected power level

d Floor Type Recognition feature activation icon

e Filter cleaning reminder icon

2 Menu/Confirm button

3 + Button

4 - Button

5 On/off button

6 Handheld

7 Dust bucket

8 Battery

9 Extra filter (XC8057 only)

10 Dust bucket release button

11 Wallmount

12 Adapter

13 Tube

14 PrecisionPower Smart Nozzle

15 Mini TurboBrush

16 Combination tool

17 Soft brush
18 Upholstery tool
19 Crevice tool
20 Vacuum and Mop Nozzle
21 Aqua tank
22 Microfiber mopping pad

Before first use

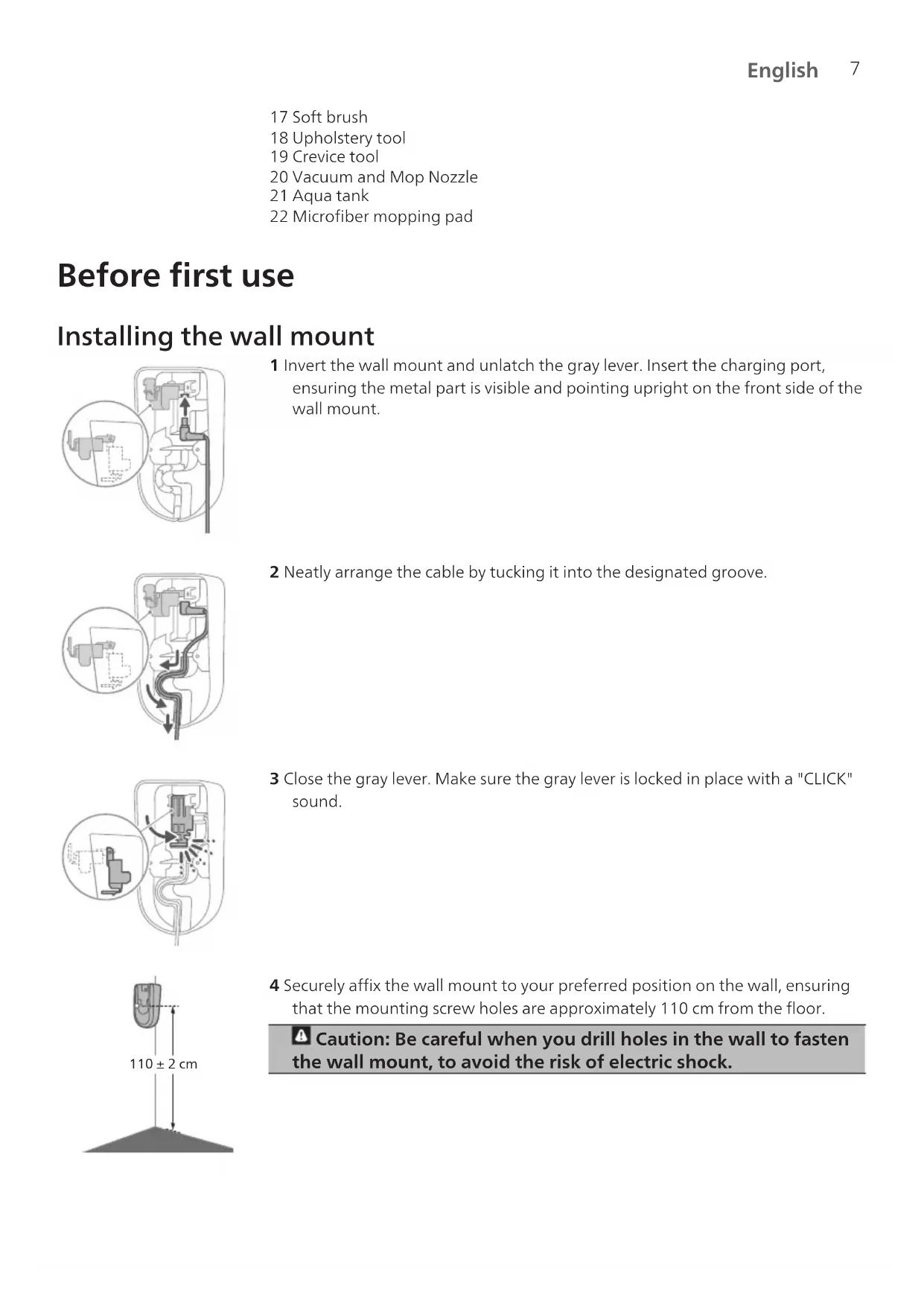

Installing the wall mount

Diagram of a mechanical device with an inset showing a close-up of a component (no text or symbols visible)

1 Invert the wall mount and unlatch the gray lever. Insert the charging port, ensuring the metal part is visible and pointing upright on the front side of the wall mount.

Diagram of a mechanical device with internal components and directional arrows, no readable text or symbols present.

2 Neatly arrange the cable by tucking it into the designated groove.

Diagram of a mechanical device with internal components and a magnified inset showing a detail (no text or symbols)

3 Close the gray lever. Make sure the gray lever is locked in place with a "CLICK" sound.

4 Securely affix the wall mount to your preferred position on the wall, ensuring that the mounting screw holes are approximately 110 cm from the floor.

Caution: Be careful when you drill holes in the wall to fasten the wall mount, to avoid the risk of electric shock.

Illustration of a vacuum cleaner with a magnified view showing the handle and base (no text or symbols)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

i Note: Verify that the placement of the wall mount allows the entire appliance to hang on the wall without the nozzle coming into contact with the floor.

5 Once you have determined the optimal position and height for storing and charging your appliance, firmly tighten the screws to secure the wall mount in place.

Preparing for use

Diagram showing a device with a lock and a magnified view of its internal components (no text or symbols)

The appliance is equipped with a Li-Ion battery. Charging from empty to full takes about 6 hours.

1 Attach the battery pack to the main body of the appliance, ensuring a secure connection that's confirmed with a "CLICK" sound.

2 Charge your appliance by placing it onto the assembled wall mount.

⚠ Warning: Store and charge the appliance at a temperature above 5 °C and below 40 °C.

Diagram of a handheld device with a close-up inset showing a tool interacting with a mechanical component (no text or symbols present)

i Note: You can also place the handheld on a level and stable surface, and directly connect the charging cable to the appliance.

3 The appliance is designed to reach a complete charge within 6 hours. You can monitor the charging progress on the screen. When the appliance is fully charged, the value 100% lights up on the screen. After a few minutes, the display will switch off.

Using the appliance

Assembling the appliance

Illustration of a soldering iron being inserted into a tip, showing the process (no text or symbols)

1 Attach the handheld to the tube. Confirm the attachment with a "CLICK" sound.

Illustration of a hairdryer being inserted into a device (no text or symbols)

2 Attach the tube to the nozzle. Confirm the attachment with a "CLICK" sound.

Vacuuming soft and hard floors

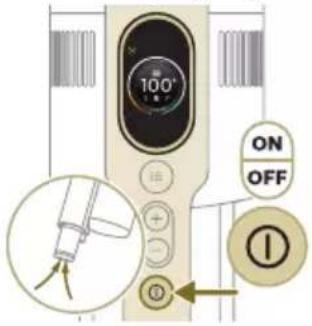

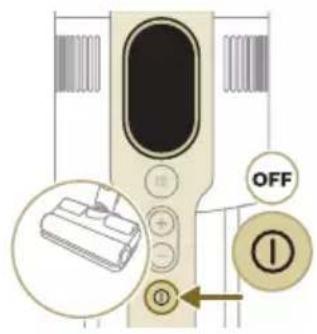

1 Press the on/off button to switch on the appliance.

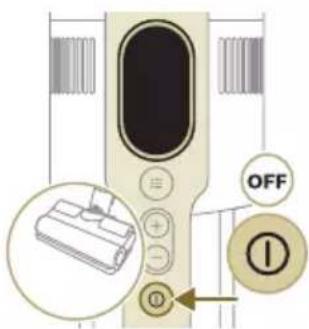

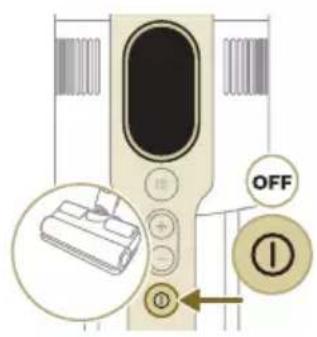

i Note: To switch off the appliance, press the on/off button again.

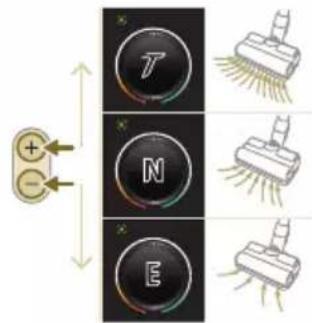

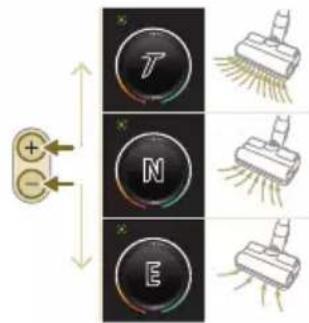

2 Use the + and - buttons to toggle through three different power settings.

E - eco mode

N - normal mode

T - turbo mode

Illustration of a person using a vacuum cleaner to lift a floor, with arrows indicating motion (no text or symbols)

3 You can clean on hard or soft floors with the vacuum cleaner.

Illustration of a wooden clamp and a green circular symbol with a dollar sign, set on a patterned grid background (no text or symbols)

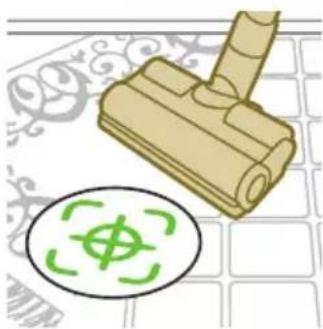

i With Floor Type Recognition enabled, the appliance recognizes the floor type and automatically optimizes its performance within the power settings you have selected. To disable this feature, check how to customize settings below.

Warning: Do not vacuum up water or other liquids.

Caution: Do not look directly into the illuminated LEDs or point the LEDs at someone's eyes. The LED light is very bright.

Vacuuming while mopping hard floors

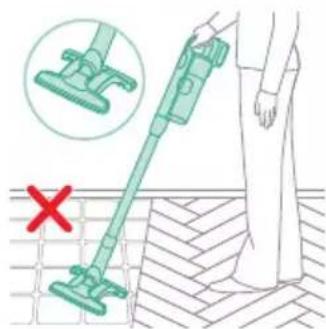

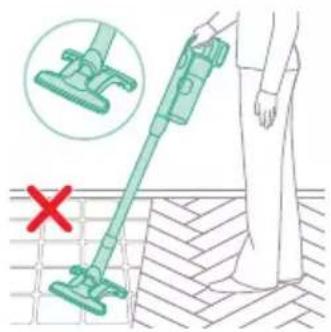

Caution: Only use the aqua tank on hard floors with a water-resistant top coat (such as linoleum, enameled tiles and varnished parquet) and stone floors (such as marble). If your floor has not been treated to make it water-resistant, check with the manufacturer if you can use water to clean it. Do not use the aqua tank on hard floors of which the water-resistant top coat is damaged.

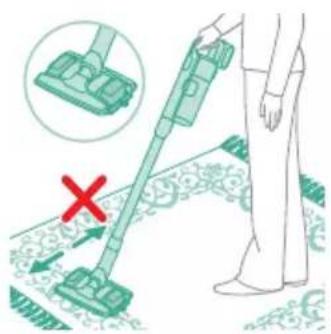

Note: Do not use the aqua tank to clean carpets.

Note: Do not move the appliance with aqua tank assembled sideways, as this leaves water traces. Only move forwards and backwards.

1 Pre-wet the microfiber mopping pad with water before use.

2 Secure the microfiber mopping pad underneath the aqua tank. Align the velcro straps under the aqua tank and behind the cloth.

3 Fill the tank with water, ensuring the water temperature does not exceed 50^ C.

4 (Optional) If you wish to add a liquid floor cleaner into the aqua tank, opt for a low-foaming or non-foaming variety that can be diluted. We recommend the XV1792 Philips Floor Cleaner. Add only a few drops of the liquid cleaner to the water.

Diagram of a mechanical component with a green arrow indicating direction (no text or symbols)

5 Close the aqua tank properly.

3D mechanical component diagram showing a lever and base assembly (no text or symbols)

6 Attach the prepared aqua tank to the aqua nozzle and you're set to begin. Make sure the direction of the aqua tank is correct.

Illustration of a person using a green vacuum cleaner on tiled floor (no text or symbols)

7 Press the on/off button to switch on the appliance. You can effectively clean hard floors with the attached aqua module on the nozzle.

i Note: The aqua module is not suitable for soft floors like carpet.

i Note: Do not use the aqua nozzle without the aqua tank in place for cleaning.

Caution: The aqua module should not be used to pick up water puddles.

Tips and other important information

• It is not necessary to vacuum the floor before mopping, as the Vacuum & Mop set-up actively wet-cleans your hard floor to capture all kinds of dirt, including liquids and stains. On carpets and rugs, use the Vacuum only set-up.
• The appliance can leave a small puddle of water on the floor if you do not move the appliance while switching it off. You can reduce the size of the puddle by moving the appliance while switching it off. If needed, you can remove the last drops with a cloth.

Usage restrictions

• The Vacuum & Mop set-up is suitable for vacuuming and mopping all types of hard floors, except uncoated wooden floors.
• The Vacuum & Mop set-up is intended for regular cleaning of hard floors. Always follow the cleaning instructions for your hard floor when you use this appliance.
• If you want to add a liquid floor cleaner other than XV1792 Philips Floor Cleaner to the water in the clean aqua tank, make sure that you use a low-foaming or non-foaming liquid floor cleaner that can be diluted in water like XV1792 Philips Floor Cleaner.

• As the clean aqua tank has a capacity of 370 ml, you only have to add a few drops (max 10ml) of liquid floor cleaner to the water.

• If you use the Vacuum & Mop set-up on linoleum floors, only do so on linoleum floors that are properly affixed to prevent linoleum from being drawn into the nozzle.

• If you move/lift the appliance over a carpet or rug when it is switched off, wastewater droplets may end up on your carpet or rug.
• Do not push the appliance over the floor grilles of convector heaters. As the appliance cannot pick up water that comes out of the nozzle when you move it over the grille, water ends up at the bottom of the convector pit.
• While cleaning, do not lift the nozzle from the floor or move the nozzle sideways, and do not make strong turns, as this leaves water traces. Only move forwards and backwards.

i Note: The operating time depends on the power level used during cleaning.

Versatile usage and accessories

Warning: When using any accessory, do not vacuum up water or other liquids.
Caution: Do not look directly into the illuminated LEDs or point the LEDs at someone's eyes. The LED light is very bright.

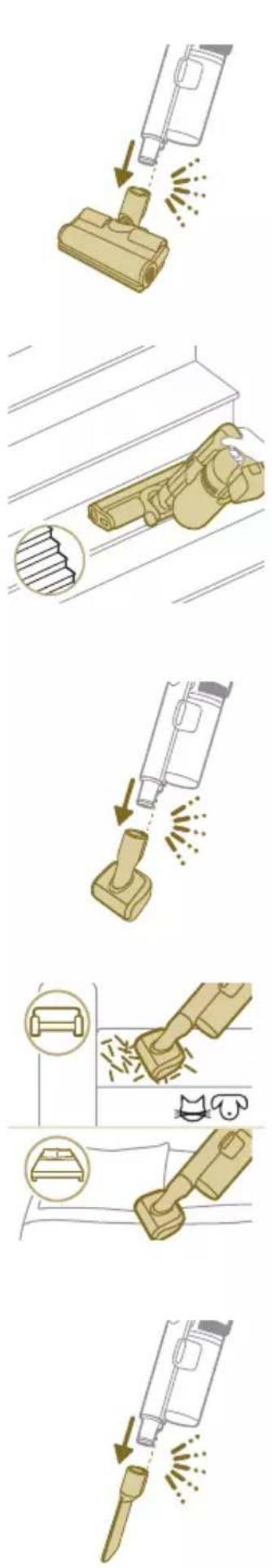

Using the handheld

You can use the handheld directly without any cleaning tool to vacuum up dusts.

Illustration of a handheld device with a pointed tip and handle, emitting exhaust smoke (no text or symbols)

Illustration of a spray gun dispensing liquid into a rubber tank (no text or symbols)

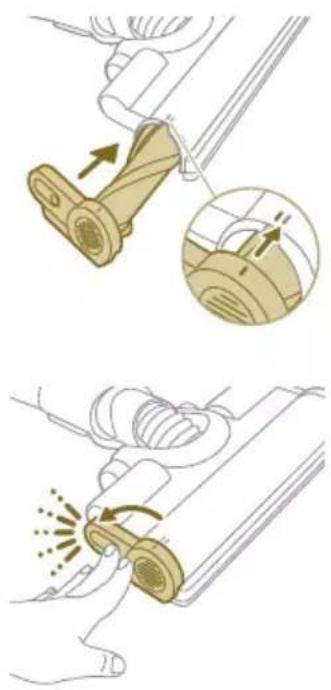

Using the nozzle

1 Attach the nozzle directly to the handheld.

Illustration of a mechanical component with a magnified inset showing a textured surface (no text or symbols)

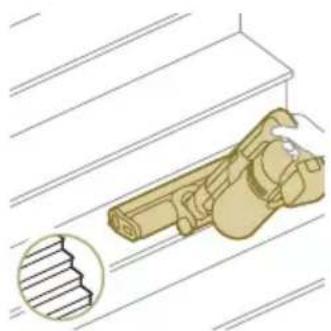

2 This combination is for cleaning dynamic surface height, such as stair case.

Illustration of a hand pouring liquid into a wooden block with motion lines indicating flow (no text or symbols)

Using the Mini TurboBrush

1 To attach the Mini TurboBrush, insert the tube of the handheld into the Mini TurboBrush.

2 You can use the Mini Turbo brush for standard cleaning, for instance of soft areas such as beds and couches. You can adjust the power setting to suit your cleaning needs.

3 You can use the Mini Turbo brush for extra thorough cleaning, for instance to vacuum up pet hair, or to clean small patches of dirt, such as spilled breadcrumbs. You can adjust the power setting to suit your cleaning needs.

Illustration of a soldering iron being inserted into a tip with motion lines indicating force (no text or symbols)

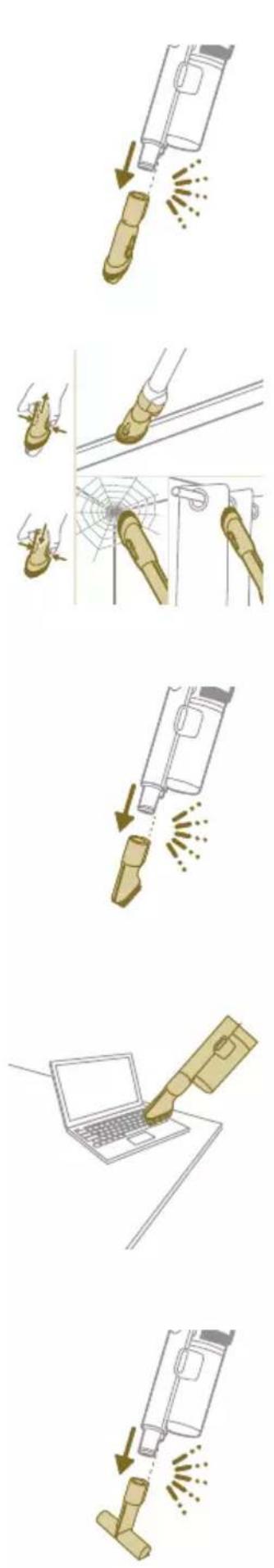

Using the crevice tool

1 To attach the crevice tool, insert the tube or handheld into the crevice tool.

Illustration of a tool and a gas cylinder connected to a cylindrical component, with no visible text or symbols.

2 You can use the long crevice tool to clean narrow corners or hard-to-reach places. You can adjust the power setting to suit your cleaning needs.

Using the combination tool

1 To attach the combination tool, insert the tube or handheld into the combination tool.

2 The combination tool is designed for cleaning window frames, curtains, or spider webs, with a customizable brush release and illumination settings.

Using the soft brush

1 To attach the soft brush, insert the tube or handheld into the soft brush.

2 The soft brush is designed for dedicated surfaces and comes with customizable illumination.

Using the upholstery tool

1 To attach the upholstery tool, insert the tube or handheld into the upholstery tool.

Diagram of a mechanical device connected to a cylinder, with a magnified inset showing a cylindrical component (no text or symbols)

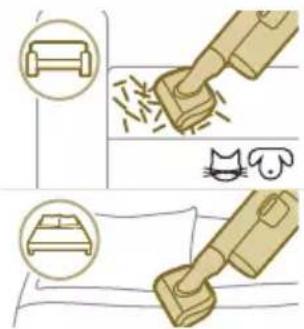

2 The upholstery tool is ideal for cleaning furniture with soft fabric, and its illumination can be adjusted according to your liking.

Customizations and additional information

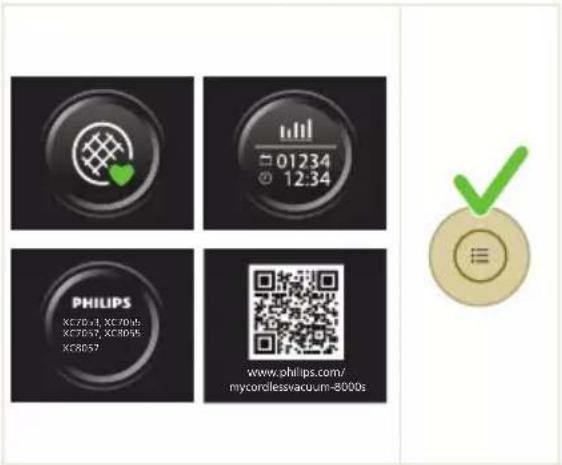

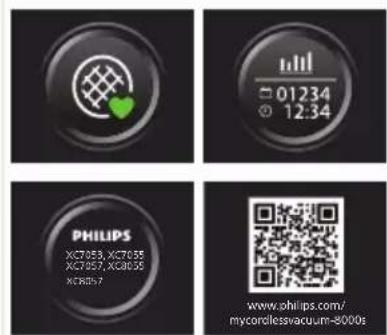

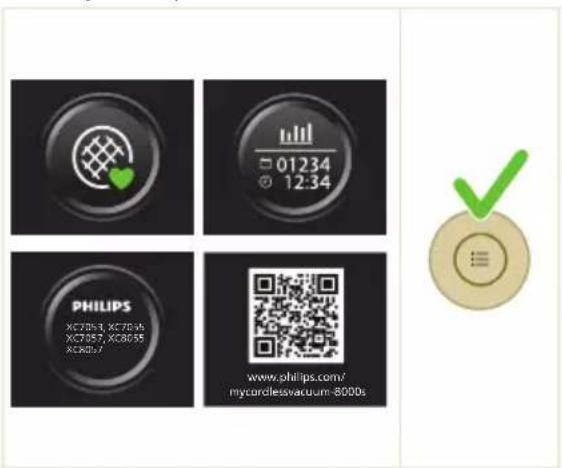

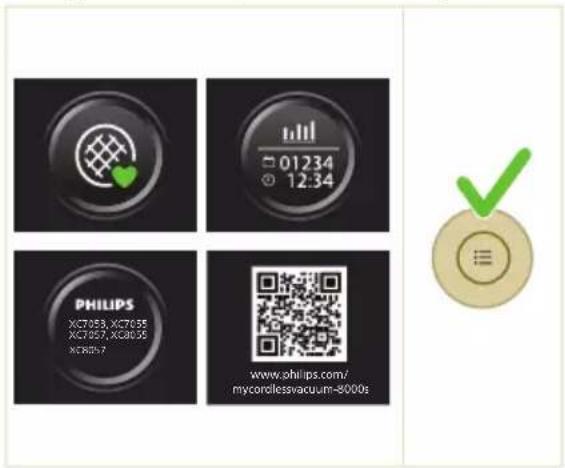

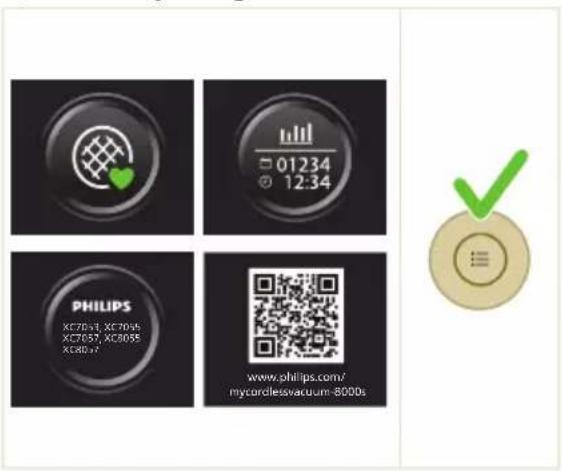

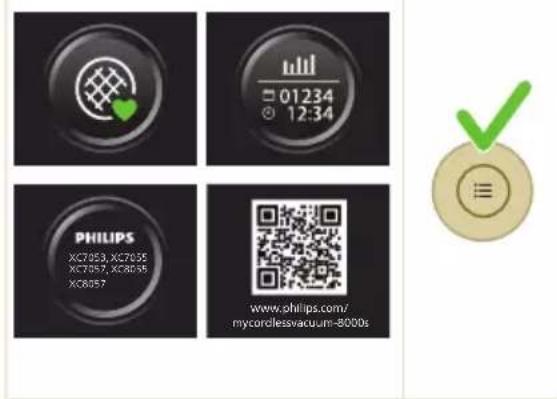

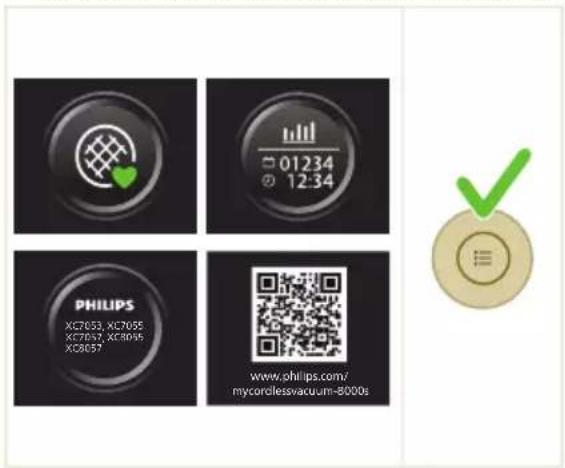

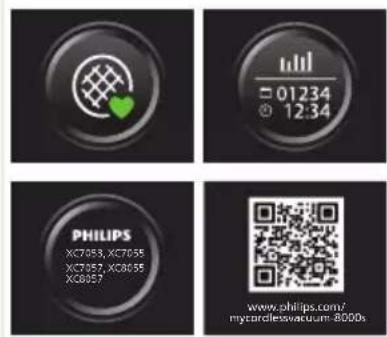

The appliance is equipped with various options to customize and monitor in the menu.

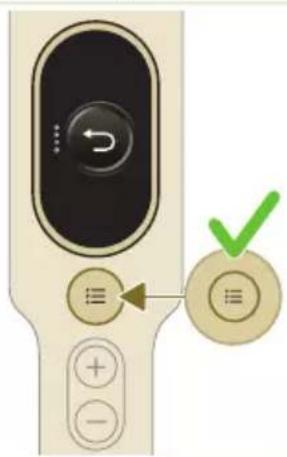

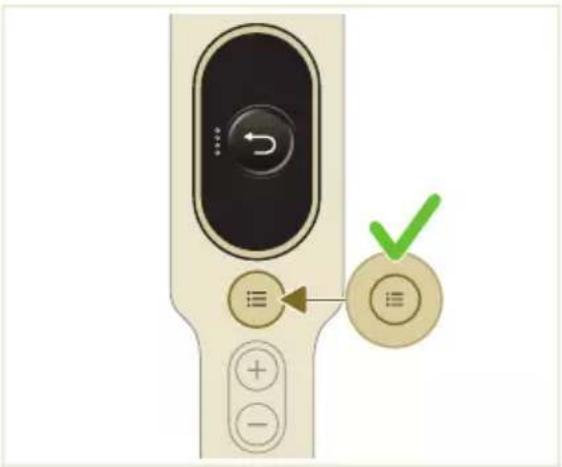

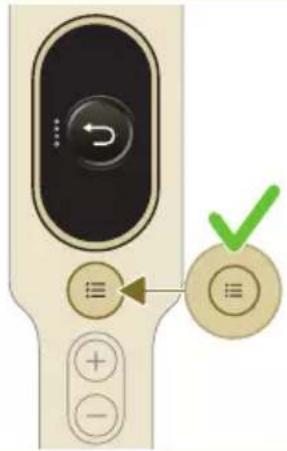

1 To access the menu settings, press the menu button.
2 Toggle through the options using the + and - buttons. These options include adjusting illumination, enabling or disabling Floor Type Recognition, accessing additional information about your appliance, and returning to the previous screen.
3 Once your desired option is highlighted, confirm your choice by pressing the menu button again.

Gray circular icon with a white lightbulb symbol and radiating lines, representing an idea or illumination (no text or symbols)

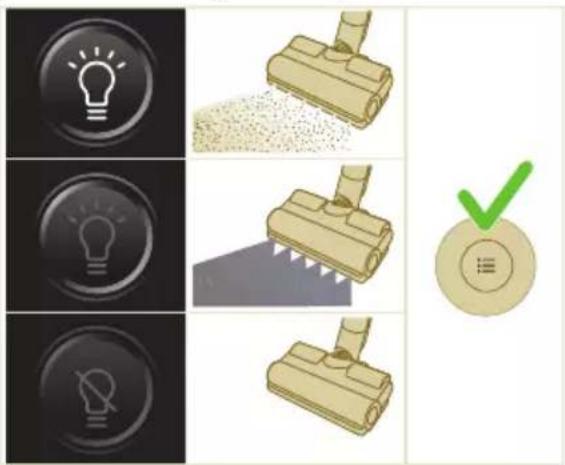

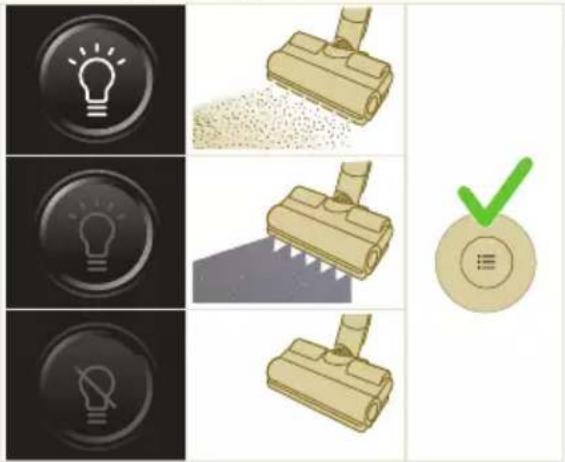

Modify the illumination brightness

Press the menu button and toggle to the illumination feature. Confirm by pressing the menu button again.

To modify the illumination brightness, toggle through the available levels and confirm by pressing the menu button.

Circular icon with a stylized white object and green leaf symbol, no text or numbers present.

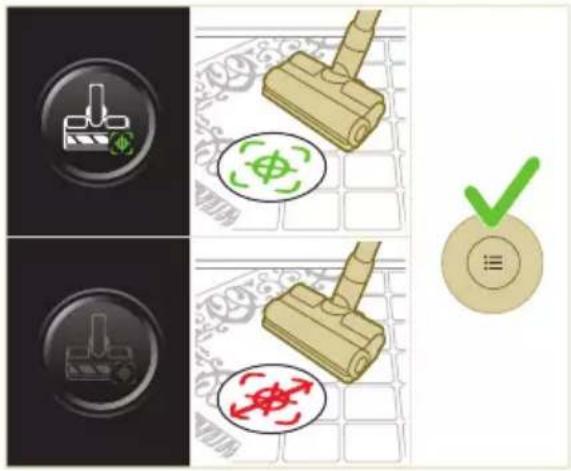

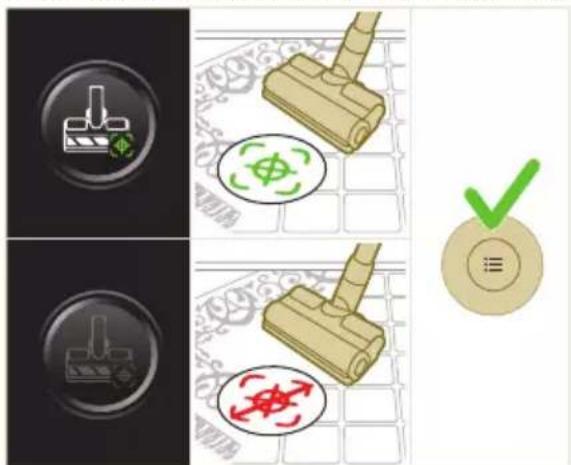

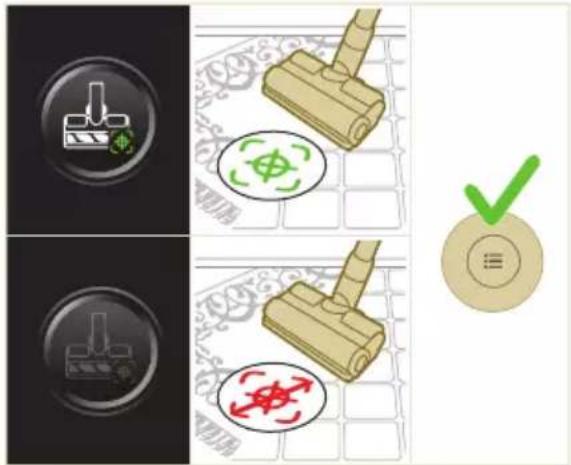

Floor Type Recognition

Press the menu button and toggle to the Floor Type Recognition feature. Confirm by pressing the menu button again.

In the Floor Type Recognition screen, toggle this function and confirm your decision by pressing the menu button. When successfully enabled, a green icon will appear at the upper left corner of the display after you go back to the main screen.

i Note: Floor Type Recognition can only be enabled or disabled when the motorized nozzle is attached to the handheld. As a result, when no motorized nozzle is attached to the main appliance, there will be one item less in your menu. Attach the motorized nozzle to see this Floor Type Recognition item in your menu.
i Note: When you first receive your appliance, Floor Type Recognition is enabled.
i Note: The Floor Type Recognition function becomes active when the nozzle identifies different cleaning surfaces while in motion.

Additional information

Press the menu button and toggle to the "additional information" option. Confirm by pressing the menu button again.

In the "additional information" screen, you can check the filter health, battery health, total usage time, model of your appliance, and access of a QR code for additional online information.

Gray circular button with a white lowercase 'i' in the center, no additional text or symbols.

Return

To exit the menu and return to the previous screen, select the "Return" option.

Circular button with a white up-turn arrow icon (no text or symbols)

After use – Maintenance

Frequent maintenance after each cleaning cycle

Dust management system maintenance

Empty the dust bucket after each use or when the dust is reaching the MAX level indicator.

1 Switch off the appliance.

2 Hold the appliance in a 45 degree angle like shown in the illustration. Remove the dust bucket by pressing the release button. The release button is located at the bottom of the bucket.

Illustration of a vacuum cleaner with a green checkmark indicating the correct state (no text or symbols present)

Diagram of a mechanical device with a lever and handle, showing internal components and an upward arrow (no text or symbols)

Illustration of a bottle pouring granular material into a trash bin (no text or symbols)

i Note: Remove the dust bucket while keeping the appliance in an upright position.

3 Hold onto the black grip. Remove the cyclone from the dust bucket by lifting it out from the bucket

4 Empty the collected dust in the dust bucket over the trash bin.

5 Place the cyclone back in the dust bucket. Make sure the two parts are aligned.

6 Place back the assembled bucket. First align the filter side of the bucket before hinging it in place.

Aqua tank maintenance

Clean the aqua tank after each use.

Illustration of a green mechanical component with an arrow indicating direction, and a magnified inset showing a folded paper or sheet (no text or symbols)

1 Remove the microfiber mopping pad.

Illustration of a pipette dispensing liquid into a green plastic sheet (no text or symbols)

2 Rinse the mopping pad under the tap and wash it by hand or in a washing machine.

Simple line drawing of a sink with a drain and a plastic stand (no text or symbols)

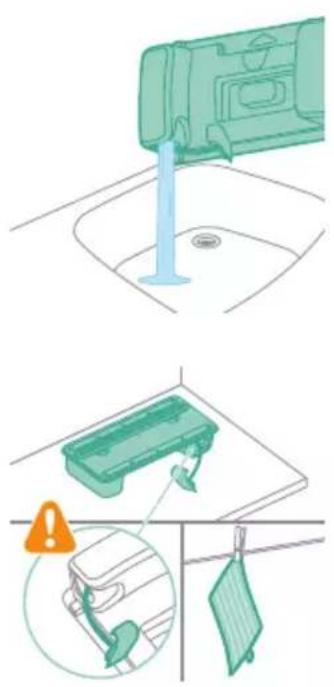

3 Pour out any remaining water in the aqua tank.

4 Fill the aqua tank with water.

Diagram showing a mechanical device with a green handle and directional arrows, alongside a simplified illustration of a telephone handset (no text or symbols)

5 Close the aqua tank properly and shake the aqua tank to remove detergent residuals.

Simple line drawing of a car hood with a blue support post and a circular drain (no text or symbols)

6 Empty the aqua tank and leave it open to dry.

7 Make sure to not lose the tank cap during storage. Hang the microfiber mopping pad dry.

Periodic maintenance intermittently

Dust management system maintenance

Clean the filter at least once every month or when you see the notification for filter cleaning (i8).

Close-up of a handheld device control panel with a circular dial and indicator buttons (no readable text or symbols)

1 Rotate the filter counter-clockwise to remove it from the dust bucket.

Diagram showing a car interior with a valve and a close-up of the dashboard (no text or symbols)

2 Remove the washable foam filter from the plastic filter casing.

Illustration of two hands pouring liquid into a container with scattered particles (no text or symbols)

3 Tap both the filter casing and the foam filter over a trash bin.

4 Rinse the foam filter and squeeze it till clean water comes out.

i Note: for best cleaning result, run the water through the filter with the filter tab facing downwards, allowing deeply set dust to be washed out.

Illustration of a hand holding a dark object with liquid droplets (no text or symbols)

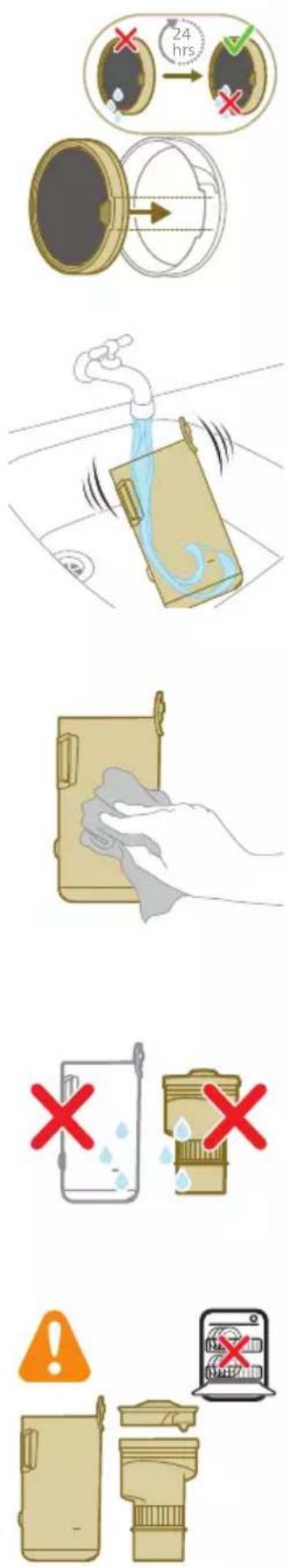

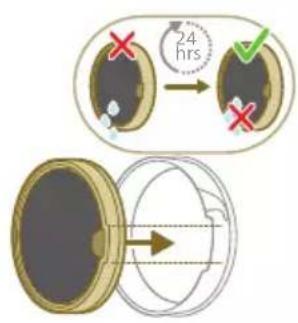

5 Leave the washed filter to dry for 24 hours before reassembling the foam filter in the filter casing.

Illustration of a faucet spraying water onto a device with motion lines indicating airflow (no text or symbols)

6 For thorough maintenance, clean the dust bucket and cyclone under a running tap or in warm soapy water.

Illustration of a hand cleaning a rectangular object with a cloth (no text or symbols)

7 Wipe the cleaned dust bucket and relevant parts dry.

Caution: Make sure all parts are completely dry before you reassemble them.

i Note: all parts cannot be cleaned in the dishwasher.

8 Reassemble the filter in the dust bucket. Rotate the filter clock-wise to fix it in place.

9 Place back the assembled bucket. First align the filter side of the bucket before hinging it in place.

i Note: After maintenance, always make sure the filter is assembled in the appliance before using it.

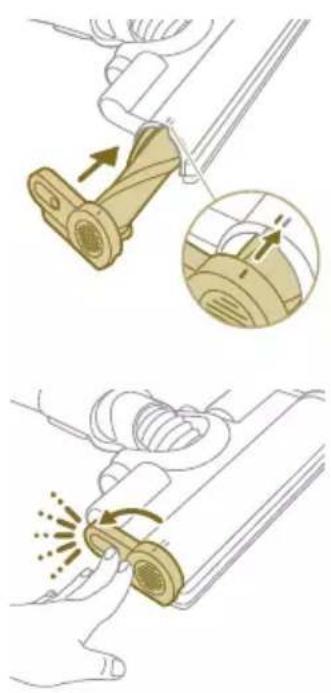

PrecisionPower Smart Nozzle maintenance

1 Always switch off the appliance before cleaning the nozzle brush roll.

Illustration of a hand pressing down on a mechanical component with a magnified inset showing the close-up of the component (no text or symbols)

2 To access the brush roll, locate the button on the side of the nozzle. Press it and rotate to open.

Diagram of a mechanical device with a lever and handle, showing a force or movement (no text or symbols present)

3 Gently remove the brush roll and the side cap of the nozzle.

Illustration of hands using scissors to cut a piece of wood (no text or symbols)

4 Carefully detach any tangled hair from the brush roll. Support the removal of pollution with a pair of scissors.

Illustration showing two-step car seatbelting technique with magnified detail (no text or symbols)

5 When reassembling, ensure proper alignment of the brush roll.

6 Lock the nozzle brush roll by securing it until you hear a "CLICK" sound.

Illustration of a mechanical component with rotational arrows indicating motion (no text or symbols)

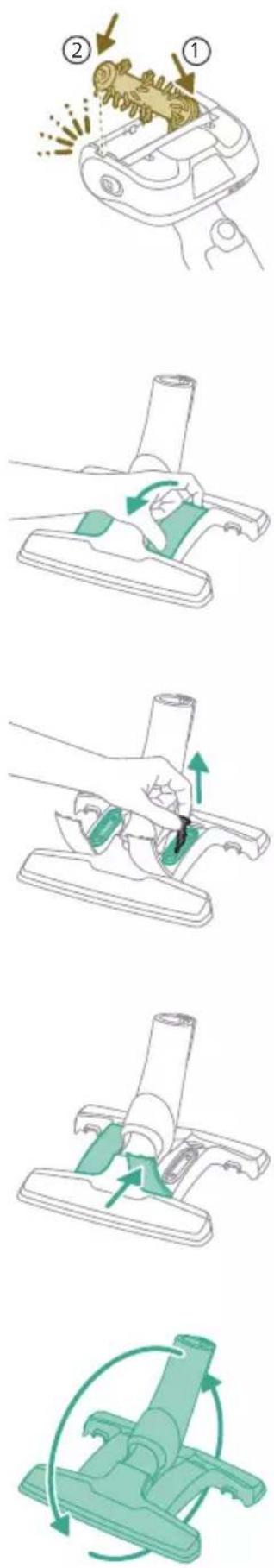

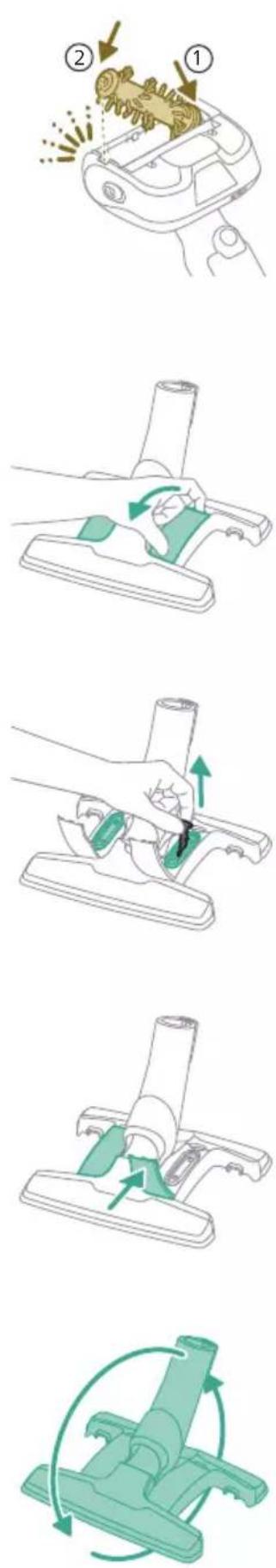

Mini TurboBrush maintenance

1 Turn the brush over to access the cleaning area.

2 Slide the side button to release the brush from its position.

Illustration of a hand holding a rope tied with a small object, no text or symbols present

3 Use your hands or a pair of scissors to remove any pollution from the brush.

4 When reassembling the brush, start by placing one side in position before attaching the other side. When the brush is properly assembled, you will hear a "CLICK" sound.

Vacuum and Mop nozzle maintenance

1 Open the two top covers to gain access to the airflow passage of the nozzle.

2 Remove any visible pollution from the area.

3 Once cleaning is complete, securely close the covers.

4 For maintenance, flip over the nozzle to access the underside.

Illustration of a hand using a tool to adjust or install electronic components (no text or symbols visible)

5 Remove any pollution around the shutter for optimal performance.

Illustration of a plastic bottle pouring liquid from a water bottle into a beaker (no text or symbols)

Aqua tank maintenance

Descale the aqua tank once every month to avoid limescale build-up.

1 Add some descaling liquid to a measuring cup.

Illustration of a beaker with liquid being inverted and a water bottle beside it (no text or symbols)

2 Add the correct amount of water in the measuring cup.

3 Add the mixed liquid in the aqua tank.

Illustration of a mechanical device with a green handle and directional arrows, alongside a smaller green telephone handset (no text or symbols)

4 Close the Aqua tank properly before shaking the tank for the descaling liquid to spread evenly.

5 Leave the aqua tank (without the microfiber mopping pad) upright over 12 hours. Water is expected to slowly come out from the bottom of the aqua tank. We recommend to place the aqua tank inside the sink or over a cloth.

Simple line drawing of a sink with a drain and a top-mounted device (no text or symbols)

6 Rinse and remove any remaining liquid inside the aqua tank.

Illustration of a hand pressing down on a green striped object with an upward arrow (no text or symbols)

Water strip maintenance

1 Remove the water strip from the bottom of the aqua tank for a thorough cleaning.

Illustration of a medical procedure with a blue ribbon being inserted into a green medical strip (no text or symbols)

2 Rinse the water strip under the tap.

Technical line drawing of a mechanical component with a green rod inserted into a housing (no text or symbols)

3 Attach the water strip back to the aqua tank after cleaning.

Replacement

To buy accessories or spare parts, visit www.philips.com/parts-and-accessories or go to your Philips dealer. You can also contact the Philips Consumer Care Center in your country.

Replacement parts and type numbers:

Replacement filter XV1681/01

Illustration of a box containing a coin with an upward arrow, no text or symbols present

XV1681/01

Brush roll CP0667/01

Simple line drawing of a box with a rolled document inside, showing an arrow indicating direction (no text or symbols)

CP0667/01

Microfiber mopping pad XV1700/01

Isometric illustration of a rectangular electronic component with green connectors (no text or symbols)

XV1700/01

Water strip CP0381/01

Simple line drawing of a cylindrical object with a green handle and arrow, no text or symbols present.

CP0381/01

i Note: Replace the filter and the microfiber mopping pad every 6 months to ensure maximum performance.

User interface signals and their meaning

Signal Meaning of signal

E1 Malfu

Warning symbol with exclamation mark inside a red circle (no text or numbers)

oppliance.

Remove the battery, wait 10 seconds, and then put the battery back. If this does not work, please take the appliance to a Philips service center or contact the Consumer Care Center.

E2 The a

Simple home control icon with thermometer and warning symbol (no text or labels)

lated below the functioning temperature.

Move the appliance to a warmer room. Do not store, charge or use the appliance at a temperature below 5 °C or above 40 °C.

E3 The a

Circular icon with a white house outline and red warning symbol, no text or numbers present.

lated above the functioning temperature.

Move the appliance to a cooler room. Do not store, charge or use the appliance at a temperature below 5 °C or above 40 °C.

E5 The b

Circular icon with a document and question mark, no text or symbols present

ed.

Take the appliance to a Philips service center or contact the Consumer Care Center.

E9 The n

Circular icon with a white tool symbol and a red circular border, no text or numbers present.

d above the functioning temperature.

Switch off the appliance and wait 15 minutes. Touch the upper housing of the nozzle to feel if it is still warm. If the nozzle is still warm, wait longer for the nozzle to cool down. Once the nozzle has cooled down, try switching the appliance back on.

i4 The n

Circular icon with a stylized pen or tool symbol, no text or numbers present.

Make sure the appliance is switched off. Clean the nozzle according to the user manual and check the tube by removing the tube from the main appliance. Remove the object in the nozzle or tube and restart the appliance.

i5 Foreign

Circular black button with a white prohibition symbol, no text or numbers present.

k in the airflow passage.

Make sure the appliance is switched off. Clean the nozzle according to the user manual and check the tube by removing the tube from the main appliance. Remove the object in the nozzle, tube, or handheld and restart the appliance.

Signal Meaning of signal

i6 The ad

Icon of a plug with a downward arrow, enclosed in a circular border (no text or symbols)

noved.

Remove the adapter before operating the appliance.

i7 A wro

Circular icon with battery and warning symbol (no text or numbers)

ed.

Only use the original adapter to charge the appliance.

i8 The fil

Circular icon with a grid pattern inside, enclosed in a golden ring (no text or symbols)

Clean the filter. Follow the instructions on the screen or in the users manual. You can buy new filters in the online Philips shop at www.philips.com/support or at your Philips dealer.

i10 The

Circular icon with a question mark inside, no text or symbols present

operly inserted.

Remove the battery, and then put the battery back. If this does not work, please take the appliance to a Philips service center or contact the Consumer Care Center.

Circular black button with a white battery symbol and red indicator line (no text or numbers)

The battery level is low and needs to be charged. Charge the appliance or the battery via the suggested charging method.

Troubleshooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country.

Dry cleaning

Problem Possible cause Solution

The appliance does not respond when the on/off button is pushed.	The display shows the battery empty icon.	To charge the battery, connect the appliance to the charging station or attach the handheld vacuum cleaner directly to the power plug of the adapter.
The charging station is not stable on the wall.	The screws holding the charging station are loose.	Tighten the screws.

Problem Possible cause Solution

	The screws are not the right size.	Mount the charging station with the supplied screws.
	The charging station is not attached to a stable wall.	Check that the wall on which the charging station will be mounted is stable.
The appliance suddenly stops working.	When the appliance has an internal malfunction, the buttons will not respond and the screen will remain blank.	Connect the appliance to the charging station or attach the handheld vacuum cleaner directly to the adapter. Check the display. If an error code appears, you can find its meaning in the user manual.
	(code: E2, E3) The appliance is not working at a suitable temperature.	Make sure the appliance is used at a temperature of 5-40 °C.
	(code: E4) The filter is missing in the appliance.	Make sure the appliance is properly assembled following the user manual.
	(code: i4, i5) The brush roll is stuck or objects are stuck in the air flow channel.	Make sure the appliance is switched off. Clean the nozzle according to the user manual and check the tube by removing the tube from the main appliance. Remove the object in the nozzle or tube and restart the appliance.
	(code: E9) The motorized nozzle is overheated.	Switch off the appliance and wait 15 minutes. Touch the upper housing of the nozzle to feel if it is still warm. If the nozzle is still warm, wait longer for the nozzle to cool down. Once the nozzle has cooled down, try switching the appliance back on.
The appliance has a lower suction power than usual.	The filter and the cyclone are dirty.	Empty the dust bucket. Clean the filter and the cyclone. Make sure the filter is washed at least once a month, when using the appliance regularly. Make sure hair and dirt stuck in the cyclone are removed.
	The dust container is not attached properly to the appliance.	Make sure the dust container is attached properly.
	The air channels on the Vacuum and Mop nozzle are blocked.	Open the lids of the air channels on both sides of the tube on the Vacuum and Mop nozzle. Clean the channels. Close the lids and turn the nozzle upside down. Clean the air channels from the bottom.
Dust escapes from the appliance.	The filter is dirty. Clean the filter. See also the user manual.
	The filter is not present in the appliance.	Make sure that the filter is in the appliance and assembled correctly.

Problem Possible cause Solution

	Something is blocking the cyclone.	Check the cyclone for stuck objects and remove any object blocking the cyclone. Also ensure all hair and dirt stuck in the cyclone are removed.
	The dust container is not properly attached to the appliance.	Empty the dust container and attach the dust container correctly to the appliance.
	The appliance is rotated or flipped when the power is off.	Keep the appliance upright when the power is off.
The appliance does not move smoothly across the floor when cleaning a carpet.	The floor type recognition function is not on.	Switch on the floor type recognition function in the digital menu.
	The selected suction power has been too high.	Decrease the suction power. See also the user manual.
The brush does not turn anymore.	The brush is clogged with hair or dirt.	Clean the brush by hand or with a pair of scissors.
	(code: i4) The brush may stop turning when it encounters too much resistance from a high-pile carpet.	Switch off the appliance and then switch it back on again.
	The roller brush has not been assembled properly into the nozzle after cleaning.	Follow the instructions in the cleaning chapter of the user manual to slide the roller brush into the nozzle properly. Secure the roller brush inside the nozzle by snapping the locking lever in place.
	(code: E9) The motorized nozzle is overheated.	Switch off the appliance and wait 15 minutes. Touch the upper housing of the nozzle to feel if it is still warm. If the nozzle is still warm, wait longer for the nozzle to cool down. Once the nozzle has cooled down, try switching the appliance back on.
The LEDs in the nozzle do not come on.	The nozzle has not been attached to the tube or appliance properly.	Attach the nozzle to the appliance or handheld properly.
	The lighting feature is disabled.	Enable this feature in the menu. Adjust the brightness of nozzle LEDs in the menu.
The LEDs in the handheld do not come on.	The lighting feature is disabled.	Enable this feature in the menu. Adjust the brightness of handheld LEDs in the menu.
The light in the accessory does not come on.	The accessory is attached to the tube.	Remove the tube and attach the accessory directly to the handheld.
	The accessory is not attached to the appliance properly.	Attach the accessory to the appliance properly.

Problem Possible cause Solution

The lighting in my nozzle, handheld, and accessories is not bright enough.	The brightness is dimmed. Adjust the brightness of LEDs in the menu.
The appliance is not charging.	The power plug is not connected properly to the appliance or the adapter is not inserted into the wall socket properly.	Make sure that the power plug is connected properly to the appliance and that the adapter is inserted into the wall socket properly.
	The power plug is not placed properly in the charging station.	Make sure the plug is fixed properly in the charging station. Check if the plug is angled and the charging station is holding the plug in place.
	(code: i7) An adapter other than the supplied adapter is being used.	Make sure that you use the adapter supplied.
	(code: i10) The battery is not properly installed.	Make sure that the battery is pushed all the way in the slot and properly installed.
	(code: E5) The battery malfunctions.	The battery has failed. Replace the battery.
		If you have checked the above and the appliance still does not charge, take it to a Philips service center or contact the Consumer Care Center.
The appliance is charging very slow.	An external adapter or an adapter from other appliances is used.	Charge the appliance with the supplied adapter.
The battery is charged and attached, but the appliance cannot be switched on.	The appliance is still connected to the adapter.	Remove the appliance from the adapter before restarting it.
	(code: E1) Something is wrong with the appliance.	Remove the battery, wait 10 seconds, and then put the battery back. If this does not work, please take the appliance to a Philips service center or contact the Consumer Care Center.
The display shows the filter icon (code: i8).	The filter is dirty. Clean the filter.	Follow the instructions on the screen or in the users manual.
	The filter is old. You can buy new filters in the online Philips shop at www.philips.com/support or at your Philips dealer.
		If you have checked the above and the appliance still shows the error, take it to a Philips service center or contact the Consumer Care Center.

Problem Possible cause Solution

The mini Turbo brush does not function properly.	The roller brush is blocked. Remove hairs from the brush with a pair of scissors. Follow the instructions in the user manual.
	The roller brush is blocked by fabric or surfaces during cleaning.	Keep the mini Turbo brush aligned with the surface and do not push the Turbo brush into soft surfaces.
	The roller brush is not properly inserted into the mini Turbo brush.	Make sure that roller brush and the mini Turbo brush are properly connected and that there is no gap between the parts. Follow the instructions in the manual.
The suction power does not feel stable.	Nothing is wrong. This is the feature of "Floor Type Recognition" being triggered. Your appliance is detecting the floor type and cleaning with an optimized performance for that floor.	No action needed. If you prefer to clean with a consistent power of your choice, disable this smart feature in the menu of your appliance.
The Floor Type Recognition is not reacting logically.	The filter and the cyclone are dirty.	Empty the dust bucket. Clean the filter and the cyclone. Make sure the filter is cleaned regularly and make sure any hair and dirt stuck in the cyclone is removed. Follow the instructions of the user manual.
	The brush is clogged with hair or dirt.	Clean the brush with a pair of scissors or by hand. See the instructions in the user manual.
	The Vacuum & Wipe nozzle and the aqua tank is used.	Attach the PrecisionCleaning nozzle to experience the Floor Type Recognition function.
The appliance delivers static shocks.	The appliance builds up static electricity. The lower the air humidity, the more state electricity is build up.	Discharge the appliance by frequently holding the tube against other metal objects in the room (for example the legs of a table or chair, etc.). Or raise the air humidity level in the room.
	The dust and dirt that is vacuumed up is static.	Empty the dust container and clean the filter according to the instructions in the user manual.

Wet cleaning

Problem Possible cause Solution

The water flow from the aqua tank is reduced.	The wetting strip is blocked by dirt.	Remove the wetting strip and clean it. Place the clean wetting strip back.
	The microfiber mopping pad is not placed correctly and blocks the wetting strip as a result.	Make sure that you place the mopping pad correctly. Check the user manual for proper placement.

Problem Possible cause Solution

	The aqua tank is empty or nearly empty.	Refill the aqua tank.
	A microfiber mopping pad is used that is not supplied by Philips.	Only use an original Philips microfiber mopping pad. The mopping pads can be bought in the online Philips shop at www.philips.com/support or at your Philips dealer.
	Lime scale has build up in the wetting strip.	Buy a new wetting strip in the online Philips shop at www.philips.com/support or at your Philips dealer.
The appliance has a lower suction power than usual.	The air channels on the Vacuum & Wipe nozzle are blocked.	Open the lids of the air channels on both sides of the tube on the Vacuum and Mop nozzle. Clean the channels. Close the lids and turn the nozzle upside down. Clean the air channels from the bottom.
Too much water flows out of the aqua tank at a too high speed.	The aqua tank cap is not attached properly.	Check the cap and make sure it is fully and properly closed.
	The strip is not placed properly in the bottom of the aqua tank.	Check the strip and make sure that it is fitted properly in the bottom plate of the aqua tank.
The floor dries with stripes. Too much liquid cleaner has been added to the water.		Use only a few drops of liquid cleaner or use a cleaner that foams less.
	The microfiber mopping pad is not placed correctly.	Make sure that the mopping pad is placed correctly. Check the user manual for proper placement.
	An incorrect mopping pad is used.	Only use Philips XV1700/01 microfiber mopping pad for the 8000 series. The mopping pads can be bought in the online Philips shop at www.philips.com/support or at your Philips dealer.

lsi

Pendahuluan 38

Keterangan umum 38

Diagram of a mechanical device with internal components and an inset showing a close-up view of a component (no text or symbols present)

Diagram of a mechanical or electrical component with internal channels and directional arrows, no readable text or symbols present.

Diagram of a mechanical device with internal components and a magnified inset showing a detail (no text or symbols)

Illustration of a vacuum cleaner with a close-up view showing the component (no text or symbols)

Diagram of a mechanical component with curved arrows indicating rotation or force (no text or symbols)

Diagram showing a device with an arrow pointing to a component, and a magnified inset illustrating the internal structure (no text or symbols present)

Diagram of a spray gun with a magnified inset showing the tip and handle (no text or symbols)

Illustration of a soldering iron being inserted into a tip, with no text or symbols present

Illustration of a hand using a tool to press or install a component, with no visible text or symbols.

Illustration of a person using a vacuum cleaner to lift a floor, with arrows indicating motion (no text or symbols)

Illustration of a mechanical component with a green circular symbol and a magnified inset showing a dollar sign (no text or symbols present)

Illustration of an eye with warning symbols (anxiety, red X) and a rolled-up object, no text present.

Illustration of a hand pouring liquid into a green plastic sheet with a fork, no text or symbols present

Green mechanical component with a downward arrow indicating compression or disassembly (no text or symbols visible)

2 Pasang kain pel serat mikro di bawah tangki air. Sejajarkan strip velcro di bawah tangki air dan di bagian belakang kain.

Diagram of a mechanical component with a green arrow indicating direction (no text or symbols)

3D illustration of a green mechanical component with a tool inserted, showing internal structure and a magnified inset (no text or symbols)

Illustration of a person using a green vacuum cleaner on a tiled floor (no text or symbols)

Illustration of a handheld device with a handle and spout, no text or symbols present

Illustration of a spray gun dispensing liquid into a rubber tank with motion lines indicating spray (no text or symbols)

Menggunakan nozel

1 Pasang nozel langsung ke mode genggam.

Illustration of a mechanical component with a highlighted section showing a grooved part (no text or symbols present)

Illustration of a hand pouring liquid into a wooden block with motion lines indicating flow (no text or symbols)

Illustration of a soldering iron being inserted into a tip with motion lines indicating force (no text or symbols)

Illustration of a gas cylinder connected to a pen-like tool, with a magnified inset showing a cylindrical component (no text or symbols)

Diagram of a mechanical device connected to a cylinder, with a magnified inset showing a cylindrical component (no text or symbols)

Gray circular icon with a white lightbulb symbol and radiating lines, representing an idea or illumination (no text or symbols)

Mengubah kecerahan pencahayaan

Illustration of four different cleaning tools: lightbulb, light bulb, no tool, and a brush (no text or symbols)

Circular icon with a stylized white object and green leaf symbol (no text or numbers)

Gray circular button with a white lowercase 'i' in the center, no additional text or symbols.

Kembali

Circular button with a white up-turn arrow icon (no text or symbols)

Illustration of a vacuum cleaner with a green checkmark indicating the correct state (no text or symbols present)

Diagram of a mechanical device with a lever and handle, showing internal components and an upward arrow (no text or symbols)

i Catatan: Lepaskan wadah debu sambil mempertahankan posisi alat tetap tegak.

Illustration of a container with granular material being poured into it (no text or symbols)

Illustration of a green mechanical component with an arrow indicating direction, and a magnified inset showing a folded paper or sheet (no text or symbols)

1 Lepaskan kain pel serat mikro.

Illustration of a pipette dispensing liquid into a green tray (no text or symbols)

Simple line drawing of a sink with a drain and a plastic stand (no text or symbols)

Diagram showing a mechanical device with a green handle and directional arrows, alongside a simplified illustration of a telephone handset (no text or symbols)

Simple line drawing of a car interior sink with a blue anchor and green seat cover (no text or symbols)

Close-up of a beige remote control with a circular dial and a checkered button (no text or symbols visible)

Diagram showing a mechanical component with a magnified inset of its cross-section (no text or symbols)

Illustration of two hands pouring liquid into a container with scattered particles (no text or symbols)

Illustration of a hand holding a dark object with liquid droplets (no text or symbols)

Illustration of a faucet spraying water onto a box, with motion lines indicating fluid flow (no text or symbols)

Illustration of a hand cleaning a brown cylindrical object (no text or symbols)

8 Pasang kembali filter ke wadah debu. Putar filter ke arah kanan hingga terpasang erat.

Illustration of a hand pressing down on a mechanical component with a magnified inset showing the close-up of the component (no text or symbols)

Diagram of a mechanical device with a lever and handle, showing a force or movement (no text or symbols present)

Illustration of hands using scissors to cut a piece of wood (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with an inset close-up of the component (no text or symbols)

Illustration of hands using a tool to interact with a golden tool, no text or symbols present

Illustration of a mechanical component with rotational arrows indicating motion (no text or symbols)

Illustration of hands tying a knot around a wooden object with a directional arrow (no text or symbols)

Line drawing of a hand using a tool to adjust or install electronic components on a device (no text or symbols visible)

Illustration of a plastic bottle pouring liquid into a beaker, next to a water bottle with a faucet (no text or symbols)

Illustration of a beaker with liquid being inverted, next to a water dispenser with a plastic bottle (no text or symbols)

Illustration of a hand presser and a telephone device on a diagonal line (no text or symbols)

Simple line drawing of a sink with a drain and a top-mounted device (no text or symbols)

Illustration of a hand using a green tool to press or install a component on a tray (no text or symbols)

Illustration of a medical procedure with a blue ribbon being inserted into a green surgical gasket (no text or symbols)

2 Bilas strip penyalur air di bawah keran.

Technical line drawing of a mechanical component with a green arrow indicating direction (no text or symbols)

Illustration of a box containing a coin with an upward arrow, no text or symbols present

XV1681/01

Rol sikat CP0667/01

Simple line drawing of a box with a rolled document inside, showing an arrow indicating direction (no text or symbols)

CP0667/01

Kain pel serat mikro XV1700/01

Isometric illustration of a rectangular block with a green internal component and a small protrusion on the right side (no text or symbols)

XV1700/01

Strip penyalur air CP0381/01

Simple line drawing of a green tool with a downward arrow, no text or symbols present

CP0381/01

Diagram of a mechanical device with internal components and an inset showing a close-up view of a component (no text or symbols present)

Diagram of a mechanical or electrical component with internal channels and directional arrows, no readable text or symbols present.

Diagram of a mechanical device with internal components and a magnified inset showing a detail (no text or symbols)

Illustration of a vacuum cleaner with a close-up view showing the component (no text or symbols)

Diagram of a mechanical component with curved arrows indicating rotation or force (no text or symbols)

Diagram showing a device with an arrow pointing to a component, and a magnified inset illustrating the internal structure (no text or symbols present)

Diagram of a handheld device with a close-up inset showing a tool interacting with a mechanical component (no text or symbols present)

Illustration of a soldering iron being inserted into a tip, with no text or symbols present

Illustration of a hairdryer being inserted into a device (no text or symbols)

Illustration of a person using a vacuum cleaner to lift a floor, with motion arrows indicating movement (no text or symbols)

Illustration of a mechanical component with a green circular symbol and a magnified inset showing a dollar sign (no text or symbols present)

Amaran: Jangan vakum air atau cecair lain.

Illustration of an eye with warning symbols (anxiety, red X) and a rolled-up object, no text present.

Illustration of a hand pouring liquid into a green plastic sheet with a fork, no text or symbols present

Illustration of a green mechanical component with a downward arrow indicating compression or disassembly (no text or symbols present)

Diagram of a mechanical component with a green arrow indicating direction (no text or symbols)

3D illustration of a green mechanical component with a tool inserted, showing internal structure and a magnified inset (no text or symbols)

Illustration of a person using a green vacuum cleaner on a tiled floor (no text or symbols)

Illustration of a handheld device with a handle and screen, positioned above a horizontal line (no text or symbols visible)

Illustration of a spray gun dispensing liquid into a rubber block with motion lines indicating spray (no text or symbols)

Penggunaan muncung

Illustration of a mechanical component with a magnified inset showing a textured surface (no text or symbols)

Illustration of a hand pouring liquid into a wooden block with motion lines indicating flow (no text or symbols)

Illustration of a soldering iron being inserted into a tip with motion lines indicating force (no text or symbols)

Illustration of a gas cylinder connected to a pen-like tool, with a magnified inset showing a cylindrical component (no text or symbols)

Diagram of a mechanical device connected to a cylinder, with a magnified inset showing a cylindrical component (no text or symbols)

Gray circular icon with a white lightbulb symbol and radiating lines, representing an idea or illumination (no text or symbols)

Ubah suai keterangan pencahayaan

Circular icon with a stylized white object and green leaf symbol (no text or numbers)

Gray circular button with a white lowercase 'i' in the center, no additional text or symbols.

Kembali

Circular button with a white up-turn arrow icon (no text or symbols)

Illustration of a hand holding a vacuum cleaner with a green checkmark indicating the correct handle (no text or symbols present)

Illustration of a mechanical device with a lever and handle, showing internal components and an upward arrow (no text or symbols)

Illustration of a bottle pouring granular material into a trash bin (no text or symbols)

Diagram of a green plastic electronic component with an arrow indicating upward motion, and a magnified inset showing a document (no text or symbols present)

Illustration of a pipette dispensing liquid into a green plastic sheet (no text or symbols)

Simple line drawing of a sink with a drain and a container (no text or symbols)

Diagram showing a mechanical device with a green lever and a separate view of a hand press device (no text or symbols present)

Illustration of a blue stand next to a green container with a circular base (no text or symbols)

Close-up of a beige remote control with a black dial and circular button (no text or symbols visible)

Illustration of a faucet spraying water onto a box with motion lines indicating flow (no text or symbols)

Illustration of a hand cleaning a rectangular object with a cloth (no text or symbols)

Illustration of a cylindrical device with a lid and open lid, accompanied by an orange warning symbol (no text or labels present)

Illustration of a hand pressing down on a mechanical component with a magnified inset showing the internal mechanism (no text or symbols)

Illustration of a hand holding a wristbelt with an arrow indicating motion (no text or symbols)

Illustration of a hand using scissors to cut a piece of wood or tape (no text or symbols present)

4 Keluarkan apa-apa rambut yang kusut daripada gulungan berus dengan berhati-hati. Bantu penanggalan pencemaran tersebut dengan sepasang gunting.

Illustration of a mechanical component with an arrow indicating motion, showing a close-up inset (no text or symbols)

Illustration of a hand using a tool to lift a component, showing motion and wear (no text or symbols)

Illustration of a mechanical component with rotational arrows indicating cycle (no text or symbols)

Illustration of hands connecting wires to a mechanical component (no text or symbols)

Illustration of a hand holding a cleaning tool with a green arrow indicating rotation (no text or symbols)

Illustration of a hand using a tool to adjust or install a green component, with an upward arrow indicating motion (no text or symbols present)

Diagram of a vacuum cleaner with green airflow direction indicator (no text or symbols)

Mechanical component diagram showing a rotating arm mechanism (no text or symbols)

Line drawing of a hand using a tool to adjust or install electronic components (no text or symbols visible)

5 Alih keluar apa-apa pencemaran di sekeliling pengatup untuk prestasi yang optimum.

Illustration of a plastic bottle pouring liquid from a bottle into a beaker, next to a water dispenser (no text or symbols)

Illustration of a beaker with liquid being inverted and a water dispenser beside it (no text or symbols)

Illustration of a mechanical device with a green lever and a separate view of a hand presser (no text or symbols)

Simple line drawing of a sink with a mounted device (no text or symbols)

Illustration of a hand using a green tool to measure a green object on a rectangular base (no text or symbols)

Illustration of a medical procedure with a pipette inserted into a green surgical gauze (no text or symbols)

2 Bilas jalur air di bawah pili.

Technical line drawing of a mechanical component with a green rod inserted (no text or symbols)

Illustration of a box containing a coin with an upward arrow, no text or symbols present

XV1681/01

Gulungan berus CP0667/01

Simple line drawing of a mechanical component inside a transparent housing, with an arrow indicating direction (no text or symbols)

CP0667/01

Pad mengemop mikrofiber XV1700/01

Isometric illustration of a rectangular electronic component with a green internal structure (no text or symbols)

XV1700/01

Jalur air CP0381/01

Simple line drawing of a green tool or probe inserted into a rectangular tube, with a downward arrow indicating direction (no text or symbols)

CP0381/01

Warning symbol with exclamation mark inside a red circle on black background (no text or numbers)

Circular icon with a thermometer symbol inside, no text or numbers present

Circular icon with a white house outline and red warning symbol inside, no text or numbers present.

n melebihi suhu fungsi.

Circular icon with a document symbol and question mark, no readable text or labels

www.philips.com/mycordlessvacuum-8000s.

Všeobecný popis

1 Digitální displej

Diagram of a mechanical device with internal components and an inset showing a close-up view of a component (no text or symbols present)

Diagram of a mechanical or electrical component with internal channels and directional arrows, no readable text or symbols present.

Diagram of a mechanical device with internal components and a magnified inset showing a detail (no text or symbols)

Illustration of a vacuum cleaner with a magnified view showing the handle and base (no text or symbols)

Diagram of a U-shaped device with directional arrows indicating rotation or movement (no text or symbols)

Diagram showing a car seat with a mounted device and an inset close-up of the seat area (no text or symbols)

Diagram of a handheld device with a cable and connector, showing a magnified inset of the cable being inserted (no text or symbols present)

Illustration of a soldering iron being inserted into a tip, showing the process (no text or symbols)

Illustration of a hairdryer being inserted into a device (no text or symbols)

Illustration of a person using a vacuum cleaner to lift a floor, with motion arrows indicating movement (no text or symbols)

Illustration of a mechanical component with a green circular symbol and a magnified inset showing a dollar sign (no text or symbols present)

Illustration of an eye with warning symbols (anxiety, red X) and a rolled-up object, no text present.

Illustration of a hand pouring liquid into a green plastic sheet with a fork, no text or symbols present

Illustration of a green mechanical component with a magnified inset showing a folded paper or plastic sheet (no text or symbols)

Simple line drawing of a mechanical component with a green arrow indicating direction (no text or symbols)

3D mechanical component diagram showing a lever and base assembly (no text or symbols)

Illustration of a person using a green vacuum cleaner on tiled floor (no text or symbols)

Illustration of a mechanical device with a lever and handle, partially submerged in water (no text or symbols visible)

Illustration of a spray gun dispensing liquid into a rubber block with motion lines indicating spray (no text or symbols)

Používání hubice

Illustration of a mechanical component with a magnified inset showing a textured surface (no text or symbols)

Illustration of a hand pouring liquid into a wooden block with motion lines indicating flow (no text or symbols)

Illustration of a soldering iron being poured into a tip with motion lines indicating force (no text or symbols)

Illustration of a gas cylinder connected to a pen-like tool, with a magnified inset showing a cylindrical component (no text or symbols)

Diagram of a mechanical device connected to a cylinder, with a magnified inset showing a cylindrical component (no text or symbols)

Gray circular icon with a white lightbulb symbol and radiating lines, representing an idea or illumination (no text or symbols)

Circular icon with a white lightning bolt symbol and green '电' (electricity) text, no readable text or numbers present.

Gray circular button with a white lowercase 'i' in the center, no additional text or symbols.

Circular button with a white up-turn arrow icon (no text or symbols)

Návrat

Po použití – údržba

Illustration of a vacuum cleaner with a green checkmark indicating the correct state (no text or symbols present)

Diagram of a mechanical device with a lever and handle, showing internal components and an upward arrow (no text or symbols)

Illustration of a bottle pouring granular material into a trash bin (no text or symbols)

Illustration of a green mechanical component with an arrow indicating upward motion, accompanied by a magnified inset showing a printer or folder (no text or symbols present)

Illustration of a pipette dispensing liquid into a green circuit board (no text or symbols)

Simple line drawing of a bathtub with a stand and drain, no text or symbols present

Illustration of a hand presser pressing down on a keyboard and then moving a phone to the side (no text or symbols present)

Close-up of a beige remote control with a black dial and circular button (no text or symbols visible)

Diagram showing a car interior with a lid and a magnified view of the lid's opening (no text or symbols)

Illustration of two hands pouring liquid into a container with scattered particles (no text or symbols)

Illustration of a hand holding a dark object with liquid droplets (no text or symbols)

Illustration of a faucet spraying water onto a bag (no text or symbols)

Illustration of a hand cleaning a rectangular object with a cloth (no text or symbols)

Illustration of a hand pressing down on a mechanical component with an inset showing the close-up of the component (no text or symbols present)

Diagram of a mechanical device with a lever and handle, showing a force or movement (no text or symbols present)

Illustration of hands using scissors to cut a piece of wood (no text or symbols)

Illustration showing two-step car seatbelting technique with magnified detail (no text or symbols)

Illustration of a mechanical component with rotational arrows indicating motion (no text or symbols)

Údržba mini Turbo kartáče

Illustration of a hand holding a rope tied with a wooden object, no text or symbols present

Line drawing of a hand using a tool to adjust or install electronic components (no text or symbols visible)

Illustration of a plastic bottle pouring liquid into a beaker, next to a water tap and bottled water (no text or symbols)

Illustration of a beaker with liquid being inverted and a water bottle beside a water dispenser (no text or symbols)

Diagram showing a mechanical component with green arrows indicating motion or force, alongside a smaller green device with motion arrows (no text or symbols)

Simple line drawing of a cleaning or cleaning station with a blue pole and circular drain (no text or symbols)

Illustration of a hand using a tool to press or adjust a green object on a rectangular base (no text or symbols)

Illustration of a medical procedure with a blue ribbon being inserted into a green surgical gauze (no text or symbols)

Technical line drawing of a mechanical component with a green rod inserted into a housing (no text or symbols)

Illustration of a box containing a coin with an upward arrow, no text or symbols present

XV1681/01

Diagram of a mechanical component inside a transparent housing, showing a cylindrical part inserted into a housing (no text or symbols)

CP0667/01

Isometric illustration of a rectangular block with a green internal component, no text or symbols present.

XV1700/01

Smáčecí pásek CP0381/01

Illustration of a green pen-like object being inserted into a cylindrical tube with a downward arrow (no text or symbols)

CP0381/01

Warning symbol with exclamation mark inside a red circle (no text or numbers)

Circular icon with a house outline and thermometer symbol, no text or numbers present

Circular icon with a white house outline and exclamation mark, no text or symbols present.

Circular icon with a document and question mark, no text or symbols present

Circular icon with a stylized white tool or device symbol inside a red ring (no text or numbers)

Circular icon with a stylized pen and warning symbol, no readable text or numbers present.

Circular icon with a white prohibition symbol on black background, enclosed in a gold ring (no text or numbers)

Icon of a plug with a downward arrow, enclosed in a circular border (no text or symbols)

Circular icon with battery and warning symbol (no text or numbers)

daptér.

Circular icon with a grid pattern inside, enclosed in a golden ring (no text or symbols)

Circular icon with a question mark and document symbol, no readable text or numbers

asunuta.

Circular black button with a white battery symbol and red indicator line (no text or numbers)

Diagram of a mechanical device with internal components and an inset showing a close-up view of a component (no text or symbols present)

1 Okrenite zidni nosač i otpustite sivu polugu. Umetnite priključak za punjenje. Metalni dio mora da bude vidljiv i usmjeren nagore na prednjoj strani zidnog nosača.

Diagram of a mechanical or electrical component with internal channels and directional arrows, no readable text or symbols present.

2 Ugurajte kabl u namjenski žlijeb da stoji uredno.

Diagram of a mechanical device with internal components and a magnified inset showing a detail (no text or symbols)

4 Dobro pričvrstite zini nosač na željenom položaju na zidu. Otvori za montažne vijke moraju da budu na visini od približno 110 cm od poda.

Oprez: Prilikom bušenja rupa u zidu za pričvršćivanje zidnog nosača pazite na opasnost od strujnog udara.

Illustration of a vacuum cleaner with a magnified view showing the handle and base (no text or symbols)

Diagram of a U-shaped device with directional arrows indicating rotation or movement (no text or symbols)

Diagram showing a car seat with a mounted device and an inset close-up of the seat area (no text or symbols)

U aparatu se nalazi litijum-jonska baterija. Punjenje od prazne do pune baterije traje oko 6 sati.

Illustration of a hairdryer with a magnified inset showing the tool tip (no text or symbols present)

i Napomena: Ručni aparat možete da stavite na ravnu i stabilnu površinu i direktno povežete kabl za punjenje.

3 Aparat je projektovan tako da se potpuno napuni u roku od 6 sati. Proces punjenja možete pratiti na ekranu. Kada se aparat potpuno napuni, na ekranu će zasvijetliti vrijednost 100%. Nakon nekoliko minuta ekran će se isključiti.

Korišćenje aparata

Sastavljanje aparata

Illustration of a soldering iron being inserted into a tip, showing the process (no text or symbols)

1 Pričvrstite ručni aparat na cijev. Bićete sigurni da je dobro postavljen kad začujete zvuk „klik”.

Illustration of a hairdryer being inserted into a device (no text or symbols)

2 Pričvrstite cijev na mlaznicu. Bićete sigurni da je dobro postavljen kad začujete zvuk „klik”.

Usisavanje mekih i tvrdih podova

Illustration of a person using a vacuum cleaner to lift a floor, with motion arrows indicating movement (no text or symbols)

Illustration of a mechanical component with a green circular symbol and a magnified inset showing a dollar sign (no text or symbols present)

i Ako je omogućena funkcija za prepoznavanje vrste poda, aparat prepoznaje vrstu poda i automatski optimizuje svoje performanse u okviru postavke snage koju ste izabrali. Ako želite da onemogućite ovu funkciju, pogledajte kako se prilagođavaju postavke u nastavku.

Illustration of an eye with warning symbols (anxiety, red X) and a rolled-up object, no text present.

Illustration of a hand pouring liquid into a green plastic sheet with a faucet in the background (no text or symbols)

2 Pričvrstite umetak za brisanje od mikrovlakana ispod rezervoara za vodu. Poravnajte čičak trake na rezervoaru za vodu sa onima ispod krpe.

Illustration of a green mechanical component with a paper base and a magnified inset showing a document (no text or symbols)

Diagram of a mechanical component with a green arrow indicating direction (no text or symbols)

3D illustration of a green mechanical component with a tool inserted, showing internal structure and a magnified inset (no text or symbols)

6 Pričvrstite pripremljeni rezervoar za vodu na mlaznicu i možete da počnete. Provjerite da li je rezervoar za vodu pravilno usmjeren.

Illustration of a person using a green vacuum cleaner on a tiled floor (no text or symbols)

7 Pritisnite dugme za uključivanje/isključivanje i uključite aparat. Kada je na mlaznicu priključen vodeni modul, možete efikasno čistiti tvrde podove.

i Napomena: Vodeni modul nije pogodan za meke podove kao što su tepisi.

A Oprez: Vodeni modul se ne smije koristiti za prikupljanje lokvica vode.

Illustration of a handheld device with a pointed tip and handle, emitting exhaust smoke (no text or symbols)

Illustration of a spray gun dispensing liquid into a mechanical component (no text or symbols)

Korišćenje mlaznice

1 Pričvrstite mlaznicu direktno na ručni aparat.

Illustration of a mechanical component with a magnified inset showing a textured surface (no text or symbols)

Illustration of a hand pouring liquid into a wooden block with motion lines indicating flow (no text or symbols)

Illustration of a soldering iron being inserted into a tip with motion lines indicating force (no text or symbols)

Illustration of a gas cylinder connected to a pen-like tool, with a magnified inset showing a cylindrical component (no text or symbols)

2 Ova kombinacija je pogodna za čišćenje površina različite visine kao što je stepenište.

Korišćenje četke Mini TurboBrush

1 Da biste pričvrstili Mini TurboBrush, umetnite cijev ručnog aparata u Mini TurboBrush.

2 Mini TurboBrush možete da koristite za standardno čišćenje, na primjer mekih površina kao što su kreveti i sofe. Snagu možete da podesite tako da odgovara potrebama čišćenja.

Diagram of a mechanical device connected to a cylinder, with a magnified inset showing a cylindrical component (no text or symbols)

2 Alatka za tapacirani namještaj je idealna za čišćenje namještaja od mekih tkanina i njeno osvjetljenje možete prilagoditi prema sopstvenom nahodenju.

Circular icon with a lightbulb symbol and radiating lines, no text or numbers present.

Prepoznavanje vrste poda

Pritisnite dugme menija i krećite se kroz funkciju prepoznavanja vrste poda. Potvrdite ponovnim pritiskom na dugme menija.

Circular icon with a stylized mechanical component and green checkmark (no text or symbols)

Na ekranu prepoznavanja vrste poda krećite se kroz ovu funkciju i potvrdite odluku pritiskom na dugme menija. Ako je uspješno omogućena, pojaviće se zelena ikona u gornjem lijevom uglu ekrana kada se vratite na glavni ekran.

i Napomena: Prepoznavanje vrste poda može da se omogući ili onemogući samo kada je motorna mlaznica pričvršćena na ručni aparat. Zato će na meniju biti jedna stavka manje kada motorna mlaznica nije pričvršćena na glavni aparat. Pričvrstite motornu mlaznicu da bi se na meniju prikazala stavka za prepoznavanje vrste poda.
i Napomena: Kada prvi put dobijete aparat, prepoznavanje vrste poda je omogućeno.
i Napomena: Funkcija prepoznavanja vrste poda se aktivira kada mlaznica prepozna različite površine čišćenja dok je u pokretu.

Dodatne informacije

Pritisnite dugme menija i krećite se kroz opciju „dodatne informacije“. Potvrdite ponovnim pritiskom na dugme menija.

Na ekranu sa dodatnim informacijama možete da provjerite stanje filtera, stanje baterije, ukupno vrijeme korišćenja, model svog aparata i da pristupite QR kodu za dodatne informacije na mreži.

Gray circular button with a white lowercase 'i' in the center, no additional text or symbols.

Circular button with a white up-turn arrow icon (no text or symbols)

Vraćanje

Nakon korišćenja – održavanje

2 Držite aparat pod uglom od 45 stepeni, kako je prikazano na slici. Pritisnite dugme za oslobađanje i skinite posudu za prašinu. Dugme za oslobađanje se nalazi na dnu posude.

Illustration of a vacuum cleaner with a green checkmark indicating inspection (no text or symbols present)

Diagram of a mechanical device with a lever and handle, showing internal components and an upward arrow (no text or symbols)

i Napomena: Posudu za prašinu skidajte dok držite aparat u uspravnom položaju.

Illustration of a container with granular material being poured into it (no text or symbols)

4 Ispraznite prikupljenu prašinu iz posude za prašinu u kantu za smeće.

5 Vratite ciklon u posudu za prašinu. Ova dva dijela moraju da budu poravnata.

Illustration of a green mechanical component with an arrow indicating upward motion, accompanied by a magnified inset showing a printer or folder (no text or symbols present)

1 Uklonite umetak za brisanje od mikrovlakana.

Illustration of a pipette dispensing liquid into a green plastic sheet (no text or symbols)

2 Isperite umetak za brisanje tekućom vodom i operite ga ručno ili u mašini za pranje veša.

Diagram of a kitchen sink with a blue stand and a green container (no text or symbols)

3 Ispraznite svu preostalu vodu iz rezervoara za vodu.

4 Napunite rezervoar vodom.

Diagram showing a mechanical device with a green handle and directional arrows, alongside a simplified illustration of a telephone handset (no text or symbols)

5 Dobro zatvorite rezervoar za vodu i protresite ga da bi se uklonili ostaci deterdženta.

Simple line drawing of a car hood with a blue support post and a circular drain (no text or symbols)

6 Ispraznite rezervoar za vodu, ostavite rezervoar otvoren da se osuši.

Close-up of a beige remote control with a black dial and circular button (no text or symbols visible)

Diagram showing a car interior with a magnified view of the dashboard and dashboard (no text or symbols)

Illustration of two hands pouring liquid into a container with granular material (no text or symbols)

3 Istresite i kućište filtera i pjenasti filter iznad kante za smeće.

Illustration of a hand holding a dark object with liquid droplets (no text or symbols)

5 Oprani filter ostavite da suši 24 sata prije nego što vratite pjenasti filter u kućište filtera.

Illustration of a faucet spraying water onto a box, with motion lines indicating fluid flow (no text or symbols)

6 Kod temeljnog održavanja, operite posudu za prašinu i ciklon pod mlazom vode ili u toploj vodi sa sapunicom.

Illustration of a hand cleaning a rectangular object with a cloth (no text or symbols)

7 Osušite krpom opranu posudu za prašinu i odgovarajuće dijelove.

A Oprez: Svi dijelovi moraju da budu potpuno suvi prije nego što ih ponovo montirate.

i Napomena: dijelovi se ne smiju prati u mašini za pranje sudova.

Illustration of a hand pressing down on a mechanical component with a magnified inset showing the internal structure (no text or symbols)

2 Da biste izvadili valjak četkice, pronadite dugme na bočnoj strani mlaznice. Pritisnite ga i rotirajte da bi se otvorio.

Diagram of a mechanical device with a lever and handle, showing a directional arrow (no text or symbols)

3 Lagano izvadite valjak četkice i bočni poklopac mlaznice.

Illustration of hands using scissors to cut a piece of wood (no text or symbols)

Illustration showing two-step car seatbelting technique with magnified detail (no text or symbols)

Illustration of a mechanical component with rotational arrows indicating motion (no text or symbols)

3 Rukama ili makazama uklonite prljavštinu sa četke.

Illustration of a hand holding a rope tied with a wooden object, no text or symbols present

4 Prilikom sastavljanja četke, prvo postavite jednu stranu u ležište prije nego što pričvrstite drugu stranu. Kada se četka ispravno sklopi začućete zvuk „klik”.

Održavanje mlaznice za usisivač i umetka za brisanje

1 Otvorite dva gornja poklopca da biste imali pristup prolazu za vazduh u mlaznici.

Line drawing of a hand using a tool to adjust or install electronic components (no text or symbols visible)

5 Ako ima prljavštine oko kapka, uklonite je da biste postigli optimalne rezultate.

Illustration of a plastic bottle pouring liquid into a beaker, next to a water tap and bottled water (no text or symbols)

Illustration of a beaker with liquid being inverted and a water dispenser with a plastic bottle beside it (no text or symbols)

Diagram showing a mechanical device with a green component and directional arrows, alongside a stylized illustration of a printer (no text or symbols)

Simple line drawing of a sink with a drain and a top-mounted device (no text or symbols)

6 Isperite i ispraznite svu preostalu tečnost iz rezervoara za vodu.

Illustration of a hand using a green tool to press or install a component on a tray (no text or symbols)

Illustration of a medical procedure with a pipette inserted into a green surgical gauze (no text or symbols)

2 Isperite traku za vodu pod mlazom vode.

Technical line drawing of a mechanical component with a green arrow indicating direction (no text or symbols)

3 Nakon čišćenja ponovo pričvrstite traku za vodu na rezervoar za vodu.

Replacement

Da biste kupili pribor ili rezervne dijelove, posjetite www.philips.com/parts-and-accessories ili zastupnika kompanije Philips. Možete i da se obratite centru za korisničku podršku kompanije Philips u svojoj zemlji.

Illustration of a box containing a coin with an upward arrow, no text or symbols present

XV1681/01

Valjak četkice CP0667/01

Simple line drawing of a box with a rolled document inside, showing an arrow indicating direction (no text or symbols)

CP0667/01

Umetak za brisanje od mikrovlakana XV1700/01

Isometric illustration of a rectangular electronic component with green connectors (no text or symbols)

XV1700/01

Traka za vodu CP0381/01

Simple line drawing of a green tool with a downward arrow, no text or symbols present

CP0381/01

Icon of a plug with a downward arrow, enclosed in a circular border (no text or symbols)

Uklonite adapter prije nego što pokrenete aparat.

i7 Korist

Circular icon with a plug and warning symbol (no text or numbers)

apter.

Za punjenje ovog aparata koristite isključivo originalni adapter.

i8 Filter

Circular icon with a grid pattern inside, enclosed in a golden ring (no text or symbols)

Očistite filter. Pratite uputstva na ekranu ili u korisničkom priručniku. Nove filtere možete kupiti u internet prodavnici kompanije Philips na adresi www.philips.com/support ili kod zastupnika kompanije Philips.

i10 Bate

Circular icon with a document symbol and a question mark, no text or labels present.

postavljena.

Izvadite bateriju, a zatim je vratite. Ako to ne uspije, odnesite aparat u ovlašćeni servis kompanije Philips ili se obratite centru za korisničku podršku.

Circular black button with a white battery symbol and red indicator line (no text or numbers)

Nivo baterije je nizak i treba je napuniti. Napunite aparat ili bateriju pomoću predloženog načina punjenja.

Otklanjanje grešaka

U ovom poglavlju dat je pregled najčešćih problema sa kojima se možete sresti pri radu s ovim aparatom. Ako ne možete riješiti neki problem koristeći donje informacije, posjetite www.philips.com/support da biste dobili odgovore na česta pitanja ili se obratite Centru za potrošače u svojoj zemlji.

Suvo čišćenje

www.philips.com/mycordlessvacuum-8000s.

Generel beskrivelse

1 Digitalt display

a Ringindikator for batteriniveau

b Batteriniveau i procent

c Valgt effektniveau

Diagram of a mechanical device with internal components and an inset showing a close-up view of a component (no text or symbols present)

Diagram of a mechanical or electrical component with internal channels and directional arrows, no readable text or symbols present.

Diagram of a mechanical device with internal components and a magnified inset showing a detail (no text or symbols)

Illustration of a vacuum cleaner with a magnified view showing the handle and base (no text or symbols)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Klargøring

Diagram showing a device with a lock and a magnified view of its internal structure (no text or symbols)

Illustration of a hairdryer with a magnified inset showing the tool tip (no text or symbols present)

Illustration of a soldering iron being inserted into a tip, showing the process (no text or symbols)

Illustration of a hairdryer being inserted into a device (no text or symbols)

Illustration of a person using a vacuum cleaner to lift a floor, with motion arrows indicating movement (no text or symbols)

Illustration of a mechanical component with a green circular symbol and a magnified inset showing a dollar sign (no text or symbols present)

Illustration of an eye with warning symbols (anxiety, red X) and a rolled-up object, no text present.

Illustration of a hand pouring liquid into a green plastic sheet with a faucet in the background (no text or symbols)

Illustration of a green mechanical component with a paper base and a magnified inset showing a folded paper (no text or symbols)

Diagram of a mechanical component with a green arrow indicating direction (no text or symbols)

3D illustration of a green mechanical component with a tool inserted, showing internal structure and a magnified inset (no text or symbols)

Illustration of a person using a green vacuum cleaner on a tiled floor (no text or symbols)

Illustration of a handheld device with a handle and screen, emitting exhaust smoke (no text or symbols)

Illustration of a spray gun dispensing liquid into a rubber block with motion lines indicating spray (no text or symbols)

Brug af mundstykket

Illustration of a mechanical component with a magnified inset showing a textured surface (no text or symbols)

Illustration of a hand pouring liquid into a wooden block with motion lines indicating flow (no text or symbols)

Illustration of a soldering iron being poured into a tip with motion lines indicating force (no text or symbols)

Illustration of a gas cylinder connected to a pen-like tool, with a magnified inset showing a cylindrical component (no text or symbols)

Diagram of a mechanical device connected to a cylinder, with a magnified inset showing a cylindrical component (no text or symbols)

Gray circular icon with a white lightbulb symbol and radiating lines, representing an idea or illumination (no text or symbols)

Circular icon with a stylized white arrow and green leaf symbol, no text or numbers present.

Gray circular button with a white lowercase 'i' in the center, no additional text or symbols.

Circular button with a white up-turn arrow icon (no text or symbols)

Retur

Illustration of a vacuum cleaner with a green checkmark indicating the process (no text or symbols present)

Illustration of a mechanical device with a lever and handle, showing internal components and an upward arrow (no text or symbols)

Illustration of a container with granular material being poured into it (no text or symbols)

Illustration of a green mechanical component with an arrow indicating upward motion, accompanied by a magnified inset showing a printer or folder (no text or symbols present)

1 Fjern mikrofibermoppepuden.

Illustration of a pipette dispensing liquid into a green circuit board (no text or symbols)

Simple line drawing of a bathtub with a stand and drain, no text or symbols present

Illustration of a hand presser pressing down on a keyboard and then moving a phone to the side (no text or symbols present)

Simple line drawing of a car hood with a blue support post and a circular drain (no text or symbols)

Close-up of a beige remote control with a black dial and circular button (no text or symbols visible)

Rens filteret mindst en gang om måneden, eller når du ser meddelelsen om filterrensning (i8).

Diagram showing a car interior with a magnified view of the dashboard and dashboard (no text or symbols)

Illustration of two hands pouring liquid into a container with granular material (no text or symbols)

Illustration of a hand holding a dark object with liquid droplets (no text or symbols)

Illustration of a faucet spraying water onto a box, with motion lines indicating fluid flow (no text or symbols)

Illustration of a hand cleaning a rectangular object with a cloth (no text or symbols)

Illustration of a hand pressing down on a mechanical component with an inset showing the close-up of a device (no text or symbols present)

Diagram of a mechanical device with a lever and handle, showing a directional arrow (no text or symbols)

Illustration of hands using scissors to cut a piece of wood (no text or symbols)

Illustration showing two-step car seatbelting technique with magnified detail (no text or symbols)

5 Sørg for at justere børsterullen korrekt, när du samler den igen.

Illustration of a mechanical component with rotational arrows indicating motion (no text or symbols)

2 Skub sideknappen for at frigøre børsten fra dens position.

Illustration of a hand holding a rope tied with a wooden object, no text or symbols present

Line drawing of a hand using a tool to adjust or install electronic components (no text or symbols visible)

Illustration of a plastic bottle pouring liquid from a water bottle into a beaker (no text or symbols)

Illustration of a beaker with liquid being inverted and a water bottle beside it (no text or symbols)

Illustration of a hand holding a device with directional arrows indicating motion or movement (no text or symbols)

Simple line drawing of a sink with a drain and a top-mounted device (no text or symbols)

Illustration of a hand using a green tool to press or install a component on a tray (no text or symbols)

Illustration of a medical procedure with a pipette inserted into a green surgical gauze (no text or symbols)

2 Skyl vandstrimlen under rindende vand.

Technical line drawing of a mechanical component with a green arrow indicating direction (no text or symbols)

Illustration of a box containing a coin with an upward arrow, no text or symbols present

XV1681/01

Børsterulle CP0667/01

Simple line drawing of a box with a rolled document inside, showing an arrow indicating direction (no text or symbols)

CP0667/01

Mikrofibermoppeptide XV1700/01

Isometric illustration of a rectangular block with green connectors inserted (no text or symbols)

XV1700/01

Vandstrimmel CP0381/01

Simple line drawing of a green tool with a downward arrow, no text or symbols present

CP0381/01

Warning symbol with exclamation mark inside a red circle (no text or numbers)

Simple home control icon with thermometer and warning symbol (no text or numbers)

Circular icon with a house outline and exclamation mark, no text or symbols present

Circular icon with a document and question mark, no text or symbols present

et.

Aflever apparatet hos et autoriseret Philips-servicecenter, eller kontakt kundeplejecenteret.

E9 Mundo

Circular icon with a stylized pen or tool symbol inside, no text or numbers present.

t betjent over den funktionelle temperatur.

Circular icon with a stylized pen or tool symbol inside a black ring (no text or numbers)

opet.

Circular black button with a white prohibition symbol, no text or numbers present.

ar sat sig fast i luftpassagen.

Icon of a plug with a downward arrow, enclosed in a circular border (no text or symbols)

net.

Fjern adapteren, inden apparatet betjenes.

i7 Der br

Circular icon with a plug and warning symbol, no text or numbers present

adapter.

Circular icon with a grid pattern inside, enclosed in a golden ring (no text or symbols)

Circular icon with a question mark and document symbol inside a black ring (no text or numbers)

korrekt i.

Circular black button with a white battery symbol and red indicator line (no text or numbers)

www.philips.com/mycordlessvacuum-8000s.

Diagram of a mechanical device with an inset showing a close-up of a component (no text or symbols visible)

Diagram of a mechanical or electrical component with internal channels and directional arrows, no readable text or symbols present.

Diagram of a mechanical device with internal components and a magnified inset showing a detail (no text or symbols)

Illustration of a vacuum cleaner with a magnified view showing the handle and base (no text or symbols)

Simple line drawing of a mechanical component with arrows indicating motion or force (no text or symbols)

Diagram showing a car interior with a mounted device and an inset close-up of the interior (no text or symbols)

Diagram of a handheld device with a cable and connector, showing a magnified inset of its internal structure (no text or symbols present)

Illustration of a soldering iron being inserted into a tip, with no text or symbols present

Illustration of a hairdryer being inserted into a device (no text or symbols)

Illustration of a person using a vacuum cleaner to lift a person's legs (no text or symbols present)

Illustration of a mechanical component with a circular green symbol and a magnified inset showing a dollar sign (no text or symbols present)

Illustration of an eye with warning symbols (anxiety, red X) and a rolled-up object, no text present.

Illustration of a pipette dispensing liquid into a green rectangular container (no text or symbols)

Illustration of a green mechanical component with a magnified inset showing a folded paper or plastic sheet (no text or symbols)

Diagram of a mechanical component with a green arrow indicating direction (no text or symbols)

3D illustration of a green mechanical component with a tool inserted, showing internal structure and a magnified inset (no text or symbols)

Illustration of a person using a green vacuum cleaner to clean or store floor tiles (no text or symbols)

Illustration of a handheld device with a pointed tip and handle, resting on a surface (no text or symbols)

Illustration of a spray gun dispensing liquid into a rubber pad, with motion arrows indicating spray (no text or symbols)

Verwenden der Düse

Illustration of a mechanical component with a magnified inset showing a textured surface (no text or symbols)

Illustration of a vacuum cleaner emitting powder from a cylindrical component (no text or symbols)

Illustration of a soldering iron being poured into a tip with motion lines indicating fluid flow (no text or symbols)

Illustration of a gas cylinder connected to a pen-like tool, with a magnified inset showing a cylindrical component (no text or symbols)

Diagram of a mechanical device connected to a cylinder, with a magnified inset showing a cylindrical component (no text or symbols)

Gray circular icon with a white lightbulb symbol and radiating lines, representing an idea or illumination (no text or symbols)

Circular icon with a stylized white object and green leaf symbol, no readable text or numbers.

Bodenarterkennung

Gray circular button with a white lowercase 'i' in the center, no additional text or symbols.

Circular button with a white up-turn arrow icon (no text or symbols)

Zurückkehren

Illustration of a vacuum cleaner with a green checkmark indicating the correct handle (no text or symbols present)

Diagram of a mechanical device with a lever and handle, showing internal components and an upward arrow (no text or symbols)

Illustration of a container with granular material being poured into it (no text or symbols)

Illustration of a green mechanical component with an arrow indicating upward motion, accompanied by a magnified inset showing a printer or folder (no text or symbols present)

Illustration of a pipette dispensing liquid into a green circuit board (no text or symbols)

Diagram of a toilet sink with a stand and drain, no text or symbols present

Illustration of a hand presser pressing down on a keyboard and then moving a phone to the side (no text or symbols present)

Simple line drawing of a sink with a vertical support and a top-mounted device (no text or symbols)

Close-up of a beige remote control with a black dial and circular button (no text or symbols visible)

Diagram showing a car interior with a magnified view of the dashboard and dashboard (no text or symbols)

Illustration of two hands pouring liquid into a container with granular material (no text or symbols)

Illustration of a hand holding a dark object with liquid dripping (no text or symbols)

Illustration of a faucet spraying water onto a bag (no text or symbols)

Illustration of a hand cleaning a rectangular object with a cloth (no text or symbols)

Illustration of a hand pressing down on a mechanical component with a magnified inset showing the close-up of the component (no text or symbols)

Diagram of a mechanical device with a lever and handle, showing a force or movement (no text or symbols present)

Illustration of hands using scissors to cut a piece of wood (no text or symbols)

Illustration showing two-step car seatbelting technique with magnified detail (no text or symbols)

Illustration of a mechanical component with rotational arrows indicating motion (no text or symbols)

Illustration of a hand holding a rope tied with a wooden object, no text or symbols present

Line drawing of a hand using a tool to adjust or install electronic components (no text or symbols visible)

Illustration of a plastic bottle pouring liquid into a beaker, next to a water tap (no text or symbols)

Illustration of a beaker with liquid being inverted and a water bottle beside it (no text or symbols)

Diagram showing a mechanical device with a green component and a separate view of a device with directional arrows (no text or symbols)

Simple line drawing of a sink with a drain and a top-mounted device (no text or symbols)

Illustration of a hand using a green tool to press or install a component on a tray (no text or symbols)

Illustration of a medical procedure with a blue ribbon being inserted into a green surgical gasket (no text or symbols)

Technical line drawing of a mechanical component with a green arrow indicating direction (no text or symbols)

Illustration of a box containing a coin with an upward arrow, no text or symbols present

XV1681/01

Bürstenrolle CP0667/01

Simple line drawing of a box with a rolled document inside, showing an arrow indicating direction (no text or symbols)

CP0667/01

Mikrofaserwischtuch XV1700/01

Isometric illustration of a rectangular block with a green internal component and a small protrusion on the right side (no text or symbols)

XV1700/01

Wasserspender CP0381/01

Simple line drawing of a cylindrical object with a green arrow pointing downward (no text or symbols)

CP0381/01

Circular icon with a plug symbol and downward arrow, no text or symbols present

cht entfernt.

Circular icon with a plug and warning symbol, no text or numbers present

vird verwendet.

Circular icon with a grid pattern inside, enclosed in a golden ring (no text or symbols)

tzt.

Circular icon with a document symbol and a question mark, no text or labels present.

Circular black button with a white battery symbol and red scroll wheel (no text or numbers)

Diagram of a mechanical device with internal components and an inset showing a close-up view of a component (no text or symbols present)

Diagram of a mechanical or electrical component with internal channels and directional arrows, no readable text or symbols present.

Diagram of a mechanical device with internal components and a magnified inset showing a detail (no text or symbols)

Illustration of a vacuum cleaner with a magnified view showing the handle and base (no text or symbols)

Diagram of a U-shaped device with directional arrows indicating rotation or movement (no text or symbols)

Diagram showing a car seat with a mounted device and an inset close-up of the seat area (no text or symbols)

Diagram of a handheld device with a close-up inset showing a tool interacting with a mechanical component (no text or symbols present)

Illustration of a soldering iron being inserted into a tip, showing the tip and tip with radiating lines (no text or symbols)

Illustration of a hairdryer being inserted into a device (no text or symbols)

Illustration of a person using a vacuum cleaner to lift a person's leg (no text or symbols present)

Illustration of a mechanical component with a green circular symbol and a dollar sign, set against a patterned background (no text or symbols)

⚠️ Hoiatus! Ärge kunagi imege seadme sisse vett ega mönda muud vedelikku.

Illustration of an eye with warning symbols (anxiety, no protection) and a red X mark, no text or labels present.

Illustration of a hand pouring liquid into a green rectangular container with a faucet in the background (no text or symbols)

Green mechanical component with a downward arrow indicating compression or disassembly (no text or symbols visible)

Diagram of a mechanical component with a green arrow indicating direction (no text or symbols)

3D illustration of a green mechanical component with a tool inserted, showing internal structure and a magnified inset (no text or symbols)

Illustration of a person using a green vacuum cleaner on a tiled floor (no text or symbols)

Illustration of a handheld device with a handle and spout, emitting powder from a surface (no text or symbols)

Illustration of a spray gun dispensing liquid into a rubber can with motion lines indicating spray (no text or symbols)

Otsaku kasutamine

Illustration of a mechanical component with a magnified inset showing a textured surface (no text or symbols)

Illustration of a hand pouring liquid into a wooden block with motion lines indicating flow (no text or symbols)

Illustration of a soldering iron being inserted into a tip with motion lines indicating force (no text or symbols)

Illustration of a gas cylinder connected to a pen-like tool, with a magnified inset showing a cylindrical component (no text or symbols)

Diagram of a mechanical device connected to a cylinder, with a magnified inset showing a cylindrical component (no text or symbols)

Circular icon with a lightbulb symbol and radiating lines, no text or numbers present.

Circular icon with a stylized mechanical component and green checkmark (no text or symbols)

Gray circular button with a white lowercase 'i' in the center, no additional text or symbols.

Tagasi

Circular button with a white up-turn arrow icon (no text or symbols)

Illustration of a vacuum cleaner with a green checkmark indicating the process (no text or symbols present)

Diagram of a mechanical device with a lever and handle, showing internal components and an upward arrow (no text or symbols)

Illustration of a bottle pouring granular material into a trash bin (no text or symbols)

i Märkus. Eemaldage tolmukamber, hoides masinat püstises asendis.

Illustration of a green plastic component with an arrow indicating upward motion, next to a magnified inset showing a printer (no text or symbols present)

Illustration of a pipette dispensing liquid into a green circuit board (no text or symbols)

Simple line drawing of a sink with a water level and a plastic bucket (no text or symbols)

Diagram showing a mechanical device with a green lever and a separate view of a printer (no text or symbols present)

Close-up of a beige remote control with a black dial and circular button (no text or symbols visible)

Diagram showing a car interior with a magnified view of the dashboard and dashboard (no text or symbols)

Illustration of two hands pouring liquid into a container with scattered particles (no text or symbols)

Illustration of a hand holding a dark object with liquid droplets (no text or symbols)

5 Enne filtrikorpusesse tagasipaigaldamist laske pestud vahtfiltril kuivada 24 tundi.

Illustration of a faucet spraying water onto a box, with motion lines indicating fluid flow (no text or symbols)

Illustration of a hand cleaning a rectangular object with a cloth (no text or symbols)

Illustration of a cylindrical device with internal components and an open lid, accompanied by an orange warning symbol (no text or labels)

Illustration of a hand pressing down on a mechanical component with a magnified inset showing the close-up of the component (no text or symbols)

Diagram of a mechanical device with a lever and handle, showing a force or movement (no text or symbols present)

Illustration of hands using scissors to cut a piece of wood (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with an inset close-up of the component (no text or symbols)

Illustration of hands using a tool to interact with a golden object, no text or symbols present

Illustration of a mechanical component with rotational arrows (no text or symbols)

Väikese turboharja hooldus

Illustration of hands tying a knot around a wooden log, with an upward arrow indicating motion (no text or symbols)

Hand using a tool to adjust or install electronic components on a circuit board (no text or symbols visible)

Illustration of a plastic bottle pouring liquid from a water bottle into a beaker (no text or symbols)

Veepaagi hooldus

Illustration of a beaker with liquid being inverted and a water bottle beside it (no text or symbols)

2 Lisage mööteanumasse vajalik kogus vett.

Illustration of a mechanical device with a green handle and directional arrows, next to a smaller green device with motion arrows (no text or symbols)

Simple line drawing of a sink with a drain and a top-mounted device (no text or symbols)

Illustration of a hand using a green tool to press or install a component on a tray (no text or symbols)

Niisutusriba hooldus

Illustration of a medical procedure with a blue ribbon being inserted into a green surgical gasket (no text or symbols)

2 Loputage niisutusriba kraani all.

Technical line drawing of a mechanical component with a green rod inserted into a housing (no text or symbols)

Illustration of a box containing a coin with an upward arrow, no text or symbols present

XV1681/01

Harjarull CP0667/01

Simple line drawing of a box with a rolled document inside, showing an arrow indicating direction (no text or symbols)

CP0667/01

Mikrokiust puhastuslapp XV1700/01

Isometric illustration of a rectangular block with a green internal component, no text or symbols present.

XV1700/01

Niisutusriba CP0381/01

Simple line drawing of a green tool with a downward arrow, no text or symbols present

CP0381/01

www.philips.com/mycordlessvacuum-8000s.

Descripción general

Diagram of a mechanical device with internal components and an inset showing a close-up view of a component (no text or symbols present)

Diagram of a mechanical or electrical component with internal channels and directional arrows, no readable text or symbols present.

Diagram of a mechanical device with internal components and a magnified inset showing a detail (no text or symbols)

Illustration of a vacuum cleaner with a magnified view showing the handle and base (no text or symbols)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Diagram showing a car interior with a device and a magnified view of the interior (no text or symbols)

Diagram of a handheld device with a close-up inset showing a tool interacting with a mechanical component (no text or symbols present)

Illustration of a soldering iron being inserted into a tip, with no text or symbols present

Illustration of a hairdryer being inserted into a device (no text or symbols)

Illustration of a person using a vacuum cleaner to lift a floor, with motion arrows indicating movement (no text or symbols)

Illustration of a mechanical clamp and a green circular symbol with a dollar sign, set on a patterned surface (no text or symbols)

Illustration of an eye with warning symbols (anxiety, red X) and a rolled-up object, no text present.

Illustration of a hand pouring liquid into a green plastic sheet with a fork, no text or symbols present

Illustration of a green mechanical component with a magnified inset showing a folded paper or plastic sheet (no text or symbols)

Diagram of a mechanical component with a green arrow indicating direction (no text or symbols)

3D mechanical assembly diagram showing a green component with a tool inserted into a base, and a magnified inset highlighting a detail (no text or symbols)

Illustration of a person using a green vacuum cleaner to clean tiled floor (no text or symbols)

Illustration of a mechanical device with a handle and base, partially submerged in water (no text or symbols visible)

Illustration of a vacuum cleaner emitting powder onto a cylindrical component (no text or symbols)

Uso de la boquilla

Illustration of a mechanical component with a magnified inset showing a textured surface (no text or symbols)

Illustration of a hand pouring liquid into a wooden block with motion lines indicating flow (no text or symbols)

Illustration of a syringe emitting powder from a wooden stick (no text or symbols)

Illustration of a gas cylinder connected to a pen-like tool, with a magnified inset showing a cylindrical component (no text or symbols)

Diagram of a mechanical device connected to a cylinder, with a magnified inset showing a cylindrical component (no text or symbols)

Gray circular icon with a white lightbulb symbol and radiating lines, representing an idea or illumination (no text or symbols)

Circular icon with a stylized white arrow and green leaf symbol, no text or numbers present.

Gray circular button with a white lowercase 'i' in the center, no additional text or symbols.

Volver

Circular button with a white up-turn arrow icon (no text or symbols)

Illustration of a vacuum cleaner with a green checkmark indicating the handle (no text or symbols present)

Illustration of a mechanical device with a lever and handle, showing an upward arrow (no text or symbols)

Illustration of a container with granular material being poured into it, no text or symbols present

Green mechanical component with a paper sheet underneath, showing a press or assembly process (no text or symbols visible)

Illustration of a pipette dispensing liquid into a green tiled surface (no text or symbols)

Simple line drawing of a sink with a drain outlet and a green container (no text or symbols)

Diagram showing a mechanical device with a green component and a separate view of a device with directional arrows (no text or symbols)

Simple line drawing of a sink with a drain and a wall-mounted device (no text or symbols)

Close-up of a beige remote control with a black dial and circular button (no text or symbols visible)

Diagram showing a container with a handle and a close-up of its internal components (no text or symbols)

Illustration of two gold coins pouring liquid into a container (no text or symbols)

Illustration of a hand holding a dark object with water droplets falling (no text or symbols)

Illustration of a mechanical device with warning symbol and open lid, no text or symbols present

Illustration of a hand pressing down on a mechanical component with an inset showing the internal mechanism (no text or symbols)

Illustration of a mechanical component with rotational arrows indicating motion (no text or symbols)

Illustration of hands tying a knot around a wooden object with a yellow arrow indicating motion (no text or symbols)

Illustration of a hand holding a cleaning tool with a green arrow indicating rotation (no text or symbols)

Illustration of a hand using a tool to adjust or install a component, with no visible text or symbols.

Diagram of a vacuum cleaner with green arrow indicating motion (no text or symbols)

Mechanical component diagram showing a rotating assembly with curved arrows indicating motion (no text or symbols)

Line drawing of a hand using a tool to adjust or install electronic components (no text or symbols visible)

Illustration of a plastic bottle pouring liquid from a plastic bottle into a beaker (no text or symbols)

Illustration of a water tap being poured into a beaker and collecting water from a water dispenser bottle (no text or symbols)

Diagram showing a mechanical device with a green component and a separate view of a device with directional arrows (no text or symbols)

Simple line drawing of a sink with a drain outlet and a green container (no text or symbols)

Illustration of a hand using a tool to press or install a green component on a tray (no text or symbols)

Illustration of a medical procedure with a needle inserted into a green surgical gauze (no text or symbols)

Technical line drawing of a mechanical component with a green arrow indicating direction (no text or symbols)

Illustration of a box containing a coin with an upward arrow, no text or symbols present

XV1681/01

Cepillo giratorio CP0667/01

Diagram of a mechanical component inside a transparent housing, showing a cylindrical part inserted into a housing (no text or symbols)

CP0667/01

Isometric illustration of a rectangular electronic component with a green internal structure (no text or symbols)

XV1700/01

Tira humectante CP0381/01

Simple line drawing of a mechanical component with a green arrow indicating direction (no text or symbols)

CP0381/01

Warning symbol with exclamation mark inside a red circle (no text or numbers)

rrecto del aparato.

Simple home control icon with thermometer and warning symbol (no text or numbers)

Circular icon with a white house symbol and red warning symbol, no text or numbers present.

Circular icon with a document symbol and question mark, no readable text or labels

la.

Installation du support mural

Diagram of a mechanical device with internal components and an inset showing a close-up view of a component (no text or symbols present)

Diagram of a mechanical or electrical component with internal channels and directional arrows, no readable text or symbols present.

Diagram of a mechanical device with internal components and a magnified inset showing a detail (no text or symbols)

Illustration of a vacuum cleaner with a magnified view showing the handle and base (no text or symbols)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Diagram showing a device with a lock and a magnified view of its internal structure (no text or symbols)

Diagram of a mechanical device with a close-up inset showing a tool interacting with a component (no text or symbols present)

Illustration of a soldering iron being inserted into a tip, showing the process (no text or symbols)

Illustration of a hairdryer being inserted into a device (no text or symbols)

Illustration of a person using a vacuum cleaner to lift a floor, with motion arrows indicating movement (no text or symbols)

Illustration of a mechanical component with a circular green symbol and a magnified inset showing a dollar sign (no text or symbols present)

Illustration of an eye with a warning sign and a red X mark, no text or symbols present

Illustration of a hand pouring liquid into a green rectangular container with a fork, no text or symbols present

Illustration of a green mechanical component with a paper base and a magnified inset showing a folded paper (no text or symbols)

Diagram of a mechanical component with a green arrow indicating direction (no text or symbols)

3D illustration of a green mechanical component with a tool inserted, showing internal structure and a magnified inset (no text or symbols)

Illustration of a person using a green vacuum cleaner on a tiled floor (no text or symbols)

Illustration of a mechanical device with a handle and base, partially submerged in water (no text or symbols visible)

Illustration of a vacuum cleaner emitting powder onto a mechanical component (no text or symbols)

Illustration of a mechanical component with a magnified inset showing a textured surface (no text or symbols)

Illustration of a hand pouring liquid into a wooden block with motion lines indicating flow (no text or symbols)

Illustration of a soldering iron being inserted into a tip with motion lines indicating force (no text or symbols)

Illustration of a gas cylinder connected to a pen-like tool, with a magnified inset showing a cylindrical component (no text or symbols)

Diagram of a mechanical device connected to a cylinder, with a magnified inset showing a cylindrical component (no text or symbols)

Gray circular icon with a white lightbulb symbol and radiating lines, representing an idea or illumination (no text or symbols)

Retour

Circular button with a white up-turn arrow icon (no text or symbols)

Illustration of a hand holding a vacuum cleaner with a green checkmark indicating the correct state (no text or symbols present)

Diagram of a mechanical device with a lever and handle, showing an upward arrow (no text or symbols)

Illustration of a container with granular material being poured into it, no text or symbols present

Green mechanical component with a paper sheet underneath, showing a press or assembly process (no text or symbols visible)

Illustration of a pipette dispensing liquid into a green tiled surface (no text or symbols)

Simple line drawing of a sink with a drain outlet and a green container (no text or symbols)

Diagram showing a mechanical device with a green component and a separate view of a device with directional arrows (no text or symbols)

Simple line drawing of a sink with a drain and a wall-mounted device (no text or symbols)

Close-up of a beige remote control with a black dial and circular button (no text or symbols visible)

Diagram showing a container with a handle and a close-up of its internal components (no text or symbols)

Illustration of two gold coins pouring liquid into a container with scattered particles (no text or symbols)

Illustration of a hand holding a dark object with water droplets falling (no text or symbols)

Illustration of a faucet spraying water onto a box with motion lines indicating airflow (no text or symbols)

Illustration of a hand cleaning a brown cylindrical object (no text or symbols)

Illustration of a portable device with warning symbol and open lid, no text or symbols present

Illustration of a hand pressing down on a mechanical component with a magnified inset showing the internal mechanism (no text or symbols)

Illustration of a mechanical device with a lever and handle, showing motion direction (no text or symbols)

Illustration of a hand using scissors to cut a piece of wood (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with an inset close-up of the component (no text or symbols)

Illustration of a hand holding a tool with a golden tool, emitting light (no text or symbols)

Illustration of a mechanical component with rotational arrows indicating motion (no text or symbols)

Entretien de la mini-brosse Turbo

Illustration of hands tying a knot around a wooden object with a yellow arrow indicating motion (no text or symbols)

Illustration of a hand holding a vacuum cleaner with a green arrow indicating motion (no text or symbols)

Illustration of a hand using a tool to adjust or install a green component, with an arrow indicating the process (no text or symbols present)

2 Retirez toute impureté visible.

Diagram of a vacuum cleaner with green arrow indicating motion (no text or symbols)

Mechanical component diagram showing a rotating assembly with curved arrows indicating motion (no text or symbols)

Illustration of a hand using a tool to adjust or install electronic components (no text or symbols visible)

Illustration of a plastic bottle pouring liquid into a beaker, next to a water tap and a bottled bottle (no text or symbols)

Illustration of a beaker with liquid being inverted and a water dispenser with a bottle beside it (no text or symbols)

Diagram showing a mechanical device with a green component and a separate view of a device with directional arrows (no text or symbols)

Simple line drawing of a sink with a drain outlet and a green container (no text or symbols)

Illustration of a hand using a green tool to cut a rectangular object with a ruler, no text or symbols present

Entretien de la bandelette

Illustration of a medical procedure with a needle inserted into a green surgical gauze (no text or symbols)

Technical line drawing of a mechanical component with a green arrow indicating a feature (no text or symbols)

Illustration of a box containing a coin with an upward arrow, no text or symbols present

XV1681/01

Brosse rotative CP0667/01

Simple line drawing of a box with a rolled document inside, showing an arrow indicating direction (no text or symbols)

CP0667/01

Frange de lavage en microfibre XV1700/01

Isometric illustration of a rectangular block with a green internal component, no text or symbols present

XV1700/01

Bandelette CP0381/01

Simple line drawing of a green tool or probe inserted into a rectangular block, with an arrow indicating direction (no text or symbols)

CP0381/01

Warning symbol with exclamation mark inside a red circle on black background (no text or numbers)

de l'appareil.

Circular icon with a white house silhouette and a thermometer symbol, no text or numbers present.

Circular icon with a white house outline and red warning symbol inside, no text or numbers present.

Circular icon with a document symbol and question mark, no readable text or numbers

nmagée.

Circular icon with a stylized pen or tool symbol inside, no text or numbers present.

Circular icon with a stylized pen or tool symbol, no text or numbers present.

e.

Circular icon with a white prohibition symbol on a dark background, enclosed in a golden ring (no text or numbers)

Circular icon with a plug symbol and downward arrow, no text or symbols present

s retiré.

Circular icon with a plug and warning symbol, no text or numbers present

ur est utilisé.

Circular icon with a grid pattern inside, no text or symbols present

Circular icon with a question mark and document symbol on black background (no text or symbols)

Circular black button with a white battery symbol at center, no text or numbers present

Diagram of a mechanical device with internal components and an inset showing a close-up view of a component (no text or symbols present)

Diagram of a mechanical or electrical component with internal channels and directional arrows, no readable text or symbols present.

2 Pravilno postavite kabel umetanjem u žlijeb koji je tome namijenjen.

Diagram of a mechanical device with internal components and a magnified inset showing a detail (no text or symbols)

4 Sigurno pričvrstite zidni nosač na željeni položaj na zidu, pritom pazeći da se rupe za nosive vijke nalaze otprilike 110 cm iznad poda.

Illustration of a vacuum cleaner with a magnified view showing the handle and base (no text or symbols)

Simple line drawing of a mechanical component with arrows indicating motion or force (no text or symbols)

Diagram showing a device with a lock and a magnified view of its internal structure (no text or symbols)

Uredaj je opremljen litij-ionskom baterijom. Potpuno punjenje prazne baterije traje otprilike 6 sati.

1 Pričvrstite komplet baterija na glavno tijelo uređaja, pritom pazeći da je veza čvrsta, što će vam potvrditi zvuk „KLIK”.

2 Napunite uredaj tako što ćete ga postaviti na sastavljeni zidni nosač.

Upozorenje: uredaj pohranite i punite pri temperaturi iznad 5 °C i ispod 40 °C.

Diagram of a handheld device with a close-up inset showing a tool interacting with a mechanical component (no text or symbols present)

Illustration of a tool emitting powder into a tip, with no visible text or symbols

Illustration of a hand using a tool to press or install a component, with no visible text or symbols.

2 S pomoću gumba + i – prebacujte se između tri različite postavke snage.

E – ekološki način rada

N – normalni način rada

T – turbo način rada

Illustration of a person using a vacuum cleaner to lift a floor, with motion arrows indicating movement (no text or symbols)

3 Pomoću usisavača možete čistiti tvrde ili meke podove.

Illustration of a mechanical component with a circular green symbol and a magnified inset showing a dollar sign (no text or symbols present)

Illustration of an eye with warning symbols (anxiety, red X) and a rolled document, no text present

Illustration of a pipette dispensing liquid into a green plastic sheet, with water flowing out (no text or symbols)

2 Pričvrstite jastučić za brisanje od mikrovlakana ispod spremnika za vodu. Poravnajte trake od čičak-materijala ispod spremnika za vodu s onima na stražnjoj strani krpe.

Illustration of a green mechanical component with a paper base and a magnified inset showing a folded paper (no text or symbols)

3 Napunite spremnik vodom pritom pazeći da temperatura vode ne prelazi 50 °C.

Diagram of a mechanical component with a green arrow indicating direction (no text or symbols)

3D illustration of a green mechanical component with a tool inserted, showing internal structure and a magnified inset (no text or symbols)

6 Spojite pripremljeni spremnik za vodu na mlaznicu za vodu i spremni ste početi. Provjerite je li spremnik za vodu pravilno okrenut.

Illustration of a person using a green vacuum cleaner on a tiled floor (no text or symbols)

i Napomena: vodeni modul nije prikladan za meke podove kao što su tepisi.

A Oprez: vodeni modul se ne smije upotrebljavati za brisanje vodenih lokvi.

Illustration of a handheld device with a handle and spout, positioned above a horizontal line (no text or symbols)

Illustration of a spray gun dispensing liquid into a cylindrical container with motion lines indicating spray (no text or symbols)

Uporaba mlaznice

Illustration of a mechanical component with a highlighted section showing a grooved part (no text or symbols present)

Illustration of a hand pouring liquid into a wooden block with motion lines indicating flow (no text or symbols)

Uporaba četke Mini TurboBrush

1 Kako biste pričvrstili četku Mini TurboBrush, umetnite cijev drška u četku Mini TurboBrush.

Illustration of a soldering iron being inserted into a tip with motion lines indicating force (no text or symbols)

Illustration of a gas cylinder connected to a pen-like tool, with a magnified inset showing a cylindrical component (no text or symbols)

Diagram of a mechanical device connected to a cylinder, with a magnified inset showing a cylindrical component (no text or symbols)

2 Nastavak za namještaj idealan je za čišćenje namještaja presvučenog mekim tkaninama, a njegova se rasvjeta može po želji prilagoditi.

Prilagodbe i dodatne informacije

Gray circular icon with a white lightbulb symbol and radiating lines, representing an idea or illumination (no text or symbols)

Prepoznavanje vrste poda

Circular icon with a white downward arrow and green '电' symbol, no readable text or numbers.

Gray circular button with a white lowercase 'i' in the center, no additional text or symbols.

Povratak

Circular button with a white up-turn arrow icon (no text or symbols)

Nakon upotrebe – održavanje

2 Držite uredaj pod kutom od 45 stupnjeva kao što je prikazano na ilustraciji. Uklonite spremnik za prašinu pritiskom gumba za otpuštanje. Gumb za otpuštanje nalazi se na dnu spremnika.

Illustration of a vacuum cleaner with a green checkmark indicating the correct handle (no text or symbols present)

Diagram of a mechanical device with a lever and handle, showing internal components and an upward arrow (no text or symbols)

Illustration of a bottle pouring granular material into a trash bin (no text or symbols)

i Napomena: uklonite spremnik za prašinu pritom držeći uređaj u uspravnom položaju.

3 Držite crnu dršku. Uklonite ciklonsku komoru iz spremnika za prašinu podizanjem iz spremnika.

4 Ispraznite prašinu prikupljenu u spremniku za prašinu u kantu za smeće.

Illustration of a green mechanical component with an arrow indicating direction, and a magnified inset showing a folded paper or sheet (no text or symbols)

1 Uklonite jastučić za brisanje od mikrovlakana.

Illustration of a pipette dispensing liquid into a green plastic sheet (no text or symbols)

2 Isperite jastučić za brisanje pod slavinom te ga operite ručno ili u perilici rublja.

Simple line drawing of a sink with a drain and a plastic stand (no text or symbols)

3 Izlijte svu vodu preostalu u spremniku za vodu.

4 Napunite spremnik za vodu vodom.

Diagram showing a mechanical device with a green handle and directional arrows, alongside a simplified illustration of a telephone handset (no text or symbols)

5 Pravilno zatvorite spremnik za vodu i protresite ga kako biste uklonili ostatke sredstva za čišćenje.

6 Ispraznite spremnik za vodu i ostavite ga da se osuši.

Close-up of a beige remote control with a black dial and circular button (no text or symbols visible)

Diagram showing a car interior with a valve and a close-up of the dashboard (no text or symbols)

2 Izvadite perivi pjenasti filtar iz plastičnog kućišta filtra.

Illustration of two hands pouring liquid into a container with scattered particles (no text or symbols)

3 Istresite kućište filtra i pjenasti filtar iznad kante za smeće.

4 Isperite pjenasti filtar i gnječite ga dok iz njega ne počne izlaziti čista voda.

i Napomena: za najbolje rezultate čišćenja pustite vodu kroz filtar tako da je jezičak filtra okrenut prema dolje, time omogućujući ispiranje duboko zaglavljene prašine.

Illustration of a hand holding a dark object with liquid droplets (no text or symbols)

5 Oprani filtar ostavite da se osuši 24 sata prije ponovnog postavljanja pjenastog filtra u kućište filtra.

Illustration of a faucet spraying water onto a box, with motion lines indicating fluid flow (no text or symbols)

Illustration of a hand cleaning a brown notebook (no text or symbols)

7 Brisanjem osušite očišćeni spremnik za prašinu i relevantne dijelove.

i Napomena: Nakon održavanja obavezno provjerite je li filtar postavljen u uređaju prije upotrebe.

Održavanje pametne mlaznice PrecisionPower

1 Prije čišćenja valjkaste četke mlaznice obavezno isključite uredaj.

Illustration of a hand pressing down on a mechanical component with a magnified inset showing the close-up of the component (no text or symbols)

2 Za pristup valjkastoj četki pronadite gumb na bočnoj strani mlaznice. Pritisnite ga i zakrenite da biste ga otvorili.

Diagram of a mechanical device with a lever and handle, showing a force or movement (no text or symbols present)

Illustration of hands using scissors to cut a piece of wood (no text or symbols)

4 Pažljivo uklonite zapetljanu kosu s valjkaste četke. Olakšajte si uklanjanje prljavštine škarama.

Illustration of a mechanical component with rotational arrows (no text or symbols)

Održavanje četke Mini TurboBrush

Illustration of hands tying a knot around a wooden object with a directional arrow (no text or symbols)

3 Rukom ili pomoću škara uklonite prljavštinu s četke.

4 Kada ponovno postavljate četku, počnite postavljanjem jedne strane na mjesto prije nego što pričvrstite drugu stranu. Kada se četka pravilno sastavi čut ćete zvuk „KLIK“.

Line drawing of a hand using a tool to adjust or install electronic components (no text or symbols visible)

5 Za optimalne performanse uklonite prljavštinu oko poklopca.

Illustration of a plastic bottle pouring liquid from a bottle into a beaker, next to a water tap (no text or symbols)

Održavanje spremnika za vodu

Illustration of a beaker with liquid being inverted and a water bottle beside it (no text or symbols)

Illustration of a hand holding a green mechanical device with directional arrows, next to a smaller green device (no text or symbols)

Simple line drawing of a sink with a drain and a top-mounted device (no text or symbols)

6 Isperite spremnik za vodu i izlijte svu preostalu tekućinu.

Illustration of a hand pressing down on a green striped object with an upward arrow (no text or symbols)

Illustration of a medical procedure with a pipette inserted into a green surgical gauze (no text or symbols)

Technical line drawing of a mechanical component with a green arrow indicating direction (no text or symbols)

3 Vratite traku za vlaženje natrag na spremnik za vodu nakon čišćenja.

Zamjena dijelova

Kako biste kupili dodatke ili rezervne dijelove, posjetite

www.shop.philips.com/parts-and-accessories ili se obratite distributeru tvrtke Philips. Također se možete obratiti centru za korisničku podršku tvrtke Philips u svojoj zemlji.

Illustration of a box with a coin inside, showing an upward arrow (no text or symbols)

XV1681/01

Valjkasta četka CP0667/01

Diagram of a mechanical component inside a transparent housing, showing a cylindrical part inserted into a housing (no text or symbols)

CP0667/01

Jastučić za brisanje od mikrovlakana XV1700/01

Isometric illustration of a rectangular block with a green internal component, no text or symbols present.

XV1700/01

Traka za vlaženje CP0381/01

Simple line drawing of a green object being inserted into a cylindrical tube with a downward arrow (no text or symbols)

CP0381/01

Warning symbol with exclamation mark inside a black circle (no text or numbers)

Izvadite bateriju, pričekajte 10 sekundi, a zatim vratite bateriju. Ako time ne otklonite problem, uređaj odnesite u servisni centar tvrtke Philips ili se obratite korisničkoj službi.

E2 Ureda

Simple home control icon with thermometer and warning symbol (no text or labels)

raturi nižoj od radne temperature.

Premjestite aparat u topliju prostoriju. Nemojte držati, puniti ni upotrebljavati uređaj na temperaturi nižoj od 5 °C ili višoj od 40 °C.

E3 Ureda

Circular icon with a white house outline and red warning symbol, no text or numbers present.

raturi višoj od radne temperature.

Premjestite uredaj u hladniju prostoriju. Nemojte držati, puniti ni upotrebljavati uređaj na temperaturi nižoj od 5 °C ili višoj od 40 °C.

E5 Bater

Circular icon with a document and question mark, no text or symbols present

Odnesite uređaj u ovlašteni servisni centar tvrtke Philips ili se obratite centru za službu za potrošače.

E9 Mlazr

Circular icon with a stylized white tool symbol inside a red ring, no text or numbers present.

peraturi višoj od radne temperature.

Circular icon with a stylized pen or tool symbol, no text or numbers present.

a. Provjerite je li aparat isključen. Očistite mlaznicu u skladu s korisničkim priručnikom i provjerite cijev tako da je uklonite iz glavnog uređaja. Uklonite predmet iz mlaznice ili cijevi i ponovno pokrenite uređaj.

i5 U prol

Circular icon with a white prohibition symbol on black background, enclosed in a gold ring (no text or numbers)

Diagram of a mechanical device with an inset showing a pipe fitting and a valve mechanism (no text or labels)

Diagram of a mechanical device with internal components and directional arrows, no readable text or symbols present.

Diagram of a mechanical device with internal components and a magnified inset showing a detail (no text or symbols)

Illustration of a vacuum cleaner with a magnified view showing the handle and base (no text or symbols)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Diagram showing a device with a lock and a magnified view of its internal structure (no text or symbols)

Diagram of a handheld device with a close-up inset showing a tool interacting with a mechanical component (no text or symbols present)

Illustration of a soldering iron being inserted into a tip, with no text or symbols present

Illustration of a hand using a tool to press or install a component, with no visible text or symbols.

Illustration of a person using a vacuum cleaner to lift a floor, with motion arrows indicating movement (no text or symbols)

Illustration of a mechanical component with a green circular symbol and a magnified inset showing a dollar sign (no text or symbols present)

Illustration of an eye with warning symbols (anxiety, red X) and a rolled-up object, no text present.

Illustration of a pipette dispensing liquid into a green plastic sheet, with no text or symbols present.

Illustration of a green mechanical component with a downward arrow indicating force or direction, and an inset showing a magnified view of a component (no text or symbols present)

Diagram of a mechanical component with a green arrow indicating direction (no text or symbols)

3D illustration of a green mechanical component with a tool inserted, showing internal structure and a magnified inset (no text or symbols)

Illustration of a person using a green vacuum cleaner on a tiled floor (no text or symbols)

Illustration of a handheld device with a handle and screen, positioned above a horizontal line (no text or symbols)

Illustration of a vacuum cleaner emitting powder from a cylindrical component (no text or symbols)

Illustration of a mechanical component with a highlighted section showing a grooved part (no text or symbols present)

Illustration of a hand pouring liquid into a wooden block with motion lines indicating flow (no text or symbols)

Illustration of a soldering iron being inserted into a tip with motion lines indicating force (no text or symbols)

Illustration of a gas cylinder connected to a pen-like tool, with a magnified inset showing a cylindrical component (no text or symbols)

Diagram of a mechanical device connected to a cylinder, with a magnified inset showing a cylindrical component (no text or symbols)

Gray circular icon with a white lightbulb symbol and radiating lines, representing an idea or illumination (no text or symbols)

Circular icon with a white mechanical component and green leaf symbol (no text or numbers)

Gray circular button with a white lowercase 'i' in the center, no additional text or symbols.

Indietro

Circular button with a white up-turn arrow icon (no text or symbols)

Illustration of a vacuum cleaner with a green checkmark indicating the correct handle (no text or symbols present)

Diagram of a mechanical device with a lever and handle, showing internal components and an upward arrow (no text or symbols)

Illustration of a container with granular material being poured into it (no text or symbols)

Illustration of a green mechanical component with an arrow indicating direction, and a magnified inset showing a folded paper or sheet (no text or symbols)

Illustration of a pipette dispensing liquid into a green plastic sheet (no text or symbols)

Simple line drawing of a sink with a drain and a plastic stand (no text or symbols)

Diagram showing a mechanical device with a green handle and directional arrows, alongside a simplified illustration of a telephone handset (no text or symbols)

Close-up of a beige remote control with a black dial and circular button (no text or symbols visible)

Diagram showing a car interior with a valve and a close-up of the dashboard (no text or symbols)

Illustration of two hands pouring liquid from a container into a cylindrical container (no text or symbols)

Illustration of a hand holding a dark object with liquid droplets (no text or symbols)

Illustration of a faucet spraying water onto a device with motion lines indicating airflow (no text or symbols)

Illustration of a hand cleaning a rectangular object with a cloth (no text or symbols)

Illustration of a hand pressing down on a mechanical component with a magnified inset showing the internal structure (no text or symbols)

Illustration of a mechanical device with a lever and handle, showing a force or motion indicator (no text or symbols present)

Illustration of hands using scissors to cut a piece of wood (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with an inset close-up of the component (no text or symbols)

Illustration of hands using a tool to interact with a golden tool, no text or symbols present

Illustration of a mechanical component with rotational arrows indicating motion (no text or symbols)

Illustration of hands tying a knot around a wooden object with a directional arrow (no text or symbols)

Line drawing of a hand using a tool to adjust or install electronic components (no text or symbols visible)

Illustration of a plastic bottle pouring liquid into a beaker, with a water tap and another bottle nearby (no text or symbols)

Illustration of a beaker with liquid being inverted and a water dispenser bottle nearby (no text or symbols)

Diagram showing a mechanical device with a green component and a separate view of a printer (no text or symbols present)

Simple line drawing of a sink with a drain and a top-mounted device (no text or symbols)

Illustration of a hand using a green tool to press or install a component on a tray (no text or symbols)

Illustration of a medical procedure with a blue ribbon being inserted into a green surgical gasket (no text or symbols)

Technical line drawing of a mechanical component with a green arrow indicating direction (no text or symbols)

Illustration of a box containing a coin with an upward arrow, no text or symbols present

XV1681/01

Diagram of a mechanical component inside a transparent housing, showing a cylindrical part inserted into a housing (no text or symbols)

CP0667/01

Isometric illustration of a rectangular block with a green internal component, no text or symbols present

XV1700/01

Simple line drawing of a green object being inserted into a cylindrical tube with a downward arrow (no text or symbols)

CP0381/01

Warning symbol with exclamation mark inside a red circle on black background (no text or numbers)

ell'apparecchio.

Circular icon with a white house symbol and a red border, no text or numbers present.

Circular icon with a white house outline and red warning symbol, no text or numbers present.

Circular icon with a document and question mark, no text or symbols present

giata.

Circular icon with a stylized white tool or device symbol inside a red ring (no text or numbers)

Circular icon with a red warning symbol and exclamation mark, no readable text or numbers

a.

Circular icon with a white prohibition symbol on black background, enclosed in an orange ring (no text or numbers)

Circular icon with a plug symbol and downward arrow, no text or symbols present

to rimosso.

Circular icon with electrical plug and warning symbol (no text or numbers)

dattatore errato.

Circular icon with a grid pattern inside, enclosed in a golden ring (no text or symbols)

Circular icon with a document symbol and a question mark, no text or labels present.

Circular black button with a white battery symbol and red scroll wheel (no text or numbers)

Diagram of a mechanical device with internal components and an inset showing a close-up view of a component (no text or symbols present)

Diagram of a mechanical or electrical component with internal channels and directional arrows, no readable text or symbols present.

Diagram of a mechanical device with internal components and a magnified inset showing a detail (no text or symbols)

Illustration of a vacuum cleaner with a magnified view showing the handle and base (no text or symbols)

Diagram of a mechanical component with curved arrows indicating rotation or force (no text or symbols)

Diagram of a car seatbelt with an attached device and its magnified view showing the seatbelt detail (no text or symbols present)

Diagram of a handheld device with a close-up inset showing a tool interacting with a mechanical component (no text or symbols present)

Illustration of a soldering iron being inserted into a tip, with no text or symbols present.

Illustration of a hairdryer being inserted into a device (no text or symbols)

Illustration of a person using a vacuum cleaner to lift a person's legs (no text or symbols present)

Illustration of a mechanical component with a circular symbol containing a green cross and number 5, placed on a patterned surface (no text or symbols present)

Illustration of an eye with warning symbols (anxiety, red X) and a rolled document, no text present.

Illustration of a hand pouring liquid into a green plastic sheet with a faucet in the background (no text or symbols)

2 Piestipriniet mikroškiedras mazgāšanas paliktni zem ūdens tvertnes. Salāgojiet "Velcro" aizdares zem ūdens tvertnes un aiz paliktna.

Illustration of a green mechanical component with a paper base and a magnified inset showing a document (no text or symbols present)

Diagram of a mechanical component with a green arrow indicating direction (no text or symbols)

3D illustration of a green mechanical component with a tool inserted, showing internal structure and a magnified inset (no text or symbols)

Illustration of a person using a green vacuum cleaner on a tiled floor (no text or symbols)

Illustration of a handheld device with a pointed tip and handle, emitting exhaust smoke (no text or symbols)

Illustration of a spray gun dispensing liquid into a bottle, with motion arrows indicating spray (no text or symbols)

Uzgała lietošana

1 Pievienojiet uzgali tieši rokas modulim.

Illustration of a mechanical component with a magnified inset showing a textured surface (no text or symbols)

Illustration of a hand pouring liquid into a wooden block with motion lines indicating flow (no text or symbols)

Illustration of a soldering iron being poured into a tip with motion lines indicating particle dispersion (no text or symbols)

Illustration of a gas cylinder connected to a pen-like tool, with a magnified inset showing a cylindrical component (no text or symbols)

Diagram of a mechanical device connected to a cylinder, with a magnified inset showing a cylindrical component (no text or symbols)

Gray circular icon with a white lightbulb symbol and radiating lines, representing an idea or illumination (no text or symbols)

Circular icon with a stylized mechanical component and green leaf symbol (no text or numbers)

Gray circular button with a white lowercase 'i' in the center, no additional text or symbols.

Circular button with a white curved arrow icon, no text or symbols present.

Atgriešanās

Illustration of a vacuum cleaner with a green checkmark indicating the correct state (no text or symbols present)

Diagram of a mechanical device with a lever and handle, showing internal components and an upward arrow (no text or symbols)

Illustration of a bottle pouring granular material into a trash bin (no text or symbols)

Illustration of a green mechanical component with an arrow indicating upward motion, accompanied by a magnified inset showing a printer or folder (no text or symbols present)

Illustration of a pipette dispensing liquid into a green plastic sheet (no text or symbols)

Diagram of a toilet sink with a stand and drain, no text or symbols present

3 Izlejiet no ūdens tvertnes atlikušo ūdeni.

4 Piepildiet üdens tvertni ar üdeni.

Illustration of a hand presser pressing down on a keyboard and then moving a green telephone device (no text or symbols present)

Simple line drawing of a sink with a vertical support and a green cover (no text or symbols)

Close-up of a beige remote control with a black dial and circular button (no text or symbols visible)

Diagram showing a car interior with a valve and a magnified view of the dashboard (no text or symbols)

2 Izņemiet mazgājamo putu filtru no plastmasas filtra korpusa.

Illustration of two hands pouring liquid into a container with scattered particles (no text or symbols)

3 Pasitiet pa atkritumu tvertni gan ar filtra korpusu, gan ar putu filtru.

Illustration of a hand holding a dark object with water droplets falling (no text or symbols)

Illustration of a faucet pouring liquid into a bag with motion lines indicating flow (no text or symbols)

Illustration of a hand cleaning a rectangular object with a cloth (no text or symbols)

Illustration of a hand pressing down on a mechanical component with an inset showing the close-up of the component (no text or symbols present)

Diagram of a mechanical device with a lever and handle, showing a force or movement (no text or symbols present)

Illustration of hands using scissors to cut a piece of wood (no text or symbols)

Illustration showing two-step car seatbelting technique with magnified detail (no text or symbols)

Illustration of a mechanical component with rotational arrows indicating motion (no text or symbols)

Illustration of a hand holding a rope tied with a wooden object, no text or symbols present

Line drawing of a hand using a tool to adjust or install electronic components (no text or symbols visible)

Illustration of a plastic bottle pouring liquid into a beaker, next to a water tank (no text or symbols)

Üdens tvertnes apkope

Illustration of a glass beaker with liquid being inverted, next to a water bottle and a side view of a faucet (no text or symbols)

Illustration of a hand presser pressing down on a keyboard and then moving a green telephone (no text or symbols)

Simple line drawing of a sink with a drain and a top-mounted device (no text or symbols)

Illustration of a hand using a green tool to press or install a component on a tray (no text or symbols)

Üdens sloksnes apkope

Illustration of a medical procedure with a pipette inserted into a green surgical gasket (no text or symbols)

2 Skalojiet udens sloksni zem tekoša krāna udens.

Technical line drawing of a mechanical component with a green arrow indicating direction (no text or symbols)

Illustration of a box containing a coin with an upward arrow, no text or symbols present

XV1681/01

Rullišu suka CP0667/01

Diagram of a mechanical component inside a transparent housing, showing a cylindrical part inserted into a housing (no text or symbols)

CP0667/01

Mikroškiedras tirišanas paliktnis XV1700/01

Isometric illustration of a rectangular block with a green internal component, no text or symbols present

XV1700/01

Üdens sloksne CP0381/01

Simple line drawing of a green object being inserted into a cylindrical tube with a downward arrow (no text or symbols)

CP0381/01

Circular icon with a white plug symbol and downward arrow, no text or symbols present.

ts.

Circular icon with a plug and warning symbol, no text or numbers present

eizs adapteris.

Circular icon with a grid pattern inside, enclosed in a golden ring (no text or symbols)

Circular icon with a question mark and document symbol inside a black ring (no text or numbers)

reizi ievietots.

Circular black button with a white battery symbol and red scroll wheel (no text or numbers)

Diagram of a mechanical device with internal components and an inset showing a close-up view of a component (no text or symbols present)

Diagram of a mechanical or electrical component with internal channels and directional arrows, no readable text or symbols present.

Diagram of a mechanical device with internal components and a magnified inset showing a detail (no text or labels)

Illustration of a vacuum cleaner with a magnified view showing the handle and base (no text or symbols)

Diagram of a U-shaped device with directional arrows indicating rotation or movement (no text or symbols)

Diagram of a car seatbelt with an attached device and its magnified view showing the seatbelt joint (no text or symbols present)

Illustration of a hairdryer with a magnified inset showing the tool tip (no text or symbols present)

Illustration of a soldering iron being inserted into a tip, showing the process (no text or symbols)

Illustration of a hairdryer being inserted into a device (no text or symbols)

Illustration of a person using a vacuum cleaner to lift a floor, with motion arrows indicating movement (no text or symbols)

Illustration of a mechanical component with a green circular symbol and a magnified inset showing a dollar sign (no text or symbols present)

Illustration of an eye with a warning sign and a red X mark, no text or symbols present

Illustration of a hand pouring liquid into a green plastic sheet with a faucet in the background (no text or symbols)

Illustration of a green mechanical device with a paper sheet and a magnified inset showing a document (no text or symbols)

Diagram of a mechanical component with a green arrow indicating direction (no text or symbols)

5 Tinkamai uždarykite vandens bakelj.

3D illustration of a green mechanical component with a tool inserted, showing internal structure and a magnified inset (no text or symbols)

Illustration of a person using a green vacuum cleaner on a tiled floor (no text or symbols)

Illustration of a handheld device with a pointed tip and handle, emitting light rays from a surface (no text or symbols)

Illustration of a spray gun dispensing liquid into a rubber block with motion lines indicating spray (no text or symbols)

Antgalio naudojimas

Illustration of a mechanical component with a cross-section inset showing a textured surface (no text or symbols)

Illustration of a spiderweb manipulation technique showing step-by-step steps (no text or symbols)

Illustration of a soldering iron being dispensed from a tip, with no text or symbols present.

Line drawing of a hand holding a pen writing on a laptop (no text or symbols present)

Illustration of a spray bottle dispensing liquid into a pipe with motion arrows indicating spray (no text or symbols)

Diagram showing a gas cylinder connected to a mechanical device with a magnified inset of a cylindrical component (no text or symbols)

Circular icon with a lightbulb symbol and radiating lines, no text or numbers present.

Circular icon with a downward arrow and green leaf symbol (no text or numbers)

Gray circular button with a white lowercase 'i' in the center, no additional text or symbols.

Circular button with a white up-turn arrow icon (no text or symbols)

Grjžtis

Illustration of a mechanical device with a green checkmark indicating selection (no text or symbols present)

Illustration of a pipette dispensing liquid into a green plastic sheet (no text or symbols)

Simple line drawing of a sink with a drain outlet and a green plastic container (no text or symbols)

Illustration of a hand presser pressing down on a keyboard and moving a phone, with no visible text or symbols.

Simple line drawing of a sink with a blue anchor and green device (no text or symbols)

Close-up of a beige remote control with a black dial and circular button (no text or symbols visible)

Diagram showing a container with a lid and a magnified inset of its interior (no text or symbols)

Illustration of two hands pouring liquid into a container with granular material (no text or symbols)

Illustration of a hand holding a dark object with water droplets falling (no text or symbols)

Illustration of a pipe bag pouring liquid into a container with motion lines indicating flow (no text or symbols)

Illustration of a hand cleaning a brown notebook (no text or symbols)

Illustration of a hand pressing down on a mechanical component with an inset showing the internal mechanism (no text or symbols)

Illustration of a mechanical component with an arrow indicating a step or motion (no text or symbols present)

Illustration of hands using scissors to cut a piece of paper or tape (no text or symbols visible)

Illustration of a mechanical device with an arrow indicating motion, showing a close-up of the component (no text or symbols present)

Illustration of a hand using a tool to lift a component, showing motion and wear (no text or symbols)

Illustration of a mechanical lever with rotational arrows indicating clockwise motion (no text or symbols)

Illustration of hands connecting a mechanical component with a spring (no text or symbols)

Illustration of a box containing a coin with an upward arrow, no text or symbols present

XV1681/01

Diagram of a mechanical component inside a transparent housing, showing a rolled part being inserted (no text or symbols)

CP0667/01

Isometric line drawing of a rectangular block with a green internal component, no text or symbols present.

XV1700/01

Drékinimo juosta CP0381/01

Simple line drawing of a cylindrical object with a green internal component and a downward arrow, no text or symbols present.

CP0381/01

Warning symbol with exclamation mark inside a red circle (no text or numbers)

Circular icon with a grid pattern inside, no text or symbols present.

Circular icon with a document symbol and a question mark, no text or labels present.

hkamai jstatytas.

Circular black button with a white battery symbol and red indicator line (no text or numbers)

Diagram of a mechanical device with internal components and an inset showing a close-up view of a component (no text or symbols present)

Diagram of a mechanical or electrical component with internal channels and directional arrows, no readable text or symbols present.

Diagram of a mechanical device with internal components and a magnified inset showing a detail (no text or symbols)

Illustration of a vacuum cleaner with a magnified view showing the handle and base (no text or symbols)

Diagram of a U-shaped device with directional arrows indicating rotation or movement (no text or symbols)

Diagram of a car seatbelt with an attached device and its magnified view showing the seatbelt detail (no text or symbols present)

Diagram of a handheld device with a cable and connector, showing a magnified inset of its internal structure (no text or symbols present)

Illustration of a soldering iron being inserted into a tip, showing the process (no text or symbols)

Illustration of a hairdryer being inserted into a device (no text or symbols)

Illustration of a person using a vacuum cleaner to lift a person's leg (no text or symbols present)

Illustration of a mechanical component with a circular symbol containing a green cross and number 5, set on a patterned grid background (no text or symbols)

Diagram of a mechanical component with a green arrow indicating direction (no text or symbols)

3D illustration of a green mechanical component with a tool inserted, showing internal structure and a magnified inset (no text or symbols)

Illustration of a person using a green vacuum cleaner on a tiled floor (no text or symbols)

Illustration of a handheld device with a handle and screen, emitting exhaust smoke (no text or symbols)

Illustration of a vacuum cleaner emitting powder from a bottle onto a base (no text or symbols)

Illustration of a mechanical component with a magnified inset showing a crack (no text or symbols)

Illustration of a spiderweb manipulation technique showing step-by-step steps (no text or symbols)

Illustration of a soldering iron being dispensed from a tip, with no text or symbols present.

Line drawing of a hand holding a pen writing on a laptop (no text or symbols present)

Illustration of a spray bottle dispensing liquid into a pipe with motion arrows indicating spray (no text or symbols)

Diagram of a gas cylinder connected to a mechanical device with a magnified inset showing a cylindrical component (no text or symbols)

Gray circular icon with a white lightbulb symbol (no text or numbers)

Circular icon with a white lightning bolt symbol and green leaf (no text or numbers)

Gray circular button with a white lowercase 'i' in the center, no additional text or symbols.

Circular button with a white curved arrow icon, no text or symbols present.

Kilépés

Illustration of a mechanical device with a green checkmark indicating selection (no text or symbols present)

Illustration of a pipette dispensing liquid into a green plastic sheet (no text or symbols)

Simple line drawing of a sink with a water level and a green container (no text or symbols)

Illustration of a hand presser pressing down on a keyboard and moving a phone, with no visible text or symbols.

Simple line drawing of a sink with a drain and a top-mounted device (no text or symbols)

Illustration of a green office chair with a lock and hanging clothes, showing safety warning (no text or symbols)

Close-up of a beige remote control with a black dial and circular button (no text or symbols visible)

Diagram showing a container with a lid and a magnified inset of its interior (no text or symbols)

Illustration of two hands pouring liquid into a container with granular material (no text or symbols)

Illustration of a hand holding a dark object with liquid droplets (no text or symbols)

Illustration of a faucet pouring liquid into a bag with motion lines indicating flow (no text or symbols)

Illustration of a hand cleaning a wooden door (no text or symbols)

Illustration of a hand using a tool to lift a component, showing motion and wear (no text or symbols)

Illustration of a mechanical lever with rotational arrows indicating clockwise motion (no text or symbols)

Illustration of hands tying a knot around a wooden object with a directional arrow (no text or symbols)

Illustration of a box containing a coin with an upward arrow, symbolizing growth or accumulation (no text or symbols present)

XV1681/01

CP0667/01 forgókefe

Diagram of a mechanical component inside a transparent housing, showing a rolled part being inserted (no text or symbols)

CP0667/01

Isometric line drawing of a rectangular block with a green internal component, no text or symbols present.

XV1700/01

CP0381/01 vízadagoló lapka

Simple line drawing of a cylindrical object with a green internal component and a downward arrow, no text or symbols present.

CP0381/01

Warning symbol with exclamation mark inside a red circle on black background (no text or numbers)

között.

Circular icon with a grid pattern inside, no text or symbols present.

Circular icon with a document symbol and a question mark, no text or labels present.

Circular black button with a white battery symbol at center, no text or numbers visible

Diagram of a mechanical device with internal components and an inset showing a close-up view of a component (no text or symbols present)

Diagram of a mechanical or electrical component with internal channels and directional arrows, no readable text or symbols present.

Diagram of a mechanical device with internal components and a magnified inset showing a detail (no text or symbols)

Illustration of a vacuum cleaner with a magnified view showing the handle and base (no text or symbols)

Diagram of a mechanical component with curved arrows indicating rotation or force (no text or symbols)

Diagram showing a device with an arrow pointing to a component, and a magnified inset illustrating the internal structure (no text or symbols present)

Diagram of a handheld device with a close-up inset showing a tool interacting with a mechanical component (no text or symbols present)

Illustration of a soldering iron being inserted into a tip, with no text or symbols present

Illustration of a hairdryer being inserted into a device (no text or symbols)

Illustration of a person using a vacuum cleaner to lift a floor, with arrows indicating motion (no text or symbols)

Illustration of a mechanical component and a circular symbol with a green cross, set on a patterned grid background (no text or symbols)

Illustration of an eye with warning symbols (anxiety, red X) and a rolled-up object, no text present.

Illustration of a pipette dispensing liquid into a green plastic sheet, with no text or symbols present.

Illustration of a green mechanical component with a downward arrow, showing a magnified inset of its part (no text or symbols present)

Diagram of a mechanical component with a green arrow indicating direction (no text or symbols)

3D illustration of a green mechanical component with a tool inserted, showing internal structure and a magnified inset (no text or symbols)

Illustration of a person using a green vacuum cleaner on a tiled floor (no text or symbols)

Illustration of a mechanical device with a handle and base, partially submerged in water (no text or symbols visible)

Illustration of a spray gun dispensing liquid into a rubber tank (no text or symbols)

Illustration of a mechanical component with a magnified inset showing a textured surface (no text or symbols)

Illustration of a hand pouring liquid into a wooden block with motion lines indicating flow (no text or symbols)

Illustration of a soldering iron being inserted into a tip with motion arrows indicating process (no text or symbols)

Illustration of a gas cylinder connected to a pen-like tool, with a magnified inset showing a cylindrical component (no text or symbols)

Diagram of a mechanical device connected to a cylinder, with a magnified inset showing a cylindrical component (no text or symbols)

Circular icon with a white lightbulb symbol and radiating lines, representing an idea or illumination (no text or symbols)

Circular icon with a stylized white arrow and green leaf symbol, no text or numbers present.

Vloertypeherkenning

Gray circular button with a white lowercase 'i' in the center, no additional text or symbols.

Terug

Circular button with a white up-turn arrow icon (no text or symbols)

Illustration of a hand holding a vacuum cleaner with a green checkmark indicating the correct state (no text or symbols present)

Diagram of a mechanical device with a lever and handle, showing an upward arrow (no text or symbols)

Illustration of a smartphone pouring granular material into a trash bin (no text or symbols)

Green mechanical component with a paper sheet underneath, showing a press or assembly process (no text or symbols visible)

Illustration of a pipette dispensing liquid into a green tiled surface (no text or symbols)

Simple line drawing of a sink with a drain outlet and a green container (no text or symbols)

Diagram showing a mechanical device with a green component and a separate view of a device with directional arrows (no text or symbols)

Simple line drawing of a bathtub with a stand and drain (no text or symbols)

Close-up of a beige remote control with a black dial and circular button (no text or symbols visible)

Diagram showing a container with a handle and a close-up of its internal components (no text or symbols)

Illustration of two hands pouring liquid into a container with granular material (no text or symbols)

Illustration of a hand holding a dark object with water droplets falling (no text or symbols)

Illustration of a portable device with warning symbol and open lid, no text or symbols present

Illustration of a hand pressing down on a mechanical component with a magnified inset showing the internal structure (no text or symbols)

Illustration of a mechanical device with a belt buckle and directional arrow (no text or symbols)

Illustration of a hand using scissors to cut a piece of wood (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with an inset close-up of the component (no text or symbols)

Illustration of a hand holding a tool with a golden tool emitting light, no text or symbols present

Illustration of a mechanical component with rotational arrows indicating motion (no text or symbols)

Illustration of a hand connecting wires to a mechanical component with an upward arrow (no text or symbols)

Illustration of a hand holding a cleaning tool with a green arrow indicating rotation (no text or symbols)

Illustration of a hand using a tool to adjust or install a green component, with an upward arrow indicating motion (no text or symbols present)

Diagram of a vacuum cleaner with green arrow indicating motion (no text or symbols)

Mechanical component diagram showing a rotating assembly with curved arrows indicating motion (no text or symbols)

Illustration of a hand using a tool to adjust or install electronic components (no text or symbols visible)

Illustration of a plastic bottle pouring liquid into a beaker, next to a water tap (no text or symbols)

Illustration of a beaker with liquid being inverted and a water bottle connected to a wall-mounted device (no text or symbols)

Diagram showing a mechanical device with a green lever and a separate view of a device with directional arrows (no text or symbols)

Simple line drawing of a kitchen sink with a mounted appliance (no text or symbols)

Illustration of a hand using a green tool to cut a rectangular object with a ruler, no text or symbols present

Illustration of a medical procedure with a needle inserted into a green surgical gauze (no text or symbols)

2 Spoel de watertuit af onder de kraan.

Technical line drawing of a mechanical component with a green arrow indicating a feature (no text or symbols)

Illustration of a box containing a coin with an upward arrow, no text or symbols present

XV1681/01

Borstelrol CP0667/01

Diagram of a mechanical component inside a transparent housing, showing a cylindrical part inserted into a housing (no text or symbols)

CP0667/01

Microvezeldweilmop XV1700/01

Isometric illustration of a rectangular electronic component with green connectors (no text or symbols)

XV1700/01

Watertuit CP0381/01

Simple line drawing of a cylindrical object with a green arrow pointing downward (no text or symbols)

CP0381/01

Warning symbol with exclamation mark inside a red circle on black background (no text or numbers)

neert niet correct.

Simple home control icon with a thermometer and number 1, enclosed in a red circular border (no text or symbols)

Circular icon with a white house outline and red warning symbol, no text or numbers present.

Circular icon with a document symbol and question mark, no readable text or numbers

Circular icon with a stylized pen or tool symbol inside, no text or numbers present.

Circular icon with a stylized pen or tool symbol inside, no text or numbers present.

opt.

Circular icon with a white prohibition symbol on black background, enclosed in a golden ring (no text or numbers)

in het luchtkanaal.

Circular icon with a plug symbol and downward arrow, no text or symbols present

Circular icon with a plug and warning symbol, no text or numbers present

Circular icon with a grid pattern inside, enclosed in a golden ring (no text or symbols)

Circular icon with a document symbol and a question mark, no text or labels present.

ct geplaatst.

Circular black button with a white battery symbol and red scroll wheel (no text or numbers)

Diagram of a mechanical device with internal components and an inset showing a close-up view of a component (no text or symbols present)

Diagram of a mechanical device showing internal components and directional arrows, with no readable text or symbols.

Diagram of a mechanical device with internal components and a magnified inset showing a detail (no text or symbols)

Illustration of a vacuum cleaner with a magnified view showing the handle and base (no text or symbols)

Diagram of a U-shaped device with directional arrows indicating rotation or movement (no text or symbols)

Før bruk

Diagram showing a car seatbelt with a device and a magnified inset illustrating the seatbelt structure (no text or symbols present)

Illustration of a person using a vacuum cleaner to lift a floor, with arrows indicating motion (no text or symbols)

Illustration of a wooden clamp and a green circular symbol with a dollar sign, set on a patterned grid background (no text or symbols)

Advarsel: Ikke sug opp vann eller andre væsker.

Illustration of an eye with warning symbols (anxiety, red X) and a rolled-up object, no text present.

Illustration of a hand pouring liquid into a green plastic sheet with a faucet in the background (no text or symbols)

Illustration of a green mechanical component with a paper sheet, showing a downward arrow and a magnified inset (no text or symbols)

Diagram of a mechanical component with a green arrow indicating direction (no text or symbols)

5 Lukk vannbeholderen ordentlig.

3D illustration of a green mechanical component with a magnified inset showing internal features (no text or symbols)

Illustration of a person using a green vacuum cleaner on a tiled floor (no text or symbols)

Illustration of a handheld device with a handle and screen, positioned above a horizontal line (no text or symbols)

Illustration of a spray gun dispensing liquid into a bottle, with motion arrows indicating spray (no text or symbols)

Bruke munnstykket

Illustration of a mechanical component with a cross-section inset showing a grooved surface (no text or symbols)

Illustration of a spiderweb manipulation technique showing step-by-step steps (no text or symbols)

Illustration of a soldering iron being dispensed from a tip, with no text or symbols present.

Line drawing of a hand holding a pen writing on a laptop (no text or symbols present)

2 Den myke børsten er beregnet på spesielle overflater og har justerbar belysning.

Illustration of a spray bottle dispensing liquid into a pipe with an arrow indicating flow (no text or symbols)

Diagram of a gas cylinder connected to a mechanical device with a magnified inset showing a cylindrical component (no text or symbols)

Gray circular icon with a white lightbulb symbol (no text or numbers)

Endre styrke på belysningen

Circular icon with a white lightning bolt symbol and green leaf (no text or numbers)

Gray circular button with a white lowercase 'i' in the center, no additional text or symbols.

Circular button with a white up-turn arrow icon (no text or symbols)

Tilbake

Illustration of a mechanical device with a green checkmark indicating selection (no text or symbols present)

Illustration of a pipette dispensing liquid into a green plastic sheet (no text or symbols)

2 Skyll moppeputen under springen og vask den for hånd eller i vaskemaskin.

Simple line drawing of a cleaning or cleaning device with a stand and drain (no text or symbols)

Diagram showing a mechanical device with a green lever and a separate view of a device with directional arrows (no text or symbols)

5 Lukk vannbeholderen godt, og rist den for å få bort eventuelle rester av vaskemiddel.

Simple line drawing of a sink with a drain and a top-mounted device (no text or symbols)

Close-up of a beige remote control with a black dial and circular button (no text or symbols visible)

Diagram showing a container with a lid and a magnified inset of its interior (no text or symbols)

2 Ta det vaskbare skumfilteret ut av filterhuset i plast.

Illustration of two hands pouring liquid into a container with granular material (no text or symbols)

3 Bank ut filterhuset og skumfilteret over en søppelbøtte.

Illustration of a hand holding a sponge with water droplets (no text or symbols)

Illustration of a pipe bag with water flowing through it, showing fluid flow (no text or symbols)

Illustration of a hand cleaning a wooden door (no text or symbols)

Illustration of a hand using a tool to lift a component, showing motion and wear (no text or symbols)

Illustration of a hand holding a cleaning tool with a green arrow indicating rotation (no text or symbols)

Line drawing of a hand using a tool to adjust or install a component, with no visible text or symbols.

2 Fjern eventuell synlig tilsmussing i området.

Diagram of a vacuum cleaner's internal structure with green arrows indicating motion direction (no text or symbols)

Mechanical component diagram showing rotational motion with arrows indicating direction (no text or symbols)

Illustration of a hand using a tool to adjust or install electronic components (no text or symbols visible)

Illustration of a box containing a coin with an upward arrow, symbolizing growth or accumulation (no text or symbols present)

XV1681/01

Børsterull CP0667/01

Diagram of a mechanical component inside a transparent housing, showing a rolled part being inserted (no text or symbols)

CP0667/01

Moppepute i mikrofiber XV1700/01

Isometric line drawing of a rectangular block with a green internal component, no text or symbols present.

XV1700/01

Vannstrimmel CP0381/01

Simple line drawing of a cylindrical object with a green internal component and a downward arrow, no text or symbols present.

CP0381/01

Warning symbol with exclamation mark inside a red circle on black background (no text or numbers)

Ta ut batteriet, vent i 10 sekunder og sett deretter tilbake batteriet. Hvis dette ikke fungerer, må du ta apparatet til et Philips-servicesenter eller kontakte kundeservice.

Circular icon with a grid pattern inside, no text or symbols present

Circular icon with a document symbol and a question mark, no text or labels present.

inn riktig.

Circular black button with a white battery symbol at center, no text or numbers visible

Diagram of a mechanical device with internal components and an inset showing a close-up view of a component (no text or symbols present)

Diagram of a mechanical or electrical component with internal channels and directional arrows, no readable text or symbols present.

Diagram of a mechanical device with internal components and a magnified inset showing a detail (no text or symbols)

Illustration of a vacuum cleaner with a magnified view showing the handle and base (no text or symbols)

Diagram of a U-shaped device with directional arrows indicating rotation or movement (no text or symbols)

Diagram of a car seatbelt with an attached device and its magnified view showing the seatbelt corner (no text or symbols present)

Illustration of a hairdryer with a magnified inset showing the tool tip (no text or symbols present)

Illustration of a soldering iron being inserted into a tip, with no text or symbols present.

Illustration of a hairdryer being inserted into a device (no text or symbols)

Illustration of a person using a vacuum cleaner to clean or stand (no text or symbols present)

Illustration of a mechanical component and a circular symbol with green markings (no text or symbols present)

Illustration of an eye with warning symbols (anxiety, red X) and a rolled document, no text present.

Illustration of a pipette dispensing liquid into a green rectangular container with a ribbon, no text or symbols present

Illustration of a green mechanical component with a paper base and a magnified inset showing a folded paper or sheet (no text or symbols)

Diagram of a mechanical component with a green arrow indicating direction (no text or symbols)

3D illustration of a green mechanical component with a tool inserted, showing internal structure and a magnified inset (no text or symbols)

Illustration of a person using a green vacuum cleaner on a tiled floor (no text or symbols)

Illustration of a handheld device with a handle and screen, positioned above a horizontal line (no text or symbols)

Illustration of a spray gun dispensing liquid into a rubber pad (no text or symbols)

Używanie ssawki

Illustration of a mechanical component with a magnified inset showing a textured surface (no text or symbols)

Illustration of a hand pouring liquid into a wooden block with motion lines indicating flow (no text or symbols)

Illustration of a soldering iron being inserted into a tip with motion lines indicating force (no text or symbols)

Illustration of a gas cylinder connected to a pen-like tool, with a magnified inset showing a cylindrical component (no text or symbols)

Diagram of a mechanical device connected to a cylinder, with a magnified inset showing a cylindrical component (no text or symbols)

Circular icon with a lightbulb symbol and radiating lines, no text or numbers present.

Circular icon with a stylized mechanical component and green checkmark (no text or symbols)

Gray circular button with a white lowercase 'i' in the center, no additional text or symbols.

Powrót

Circular button with a white up-turn arrow icon (no text or symbols)

Illustration of a vacuum cleaner with a green checkmark indicating the correct state (no text or symbols present)

Diagram of a mechanical device with a lever and handle, showing internal components and an upward arrow (no text or symbols)

Illustration of a container with granular material being poured into it (no text or symbols)

Simple line drawing of a car hood with a blue support post and a circular drain (no text or symbols)

Close-up of a beige remote control with a black dial and circular button (no text or symbols visible)

Diagram showing a car interior with a valve and a close-up of the door (no text or symbols)

Illustration of two hands pouring liquid from a container into a cylindrical container (no text or symbols)

Illustration of a hand holding a dark object with liquid dripping (no text or symbols)

Illustration of a faucet spraying water onto a rectangular device with motion lines indicating flow (no text or symbols)

Illustration of a hand cleaning a rectangular object with a cloth (no text or symbols)

Illustration of a hand pressing down on a mechanical component with an inset showing the close-up of the component (no text or symbols present)

Diagram of a mechanical device with a lever and handle, showing a force or movement (no text or symbols present)

Illustration of hands using scissors to cut a piece of wood (no text or symbols)

Illustration showing two-step car seatbelting technique with magnified detail (no text or symbols)

Illustration of a mechanical component with rotational arrows indicating motion (no text or symbols)

Illustration of a hand holding a rope tied with a wooden object, no text or symbols present

Line drawing of a hand using a tool to adjust or install electronic components (no text or symbols visible)

Illustration of a plastic bottle pouring liquid into a beaker, next to a water tap (no text or symbols)

Illustration of a beaker with liquid being inverted and a water bottle beside it (no text or symbols)

Diagram showing a mechanical device with a green lever and a separate green device with directional arrows (no text or symbols)

Simple line drawing of a sink with a drain and a top-mounted device (no text or symbols)

Illustration of a hand using a green tool to press or install a rectangular object, with an upward arrow indicating motion (no text or symbols present)

Illustration of a medical procedure with a blue ribbon being inserted into a green surgical gasket (no text or symbols)

Technical line drawing of a mechanical component with a green arrow indicating direction (no text or symbols)

Illustration of a box containing a coin with an upward arrow, no text or symbols present

XV1681/01

Rolka szczotki CP0667/01

Simple line drawing of a box with a rolled document inside, showing an arrow indicating direction (no text or symbols)

CP0667/01

Isometric illustration of a rectangular block with green connectors inserted (no text or symbols)

XV1700/01

Simple line drawing of a green tool with a downward arrow, no text or symbols present

CP0381/01

Circular icon with a plug symbol and downward arrow, no text or symbols present

aczony.

Circular icon with electrical plug and warning symbol (no text or numbers)

zasilacza.

Circular icon with a grid pattern inside, enclosed in a golden ring (no text or symbols)

ony.

Circular icon with a document and question mark, no text or symbols present

prawidłowo włożony.

Circular icon with a white battery symbol on a dark background, no text or symbols present.

Diagram of a mechanical device with internal components and an inset showing a close-up view of a component (no text or symbols present)

Diagram of a mechanical or electrical component with internal channels and directional arrows, no readable text or symbols present.

Diagram of a mechanical device with internal components and a magnified inset showing a detail (no text or symbols)

Illustration of a vacuum cleaner with a magnified view showing the handle and base (no text or symbols)

Simple line drawing of a mechanical component with two curved arrows indicating rotation or adjustment (no text or symbols)

Diagram showing a device with a lock and a magnified view of its internal structure (no text or symbols)

Diagram of a handheld device with a close-up inset showing a tool interacting with a mechanical component (no text or symbols present)

Illustration of a soldering iron being inserted into a tip, with no text or symbols present

Illustration of a hairdryer being inserted into a device (no text or symbols)

Illustration of a person using a vacuum cleaner to lift a floor, with motion arrows indicating movement (no text or symbols)

3 Pode limpar pavimentos ou superfícies macias com o aspirador.

Illustration of a mechanical component with a green circular symbol and a magnified inset showing a dollar sign (no text or symbols present)

Illustration of an eye with warning symbols (anxiety, red X) and a rolled document, no text present.

Illustration of a hand pouring liquid into a green plastic tray with a blue spray, no text or symbols present

Green plastic mechanical component with a downward arrow indicating compression or disassembly (no text or symbols visible)

Diagram of a mechanical component with a green arrow indicating direction (no text or symbols)

3D illustration of a green mechanical component with a tool inserted, showing internal structure and a magnified inset (no text or symbols)

Illustration of a person using a green vacuum cleaner on a tiled floor (no text or symbols)

Illustration of a handheld device with a handle and screen, positioned above a horizontal line (no text or symbols)

Illustration of a vacuum cleaner emitting exhaust from a cylindrical component (no text or symbols)

Utilizar o bocal

Illustration of a mechanical component with a magnified inset showing a textured surface (no text or symbols)

Illustration of a hand pouring liquid into a wooden block with motion lines indicating flow (no text or symbols)

Illustration of a soldering iron being poured into a tip with motion lines indicating process (no text or symbols)

Illustration of a gas cylinder connected to a pen-like tool, with a magnified inset showing a cylindrical component (no text or symbols)

Diagram of a mechanical device connected to a cylinder, with a magnified inset showing a cylindrical component (no text or symbols)

Gray circular icon with a white lightbulb symbol and radiating lines, representing an idea or illumination (no text or symbols)

Circular icon with a stylized white object and green leaf symbol, no text or numbers present.

Gray circular button with a white lowercase 'i' in the center, no additional text or symbols.

Regressar

Circular button with a white up-turn arrow icon (no text or symbols)

Illustration of a vacuum cleaner with a green checkmark indicating the correct state (no text or symbols present)

Diagram of a mechanical device with a lever and handle, showing internal components and an upward arrow (no text or symbols)

Illustration of a container with granular material being poured into it (no text or symbols)

Illustration of a green mechanical component with an arrow indicating direction, and a magnified inset showing a folded paper or sheet (no text or symbols)

Illustration of a pipette dispensing liquid into a green plastic sheet (no text or symbols)

Simple line drawing of a sink with a drain and a plastic stand (no text or symbols)

Diagram showing a mechanical device with a green handle and directional arrows, alongside a simplified illustration of a telephone handset (no text or symbols)

Close-up of a beige remote control with a black dial and circular button (no text or symbols visible)

Diagram showing a car interior with a magnified view of the dashboard and dashboard (no text or symbols)

Illustration of two hands pouring liquid into a container with scattered particles (no text or symbols)

Illustration of a hand holding a dark object with liquid droplets (no text or symbols)

Illustration of a faucet spraying water onto a device with motion lines indicating airflow (no text or symbols)

Illustration of a hand cleaning a rectangular object with a cloth (no text or symbols)

Illustration of a hand pressing down on a mechanical component with a magnified inset showing the close-up of the component (no text or symbols)

Diagram of a mechanical device with a lever and handle, showing a force or movement (no text or symbols present)

3 Remova suavemente a escova rotativa e a tampa lateral do bocal.

Illustration of hands using scissors to cut a piece of wood (no text or symbols)

Illustration showing two-step car seatbelting technique with magnified detail (no text or symbols)

Illustration of a mechanical component with rotational arrows indicating motion (no text or symbols)

Illustration of a hand holding a rope tied with a small object, no text or symbols present

Hand using a tool to adjust or install electronic components on a circuit board (no text or symbols visible)

Illustration of a plastic bottle pouring liquid from a bottle into a beaker, next to a water tap (no text or symbols)

Illustration of a beaker with liquid being inverted, connected to a water dispenser bottle (no text or symbols)

Diagram showing a mechanical device with a green component and motion arrows, no text or symbols present.

4 Feche devidamente o depósito Aqua, agitando-o de forma a distribuir uniformemente o líquido descalcificante.

Simple line drawing of a sink with a drain and a top-mounted device (no text or symbols)

Illustration of a hand pressing down on a green striped object with an upward arrow (no text or symbols)

Illustration of a medical procedure with a pipette inserted into a green surgical gauze (no text or symbols)

Technical line drawing of a mechanical component with a green rod inserted into a housing (no text or symbols)

Illustration of a box containing a coin with an upward arrow, no text or symbols present

XV1681/01

Escova rotativa CP0667/01

Diagram of a mechanical component inside a transparent housing, showing a cylindrical part inserted into a housing (no text or symbols)

CP0667/01

Isometric illustration of a rectangular block with a green internal component, no text or symbols present

XV1700/01

Simple line drawing of a green object being inserted into a cylindrical tube with a downward arrow (no text or symbols)

CP0381/01

Icon of a plug with a downward arrow, enclosed in a circular border (no text or symbols)

emovido.

Circular icon with a plug and warning symbol, no text or numbers present

tador errado.

Circular icon with a grid pattern inside, enclosed in a golden ring (no text or symbols)

Circular icon with a question mark and document symbol inside a black ring (no text or numbers)

vidamente inserida.

Circular black button with a white battery symbol and red indicator line (no text or numbers)

Diagram of a mechanical device with internal components and an inset showing a close-up view of a component (no text or symbols present)

Diagram of a mechanical or electrical component with internal channels and directional arrows, no readable text or symbols present.

Diagram of a mechanical device with internal components and a magnified inset showing a detail (no text or symbols)

Illustration of a vacuum cleaner with a magnified view showing the handle and base (no text or symbols)

Diagram of a mechanical component with curved arrows indicating rotation or force direction (no text or symbols)

Diagram of a car seatbelt with an attached device and its magnified view showing the seatbelt detail (no text or symbols present)

Illustration of a hairdryer with a magnified inset showing the tip and handle (no text or symbols)

Illustration of a soldering iron being inserted into a tip, showing the process (no text or symbols)

Illustration of a hairdryer being inserted into a device (no text or symbols)

Illustration of a person using a vacuum cleaner to lift a floor, with motion arrows indicating movement (no text or symbols)

Illustration of a mechanical component with a green circular symbol and a magnified inset showing a dollar sign (no text or symbols present)

Illustration of an eye with warning symbols (anxiety, red X) and a rolled-up document, no text present.

Illustration of a hand pouring liquid into a green plastic sheet with a faucet in the background (no text or symbols)

Illustration of a green mechanical component with a paper sheet, showing a downward arrow and a magnified inset (no text or symbols)

Diagram of a mechanical component with a green arrow indicating direction (no text or symbols)

3D illustration of a green mechanical component with a tool inserted, showing internal structure and a magnified inset (no text or symbols)

Illustration of a person using a green vacuum cleaner on a tiled floor (no text or symbols)

Illustration of a handheld device with a pointed tip and textured grip, emitting exhaust smoke (no text or symbols)

Illustration of a spray bottle dispensing liquid into a mechanical component (no text or symbols)

Illustration of a mechanical component with a magnified inset showing a textured surface (no text or symbols)

Illustration of a hand pouring liquid into a wooden block with motion lines indicating flow (no text or symbols)

Illustration of a soldering iron being poured into a tip with motion lines indicating particle dispersion (no text or symbols)

Illustration of a gas cylinder connected to a pen-like tool, with a magnified inset showing a cylindrical component (no text or symbols)

Diagram of a mechanical device connected to a cylinder, with a magnified inset showing a cylindrical component (no text or symbols)

Circular icon with a lightbulb symbol and radiating lines, no text or numbers present.

Circular icon with a stylized mechanical component and green checkmark (no text or symbols)

Gray circular button with a white lowercase 'i' in the center, no additional text or symbols.

Circular button with a white up-turn arrow icon (no text or symbols)

Return (Revenire)

Illustration of a vacuum cleaner with a green checkmark indicating the process (no text or symbols present)

Diagram of a mechanical device with a lever and handle, showing internal components and an upward arrow (no text or symbols)

Illustration of a container with granular material being poured into it (no text or symbols)

Illustration of a green mechanical component with an arrow indicating upward motion, accompanied by a magnified inset showing a printer or folder (no text or symbols present)

Illustration of a pipette dispensing liquid into a green plastic sheet (no text or symbols)

Simple line drawing of a sink with a drain and a plastic stand (no text or symbols)

Diagram showing a mechanical device with a green handle and directional arrows, alongside a simplified illustration of a telephone handset (no text or symbols)

Simple line drawing of a car hood with a blue support post and a circular drain (no text or symbols)

Close-up of a beige remote control with a black dial and circular button (no text or symbols visible)

Diagram showing a car interior with a magnified view of the dashboard and dashboard (no text or symbols)

Illustration of two hands pouring liquid into a container with granular material (no text or symbols)

Illustration of a hand holding a dark object with liquid dripping (no text or symbols)

Illustration of a faucet spraying water onto a rectangular device with motion lines indicating flow (no text or symbols)

Illustration of a hand cleaning a brown notebook (no text or symbols)

Illustration of a hand pressing down on a mechanical component with a magnified inset showing the close-up of the component (no text or symbols)

Diagram of a mechanical device with a lever and handle, showing a directional arrow (no text or symbols)

Illustration of hands using scissors to cut a piece of wood (no text or symbols)

Illustration showing two-step car seatbelting technique with magnified detail (no text or symbols)

Illustration of a mechanical component with rotational arrows indicating motion (no text or symbols)

Illustration of a hand holding a rope tied with a small object, no text or symbols present

Line drawing of a hand using a tool to adjust or install electronic components (no text or symbols visible)

Illustration of a plastic bottle pouring liquid into a beaker, next to a water tap (no text or symbols)

Illustration of a beaker with liquid being inverted and a water bottle beside it (no text or symbols)

Diagram showing a mechanical device with a green component and directional arrows indicating motion or movement (no text or symbols)

Simple line drawing of a sink with a drain and a top-mounted device (no text or symbols)

Illustration of a hand using a green tool to press or install a component on a tray (no text or symbols)

Illustration of a medical procedure with a pipette inserted into a green surgical gasket (no text or symbols)

Technical line drawing of a mechanical component with a green arrow indicating direction (no text or symbols)

Illustration of a box containing a coin with an upward arrow, no text or symbols present

XV1681/01

Rola periei CP0667/01

Diagram of a mechanical component inside a transparent housing, showing a cylindrical part inserted into a housing (no text or symbols)

CP0667/01

Isometric illustration of a rectangular block with a green internal component, no text or symbols present

XV1700/01

Simple line drawing of a green object being inserted into a cylindrical tube with a downward arrow (no text or symbols)

CP0381/01

Warning symbol with exclamation mark inside a triangle and red border (no text or numbers)

pasă a aparatului.

Circular icon with a house symbol and thermometer, no text or numbers present

sub temperatura de functionare.

Circular icon with a white house outline and red warning symbol, no text or numbers present.

peste temperatura de functionare.

Circular icon with a document and question mark, no text or symbols present

ata.

Circular icon with a stylized pen or tool symbol, no text or numbers present.

e operat peste temperatura de functionare.

Circular icon with a stylized pen or tool symbol, no text or numbers present.

ste înfundat.

Circular black button with a white prohibition symbol, no text or numbers present.

Icon of a plug with a downward arrow, enclosed in a circular border (no text or symbols)

montat.

Circular icon with battery and warning symbol (no text or numbers)

or greşit.

Circular icon with a grid pattern inside, enclosed in a golden ring (no text or symbols)

Circular icon with a question mark inside, no text or symbols present

dusă adecvat.

Circular black button with a white battery symbol and red indicator line (no text or numbers)

Diagram of a mechanical device with internal components and an inset showing a close-up view of a component (no text or symbols present)

Diagram of a mechanical or electrical component with internal channels and directional arrows, no readable text or symbols present.

Diagram of a mechanical device with internal components and a magnified inset showing a detail (no text or symbols)

Illustration of a vacuum cleaner with a magnified view showing the handle and base (no text or symbols)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Diagram showing a device with a lock and a magnified view of its internal structure (no text or symbols)

Diagram of a handheld device connected to a wire, with an inset showing a mechanical component (no text or symbols present)

Illustration of a soldering iron being inserted into a tip, showing the process (no text or symbols)

Illustration of a hairdryer being inserted into a device (no text or symbols)

Illustration of a person using a vacuum cleaner to lift a person's leg (no text or symbols present)

Illustration of a mechanical component with a green circular symbol and a dollar sign, set against a patterned background (no text or symbols)

Illustration of an eye with warning symbols (anxiety, red X) and a rolled-up object, no text present.

Illustration of a hand pouring liquid into a green rectangular container with a handle, no text or symbols present

Green mechanical component with a paper holder and a magnified inset showing a folded paper (no text or symbols)

Diagram of a mechanical component with a green arrow indicating direction (no text or symbols)

3D mechanical component diagram showing a lever and base assembly (no text or symbols)

Illustration of a person using a green vacuum cleaner on tiled floor (no text or symbols)

Illustration of a handheld device with a handle and screen, positioned above a horizontal line (no text or symbols)

Illustration of a spray gun dispensing liquid into a rubber pad (no text or symbols)

Illustration of a mechanical component with a magnified inset showing a textured surface (no text or symbols)

Illustration of a hand holding a wooden stick with a spray bottle, emitting powder from a nozzle (no text or symbols)

Illustration of a soldering iron being poured into a tip with motion lines indicating process (no text or symbols)

Illustration of a gas cylinder connected to a pen-like tool, with a magnified inset showing a cylindrical component (no text or symbols)

Diagram of a mechanical device connected to a cylinder, with a magnified inset showing a cylindrical component (no text or symbols)

Gray circular icon with a white lightbulb symbol and radiating lines, representing an idea or illumination (no text or symbols)

Modifikoni nivelin e ndriçimit

Circular icon with a white lightning bolt symbol and green leaf symbol (no text or numbers)

Gray circular button with a white lowercase 'i' in the center, no additional text or symbols.

Circular button with a white up-turn arrow icon (no text or symbols)

Kthimi

Illustration of a vacuum cleaner with a green checkmark indicating the correct state (no text or symbols present)

Diagram of a mechanical device with a lever and handle, showing internal components and an upward arrow (no text or symbols)

Illustration of a container with granular material being poured into it (no text or symbols)

Illustration of a green mechanical component with an arrow indicating upward motion, accompanied by a magnified inset showing a printer or folder (no text or symbols present)

Illustration of a pipette dispensing liquid into a green plastic sheet (no text or symbols)

Simple line drawing of a bathtub with a stand and drain, no text or symbols present

Illustration of a hand presser pressing down on a keyboard and then moving a green telephone device (no text or symbols present)

Simple line drawing of a cleaning or cleaning device with a stand and drain (no text or symbols)

Close-up of a beige remote control with a black dial and circular button (no text or symbols visible)

Diagram showing a car interior with a magnified inset of the opening and side view (no text or symbols)

Illustration of two hands pouring liquid into a container with scattered particles (no text or symbols)

Illustration of a hand holding a dark object with liquid droplets (no text or symbols)

Illustration of a faucet spraying water onto a device with motion lines indicating airflow (no text or symbols)

Illustration of a hand cleaning a brown notebook (no text or symbols)

Illustration of a hand pressing down on a mechanical component with a magnified inset showing the close-up of the component (no text or symbols)

Diagram of a mechanical device with a lever and handle, showing a force or movement (no text or symbols present)

Illustration of hands using scissors to cut a piece of wood (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with an inset close-up of the component (no text or symbols)

Illustration of hands using a tool to interact with a golden tool, no text or symbols present

Illustration of a mechanical component with rotational arrows (no text or symbols)

Illustration of hands tying a knot around a wooden object with a directional arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install electronic components (no text or symbols visible)

Illustration of a plastic bottle pouring liquid into a beaker, next to a water dispenser (no text or symbols)

Illustration of a beaker with liquid being inverted and a water bottle beside it (no text or symbols)

Illustration of a hand presser pressing down on a keyboard and then moving a green telephone device (no text or symbols present)

Simple line drawing of a sink with a drain and a top-mounted device (no text or symbols)

Illustration of a hand using a green tool to press or install a component on a tray (no text or symbols)

Illustration of a medical procedure with a pipette inserted into a green surgical gasket (no text or symbols)

Technical line drawing of a mechanical component with a green arrow indicating direction (no text or symbols)

Illustration of a box containing a coin with an upward arrow, no text or symbols present

XV1681/01

Ruli i furçës CP0667/01

Simple line drawing of a box with a rolled document inside, showing an arrow indicating direction (no text or symbols)

CP0667/01

Isometric illustration of a rectangular electronic component with green connectors (no text or symbols)

XV1700/01

Simple line drawing of a cylindrical object with a green arrow pointing downward (no text or symbols)

CP0381/01

Sinjali Kuptimi i sinjalit

Sinjali Kuptimi i sinjalit

i6 Përsh

Circular icon with a white plug symbol and downward arrow, no text or symbols present.

hequr.

Circular icon with electrical plug and warning symbol (no text or numbers)

rshtatës i gabuar.

Circular icon with a grid pattern inside, enclosed in a golden ring (no text or symbols)

Circular icon with a document symbol and a question mark, no text or numbers present.

ndosur siç duhet.

Circular button with a white battery symbol on black background, no text or numbers visible

Diagram of a mechanical device with internal components and an inset showing a close-up view of a component (no text or symbols present)

Diagram of a mechanical or electrical component with internal channels and directional arrows, no readable text or symbols present.

Diagram of a mechanical device with internal components and a magnified inset showing a detail (no text or symbols)

4 Dobro pritrdite stenski nosilec na želeno mesto na steni in poskrbite, da bodo luknje za vijake približno 110 cm od tal.

Illustration of a vacuum cleaner with a magnified view showing the handle and base (no text or symbols)

Diagram of a mechanical component with directional arrows indicating motion or force (no text or symbols)

Diagram showing a car seatbelt with an attached device and its magnified view of the seatbelt (no text or symbols present)

Illustration of a hairdryer with a magnified inset showing the tip and handle (no text or symbols)

Illustration of a soldering iron being inserted into a tip, showing the process (no text or symbols)

Illustration of a hairdryer being inserted into a device (no text or symbols)

1 Za vklop aparata pritisnite gumb za vklop/izklop.

i Opomba: Za izklop aparata ponovno pritisnite gumb za vklop/izklop.

Illustration of a person using a vacuum cleaner to lift a floor, with arrows indicating motion (no text or symbols)

Illustration of a wooden tool and a green circular symbol on a grid background (no text or symbols)

Illustration of an eye with warning symbols (anxiety, red X) and a rolled document, no text present

Illustration of a pipette dispensing liquid into a green plastic sheet, with water flowing out (no text or symbols)

2 Mikrovlaknasto blazinico za mokro brisanje pritrdite pod posodo z vodo. Poravnajte ježke pod posodo za vodo in na spodnji strani krpe.

Illustration of a green mechanical component with a paper sheet, showing a downward arrow and a magnified inset (no text or symbols)

3 Posodo napolnite z vodo, katere temperatura ne sme presegati 50 °C.

Simple line drawing of a mechanical component with a green arrow indicating direction (no text or symbols)

3D mechanical component diagram showing a lever and base assembly (no text or symbols)

Illustration of a person using a green vacuum cleaner on tiled floor (no text or symbols)

A Opozorilo: Mokrega modula se ne sme uporabljati za sesanje lužic.

Illustration of a handheld device with a handle and screen, partially visible against a plain background (no text or symbols)

Illustration of a spray gun dispensing liquid into a rubber block with motion lines indicating spray (no text or symbols)

Uporaba nastavka

Illustration of a mechanical component with a cross-section inset showing a textured surface (no text or symbols)

Illustration of a spiderweb manipulation technique showing step-by-step steps (no text or symbols)

Illustration of a soldering iron being dispensed from a tip, with no text or symbols present.

Line drawing of a hand holding a pen writing on a laptop (no text or symbols present)

2 Mehka krtača je namenski nastavek in ima prilagodljivo osvetlitev.

Illustration of a spray bottle dispensing liquid into a pipe with motion arrows indicating spray (no text or symbols)

Uporaba nastavka za oblazinjeno pohištvo

Diagram showing a gas cylinder connected to a mechanical device with a magnified inset of a cylindrical component (no text or symbols)

Gray circular icon with a white lightbulb symbol and radiating lines, representing an idea or illumination (no text or symbols)

Circular icon with a white lightning bolt symbol and green text '电源' (Power Supply) at the bottom (no readable text or numbers)

Gray circular button with a white lowercase 'i' in the center, no additional text or symbols.

Vrnitev

Circular button with a white up-turn arrow icon (no text or symbols)

Illustration of a mechanical device with a green checkmark indicating selection (no text or symbols present)

Illustration of a pipette dispensing liquid into a green plastic sheet (no text or symbols)

2 Mikrovlaknasto blazinico za mokro brisanje izperite pod tekočo vodo in jo operite ročno ali v pralnem stroju.

Simple line drawing of a cleaning or cleaning tool with a stand and drain (no text or symbols)

3 Iz posode za vodo izlijte morebitno preostalo vodo.

4 Posodo za vodo napolnite z vodo.

Illustration of a hand presser pressing down on a keyboard and moving a phone, with no visible text or symbols.

Simple line drawing of a sink with a mounted device (no text or symbols)

7 Pazite, da med shranjevanjem ne izgubite pokrovčka posode. Mikrovlaknasto blazinico za mokro brisanje obesite, da se posuši.

Close-up of a beige remote control with a black dial and circular button (no text or symbols visible)

1 Filter obrnite v levo in ga odstranite iz posode za prah.

Diagram showing a container with a lid and a magnified inset of its interior (no text or symbols)

Illustration of two hands pouring liquid into a container with granular material (no text or symbols)

3 Ohišje filtra in penasti filter stresite nad smetnjakom.

4 Izpirajte in ožemajte penasti filter, dokler iz njega ne priteče čista voda.

Illustration of a hand holding a dark object with liquid droplets (no text or symbols)

5 Oprani filter pustite sušiti 24 ur, preden ga znova vstavite v ohišje filtra.

Illustration of a pipe bag pouring liquid into a container with motion lines indicating flow (no text or symbols)

Illustration of a hand cleaning a brown notebook (no text or symbols)

Illustration of a hand using a tool to lift a car tire, showing motion and wear (no text or symbols)

Simple line drawing of a mechanical component with rotational arrows (no text or symbols)

2 Potisnite stranski gumb, da sprostite krtačo iz položaja.

Illustration of hands tying a knot around a wooden object (no text or symbols)

Illustration of a box containing a coin with an upward arrow, symbolizing growth or accumulation (no text or symbols present)

XV1681/01

Vrtljiva krtača CP0667/01

Diagram of a mechanical component inside a transparent housing, showing a rolled part being inserted (no text or symbols)

CP0667/01

Mikrovlaknasta blazinica za mokro brisanje XV1700/01

Isometric line drawing of a rectangular block with a green internal component, no text or symbols present.

XV1700/01

Simple line drawing of a cylindrical object with a green internal component and a downward arrow, no text or symbols present.

CP0381/01

i Opomba: Filter in mikrovlaknasto blazinico za mokro brisanje zamenjajte vsakih 6 mesecev, da zagotovite optimalno delovanje aparata.

Warning symbol with exclamation mark inside a red circle on black background (no text or numbers)

Odstranite baterijo, počakajte 10 sekund in jo spet vstavite. Če to ne deluje, aparat odnesite na Philipsov pooblaščeni servis ali se obrnite na center za pomoč uporabnikom.

Signal Pomen signala

Circular icon with a grid pattern inside, no text or symbols present

Circular icon with a document symbol and a question mark, no text or labels present.

stavljena.

Odstranite baterijo in jo nato znova vstavite. Če to ne deluje, aparat odnesite na Philipsov pooblaščeni servis ali se obrnite na center za pomoč uporabnikom.

Circular black button with a white rectangular symbol at center, no text or numbers visible

Diagram of a mechanical device with internal components and an inset showing a close-up view of a component (no text or symbols present)

Diagram of a mechanical or electrical component with internal channels and directional arrows, no readable text or symbols present.

Diagram of a mechanical device with internal components and a magnified inset showing a detail (no text or symbols)

3 Zatvorte sivú páku. Podl'a počutelného cvaknutia sa uistite, že sivá páka je na svojom mieste.

Illustration of a vacuum cleaner with a close-up view showing the handle and base (no text or symbols)

Simple line drawing of a mechanical component with arrows indicating rotation or movement (no text or symbols)

Diagram showing a device with a lock and a magnified view of its internal components (no text or symbols)

Illustration of a hairdryer with a magnified inset showing the tip and handle (no text or symbols)

Illustration of a soldering iron being inserted into a tip, showing the process (no text or symbols)

Illustration of a hairdryer being inserted into a device (no text or symbols)

2 Pripojte trubicu k hubici. Pripojenie overte podla počutelného cvaknutia.

Illustration of a person using a vacuum cleaner to lift a floor, with motion arrows indicating movement (no text or symbols)

Illustration of a mechanical component with a green circular symbol and a magnified inset showing a dollar sign (no text or symbols present)

Varovanie: Nevysávajte vodu ani iné kvapaliny.

Illustration of an eye with warning symbols (anxiety, red X) and a rolled-up object, no text present.

Illustration of a hand pouring liquid into a green rectangular container with a handle, no text or symbols present

Green mechanical component with a paper holder and a magnified inset showing a folded paper (no text or symbols)

3 Naplňte nádobu vodou. Teplota vody nesmie presiahnuť 50 °C.

Diagram of a mechanical component with a green arrow indicating direction (no text or symbols)

5 Pevne nádobu na vodu uzavrite.

3D illustration of a green mechanical component with a tool inserted, showing internal structure and a magnified inset (no text or symbols)

Illustration of a person using a green vacuum cleaner on a tiled floor (no text or symbols)

Illustration of a handheld device with a handle and screen, positioned above a horizontal line (no text or symbols)

Illustration of a vacuum cleaner emitting powder from a bottle (no text or symbols)

Používanie hubice

1 Hubicu pripojte priamo k ručnému vysávaču.

Illustration of a mechanical component with a magnified inset showing a textured surface (no text or symbols)

Illustration of a hand pouring liquid into a wooden block with motion lines indicating flow (no text or symbols)

Illustration of a soldering iron being poured into a tip with motion lines indicating particle dispersion (no text or symbols)

Illustration of a gas cylinder connected to a pen-like tool, with a magnified inset showing a cylindrical component (no text or symbols)

Diagram of a mechanical device connected to a cylinder, with a magnified inset showing a cylindrical component (no text or symbols)

Gray circular icon with a white lightbulb symbol and radiating lines, representing an idea or illumination (no text or symbols)

Zmena jasu osvetlenia

Circular icon with a white lightning bolt symbol and green '电' (electricity) text, no readable text or numbers present.

Gray circular button with a white lowercase 'i' in the center, no additional text or symbols.

Circular button with a white up-turn arrow icon (no text or symbols)

Návrat

Po použití – údržba

Illustration of a vacuum cleaner with a green checkmark indicating the correct state (no text or symbols present)

Diagram of a mechanical device with a lever and handle, showing internal components and an upward arrow (no text or symbols)

Illustration of a container with granular material being poured into it (no text or symbols)

Illustration of a green mechanical component with an arrow indicating upward motion, accompanied by a magnified inset showing a printer or folder (no text or symbols present)

Illustration of a pipette dispensing liquid into a green plastic sheet (no text or symbols)

2 Opláchnite mopovaciu podušku pod tečúcou vodou a vyperte ju v ruke alebo v práčke.

Simple line drawing of a bathtub with a stand and drain, no text or symbols present

Illustration of a hand presser pressing down on a keyboard and then moving a green telephone device (no text or symbols present)

Close-up of a beige remote control with a black dial and circular button (no text or symbols visible)

Diagram showing a car interior with a lid and a magnified view of the lid's opening (no text or symbols)

Illustration of two hands pouring liquid into a container with granular material (no text or symbols)

Illustration of a hand holding a dark object with liquid droplets (no text or symbols)

5 Umytý filter nechajte 24 hodín schnúť a až potom znovu nasad'te penový filter do puzdra filtra.

Illustration of a faucet spraying water onto a bag (no text or symbols)

Illustration of a hand cleaning a rectangular object with a cloth (no text or symbols)

Illustration of a hand pressing down on a mechanical component with an inset showing the close-up of the component (no text or symbols present)

Diagram of a mechanical device with a lever and handle, showing a directional arrow (no text or symbols)

3 Jemne vyberte valček kefy a bočné veko hubice.

Illustration of hands using scissors to cut a piece of wood (no text or symbols)

Illustration showing two-step car seatbelting technique with magnified detail (no text or symbols)

Illustration of a mechanical component with rotational arrows indicating motion (no text or symbols)

Illustration of a hand holding a rope tied with a small object, no text or symbols present

Line drawing of a hand using a tool to adjust or install electronic components (no text or symbols visible)

Illustration of a plastic bottle pouring liquid into a beaker, next to a water tap (no text or symbols)

Illustration of a beaker with liquid being inverted and a water bottle beside it (no text or symbols)

Diagram showing a mechanical device with a green lever and a separate view of a device with directional arrows (no text or symbols)

Simple line drawing of a cleaning or cleaning station with a blue pole and circular drain (no text or symbols)

Illustration of a hand pressing down on a green striped object with an upward arrow (no text or symbols)

Illustration of a medical procedure with a blue ribbon being inserted into a green medical strip (no text or symbols)

Technical line drawing of a mechanical component with a green arrow indicating direction (no text or symbols)

Illustration of a box containing a coin with an upward arrow, no text or symbols present

XV1681/01

Valček kefy CP0667/01

Diagram of a mechanical component inside a transparent housing, showing a cylindrical part inserted into a housing (no text or symbols)

CP0667/01

Mopovacia poduška z mikrovlákna XV1700/01

Isometric illustration of a rectangular block with a green internal component, no text or symbols present.

XV1700/01

Simple line drawing of a green object being inserted into a cylindrical tube with a downward arrow (no text or symbols)

CP0381/01

i Poznámka: Filter a mopovaciu podušku z mikrovlákna vymieňajte každých 6 mesiacov, aby ste zaručili maximálny výkon.

Warning symbol with exclamation mark inside a red circle (no text or numbers)

Circular icon with a house symbol and exclamation mark, no text or numbers present

Circular icon with a white house outline and exclamation mark, no text or symbols present.

Circular icon with a document and question mark, no text or symbols present

Circular icon with a stylized pen or tool symbol inside, no text or numbers present.

Circular icon with a stylized pen and warning symbol, no readable text or numbers present.

Circular icon with a white prohibition symbol on black background, enclosed in a gold ring (no text or numbers)

Icon of a plug with a downward arrow, enclosed in a circular border (no text or symbols)

ný.

Circular icon with battery and warning symbol (no text or numbers)

adaptér.

Circular icon with a grid pattern inside, enclosed in a golden ring (no text or symbols)

Circular icon with a document symbol and a question mark, no text or labels present.

zasunutá.

Circular black button with a white battery symbol and red indicator line (no text or numbers)

Diagram of a mechanical device with internal components and an inset showing a close-up view of a component (no text or symbols present)

1 Okrenite zidni nosač naopačke i otkačite sivu ručicu. Postavite priključak za punjenje tako da metalni deo bude vidljiv i okrenut uspravno sa prednje strane zidnog nosača.

Diagram of a mechanical or electrical component with internal channels and directional arrows, no readable text or symbols present.

Diagram of a mechanical device with internal components and a magnified inset showing a detail (no text or labels)

4 Čvrsto zakačite zidni nosač na željeni položaj na zidu i uverite se da su rupe za zavrtnje za montažu na zid udaljene približno 110 cm od poda.

Oprez: Budite oprezni prilikom bušenja rupa u zidu za pričvršćivanje zidnog nosača kako biste izbegli opasnost od strujnog udara.

Illustration of a vacuum cleaner with a magnified view showing the handle and base (no text or symbols)

Diagram of a mechanical component with directional arrows indicating motion or force (no text or symbols)

i Napomena: Uverite se da postavljanje zidnog nosača omogućava celom aparatu da visi na zidu tako da mlaznica ne dodiruje pod.

5 Kada utvrdite optimalni položaj i visinu za odlaganje i punjenje aparata, čvrsto pritegnite zavrtnje kako biste učvrstili zidni nosač.

Priprema za upotrebu

Diagram of a car seatbelt with an attached device and its magnified view showing the seatbelt detail (no text or symbols present)

Diagram of a handheld device with a close-up inset showing a tool interacting with a mechanical component (no text or symbols present)

i Napomena: Možete i da postavite dršku na ravnu i stabilnu površinu i da direktno povežete kabl za punjenje sa aparatom.

Illustration of a soldering iron being inserted into a tip, with no text or symbols present

Illustration of a hairdryer being inserted into a device (no text or symbols)

2 Spojite cev sa mlaznicom. Potvrdite spajanje tako što ćete čuti klik kada postavljate.

Usisavanje podova od mekog i tvrdog materijala

2 Pomoću dugmadi + i – prebacujte između tri različite postavke snage.

E – režim eco

N – normalan režim

T – režim turbo

Illustration of a person using a vacuum cleaner to lift a floor, with arrows indicating motion (no text or symbols)

3 Usisivačem možete čistiti tvrde ili mekane podne površine.

Illustration of a mechanical component with a green circular symbol and a magnified inset showing a dollar sign (no text or symbols present)

i Sa omogućenim prepoznavanjem vrste podne površine, aparat prepoznaje tip podne površine i automatski optimizuje svoj učinak unutar podešavanja snage koje ste izabrali. Da biste onemogućili ovu funkciju, u nastavku proverite kako da prilagođavate podešavanja.

Upozorenje: Nemojte usisavati vodu niti neku drugu tečnost.

Illustration of an eye with warning symbols (anxiety, red X) and a rolled-up object, no text present.

A Oprez: Nemojte gledati direktno u uključene LED lampice niti usmeravati LED lampice u nečije oči. LED svetlo je vrlo blještavo.

Usisavanje tokom brisanja podova od tvrdog materijala

A Oprez: Rezervoar za vodu koristite samo na tvrdim podovima s vodootpornom površinom (kao što su linoleum, pločice ili lakirani parket) i kamenim podovima (kao što je mermer). Ako vaš pod nije tretiran da postane vodootporan, proverite sa proizvođačem da li možete da koristite vodu za njegovo čišćenje. Nemojte da koristite rezervoar za vodu na tvrdim podovima na kojima je vodootporni sloj oštećen.

i Napomena: Nemojte da koristite rezervoar za vodu za čišćenje tepiha.

Illustration of a hand pouring liquid into a green plastic sheet with a faucet in the background (no text or symbols)

2 Pričvrstite uložak za čišćenje od mikrovlakana ispod rezervoara za vodu. Poravnajte čičak trake ispod rezervoara za vodu iza krpe.

Illustration of a green mechanical component with a paper sheet, showing a downward arrow and a magnified inset (no text or symbols)

3 Napunite rezervoar vodom, pazeći da temperatura vode ne prelazi 50 °C.

Diagram of a mechanical component with a green arrow indicating direction (no text or symbols)

3D illustration of a green mechanical component with a tool inserted, showing internal structure and a magnified inset (no text or symbols)

6 Spojite pripremljeni rezervoar za vodu za mlaznicu za vodu i spremni ste da počnete. Proverite da li je smer rezervoara za vodu ispravan.

Illustration of a person using a green vacuum cleaner on a tiled floor (no text or symbols)

i Napomena: Vodeni modul nije pogodan za upotrebu na mekanim podovima poput tepiha.

i Napomena: Nemojte da koristite mlaznicu za vodu bez postavljenog rezervoara za vodu na pravom mestu za čišćenje.

Illustration of a mechanical device with a cylindrical component and a base, no visible text or symbols

A Upozorenje: Kada koristite bilo koji dodatak, nemojte usisavati vodu niti neku drugu tečnost.
A Oprez: Nemojte gledati direktno u uključene LED lampice niti usmeravati LED lampice u nečije oči. LED svetlo je vrlo blještavo.

Upotreba drške

Za usisavanje prašine možete da koristite dršku direktno bez ijednog dodatka za čišćenje.

Illustration of a spray gun dispensing liquid into a bottle, with motion arrows indicating spray (no text or symbols)

Korišćenje mlaznice

Illustration of a mechanical component with a magnified inset showing a textured surface (no text or symbols)

Illustration of a hand pouring liquid into a wooden block with motion lines indicating flow (no text or symbols)

Illustration of a soldering iron being inserted into a tip with motion lines indicating force (no text or symbols)

Illustration of a gas cylinder connected to a pen-like tool, with a magnified inset showing a cylindrical component (no text or symbols)

Diagram of a mechanical device connected to a cylinder, with a magnified inset showing a cylindrical component (no text or symbols)

2 Nastavak za tapacirani nameštaj je idealan za čišćenje nameštaja mekom krpom, a njegovo osvetljenje možete podesiti prema svom nahođenju.

Gray circular icon with a white lightbulb symbol and radiating lines, representing an idea or illumination (no text or symbols)

Izmena jačine osvetljenosti

Pritisnite dugme menija i krećite se do funkcije osvetljenja. Potvrdite ponovnim pritiskanjem dugmeta menija.

Da biste izmenili jačinu osvetljenja, krećite se kroz dostupne nivoe i potvrdite pritiskom na dugme menija.

Prepoznavanje vrste poda

Pritisnite dugme menija i krećite se do prepoznavanja vrste poda. Potvrdite ponovnim pritiskanjem dugmeta menija.

U ekranu za prepoznavanje vrste poda, krećite se kroz ovu funkciju i potvrdite odluku pritiskom na dugme menija. Kada je uspešno omogućeno, zelena ikona će se pojaviti u gornjem levom uglu ekrana nakon što se vratite na glavni ekran.

Circular icon with a white lightning bolt symbol and green '电' (electricity) text, no readable text or numbers present.

i Napomena: Prepoznavanje vrste poda može biti omogućeno ili onemogućeno samo kada je motorizovana mlaznica spojena za dršku. Kao rezultat toga, kada motorizovana mlaznica nije spojena za glavni aparat, u meniju će se nalaziti jedna stavka manje. Pričvrstite motorizovanu mlaznicu kako biste videli ovu stavku za prepoznavanje vrste poda u meniju.
i Napomena: Kada dobijete uredaj, prepoznavanje vrste poda je omogućeno.
i Napomena: Funkcija prepoznavanja vrste poda postaje aktivna kada mlaznica tokom kretanja identifikuje različite vrste podnih površina.

Dodatne informacije

Pritisnite dugme menija i krećite se do opcije „dodatne informacije“. Potvrdite ponovnim pritiskanjem dugmeta menija.

Na ekranu „dodatne informacije“ možete proveriti ispravnost filtera, ispravnost baterije, ukupno vreme korišćenja, model aparata i pristupiti QR kodu za dodatne informacije na internetu.

Gray circular button with a white lowercase 'i' in the center, no additional text or symbols.

Vraćanje

Circular button with a white up-turn arrow icon (no text or symbols)

Nakon korišćenja – Održavanje

Illustration of a vacuum cleaner with a green checkmark indicating the correct state (no text or symbols present)

Diagram of a mechanical device with a lever and handle, showing internal components and an upward arrow (no text or symbols)

Illustration of a bottle pouring granular material into a trash bin (no text or symbols)

i Napomena: Izvadite posudu za prašinu držeći aparat u uspravnom položaju.

Illustration of a green mechanical component with an arrow indicating upward motion, accompanied by a magnified inset showing a printer or folder (no text or symbols present)

Illustration of a pipette dispensing liquid into a green plastic sheet (no text or symbols)

2 Isperite i uložak za čišćenje ispod česme i ga operite ga ručno ili u mašini za pranje veša.

Simple line drawing of a bathtub with a stand and drain, no text or symbols present

Illustration of a hand presser pressing down on a keyboard and then moving a phone to the side (no text or symbols present)

5 Pravilno zatvorite rezervoar za vodu i protresite ga kako biste uklonili ostatke deterdženta.

Simple line drawing of a car hood with a blue support post and a circular drain (no text or symbols)

6 Ispraznite rezervoar za vodu i ostavite ga otvorenog da se osuši.

7 Uverite se da čep nije odvrnut tokom odlaganja. Okačite uložak za čišćenje od mikrovlakana da se osuši.

Povremeno održavanje

Održavanje sistema za prikupljanje prašine

Close-up of a beige remote control with a black dial and circular button (no text or symbols visible)

1 Okrenite filter u smeru suprotnom od kretanja kazaljke na satu da biste ga odvojili od posude za prašinu.

Diagram showing a car interior with a valve and a close-up of the dashboard (no text or symbols)

Illustration of two hands pouring liquid into a container with granular material (no text or symbols)

3 Istresite kućište filtera i filter od pene iznad korpe za otpatke.

4 Ispirajte filter od pene i istisnite ga sve dok čista voda ne počne da izlazi.

i Napomena: za najbolje rezultate čišćenja, neka voda curi kroz filter tako da jezičak filtera bude okrenut nadole, kako bi se isprala prašina koja je prodrla duboko.

Illustration of a hand holding a dark object with liquid droplets (no text or symbols)

5 Ostavite oprani filter da se suši 24 sata pre nego što ponovo sklopite filter od pene u kućište filtera.

6 Za temeljno održavanje, očistite posudu za prašinu i ciklonsku komoru pod mlazom tekuće vode ili u toploj vodi sa sapunicom.

Illustration of a faucet spraying water onto a device with motion lines indicating airflow (no text or symbols)

Illustration of a hand cleaning a rectangular object with a cloth (no text or symbols)

8 Vratite filter u posudu za prašinu. Okrenite filter u smeru suprotnom od kretanja kazaljki na satu kako biste ga pričvrstili.

9 Vratite sklopljenu posudu. Prvo poravnajte stranu sa filterom na posudi pre nego što je zakačite.

i Napomena: Nakon održavanja, pre upotrebe uvek proverite da li je filter u aparatu sklopljen.

Održavanje PrecisionPower pametne mlaznice

1 Uvek isključite aparat pre nego čišćenja valjkaste četke mlaznice.

Illustration of a hand pressing down on a mechanical component with an inset showing the close-up of the component (no text or symbols present)

2 Da biste pristupili valjkastoj četki, pronadite dugme sa strane mlaznice. Pritisnite ga i okrenite da biste otvorili.

Diagram of a mechanical device with a lever and handle, showing a directional arrow (no text or symbols)

3 Nežno skinite valjkastu četku i bočni poklopac mlaznice.

Illustration of hands using scissors to cut a piece of wood (no text or symbols)

4 Pažljivo otkačite svu zapetljanu kosu sa valjkaste četke. Makazama možete olakšati uklanjanje prljavštine.

Illustration showing two-step car seatbelting technique with magnified detail (no text or symbols)

5 Prilikom ponovnog sklapanja, uverite se da je valjkasta četka pravilno poravnata.

Illustration of a mechanical component with rotational arrows indicating motion (no text or symbols)

Illustration of a hand holding a rope tied with a wooden object, no text or symbols present

3 Rukama ili makazama uklonite svu prljavštinu sa četke.

4 Prilikom ponovnog sklapanja četke, počnite tako što ćete postaviti jednu stranu u položaj pre nego što zakačite drugu stranu. Kada je četka pravilno sklopljena, čućete zvuk klika.

Održavanje mlaznice za usisivač i krpe

1 Otvorite dva poklopca kako biste pristupili prolazu za protok vazduha mlaznice.

Line drawing of a hand using a tool to adjust or install electronic components (no text or symbols visible)

Illustration of a plastic bottle pouring liquid into a beaker, next to a water bottle with a faucet (no text or symbols)

Illustration of a beaker with liquid being inverted and a water bottle beside a wall-mounted faucet (no text or symbols)

2 Dodajte odgovarajuću količinu vode u posudu za merenje.

Illustration of a hand presser pressing down on a keyboard and then moving a green telephone (no text or symbols present)

4 Pravilno zatvorite rezervoar za vodu pre nego što ga protresete kako bise tečnost za uklanjanje kamenca ravnomerno rasporedila.

5 Ostavite rezervoar za vodu (bez uloška za čišćenje od mikrovlakana) u uspravnom položaju 12 sati. Očekuje se da voda polako curi iz donjeg dela rezervoara za vodu. Preporučujemo da postavite rezervoar za vodu u lavabo ili na krpu.

Simple line drawing of a sink with a drain and a top-mounted device (no text or symbols)

6 Isperite i uklonite preostalu tečnost u rezervoaru za vodu.

Illustration of a hand using a green tool to press or install a component on a tray (no text or symbols)

Illustration of a medical procedure with a pipette inserted into a green surgical gasket (no text or symbols)

2 Isperite traku za vodu pod mlazom vode.

Technical line drawing of a mechanical component with a green arrow indicating direction (no text or symbols)

3 Nakon čišćenja vratite traku za vodu u rezervoar za vodu.

Zamena

Illustration of a box containing a coin with an upward arrow, no text or symbols present

XV1681/01

Rotaciona četka CP0667/01

Diagram of a mechanical component inside a transparent housing, showing a cylindrical part inserted into a housing (no text or symbols)

CP0667/01

Isometric illustration of a rectangular block with a green internal component, no text or symbols present.

XV1700/01

Traka za vodu CP0381/01

Simple line drawing of a green object being inserted into a cylindrical tube with a downward arrow (no text or symbols)

CP0381/01

Diagram of a mechanical device with internal components and an inset showing a close-up view of a component (no text or symbols present)

Diagram of a mechanical or electrical component with internal channels and directional arrows, no readable text or symbols present.

Diagram of a mechanical device with internal components and a magnified inset showing a detail (no text or symbols)

Illustration of a vacuum cleaner with a close-up view showing the handle and base (no text or symbols)

Diagram of a mechanical component with directional arrows indicating motion or force (no text or symbols)

Diagram of a car seatbelt with an attached camera and a magnified inset showing the interior corner detail (no text or symbols)

Illustration of a hairdryer with a magnified inset showing the tip and handle (no text or symbols)

Illustration of a soldering iron being inserted into a tip, with no text or symbols present.

Illustration of a hairdryer being inserted into a device (no text or symbols)

Illustration of a person using a vacuum cleaner to lift a floor, with arrows indicating motion (no text or symbols)

Illustration of a wooden tool and a green circular symbol on a grid background (no text or symbols)

Illustration of an eye with warning symbols (anxiety, red X) and a rolled-up object, no text present.

Illustration of a hand pouring liquid into a green plastic sheet with a faucet in the background (no text or symbols)

Illustration of a green mechanical component with a paper base and a magnified inset showing a printer (no text or symbols)

Simple line drawing of a mechanical component with a green arrow indicating direction (no text or symbols)

3D mechanical component diagram showing a lever and base assembly (no text or symbols)

Illustration of a person using a green vacuum cleaner on a tiled floor (no text or symbols)

Illustration of a handheld device with a handle and spout, emitting exhaust smoke (no text or symbols)

Illustration of a spray gun dispensing liquid into a rubber pad with motion arrows indicating spray (no text or symbols)

Illustration of a mechanical component with a magnified inset showing a textured surface (no text or symbols)

Illustration of a vacuum cleaner emitting powder from a cylindrical component (no text or symbols)

Illustration of a soldering iron being dispensed from a tip, with no text or symbols present.

Illustration of a gas cylinder connected to a pen-like tool, with a magnified inset showing a cylindrical component (no text or symbols)

Diagram of a mechanical device connected to a cylinder, with a magnified inset showing a cylindrical component (no text or symbols)

Gray circular icon with a white lightbulb symbol and radiating lines, representing an idea or illumination (no text or symbols)

Circular icon with a white lightning bolt symbol and green '电' (electricity) text, no readable text or numbers present.

Gray circular button with a white lowercase 'i' in the center, no additional text or symbols.

Palaa

Circular button with a white up-turn arrow icon (no text or symbols)

Illustration of a vacuum cleaner with a green checkmark indicating the correct state (no text or symbols present)

Diagram of a mechanical device with a lever and handle, showing internal components and an upward arrow (no text or symbols)

Illustration of a bottle pouring granular material into a trash bin (no text or symbols)

Illustration of a green mechanical component with an arrow indicating upward motion, accompanied by a magnified inset showing a printer or folder (no text or symbols present)

1 Poista mikrokuitumoppi.

Illustration of a pipette dispensing liquid into a green plastic sheet (no text or symbols)

Diagram of a toilet sink with a stand and drain, no text or symbols present

Illustration of a hand presser pressing down on a keyboard and then moving a green telephone device (no text or symbols present)

Simple line drawing of a cleaning or drain structure with a blue stand and circular base (no text or symbols)

Close-up of a beige remote control with a black dial and circular button (no text or symbols visible)

Diagram showing a car interior with a magnified view of the dashboard and dashboard (no text or symbols)

Illustration of two hands pouring liquid into a container with scattered particles (no text or symbols)

Illustration of a hand holding a dark object with water droplets falling (no text or symbols)

Illustration of a faucet spraying water onto a bag (no text or symbols)

Illustration of a hand cleaning a brown notebook (no text or symbols)

Illustration of a hand pressing down on a mechanical component with a magnified inset showing the close-up of the component (no text or symbols)

Illustration of a mechanical device with a lever and handle, showing a force or motion indicator (no text or symbols present)

Illustration of hands using scissors to cut a piece of wood (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with an inset close-up of the component (no text or symbols)

Illustration of hands using a tool to lift a golden object, no text or symbols present

Illustration of a mechanical component with rotational arrows (no text or symbols)

Miniturboharjan kunnossapito

Illustration of hands tying a knot around a wooden object with a directional arrow (no text or symbols)

Line drawing of a hand using a tool to adjust or install electronic components (no text or symbols visible)

Illustration of a plastic bottle pouring liquid from a water bottle into a beaker (no text or symbols)

Illustration of a beaker with liquid being inverted and a water bottle beside it (no text or symbols)

Illustration of a mechanical device with a green handle and directional arrows, alongside a smaller green telephone handset (no text or symbols)

Simple line drawing of a sink with a drain and a top-mounted device (no text or symbols)

Illustration of a hand using a green tool to press or install a component on a tray (no text or symbols)

Vesiliuskan kunnossapito

Illustration of a medical procedure with a blue ribbon being inserted into a green surgical gasket (no text or symbols)

Technical line drawing of a mechanical component with a green rod inserted into a housing (no text or symbols)

Illustration of a box containing a coin with an upward arrow, no text or symbols present

XV1681/01

Harjarulla CP0667/01

Simple line drawing of a mechanical component inside a transparent housing (no text or symbols)

CP0667/01

Mikrokuitumoppi XV1700/01

Isometric illustration of a rectangular block with a green internal component, no text or symbols present

XV1700/01

Vesiliuska CP0381/01

Simple line drawing of a green tool with a downward arrow, no text or symbols present

CP0381/01

Warning symbol with exclamation mark inside a red circle (no text or numbers)

iö.

Circular icon with a house outline and thermometer symbol, no text or numbers present

Circular icon with a white house outline and exclamation mark inside, set against dark background (no text or symbols)

Circular icon with a document and question mark, no text or symbols present

Circular icon with a stylized white tool and red button, no text or symbols present.

Circular icon with a stylized pen or tool symbol, no text or numbers present.

Circular icon with a white prohibition symbol on black background, enclosed in a gold ring (no text or numbers)

tunut vieras esine.

Circular icon with a plug symbol and downward arrow, no text or symbols present

rotettu.

Circular icon with electrical plug and warning symbol (no text or numbers)

olaitetta.

Circular icon with a white waffle and number 1, enclosed in a golden ring (no text or symbols)

Circular icon with a document symbol and a question mark, no text or labels present.

Circular black button with a white battery symbol on the right side, no text or numbers present.

Diagram of a mechanical device with internal components and an inset showing a close-up view of a component (no text or symbols present)

Diagram of a mechanical or electrical component with internal channels and directional arrows, no readable text or symbols present.

Diagram of a mechanical device with internal components and a magnified inset showing a detail (no text or symbols)

Illustration of a vacuum cleaner with a close-up view showing the handle and base (no text or symbols)

Diagram of a mechanical component with directional arrows indicating motion or force (no text or symbols)

Diagram showing a car seat with a camera and a magnified inset illustrating the interior corner detail (no text or symbols)

Illustration of a hairdryer with a magnified inset showing the tool tip (no text or symbols present)

Illustration of a soldering iron being inserted into a tip, with no text or symbols present.

Illustration of a hairdryer being inserted into a device (no text or symbols)

Illustration of a person using a vacuum cleaner to lift a floor, with motion arrows indicating movement (no text or symbols)

Illustration of a mechanical component with a green circular symbol and a magnified inset showing a dollar sign (no text or symbols present)

Illustration of an eye with warning symbols (anxiety, red X) and a rolled-up object, no text present.

Illustration of a hand pouring liquid into a green plastic sheet with a faucet in the background (no text or symbols)

Illustration of a green mechanical component with a paper base and a magnified inset showing a document (no text or symbols)

Diagram of a mechanical component with a green arrow indicating direction (no text or symbols)

3D illustration of a green mechanical component with a tool inserted, showing internal structure and a magnified inset (no text or symbols)

Illustration of a person using a green vacuum cleaner on a tiled floor (no text or symbols)

Illustration of a handheld device with a pointed tip and handle, emitting exhaust smoke (no text or symbols)

Illustration of a spray gun dispensing liquid into a rubber tank with motion lines indicating spray (no text or symbols)

Använda munstycket

Illustration of a mechanical component with a magnified inset showing a textured surface (no text or symbols)

Illustration of a vacuum cleaner emitting powder from a cylindrical component (no text or symbols)

Illustration of a soldering iron being poured into a tip with motion lines indicating particle movement (no text or symbols)

Illustration of a gas cylinder connected to a pen-like tool, with a magnified inset showing a cylindrical component (no text or symbols)

Diagram of a mechanical device connected to a cylinder, with a magnified inset showing a cylindrical component (no text or symbols)

Circular icon with a lightbulb symbol and radiating lines, no text or numbers present.

Circular icon with a stylized mechanical component and green checkmark (no text or symbols)

Gray circular button with a white lowercase 'i' in the center, no additional text or symbols.

Retur

Circular button with a white up-turn arrow icon (no text or symbols)

Illustration of a vacuum cleaner with a green checkmark indicating the correct state (no text or symbols present)

Diagram of a mechanical device with a lever and handle, showing internal components and an upward arrow (no text or symbols)

Illustration of a bottle pouring granular material into a trash bin (no text or symbols)

Illustration of a green mechanical component with an arrow indicating upward motion, accompanied by a magnified inset showing a printer or folder (no text or symbols present)

1 Avlägsna mikrofibermoppdynan.

Illustration of a pipette dispensing liquid into a green plastic sheet (no text or symbols)

Simple line drawing of a sink with a drain and a plastic stand (no text or symbols)

Diagram showing a mechanical device with a green lever and a green telephone handset, both without any text or symbols.

Simple line drawing of a car hood with a blue support post and a circular drain (no text or symbols)

Close-up of a beige remote control with a black dial and circular button (no text or symbols visible)

Diagram showing a car interior with a magnified view of the dashboard and dashboard (no text or symbols)

Illustration of two hands pouring liquid into a container with scattered particles (no text or symbols)

Illustration of a hand holding a dark object with liquid droplets (no text or symbols)

Illustration of a faucet spraying water onto a device with motion lines indicating airflow (no text or symbols)

Illustration of a hand cleaning a brown notebook (no text or symbols)

Illustration of a hand pressing down on a mechanical component with a magnified inset showing the close-up of the component (no text or symbols)

Diagram of a mechanical device with a lever and handle, showing a force or movement (no text or symbols present)

Illustration of hands using scissors to cut a piece of wood (no text or symbols)

Illustration showing two-step car seatbelting technique with magnified detail (no text or symbols)

Illustration of a mechanical component with rotational arrows indicating motion (no text or symbols)

Illustration of a hand holding a rope tied with a wooden object, no text or symbols present

Line drawing of a hand using a tool to adjust or install electronic components (no text or symbols visible)

Illustration of a plastic bottle pouring liquid from a water bottle into a beaker (no text or symbols)

Illustration of a beaker with liquid being inverted and a water bottle beside it (no text or symbols)

Illustration of a hand holding a device with directional arrows indicating motion or movement (no text or symbols)

Simple line drawing of a sink with a drain and a top-mounted device (no text or symbols)

Illustration of a hand using a green tool to press or install a component on a tray (no text or symbols)

Illustration of a medical procedure with a pipette inserted into a green surgical gasket (no text or symbols)

Technical line drawing of a mechanical component with a green arrow indicating direction (no text or symbols)

Illustration of a box containing a coin with an upward arrow, no text or symbols present

XV1681/01

Borstenhet CP0667/01

Simple line drawing of a box with a rolled document inside, showing an arrow indicating direction (no text or symbols)

CP0667/01

Mikrofibermoppdyna XV1700/01

Isometric illustration of a rectangular block with green connectors inserted (no text or symbols)

XV1700/01

Vattendoserare CP0381/01

Simple line drawing of a green tool with a downward arrow, no text or symbols present

CP0381/01

Diagram of a mechanical device with an inset showing a close-up of a component (no text or symbols visible)

Diagram of a mechanical device with internal components and directional arrows, no readable text or symbols present.

Diagram of a mechanical device with internal components and a magnified inset showing a detail (no text or symbols)

Illustration of a vacuum cleaner with a magnified view showing the handle and base (no text or symbols)

Diagram of a mechanical component with directional arrows indicating motion or force (no text or symbols)

Diagram of a car seatbelt with an attached device and its magnified view showing the seatbelt detail (no text or symbols present)

Diagram of a handheld device with a cable and connector, showing a magnified inset of its internal structure (no text or symbols present)

Illustration of a soldering iron being inserted into a tip, with no text or symbols present

Illustration of a hairdryer being inserted into a device (no text or symbols)

Illustration of a person using a vacuum cleaner to clean or walk (no text or symbols present)

Illustration of a wooden tool and a green circular symbol on a grid background (no text or symbols)

Illustration of an eye with warning symbols (anxiety, no protection) and a red X mark, no text or labels present.

Illustration of a hand pouring liquid into a green rectangular container with a faucet in the background (no text or symbols)

3D diagram of a green mechanical component with a downward arrow indicating force or movement, and an inset showing a magnified view of a component (no text or symbols)

Diagram of a mechanical component with a green arrow indicating direction (no text or symbols)

3D illustration of a green mechanical component with a tool inserted, showing internal structure and a magnified inset (no text or symbols)

Illustration of a person using a green vacuum cleaner on a tiled floor (no text or symbols)

Illustration of a handheld device with a pointed tip and handle, emitting exhaust smoke (no text or symbols)

Illustration of a spray gun dispensing liquid into a rubber pad (no text or symbols)

Sử dụng đầu phun

Illustration of a mechanical component with a magnified inset showing a textured surface (no text or symbols)

Illustration of a vacuum cleaner emitting powder from a cylindrical component (no text or symbols)

Illustration of a soldering iron being poured into a tip with motion lines indicating process (no text or symbols)

Illustration of a gas cylinder connected to a pen-like tool, with a magnified inset showing a cylindrical component (no text or symbols)

Diagram of a mechanical device connected to a cylinder, with a magnified inset showing a cylindrical component (no text or symbols)

Gray circular icon with a white lightbulb symbol and radiating lines, representing an idea or illumination (no text or symbols)

Nhận dạng loại sàn

Circular icon with a white downward arrow and green checkmark, no text or symbols present.

Gray circular button with a white lowercase 'i' in the center, no additional text or symbols.

Circular button with a white up-turn arrow icon (no text or symbols)

Quay lại

Illustration of a vacuum cleaner with a green checkmark indicating the correct state (no text or symbols present)

Diagram of a mechanical device with a lever and handle, showing internal components and an upward arrow (no text or symbols)

Illustration of a container with granular material being poured into it (no text or symbols)

Illustration of a green mechanical component with an arrow indicating upward motion, accompanied by a magnified inset showing a printer or folder (no text or symbols present)

Illustration of a pipette dispensing liquid into a green plastic sheet (no text or symbols)

Simple line drawing of a sink with a drain and a plastic stand (no text or symbols)

Diagram showing a mechanical device with a green lever and a green telephone handset, both without any text or symbols.

Simple line drawing of a car hood with a blue support post and a circular drain (no text or symbols)

Close-up of a beige remote control with a black dial and circular button (no text or symbols visible)

Diagram showing a car interior with a magnified view of the dashboard and dashboard (no text or symbols)

Illustration of two hands pouring liquid into a container with scattered particles (no text or symbols)

Illustration of a hand holding a dark object with liquid droplets (no text or symbols)

Illustration of a faucet spraying water onto a device with motion lines indicating airflow (no text or symbols)

Illustration of a hand cleaning a brown notebook (no text or symbols)

Illustration of a cylindrical device with internal components and an open lid, accompanied by an orange warning symbol (no text or labels present)

Illustration of a hand pressing down on a mechanical component with an inset showing the close-up of the component (no text or symbols present)

Diagram of a mechanical device with a lever and handle, showing a force or movement (no text or symbols present)

Illustration of hands using scissors to cut a piece of wood (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with an inset close-up of the component (no text or symbols)

Illustration of hands using a tool to lift a circular component, no text or symbols present

Illustration of a mechanical component with rotational arrows (no text or symbols)

Illustration of hands tying a knot around a wooden object with a directional arrow (no text or symbols)

Illustration of a hand holding a vacuum cleaner with a green arrow indicating motion (no text or symbols)

Illustration of a hand using a tool to adjust or install a green component, with an upward arrow indicating motion (no text or symbols present)

Diagram of a vacuum cleaner with green directional arrow indicating motion (no text or symbols)

Mechanical component diagram showing a rotating assembly with curved arrows indicating motion (no text or symbols)

Line drawing of a hand using a tool to adjust or install electronic components (no text or symbols visible)

Illustration of a plastic bottle pouring liquid into a beaker, next to a water-filled bottle and a faucet (no text or symbols)

Illustration of a beaker with liquid being inverted and a water bottle beside a wall-mounted faucet (no text or symbols)

Illustration of a hand presser and a telephone device with directional arrows (no text or symbols)

Simple line drawing of a sink with a blue stand and a green cover (no text or symbols)

Illustration of a hand using a tool to press or install a green strip on a metal tray (no text or symbols)

Illustration of a medical procedure with a blue ribbon being inserted into a green surgical gasket (no text or symbols)

Technical line drawing of a mechanical component with a green rod inserted into a housing (no text or symbols)

Illustration of a box containing a coin with an upward arrow, no text or symbols present

XV1681/01

Simple line drawing of a box with a rolled document inside, showing an arrow indicating direction (no text or symbols)

CP0667/01

Isometric illustration of a rectangular block with green connectors inserted (no text or symbols)

XV1700/01

Simple line drawing of a cylindrical object with a green arrow pointing downward (no text or symbols)

CP0381/01

Warning symbol with exclamation mark inside a red circle on black background (no text or numbers)

Circular icon with a house outline and thermometer symbol, no text or numbers present

Circular icon with a white house outline and exclamation mark, no text or symbols present.

Circular icon with a document and question mark, no text or symbols present

Circular icon with a white tool symbol and a red circular border, no text or numbers present.

Circular icon with a stylized pen or tool symbol, no text or numbers present.

Circular icon with a white prohibition symbol on black background, enclosed in a gold ring (no text or numbers)

bng dān khí.

Circular icon with a white plug symbol and downward arrow, no text or symbols present.

ön.

Circular icon with electrical plug and warning symbol (no text or numbers)

uôn.

Circular icon with a grid pattern inside, enclosed in a golden ring (no text or symbols)

Circular icon with a document symbol and a question mark, no readable text or labels

cách.

Circular button with a white battery symbol on black background, no text or numbers visible

Diagram of a mechanical device with internal components and an inset showing a close-up view of a component (no text or symbols present)

Diagram of a mechanical or electrical component with internal channels and directional arrows, no readable text or symbols present.

Diagram of a mechanical device with internal components and a magnified inset showing a detail (no text or symbols)

Illustration of a vacuum cleaner with a magnified view showing the handle and base (no text or symbols)

Diagram of a mechanical component with directional arrows indicating motion or force (no text or symbols)

Diagram of a car seatbelt with an attached camera and a magnified inset showing the interior corner detail (no text or symbols)

Illustration of a handheld device connected to a tool, with an inset showing a close-up of the tool's tip (no text or symbols present)

Illustration of a soldering iron being inserted into a tip, showing the process (no text or symbols)

Illustration of a hairdryer being inserted into a device (no text or symbols)

Illustration of a person using a vacuum cleaner to clean or stand (no text or symbols present)

Illustration of a mechanical component with a circular symbol containing a green cross and number 5, set against a patterned background (no text or symbols)

Illustration of an eye with warning symbols (anxiety, red X) and a rolled-up object, no text present.

Illustration of a pipette dispensing liquid into a green plastic sheet, with no text or symbols present.

Illustration of a green mechanical device with a paper holder and a magnified inset showing a document (no text or symbols present)

Simple line drawing of a mechanical component with a green arrow indicating direction (no text or symbols)

3D mechanical component diagram showing a lever and base assembly, with a magnified inset highlighting a detail (no text or symbols)

Illustration of a person using a green vacuum cleaner on a tiled floor (no text or symbols)

Illustration of a handheld device with a pointed tip and handle, emitting exhaust smoke (no text or symbols)

Illustration of a spray gun dispensing liquid into a rubber tank with motion lines indicating spray (no text or symbols)

Başlığı kullanma

Illustration of a mechanical component with a magnified inset showing a textured surface (no text or symbols)

Illustration of a vacuum cleaner emitting powder from a cylindrical component (no text or symbols)

Illustration of a soldering iron being poured into a tip with motion lines indicating particle dispersion (no text or symbols)

Illustration of a gas cylinder connected to a pen-like tool, with a magnified inset showing a cylindrical component (no text or symbols)

Diagram of a mechanical device connected to a cylinder, with a magnified inset showing a cylindrical component (no text or symbols)

Gray circular icon with a white lightbulb symbol and radiating lines, representing an idea or illumination (no text or symbols)

Zemin Türü Tanıma

Circular icon with a white lightning bolt symbol and green leaf symbol (no text or numbers)

Gray circular button with a white lowercase 'i' in the center, no additional text or symbols.

Geri Dön

Circular button with a white up-turn arrow icon (no text or symbols)

Illustration of a vacuum cleaner with a green checkmark indicating the correct state (no text or symbols present)

Diagram of a mechanical device with a lever and handle, showing internal components and an upward arrow (no text or symbols)

Illustration of a container with granular material being poured into it (no text or symbols)

Simple line drawing of a cleaning or drain structure with a blue stand and circular drain (no text or symbols)

Close-up of a beige remote control with a black dial and circular button (no text or symbols visible)

Diagram showing a car interior with a magnified view of the dashboard and dashboard (no text or symbols)

Illustration of two hands pouring liquid into a container with scattered particles (no text or symbols)

Illustration of a hand holding a dark object with liquid droplets (no text or symbols)

Illustration of a faucet spraying water onto a device with motion lines indicating airflow (no text or symbols)

Illustration of a hand cleaning a brown notebook (no text or symbols)

Illustration of a hand pressing down on a mechanical component with a magnified inset showing the close-up of the component (no text or symbols)

Diagram of a mechanical device with a lever and handle, showing a force or movement (no text or symbols present)

Illustration of hands using scissors to cut a piece of wood (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with an inset close-up of the component (no text or symbols)

Illustration of hands using a tool to interact with a golden object, no text or symbols present

Illustration of a mechanical component with rotational arrows (no text or symbols)

Illustration of hands tying a knot around a wooden object with a directional arrow (no text or symbols)

Illustration of a hand using a tool to lift a green object, no text or symbols present

Illustration of a hand using a tool to adjust or install a green component, with an upward arrow indicating motion (no text or symbols present)

Diagram of a vacuum cleaner's internal structure with green arrows indicating motion direction (no text or symbols)

Mechanical component diagram showing a rotating assembly with curved arrows indicating motion (no text or symbols)

Illustration of a hand using a tool to adjust or install electronic components (no text or symbols visible)

Illustration of a plastic bottle pouring liquid into a beaker, next to a water-filled bottle and a faucet (no text or symbols)

Su haznesi bakımı

Illustration of a glass beaker with liquid being inverted, next to a water bottle and a side mirror (no text or symbols)

Illustration of a hand presser pressing down on a keyboard and then moving a green telephone (no text or symbols)

Simple line drawing of a sink with a blue stand and a green cover (no text or symbols)

Illustration of a hand pressing a green striped object on a tray (no text or symbols)

Su şeridi bakımı

Illustration of a medical procedure with a pipette inserted into a green surgical gauze (no text or symbols)

Technical line drawing of a mechanical component with a green rod inserted (no text or symbols)

Illustration of a box containing a coin with an upward arrow, symbolizing growth or accumulation (no text or symbols present)

XV1681/01

Firça rulosu CP0667/01

Simple line drawing of a box with a rolled document inside, showing an arrow indicating direction (no text or symbols)

CP0667/01

Mikrofiber paspaslama bezi XV1700/01

Isometric illustration of a rectangular block with a green internal component and a small square outlet (no text or symbols)

XV1700/01

Su şeridi CP0381/01

Simple line drawing of a cylindrical object with a green handle and arrow pointing downward (no text or symbols)

CP0381/01

Warning symbol with exclamation mark inside a red circle on black background (no text or numbers)

Circular icon with a house silhouette and thermometer symbol, no text or numbers present

Circular icon with a house silhouette and exclamation mark, no text or symbols present

Circular icon with a document and question mark, no text or symbols present

Circular icon with a stylized pen or tool symbol, no text or numbers present.

Circular icon with a stylized pen or tool symbol, no text or numbers present.

Circular black button with a white prohibition symbol, no text or numbers present.

Icon of a plug with a downward arrow, enclosed in a circular border (no text or symbols)

Circular icon with an electrical plug and warning symbol (no text or numbers)

Circular icon with a document symbol and a question mark, no text or labels present.

Circular black button with a white battery symbol and red indicator line (no text or numbers)

Diagram of a mechanical device with internal components and an inset showing a close-up view of a component (no text or symbols present)

Diagram of a mechanical device with internal components and directional arrows, no readable text or symbols present.

Diagram of a mechanical device with internal components and a magnified inset showing a detail (no text or labels)

Illustration of a vacuum cleaner with a magnified view showing the handle and base (no text or symbols)

Simple line drawing of a mechanical component with arrows indicating motion or force (no text or symbols)

Diagram showing a device with a lock and a magnified view of its internal components (no text or symbols)

Diagram of a mechanical device with a close-up inset showing a tool interacting with a component (no text or symbols present)

Illustration of a soldering iron being inserted into a tip, showing the process (no text or symbols)

Illustration of a hairdryer being inserted into a device (no text or symbols)

Illustration of a person using a vacuum cleaner to lift a floor, with motion arrows indicating movement (no text or symbols)

Illustration of a mechanical component with a green circular symbol and a magnified inset showing a dollar sign (no text or symbols present)

Illustration of an eye with warning symbols (anxiety, red X) and a rolled document, no text present

Illustration of a pipette dispensing liquid into a green plastic sheet, with two faucet heads nearby (no text or symbols)

Illustration of a mechanical component with a magnified inset showing a close-up view (no text or symbols)

Diagram of a mechanical component with a green arrow indicating direction (no text or symbols)

3D illustration of a green mechanical component with a tool inserted, showing internal structure and a magnified inset (no text or symbols)

Illustration of a person using a green vacuum cleaner to clean or store floor tiles (no text or symbols)

Illustration of a handheld device with a pointed tip and handle, emitting light from a surface (no text or symbols)

Χρήση του πέλματος

Diagram showing a cylindrical object connected to a tool with a magnified inset of a device (no text or symbols)

Illustration of a syringe emitting powder from a wooden stick (no text or symbols)

Illustration of a spiderweb manipulation technique showing four stages of tool manipulation (no text or symbols)

Illustration of a soldering iron being dispensed from a tip, showing powder and tip motion (no text or symbols)

Line drawing of a laptop with a pen writing on it, no text or symbols present

Illustration of a spray bottle dispensing liquid into a wooden pipe (no text or symbols)

Diagram showing a gas cylinder connected to a mechanical device with a magnified inset of a cylindrical component (no text or symbols)

Gray circular icon with a white lightbulb symbol and radiating lines, representing an idea or illumination (no text or symbols)

Circular icon with a downward arrow and a green leaf symbol (no text or numbers)

Gray circular button with a white lowercase 'i' in the center, no additional text or symbols.

Circular button with a white curved arrow icon, no text or symbols present.

Επιστροφή

Illustration of a hand holding a vacuum cleaner with a green checkmark indicating the correct state (no text or symbols present)

Diagram of a mechanical device with a lever and handle, showing fluid flow or material movement (no text or symbols)

Illustration of a container with granular material being poured into it, no text or symbols present

Green mechanical component with a paper sheet underneath, showing a press or assembly process (no text or symbols visible)

Illustration of a pipette dispensing liquid into a green tiled surface (no text or symbols)

Simple line drawing of a sink with a drain outlet and a green container (no text or symbols)

Diagram showing a mechanical device with a green component and a separate view of a device with directional arrows (no text or symbols)

Simple line drawing of a sink with a drain and a wall-mounted device (no text or symbols)

Close-up of a remote control device with a circular dial indicator and plus/minus buttons (no readable text or symbols)

Diagram showing a container with a spray nozzle and a close-up of its internal components (no text or symbols)

Illustration of two hands pouring liquid into a container with scattered particles (no text or symbols)

Illustration of a hand holding a dark object with water droplets falling (no text or symbols)

Illustration of a faucet spraying water onto a box, with motion lines indicating airflow (no text or symbols)

Illustration of a hand cleaning a brown cylindrical object (no text or symbols)

Illustration of a portable device with warning symbol and open lid, no text or symbols present

Illustration of a hand pressing down on a mechanical component with an inset showing the internal mechanism (no text or symbols)

Illustration of a mechanical device with a lever and handle, showing motion direction (no text or symbols)

Illustration of a hand using scissors to cut a piece of wood (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with an inset close-up of the component (no text or symbols)

Illustration of a hand using a tool to interact with a device, showing motion and vibration (no text or symbols)

Illustration of a mechanical component with rotational arrows indicating motion (no text or symbols)

Illustration of a hand connecting wires to a mechanical component (no text or symbols)

Illustration of a hand holding a vacuum cleaner with a green arrow indicating motion (no text or symbols)

Illustration of a hand using a tool to adjust or install a component, with no visible text or symbols.

Diagram of a vacuum cleaner's internal structure with green arrows indicating motion direction (no text or symbols)

Mechanical component diagram showing rotational motion with arrows indicating direction (no text or symbols)

Illustration of a hand using a tool to adjust or install electronic components (no text or symbols visible)

Illustration of a water bottle pouring liquid from a plastic bottle into a beaker (no text or symbols)

Illustration of a water tap and a water bottle in a container (no text or symbols)

Diagram showing a mechanical component with a green handle and directional arrows, alongside a smaller green device with motion arrows (no text or symbols)

Simple line drawing of a cleaning or cleaning station with a blue pole and circular drain (no text or symbols)

Illustration of a hand using a tool to press or install a green component on a tray (no text or symbols)

Illustration of a medical procedure with a pipette inserted into a green surgical gauze (no text or symbols)

Technical line drawing of a mechanical component with a green arrow indicating a feature (no text or symbols)

Illustration of a box containing a coin with an upward arrow, no text or symbols present

XV1681/01

Simple line drawing of a box with a rolled document inside, showing an arrow indicating direction (no text or symbols)

CP0667/01

Isometric illustration of a rectangular electronic component with a green internal structure (no text or symbols)

XV1700/01

Simple line drawing of a mechanical component with a green arrow indicating direction (no text or symbols)

CP0381/01

Warning symbol with exclamation mark inside a red circle (no text or numbers)

υσκευής.

Circular icon with a thermometer symbol inside, no text or numbers present

Circular icon with a white house symbol and red warning symbol, no text or numbers present.

Circular icon with a white document and question mark, no text or symbols present

στεί ζημιά.

Circular icon with a stylized pen or tool symbol inside, no text or numbers present.

Circular icon with a stylized pen and bulb design, no text or symbols present.

Circular icon with a white prohibition symbol on a black background, enclosed in a gold ring (no text or numbers)

Circular icon with a white plug symbol and downward arrow, no text or symbols present.

εν έχει αφαιρεθεί.

Circular icon with a plug and warning symbol, no text or numbers present

ρς μετασχηματιστής.

Circular icon with a grid pattern inside a golden ring, no text or symbols present.

Circular icon with a document symbol and a question mark, no text or labels present.

φποθετηθεί σωστά.

Circular black button with a white battery icon and red scroll wheel (no text or symbols)

Diagram of a mechanical device with internal components and an inset showing a close-up view of a component (no text or symbols present)

Diagram of a mechanical or electrical component with internal channels and directional arrows, no readable text or symbols present.

Diagram of a mechanical device with internal components and a magnified inset showing a detail (no text or symbols)

Illustration of a vacuum cleaner with a magnified view showing the handle and base (no text or symbols)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Diagram showing a device with a lock and a magnified view of its internal structure (no text or symbols)

Diagram of a handheld device connected to a wire, with an inset showing a mechanical component (no text or symbols present)

Illustration of a soldering iron being inserted into a tip, showing the process (no text or symbols)

Illustration of a mechanical device with a lever and sparkles, no text or symbols present

Illustration of a person using a vacuum cleaner to lift a person's legs (no text or symbols present)

Illustration of a mechanical component and a circular green symbol on a grid background (no text or symbols)

Illustration of an eye with warning symbols (anxiety, red X) and a rolled-up object, no text present.

Illustration of a pipette dispensing liquid into a green plastic sheet (no text or symbols)

Illustration of a green plastic mechanical component with a magnified inset showing a folded paper or plastic sheet (no text or symbols)

Diagram of a mechanical component with a green arrow indicating direction (no text or symbols)

3D illustration of a green mechanical component with a tool inserted, showing internal structure and a magnified inset (no text or symbols)

Illustration of a person using a green vacuum cleaner on a tiled floor (no text or symbols)

Illustration of a handheld device with a handle and spout, positioned above a horizontal line (no text or symbols)

Illustration of a vacuum cleaner emitting powder from a cylindrical component (no text or symbols)

Illustration of a mechanical component with a magnified inset showing a textured surface (no text or symbols)

Illustration of a hand pouring liquid into a wooden block with motion lines indicating flow (no text or symbols)

Illustration of a soldering iron being inserted into a tip with motion arrows indicating process (no text or symbols)

Illustration of a gas cylinder connected to a pen-like tool, with a magnified inset showing a cylindrical component (no text or symbols)

Diagram of a mechanical device connected to a cylinder, with a magnified inset showing a cylindrical component (no text or symbols)

Gray circular icon with a white lightbulb symbol and radiating lines, representing an idea or illumination (no text or symbols)

Circular icon with a stylized white arrow and green leaf symbol, no text or numbers present.

Gray circular button with a white lowercase 'i' in the center, no additional text or symbols.

Връщане

Circular button with a white up-turn arrow icon (no text or symbols)

Illustration of a vacuum cleaner with a green checkmark indicating the correct handle (no text or symbols present)

Diagram of a mechanical device with a lever and handle, showing an upward arrow (no text or symbols present)

Illustration of a container with granular material being poured into it, no text or symbols present

Green mechanical component with a paper sheet underneath, showing a press or assembly process (no text or symbols visible)

Illustration of a pipette dispensing liquid into a green plastic sheet (no text or symbols)

Simple line drawing of a sink with a blue anchor and green device (no text or symbols)

Diagram showing a mechanical device with a green component and a separate view of a device with directional arrows (no text or symbols)

Simple line drawing of a sink with a drain and a wall-mounted device (no text or symbols)

Close-up of a beige remote control with a black dial and circular button (no text or symbols visible)

Diagram showing a container with a handle and a close-up of its internal components (no text or symbols)

Illustration of two gold coins pouring liquid into a container with scattered particles (no text or symbols)

Illustration of a hand holding a dark object with water droplets falling (no text or symbols)

Illustration of a faucet spraying water onto a box, with motion lines indicating airflow (no text or symbols)

Illustration of a hand cleaning a brown cylindrical object (no text or symbols)

Illustration of a portable device with warning symbol and open lid, no text or symbols present

Illustration of a hand pressing down on a mechanical component with a magnified inset showing the internal mechanism (no text or symbols)

Illustration of a mechanical device with a lever and handle, showing motion direction (no text or symbols)

Illustration of a hand using scissors to cut a piece of wood (no text or symbols present)

Mechanical assembly diagram showing a lever mechanism with an inset close-up of the component (no text or symbols)

Illustration of a hand using a tool to clean or wear a circular object, with no visible text or symbols.

Illustration of a mechanical component with rotational arrows indicating motion (no text or symbols)

Illustration of a hand connecting wires to a mechanical component (no text or symbols)

Illustration of a hand holding a vacuum cleaner with a green arrow indicating motion (no text or symbols)

Illustration of a hand using a tool to adjust or install a component, with no visible text or symbols.

Diagram of a vacuum cleaner with green arrow indicating motion (no text or symbols)

Mechanical component diagram showing rotational motion with arrows indicating direction (no text or symbols)

Hand using a tool to adjust or install electronic components on a circuit board (no text or symbols visible)

Illustration of a plastic bottle pouring liquid into a beaker, with a water tap and another bottle nearby (no text or symbols)

Illustration of a beaker with liquid being inverted and a water bottle beside it (no text or symbols)

Diagram showing a mechanical device with a green lever and a separate view of a device with directional arrows (no text or symbols)

Simple line drawing of a cleaning or cleaning station with a blue pole and circular drain (no text or symbols)

Illustration of a hand using a tool to press or install a green component on a tray (no text or symbols)

Illustration of a medical procedure with a needle inserted into a green surgical gauze (no text or symbols)

Technical line drawing of a mechanical component with a green arrow indicating a feature (no text or symbols)

Illustration of a box with a coin inside, showing an upward arrow (no text or symbols)

XV1681/01

Diagram of a mechanical component inside a transparent housing, showing a rolled part being inserted (no text or symbols)

CP0667/01

Isometric illustration of a rectangular electronic component with green connectors (no text or symbols)

XV1700/01

Водна лента CP0381/01

Simple line drawing of a mechanical component with a green arrow indicating direction (no text or symbols)

CP0381/01

Warning symbol with exclamation mark inside a red circle (no text or numbers)

еда.

Circular icon with a house symbol and thermometer, no text or numbers present

Circular icon with a warning symbol and exclamation mark inside a red border (no text or numbers)

Circular icon with a document symbol and question mark, no readable text or numbers

ена.

Circular icon with a stylized pen or tool symbol inside, no text or numbers present.

Circular icon with a stylized pen or tool symbol, no text or numbers present.

ьстен.

Circular black button with a white prohibition symbol, no text or numbers present.

Icon of a plug with a downward arrow, enclosed in a circular frame (no text or symbols)

ден.

Circular icon with a plug and warning symbol, no text or numbers present

адаптер.

Circular icon with a grid pattern inside, no text or symbols present

+.

Circular icon with a document and question mark, no text or symbols present

рана правилно.

Circular black button with a white battery icon and red indicator line (no text or symbols)

Diagram of a mechanical device with internal components and an inset showing a close-up view of a component (no text or symbols present)

Diagram of a mechanical device with internal components and directional arrows, no readable text or symbols present.

Diagram of a mechanical device with internal components and a magnified inset showing a detail (no text or symbols)

Illustration of a vacuum cleaner with a magnified view showing the handle and base (no text or symbols)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Diagram showing a device with a lock and a magnified view of its internal structure (no text or symbols)

Diagram of a handheld device connected to a wire, with an inset showing a mechanical component (no text or symbols present)

Illustration of a soldering iron being inserted into a tip, showing the process (no text or symbols)

Illustration of a mechanical device with a lever and sparkles, no text or symbols present

Illustration of a person using a vacuum cleaner to clean or walk (no text or symbols present)

Illustration of a mechanical component with a circular symbol containing a green cross and number 5, set against a patterned background (no text or symbols)

Illustration of an eye with warning symbols (anxiety, red X) and a rolled paper roll, no text or labels present.

Illustration of a pipette dispensing liquid into a green plastic sheet, with no text or symbols present.

3D illustration of a mechanical component with a green outline and a magnified inset showing a folded paper or bracket (no text or symbols)

Diagram of a mechanical component with a green arrow indicating direction (no text or symbols)

3D illustration of a green mechanical component with a tool inserted, showing internal structure and a magnified inset (no text or symbols)

Illustration of a person using a green vacuum cleaner on a tiled floor (no text or symbols)

Illustration of a handheld device with a handle and screen, positioned above a horizontal line (no text or symbols visible)

Illustration of a spray gun dispensing liquid into a rubber block with motion lines indicating spray (no text or symbols)

Illustration of a mechanical component with a magnified inset showing a textured surface (no text or symbols)

Illustration of a hand pouring liquid into a wooden block with motion lines indicating flow (no text or symbols)

Illustration of a syringe emitting powder from a wooden stick (no text or symbols)

Illustration of a gas cylinder connected to a pen-like tool, with a magnified inset showing a cylindrical component (no text or symbols)

Diagram of a mechanical device connected to a cylinder, with a magnified inset showing a cylindrical component (no text or symbols)

Gray circular icon with a white lightbulb symbol and radiating lines, representing an idea or illumination (no text or symbols)

Circular icon with a stylized white arrow and green leaf symbol, no text or numbers present.

Gray circular button with a white lowercase 'i' in the center, no additional text or symbols.

Врати се

Circular button with a white up-turn arrow icon (no text or symbols)

Illustration of a vacuum cleaner with a green checkmark indicating the correct state (no text or symbols present)

Diagram of a mechanical device with a lever and handle, showing an upward arrow (no text or symbols)

Illustration of a smartphone pouring granular material into a trash bin (no text or symbols)

Green mechanical component with a paper sheet underneath, showing a press or assembly process (no text or symbols visible)

Illustration of a pipette dispensing liquid into a green tiled surface (no text or symbols)

Simple line drawing of a sink with a drain outlet and a green container (no text or symbols)

Diagram showing a mechanical device with a green component and a separate view of a device with directional arrows (no text or symbols)

Simple line drawing of a sink with a drain and a wall-mounted device (no text or symbols)

Close-up of a beige remote control with a black dial and circular button (no text or symbols visible)

Diagram showing a container with a handle and a close-up of its internal components (no text or symbols)

Illustration of two gold coins pouring liquid into a container with granular material (no text or symbols)

Illustration of a hand holding a dark object with water droplets falling (no text or symbols)

Illustration of a faucet spraying water onto a box, with motion lines indicating airflow (no text or symbols)

Illustration of a hand cleaning a brown cylindrical object (no text or symbols)

Illustration of a mechanical device with warning symbol and open lid, no text or symbols present

Illustration of a hand pressing down on a mechanical component with a magnified inset showing the internal structure (no text or symbols)

Illustration of a mechanical device with a lever and handle, showing motion direction (no text or symbols)

Illustration of a hand using scissors to cut a piece of wood (no text or symbols present)

Mechanical assembly diagram showing a lever mechanism with an inset close-up of the component (no text or symbols)

Illustration of a hand using a tool to clean or wear a circular object, with no visible text or symbols.

Illustration of a mechanical component with rotational arrows indicating motion (no text or symbols)

Illustration of hands tying a knot around a wooden object with a directional arrow (no text or symbols)

Diagram of a hand holding a vacuum cleaner with a green arrow indicating motion (no text or symbols)

Illustration of a hand using a tool to adjust or install a component, with an arrow indicating the process (no text or symbols present)

Diagram of a vacuum cleaner's internal structure with green arrows indicating motion direction (no text or symbols)

Mechanical component diagram showing rotational motion with arrows indicating direction (no text or symbols)

Illustration of a hand using a tool to adjust or install electronic components (no text or symbols visible)

Illustration of a water bottle pouring liquid from a plastic bottle into a beaker (no text or symbols)

Illustration of a beaker with liquid being inverted and a water dispenser with a bottle beside it (no text or symbols)
