USER MANUAL SMC MEDISANA

Shiatsu Massage Cushion SMC

Coussin de massage Shiatsu SMC
Cuscino massaggiante shiatsu SMC
Bc Cojin de masaje Shiatsu SMC
Pt Almofada de massagem Shiatsu SMC
NL Shiatsu massagekussen SMC
Shiatsu-hierontatyyny SMC
SE Shiatsu-massagekudden SMC
G MaIaIpaI aOaZ oIaTou SMC

Art. 88905

Gebrauchsanweisung

Instruction Manual

Mode d'emploi

Please read carefully!

A dire attentivement s.v.p.!.

1 Safety Information 8
2 Useful Information 11
3 Operating 12
4 Miscellaneous 13
5 Warranty 14

FR Mode d'emploi

Please fold out this page and leave it folded out for quick reference.

1 Massage cushion
2 Massage heads
3 Control unit
4 Power button/LED for switching the device on and off
Reverse button/LED for a massage with inward rotation
Forward button/LED for a massage with outward rotation
Heat button/LED for activating the heating function

IT

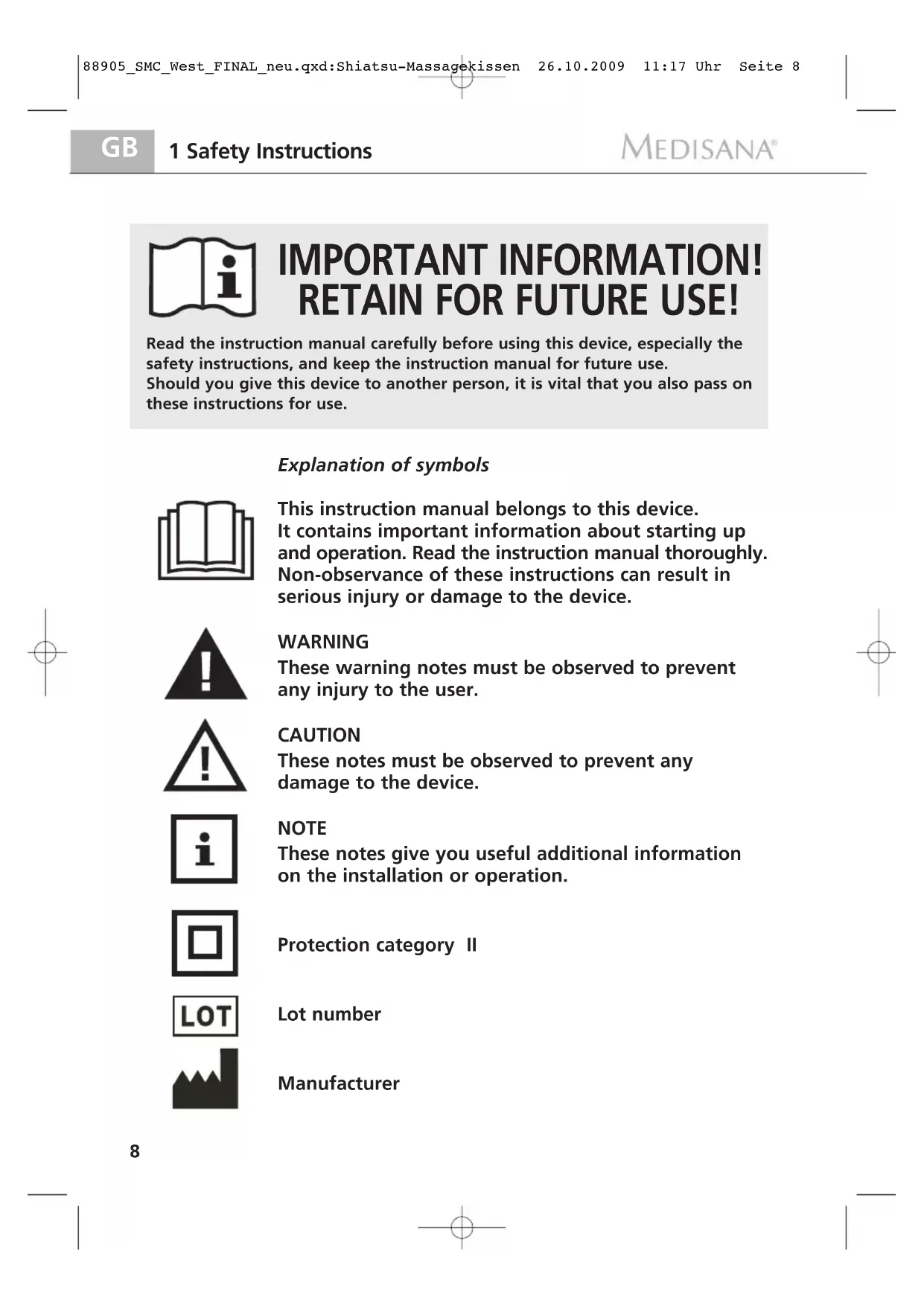

Read the instruction manual carefully before using this device, especially the safety instructions, and keep the instruction manual for future use. Should you give this device to another person, it is vital that you also pass on these instructions for use.

Explanation of symbols

This instruction manual belongs to this device. It contains important information about starting up and operation. Read the instruction manual thoroughly. Non-observation of these instructions can result in serious injury or damage to the device.

WARNING These warning notes must be observed to prevent any injury to the user.

CAUTION These notes must be observed to prevent any damage to the device.

NOTE These notes give you useful additional information on the installation or operation.

Protection category II

Lot number

Manufacturer

Safety Instructions

about the power supply

• Before connecting the device to your power supply, please ensure that the supply voltage stated on the rating plate is compatible with your mains supply.
• Do not operate this unit near high frequency electromagnetic sources.
• Keep the power cord and the device itself away from heat, hot surfaces, damp and liquids. Avoid touching the plug or power switch with wet or even damp hands, or when you are standing in water.
• Parts that conduct electricity on the device must not come into contact with liquid.
• If the device falls into water, do not try to pick it up. Instead pull the plug out immediately.
• Always make sure that the plug is easily accessible when the device is connected.
• Disconnect the plug from the socket immediately after using the device
• Never pull on the power cord to disconnect the appliance from the mains. Always pull out the mains plug!
• Do not carry, pull or rotate the device by its power cord.

specific groups of people

• This device is not designed to be used by persons (including children) with limited physical, sensory or mental abilities, or by persons with insufficient experience and/or knowledge, unless under observation by a person responsible for their safety, or unless they have been instructed in the use of the device.
  Children must be supervised to ensure that they do not play with the device.
• Do not use this unit to supplement or replace medical treatment. Chronic complaints and symptoms may be made worse.

• You should refrain from using the Shiatsu massage cushion SMC, or should consult your doctor before using it, if

• you are pregnant,

• you have a cardiac pacemaker, artificial joints or electronic implants,

• you suffer from one or more of the following illnesses and complaints: Circulation disorders, varicose veins, open wounds, bruises, broken skin, inflammation of the veins.

• The appliance has a heated surface. Persons insensitive to heat must be careful when using the appliance.

If you experience any pain or discomfort during the massage, stop immediately and consult your doctor.

GB 1 Safety Instructions

MEDISANA

before using the unit

• Always carefully inspect the cable, the control unit and the massage cushion for damage before use. Do not attempt to use a defective unit.
• Do not use the unit if there are visible signs of damage on the unit or the cable components, the unit does not work properly or the cushion or the control unit have been dropped or become damp. In order to prevent hazards, always send the unit in to the service centre.

operating the unit

• The massage cushion must only be used for its intended purpose as described in the instruction manual.
• Using the mat for any other purpose invalidates the warranty.
• Never leave the unit unattended if it is connected to the power supply.
• Do not allow the massage cushion to come into contact with pointed or sharp objects.
• Never put the unit down and/or never use it next to an electric stove or other sources of heat.
• Do not stand on the unit.
  If you feel unwell or experience pain when using the unit, stop the treatment immediately.

The device is only intended for household use and must not be used for commercial or medical purposes.

If you have health concerns, consult your doctor before using the massage cushion.

The massage cushion must only be used in enclosed spaces!

Do not use the massage cushion in damp rooms (e.g. when bathing or showering).

maintenance and cleaning

• The unit is maintenance free.
• Do not attempt to repair the unit yourself in the event of any defects. Not only does this render the warranty null and void but you can also run the risk of serious hazards (fire, electric shock, injury). Only have repairs carried out by authorised service points.

Do not wash!

Do not dry clean!

Thank you very much

Thank you for your confidence in us and congratulations!

With the Shiatsu massage cushion SMC you acquired a quality product from MEDISANA.

To ensure the best results and long-term satisfaction with your MEDISANA SMC massager, we recommend that you read the following operating and maintenance instructions carefully.

2.1 Items supplied and packaging

Please check first of all that the device is complete and is not damaged in any way. In case of doubt, do not use it and contact your dealer or your service centre.

The following parts are included:

1 MEDISANA Shiatsu massage cushion SMC with control unit
- 1 Instruction manual

The packaging can be reused or recycled. Please dispose properly of any packaging material no longer required.

If you notice any transport damage during unpacking, please contact your dealer without delay.

WARNING

Please ensure that the polythene packing is kept away from the reach of children! Risk of suffocation!

2.2 What is Shiatsu massage?

Shiatsu is a form of finger pressure massage and one of the most important massaging techniques along with manual lymphatic drainage and reflexology. This form of massage was developed in Japan but stems from traditional Chinese massage. Gentle stroking and beneficial pressure application techniques are used to awaken life forces and encourage them to flow through the body. The object of the massage is not just to ease tension, but also to optimise the flow of life force and harmonise body and soul.

2.3 How does the MEDISANA Shiatsu massage cushion work?

Your MEDISANA SMC shiatsu massage cushion is a state-of-the-art device for genuine shiatsu-style neck and back massages. It is also suitable for massaging your feet and legs.

The MEDISANA SMC shiatsu massage cushion has four rotating heads 2 which rotate in opposite pairs. While the left pair, arranged on a rotating plate, turn anticlockwise, the right pair, also arranged on a rotating plate, turn clockwise. When the direction of rotation is reversed, the two massage heads turn in the opposite direction. The device is also equipped with an optional heating function for the massage heads. The combination of intensive shiatsu massage and radiated heat makes the massage cushion an effective and relaxing treatment. Their settings can be comfortably adjusted by means of the easy-to-handle control unit 3.

GB 3 Operating

MEDISANA

3.1 Usage

The use of the Shiatsu massage cushion SMC will improve your wellbeing after a stressful day. The massage effect is particularly useful for treating tense muscles and tired tissue. The unit provides pleasant relaxation for overcoming everyday stress. The massaging can improve your well-being, and is also useful in the sport and fitness areas.

3.2 Operation

Start-up

The SMC shiatsu massage cushion has two functions for effective treatment: fingertip massage and heat. The heat function can only be used in combination with the shiatsu massage.

• Place the shiatsu massage cushion ① on the back of a high-backed chair and fasten it to the back with the strap.
• Insert plug into the mains socket. Ensure that the power supply is easily accessible.
• Sit on the chair and check that the cushion is in the position you want.
• Use the buttons on the control unit 3 to operate the massage cushion.

Do not use the unit for more than 15 minutes at a time. After approx. 15 minutes, the unit will switch off automatically. Always allow the unit to cool down fully before you use it again.

Switching on and operating the unit

• Switch on the device by pressing Power button 4. The blue power LED illuminates.
• Press the Forward button 6 to activate the massage function with outward rotation. The blue Forward LED lights up. To change the direction of rotation, press the Reverse button 5. The Forward LED goes out and the Reverse LED lights up blue. To switch off the massage function, press the button you last pressed (6 or 5) again.

or

Press the Reverse button 5 to activate the massage function with inward rotation. The blue Reverse LED lights up. To change the direction of rotation, press the Forward button 6. The Reverse LED goes out and the Forward LED lights up blue. To switch off the massage function, press the button you last pressed (5 or 6) again.

• The heat function can be activated at any time with the shiatsu massage. Press the Heat button to activate the function; the red LED lights up. The heat is radiated through the massage heads. Press the Heat button again to deactivate the heat function; the red LED goes out.

To switch off the device

• Press the Power button 4. The blue power LED goes out.
• After each use, switch the device off using the Power button 4 and remove the plug from the mains socket.

4.1 Cleaning and maintenance

• Before cleaning the unit, make sure it is switched off and disconnected from the mains. Clean the unit once it has cooled down using a soft, damp cloth.
• Under no circumstances should you use aggressive detergents, strong brushes, solvents or alcohol, as they may damage the surface of the unit.
• When cleaning, never immerse the unit in water and make sure that no water gets into the unit.
• Wait until the device is completely dry before using it again.
• Undo any kinks in the cable.
• You should ideally store the device in its original packaging and keep it in a clean, dry place.

4.2 Disposal

This product must not be disposed of together with domestic waste.

All users are obliged to hand in all electrical or electronic devices, regardless of whether or not they contain toxic substances, at a municipal or commercial collection point so that they can be disposed of in an environmentally acceptable manner.

Consult your municipal authority or your dealer for information about disposal.

4.3 Technical specifications

Name and model : MEDISANA Shiatsu massage cushion SMC

Voltage supply : 230 V~ 50Hz

Power consumption : approx. 25 W

Autom. switch off : after approx. 15 mins

Operating conditions : only use in dry rooms

Storage conditions : in a cool, dry place

Dimensions: approx. 36 × 24 × 10 cm

Weight : approx. 1.85 kg

Power cable length: approx. 1.9m

Article No.: 88905

EAN Code : 40 15588 88905 9

In accordance with our policy of continual product improvement, we reserve the right to make technical and optical changes without notice.

GB 5 Warranty

MEDISANA

Warranty and repair terms

Please contact your dealer or the service centre in case of a claim under the warranty. If you have to return the unit, please enclose a copy of your receipt and state what the defect is.

The following warranty terms apply:

1. The warranty period for MEDISANA products is three years from date of purchase. In case of a warranty claim, the date of purchase has to be proven by means of the sales receipt or invoice.
2. Defects in material or workmanship will be removed free of charge within the warranty period.
3. Repairs under warranty do not extend the warranty period either for the unit or for the replacement parts.
4. The following is excluded under the warranty:

a. All damage which has arisen due to improper treatment, e.g. non-observation of the user instructions.
b. All damage which is due to repairs or tampering by the customer or unauthorised third parties.
c. Damage which has arisen during transport from the manufacturer to the consumer or during transport to the service centre.
d. Accessories which are subject to normal wear and tear.

1. Liability for direct or indirect consequential losses caused by the unit are excluded even if the damage to the unit is accepted as a warranty claim.

MEDISANA AG

Itterpark 7-9

40724 Hilden

Germany

Tel.: [phone] / 2007-60

Fax: [phone]

The service centre address is shown on the last page.

REMARQUE IMPORTANTE! TOUJOURS CONSERVER!

La furniture comprend:

parathoseasespecially

4.2 Odyic yia tn diao

H ouokevn autn dev eltpeletal vao oosopetai i me T aolkaox aloppimuata.

KaTe katavaawntc evai unoxpeewevoc va napadivei oaes Tc nEeKtpikec n nektpovikec oukeuEc, avexapntta av eunepiexouv Baaepc uace, oe umpeia ouaoync tou dhou tou n oTo EIdiko Emuio, wote v eivai efiktnn oikooyikn anoupon twv ouokuw autwv.

Avaopika Tnv anokouh, anuovtheta otic tonikec apxcn oTov apoio.

4.3 TeXViKa OToIxEia

Ovoa ka i oovtélo : MaIλapi paosacoiatou SMC MEDISANA

Papoxn taonc:230V\~ 50Hz

Katavawon toxuoc: np.25 W

AptOoC npoiovtoc :88905

Apt0e EAN :4015588889059

C

MEDISANA Service-Center

Feuerbach KG

CorneliusstraBe 75

40215 Dusseldorf

Tel.: [phone]

City Business Centre 41 St.

Olav's Court Surrey Quays

London SE16 2XB

Tel.: [phone]

Fax: [phone]

eMail: [e-mail]

Internet: www.medisana.co.uk

BE / FR / IT / LU / NL

MEDISANA Benelux N.V.

Euregiopark 30

6467 JE Kerkrade

Nederland

Tel.: [phone]

Fax:[phone]

eMail: [e-mail]

ES

MEDISANA HEALTHCARE, S.L.
