Product type	Neck and shoulder massager
Brand	Medisana
Model	NM A90
Dimensions	Approx. 27 x 30 x 13 cm
Weight	Approx. 0.48 kg (without power adapter)
Power supply	Power adapter: 100-240 V~ 50/60 Hz, 0.2 A max; output 6 V = 800 mA
Massage function	Vibration massage, 2 adjustable intensity levels
Heat function	Yes, activation by HEAT button, red indicator light
Audio function	Built-in speaker, 8 nature sounds, audio jack for external sources (MP3), volume control
Automatic shut-off	After 15 minutes of continuous operation
Usage	Place around the neck, hold by straps, traction adjusts intensity
Care and cleaning	Clean with a slightly damp sponge; do not immerse or use chemical or abrasive cleaners
Safety	Do not use on sensitive areas, if you have medical conditions, nor during sleep or driving. Unplug after use.
Warranty	3 years from date of purchase, subject to proper use
Box contents	NM A90 massager, power adapter, audio cable, instruction manual
Repairability	Repairs only by an authorized center; any unauthorized intervention voids the warranty
Operating conditions	Dry, enclosed rooms, room temperature, no humidity

Frequently Asked Questions - NM A90 MEDISANA

How long can I use the device continuously?

The device automatically shuts off after 15 minutes of operation. To avoid overheating, let it cool down completely before reusing.

Can I use the device while driving?

No, it is prohibited to use the device while driving or operating machinery, as massage has a stimulating effect and may distract.

How to adjust the massage intensity?

Press the MASSAGE button to turn on the device (low intensity). Press again for high intensity. You can also pull the straps to manually increase intensity.

Can I listen to my own music through the device?

Yes, connect your MP3 player or other audio source to the audio jack on the device. The sound is then played through the built-in speaker.

How to clean the massager?

Use a slightly damp sponge to clean the surface. Never immerse the device in water and do not use chemicals, alcohol, or solvents.

Is the device suitable for people with a pacemaker?

It is not recommended without prior medical advice. Consult your doctor before using the device if you have an electronic implant.

What to do in case of malfunction?

First check that the power adapter is properly connected. If the problem persists, do not try to repair it yourself: contact Medisana customer service or an authorized center.

How to activate the heat?

Press the HEAT button: the red light turns on. To turn off, press again. Heat can be combined with massage.

Can I use the device if I am pregnant?

It is strongly recommended to consult a doctor before any use during pregnancy.

What are the available nature sounds?

The device offers 8 different nature sounds. Use the FORWARD button to switch between them.

USER MANUAL NM A90 MEDISANA

GB Neck massager with loudspeaker

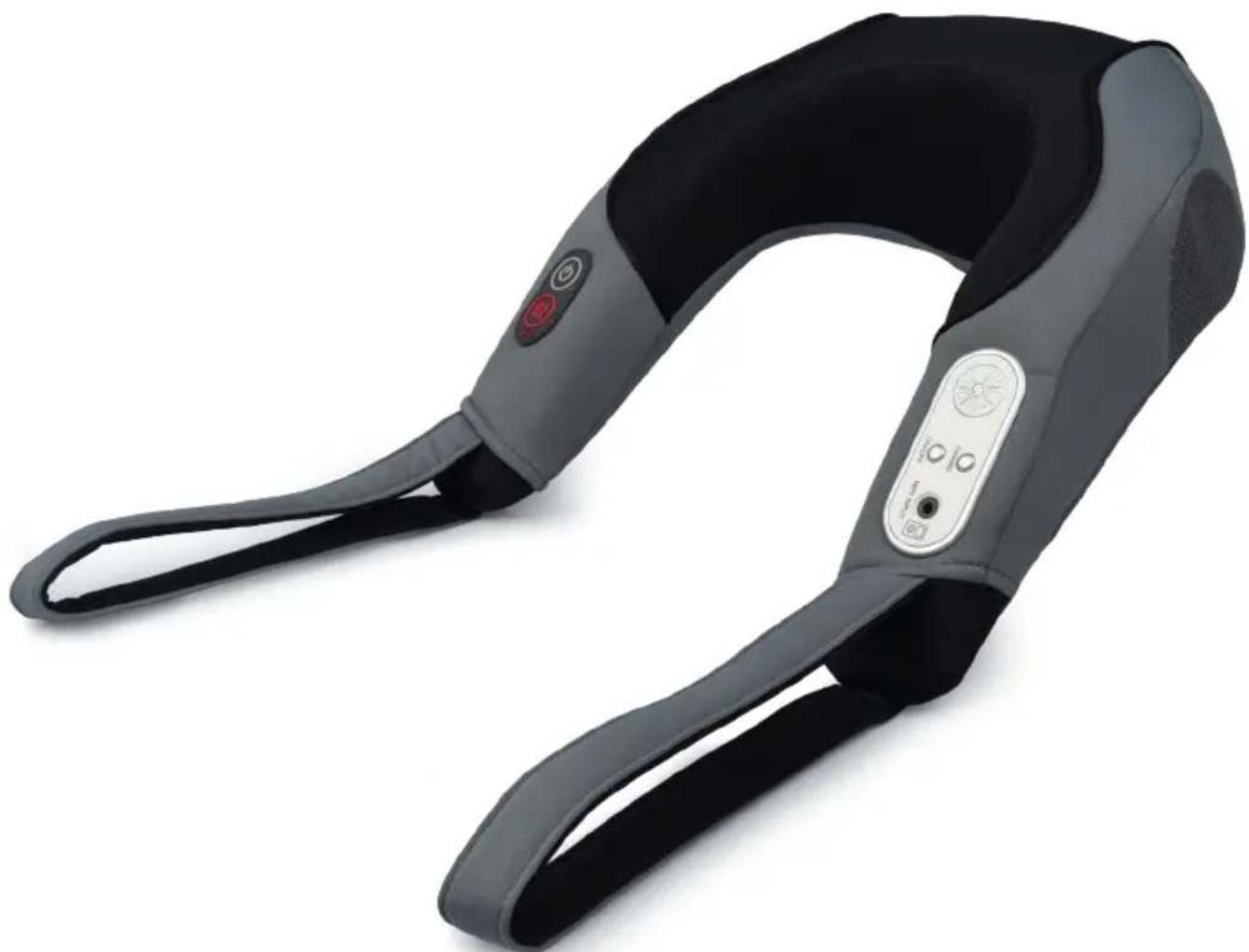

Black and gray fitness knuckle with headband and control buttons (no text or symbols visible)

Art. 99545

CE

Gebruiksaanwijzing

Mode d'emploi

Gebrauchsanweisung

Instruction Manual

Please read carefully!

1 Safety Information.... 31
2 Useful Information.... 36
3 Operating.... 37
4 Miscellaneous.... 38
5 Warranty.... 39

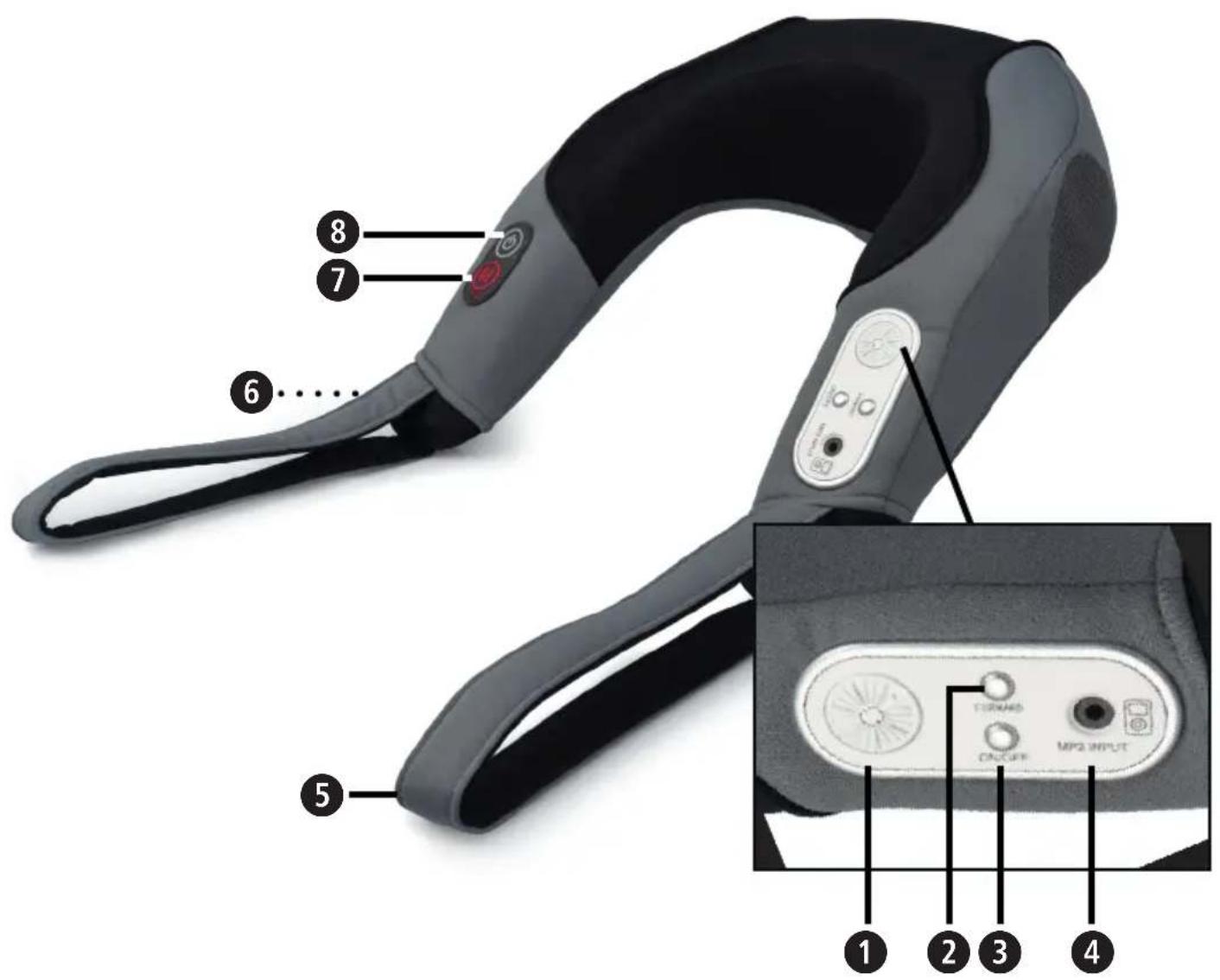

Gerät und Bedienelemente Appareil et éléments de commande Toestel en bedieningselementen Device and controls

Labeled diagram of a wearable device with numbered parts and an inset showing the motor control interface.

② Toggle nature sounds

3 Switch audio function on/off

④ AUX plug for external sources

5 Hand strap (each 1 x on right and 1 x on left side)

6 Connection for power supply

⑦ HEAT button - switches heat function on and off

8 MASSAGE button - switches massage function on and off and sets the massage intensity

Warning symbols including exclamation mark, triangular warning triangle, and information icon

Three black-and-white symbols: warning triangle with exclamation mark, house icon, and no-approval crossed-out bowl icon.

Symbol of a trash bin with crossed lines and a blank rectangular block below (no text or labels)

Warning symbols including exclamation mark, warning triangle, and information icon

Simple line drawing of a trash bin with crossed lines and a blank rectangular base (no text or symbols)

Warning symbols including exclamation mark, triangular warning triangle, and information icon

zur Stromversorgung

Read the instruction manual carefully before using this device, especially the safety instructions, and keep the instruction manual for future use.

Should you give this device to another person, it is vital that you also pass on these instructions for use.

Explanation of symbols

This instruction manual belongs to this device. It contains important information about starting up and operation. Read the instruction manual thoroughly. Non-observance of these instructions can result in serious injury or damage to the device.

WARNING

These warning notes must be observed to prevent any injury to the user.

CAUTION

These notes must be observed to prevent any damage to the device.

NOTE

These notes give you useful additional information on the installation and operation.

Protection category II

LOT

LOT number

Manufacturer

Three warning symbols: triangular warning triangle with exclamation mark, triangular warning triangle with exclamation mark, and square icon labeled 'i'

about the power supply

• Before connecting the device to your power supply, please ensure that the supply voltage stated on the rating plate is compatible with your mains supply.
• Only insert the power supply unit into a socket when the appliance is switched off.
• Only use the power supply unit supplied for the massager.

- Keep the power supply unit, cable and appliance well away from heat, hot surfaces, moisture and liquids.

- Do not touch the power supply unit when you are standing in water and always take hold of the plug with dry hands.

- Do not take hold of a device if it falls into water. Pull out the power plug and the power supply unit from the socket immediately.

- Always switch off the appliance after use with the buttons on the control unit and unplug the power supply unit.

- To disconnect the unit from the power supply, always pull the plug out of the socket. Do not pull on the cable!

- Do not carry, pull or twist the device on the cable or the power supply unit.

- You must not continue to use the unit if the lead is damaged. For safety reasons, the power supply unit needs to be replaced.

- Ensure that the cable will not cause tripping. The cable must not be kinked, trapped or twisted.

specific groups of people

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children must be supervised to ensure that they do not play with the device.
• Do not use this unit to supplement or replace medical treatment. Chronic complaints and symptoms may be made worse.

- Do not use the NM A90 massager, or only after consulting your doctor, if:

• you are pregnant,
• you have a cardiac pacemaker, artificial joints or electronic implants,

• you suffer from one or more of the following illnesses and complaints: Circulation disorders, varicose veins, open wounds, bruises, broken skin, inflammation of the veins.

• Do not use the appliance near your eyes or near any other sensitive areas.

• If you experience any pain or discomfort during the massage, stop immediately and consult your doctor.
• The surface of the appliance is hot. People who are insensitive to heat must be careful when using the appliance.
• Before using the massager, consult your doctor regarding any unexplained pain, if you are undergoing medical treatment or using medical equipment.

before using the unit

• Check the power supply unit, cable and massager carefully for damage before each use. Do not attempt to use a defective unit.
• Do not use the appliance if it, or the power cord show signs of damage, if it is not in perfect working order, or if it has been dropped or become damp. In order to prevent hazards, always send the unit in to the service centre.

operating the unit

• The device is not to be used for commercial use or medical purposes.
• If you have health concerns, consult your doctor before using the device.

- Only use the massager indoors.

- Do not use the massager in damp rooms (e.g. when bathing or showering).

• The device must only be used for its intended purpose as described in the instruction manual.
• Using the device for any other purpose invalidates the warranty.
• Only use the appliance in the proper place, that is, around the neck and on the shoulders.
• No naked flame sources, such as lighted candles, should be placed on the apparatus.
• Do not use the appliance while you are asleep or when you are lying in bed.
• Do not use the appliance before going to sleep. The neck massage has a stimulating effect
• Never use the appliance while driving a vehicle or operating a machine.
• The maximum operating time for one session is 15 minutes. Prolonged use reduces the service life of the appliance.
• Very long periods of use can lead to overheating. Always allow the appliance to cool down before using it again.
• Never put the unit down next to an electric stove or other sources of heat.
• Never leave the unit unattended if it is connected to the power supply.
• Do not allow the massage cushion to come into contact with pointed or sharp objects.
• Do not cover up the appliance when it is switched on. Never use it under blankets or cushions. There is a risk of fire, electric shock or injury.

maintenance and cleaning

• The unit is maintenance free. If a fault does occur, just check whether the mains power adapter is properly connected.
• You may only clean the device yourself. In case of malfunctions or damages do not repair it yourself as this leads to the automatic expiry of all guarantee rights. Ask your specialist dealer and only have repairs carried out by authorized service companies to avoid hazards.
• Do not immerse the device in water or other fluids.
• If, nonetheless, liquid should penetrate the device, unplug the mains cable immediately.
• Cleaning and user maintenance shall not be made by children without supervision.

Do not wash! The textile cover cannot be removed!

Do not dry clean!

Thank you very much

Thank you for your confidence in us and congratulations!

You have gained a high-quality product from MEDISANA with the purchase of this NM A90 massager. This appliance is intended for massaging the neck and shoulder area. To derive the most success and to enjoy your MEDISANA NM A90 massager for a very long time, we recommend that you read the following information on the use and care of the appliance carefully.

2.1 Items supplied and packaging

Please check first of all that the device is complete and is not damaged in any way. In case of doubt, do not use it and contact your supplier or your service centre.

The following parts are included:

• 1 MEDISANA massager NM A90
• 1 Power supply
- 1 Audio cable
• 1 Instruction manual

The packaging can be reused or recycled. Please dispose properly of any packaging material no longer required. If you notice any transport damage during unpacking, please contact your supplier without delay.

WARNING

Please ensure that the polythene packing is kept away from the reach of children! Risk of suffocation!

The NM A90 massager is intended for targeted treatment of the neck and shoulder area. The pleasant vibrating massage has two levels of intensity. The massage can be enhanced with heat treatment.

CAUTION

Make sure that the maximum operating time of 15 minutes is not exceeded.

3.1 Using with the power supply unit

1. Insert the power supply unit plug into the connection ⑥ on the control unit.
2. Plug in the power supply unit.
3. Place the massager around the neck so that it has sufficient hold on the shoulders.
4. Press the MASSAGE button ⑧, to switch on the massage function. The appliance starts working straight away at low intensity. Press the MASSAGE button ⑧ twice to change to massage intensity to a higher level. Press the MASSAGE button ⑧ once again to switch the appliance off.
5. Press the HEAT ⑦ button to switch on the heat function. The LED indicator lights up. To switch the heat function off, press the HEAT⑦ button again.
6. Guide your hands through the hand straps ⑤ on right and left side. By pulling on the straps you may stabilize the device in its position and adjust the massage intensity (pulling more stronger increases the massage intensity)
7. After 15 minutes of constant use the device will switch off automatically.

3.2 Audio function

Press ON/OFF button ③ to activate/deactivate audio function.

Pressing the FORWARD button ② will toggle 8 different nature sounds. Select the volume by rotating the volume control ①.

Plug the audio cable into the AUX plug 4 to use external audio sources (like MP3 players e.g.). Plug/unplug the audio cable will toggle the audio mode.

NOTE

Please select a pleasant, not too loud volume. After 30 minutes of constant use the audio function will switch off automatically.

4.1 Cleaning and maintenance

• Before cleaning the appliance, make sure that the appliance is switched off and the power supply unit is disconnected. Allow the unit to cool down.
• Clean the massager with a slightly damp sponge only. Never use brushes, aggressive cleaning agents, petrol, thinners or alcohol. Rub the seat dry with a clean dry cloth.
• Never immerse the appliance in water to clean it and ensure water cannot get into the appliance.
• Wait until the device is completely dry before using it again.
• Undo any kinks in the cable.
  • Take care when rolling up the mains lead to avoid damaging it.
• You should ideally store the device in its original packaging and keep it in a clean, dry place.

4.2 Disposal

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

This product must not be disposed of together with domestic waste.

All users are obliged to hand in all electrical or electronic devices, regardless of whether or not they contain toxic substances, at a municipal or commercial collection point so that they can be disposed of in an environmentally acceptable manner. Please remove the batteries before disposing of the device / unit. Do not dispose of old batteries with your household waste, but at a battery collection station at a recycling site or in a shop.

Consult your local authority or your supplier for information about disposal.

4.3 Technical specifications

Name and model : MEDISANA Neck Massager NM A90

Power supply unit : Manufacturer: Xiamen Innov Electronics Tech CO., Ltd IVP0600-0800WG input: 100-240 V\~50/60 Hz max. 0.2 A output: 6 V==800 mA

Automatic switch-off : After approx. 15 minutes

Operating conditions : only use in dry rooms

Storage conditions : in a cool, dry place

Dimensions : approx. 27 x 30 x 13 cm

Weight : approx. 0.48 kg (not including power supply unit)

Power cable length : approx. 1.8 m

Article No. : 99545

EAN Code : 40 15588 99545 3

CE

In accordance with our policy of continual product improvement, we reserve the right to make technical and optical changes without notice.

Warranty and repair terms

Please contact your supplier or the service centre in case of a claim under the warranty. If you have to return the unit, please enclose a copy of your receipt and state what the defect is.

The following warranty terms apply:

1. The warranty period for MEDISANA products is three years from date of purchase. In case of a warranty claim, the date of purchase has to be proven by means of the sales receipt or invoice.
2. Defects in material or workmanship will be corrected free of charge within the warranty period.

3. Repairs under warranty do not extend the warranty period either for the unit or for the replacement parts.

4. The following is excluded under the warranty:

a. All damage which has arisen due to improper treatment, e.g. non-observance of the user instructions.
b. All damage which is due to repairs or tampering by the customer or unauthorised third parties.
c. Damage which has arisen during transport from the manufacturer to the consumer or during transport to the service centre.
d. Accessories which are subject to normal wear and tear.

1. Liability for direct or indirect consequential losses caused by the unit are excluded even if the damage to the unit is accepted as a warranty claim.

MEDISANA GmbH

Jagenbergstraße 19

41468 NEUSS

GERMANY

The service centre address is shown on the attached leaflet.
