USER MANUAL TORCHEMC02 HQ

Dynamo radio with torch

ANLEITUNG (s.4)

MANUAL DE USO (p. 16)

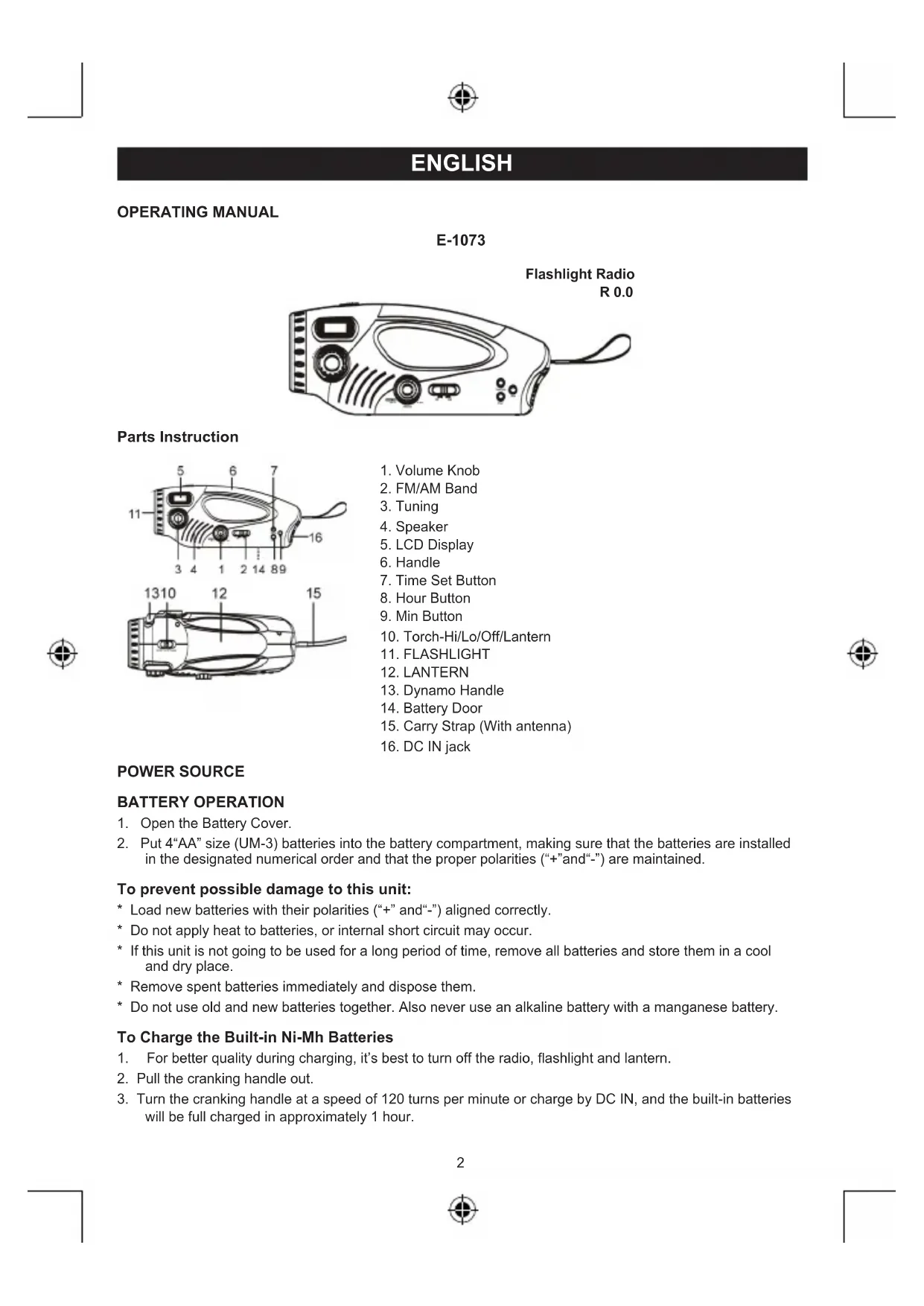

1. Open the Battery Cover.
2. Put 4"AA" size (UM-3) batteries into the battery compartment, making sure that the batteries are installed in the designated numerical order and that the proper polarities (^+ + ) and - are maintained.

To prevent possible damage to this unit:

• Load new batteries with their polarities ("+ " and "-") aligned correctly.
• Do not apply heat to batteries, or internal short circuit may occur.
• If this unit is not going to be used for a long period of time, remove all batteries and store them in a cool and dry place.
• Remove spent batteries immediately and dispose them.
• Do not use old and new batteries together. Also never use an alkaline battery with a manganese battery.

To Charge the Built-in Ni-Mh Batteries

1. For better quality during charging, it's best to turn off the radio, flashlight and lantern.
2. Pull the cranking handle out.

3. Turn the cranking handle at a speed of 120 turns per minute or charge by DC IN, and the built-in batteries will be full charged in approximately 1 hour.

4. Continuous cranking during one minute will allow the unit to work for approximately 3 to 5 minutes. The working time for radio or flashlight will depend on the battery level and the cranking speed. When the unit is fully charged, the radio will work for about 3 hours at a 1/3 volume level; the flashlight will work for approximately 1 hour; the lantern will work for about 1.5 hours; all functions used together and the batteries will be exhausted in approximately 1 hour.

Caution Note

It is normal to hear noise when you crank the dynamo power generator.
If you are cranking too slow, the batteries will not be charged at all. We recommend to crack the handle with about 120 turns a minute.
If the radio is set on and working for a long time and the batteries are exhausted, it shortens the battery life and it will be hard to recharge by cranking again. So please don't leave the radio or flashlight on until the battery is gone. If that happens, it is normal that battery is not holding the power well when you try hard to crank it after the battery is left drain to no power.

If so, you have to use an AC adaptor to restore and charge the batteries to wake up and keep the battery a life. We strongly recommend you to charge the radio every month no matter you use it or not. Furthermore, never leave the unit on before it is too low in batteries.

RADIO OPERATION

1. Rotate the Volume Knob clockwise to turn the radio on and adjust to the desired sound level.
2. Slide the FM/AM Band to first band to select the FM band.
3. Slide the FM/AM Band to the second band to select the AM frequency.
4. Rotate the Tuning knob to the desired station.
5. Turn off the power by rotating the Volume Knob to Power Off / minimum position till a "click" sound is heard after use.

LIGHT

1. Slide the Torch-Hi/Lo/Off/Lantern to the Torch-Hi position, and all LEDs will light up all the times.
2. Slide the Torch-Hi/Lo/Off/Lantern to the Lo position, and several LEDs will light up all the times.
3. Slide the Torch-Hi/Lo/Off/Lantern to the Lantern position, and the LANTERN will light up on the handle all the times.
4. Turn off the lantern by slide the Torch-Hi/Lo/Off/Lantern to the OFF position.

LCD CLOCK

Press and hold the Time Set button, then press the Hour and Min button to adjust the time.

HELPFUL HINTS

• If the set is not used for a long period of time, remove all the batteries to prevent potential damage due to possible battery leakage.
• Do not subject the set to a temperature of over 60 C (140 F) because characteristics of the internal parts may be adversely affected by heat, especially never leave the set in a car exposed to direct sunlight for a long period of time with the doors and windows closed. The cabinet may become deformed and deterioration of the performance may result.
• Since a strong magnet is used for the speaker, keep magnetized commuter passes, tickets or personal credit cards, recorded tapes, watches etc. away from the radio. The speaker magnet in the radio may damage them.
• Do not place the set near strong magnets such as those used in radio, television sets, speaker boxes etc. as these may cause the frequency to drift.
• Do not drop or give the set a strong impact since the set is composed of precise parts.
• When listening in a train car or building, use the radio near a windows to obtain the best possible reception. Reception may be difficult in a tunnel or subway. Also note that operating the radio on a metal object may adversely affect reception.
• Do not use benzene thinner or any abrasive powder to clean the cabinet, wipe it with a soft cloth moistened with a mild soap and water solution.

• Avoid spray-type insecticides, some insecticides contain chemicals that could cause cabinet deformation

• The apparatus shall not be exposed to dripping or splashing, and no object filled with liquids such as vases, shall be placed on the apparatus.

SPECIFICATIONS

Power Source: DC 12V, 250mA(4×C size dry batteries)

Built-in Ni-Mh rechargeable batteries

Cramking power generator

Frequency Range:

FM:88-108 MHz

AM:530-1710KHz

Speaker Impedence: 8 ohm, 0.5 W

Speaker Output: 150mW (R.M.S.)

Design and specifications are subject to change without notice.

Safety precautions:

To reduce risk of electric shock, this product should ONLY be opened by an authorized technician when service is required. Disconnect the product from mains and other equipment if a problem should occur. Do not expose the

product to water or moisture.

Maintenance:

Clean only with a dry cloth. Do not use cleaning solvents or abrasives.

Warranty:

No guarantee or liability can be accepted for any changes and modifications of the product or damage caused due to incorrect use of this product.

General:

Designs and specifications are subject to change without notice.

All logos brands and product names are trademarks or registered trademarks of their respective holders and are hereby recognized as such.

Keep this manual for future reference.

Attention:

This product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collections system for these products.
