USER MANUAL IWTE 51251 ECO INDESIT

Unpacking and levelling

Electric and water connections

The first wash cycle

Care and maintenance, 4

Cutting off the water or electricity supply

Cleaning the washing machine

Caring for the door and drum of your appliance

Checking the water inlet hose

How to clean the detergent dispenser

Precautions and tips, 5

Description of the washing machine, 6-7

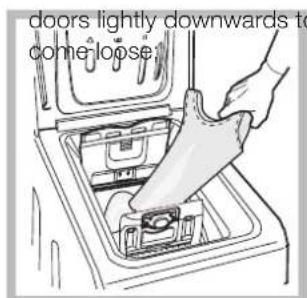

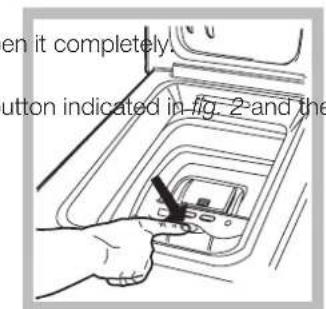

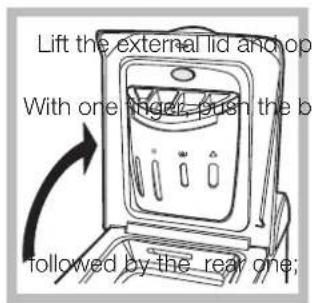

How to open and shut the drum

Running a wash cycle, 8

Wash cycles and options, 9

Table of wash cycles

Detergents and laundry, 10

Detergent dispenser drawer

Preparing the laundry

Load balancing system

Instructions for use

! Keep this instruction manual in a safe place for

future reference. Should the appliance be sold,

transferred or moved, make sure the instruction

manual accompanies the washing machine to

inform the new owner as to its operation and

! Read these instructions carefully: they contain

vital information on installation, use and safety.

Unpacking and levelling

1. Unpack the washing machine.

2. Check whether the washing machine has been

damaged during transport. If this is the case, do

not install it and contact your retailer.

3. Remove the four pro-

tective screws and the

rubber washer with the

respective spacer, si-

tuated on the rear of the

appliance (see figure).

4. Seal the gaps using the

plastic plugs provided.

5. Keep all the parts: you

will need them again if

needs to be moved to

make sure you fasten

the shorter ones at the top.

! Packaging materials are not children’s toys.

1. Install the washing machine on a flat sturdy

floor, without resting it up against walls, furniture

2. If the floor is not per-

fectly level, compensate

for any unevenness by

tightening or loosening

the adjustable front feet

(see figure); the angle

of inclination, measu-

red according to the

worktop, must not ex-

Levelling your appliance

correctly will provide it with stability and avoid any

vibrations, noise and shifting during operation.

If it is placed on a fitted or loose carpet, adjust

the feet in such a way as to allow enough room

for ventilation beneath the washing machine.

Putting your appliance in place and

I f y o u r w a s h i n g

with a special set of

you can easy move it.

appliance effortlessly,

just pull the lever,

situated on the left-

hand side beneath the base. Once the appliance

is in the required position, put the lever back in

place. The washing machine is now firmly in

Electric and water connections

Connecting the water inlet hose

1. Connect the supply

pipe by screwing it to

a cold water tab using

a ¾ gas threaded con-

nection (see figure).

Before performing the

connection, allow the

water to run freely until

it is perfectly clear.

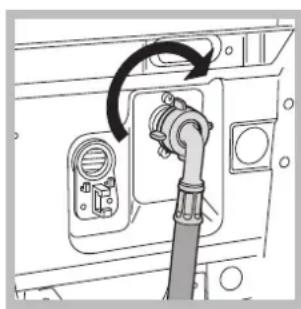

2. Connect the other

end of the water inlet

screwing it onto the ap-

pliance’s cold water in-

let, situated on the top

right-hand side on the

rear of the appliance

3. Make sure there are no kinks or bends in the

! The water pressure at the tap must be within

the values indicated in the Technical details

table (on the next page).

! If the water inlet hose is not long enough,

contact a specialist store or an authorised

! Never use hoses that have already been used.GB

Connecting the drain hose

hose, without bending

it, to a drainage duct

or a wall drain located

alternatively, rest it on

the side of a washba-

sin or bathtub, faste-

plied to the tap (see

! We advise against the use of hose extensions;

if it is absolutely necessary, the extension must

have the same diameter as the original hose and

must not exceed 150 cm in length.

Electrical connections

Before plugging the appliance into the electricity

socket, make sure that:

• the socket is earthed and complies with all

• the socket is able to withstand the maximum

power load of the appliance as indicated in the

Technical data table (see opposite);

• the power supply voltage falls within the va-

lues indicated in the Technical data table (see

• the socket is compatible with the plug of the

washing machine. If this is not the case, repla-

ce the socket or the plug.

! The washing machine must not be installed

outdoors, even in covered areas. It is extremely

dangerous to leave the appliance exposed to

rain, storms and other weather conditions.

! When the washing machine has been installed,

the electricity socket must be within easy reach.

! Do not use extension cords or multiple sockets.

! The cable should not be bent or compressed.

! The power supply cable must only be replaced

by authorised technicians.

Warning! The company shall not be held respon-

sible in the event that these regulations are not

The first wash cycle

Once the appliance has been installed, and be-

fore you use it for the first time, run a wash cycle

with detergent and no laundry, setting the 90°C

programme without a pre-wash cycle.

please refer to the technical

data plate fixed to the machine

up to 1200 rotations per minute

Cotton standard 40°C.

This appliance conforms to

the following EC Directives:

GB To access the pre-chamber:

1. using a screwdriver,

remove the cover pa-

nel on the lower front

machine (see figure);

2. unscrew the lid by

rotating it anti-clockwi-

se (see figure): a little

water may trickle out.

This is perfectly nor-

5. reposition the panel,

making sure the hooks

are securely in place

before you push it onto

Checking the water inlet hose

Check the inlet hose at least once a year. If there

are any cracks, it should be replaced immedia-

tely: during the wash cycles, water pressure is

very strong and a cracked hose could easily

! Never use second-hand hoses.

Care and maintenance

Cutting off the water and electricity

• Turn off the water tap after every wash cycle.

This will limit wear on the hydraulic system in-

side the washing machine and help to prevent

• Unplug the washing machine when cleaning it

and during all maintenance work.

Cleaning the washing machine

The outer parts and rubber components of the

appliance can be cleaned using a soft cloth

soaked in lukewarm soapy water. Do not use

solvents or abrasives.

Caring for the door and drum of

• Always leave the porthole door ajar in order to

prevent unpleasant odours from forming.

The washing machine is fitted with a self-cleaning

pump which does not require any maintenance.

Sometimes, small items (such as coins or buttons)

may fall into the pre-chamber which protects the

pump, situated in its bottom part.

! Make sure the wash cycle has finished and

unplug the appliance.

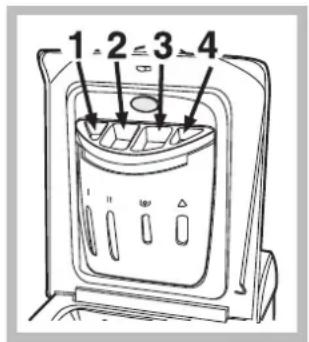

How to clean the detergent dispenser

Then clean the dispenser under a tap (fig. 3)

using an old toothbrush and, once the pair of

siphons inserted in the top of compartments

1 and 2 (fig. 4) have been pulled out, check

whether the same are not clogged and then

Do not forget to rein-

sert the pair of siphons

into the special housings

and then to replace the

dispenser into its seat,

clicking it into place (fig.

Press lightly on the

front of the detergent

dispenser and pull it

Precautions and tips

! This washing machine was designed and constructed in

accordance with international safety regulations. The fol-

lowing information is provided for safety reasons and must

therefore be read carefully.

• This appliance was designed for domestic use only.

• This appliance can be used by children aged

from 8 years and above and persons with re-

duced physical, sensory or mental capabilities

or lack of experience and knowledge if they

have been given supervision or instruction

concerning use of the appliance in a safe way

and understand the hazards involved. Children

shall not play with the appliance. Cleaning

and user maintenance shall not be made by

children without supervision.

• The washing machine must only be used by adults, in accor-

dance with the instructions provided in this manual.

• Do not touch the machine when barefoot or with wet or

• Do not pull on the power supply cable when unplugging

the appliance from the electricity socket. Hold the plug

• Do not open the detergent dispenser drawer while the

machine is in operation.

• Do not touch the drained water as it may reach extreme-

ly high temperatures.

• Never force the porthole door. This could damage the safety

lock mechanism designed to prevent accidental opening.

• If the appliance breaks down, do not under any circum-

stances access the internal mechanisms in an attempt

to repair it yourself.

• Always keep children well away from the appliance while

• If the appliance has to be moved, work in a group of two

or three people and handle it with the utmost care. Never

try to do this alone, because the appliance is very heavy.

• Before loading laundry into the washing machine, make

sure the drum is empty.

• Disposing of the packaging materials: observe local

regulations so that the packaging may be re-used.

• The European Directive 2002/96/EC on Waste Electrical

and Electronic Equipment, requires that old household

electrical appliances must not be disposed of in the

normal unsorted municipal waste stream. Old applian-

ces must be collected separately in order to optimise

the recovery and recycling of the materials they contain

and reduce the impact on human health and the envi-

ronment. The crossed out “wheeled bin” symbol on the

product reminds you of your obligation, that when you

dispose of the appliance it must be separately collected.

Consumers should contact their local authority or retailer

for information concerning the correct disposal of their

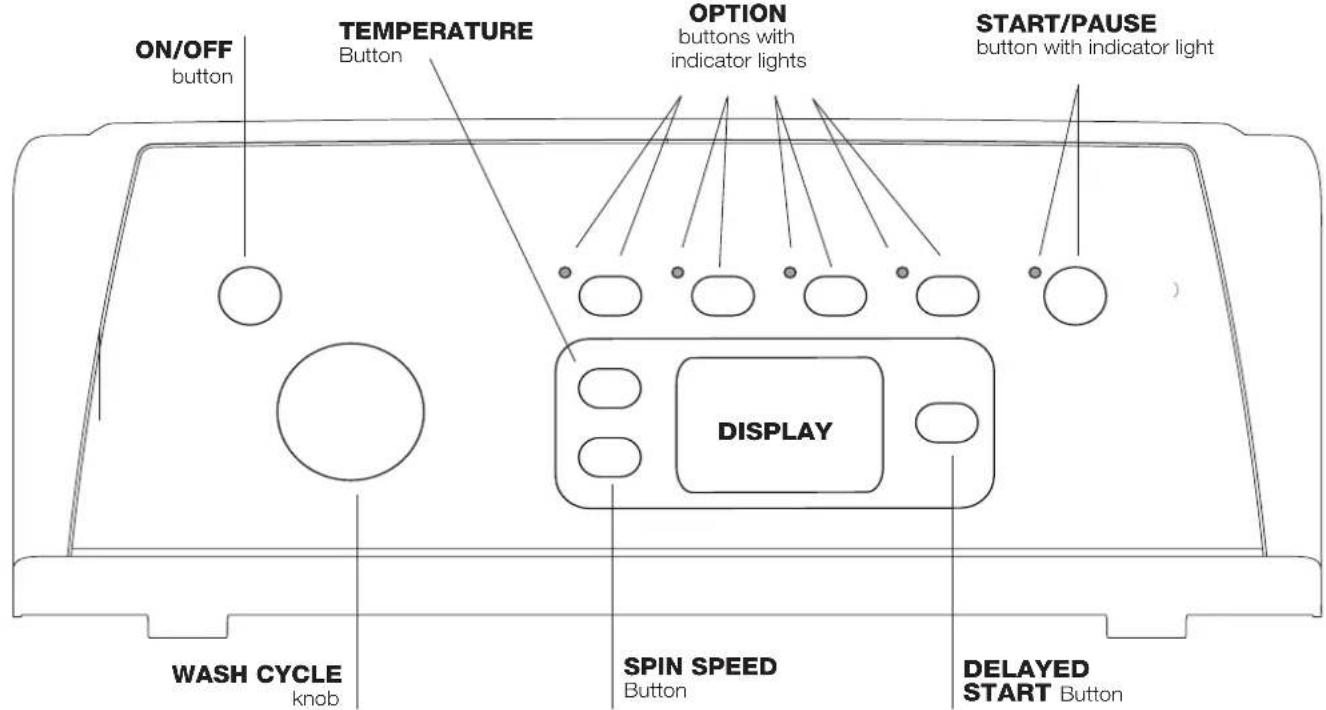

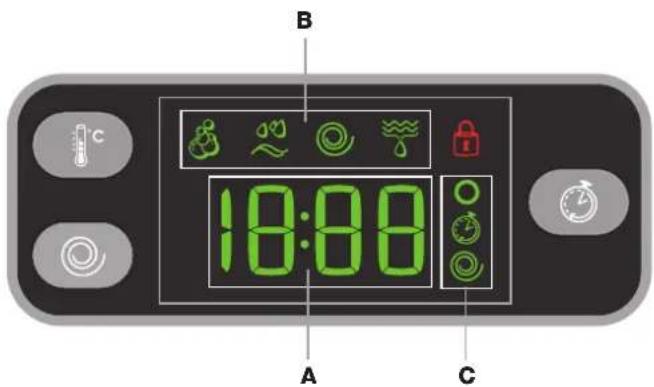

GB ON/OFF button : press this briefly to switch the ma-

chine on or off. The START/PAUSE indicator light, which

flashes slowly in a green colour shows that the machine is

switched on. To switch off the washing machine during the

wash cycle, press and hold the button for approximately 2

seconds; if the button is pressed briefly or accidentally the

machine will not switch off. If the machine is switched off

during a wash cycle, this wash cycle will be cancelled.

WASH CYCLE knob: used to set the desired wash cycle

(see “Table of wash cycles”).

OPTION buttons with indicator light: used to select the

available options. The indicator light corresponding to the

selected option will remain lit.

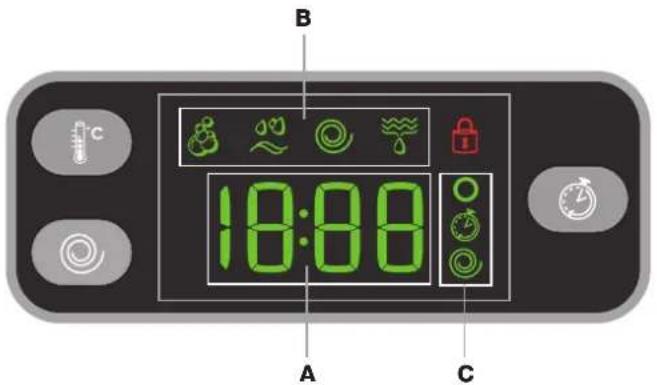

SPIN button : press to reduce or completely exclude

the spin cycle - the value is indicated on the display.

TEMPERATURE button : press to decrease or com-

pletely exclude the temperature: the value will be shown on

DELAYED START button : press to set a delayed start

time for the selected wash cycle. The delay time will be

START/PAUSE button with indicator light: when the gre-

en indicator light flashes slowly, press the button to start a

wash cycle. Once the cycle has begun the indicator light

will remain lit in a fixed manner. To pause the wash cycle,

press the button again; the indicator light will flash in an

orange colour. If the symbol is not illuminated, the door

may be opened. To start the wash cycle from the point at

which it was interrupted, press the button again.

This washing machine, in compliance with new energy sa-

ving regulations, is fitted with an automatic standby system

which is enabled after about 30 minutes if no activity is

detected. Press the ON-OFF button briefly and wait for the

machine to start up again.

Consumption in off-mode: 0,5 W Consumption in Left-on: 0,5 W Description of the washing

button with indicator light

The display is useful when programming the machine and provides a great deal of information.

The duration of the available programmes and the remaining time of a running cycle appear in section A; if the DELAY START

option has been set, the countdown to the start of the selected programme will appear. Pressing the relative button, the

machine automatically displays the maximum temperature and spin speed values set for the selected cycle, or the most

recently-used settings if they are compatible with the selected cycle.

The “programme phases” relative to the selected programme and the “programme phase” of the running programme appear

Wash / Rinse / Spin / Drain

The icons corresponding to “temperature” , “Programmed start” and “spin” appear in section C from top to bottom:

If the symbol lights up, the display will visualise the set “temperature” value.

When a “delayed start” has been set, the symbol lights up.

If the symbol lights up, the display will visualise the set “spin” value.

The lit symbol indicates that the door is locked. To prevent any damage, wait until the symbol turns off before opening the

door (wait approximately 3 minutes). To open the door while a cycle is in progress, press the START/PAUSE button; if the

symbol is switched off the door may be opened.

B CA How to open and to close the drum

A) Opening (Fig. 1).

Lift the external lid and open it completely.

B) Opening the drum (Soft opening):

With one finger, push the button indicated in fig. 2 and the drum

will open delicately.

C) Loading the washing machine (Fig. 3).

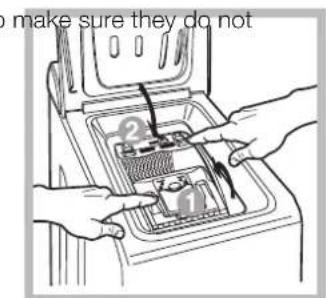

D) Shutting (Fig. 4).

- close the drum fully by first shutting the front door

followed by the rear one;

- then ensure the hooks on the front door are perfectly

housed within the seat of the rear door;

- after the hooks have clicked into position, press both

doors lightly downwards to make sure they do not

GB Running a wash cycle

1. SWITCH THE MACHINE ON. Press the button;

the START/PAUSE indicator light will flash slowly in a

2. LOAD THE LAUNDRY. Load the laundry, making sure

you do not exceed the maximum load value indicated in

the table of programmes on the following page.

3. MEASURE OUT THE DETERGENT. Pour the

detergent into the relevant compartments as described

in “Detergents and laundry”.

5. SELECT THE WASH CYCLE. Set the WASH CYCLE

knob to the desired programme; a temperature and

spin speed is set for each wash cycle; these may be

adjusted. The duration of the cycle will appear on the

6. CUSTOMISE THE WASH CYCLE. Use the relevant

Modifying the temperature and/or spin

speed. The machine automatically displays the

maximum temperature and spin speed values set for

the selected cycle, or the most recently-used settings

if they are compatible with the selected cycle. The

temperature can be decreased by pressing the

button, until the cold wash “OFF” setting is reached.

The spin speed may be progressively reduced by

pressing the button, until it is completely excluded

(the “OFF” setting). If these buttons are pressed again,

the maximum values are restored.

Setting a delayed start.

To set a delayed start for the selected programme,

press the corresponding button repeatedly until the

required delay period has been reached. When this

option is enabled, the symbol lights up on the

display. To remove the delayed start option press the

button until the text “OFF” appears on the display.

Modifying the cycle settings.

• Press the button to enable the option; the indicator

light corresponding to the button will switch on.

• Press the button again to disable the option; the

indicator light will switch off.

! If the selected option is not compatible with the

programmed wash cycle, the indicator light will flash

and the option will not be activated.

! If the selected option is not compatible with another

option which has been selected previously, the indicator

light corresponding to the first option selected will

flash and only the second option will be activated; the

indicator light corresponding to the enabled option will

and/or the duration of the cycle.

7. START THE PROGRAMME. Press the START/

PAUSE button. The corresponding indicator light will

become green, remaining lit in a fixed manner, and the

door will be locked (the symbol will be on). To change

a wash cycle while it is in progress, pause the washing

machine using the START/PAUSE button (the START/

PAUSE indicator light will flash slowly in an orange

colour); then select the desired cycle and press the

START/PAUSE button again.

To open the door while a cycle is in progress, press

the START/PAUSE button; if the symbol is switched

off the door may be opened. Press the START/PAUSE

button again to restart the wash cycle from the point at

which it was interrupted.

8. THE END OF THE WASH CYCLE. This will be

indicated by the text “END” on the display; when the

symbol switches off (wait approximately 3 minutes)

the door may be opened. Open the door, unload the

laundry and switch off the machine.

! If you wish to cancel a cycle which has already begun,

press and hold the button. The cycle will be stopped

and the machine will switch off.GB

Wash cycles and options

Table of wash cycles

Selecting this option enables you to suitably adjust drum

rotation, temperature and water to a reduced load of lightly

soiled cotton and synthetic fabrics (refer to the “Table of

wash cycles”). “ ” enables you to wash in less time

thereby saving water and electricity. We suggest using a

liquid detergent suitably measured out to the load quantity.

! It cannot be used with the 1, 2, 7, 8, 9, 10, 11, 12, 13, 14,

The function saves energy by not heating the

water used to wash your laundry - an advantage both to

the environment and to your energy bill. Instead, intensified

wash action and water optimisation ensure great wash

results in the same average time of a standard cycle.

For the best washing results we recommend the usage of

! It cannot be used with the 1, 7, 8, 9, 11, 12, 13, 14, ,

By selecting this option, the efficiency of the rinse is

increased and optimal detergent removal is guaranteed. It

is particularly useful for sensitive skin.

! It cannot be used in conjunction with the 11, ,

By selecting this function, the wash and spin cycles will be

modified in order to reduce the formation of creases. At the

end of the cycle the washing machine will perform slow ro-

tations of the drum; the indicator lights for the EASY IRON

and START/PAUSE options will flash (the first one green,

the second orange). To end the cycle, press the START/

PAUSE button or the EASY IRON button.

For the 9 wash cycles, the machine will end the cycle while

the laundry is soaking and the EASY IRON and START/

PAUSE indicator lights will flash. To drain the water so that

the laundry may be removed, press the START/PAUSE

button or the EASY IRON button.

! This function may not be used in conjunction with wash

cycles 8, 11, 12, 13, 14, , . 1) Test wash cycle in compliance with directive 1061/2010: set wash cycle 3 with a temperature of 60°C. This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for garments which can be washed at 60°C. The actual washing temperature may differ from the indicated value.2) Test wash cycle in compliance with directive 1061/2010: set wash cycle 4 with a temperature of 40°C. This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for garments which can be washed at 40°C. The actual washing temperature may differ from the indicated value.For all Test Institutes:2) Long wash cycle for cottons: set wash cycle 4 with a temperature of 40°C.3) Long wash cycle for synthetics: set wash cycle 6; with a temperature of 40°C. The length of cycle shown on the display or in this booklet is an estimation only and is calculated assuming standard working conditions. The actual duration can vary according to factors such as water

temperature and pressure, the amount of detergent used, the amount and type of load inserted, load balancing and any wash options selected. Wash cyclesDescription of the wash cycleMax. temp. (°C) Max. speed (rpm)DetergentsMax. load (kg)Residual dampness %Energy consumption kWh Total water ltCycle durationPrewash Wash Fabric softenerDaily 1 Cotton with prewash: extremely soiled whites. 90° 1200  5 53 1,82 64 150’ 2

Cotton: extremely soiled whites. 90° 1200 -

  5 53 1,90 60 135’ 3

Cotton Standard 60° (1): heavily soiled whites and resistant colours. 60° 1200 -

  5 53 0,88 47,5 160’ 4

Cotton Standard 40° (2): lightly soiled whites and delicate colours. 40° 1200 -

  5 53 1,09 92 150’ 5

Coloured Cottons: lightly soiled whites and delicate colours. 40° 1200 -

  5 53 0,53 50 90’ 6

Synthetics: heavily soiled resistant colours. 60° 800 -

  3 44 0,85 39 110’ 6

Synthetics (3): lightly soiled resistant colours. 40° 800 -

  3 44 0,53 39 100’ 7

Cotton Standard 20°: lightly soiled whites and delicate colours. 20° 1200 -

  5 - - - 180’Special 8 Wool: for wool, cashmere, etc. 40° 800 -   1 - - - 65’ 9

Silk/Curtains: for garments in silk and viscose, lingerie. 30° 0 -

  1 - - - 55’10 Jeans40° 800 -  

11 Express: to refresh lightly soiled garments quickly (not suitable for wool, silk and clothes which require washing by hand).30° 800 -  

1,5 71 0,08 29 15’ Sport12 Sport Intensive30° 600 -   3 - - - 85’13 Sport Light30° 600 -   3 - - - 60’14 Special Shoes30° 600 -   Max. 2 pairs- - - 55’Partial wash cycles Rinse - 1200 - -

 5 - - - 36’ Spin + Drain - 1200 - - - 5 - - - 16’10

GB Detergents and laundry

Detergent dispenser drawer

Good washing results also depend on the correct dose of

detergent: adding too much detergent will not necessa-

rily result in a more efficient wash, and may in fact cause

build up on the inside of your appliance and contribute to

environmental pollution.

! Do not use hand washing detergents because these

create too much foam.

! Use powder detergent for white cotton garments, for pre-

washing, and for washing at temperatures over 60°C.

! Follow the instructions given on the detergent packaging.

Open up the detergent

dispenser and pour in the

detergent and fabric softe-

compartment 1: Detergent for pre-wash (powder)

compartment 2: Detergent for the wash cycle

Liquid detergent should only be poured in immediately

prior to the wash cycle start.

! Do not use hand wash detergent because it may form

compartment 3: Additives (fabric softeners, etc.)

When pouring the softener in compartment 3, avoid exce-

eding the “max” level indicated.

The softener is added automatically into the machine

during the last wash. At the end of the wash programme,

some water will be left in compartment 3. This is used for

the inlet of denser fabric softeners into the machine, i.e. to

dilute the more concentrated softeners. Should more than

a normal amount of water remain in compartment 3, this

means the emptying device is blocked. The fabric softener

should not overflow from the grid.

compartment 4: do not pour detergent into this com-

Preparing the laundry

• Divide the laundry according to:

- the type of fabric/the symbol on the label

- the colours: separate coloured garments from whites.

• Empty all garment pockets and check the buttons.

• Do not exceed the values listed in the “Table of wash

cycles”, which refer to the weight of the laundry when

dry. How much does your laundry weigh? 1 sheet 400-500 g

1 pillow case 150-200 g

Cotton Standard 20° (wash cycle 7) ideal for heavily soiled

cotton loads. The effective performance levels achieved at

cold temperatures, which are comparable to washing at 40°,

are guaranteed by a mechanical action which operates at

varying speed, with repeated and frequent peaks.

Wool: all wool garments can be washed using programme

8, even those carrying the “hand-wash only” label. For

best results, use special detergents and do not exceed 1

Silk: use special wash cycle 9 to wash all silk garments.

We recommend the use of special detergent which has

been designed to wash delicate clothes.

Curtains: fold curtains and place them in a pillow case or

mesh bag. Use wash cycle 9.

Jeans: Turn garments inside-out before washing and use

a liquid detergent. Use programme 10.

Express: this wash cycle was designed to wash lightly

soiled garments quickly: it lasts just 15 minutes and the-

refore saves both energy and time. By selecting this wash

at 30°C), it is possible to wash different fabrics

together (except for wool and silk items), with a maximum

12): is for washing heavily

soiled sports clothing fabrics (tracksuits, shorts, etc.);

for best results, we recommend not exceeding the ma-

ximum load indicated in the “Table of wash cycles”.

13): is for washing lightly soiled

sports clothing fabrics (tracksuits, shorts, etc.); for best

results, we recommend not exceeding the maximum

load indicated in the “Table of wash cycles”. We recom-

mend using a liquid detergent and dosage suitable for a

14): is for washing sports

shoes; for best results, do not wash more than 2 pairs

Load balancing system

Before every spin cycle, to avoid excessive vibrations and

to distribute the load in a uniform manner, the drum rotates

continuously at a speed which is slightly greater than the

washing rotation speed. If, after several attempts, the load

is not balanced correctly, the machine spins at a reduced

spin speed. If the load is excessively unbalanced, the

washing machine performs the distribution process instead

of spinning. To encourage improved load distribution and

balance, we recommend small and large garments are

mixed in the load.GB

Your washing machine could fail to work. Before contacting the Technical Assistance Centre (see “Assistance”), make sure

that the problem cannot be not solved easily using the following list.

The washing machine does not

The wash cycle does not start.

The washing machine does not

take in water (“H2O” will flash on

The washing machine continuously

The washing machine does not

The washing machine vibrates a lot

during the spin cycle.

The washing machine leaks.

The “option” indicator lights and the

“start/pause” indicator light flash and

an error code appears on the display

There is too much foam.

Possible causes / Solutions:

• The appliance is not plugged into the socket fully, or is not making contact.

• There is no power in the house.

• The washing machine door is not closed properly.

• The ON/OFF button has not been pressed.

• The START/PAUSE button has not been pressed.

• The water tap has not been opened.

• A delayed start has been set.

• The water inlet hose is not connected to the tap.

• The water tap has not been opened.

• There is no water supply in the house.

• The pressure is too low.

• The START/PAUSE button has not been pressed.

• The drain hose is not fitted at a height between 65 and 100 cm from the floor

(see “Installation”).

• The free end of the hose is under water (see “Installation”).

• The wall drainage system is not fitted with a breather pipe.

If the problem persists even after these checks, turn off the water tap, switch

the appliance off and contact the Assistance Service. If the dwelling is on one of

the upper floors of a building, there may be problems relating to water drainage,

causing the washing machine to fill with water and drain continuously. Special

anti-draining valves are available in shops and help to avoid this inconvenience.

• The wash cycle does not include draining: some wash cycles require the drain

phase to be started manually.

• The “Easy iron” option has been activated: To complete the wash cycle, press

the START/PAUSE button (see “Wash cycles and options”).

• The drain hose is bent (see “Installation”).

• The drainage duct is clogged.

• The drum was not unlocked correctly during installation (see “Installation”).

• The washing machine is not level (see “Installation”).

• The washing machine is trapped between cabinets and walls (see “Installation”).

• The water inlet hose is not screwed on properly (see “Installation”).

• The detergent dispenser drawer is blocked (for cleaning instructions, see

“Care and maintenance”).

• The drain hose is not fixed properly (see “Installation”).

• Switch off the machine and unplug it, wait for approximately 1 minute and

then switch it back on again.

If the problem persists, contact the Technical Assistance Service.

• The detergent is not suitable for machine washing (it should display the text

“for washing machines” or “hand and machine wash”, or the like).

• Too much detergent was used.12

Before calling for Assistance:

• Check whether you can solve the problem alone (see “Troubleshooting”);

• Restart the programme to check whether the problem has been solved;

• If this is not the case, contact an authorised Technical Assistance Centre using the telephone number provided on the

guarantee certificate.

! Always request the assistance of authorised technicians.

Have the following information to hand:

• the type of problem;

• the appliance model (Mod.);

• the serial number (S/N).

This information can be found on the data plate applied to the rear of the washing machine.13

programme 3; programme

coton standard à 60°C.

programme 4; programme

2, 7, 8, 9, 10, 11, 12, 13, 14, , .

7, 8, 9, 11, 12, 13, 14, , ,

1, 2, 7, 8, 9, 10, 11, 12, 13, 14, , .

1, 7, 8, 9, 11, 12, 13, 14, , .

1. tire o painel de co-
