USER MANUAL WD 105 T (EX) 22060 INDESIT

Washer-driver Instructions for installation and use

Instructions for installation and use

F Lavante-sechante 15

Here are the 12 topics explained in this manual. Read, learn and have fun: you will discover many secret ways to get a better wash, more easily and making your washer-dryer last longer.

1. Installation and removal (p. 11)

Installation, after delivery or transport, is the most important operation for the correct functioning of your washer-dryer. Always check:

1. That the electric system conforms to regulations;

2. That the inlet and draining pipes are connected correctly. Never use pipes that have already been used.

3. That the washer-dryer is levelled properly; something worth checking to aid the performance of your washer-dryer:

4. That the drum's fixing screws have been removed from the back of the washer-dryer;

2. What goes in your washer-dryer and how to start it (p. 2)

A correct distribution of your laundry is vital to the successful outcome of the wash and the life of the washer-dryer. Learn all the tips and secrets to dividing your linen: colour, type of fabric.

3. Guide to understanding labels (p. 6)

The symbols on the labels of your garments are easy to understand and equally important for the success of your wash. The guide includes simple instructions to help you choose the right temperature, wash cycles and ironing methods.

4. Useful tips to avoid mistakes (p. 7)

Years back, our grandmothers were the ones who gave us good advice - and in those days synthetic fibres did not exist: washing was easy. Today, your washer-dryer offers you helpful advice allowing you to wash wool even better than an expert laundress would by hand.

5. The detergent dispenser (p. 8)

How to use the detergent dispenser and the bleach compartment.

6. Understanding the control panel (p. 3)

Washer-dryer's control panel is very simple. It has only a few essential buttons to help you choose any type of wash cycle, ranging from the most energetic, capable of cleaning a mechanic's overalls, to the most delicate for wool. Familiarising yourself with it will help you get the best out of your wash while helping your washer-dryer last longer. It's easy.

7. Guide to the wash programmes (p. 4)

Herein is an easy table to help you choose the right programme, temperature, detergents and possible additives. Choose the right programme and you will get better results with your wash while saving time, water and energy, day after day.

8. How to dry (p. 5)

A few handy tips to get the best drying cycle from your appliance.

9. Care and maintenance (p. 12)

With just a bit of care, it will repay you with loyalty and devotion. With the necessary upkeep, it will wash for years and years to come.

10. Problems and solutions (p. 9 and 10)

Before calling a technician, read these pages: immediate solutions may be found for a number of problems. If the problem persists, call your local Indesit customer services who will be pleased to help. Any failure will be repaired, as soon as possible.

11. Technical characteristics (p. 10)

Herein are the technical features of your washer-dryer: model type number, electric and water specifications, size, capacity, speed of the spin cycle and compliance with Italian and European regulations.

12. Safety for you and your family (p. 13)

Here you will find the necessary safety guidelines, and it is important for you to read this section carefully.

What goes in your washer-dryer?

Before washing, you can do a great deal to ensure better results. Divide your garments according to fabric and colour. Read the labels, follow their guidelines.

Before washing.

Divide your washing according to the type of fabric and colour fastness.

Empty all pockets (coins, paper, money and small objects) and ensure all loose buttons are repaired or removed prior to loading.

The labels say it all.

Always look at the labels: they tell you everything about your garment and how to wash it in the best possible way.

The table on page 6 shows all meanings behind these symbols. Their recommendations are important to achieve better wash results.

Big and small happily together.

This washer-dryer has a special electronic control device for even distribution: before the spin cycle starts, this device allows the garments to positions themselves, to minimise noise and vibrations during the spin cycle.

Starting the washer-dryer

After installing your new washer-dryer, start a wash cycle by setting programme "1" at 90 degrees.

Starting your washer-dryer in the right way is important for the quality of your wash, to help prevent future problems and enhance life expectancy of your appliance. Once you have loaded your washer-dryer and added the detergent together with any fabric conditioner, always check that:

1. The door is closed correctly.
2. The plug is secured in the socket.
3. The water supply is turned on.
4. Selector knob A is positioned on one of the symbols (Stop/ Reset).

Choose the desired programme The programme is selected according to the type of garments that need to be washed. To choose a programme, refer to the table on page 4. Turn knob A until the selected programme is aligned with the mark on the knob, turn knob B to the desired temperature settings, check that knob C is in the desired position, if necessary use buttons E,F,G, H and lastly, press on/off button I (position).

Remember that, if you want to use it, the "programmed start" should be set before the wash cycle.

At the end of the wash cycle... Lamp L will flash quickly for a few seconds, then it will begin flashing more slowly.

Then turn the washer-dryer off by pressing on-off button I position). You can now open the washer-dryer door safely.

After having removed the freshly cleaned washing, leave the door open to allow air circulation inside the drum.

Always disconnect electricity at the socket and turn off the water supply.

Remember that, in the event of a power failure, or should the washer-dryer switch itself off, the programme chosen will remain in its memory.

How to eliminate the most common stains

Ink and biro Dab with a wad of cotton soaked in methyl alcohol or alcohol at 90^

Tar Dab with fresh butter, rub in turpentine then wash immediately.

Wax Scrape away, then run a hot iron between two sheets of absorbent paper. Then rub in cotton with turpentine or methyl alcohol.

Chewing gum Rub in nail polish remover and wipe with a clean rag.

Mold Cotton and white linen should be placed in a solution of 5 parts water, one bleach and a spoon of vinegar, then washed immediately. For other white fabrics, use hydrogen peroxide at 10 volumes and wash immediately.

Lipstick Dab with ether on wool or cotton. Use tricloroetilene for silk.

Nail polish Place a sheet of absorbent paper on the side of the stain, wet it with nail polish remover, shifting the garment as the sheet gradually changes colour.

Grass Dab with a wad of cotton soaked in methyl alcohol.

Understanding the control panel

Here I’m in command

Making the right choice is important. And it's easy.

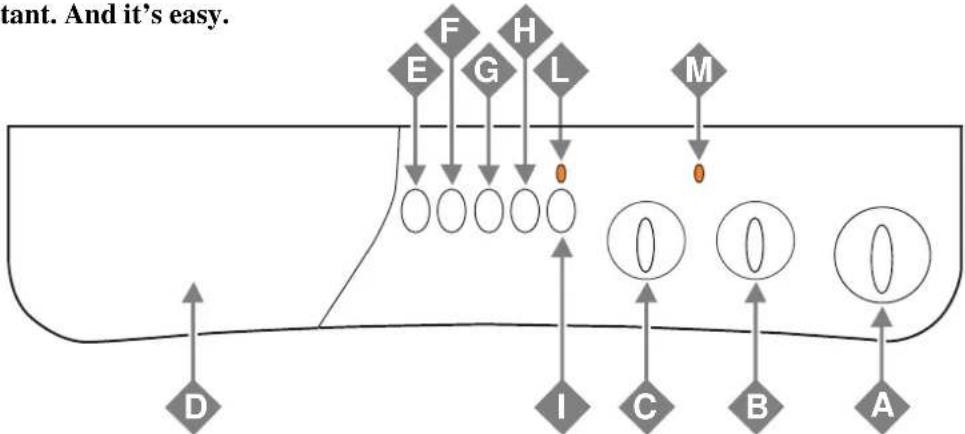

Programme selector knob and programmed start

Use this knob to select the wash programme.

Turn this knob clockwise only.

To select a programme, you should turn the knob so that the symbol/number of the desired programme is in line with the pointer on the knob.

Now press on/off button I (position), pilot lamp L will start flashing. After 5", the setting will be accepted, pilot lamp L will stop flashing (staying lit) and the wash cycle will begin.

Should you wish to interrupt the programme in progress or set a new one, select one of the symbols (Stop/Reset) and wait 5^ : when the cancellation has been accepted, pilot lamp L flashes, and you can then turn the appliance off.

You can use this knob to delay the appliance's operation.

Select one of the 3 delay time positions, press the on/off button I (position) and wait 5^ . The setting has now been accepted (pilot lamp L stays lit) and you can select the programme you desire.

Pilot Jamp L has a particular flashing motion (2 on and 4 off) to indicate that a delayed start has been set

During this phase you can open the appliance door and change the washing pad should you

After the wash cycle has been set and accepted by the washer-dryer, turning the knob will have no effect (except for when it is on position Stop/Reset).

The detergent dispenser with the additional bleach compartment is here

Temperature control knob

It is used to set the wash temperature in the recommended programme table on pag. 4. It also allows you to reduce the temperature recommended for the selected programme, and even to set a cold wash cycle (8).

Drying cycle knob

Use this knob to select the desired drying cycle. Two options are available:

A - Based on time:

From 40 minutes to 150.

B - Based on the damp level of the dry clothes:

Iron :slightly damp clothes, easy to iron.

Wardrobe dry clothes to put away.

Extra dry very dry clothes, recommended for towelling and bathrobes.

A cooling stage is foreseen at the end of the drying cycle.

Detergent dispenser

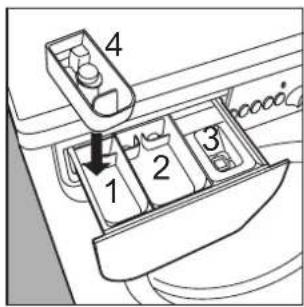

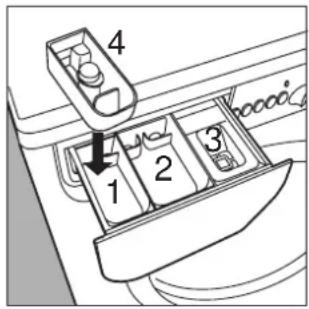

It is divided into 3 compartments:

1.Detergent for pre-wash;
2.Detergent for the main cycle wash;
3. Fabric conditioner.

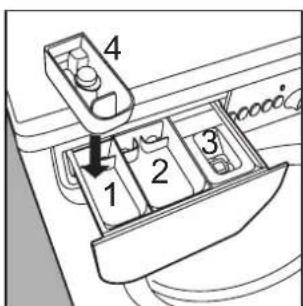

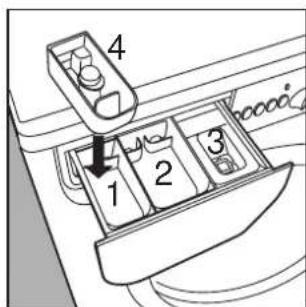

The washer-dryer is equipped with an extra compartment 4 (provided as an accessory) for the bleach, to be inserted in compartment 1.

Easy iron

This function allows your washing to come out of the machine without creases, making it much easier to iron.

You can use it with programmes 3-4 (Cotton), 5-6 (Synthetics) and 9 (Delicates).

Press this button in programmes 5-6-9 and the was cycle will come to a stop on symbol. You can complete it by pressing button E again.

Notes:

this function should not be used when button H (stain removal) has been pressed

If you also want to run the drying cycle' this button is enabled only if combined with level (Iron)

Slow spin

Use this button to reduce the spinning speed from 1000 to 500 rpm for the cotton and linen programmes and from 850 to 500 rpm for the synthetic fabrics programmes.

Rapid wash

This button reduces the length of the wash programme by about 30% . It cannot be used with special programmes (see page 4) or those for wool and silk.

Stain removal (see page 8)

Thanks to this command, the washer-dryer will carry out a more intensive wash that optimises the effectiveness of the liquid additives, thus allowing more resistant stains to be removed. When you press the stain removal button, you cannot activate the pre-wash.

On-off

When button I is pressed, the washer-dryer is switched on, when it is not the machine is switched off.

Turning the appliance off does not cancel the selected programme.

On-off lamp / door locked

Lamp L flashes slowly when the appliance is switched on and awaiting instructions and at the end of a cycle, indicating that the door can be opened. It flashes quickly when the door should not be opened. A steady light means the appliance has accepted the selected programme.

Drying cycle lamp

When this lamp is on, it means that knob C has been set on a drying cycle and at the end of the wash cycle, the appliance will run the selected tumble drying cycle.

What are you washing today?

A programme for all seasons

Type of fabric and degree of soil Programme knob	Temperature knob	Detergent for wash	Fabric softener	Stain rem. button/ Bleach	Length of the cycle (minutes)	Description of wash cycle
COTTON
Exceptionally soiled whites sheets, tablecloths, etc.)	1 90°C				165	Prewash cycle, wash cycle at 90°C, rinse cycles, intermediate and final spin cycles
Exceptionally soiled whites sheets, tablecloths, etc.)	2 90°C			Del./Trad.	145	Wash cycle at 90°C, rinse cycles, intermediate and final spin cycles
Heavily soiled whites and fast colours	3 60°C			Del./Trad.	130	Wash cycle at 60°C, rinse cycles, intermediate and final spin cycles
Slightly soiled whites and delicate colours (shirts, jumpers, etc.)	4 40°C			Del./Trad.	95	Wash cycle at 40°C, rinse cycles, intermediate and final spin cycles
Rinse cycles/Bleach				Del./Trad.		Rinse cycles, intermediate and final spin cycles
Spin cycle Draining and final spin cycle
Drying cycle for cotton fabrics
Stop/Reset						Interrupts/Cancels the selected programme
SYNTHETICS
Heavily soiled fast colour synthetics (baby linen, etc.)	5 60°C			Delicate	100	Wash cycle at 60°C, rinse cycles, anti-crease or delicate spin cycle
Delicate colour synthetics (all types of slightly soiled garments)	6 40°C			Delicate	70	Wash cycle at 40°C, rinse cycles, anti-crease or delicate spin cycle
Delicate colour synthetics (all types of slightly soiled garments)	7 30°C				30	Wash cycle at 30°C, rinse cycles and delicate spin cycle
Rinse cycles/Bleach				Delicate		Rinse cycles, anti-crease or delicate spin cycle
Fabric softener						Rinse cycles with automatic introduction of softener, anti-crease or delicate spin cycle
Spin cycle Draining and delicate spin cycle
Drying cycle for synthetic fabrics
Stop/Reset						Interrupts/Cancels the selected programme
DELICATES
Hand wash	8 40°C			Delicate	45	Wash cycle at 40°C, rinse cycles and delicate spin cycle
Particularly delicate garments and fabrics (curtains, silk, viscose, etc.)	9 30°C				50	Wash cycle at 30°C, rinse cycles, anti-crease or draining
Rinse cycles						Rinse cycles, anti-crease or draining
Spin cycle Draining and delicate spin cycle
Draining Draining
Drying cycle for wool
Stop/Reset						Interrupts/Cancels the selected programme
PROGRAMMED START
12 - 9 - 3 hour delay Start is delayed by 12 - 9 - 3 hours
Stop/Reset						Interrupts/Cancels the selected programme

Important: to cancel the wash programme you have just set, select one of the symbols (Stop/Reset) and wait for at least 5 seconds.
The data found in the table is purely indicative and can vary according to the quantity and type of washing the water system temperature and the room temperature

Special programme

Daily wash Your washer-dryer has a programme available for the washing of lightly soiled garments in a short amount of time. By setting programme 7 at a temperature of 30^ you can wash different types of fabrics together (except for wool and silk), with a maximum load of 3 kg. This programmes allows you to save on both time and energy as it only lasts around 30 minutes. WE RECOMMEND THE USE OF LIQUID DETERGENT.

How to dry

A combined Washing and Drying Programme

Look at table A to the side and follow the instructions provided for MAX load to have an automatic washing and drying cycle.

Follow the instructions for wash only (see page 2, the paragraph entitled "Starting the Washer-Dryer") and use knob C to set the type of drying cycle desired, then press button I (position).

If the laundry load to be washed and dried exceeds the maximum load foreseen (see table A), then follow the instructions provided for wash only (see page 2, the paragraph entitled "Starting the Washer-Dryer").

When the wash cycle has finished, remove your washing, divide it up and replace part of it inside the drum.

Now follow the instructions provided for a dry only cycle. Repeat this procedure for the remainder of the load.

Dry only

Once you have loaded the washing that needs drying (4 kg max. for cottons, see table for other fabrics), make sure that:

• the door is shut correctly;

• the plug is inserted in the socket;

• the water tap is turned on;

• button I has not been pressed (O position).

And now set the wash cycle knob

Set knob A on the appropriate drying setting depending on the type of fabric, select the type of drying cycle required using knob C and then press on-off button I (position).

At the end of the drying cycle... Wait for lamp L to flash slowly, then turn the washer-dryer off by pressing on-off button I

position). Now you can open the appliance door. Once you have removed the washing from the appliance, leave the door open or ajar to avoid the formation of bad odours and turn off the water tap.

A.

Fabric type	Load type	Max. load (kg)	Drying time (Min.)
			Extra dry	Wardrobe Iron
Cotton, Linen	Clothing of different sizes	4 150	145	140
Cotton	Terry towels	4 150	145	140
Terital, Cotton	Sheets, Shirts	2,5	100	90 85
Acrylics	Pyjamas, socks, etc.	1	65	60	60
Nylon	Slips, tights, stockings, etc.	1	65	60	60

The data contained in the table are purely indicative

For cotton loads of less than 1 Kg, use the drying programme designed for synthetic fabrics.

WOOLDRYINGCYCLE

The woollen garments drying cycle should only and exclusively be run together with the selection of a specific cycle time (150 - 100 - 60 - 40 minutes). We recommend a 60 minute drying cycle for a 1kg load.

If one of the three levels (Extra dry, Wardrobe, Iron) is selected by mistake, the appliance will run a drying cycle lasting the MAX time foreseen (150 minutes).

IMPORTANT

A spin cycle is carried out during the drying if you have set a cotton programme and a level of dryness (Extra dry, Wardrobe Iron).

WARNING

• During the drying phase, the door tends to get quite hot.

• Do not use the appliance to dry clothes that have been washed with flammable solvents (e.g. trichlorethylene).

• Do not use the appliance to dry foam rubber or similar elastomers.

• Make sure that the water tap is turned on during the drying cycles.

• This washer-dryer can only be used to dry clothes which have been pre-washed in water.

Understanding labels

Learn the meaning of these symbols and you will get better results, your garments will last longer resulting in an improved wash.

All over Europe, garment labels contain messages expressed in small yet important symbols. Understanding them is very important if you want to get better results and treat your garments the way they deserve to be treated.

These symbols are divided in five different categories and shapes: washing, bleaching, ironing, dry cleaning and drying

Useful tips

Turn shirts inside out to get better results and make them last longer.

Always empty pockets of their contents.

Look at the label: it will always give you useful advice.

When loading your washing, try to have a mixture of large to small items.

Make sure you select the right temperature!

Consult and learn the symbols in this table: they will help you obtain a better wash, treat your clothes properly, and get a better performance out of your washer-dryer.

Wash Bleaching	Ironing Dry cleaning	Drying	O
Strong action	Delicate action			High Temp Low Temperat
Wash at 95°C	Bleaching only in cold water	Hot iron at max 200°C	A Dry clean with any solvent Machine	dryable
Wash at 60°C Do not bleach		Medium hot ironing at max 150°C	P Dry clean only with perchloride, benzine av., pure alcohol, R111 and R113	Do not machine dry
Wash at 40°C	not dry clean	Iron at max 110°C	F Dry clean with av. benzine, pure alcohol and R113 Spread	to dry
Wash at 30°C Not ironable Do				Hang to dry without spin drying
Hand wash				Dry on clothes hanger
Not washable in water

Useful tips

Never use your washer-dryer to wash... torn, fraying or non-hemmed linen. If it is absolutely neccessary, place it in a bag for protection. Do not wash coloured linen with whites.

Watch the weight!

For best results, do not exceed the weight limits stated below (figures show weight of dry garments):

How much does it weigh?

1 sheet 400-500 gr.
1 pillow case 150-200 gr.
1 tablecloth 400-500 gr.
1 bathrobe 900-1,200 gr.
1 towel 150-250 gr.

Coloured T-shirts, printed ones and shirts last longer if turned inside out before washing. Printed T-shirts and sweatshirts should always be ironed inside out.

Holidays: unplug the appliance.

It is recommended that you should unplug the machine from the socket and turn off the water supply. Leave the door ajar to allow air circulation to the draw and the door gasket area. This will prevent unpleasant odours.

Resistant fabrics: 5.5 kg maximum
Synthetic fabrics: 2.5 kg maxiumm
Delicate fabrics: 2 kg maximum
pure new woof. 1 kg maximum

Dungaree alert.

Very popular "salopette" type overalls have straps with hooks that can damage the drum of your washer-dryer or other garments during the wash. To minimise the risk, place hooks in the pocket and fasten with safety pins.

WOOL CYCLE

For best results, we recommend you use a specific detergent, taking care not to wash more than 1kg of laundry.

How to wash almost anything

Curtains.

Curtains tend to crease a great deal. A useful tip to reduce creasing: fold the curtains and place them in a pillow case or mesh bag. Do not load anything else inside the appliance, this will ensure that the overall weight does not exceed the half load. Remember to use the specific programme 9 which automatically excludes the spin cycle.

■ Quilted coats and anorak.

You can wash quilted coats and wind-cheaters, too, if they are padded with goose or duck down. Do not load more than 2-3 kg and never load 5,5 kg. Repeat rinse once or twice using the gentle spin.

Trainers.

Once you have removed mud and dirt from trainers, you can even wash them with jeans or any other tough garments. Do not wash trainers with whites.

It's important for a good wash

Useful tips about the detergent dispenser

The first secret is the easiest: the detergent dispenser is opened by pull it outwards.

You must follow the dosage recommendations provided by the manufacturers when adding detergent or fabric conditioner. Doses will vary according to the wash load, the water hardness and how soiled the washing is. Experience will help you select the right dosage almost automatically: it will become your secret.

Before adding detergent for prewashing in compartment 1, make sure that the extra compartment for bleach 4 has not been inserted.

Ensure no overfilling when adding fabric conditioner in compartment 3.

The washer-dryer automatically adds the softener to the wash in each programme.

Liquid detergent is poured into compartment 2 just a few seconds before starting the wash cycle.

Remember that liquid detergent is only designed for wash cycles of up to 60 degrees on non pre-wash items.

Special containers are sold with liquid or powder detergents for placing inside the washer-dryer drum, these are positioned according to the instructions found in the detergent box

Never use hand wash detergent, because it may form too much foam, which could damage the washer-dryer.

Detergents that are specifically formulated for both hand and machine wash are an exception.

One last secret: when washing with cold water, always reduce the amount of detergent you use: it dissolves less easily in cold water than in hot water, so part of it would be wasted.

The detergent dispenser can be removed and cleaned: pull it outwards, as indicated in the figure. Then leave it under running water for a few minutes.

In compartment 1:

Detergent for pre-washing (powder)

In compartment 2:

Detergent for washing

(powder or liquid)

In compartment 3:

Additives (softeners, perfumes, etc.)

In compartment 4:

Bleach and delicate bleach.

Bleach cycle and stain removal

button

bleaching is necessary, the extra case 4 (provided) must be inserted into compartment 1 of the detergent dispenser.

When pouring in the bleach, be careful not to exceed the "max" level indicated on the central pivot (see illustration).

The use of the additional bleach container excludes the possibility of using the pre-wash cycle. Traditional bleach can only be used on sturdy white fabrics, whereas delicate bleach can be used for coloured fabrics, synthetics and for wool.

You cannot bleach with the "Silk" programme and with the "special programmes" (see page 4).

Use the stain removal button every time you want to bleach. Should you want to do it separately you must pour the bleach into the additional container 4, press button H (stain removal), start the washer-dryer, then select one of the symbols according to the type of fabric.

When you bleach during a normal wash cycle, pour the detergent and any additives in the special compartments, press button H (stain removal), set the programme you desire and turn the washer-dryer on.

Cutting costs efficiently

A guide to environmentally friendly and economic use of your appliance.

MAXIMISE THE LOAD SIZE

Achieve the best use of energy, water, detergent and time by using the recommended maximum load size.

SAVE up to 50% energy by washing a full load instead of 2 half loads.

DO YOU NEED TO PRE-WASH?

For heavily soiled laundry only!

SAVE detergent, time, water and between 5 to 15% energy consumption by NOT selecting Prewash for slight to normally soiled laundry.

IS A HOT WASH REQUIRED?

Pretreat stains with stain remover or soak dried in stains in water before washing to reduce the necessity of a hot wash programme.

SAVE up to 50% energy by using a 60^ wash programme.

BEFORE USING A DRYING PROGRAMME ...

SAVE energy and time by selecting the highest suitable spin speed to reduce the water content in laundry before using a drying programme.

Troubleshooting

Before calling, read the following

In most cases, when your washer-dryer fails to work, the problems arising can be easily solved without having to call for a technician. Before calling for assistance, always check these points.

The washer-dryer fails to start.

Is the plug correctly inserted into the socket? It could have been moved whilst cleaning.
Is there electricity in the house?

A circuit breaker may have switched off as a result of too many electrical appliances working at the same time. Or maybe due to a general failure in your entire area.

Is the washer-dryer door closed properly?

For safety reasons, the washer-dryer cannot work if

the door is open or not shut properly.

■Is the On/Off button pressed?
If it is, then a programmed start has been set.
Is the programmed start knob, in the correct position for those models concerned?
Is the water supply turned on? For safety reasons, if the washer-dryer does not load water, it cannot start a wash cycle.

RIGHT WRONG

Turn off the water supply after use. This will eliminate the possibility of leakage.

Always leave the appliance door ajar to avoid bad odours.

Clean the appliance's exteriors gently. To clean the exteriors and the rubber parts of the appliance, always use a soft cloth dipped in warm and soapy water.

Leave the washer-dryer plugged in while cleaning. Even during maintenance, the appliance should always be unplugged.

Use solvents and aggressive abrasives. Never use solvents or abrasives to clean the external and rubber parts of the washer-dryer.

Neglect the detergent dispenser. It is removable and can easily be cleaned by leaving it under running water.

Go on holiday without thinking about her. Before leaving, always make sure that the washer-dryer is unplugged and that the water supply is turned off.

But where did all the water go?

Simple: with the new Indesit technology, you need less than half of it, to get good results on twice as much! This is why you cannot see the water through the door: because there is little, very little of it, to respect the environment yet without renouncing maximum cleanliness. And, on top of that, you are also saving electricity.

off, select one of the symbols stop/reset then switch it back on. If the knob continues to turn, call for assistance because it is showing an anomaly.

The washer-dryer fails to fill with water.

Is the hose correctly connected to the tap?
Is there a water shortage? There could be work in progress in your building or street.
Is there sufficient water pressure? The autoclave may be malfunctioning.
Is the tap filter clean? If the water is very calcareous, or if work has recently been carried out on the water piping, the tap filter could be clogged with particles and debris.
Is the rubber hose kinked? The tract of the rubber hose bringing water to washer-dryer must be as straight as possible. Make sure it is not squashed or kinked.

The programme selector knob keeps turning?

Wait a few minutes for the drain pump to empty the tub, switch the washer-dryer

The washer-dryer continuously fills and drains water.

Is the drain hose positioned too low? It must be installed at a height ranging from 60 to 100cm
Is the end of the hose immersed in water?
Does the wall drainage system have a breather pipe? If the problem persists even after these checks, turn the water supply off the machine and call for assistance.

If you live on an upper floor of your building, there may be a problem with your drain trap. To solve this problem, a special valve must be installed.

The washer-dryer does not drain or spin.

Is the drain hose kinked? The tract of the drain hose must be as straight as possible. Make sure the drain hose is not squashed or kinked.
Is the washer-dryer's drain duct clogged? Is there an extension of the drain hose? If so, is it positioned incorrectly, blocking the water flow?

Is there space between the machine and adjacent units? If it is not a built-in model, the washer-dryer will oscillate a bit during the spin cycle. A few cm of space should therefore be left around it.

The washer-dryer leaks.

Is the metal ring of the inlet hose properly attached? Turn off the water supply, unplug the appliance and try tightening its attachment without forcing it.
Is the detergent dispenser obstructed? Remove and wash it under tap water.
Is the drain hose well attached? Turn off the water supply, unplug the appliance and try tightening its attachment.

Too much foam.

Is the detergent appropriate for machine washing? Check whether the definition on its label reads "for machine wash" or "hand and machine wash", or any other similar wording.
Is the correct amount being used? An excessive amount of detergent, besides producing too much foam, does not guarantee a more effective wash, and causes scaling in the internal parts of the appliance.

The washer-dryer does not dry.

Check whether:

the plug has been correctly inserted into the socket; there is electricity in your home; the appliance door has been shut properly; a delayed start (if available) has not been selected; programme knob A has been set to position (Stop/Reset); the drying cycle knob C has been set to position 0.

Technical characteristics

Model	WD 105 T
Dimensions	width 59,5 cmheight 85 cmdepth 53,5 cm
Capacity	from 1 to 5,5 kg for the wash programme; from 1 to 4 kg for the drying programme
Electrical connections	voltage 220 Volt 60 Hzmaximum absorbed power 1750 W
Water connections	maximum pressure 1 MPa (10 bar)minimum pressure 0,05 MPa (0,5 bar)drum capacity 46 litre
Spinning speed	up to 1000 rpm
Control programs in compliance with IEC regulation 456	wash : programme 3; temperature 60°C; carried out with 5 kg load.drying: run with a load of 2.5 kg and knob C set to position .
CE	This appliance conforms with the following E.E.C. directives:- 73/23/EEC of 19/02/73 (Low Voltage) and subsequent modifications- 89/336/EEC of 03/05/89 (Electromagnetic Compatibility) and subsequent modifications

The washer-dryer doesn't dry properly.

Check whether:

the end of the drain hose is underwater; the drain pump is obstructed; the advice given on the maximum loads has been taken; the water tap has been turned on.

If, despite all checks, the washer-dryer fails to function and the problem persists, call your nearest authorised Customer Service Centre, providing the following information:

• the nature of malfunction
• the model type no. (Mod. ...)
• the serial number (S/N ....)
  This information can be found on the data plate situated at the back of the washer-dryer.

Installation and removal

When the new washer-dryer arrives

Whether new or just transported to a new house, installation is extremely important for the correct functioning of your washer-dryer.

After removing the appliance from its packaging, check that it is intact. If in doubt, contact a qualified technician immediately. The inside of the machine is supported, for transportation, by four screws on the back panel.

Before using the washer-dryer, remove the screws, remove the spacers together with the rubber tubes attached to them (keeping all the parts) and use the plastic plugs provided to fill in the holes. Important: Use the cap (provided) to close the 3 holes which housed the stoppin, situated in the right-hand part of the lower back of the washer-dryer.

Levelling

The washer-dryer must be levelled appropriately in order to guarantee its correct functioning. To level the appliance, the front feet must be adjusted; the angle of inclination, measured according to the worktop, must not exceed 2^ . When placed on carpet, make sure the ventilation is not reduced.

The front feet are aafstable

Retain the transit screws, spacers and washers. Should you move house then these should be replaced to support the inside of the machine to prevent damage when transporting the machine.

Connection to the water mains

Water pressure must range within the values indicated on the data plate on the rear of your washer-dryer. If the water pipes are new or left unused, then before connecting the machine run the water until clear to remove debris. Connect the inlet hose to a cold water tap having a 3/4 BSP thread. Ensure that the rubber sealing washer-dryers are fitted at each end of the inlet hose, with the fitter washer-dryer at the tap end.

The rubber gasket

Connect the inlet hose to the threaded connector on the machine rear.

Water pipe inlet at the top right

Connecting the drain hose

There are two hooks (right or left) on the rear of your washer-dryer to which the drain hose is to be fixed. Insert the other end in a stand pipe or place it on the edge of a sink or tub avoiding excessive kinks and bending. It should be placed at a height ranging from 60 to 100cm . If it is necessary to fix the end of the hose at a height below 60cm from the ground, it must be fixed in the appropriate hook placed on the upper part of the back panel.

The hook to be used in case the drain hose ends at a height below 60 cm

If the drains hose empties into a tub or sink then fit the plastic guide and secure it to the tap.

The guide for draining into tubs and

The end of the drain hose must be positioned so that it cannot become submerged.

Extensions are unadvisable. In case of absolute need, the extension must have the same diameter as the original hose and must not exceed 150~cm . In case of wall draining pipes, their efficiency must be checked by a qualified technician. If the dwelling is on one of the upper floors of a building, there may be drain trap problems causing the washer-dryer to load and unload water continuously.

In order to avoid such an inconvenience, special anti-drain trap valves are available in shops.

Electric connection

Before connecting the appliance to the electric socket, be sure that:

1) the electric socket is able to sustain the appliance's maximum power load indicated on the data plate and in compliance with the law;
2) the supply voltage is included within the values indicated on the data plate;
3) the socket is compatible with the appliance's plug. If not, do not use adapters, but replace either the socket or the plug;
4) electric household appliances must be equipped with an "earthing" system.

Warning!

The company denies all liability if and when these norms are not respected.

Plastic bags, expanded styrofoam, nails and other packaging parts are not children's toys, and are potentially dangerous.

Easy Care and Maintenance

Treat your machine well and it will provide many years of trouble free service

Your washer-dryer is a reliable companion in life and on the job. It is just as important for you to keep it in shape.

Your washer-dryer is designed to provide reliable service over many years. A few simple steps will help to prolong its life and avoid problems. It is advisable, to turn off water taps when the machine is not to be used, this protects the hoses, etc.

If the water in your area is too hard, use a deliming product (water is hard if it often leaves whitish stains around taps or drains, especially of bath tubs.

For more accurate information as to the type of water in your system, call the local water works or a local plumber).

Pockets must always be emptied removing even pins, badges and any other hard object.

The washer-dryer exterior should be cleaned with a rag dipped in lukewarm water and soap.

It is important to wash the detergent dispenser regularly. To prevent dried washing powder from accumulating, place the dispenser under running water for a few minutes.

Never exaggerate with doses.

Normal detergents already contain deliming agents. Only if the water is particularly hard, that is, rich in lime content, do we recommend the use of a specific product at every wash. A periodical wash cycle with a dose of a deliming product, without detergents or washing, may prove useful.

Never use too much detergent or additives because this could cause an excess amount of foam, scaling and possible damage to the component parts of your washer-dryer.

Do not forget to empty all pockets: small objects can cause damage to your washer dryer

When in need, check the pump and the rubber hose.

The washer-dryer comes equipped with a self-cleaning pump that does not require any cleaning or maintenance. Small objects may accidentally fall into the pump: coins, hair clips, loose buttons and other small items. To avoid possible damage, they are withheld in an accessible pre-chamber, situated at the lower end of the pump.

Attention: Before attempting to examine this pre-chamber, first ensure that the machine has finished its programme and is empty. Unplug the machine, as with any maintenance.

To gain access gently ease down the top of the plinth panel situated at the base of the machine, with a screwdriver etc, to release it. Then ease the top edge forward to allow it to be lifted clear (Fig. 1). Place a shallow dish or tray below the cover of the pre-chamber to catch the small amount of water present. Release the cover by turning anticlockwise (Fig. 2). Ensure that the cover is securely replaced.

Re-fit the plinth cover by inserting the hooks on its lower edge into the slots and ease the top edge back into position.

The water inlet hose

Check the rubber hose at least once a year. If you see any cracks, replace it immediately. When you use your washer-dryer, water pressure is very strong and a cracked tube could easily split open.

Important for the safe use of your washer-dryer

Your safety and that of

your family

Your washer-dryer has been built in compliance with the strictest international safety regulations. To protect you and all your family.

Read these instructions and all the information in this manual carefully: they are an important source, not only of numerous useful tips, but also of vital information on safety, use and maintenance.

1. the machine should not be installed in an outdoor environment, not even when a roof shelters the area, because it may be very dangerous to leave it exposed to rain and thunderstorms.

2. It must only be used by adults and exclusively for washing clothes following the instructions provided in this manual.

3. Should it have to be moved, proceed with the help of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy.

4.Before loading the washer-dryer, make sure the drum is empty.

1. Never touch the washer-dryer when barefoot or with wet or damp hands or feet.

2. Never use extensions or multiple plugs, which are particularly dangerous in humid environments. The power supply cable must never be bent or dangerously compressed.

3. Never open the detergent dispenser while the appliance is functioning; do not use hand wash detergent because the abundance of foam could damage its internal parts.

4. Never pull on the supply cable or the washer-dryer to disconnect it from the wall socket: it is extremely dangerous.

5. While the appliance is functioning, do not touch the drain water as it could reach very high temperatures. The appliance door, during wash cycles, tends to become hot; ensure that children do no touch it. Never force the washer-dryer door because this could damage the safety lock which prevents accidental opening when the machine is working. Allow a few minutes at the end of the program for the lock to release.
6. In case of malfunctioning, first close the water tap and unplug the appliance from the wall socket; do not under any circumstances touch internal parts in order to attempt repairs.

How to change the power supply cable

The washer-dryer power supply cable is special and can be purchased exclusively from authorised Technical Service Centres.

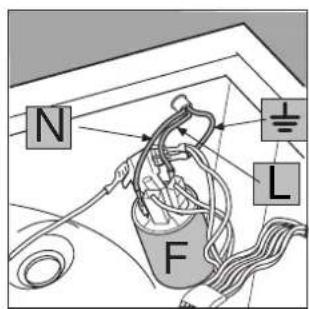

To replace the cable: 1. Make sure that the machine is switched off and unplugged.

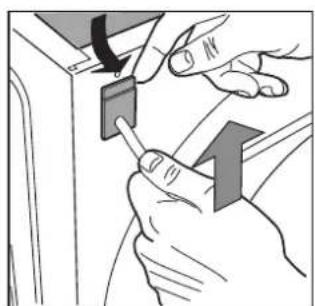

1. Remove the covering lid by unscrewing the two screws I, and then pull it towards you [fig. 3]. 3. Disconnect the wires from the radio interference suppressor F [fig. 4] noting as to their position (Blue=N wire; Brown=L wire) leaving the earth wire until last N.B.: letters L, N and the

symbol are indicated on the radio interference suppressor. 4. Remove the upper part of the cable slightly from the back panel of the appliance, pull the power supply cable upwards and take it out [fig.5]. To connect the new power supply cable, reverse the procedure.

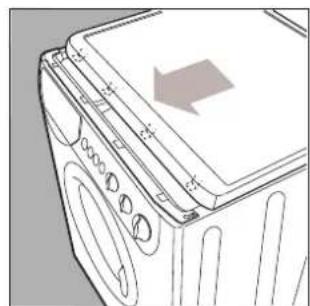

To put the covering lid back on, rest it on the washer-dryer [fig. 6] and let it slide forwards until the hooks situated on the front slide into the special slots formed into the control panel and tighten the screws back on.

Fig. 3

Fig. 4

Fig. 5

Fig. 6

Guide rapide

Dispositif antibalourds.

Additifs (assouplissants,

parfums, etc.)

Bac4:

Comprender as etiquetas

J 1
J 1
J 1
J 1
J 1
J 1
J 1

#

3 2

3
A 4
(Stop) (Stab) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a)

90 1"
y 2
y j 2
j 2
j 2
j 2
j 2
j 2
j 2
j 2
j 2
j 2
j 2
j 2
j 2
j 2
j 2
j 2
j 2
j 2
j 2
j 2
j 2
j 2
j 2
j 2
j 2
j 2
J 2
J 2
J 2
J 2
J 2
J 2
J 2
J 2
J 2
J 2
J 2
J 2

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60

15 55

Jus 1 Jus 1 Jus 1 Jus 1 Jus 1 Jus 1

S = S_1

（）4-3 9（）6-5
9-6-5 21 21
S. 00000000000000000000000000000000000000000000000

：

15 15
15
15

y 500 1000
a 2000
a 8000
a 8000
a 8000
a 8000

aee

1.4. 1.2.3.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.42.43.44.45.46.47.48.49.50.51.52.53.54.55.56.57.58.59.60.61.62.63.64.65.66.67.68.69.70.71.72.73.74.75.76.77.78.79.80.81.82

j 1

m = 311

J 1

A 40

B

SUV

中

[ - 1]

S_ ACD = 12 · CD · AC = 12 × AC × 5

suguiu

y 1 y 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

（Stop/Reset）（

L 2000

jai 1sabai SSe 2a#u
Jauai jai Jai ai aiaai SSe
Jai

（）

L 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

(Stop/Reset)

###	###	###	###	###	###	###	###
###	###	###	###	###	###	###	###
###	###	###	###	###	###	###	###
###	###	###	###	###	###	###	###
###	###	###	###	###	###	###	###
###	###	###	###	###	###	###	###
###	###	###	###	#	#	#	#
###	###	###	###	#	#	#	#
###	###	###	###	#	#	#	#
###	###	###	###	#	#	#	#
###	###	###	###	#	#	#	#
###	###	###	###	#	#	#	#
###	###	###	#	#	#	#	#
###	###	###	#	#	#	#	#
###	###	###	#	#	#	#	#
###	###	###	#	#	#	#	#
###	###	###	#	#	#	#	#
###	###	###	#	#	#	#	#

#

A

\( \left( {\mathrm{y}/\mathrm{y}}\right) \)			\( \frac{\mathrm{y} - \mathrm{y}}{\mathrm{y} + \mathrm{y}} \)	\( \frac{\mathrm{y} - \mathrm{y}}{\mathrm{y} + \mathrm{y}} \)	\( \frac{\mathrm{y} - \mathrm{y}}{\mathrm{y} + \mathrm{y}} \)
50	60	70
16.	180	10	6	\( \frac{1}{2}x - 1 = \frac{1}{2}x - 1 \)	\( \frac{1}{2}x - 1 \)
12.	140	10.	6	\( \frac{1}{2}x - 1 = \frac{1}{2}x - 1 \)	\( \frac{1}{2}x - 1 \)
10	9.	...	9.0	\( \frac{1}{2}x - 1 = \frac{1}{2}x - 1 \)	\( \frac{1}{2}x - 1 \)
...	...	...	1	\( \frac{1}{2}x - 1 = \frac{1}{2}x - 1 \) \( \frac{1}{2}x - 1 = \frac{1}{2}x - 1 \)	\( \frac{1}{2}x - 1 = \frac{1}{2}x - 1 \)
...	...	...	1	\( \frac{1}{2}x - 1 = \frac{1}{2}x - 1 \) \( \frac{1}{2}x - 1 = \frac{1}{2}x - 1 \)	\( \frac{1}{2}x - 1 \)

a

1 1

a

1 1
1 1
1 1
1 1
1 1

#

1 1 1 1 1
A 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A

（）

a 1000000000000000000000000000000000000000000000000000000000000000000000000

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60

#

y 10000000000000000000000000000000000000000000000000000000000000000

#

-1.0）a#j#i#j#j#j#j#j#j#j#j#j#j#j#j#j#j#j#j#j#j#j#j#j#j#j#j#j#j#j#j#j#j#j#j#j#j#j#j#j#j#j#

2a1 = 2b1

#

J 100000000000000000000000000000000000000000000000000000000000000000000

15 15
00 15 15
00 15 15
00 15 15
00 15 15
00 15 15
00 15 15
00 15 15
00 15 15
00 15 15
00 15 15
00 15 15
00 9 9
00 9 9
00 9 9

J 1

J

1 2
（） 2
（） 3
（） 4

.

（） 204

Leader for young Europe
