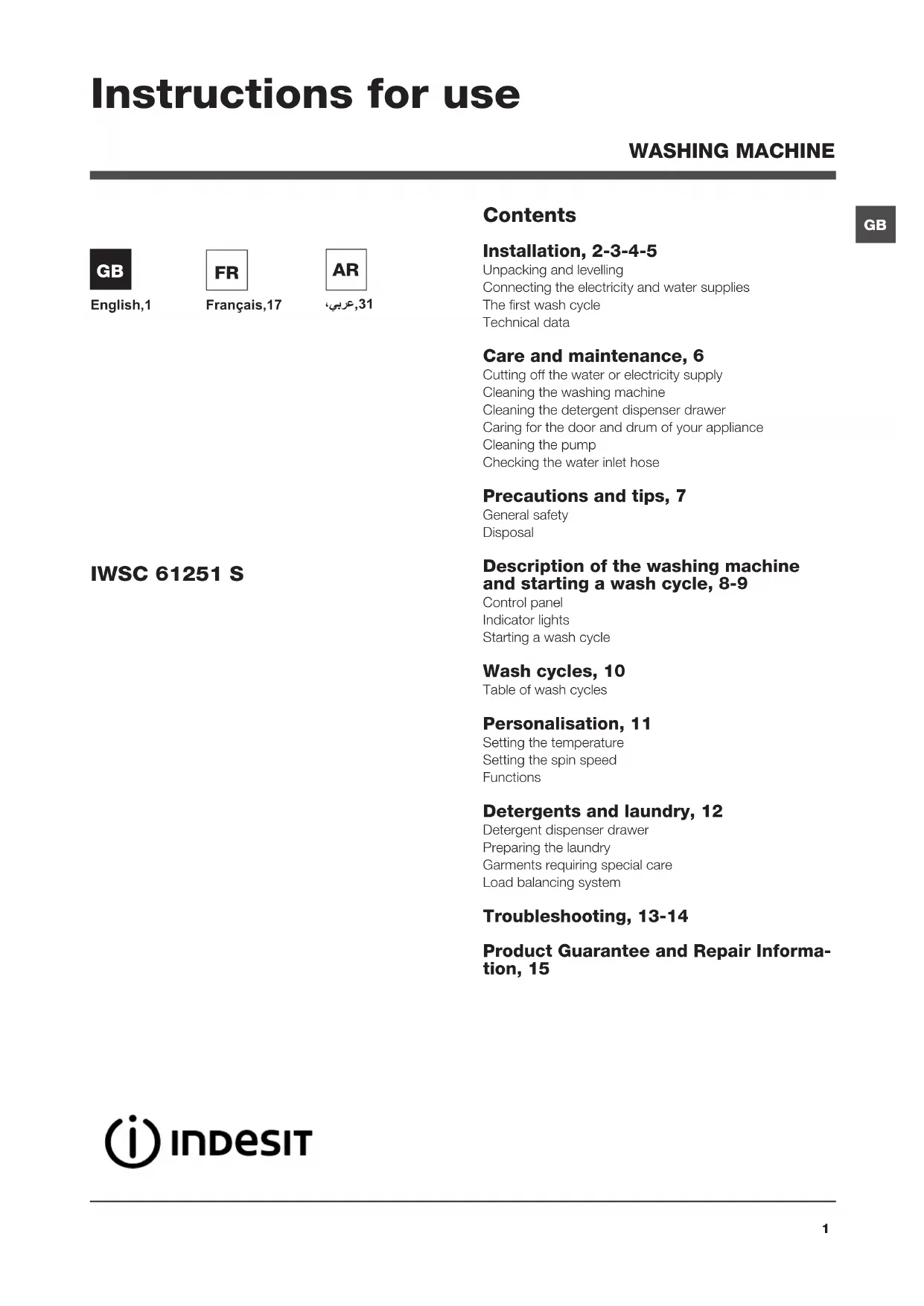

USER MANUAL IWSC 61251 S ECO UK INDESIT

Installation, 2-3-4-5

Unpacking and levelling

Connecting the electricity and water supplies

The first wash cycle

Technical data

Care and maintenance, 6

Cutting off the water or electricity supply

Cleaning the washing machine

Cleaning the detergent dispenser drawer

Caring for the door and drum of your appliance

Cleaning the pump

Checking the water inlet hose

Precautions and tips, 7

General safety

Disposal

Description of the washing machine and starting a wash cycle, 8-9

Control panel

Indicator lights

Starting a wash cycle

Wash cycles, 10

Table of wash cycles

Personalisation, 11

Setting the temperature

Setting the spin speed

Functions

Detergents and laundry, 12

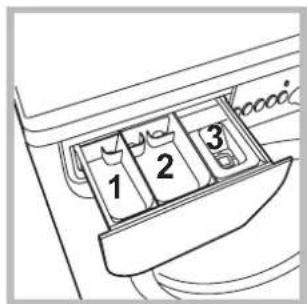

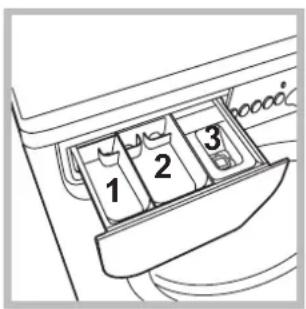

Detergent dispenser drawer

Preparing the laundry

Garments requiring special care

Load balancing system

Troubleshooting, 13-14

Product Guarantee and Repair Information, 15

INDESIT

! Keep this instruction manual in a safe place for Levelling your appliance correctly will provide it future reference. Should the appliance be sold, tran-with stability and avoid any vibrations, noise and sferred or moved, make sure the instruction manual shifting during operation. If it is placed on a fitted accompanies the washing machine to inform the or loose carpet, adjust the feet in such a way as new owner as to its operation and features. to allow enough room for ventilation beneath the

! Read these instructions carefully: they contain vital information on installation, use and safety.

Unpacking and levelling

Unpacking

1. Unpack the washing machine.
2. Check whether the washing machine has been damaged during transport. If this is the case, do not install it and contact your retailer.

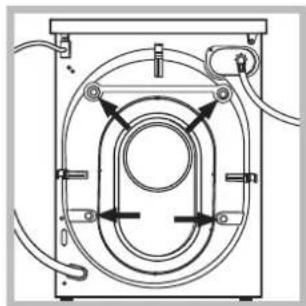

1. Remove the 4 protective screws and the rubber bush with the respective spacer, situated on the rear of the appliance (see also the installation leaflet).

2. Seal the gaps using the plastic plugs provided.

3. Keep all the parts: you will need them again if the washing machine needs to be moved to another location.
   ! Packaging materials are not children's toys.

Levelling

Your machine may make a considerable amount of noise if the two front feet have not been adjusted correctly.

1. Install the washing machine on a flat sturdy floor, without resting it up against walls, furniture cabinets or other.

1. If the floor is not perfectly level, compensate for any unevenness by tightening or loosening the adjustable front feet (see figure); the angle of inclination, measured according to the worktop, must not exceed 2^ .

Levelling your appliance correctly will provide it with stability and avoid any vibrations, noise and shifting during operation. If it is placed on a fitted or loose carpet, adjust the feet in such a way as to allow enough room for ventilation beneath the washing machine.

Electric and water connections

Connecting the water inlet hose

1. Connect the supply pipe by screwing it to a cold water tap using a 3/4 gas threaded connection (see figure). Before performing the connection, allow the water to run freely until it is perfectly clear.

1. Connect the other end of the water inlet hose to the washing machine, screwing it onto the appliance's cold water inlet, situated on the top right-hand side on the rear of the appliance (see figure).

2. Make sure there are no kinks or bends in the hose.

The water pressure at the tap must be within the values indicated in the Technical details table (on the page 5).
If the water inlet hose is not long enough, contact a specialist store or an authorised serviceman.
! Ensure that the supply taps are allowing water through. Old taps may seize in the closed position and thus prevent water reaching the machine.

Connecting the drain hose

Connect the drain hose, without bending it, to a draining duct or a wall drain situated between 65 and 100 cm from the floor;

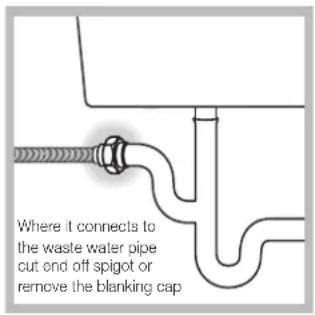

The drain hose may be connected to an under-sink trap. Before connecting the drain hose from the machine ensure that any blanks or removable ends have been taken off the spigot.

If it is placed over the edge of a basin or sink be sure the free end of the hose should not be underwater.

We advise against the use of hose extensions; in case of absolute need, the extension must have the same diameter as the original hose and must not exceed 150~cm in length. Ensure that if the drain hose is pushed into a standpipe, that the end does not go down more than 15cms (6 inches). If the hose is pushed down too far, this may cause the machine to self-syphon ie. continuously empty as it is filling.

Electric connection

Before plugging the appliance into the mains socket, make sure that:

• the socket is earthed and in compliance with the applicable law;

• the socket is able to sustain the appliance's maximum power load indicated on the Technical Data Plate fixed on the machine;

• the supply voltage is included within the values indicated on the Technical Data Plate fixed on the machine.

• the socket is compatible with the washing machine's plug. If this is not the case, replace the socket or the plug.

Your appliance is now supplied with a 13 amp fused plug it can be plugged into a 13 amp socket for immediate use. Before using the appliance please read the instructions below.

WARNING - THIS APPLIANCE MUST BE EARTHED. THE FOLLOWING OPERATIONS SHOULD BE CARRIED OUT BY A QUALIFIED ELECTRICIAN.

Replacing the fuse:

When replacing a faulty fuse, a 13 amp ASTA approved fuse to BS 1362 should always be used, and the fuse cover re-fitted. If the fuse cover is lost, the plug must not be used until a replacement is obtained.

Replacement fuse covers:

If a replacement fuse cover is fitted, it must be of the correct colour as indicated by the coloured marking or the colour that is embossed in words on the base of the plug. Replacements can be obtained directly from your nearest Service Depot.

Removing the plug:

If your appliance has a non-rewireable moulded plug and you should wish to re-route the mains cable through partitions, units etc., please ensure that either:

The plug is replaced by a fused 13 ampere rewiring the reable plug bearing the BSI mark of approval.

the mains cable is wired directly into a 13 amp cable outlet, controlled by a switch, (in compliance with BS 5733) which is accessible without removing the appliance.

Disposing of the plug:

Ensure that before disposing of the plug itself, you make the pins unusable so that it cannot be accidentally inserted into a socket.

Instructions for connecting cable to an alternative plug: Important: the wires in the mains lead are coloured in accordance with the following code:

Green & Yellow Earth Blue Neutral Brown Live

As the colours of the wires in the lead may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

Connect Green & Yellow wire to terminal marked E or ± or coloured Green or Green & Yellow.

Connect Brown wire to terminal marked L or coloured Red.

Connect Blue wire to terminal marked N or coloured Black.

If a 13 amp plug (BS 1363) is used it must be fitted with a 13 amp fuse, either in the plug or adaptor or at the distribution board.

If you are in any doubt regarding the electrical supply to your machine, consult a qualified electrician before use.

How to connect an alternative plug:

The wires in this mains lead are coloured in accordance with the following code:

Disposing of the appliance:

When disposing of the appliance please remove the plug by cutting the mains cable as close as possible to the plug body and dispose of it as described above.

! The washing machine should not be installed in an outdoor environment, not even where the area is sheltered, because it may be very dangerous to leave it exposed to damp, rain and thunderstorms.

!When the washing machine is installed, the mains socket must be within easy reach.

! Do not use extensions or multiple sockets.

The power supply cable must never be bent or dangerously compressed.

! The power supply cable must only be replaced by an authorised serviceman.

Warning! The company denies all liability if and when these norms are not respected.

The first wash cycle

Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, setting the 90^ programme.

Technical data
Model	IWSC 61251
Dimensions	width 59.5 cm height 85 cm depth 42 cm
Capacity	from 1 to 6 kg
Electrical connections	please refer to the technical data plate fixed to the machine
Water connection	maximum pressure 1 MPa (10 bar) minimum pressure 0.05 MPa (0.5 bar) drum capacity 40 litres
Spin speed	up to 1200 rotations per minute
Test wash cycles in accordance with regulations	Programme 2: Cotton Standard 60°. Programme 3: Cotton Standard 40°.
CE	This appliance conforms to the following EC Directives: - 2004/108/EC (Electromagnetic Compatibility) - 2012/19/EU - WEEE - 2006/95/EC Low Voltage)

COMMISSION DELEGATED REGULATION (EU) No 1061/2010

Brand	INDESIT
Model	IWSC 61251 S ECO UK
Rated capacity in kg of cotton	6.0
Energy efficiency class on a scale from A+++ (low consumption) to G (high consumption)	A+
Energy consumption per year in kWh 1)	192.0
Energy consumption of the standard 60 °C cotton programme at full load in kWh 2)	1.048
Energy consumption of the standard 60 °C cotton programme at partial load in kWh 2)	0.691
Energy consumption of the standard 40 °C cotton programme at partial load in kWh 2)	0.644
Power consumption of the off-mode in W	0.5
Power consumption of the left-on mode in W	8.0
Water consumption per year in litres 3)	8303
Spin-drying efficacy class on a scale from G (minimum efficacy) to A (maximum efficacy)	B
Maximum spin speed attained 4)	1200
Remaining moisture content 5)	53%
Programme time of the "standard 60 °C cotton" at full load in minutes	195
Programme time of the "standard 60 °C cotton" at partial load in minutes	159
Programme time of the "standard 40°C cotton" at partial load in minutes	150
Duration of the left-on mode in minutes	30
Noise in dB(A) re 1 pW washing 6)	60
Noise in dB(A) re 1 pW spinning 6)	81

1) The "standard 60^ cotton" at full and partial load and the "standard 40^ cotton" at partial load are the standard washing programmes to which the information in the label and the fiche relates. Standard 60^ cotton and standard 40^ cotton are suitable to clean normally soiled cotton laundry and are the most efficient programmes in terms of combined energy and water consumption. Partial load is half the rated load.
2) Based on 220 standard washing cycles for cotton programmes at 60^ and 40^ at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used.
3) Based on 220 standard washing cycles for cotton programmes at 60^ and 40^ at full and partial load. Actual water consumption will depend on how the appliance is used.
4) For the standard 60^ at full and partial load or the 40^ at partial whichever is lower.
5 Attained for 60^ cotton at full and partial load or the 40^ at partial whichever is higher.
6) Based on washing and spinning phases for the standard 60^ cotton programme at full load.

Cutting off the water and electricity supplies

• Turn off the water tap after every wash cycle. This will limit wear on the hydraulic system inside the washing machine and help to prevent leaks.
• Unplug the washing machine when cleaning it and during all maintenance work.

Cleaning the washing machine

The outer parts and rubber components of the appliance can be cleaned using a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives.

Cleaning the detergent dispenser drawer

Remove the dispenser by raising it and pulling it out (see figure). Wash it under running water; this operation should be repeated frequently.

Caring for the door and drum of your appliance

• Always leave the porthole door ajar in order to prevent unpleasant odours from forming.

Cleaning the pump

The washing machine is fitted with a self-cleaning pump which does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the pre-chamber which protects the pump, situated in its bottom part.

Make sure the wash cycle has finished and unplug the appliance.

To access the pre-chamber:

1. using a screwdriver, remove the cover panel on the lower front part of the washing machine (see figure);

1. unscrew the lid by rotating it anticlockwise (see figure): a little water may trickle out. This is perfectly normal;

2. clean the inside thoroughly;

3. screw the lid back on;
4. reposition the panel, making sure the hooks are securely in place before you push it onto the appliance.

Checking the water inlet hose

Check the inlet hose at least once a year. If there are any cracks, it should be replaced immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open.

! Never use second-hand hoses.

This washing machine was designed and constructed in accordance with international safety regulations. The following information is provided for safety reasons and must therefore be read carefully.

General safety

• This appliance was designed for domestic use only.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Do not touch the machine when barefoot or with wet or damp hands or feet.
• Do not pull on the power supply cable when unplugging the appliance from the electricity socket. Hold the plug and pull.
• Do not open the detergent dispenser drawer while the machine is in operation.
• Do not touch the drained water as it may reach extremely high temperatures.
• Never force the porthole door. This could damage the safety lock mechanism designed to prevent accidental opening.
• If the appliance breaks down, do not under any circumstances access the internal mechanisms in an attempt to repair it yourself.
• Always keep children well away from the appliance while it is operating.
• The door can become quite hot during the wash cycle.
• If the appliance has to be moved, work in a group of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy.
  Before loading laundry into the washing machine, make sure the drum is empty.

Disposal

• Disposing of the packaging materials: observe local regulations so that the packaging may be re-used.
• The European Directive 2012/19/EU - WEEE on Waste Electrical and Electronic Equipment, requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on

the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Description of the washing machine and starting a wash cycle

GB

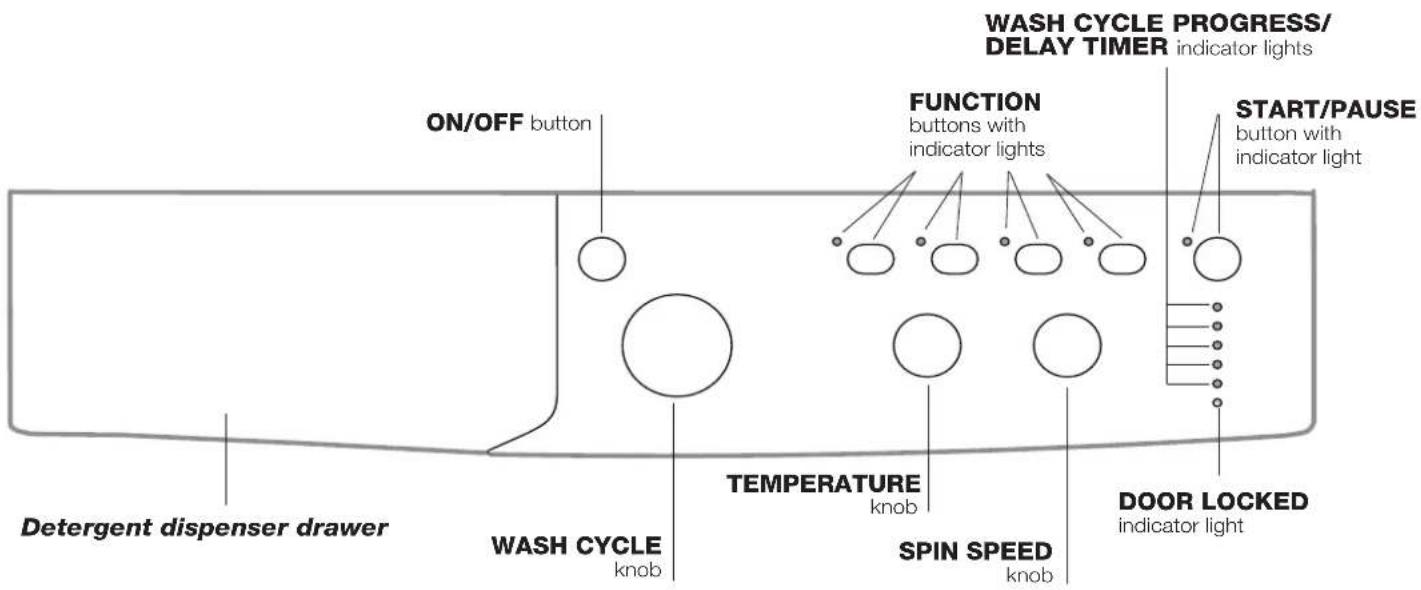

Control panel

Detergent dispenser drawer: used to dispense detergents and washing additives (see "Detergents and laundry").

ON/OFF button: switches the washing machine on and off.

WASH CYCLE knob: programmes the wash cycles. During the wash cycle, the knob does not move.

FUNCTION buttons with indicator light: used to select the available functions. The indicator light corresponding to the selected function will remain lit.

TEMPERATURE knob: sets the temperature or the cold wash cycle (see "Personalisation").

SPIN SPEED knob: sets the spin speed or exclude the spin cycle completely (see "Personalisation").

WASH CYCLE PROGRESS/DELAY TIMERindicator lights: used to monitor the progress of the wash cycle. The illuminated indicator light shows which phase is in progress.

If the Delay Timer function has been set, the time remaining until the wash cycle starts will be indicated (see next page).

DOOR LOCKED indicator light: indicates whether the door may be opened or not (see next page).

START/PAUSE button with indicator light: starts or temporarily interrupts the wash cycles.

N.B. To pause the wash cycle in progress, press this button; the corresponding indicator light will flash orange, while the indicator light for the current wash cycle phase will remain lit in a fixed manner. If the DOOR LOCKED indicator light is switched off, the door may be opened. To start the wash cycle from the point at which it was interrupted, press this button again.

Standby mode

This washing machine, in compliance with new energy saving regulations, is fitted with an automatic standby system which is enabled after about 30 minutes if no activity is detected. Press the ON-OFF button briefly and wait for the machine to start up again.

Indicator lights

The indicator lights provide important information.

This is what they can tell you:

Delayed start

If the DELAY TIMER function has been activated (see "Personalisation"), after the wash cycle has been started the indicator light corresponding to the selected delay period will begin to flash:

3h 0

6h 0

9h o

12h-

As time passes, the remaining delay will be displayed and the corresponding indicator light will flash:

3h-8

6h 0

9h o

12h 0

The set programme will start once the selected time delay has expired.

Wash cycle phase indicator lights

Once the desired wash cycle has been selected and has begun, the indicator lights switch on one by one to indicate which phase of the cycle is currently in progress.

Wash

Rinse

Spin

Drain

End of wash cycle

O END

Function buttons and corresponding indicator lights

When a function is selected, the corresponding indicator light will illuminate.

If the selected function is not compatible with the programmed wash cycle, the corresponding indicator light will flash and the function will not be activated.

If the selected function is not compatible with another function which has been selected previously, the indicator light corresponding to the first function selected will flash and only the second function will be activated; the indicator light corresponding to the enabled option will remain lit.

Door locked indicator light

When the indicator light is on, the porthole door is locked to prevent it from being opened; make sure the indicator light is off before opening the door (wait approximately 3 minutes). To open the door during a running wash cycle, press the START/PAUSE button; the door may be opened once the DOOR LOCKED indicator light turns off.

Starting a wash cycle

1. Switch the washing machine on by pressing the ON/OFF button. All indicator lights will switch on for a few seconds, then they will switch off and the START/PAUSE indicator light will pulse.
2. Load the laundry and close the door.
3. Set the WASH CYCLE knob to the desired programme.
4. Set the washing temperature (see "Personalisation").
5. Set the spin speed (see "Personalisation").
6. Measure out the detergent and washing additives (see "Detergents and laundry").
7. Select the desired functions.
8. Start the wash cycle by pressing the START/PAUSE button and the corresponding indicator light will remain lit in a fixed manner, in green. To cancel the set wash cycle, pause the machine by pressing the START/PAUSE button and select a new cycle.
9. At the end of the wash cycle the END indicator light will switch on. The door can be opened once the DOOR LOCK indicator light turns off. Take out your laundry and leave the appliance door ajar to make sure the drum dries completely. Switch the washing machine off by pressing the ON/OFF button.

Table of wash cycles

Wash cycles	Description of the wash cycle	Max.temp.(°C)	Max.speed(rpm)	Detergents		Max.load (kg)	Residual dampness%	Energyconsumption kWth	Total water ht	Cycleduration
				Wash	Fabricsoftener
Daily
1	White Cotton: extremely soiled whites. 90° 1200			●	●	6 53	1.80 58	140'
2	Cotton Standard (1): heavily soiled whites and resistant colours. 60° 1200			●	●	6 53	1.04 48	195'
3	Cotton Standard (2): lightly soiled whites and delicate colours. 40° 1200			●	●	6 53	1.03 65	180'
4	Synthetics: heavily soiled resistant colours. 50° 800			●	●	3 -- -	- 100'
4	Synthetics (3): lightly soiled resistant colours. 40° 800			●	●	3 44	0.47 38	95'
5	Mix Colored: lightly soiled whites and delicate colours.	40° 1200		●	●	6 53	0.64 50	85'
20° Zone
6	Cotton Standard: lightly soiled whites and delicate colours.	20°	1200	●	●	6 -- -	- 170'
7	Mix Light	20°	800	●	●	6 -- -	- 120'
8	20' Refresh	20°	800	●	●	1.5	---	20'
Special
9	Outwear	30° 400		●	-	1.5	---	50'
10	Wool: for wool, cashmere, etc.	40° 800		●	●	1 -- -	- 65'
11	Jeans	40°	800	●	●	2.5	---	70'
Sport
12	Sport Intensive	30° 600		●	●	2.5	---	85'
13	Sport Light	30° 600		●	●	2.5	---	60'
14	Special Shoes	30° 600		●	●	Max. 2pairs	---	55'
Partial wash cycles
Rinse		-	1200	-	●	6 -- -	- 36'
Spin + Drain		-	1200	-	-	6	-	-	-	16'

The length of cycle shown on the display or in this booklet is an estimation only and is calculated assuming standard working conditions. The actual duration can vary according to factors such as water temperature and pressure, the amount of detergent used, the amount and type of load inserted, load balancing and any wash options selected.
1) Test wash cycle in compliance with regulation 1061/2010: set wash cycle 2 with a temperature of 60^ .
This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for garments which can be washed at 60^ . The actual washing temperature may differ from the indicated value.
2) Test wash cycle in compliance with regulation 1061/2010: set wash cycle 3 with a temperature of 40^ .
This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for garments which can be washed at 40^ . The actual washing temperature may differ from the indicated value.

For all Test Institutes:

3) Long wash cycle for cottons: set wash cycle 3 with a temperature of 40^ .
4) Synthetic program along: set wash cycle 4 with a temperature of 40^ .

Setting the temperature

Tum the TEMPERATURE knob to set the wash temperature (see Table of wash cycles).

The temperature may be lowered, or even set to a cold wash

The washing machine will automatically prevent you from selecting a temperature which is higher than the maximum value set for each wash cycle.

Setting the spin speed

Turn the SPIN SPEED knob to set the spin speed for the selected wash cycle.

The maximum spin speeds available for each wash cycle are as follows:

Wash cycles Maximum spin speed

Cottons 1200 rpm

Synthetics 800 rpm

Wool 800 rpm

The spin speed may be lowered, or the spin cycle can be excluded altogether by selecting the symbol

The washing machine will automatically prevent you from selecting a spin speed which is higher than the maximum speed set for each wash cycle.

Functions

The various wash functions available with this washing machine will help to achieve the desired results, every time.

To activate the functions:

1. Press the button corresponding to the desired function;
2. the function is enabled when the corresponding indicator light is illuminated.

Note:

• If the selected function is not compatible with the programmed wash cycle, the corresponding indicator light will flash and the function will not be activated.
• If the selected function is not compatible with another function which has been selected previously, the indicator light corresponding to the first function selected will flash and only the second function will be activated; the indicator light corresponding to the enabled option will remain lit.

EcoTime

Selecting this option enables you to suitably adjust drum rotation, temperature and water to a reduced load of lightly soiled cotton and synthetic fabrics (refer to the "Table of wash cycles"). "Eternities you to wash in less time thereby saving water and electricity. We suggest using a liquid detergent suitably measured out to the load quantity.

Energy Saver

The Energy Saver function saves energy by not heating the water used to wash your laundry - an advantage both to the environment and to your energy bill. Instead, intensified wash action and water optimisation ensure great wash results in the same average time of a standard cycle.

For the best washing results we recommend the usage of a liquid detergent.

Extra Rinse

By selecting this option, the efficiency of the rinse is increased and optimal detergent removal is guaranteed. It is particularly useful for sensitive skin.

Delay Timer

This timer delays the start time of the wash cycle by up to 12 hours.

Press the button repeatedly until the indicator light corresponding to the desired delay time switches on. The fifth time the button is pressed, the function will be disabled.

N.B. Once the START/PAUSE button has been pressed, the delay time can only be modified by decreasing it until launching the set programme.

Detergents and laundry

GB

Detergent dispenser drawer

Good washing results also depend on the correct dose of detergent: adding too much detergent will not necessarily result in a more efficient wash, and may in fact cause build up on the inside of your appliance and contribute to environmental pollution.

Do not use hand washing detergents because these create too much foam.
Use powder detergent for white cotton garments, for prewashing, and for washing at temperatures over 60^
! Follow the instructions given on the detergent packaging.

Open the detergent dispenser drawer and pour in the detergent or washing additive, as follows.

! Do not pour detergent into the compartment 1.

Detergent should only be poured into the compartment 2. compartment 2: Detergent for the wash cycle (powder or liquid)

Liquid detergent should only be poured in immediately prior to the start of the wash cycle.

compartment 3:Additives (fabric softeners, etc.)

The fabric softener should not overflow the grid.

Preparing the laundry

• Divide the laundry according to:
• the type of fabric/the symbol on the label
• the colours: separate coloured garments from whites.
• Empty all garment pockets and check the buttons.
• Do not exceed the values listed in the "Table of wash cycles", which refer to the weight of the laundry when dry.

How much does your laundry weigh?

1 sheet 400-500 g
1 pillow case 150-200 g
1 tablecloth 400-500 g
1 bathrobe 900-1200 g
1 towel 150-250 g

Garments requiring special care

Outwear (wash cycle 9): is studied for washing water-repellent fabrics and winter jackets (e.g. Gore-Tex, polyester, nylon); for best results, use a liquid detergent and dosage suitable for a half-load; pre-treat necks, cuffs and stains if

necessary; do not use softeners or detergents containing softeners. Stuffed duvets cannot be washed with this programme.

Wool: all wool garments can be washed using programme 10, even those carrying the "hand-wash only" label. For best results, use special detergents and do not exceed 1 kg of laundry.

Jeans: Turn garments inside-out before washing and use a liquid detergent. Use programme 11.

Sport Intensive (programma 12): is for washing heavily soiled sports clothing fabrics (tracksuits, shorts, etc.); for best results, we recommend not exceeding the maximum load indicated in the "Programme table".

Sport Light (programma 13): is for washing lightly soiled sports clothing fabrics (tracksuits, shorts, etc.); for best results, we recommend not exceeding the maximum load indicated in the "Programme table". We recommend using a liquid detergent and dosage suitable for a half-load.

Special Shoes (programma 14): is for washing sports shoes; for best results, do not wash more than 2 pairs simultaneously.

The 20^ wash cycles (Zone 20^ ) offer effective washing performance at low temperatures, reducing electricity usage and expenditure while benefitting the environment. The 20^ wash cycles meet all requirements:

Cotton Standard (programme 6) ideal for heavily soiled cotton loads. The effective performance levels achieved at cold temperatures, which are comparable to washing at 40^ , are guaranteed by a mechanical action which operates at varying speed, with repeated and frequent peaks.

Mix Light (programme 7) ideal for mixed loads (cotton and synthetics) with a normal soil level. The effective performance levels achieved at cold temperatures are guaranteed by a mechanical action which operates at varying speed, across set average intervals.

20' Refresh (programme 8) ideal for refreshing and washing lightly soiled garments in a few minutes. It lasts just 20 minutes and therefore saves both time and energy. It can be used to wash different types of fabrics together (except for wool and silk), with a maximum load of 1.5kg .

Load balancing system

Before every spin cycle, to avoid excessive vibrations and to distribute the load in a uniform manner, the drum rotates continuously at a speed which is slightly greater than the washing rotation speed. If, after several attempts, the load is not balanced correctly, the machine spins at a reduced spin speed. If the load is excessively unbalanced, the washing machine performs the distribution process instead of spinning. To encourage improved load distribution and balance, we recommend small and large garments are mixed in the load.

Your washing machine could fail to work. Before contacting the Technical Assistance Centre (see "Assistance"), make sure that the problem cannot be solved easily using the following list.

GB

Problem:

Possible causes / Solutions:

The machine does not switch on.

• The appliance is not plugged into the socket fully, or not enough to make contact.
• There is no power to the socket, or the fuse has blown in the mains plug.

The wash cycle does not start.

• The door is not closed properly.
• The ON/OFF button has not been pressed.
• The START/PAUSE button has not been pressed.
• The water tap has not been turned on to allow water to flow into the machine.
  A delayed start has been set.

The machine does not fill with water or the indicator light for the first wash cycle stage flashes rapidly.

• The water inlet hose is kinked.
• The water inlet hose is not connected to the water supply.
  The water pressure is too low.
• The water tap has not been turned on to allow water to flow into the machine.
• There is no water supply to the house.
• The inlet valve filter is blocked.
• The START/PAUSE button has not been pressed.

The machine continuously fills with water and continually drains away or Water left in the drum or Stuck on wash.

• The top of the drain hose is too low - It must be fitted at a height between 65 and 100cm from the floor (see "Installation").
• The drain hose is connected incorrectly to the sink trap allowing water to run into the machine, the drain hose must be positioned higher than the bottom of the sink to prevent water flowing down the drain hose.
• The end of the drain hose has been pushed too far down the standpipe, the 'U' bracket should be fitted 100mm from the end of the drain hose.

The machine does not drain or spin.

The Pump filter is blocked.
- The drain hose is kinked (see "Installation").
- New Installation - The blanking cap or spigot has not been removed if connected under a sink.
- The drain hose or sink trap is blocked.
- The wash cycle does not include draining, some wash cycles require the drain phase to be started manually.
- The 'Spin Speed' selector knob is in the position.

The machine does not heat or poor wash results.

• The 'Temperature' selector knob is in the position.

The programme takes too long.

• Programme times will vary due to water pressure, the incoming water temperature and if the wash load goes out of balance. This will increase the programme times accordingly (see 'The machine wont spin properly' next page).

The machine vibrates a lot during the spin cycle.

• The feet have not been adjusted, enabling the machine to rock.
• New Installation - Either the Transit Bolts including the plastic spacers, or the Polystyrene Packaging have not been removed when installing the machine.
• The machine is trapped between cabinets and/or walls.
• The load is in a slight out of balance condition and machine is spinning, but at a lower speed.

The machine is noisy.

The machine wont spin properly.

• There will always be some motor, pump and drum noise during spin.
• Out of Balance detected when attempting to go into a spin cycle - If this happens the machine will continue to try to repeat the distribution of the load required before the machine will go into higher spin speeds - This will increase the programme time accordingly. This is a safety feature to prevent damage. Out of Balance can be caused by washing a single heavy item (eg duvet, quilt, etc). - Try the programme again using a different load.

The machine leaks from the dispenser.

• The dispenser drawer is blocked with detergent and requires cleaning.
• The water pressure is too high and requires turning down - turn down the tap on the water supply pipe slightly and try again.
• The machine is tilting forwards - It must be level when in its final position.

The machine leaks (other than dispenser).

• The fill hose is loose, check both the cabinet and tap ends.
• The fill hose is tight but still leaks, if so replace the rubber washers, or the fill hose is missing the rubber washer.
• The drain hose is not fixed in properly.

The indicator lights on the console are flashing rapidly.

• Switch off the machine and unplug it, wait for approximately 1 minute and then switch it back on again. If the problem persists contact the Technical Assistance Service.

The machine smells.

• The machine requires a service wash. Run a 90 degree wash cycle with detergent and no laundry.

The machine door cannot be opened.

• The door will not open until the door lock indicator light goes out shortly after the program has finished.

Door Seal damaged at the bottom.

• The door seal has drainage holes at the bottom - This is normal.

The water level is too low when the machine is washing.

• The water level is correct if it can be seen at the bottom of the door.

There is too much foam.

• The detergent is not suitable for machine washing (it should display the text 'for washing machines' or 'hand and machine wash' or the like).
• Too much detergent was used - less detergent is required in soft water.

After completing the programme, or before starting a programme, the machine has turned itself off (no lights).

• To comply with new energy saving regulations the machine is fitted with an automatic standby system. Press 'ON/OFF' button for 3 seconds to activate the machine, it can then either be switched off or a new programme selected.

General.

• Your washing machine contains sensors that monitor progress during the wash cycle (eg: Water Levels, Temperatures, Out of Balance loads, Wash time/progress).

Normally, if your machine successfully completes the cycle, there is unlikely to be anything wrong!

Remember, you will be charged for a service call for problems caused by incorrect installation, as indicated on pages 2 to 4.

Not emptying contents from pockets may cause pump or drain blockages, or may damage the machine. Do not wash items which do not have a wash label, or wash items that are not intended as machine washable.

Guarantee

12 Months Parts and Labour Guarantee

Your appliance has the benefit of our manufacturer's guarantee, which covers the cost of breakdown repairs for twelve months from the date of purchase. This gives you the reassurance that if, within that time, your appliance is proven to be defective because of either workmanship or materials, we will, at our discretion, either repair or replace the appliance at no cost to you:

This guarantee is subject to the following conditions:

• The appliance has been installed and operated correctly and in accordance with our operating and maintenance instructions.
• The appliance is used only on the electricity or gas supply printed on the rating plate.
• The appliance has been used for normal domestic purposes only.
• The appliance has not been altered, serviced, maintained, dismantled, or otherwise interfered with by any person not authorised by us.
• Any repair work must be undertaken by us or our appointed agent.
• Any parts removed during repair work or any appliance that is replaced become our property.
• The appliance is used in the United Kingdom or Republic of Ireland.

The guarantee does not cover:

• Damage resulting from transportation, improper use, neglect or interference or as a result of improper installation.
• Replacement of any consumable item or accessory. These include but are not limited to: plugs, cables, batteries, light bulbs, fluorescent tubes and starters, covers and filters.
• Replacement of any removable parts made of glass or plastic.

THIS GUARANTEE WILL NOT APPLY IF THE APPLIANCE HAS BEEN USED IN COMMERCIAL OR NON-DOMESTIC PREMISES.

Recycling and Disposal Information

As part of Indesit's continued commitment to helping the environment, Indesit reserves the right to use quality, recycled components to keep down customer costs and minimise material wastage.

Please dispose of packaging and old appliances carefully. To minimise the risk of injury to children, remove the door, plug, and cut the mains cable off flush with the appliance. Dispose of these parts separately to ensure that the appliance can no longer be plugged into mains socket, and the door cannot be locked shut.

Repairs and After Sales

For product help and advice, repairs, spare parts or accessories, we're here to help.

For local repair engineers - 03448 111 606
ROI - 0818 313 413

UK standard local rate applies ROI local Irish rate applies

For Parts and Accessories visit: parts.indesit.co.uk/shop

Please remember to register your appliance at www.ingesitservice.co.uk to activate your 10 year parts guarantee.

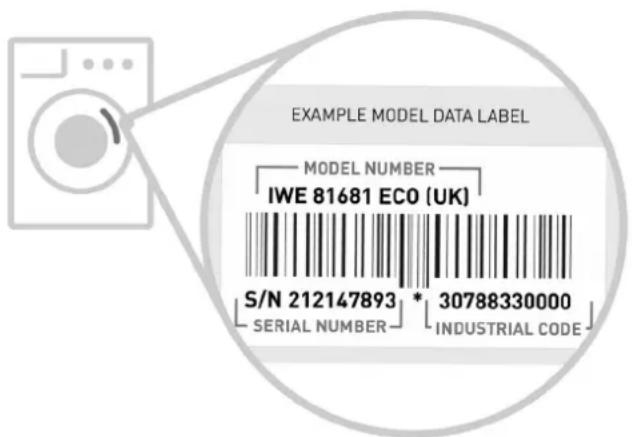

How to find your model and serial number:

Français

Sommaire

Installation, 18-19-20-21

Coton 1200 tours/minute

Causes / Solutions possibles:

aalaaalall aalaln 2!

i 1

yjy jy jy Lg Jda Cog Jie yj y jy Cagall a 1

gssuall ydaig ciugaaal |

Cg

1 1

4 1 3
alb（jai）.
yall aall jolgaoi

a 4

y 1

gannnnn

1

aai aagaa aagaa jssj 2
aabaa ygaa gaaay p
jaiy aal s yall jra g
aaiy ay j yag 4 (aa)
.20

AR

(j)

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

:（c1j）c1jaiai

a j 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

：（）

J 13
1
1
1

：（）

y y 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

jui

（）

品

13 (j) 13 (j)

65 100

a 1 1 1
y 1 y 1
y 1 y 1
( j 1 1
2 1 1

150 150

y

（）

jglgll gai jia jia jia jia (s) yjy jil jil jil 1
gai a. gai jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jial

（19）（20

a a

J 13

L 1

1

0j 0j j 0j j 0j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j

aal l aall gaaal gaaal ae alg aal gaaal Jgaaal jagaaal agaaal gaaal gaaal

1.2

yall yll lalil 3

(“Laiyssill" j)

.5

(“Jgill gilil 100" jbi) Jgill Clll 100

1.

y 8.8

y j 100

aill jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jaijaijaijaijaijaijaijaijaijaijaijaijaijaijaijaijaijaijaijaijaijaijaijaijaijaijaijaijaijaijaijaijaijaijaijaijaijaijaijaijaijaijaijai

j 1

J 1

الإستعمال

الإستعمال

الإستعمال

الإستعمال

الإستعمال

الإستعمال الإستعمال الإستعمال

الإستعمال الإستعمال الإستعمال

الإستعمال الإستعمال الإستعمال

الإستعمال ال,enGLISH الترجمة الترجمة الترجمة الترجمة

الإستعمال الإستعمال الإستUTION الإستUTION

الإستعمال الإستUTION الإستUTION الإستUTION

الإستعمال ال,enGLISH الترجمة الترجمة الTRLT الإستUTION الإستUTION الإستUTION الإستUTION الإستUTION الإستUTION الإستUTION الإستUTION الإستUTION الإستUTION الإستUTION الإستUTION الإستUTION ال,enGLISH الترجمة الTRLT الإستUTION ال,enGLISH الترجمة الTRLT الإستUTION ال,enGLISH الTRLT ال,enGLISH ال,enGLISH ال,enGLISH ال,enGLISH ال,enGLISH ال,enGLISH ال,enGLISH ال,enGLISH ال,enGLISH ال,enGLISH ال,enGLISH ال,enGLISH ال,enGLISH ال,enGLISH ال,enGLISH ال,enGLISH ال,enGLISH ال,enGLISH ال,enGLISH ال,enGLISH ال,enGLISH ال,enGLISH ال,enGLISH ال,enGLISH ال,enGLISH ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,en LANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enGLISH ال,enGLISH ال,enGLISH ال,enGLISH ال,enGLISH ال,enGLISH ال,enGLISH ال,enGLISH ال,enGLISH ال,enGLISH ال,enGLISH ال,enGLISH ال,enGLISH ال,enGLISH ال,enGLISH ال,enGLISH ال,enGLISH ال,enGLISH ال,enGLISH ال,enGLISH ال,enGLISH ال,enGLISH ال,enGLISH ال,enGLISH ال,en LANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,en LANGUAGE ال,en LANGUAGE ال,en LANGUAGE ال,en LANGUAGE ال,en LANGUAGE ال,en LANGUAGE ال,en LANGUAGE ال,en LANGUAGE ال,en LANGUAGE ال,en LANGUAGE ال,en LANGUAGE ال,en LANGUAGE ال,en LANGUAGE ال,en LANGUAGE ال,en LANGUAGE ال,en LANGUAGE ال,en LANGUAGE ال,en LANGUAGE ال,en LANGUAGE ال,en LANGUAGE ال,en LANGUAGE ال,en LANGUAGE ال,en LANGUAGE ال,en LANGUAGE ال,en LANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enGLISH ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,en LANGUAGE ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,en LANGUAGE ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,en LANGUAGE ال,en LANGUAGE ال,en LANGUAGE ال,en LANGUAGE ال,en LANGUAGE ال,en LANGUAGE ال,en LANGUAGE ال,en LANGUAGE ال,en LANGUAGE ال,en LANGUAGE ال,en LANGUAGE ال,en LANGUAGE ال,en LANGUAGE ال,en LANGUAGE ال,en LANGUAGE ال,en LANGUAGE ال,en LANGUAGE ال,en LANGUAGE ال,en LANGUAGE ال,en LANGUAGE ال,en LANGUAGE ال,en LANGUAGE ال,en LANGUAGE ال,en LANGUAGE ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLANGUAGE ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,en LANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLANGUAGE ال,enLanguage ال,enLANGUAGE ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,en LANGUAGE ال,enLanguage ال,en LANGUAGE ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,en LANGUAGE ال,enLanguage ال,enLANGUAGE ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage ال,enLanguage The results of the examination are presented in Table 1. The results of the examination are presented in Table 2. The results of the examination are presented in Table 3. The results of the examination are presented in Table 4. The results of the examination are presented in Table 5. The results of the examination are presented in Table 6. The results of the examination are presented in Table 7. The results of the examination are presented in Table 8. The results of the examination are presented in Table 9. The results of the examination are presented in Table 10. The results of the examination are presented in Table 11. The results of the examination are presented in Table 12. The results of the examination are presented in Table 13. The results of the examination are presented in Table 14. The results of the examination are presented in Table 15. The results of the examination are presented in Table 16. The results of the examination are presented in Table 17. The results of the examination are presented in Table 18. The results of the examination are presented in Table 19. The results of the examination are presented in Table 20. The results of the examination are presented in Table 21. The results of the examination are presented in Table 22. The results of the examination are presented in Table 23. The results of the examination are presented in Table 24. The results of the examination are presented in Table 25. The results of the examination are presented in Table 26. The results of the examination are presented in Table 27. The results of the examination are presented in Table 28. The results of the examination are presented in Table 29. The results of the examination are presented in Table 30. The results of the examination are presented in Table 31. The results of the examination are presented in Table 32. The results of the examination are presented in Table 33. The results of the examination are presented in Table 34. The results of the examination are presented in Table 35. The results of the examination are presented in Table 36. The results of the examination are presented in Table 37. The results of the examination are presented in Table 38. The results of the examination are presented in Table 39. The results of the examination are presented in Table 40. The results of the examination are presented in Table 41. The results of the examination are presented in Table 42. The results of the examination are presented in Table 43. The results of the examination are presented in Table 44. The results of the examination are presented in Table 45. The results of the examination are presented in Table 46. The results of the examination are presented in Table 47. The results of the examination are presented in Table 48. The results of the examination are presented in Table 49. The results of the examination are presented in Table 50. The results of the examination are presented in Table 51. The results of the examination are presented in Table 52. The results of the examination are presented in Table 53. The results of the examination are presented in Table 54. The results of the examination are presented in Table 55. The results of the examination are presented in Table 56. The results of the examination are presented in Table 57. The results of the examination are presented in Table 58. The results of the examination are presented in Table 59. The results of the examination are presented in Table 60. The results of the examination are presented in Table 61. The results of the examination are presented in Table 62. The results of the examination are presented in Table 63. The results of the examination are presented in Table 64. The results of the examination are presented in Table 65. The results of the examination are presented in Table 66. The results of the examination are presented in Table 67. The results of the examination are presented in Table 68. The results of the examination are presented in Table 69. The results of the examination are presented in Table 70. The results of the examination are presented in Table 71. The results of the examination are presented in Table 72. The results of the examination are presented in Table 73. The results of the examination are presented in Table 74. The results of the examination are presented in Table 75. The results of the examination are presented in Table 76. The results of the examination are presented in Table 77. The results of the examination are presented in Table 78. The results of the examination are presented in Table 79. The results of the examination are presented in Table 80. The results of the examination are presented in Table 81. The results of the examination are presented in Table 82. The results of the examination are presented in Table 83. The results of the examination are presented in Table 84. The results of the examination are presented in Table 85. The results of the examination are presented in Table 86. The results of the examination are presented in Table 87. The results of the examination are presented in Table 88. The results of the examination are presented in Table 89. The results of the examination are presented in Table 90. The results of the examination are presented in Table 91. The results of the examination are presented in Table 92. The results of the examination are presented in Table 93. The results of the examination are presented in Table 94. The results of the examination are presented in Table 95. The results of the examination are presented in Table 96. The results of the examination are presented in Table 97. The results of the examination are presented in Table 98. The results of the examination are presented in Table 99. The results of the examination are presented in Table 100. The results of the examination are presented in Table 101. The results of the examination are presented in Table 102. The results of the examination are presented in Table 103. The results of the examination are presented in Table 104. The results of the examination are presented in Table 105. The results of the examination are presented in Table 106. The results of the examination are presented in Table 107. The results of the examination are presented in Table 108. The results of the examination are presented in Table 109. The results of the examination are presented in Table 110. The results of the examination are presented in Table 111. The results of the examination are presented in Table 112. The results of the examination are presented in Table 113. The results of the examination are presented in Table 114. The results of the examination are presented in Table 115. The results of the examination are presented in Table 116. The results of the examination are presented in Table 117. The results of the examination are presented in Table 118. The results of the examination are presented in Table 119. The results of the examination are presented in Table 120. The results of the examination are presented in Table 121. The results of the examination are presented in Table 122. The results of the examination are presented in Table 123. The results of the examination are presented in Table 124. The results of the examination are presented in Table 125. The results of the examination are presented in Table 126. The results of the examination are presented in Table 127. The results of the examination are presented in Table 128. The results of the examination are presented in Table 129. The results of the examination are presented in Table 130. The results of the examination are presented in Table 131. The results of the examination are presented in Table 132. The results of the examination are presented in Table 133. The results of the examination are presented in Table 134. The results of the examination are presented in Table 135. The results of the examination are presented in Table 136. The results of the examination are presented in Table 137. The results of the examination are presented in Table 138. The results of the examination are presented in Table 139. The results of the examination are presented in Table 140. The results of the examination are presented in Table 141. The results of the examination are presented in Table 142. The results of the examination are presented in Table 143. The results of the examination are presented in Table 144. The results of the examination are presented in Table 145. The results of the examination are presented in Table 146. The results of the examination are presented in Table 147. The results of the examination are presented in Table 148. The results of the examination are presented in Table 149. The results of the examination are presented in Table 150. The results of the examination are presented in Table 151. The results of the examination are presented in Table 152. The results of the examination are presented in Table 153. The results of the examination are presented in Table 154. The results of the examination are presented in Table 155. The results of the examination are presented in Table 156. The results of the examination are presented in Table 157. The results of the examination are presented in Table 158. The results of the examination are presented in Table 159. The results of the examination are presented in Table 160. The results of the examination are presented in Table 161. The results of the examination are presented in Table 162. The results of the examination are presented in Table 163. The results of the examination are presented in Table 164. The results of the examination are presented in Table 165. The results of the examination are presented in Table 166. The results of the examination are presented in Table 167. The results of the examination are presented in Table 168. The results of the examination are presented in Table 169. The results of the examination are presented in Table 170. The results of the examination are presented in Table 171. The results of the examination are presented in Table 172. The results of the examination are presented in Table 173. The results of the examination are presented in Table 174. The results of the examination are presented in Table 175. The results of the examination are presented in Table 176. The results of the examination are presented in Table 177. The results of the examination are presented in Table 178. The results of the examination are presented in Table 179. The results of the examination are presented in Table 180. The results of the examination are presented in Table 181. The results of the examination are presented in Table 182. The results of the examination are presented in Table 183. The results of the examination are presented in Table 184. The results of the examination are presented in Table 185. The results of the examination are presented in Table 186. The results of the examination are presented in Table 187. The results of the examination are presented in Table 188. The results of the examination are presented in Table 189. The results of the examination are presented in Table 190. The results of the examination are presented in Table 191. The results of the examination are presented in Table 192. The results of the examination are presented in Table 193. The results of the examination are presented in TABLES 1-3.

y 1
: j 60 s 2 101/1061 a d g 1 (1)
A y i 60 s 3 40 s 2 101/1061 a d g 1 (2)
A y i 40 s 3 40 s 2 101/1061 a d g 1 (3)
A y i 40 s 3 40 s 2 101/1061 a d g 1 (4)

a

(1)

a 2jall jwll lalc! gai jai jai jai jai jai

Jg 850sssssssssssssssssssssssssssssssssssssssssssssssssssss

jglgdl 4e jy h

a 1

1 1

gaaal jn aagaaa

2021 1200

a 800 aiee

a 800

S OBC = S COD + S BOC - S BOC

0 jai jiai abw yis yaaill s gdo cluiu w yaaill aee

i 1

a

J 1 J 1

1

yge yall aegbll palk jll bial.1

aill jssall cll aalil oaiy loaic iisgill Jae 122.2

a a a a a a a a a a a a a a a a a a a a

aal aal

Jaaa aae ae aee

aaii aaii iiaai iaii iaii iaii iaii iaii iaii

a

Eco Time

J 1

Energy Saver

E 8

aalw ylll lki ci jiauua aaiy ugi jui jiu jiu

a

aal 1 aal 1 aal 1 aal 1 aal 1 aal 1 aal 1 aal 1 aal 1 aal 1 aal 1 aal

aolis aylic uibii yu

J 20 J 20

aJy j 6014 40

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

a

aai 1000000000000000000000000000000000000000000000000000000000000000

Aaiiae jg jaii jay qiy dally Jauill sall al galiipin 1

Sul, aaiill algoe 5g jie

11 abgall s jll g bll g 1s jll (jw) jll s gdl sall g2 jll 3 jll

Jusell

JyLo Jusll y
aaiu 1e jj/ uiaell g
cllgl aagll lallln nn nnnnnaa: jil
..jll sllslll allg jg jg jgi
gill "Jusll tllr jg" aaiiall gaii iii

9dJgj0

400-500 1
150-200 1
400-500 1
900-1200 1
150-250 1

J 12000000000000000000000000000000000000000

Aajilj Jia jie clll jss

.5sila pala

cull all yj gulai

Lai jisi jiaosi baioll

yajgall yalny jay

aee aae

jil"）10065jy

.

(“s j) clal coj j

aellal jay Jai, jayll jai i aai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai

aee aee eae ee eee eee eee eee

o jia 1i i 1

aaiiie

y

（）j

"ssill" jai) sill aiae Jia 1s uusu jui jai jai p

(“i5jill”jail) a sinaa yie slal

(“jill” jil) jil jil jil jil jil jil ai shi

jaiyi jiall 1

aall 8jdo Jgds jgi gaii

(“ulswal jiall" jil (jaiit lai) 82 yu waii

"15 1

y 1

aill aell ae 1ai kaii

j 1

.

yjlll" j"Jauell caiSla" 1000 1 Jauill aysl aia 1a

(4)

Jyai 1

0g 1

:seLall sel siul

(1) (1) 151515151515151515151515151515

akall JpaI Lajnssll gai jyLj

aillal alalw y aie gai dalee jy jay jai jai jai

Jao gao zao Lao lai jilai!

Aaillll Clogalil jy

S ACD = S COD + S_ DCE

:Mod) jallj

.(S/N)
