USER MANUAL BIAA 34 F X H D INDESIT

Maintenance and care, 27

Anomalies et remèdes, 28

Operating Instructions, 1

Description of the appliance, 6

Description of the appliance, 11

Reversible doors, 16

Start-up and use, 21

Maintenance and care, 23

Precautions and tips, 23

Operating Instructions

Before calling for Assistance:

Check if the malfunction can be solved on your own (

• If after all the checks, the appliance still does not operate or the

problem persists, call the nearest Service Centre

• type of malfunction

• appliance model (Mod.)

• serial number (S/N)

This information can be found on the data plate located on the bottom

left side of the refrigerator compartment.

Never call on unauthorized technicians and always refuse spare

parts which are not originals.

Control panel 1. ON/OFFThe entire product (both the refrigerator and freezer compartments)may be switched on by pressing this button. The red LED indicatesthat the product is switched off, while the green LED shows that it isoperating.2. REFRIGERATOR - and + temperature adjustmentUsed to modify the temperature setting of the refrigerator; confirmationcorresponding to the selected temperature appears on the display.3. Refrigerator displayShows the set temperature for the refrigerator compartment.4. ECOControls the activation and deactivation of the ECO function (optimaloperating temperature for minimal energy consumption). When thisfunction is activated, the ECO LED on the keypad lights up.Pressand hold the ECO button for 8 seconds so that the correspondingLED begins to flash; this will allow you to set the temperature to+4°,+5°,+6° in the Refrigerator compartment and -18°,-19°,-20° inthe Freezer compartment.Ten minutes after the most recent userinteraction, the display enters its energy saving mode (all LEDs switchoff, except the ON/OFF ). To exit the energy saving mode, simply press any button or open the refrigerator door.5. FREEZER TEMPERATURE ALARMThe temperature of the freezer has exceeded the safety threshold foroptimal food storage (see Troubleshooting section)6. DOOR OPEN ALARMThe refrigerator door has been open for more than two minutes (seeTroubleshooting section)7. CHILD LOCKActivates or deactivates the control panel button lock in order to avoidthe risk of the various functions being activated accidentally bychildren. The CHILD LOCK LED on the keypad lights up.8. FREEZER - and + temperature adjustmentUsed to modify the temperature setting of the freezer; confirmationcorresponding to the selected temperatureappears on the display.9. FREEZER displayShows the set temperature for the freezercompartment.10. SUPER COOLActivates or deactivates the SUPER COOL function(rapid cooling). The SUPER COOL LED on thekeypad lights up and ‘SC’ appears on therefrigerator display.11. SUPER FREEZEActivates or deactivates the SUPER FREEZEfunction (rapid freezing). The SUPER FREEZE LEDon the keypad lights up and ‘SF’ appears on thefreezer display.12. HOLIDAYActivates or deactivates the HOLIDAY function (theHOLIDAY LED on the keypad lights up), while thetemperature values +12°C and -18°C appear onthe refrigerator and freezer displays respectively.Ten minutes after the most recent user interaction,the display enters its energy saving mode (seeECO function).13. ICE PARTYActivates the ICE PARTY function (the temperatureis decreased for the amount of time it takes to cool abottle). The ICE PARTY LED on the keypad lights up.

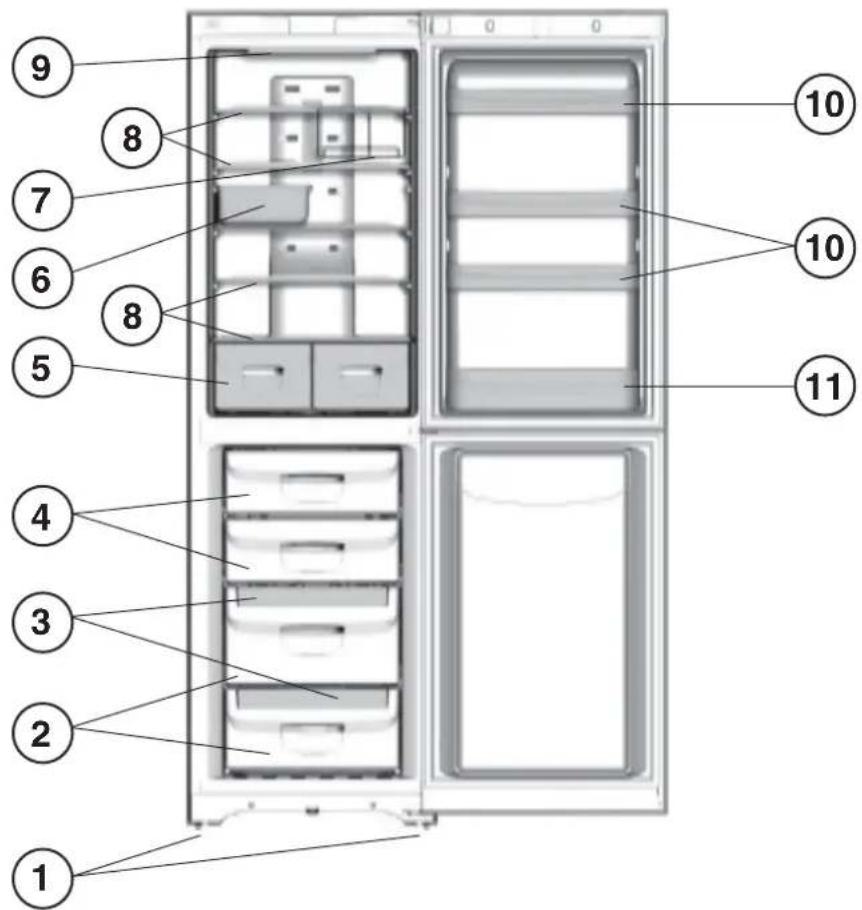

Description of the appliance

The instructions contained in this manual are applicable to different

model refrigerators. The diagrams may not directly represent the

appliance purchased. For more complex features, consult the following

2 STORAGE compartment

4 FREEZER and STORAGE compartment

5 FRUIT and VEGETABLE bin *

6 FRESH BOX for MEAT and CHEESE *

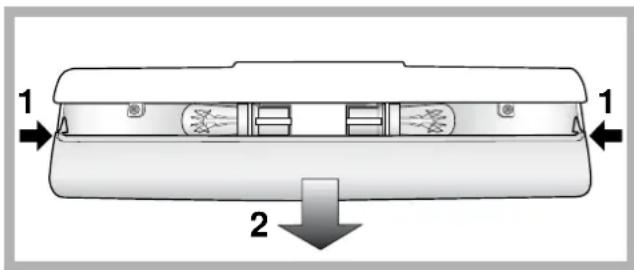

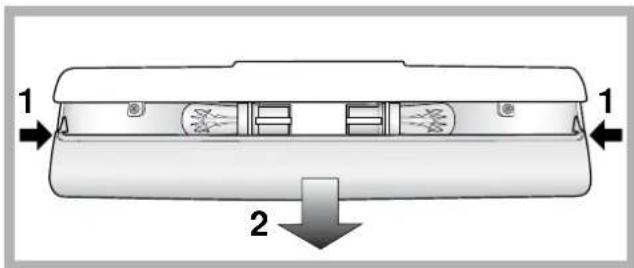

9 LAMP (see Maintenance).

10 Removable multipurpose SHELVES *

* Varies by number and/or position, available only on certain models.

If it is necessary to change the direction in which the doors open, please

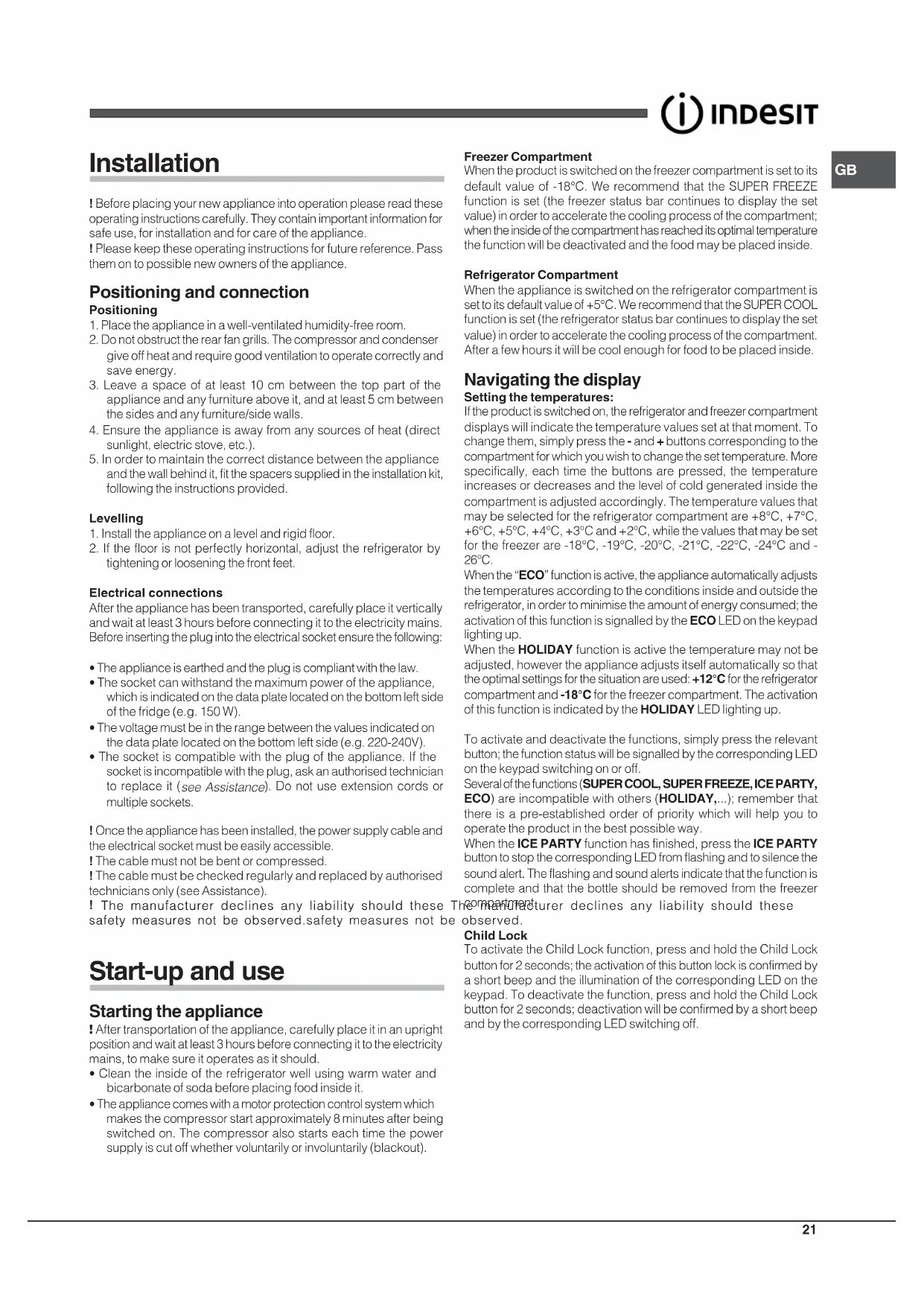

Installation ! Before placing your new appliance into operation please read theseoperating instructions carefully. They contain important information forsafe use, for installation and for care of the appliance.! Please keep these operating instructions for future reference. Passthem on to possible new owners of the appliance. Positioning and connection Positioning1. Place the appliance in a well-ventilated humidity-free room.2. Do not obstruct the rear fan grills. The compressor and condensergive off heat and require good ventilation to operate correctly andsave energy.3. Leave a space of at least 10 cm between the top part of theappliance and any furniture above it, and at least 5 cm betweenthe sides and any furniture/side walls.4. Ensure the appliance is away from any sources of heat (directsunlight, electric stove, etc.).5. In order to maintain the correct distance between the applianceand the wall behind it, fit the spacers supplied in the installation kit,following the instructions provided.Levelling1. Install the appliance on a level and rigid floor.2. If the floor is not perfectly horizontal, adjust the refrigerator bytightening or loosening the front feet.Electrical connectionsAfter the appliance has been transported, carefully place it verticallyand wait at least 3 hours before connecting it to the electricity mains.Before inserting the plug into the electrical socket ensure the following:• The appliance is earthed and the plug is compliant with the law.• The socket can withstand the maximum power of the appliance,which is indicated on the data plate located on the bottom left sideof the fridge (e.g. 150 W).• The voltage must be in the range between the values indicated onthe data plate located on the bottom left side (e.g. 220-240V).• The socket is compatible with the plug of the appliance. If thesocket is incompatible with the plug, ask an authorised technicianto replace it ( see Assistance ). Do not use extension cords ormultiple sockets.! Once the appliance has been installed, the power supply cable andthe electrical socket must be easily accessible.! The cable must not be bent or compressed.! The cable must be checked regularly and replaced by authorisedtechnicians only (see Assistance). ! The manufacturer declines any liability should these The manufacturer declines any liability should these The manufacturer declines any liability should these The manufacturer declines any liability should these The manufacturer declines any liability should thesesafety measures not be observed.safety measures not be observed.safety measures not be observed.safety measures not be observed.safety measures not be observed. Start-up and use

Starting the appliance ! After transportation of the appliance, carefully place it in an uprightposition and wait at least 3 hours before connecting it to the electricitymains, to make sure it operates as it should.• Clean the inside of the refrigerator well using warm water andbicarbonate of soda before placing food inside it.• The appliance comes with a motor protection control system whichmakes the compressor start approximately 8 minutes after beingswitched on. The compressor also starts each time the powersupply is cut off whether voluntarily or involuntarily (blackout).Freezer CompartmentWhen the product is switched on the freezer compartment is set to itsdefault value of -18°C. We recommend that the SUPER FREEZEfunction is set (the freezer status bar continues to display the setvalue) in order to accelerate the cooling process of the compartment;when the inside of the compartment has reached its optimal temperaturethe function will be deactivated and the food may be placed inside.Refrigerator CompartmentWhen the appliance is switched on the refrigerator compartment isset to its default value of +5°C. We recommend that the SUPER COOLfunction is set (the refrigerator status bar continues to display the setvalue) in order to accelerate the cooling process of the compartment.After a few hours it will be cool enough for food to be placed inside. Navigating the display Setting the temperatures:If the product is switched on, the refrigerator and freezer compartmentdisplays will indicate the temperature values set at that moment. To change them, simply press the - and + buttons corresponding to the compartment for which you wish to change the set temperature. Morespecifically, each time the buttons are pressed, the temperatureincreases or decreases and the level of cold generated inside thecompartment is adjusted accordingly. The temperature values thatmay be selected for the refrigerator compartment are +8°C, +7°C,+6°C, +5°C, +4°C, +3°C and +2°C, while the values that may be setfor the freezer are -18°C, -19°C, -20°C, -21°C, -22°C, -24°C and -26°C. When the “ECO” function is active, the appliance automatically adjusts the temperatures according to the conditions inside and outside therefrigerator, in order to minimise the amount of energy consumed; the activation of this function is signalled by the ECO LED on the keypad lighting up. When the HOLIDAY function is active the temperature may not be adjusted, however the appliance adjusts itself automatically so that the optimal settings for the situation are used: +12°C for the refrigerator

compartment and -18°C for the freezer compartment. The activation

of this function is indicated by the HOLIDAY LED lighting up. To activate and deactivate the functions, simply press the relevantbutton; the function status will be signalled by the corresponding LEDon the keypad switching on or off.Several of the functions (SUPER COOL, SUPER FREEZE, ICE PARTY, ECO) are incompatible with others (HOLIDAY,...); remember that there is a pre-established order of priority which will help you tooperate the product in the best possible way. When the ICE PARTY function has finished, press the ICE PARTY button to stop the corresponding LED from flashing and to silence thesound alert. The flashing and sound alerts indicate that the function iscomplete and that the bottle should be removed from the freezercompartment.Child LockTo activate the Child Lock function, press and hold the Child Lockbutton for 2 seconds; the activation of this button lock is confirmed bya short beep and the illumination of the corresponding LED on thekeypad. To deactivate the function, press and hold the Child Lockbutton for 2 seconds; deactivation will be confirmed by a short beepand by the corresponding LED switching off.22

The No Frost system circulates cold air continuously to collect humidity

and prevent ice and frost formation. The system maintains an optimal

humidity level in the compartment, preserving the original quality of

the food, preventing the food from sticking together and making

defrosting a thing of the past. Do not block the aeration cells by

placing food or containers in direct contact with the refrigerating back

panel. Close bottles and wrap food tightly.

Using the refrigerator to its full potential

• Adjust the temperature using the display.

• Activate the SUPER COOL function to lower the temperature quickly,

for example, when you place a large number of new food items

inside a fridge and the internal temperature rises slightly. This

function quickly cools the groceries by temporarily reducing the

temperature until it reaches the ideal level.

• Place only cold or lukewarm foods in the compartment, never hot

foods (see Precautions and tips).

• Remember that cooked foods do not last longer than raw foods.

• Do not store liquids in open containers: they will increase the level

of humidity in the refrigerator and cause condensation to form.

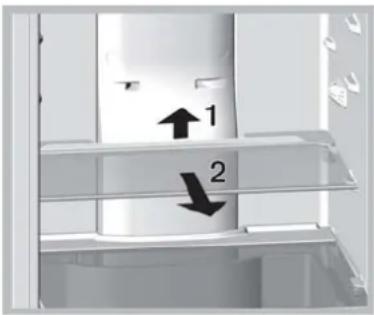

SHELVES: with or without grill.

Due to the special guides the shelves are removable and the height is

), allowing easy storage of large containers and

food. Height can be adjusted without complete removal of the shelf.

TEMPERATURE Indicator light*: to identify the coldest area in the

1. Check that OK appears clearly on the indicator light (

2. If the word “OK” does not appear it means that the temperature is

too high: adjust the REFRIGERATOR OPERATION knob to a higher

position (colder) and wait approximately 10 hours until the

temperature has been stabilised.

3. Check the indicator light again: if necessary, readjust it following

the initial process. If large quantities of food have been added or if

the refrigerator door has been opened frequently, it is normal for

the indicator not to show OK. Wait at least 10 hours before adjusting

the REFRIGERATOR OPERATION knob to a higher setting.

This is the new box to keep meat, fish and cheese fresh.

positioned in the “lower” part of the fridge compartment, it is ideal for

meat and fish; when moved to the “top” part of the fridge, it is perfect

It can be taken out of the fridge when it is not needed.

Using the freezer to its full potential

• Adjust the temperature using the display.

• Fresh food that needs to be frozen must not come into contact with

food that has already been defrosted. Fresh food must be stored

in the top FREEZER and STORAGE compartment where the

temperature drops below -18°C and guarantees rapid freezing.

• To freeze fresh food in the best and safest way possible, activate

the SUPER FREEZE function 24 hours before placing the food

in the freezer. After placing the food inside, activate the SUPER FREEZE function again; it will be deactivated automatically after

• Do not re-freeze food that is defrosting or that has already been

defrosted. These foods must be cooked and eaten (within 24

• Do not place glass bottles which contain liquids, and which are

corked or hermetically sealed in the freezer because they could

• The maximum quantity of food that may be frozen daily is indicated

on the plate containing the technical properties located on the

bottom left side of the refrigerator compartment (for example: Kg/

! Do not open the door during freezing.

! If there is a power cut or malfunction, do not open the freezer door.

This will help maintain the temperature inside the freezer, ensuring

that foods are conserved for at least 9 -14 hours.

! to avoid blocking the air circulation inside the freezer compartment,

it is advisable not to obstruct the ventilation holes with food or

The fact that they are situated on the top part of the freezer drawers

ensures greater cleanliness: the ice no longer comes into contact with

the food placed inside the freezer compartment; furthermore, the

dripping of the water during filling is avoided (a lid to cover up the hole

after filling with water is also provided).

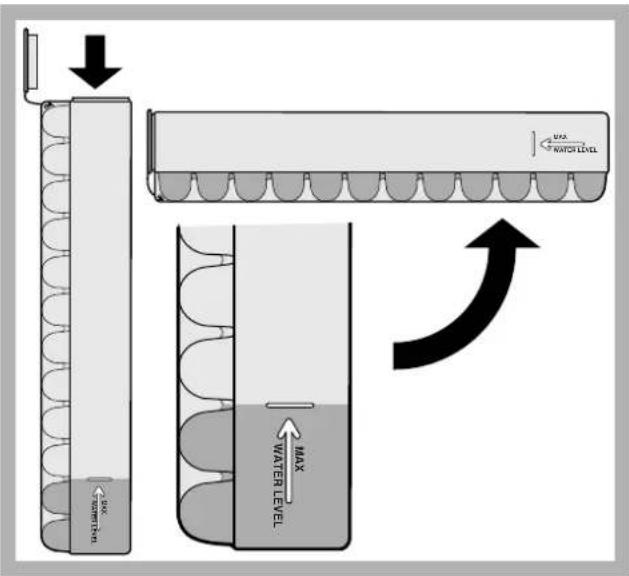

1. Pull out the tray by pushing it up. Check that the tray is ompletely

empty and fill it with water through the opening provided.

2. Take care not to exceed the level indicated (MAX WATER LEVEL).

Excess water prevents the ice cubes from dispensing (if this

happens, wait for the ice to melt and empty the tray).

3. Turn the tray 90°: due to the connected compartments each mould

4. Close the opening with the lid provided and put the tray back,

placing the top part in the corresponding housing and allowing it to

5. When the ice has formed (minimum time approximately 8 hours)

knock the tray against a hard surface and wet the outside so that

the ice cubes come loose and take them out through the opening.

* Varies by number and/or position, available only on certain models.GB

WATER LEVEL MAX WATER LEVEL MAX WATER LEVEL MAX Maintenance and care

Switching the appliance off During cleaning and maintenance it is necessary to disconnect theappliance from the electricity supply:1. Press the ON/OFF button to switch off the appliance.2. Pull the plug out of the socket.! If this procedure is not followed, the alarm may sound. This alarmdoes not indicate a malfunction. To restore normal operation, hold theON/OFF button down for more than two seconds. To disconnect theappliance, follow points 1 and 2 above. Cleaning the appliance • The external and internal parts, as well as the rubber seals may becleaned using a sponge that has been soaked in lukewarm waterand bicarbonate of soda or neutral soap. Do not use solvents,abrasive products, bleach or ammonia.• The removable accessories may be soaked in warm water andsoap or dishwashing liquid. Rinse and dry them carefully.• The back of the appliance may collect dust which can be removedby delicately using the hose of a vacuum cleaner set on mediumpower. The appliance must be switched off and the plug must bepulled out before cleaning the appliance. Avoiding mould and unpleasant odours • The appliance is manufactured with hygienic materials which areodour free. In order to maintain an odour free refrigerator and toprevent the formation of stains, food must always be covered orsealed properly.• If you want to switch the appliance off for an extended period oftime, clean the inside and leave the doors open. Replacing the light bulb To replace the light bulb in the refrigerator compartment, pull out theplug from the electrical socket. Follow the instructions below.Access the light bulb by removing the cover as indicated in thediagram. Replace it with a similar light bulb within the power rangeindicated on the cover. 1 1

Precautions and tips ! The appliance was designed and manufactured in compliance withinternational safety standards. The following warnings are providedfor safety reasons and must be read carefully.This appliance complies with the following Community Directives:- 73/23/EEC of 19/02/73 (Low Voltage) and subsequent amendments;-89/336/EEC of 03.05.89 (Electromagnetic Compatibility) andsubsequent amendments;- 2002/96/CE.. General safety • The appliance was designed for domestic use inside the homeand is not intended for commercial or industrial use.• The appliance must be used to store and freeze food products byadults only and according to the instructions in this manual.• The appliance must not be installed outdoors, even in coveredareas. It is extremely dangerous to leave the appliance exposedto rain and storms.• Do not touch the appliance with bare feet or with wet or moisthands and feet.• Do not touch the internal cooling elements: this could cause skinabrasions or frost/freezer burns.• When unplugging the appliance always pull the plug from the mainssocket, do not pull on the cable.• Before cleaning and maintenance, always switch off the applianceand disconnect it from the electrical supply. It is not sufficient to setthe temperature adjustment knobs on ON/OFF (appliance off) toeliminate all electrical contact.• In the case of a malfunction, under no circumstances should youattempt to repair the appliance yourself. Repairs carried out byinexperienced persons may cause injury or further malfunctioningof the appliance.• Do not use any sharp or pointed utensils or electrical equipment -other than the type recommended by the manufacturer - inside thefrozen food storage compartments.• Do not put ice cubes taken directly from the freezer into yourmouth.• This appliance is not intended for use by persons (includingchildren) with reduced physical, sensory or lack of experienceand knowledge unless they have been given supervision orinstruction concerning use of the appliance by a personresponsible for their safety. Children should be supervised toensure that they do not play with the appliance.• Keep packaging material out of the reach of children! It can becomea choking or suffocation hazard.24

GB Disposal • Observe local environmental standards when disposing packagingmaterial for recycling purposes.• The European Directive 2002/96/EC on Waste Electrical andElectronic Equipment (WEEE), requires that old household electricalappliances must not be disposed of in the normal unsorted municipalwaste stream. Old appliances must be collected separately inorder to optimise the recovery and recycling of the materials theycontain and reduce the impact on human health and theenvironment. The crossed out “wheeled bin” symbol on the productreminds you of your obligation, that when you dispose of theappliance it must be separately collected. Consumers shouldcontact their local authority or retailer for information concerningthe correct disposal of their old appliance. Respecting and conserving the environment • Install the appliance in a fresh and well-ventilated room. Ensurethat it is protected from direct sunlight and do not place it near heatsources.• Try to avoid keeping the door open for long periods or opening thedoor too frequently in order to conserve energy.• Do not fill the appliance with too much food: cold air must circulatefreely for food to be preserved properly. If circulation is impeded,the compressor will work continuously.• Do not place hot food directly into the refrigerator. The internaltemperature will increase and force the compressor to work harderand will consume more energy.• Defrost the appliance if ice forms ( see Maintenance ). A thick layerof ice makes cold transference to food products more difficult andresults in increased energy consumption. Troubleshooting If the appliance does not work, before calling for Assistance (seeAssistance), check for a solution from the following list.The display is completely switched off.• The plug has not been inserted into the electrical socket, or not farenough to make contact, or there is no power in the house.The motor does not start.• The appliance comes with a motor protection control ( see Start-up

). The display is on but it is dim.• Pull out and reverse the plug before putting it back in the socket.The alarm sounds and DOOR OPEN ALARM flashes on thedisplay (“d” is displayed instead of the REFRIGERATORtemperature).• The refrigerator door has been open for more than two minutes.The sound alert stops when the door is closed or when the applianceis switched off and on again.The alarm sounds and TEMPERATURE ALARM flashes on thedisplay (“A1” is displayed instead of the FREEZERtemperature).• The temperature inside the freezer is too high. The freezer willmaintain a temperature of around 0°C so that the food will notrefreeze, allowing you to eat it within 24 hours or to refreeze it afterit has been cooked.To switch off the buzzer, open and close the appliance door orpress the + and – freezer temperature adjustment buttons once.Press these buttons a second time to display the set value on thefreezer display, switch off the TEMPERATURE ALARM LED andrestore normal operation.The alarm sounds and temperature alarm flashes on thedisplay (“A2” is displayed instead of the FREEZERtemperature).• The temperature of the freezer is dangerously high: the food insidemust not be eaten. The freezer will maintain a temperature ofapproximately -18°C.To switch off the buzzer, open and close the appliance door orpress the + and – freezer temperature adjustment buttons once.Press these buttons a second time to display the set value on thefreezer display, switch off the TEMPERATURE ALARM LED andrestore normal operation.The refrigerator and the freezer do not cool well.• The doors do not close properly or the seals are damaged.• The doors are opened too frequently.• The temperature that has been set is too high ( see Start-up and

). • The refrigerator or the freezer have been over-filled.The food inside the refrigerator is beginning to freeze.• The temperature that has been set is too low ( see Start-up and

). The motor runs continuously.• The SUPER FREEZE button has been pressed (rapid freezing):the yellow SUPER FREEZE light is on or flashing ( see Description

). • The door is not closed properly or is continuously opened.• The outside ambient temperature is very high.The appliance makes a lot of noise.• The appliance has not been installed on a level surface ( see

. • The appliance has been installed between cabinets that vibrateand make noise.• The internal refrigerant makes a slight noise even when thecompressor is off. This is not a defect, it is normal.Early ending of functions• Electrical disturbance on the network or brief interruptions of thepower supply.F
