USER MANUAL WeatherStar INTENSO

• Secure Digital Card (SD™)
• Secure Digital High Capacity (SDHC™)
  Multimedia Card (MMC™)
  Memory Stick (MS)

Please comply with the following instructions to be informed about the different functions of the Intenso digital photo frame.

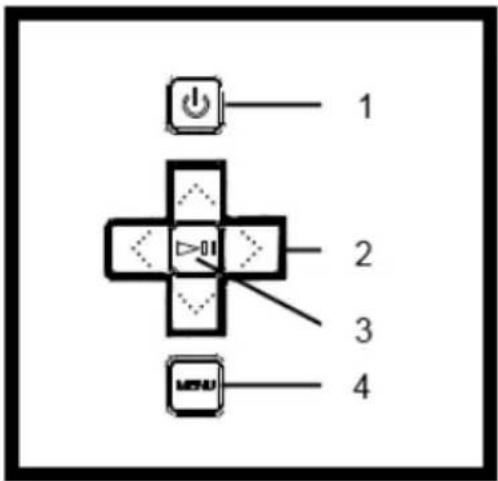

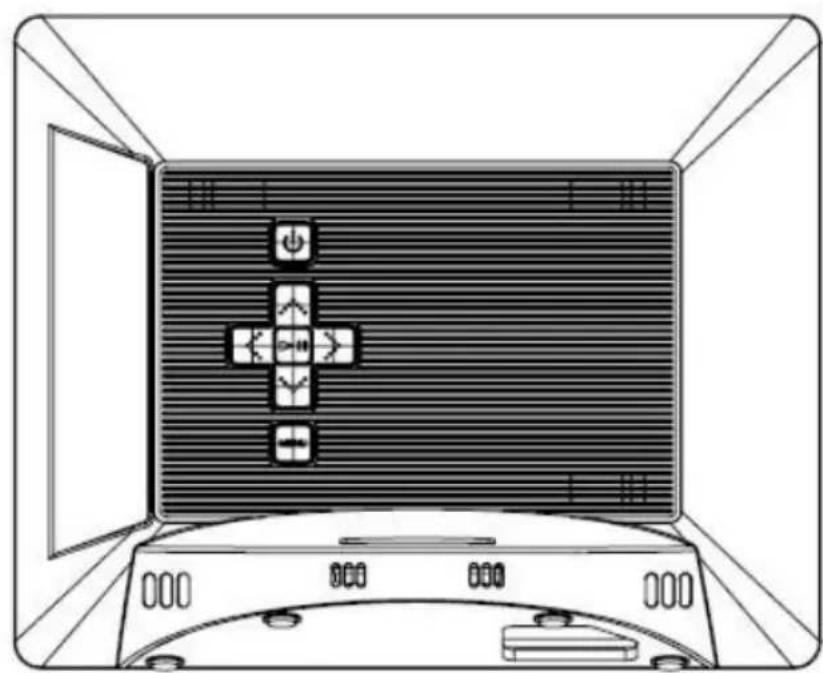

1) Assignment of keys at the rear of the unit

1 Power On / Off
2 Navigation keys
3 Play / Pause / OK key
4 Menu key

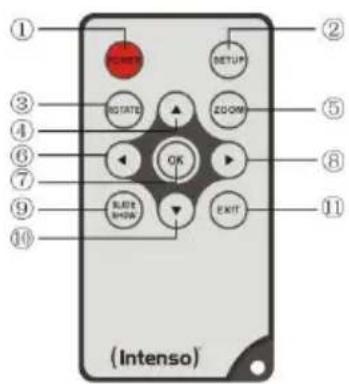

2) Remote control

1	POWER	Power On / Off
2	SETUP	Display of all settings
3	ROTATE	Rotating 90° clockwise
4	▲	Moves the cursor up
5	ZOOM	Enlarge the image in paused slide show
6	←	Moves the cursor left
7	OK	Confirming the selected menu item
8	▶	Moves the cursor right
9	SLIDESHOW	Start slide show
10	▼	Moves the cursor down
11	EXIT	Return to superordinate menu

3) Connect and switch on the digital photo frame

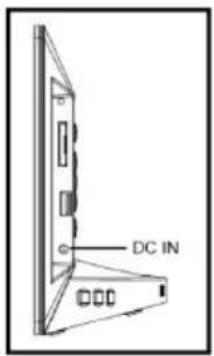

Connect the Power Adapter supplied with the frame (DCIN). Plug the other end of the Adapter into the Socket. The photo frame will now start automatically. Hold down the Power button briefly to turn it off or on again.

Please note:

• The plug must be placed next to the device so to be easily accessible.
  Do not open the box of the line adapter. If the box is open, there is danger of life caused by electric shock. The product does not contain parts to be maintained.
  Actuate the line adapter only with earthed plugs of AC 100-240V\~, 50 / 60Hz If you are not sure about the provision of electricity at the installation point, ask your energy provider.
• Use the included line adapter and line connection cable only.
  To interrupt the power supply of your equipment, unplug the adapter. While you are unplugging it, always hold the adapter. Do never pull the cable.

4) Insert memory cards | connect USB data carriers

Insert memory cards into the card reader slot with the logo facing away from the display.

Caution: Please do not insert card with force!

The following memory card formats can be used with your digital photo frame:

• Secure Digital Card (SD™)
• Secure Digital High Capacity (SDHC™)
  Multimedia Card (MMC™)
  Memory Stick (MS)

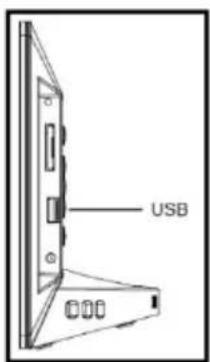

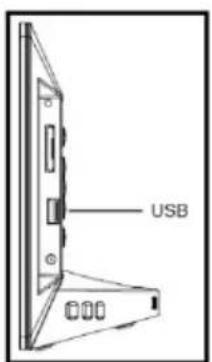

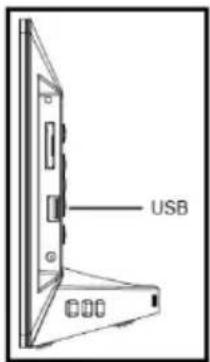

USB data carriers can only be plugged into the USB slot in one direction.

Please note: Never insert USB data carriers by use of force!

Note: The digital photo frame is exclusively designed for the use with compatible memory cards and 2.0 data media (100 mA).

5) General handling

Note: This device has an Eco Function. If it is activated (please open the settings for activation or deactivation), it automatically shuts down 4 hours after the last input. This function is already activated in the condition on delivery due to legal requirements.

a) Main menu

After starting up, the main menu appears.

In the main menu you can choose between multiple functions of the digital photo frame and the menu item settings. Press the cursor keys on the remote or the cursor keys on the unit to select a menu item. Confirm your selection with the Play / Pause / OK key on the remote or the OK key on the unit.

b) Displaying photos

You can start a Slide show in two different ways. Navigate the Main menu to reach the Photo function. Confirm your selection by pressing the Play / Pause / OK button on the remote control or the unit. The Slide show will start. Alternatively, you can also press the Slideshow button on the remote control to start a Slide show directly from any other function.

Press the EXIT key on the remote or the RETURN key on the unit to leave the slide show and to call up the image preview menu. You can now navigate to a photo, confirm your selection with the OK key on the remote or the OK key on the unit and continue the slide show from this point directly. You can reach the respective super ordinate file folder by pressing the RETURN key in the image preview menu again. This is how you navigate easily between the various folders of your storage medium.

Functions during the slide show:

You can switch a photo forward or back by pressing the cursor keys on the remote or the cursor keys on the unit right or left.
- You can stop a slide show by pressing the OK key on the remote or the Play / Pause key on the unit. The slide show is continued if you press the key again.
- Press the ROTATE button on the remote control to rotate the image currently displayed.
- Press the ZOOM button on the remote control to enlarge the image currently displayed.
- Press and hold the Play / Pause / OK button on the remote control briefly to start the ROTATE and ZOOM function from the device.

c) Weather function

Note: The weather forecast is based on the measurements of ambient temperature, air humidity and air pressure for an extended period of time. The unfavourable positioning of the outdoor sensor, regional particularities, variations in air pressure and a too short period for the determination of data (less than 24 hours) may affect the results.

The outdoor sensor:

Inserting the Batteries:

Loosen the 4 screws on the battery cover with a suitable Phillips screwdriver and insert 2 AAA batteries. Make sure that the positive and negative poles are in the correct position. Close the battery cover again with the 4 screws.

Placing the outdoor sensor:

Please place the outdoor sensor in a protected location to avoid influences on the measurement by rain or direct sunlight.

The outdoor sensor is splash-proof according to standard IPX3. Avoid choosing installation locations where it can come directly in contact with standing water or snow. Ideally, hang the outdoor sensor on a suitable outside wall.

Important note: The outdoor sensor must never be positioned lying. It should only be placed upright.

The weather display:

Navigate the Main menu to the Weather function and confirm your selection by pressing the Play / Pause / OK button on the remote control or the unit.

In the left-side third you will see the wellness indicator. Using different symbols, this provides a quick overview of outdoor air humidity:

Outdoor air humidity is low (dry).

Outdoor air humidity is in a comfortable range for most people.

Outdoor air humidity is high (wet).

The middle third displays the set date, time and the weather forecast:

	Sunny / Clear.
	Partly cloudy
	Cloudy
	Rainy
	Snowy

In the right-side third, the outdoor temperature and outdoor air humidity are graphically represented as a column, while the interior temperature, interior air humidity, outdoor temperature and outdoor air humidity are represented as numbers. Press the Play / Pause / OK button on the remote control or the unit to switch the display between Fahrenheit and Celsius.

d) Calendar

Navigate to the calendar function in the main menu and confirm your selection with the OK key on the remote or the OK key on the unit.

In the calendar mode you can see the current time, the current calendar sheet and (with inserted storage medium with supported photo files) a slide show.

Using the arrow keys on the remote control or on the unit, you can change the day and month of the displayed calendar sheet.

e) File system

Navigate to the file function in the main menu and confirm your selection with the OK key on the remote or the OK key on the unit.

Now all folders and files of the selected storage medium will be displayed. Navigate to a sub folder using the cursor keys on the remote or the unit and confirm your selection with the OK key on the remote or the OK key on the unit. Now all files and folders within the selected folder will be displayed. You can go back to the superordinate folder by pressing the EXIT key on the remote or the RETURN key on the unit.

In order to open a file directly from the file system, navigate to the desired file and confirm your selection with the OK key on the remote or the Play / Pause key on the unit. The file will now be played.

To delete a file or an entire folder on the selected storage medium, please navigate to the desired file and hold the Play / Pause / OK button pressed briefly. A dialogue box will appear, where you will have to confirm the deletion in order to avoid accidental erasure. Press the Play / Pause / OK button again and the desired file or folder will be deleted. Press the Menu / Exit button again to switch back to the file list.

f) Changing the settings

Navigate to the settings function in the main menu and confirm your selection with the OK key on the remote or the OK key on the unit.

You now have the following setting options: Photo settings, calendar settings, and system settings. Navigate to the desired menu item and confirm your selection with the OK key on the remote or the OK key on the unit. Now all setting options will be displayed. You can navigate through the individual setting options with the Up / Down cursor keys on the remote or the cursor keys on the unit. You can customise the settings using the Left / Right cursor keys on the remote. To customise the settings without the remote please press the OK key on the unit. Now you can change the settings by pressing the cursor keys. Please confirm your selection with the RETURN key on the unit.

	Setting options	Description
Photo Setup	Display Mode	Choose between Slideshow, Thumbsail, and Manual selection.
	Display Format	Choose between the original and suitable clipping.
	Interval	Setting of display duration of individual slides during the slide show.
	Slideshow Repeat	Choose between a one-time display of an image or endless loop.
	Slideshow Effect	Select a specific transition effect or a random selection of transition effects.
Date Setup	Display Mode	Choose between a monthly calendar and a clock
	Date	Setting the current date.
	Clock Mode	Setting the time format: 12 (AM / PM) hours or 24 hours.
	Time	Setting the current time.
System settings	Language	Select the desired language.
	Brightness	Select the desired display brightness.
	Contrast	Select the desired display contrast.
	Saturation	Select the desired display chroma.
	Auto on	Activate/Deactivate automatic activation.
	Turn on time	Select the automatic activation time.
	Auto off	Activate/Deactivate automatic deactivation.
	Turn off time	Select the automatic deactivation time.
	Frequency	Set the frequency of automatic activation (every day, Monday to Friday, weekends, once).
	Eco	If you activate this function, the device will automatically shut down 4 hours after the last input. If you wish to use this device for an extended period of time, please deactivate this function.
	Default settings	Restore to factory settings.
	Version	The current version number will be displayed
	Update	Should a Firmware update be available on www.intenso.de, then you can install it in this menu item.

6) Product Specifications

Display	Digital TFT LCD Display size: 8 inch (20,32 cm diagonal viewable image) Display modus: 4:3 Resolution: 800 x 600 Pixel
Power supply	Input: 100~240V AC, 50/60Hz Output: 5V 1A DC
USB port	USB Host 2.0 (High Speed) Supports USB storage mediums
Memory cards supported	• Secure Digital Card (SD™) • Secure Digital High Capacity (SDHCTM) • Multimedia Card (MMC™) • Memory Stick (MS)
Picture size supported	JPEG, max. resolution: 9000*9000 pixels
Operating temperature	0°C ~ +40°C
Dimensions	~215*175*75 mm
Weight	~440 gr.
Accessory	Remote control (incl. battery), Power supply (Ktec KSAS0050500100VED), outdoor sensor, multi-lingual operating instruction

You need help?

Simply call our Technical Service Hotline at:

[phone] for 0.39 €/Min. with calls from the German telephone network. Different rates may apply to calls from mobile phones.

Enjoy Intenso's digital photo frame!

Service and Maintenance

Care

• In order to prevent danger from electric current do neither remove screws nor the case of the weather station.
• Do not operate this device near water. Do not expose the device to rain and moisture. Do not put any objects which store water or other fluids near the device.
• Do not install the picture near heaters, ovens or other heat issuing devices.
• Do not open the case. Do not try to repair the device yourself but have it repaired by qualified personnel only.
• Avoid using the device on sandy areas.
• Fully insert the power supply plug into the opening of the Intenso weather station. This will prevent electrostatic charge.
• Correctly and safely connect all ports.
• Do not push onto the display. Protect the display from direct sunlight.
• The picture frame only plays compatible data formats.
• Images may be protected by the rights of third persons. The play back without licence may infringe copyrights.
• When in operation, do not touch the Intenso weather station with metal objects.
• Avoid operating the device on pillows, sofas or other objects which support the development of heat as there is danger of overheating of the device.
• Do not remove memory cards during read operation. This may cause system crash or data loss.
• Do not switch off the device during an ongoing slide show.
• Do not wrap up the device directly after longer use. Ensure sufficient enough cooling. Otherwise, there is danger of overheating.
• In order to ensure a better service, changes of the operating instructions may be necessary.

Maintenance of the device

The device must be switched off.

Never spray or apply a fluid directly onto the display or case.

Cleaning the displays / case / frame

Carefully wipe the case, frame and LCD display with a soft cloth free from lint and chemicals. Only use cleaning agents which are specifically designed for LCD displays.

Disposal of electrical waste

Devices marked with this symbol are subject to the EG Directive 2002/96/EG.

All electrical appliances and old appliances must be disposed off separately from the household waste and are to be returned to the state authorities designed for that purpose.

By correctly disposing of electrical old appliances environmental damage may be prevented.

(Intenso)

49377 Vechta Germany www.intenso.de

(Intenso) Warranty conditions

Dear Intenso customer,

Thank you for opting for a high-quality Intenso product. All Intenso products are subject to constant quality inspections and the legal warranty period applies, of course, from the date of purchase. Please be sure therefore to save the sales receipt as proof of purchase.

Warranty conditions

The warranty only covers material and production defects. Intenso GmbH is not liable for the loss of data in units sent to us. The free of charge warranty service covers the repair or replacement of defective parts. Please understand that we cannot render any warranty services, e.g. in case of:

• Misuse or improper handling, installation or use
• Damages, scratches or wear
• Modifications, manipulation or repairs by third parties
• Damages through force majeure or transport

Your Intenso GmbH

CLAIM PROCEDURE

In case of a claim, please proceed as follows:

1. Only returns accompanied with all accessories and sales receipt are accepted.
2. In addition, a RMA number is absolutely required for return shipments. You can request this RMA number via e-mail or through the service hotline.
3. Please package the product including all accessories and the sales receipt safe for transport. Please stamp the package.
4. Please affix the RMA number clearly visible on the outside of the package.

Please send to the following service address:

INTENSO GMBH

Service Hotline: +49 (0) 900 - 150 40 30

Service Center (your RMA-No.)

(0.39 €/min. from the landline in Germany. Usual costs apply.)
