USER MANUAL Video Rocker INTENSO

1. Index 1
2. Cautions 2
3. Key Features 2
4. Package Content 2
5. Before Using 3
6. Basic operation 5
7. Playing music 6
8. Playing videos 6
9. Viewing photos 6
10. Browsing all files 7
11. Deleting file 7
    12.Customizing Settings 7
12. Troubleshooting 9
13. Technical Specifications 10
14. Notice 11

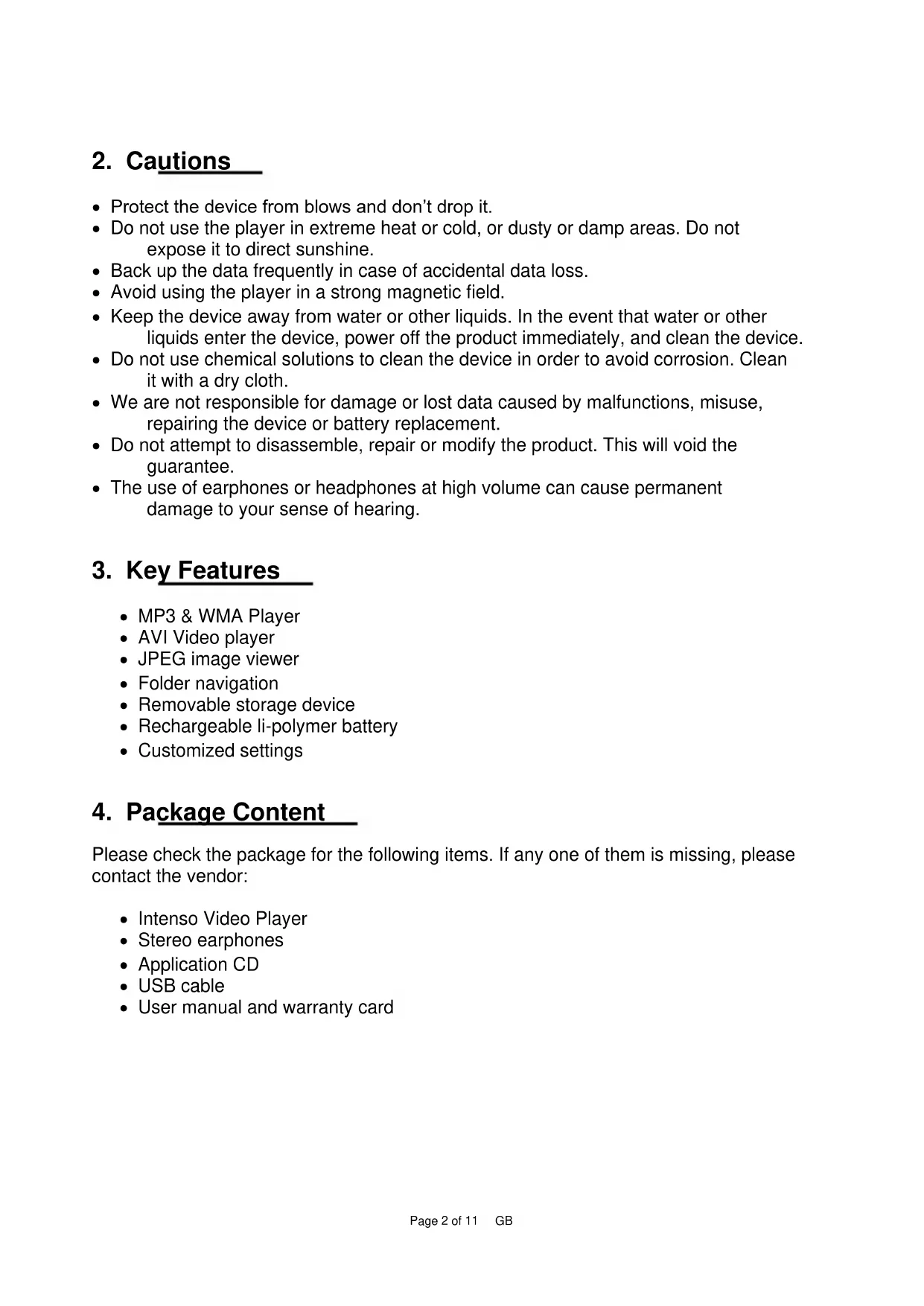

2. Cautions

• Protect the device from blows and don't drop it.
• Do not use the player in extreme heat or cold, or dusty or damp areas. Do not expose it to direct sunshine.
• Back up the data frequently in case of accidental data loss.
• Avoid using the player in a strong magnetic field.
• Keep the device away from water or other liquids. In the event that water or other liquids enter the device, power off the product immediately, and clean the device.
• Do not use chemical solutions to clean the device in order to avoid corrosion. Clean it with a dry cloth.
• We are not responsible for damage or lost data caused by malfunctions, misuse, repairing the device or battery replacement.
• Do not attempt to disassemble, repair or modify the product. This will void the guarantee.
• The use of earphones or headphones at high volume can cause permanent damage to your sense of hearing.

3. Key Features

• MP3 & WMA Player
  AVI Video player
  JPEG image viewer
• Folder navigation
• Removable storage device
• Rechargeable li-polymer battery
• Customized settings

4. Package Content

Please check the package for the following items. If any one of them is missing, please contact the vendor:

• Intenso Video Player
• Stereo earphones
  Application CD
  USB cable
• User manual and warranty card

5. Before Using

Connecting to the PC

If your PC's operating system is Windows 98/SE, please install a driver before connecting the player to your PC. (Driver downloads are available at www.intenso.de). It is not necessary to install a driver if your operating system is WIN 2000/XP/ME/Vista/7.

Please proceed as follows:

(1) Connect the player to a USB connector on the PC.
(2) The 'Intenso' window opens. You can now save data from your hard disk to the removable medium.

Safe removal from the PC

For Windows 2000/XP/ME/Vista/7:

Right click the 'Safely Remove Hardware' icon in the taskbar at the bottom right. Left click 'Remove USB storage device' in the context menu that appears. Please first make sure that the data transfer has been completed.

You can now remove the device.

For Windows 98/SE:

Left click the device in the Device Manager. Now click the menu item 'Remove'. Make sure in this case too that the data transfer has been completed.

You can now disconnect the device from the PC.

Charging the battery:

The device has a built-in rechargeable li-polymer battery. The battery is charged via the USB connection to your PC. Before using the device for the first time, please make sure that the battery is fully charged. This usually takes about 3 hours.

To charge the battery, connect the device to the PC using the USB cable. The charging procedure begins automatically. If you wish to check the current status of the charging procedure, please disconnect the device from the PC. You can see a battery symbol at the top right of the display. If this symbol lights up green, then the battery is fully charged.

Note: for optimum performance, the li-polymer battery must be used regularly. If this is not the case, fully charge the battery at least once per month.

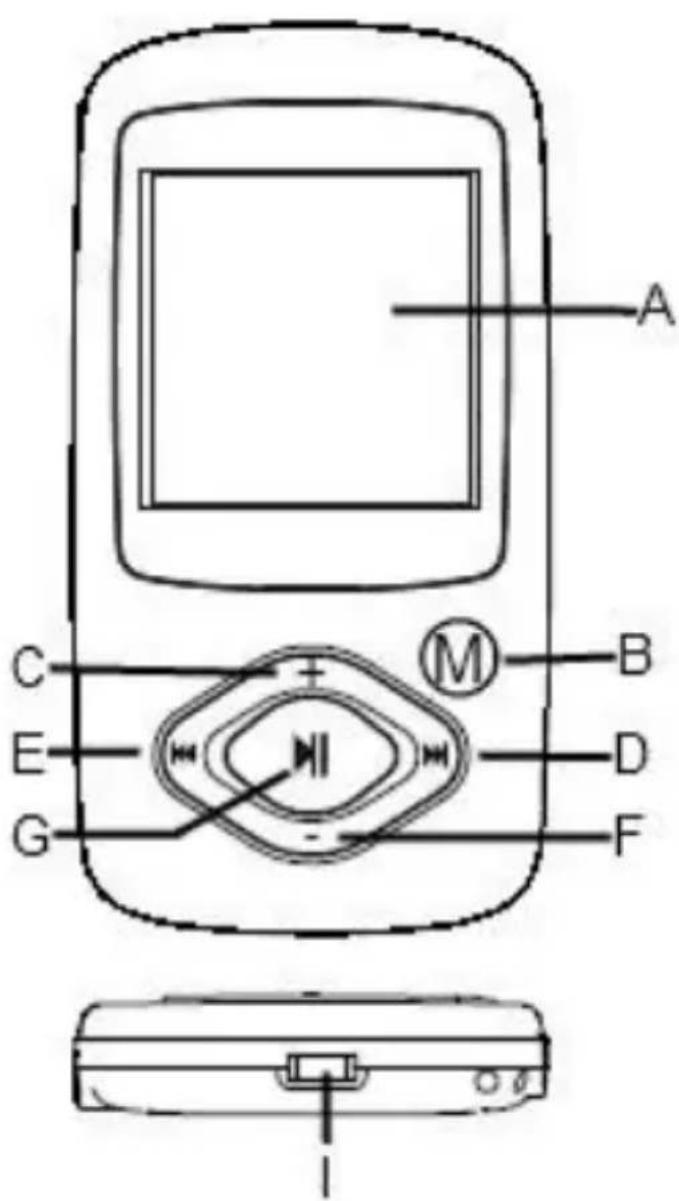

Key Description

A. LCD Display
B. M-Button: Hold for a while to enter the main menu. Briefly press to confirm selection confirm or enter the folder navigation mode.
C. VOL+: Turn up the volume.
D. Next: Play the next track. Also move up.
E. Previous: Play the previous track. Also move down.
F. VOL-: Turn down the volume.
G. Play/Pause: Turn on or turn off the device. Also play or pause audios.

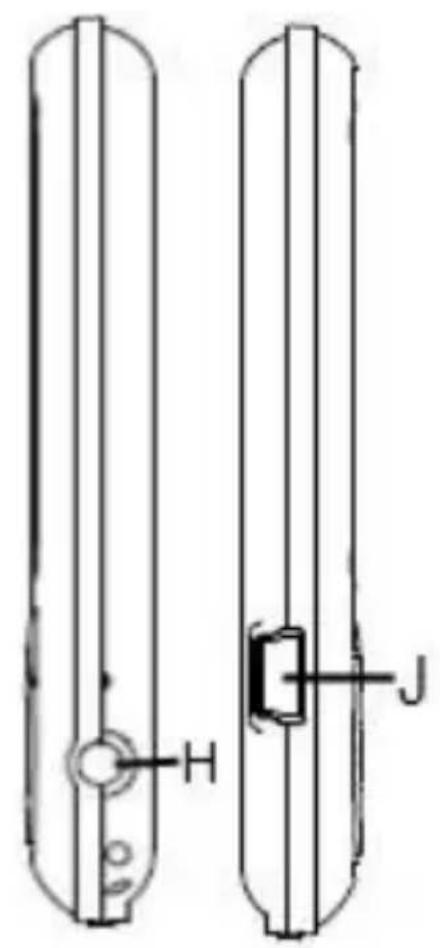

H. Earphone Jack

I. Power Switch: Turn on or turn off the power

J. USB Port: Connect to a computer

Power On/Off

To switch on,

(1) Slide the ON/OFF Switch to the right to turn on the power.
(2) Press and hold the PLAY/PAUSE button until the display starts.

To switch off,

(1) Press and hold the PLAY/PAUSE button until the display stop.
(2) Slide the ON/OFF Switch to the left to turn off the power.

Note: This player has a power-saving feature which enables the device to power off automatically if it is idle for about 3 minutes.

6. Basic operation

Play/Pause

Press the PLAY/PAUSE button to play or pause.

Adjust Volume

Briefly press the VOL+/VOL- button to decrease or increase volume.

Previous Track

Briefly press the PREVIOUS button.

Next Track

Briefly press the NEXT button.

Fast Forward

Press and hold the NEXT button.

Rewind

Press and hold the PREVIOUS button.

Lock/unlock buttons

To protect the buttons against being pressed accidentally or unlock buttons, hold down the PLAY/PAUSE button and the M-Button together.

A-B Repeat To repeat a specified section of a track,

(1) During play, press and hold the VOL+ button to select the start point of the repeat.
(2) Press and hold the VOL+ button again to select the stop point. The music section between the start point and the stop point is repeated.
(3) To stop A-B repeat, press another time the VOL+ button.

7. Playing music

Enter the music mode

Press and hold the M-button to display the main menu. Use the PREVIOUS/NEXT button to select "Music" menu, and press the Play/Pause button to confirm selection. Now you are in MUSIC mode, referring to music playing using the basic operations.

Folder navigation

To navigate through folders:

(1) In the MUSIC mode, briefly press the M button to enter folder navigation mode.
(2) Press the PREVIOUS/NEXT button to select a folder or track, and press the M button to confirm selection, or press the PLAY/PAUSE button to return.

8. Playing videos

(1) Press and hold the M button to display the main menu.
(2) Use the PREVIOUS/NEXT button to select the "Video" menu, and press the Enter/Escape button to enter the video player mode.
(3) Press the PREVIOUS/NEXT button to search a video file that you want to play, and press the M button to play. For detail information about playing, see the "Basic Operation" section.
(4) During playing, you can briefly press the M button to enter folder navigation mode.

Note: This player can only play AVI videos.

9. Viewing photos

To view photos,

(1) Press and hold the M button to display the main menu.
(2) Select "Photo" and press the M button to confirm. Press the PREVIOUS/NEXT button to select a folder or image, and press M button to confirm.
(3) Select the photo that you want to display and press the M button to enlarge it to full screen. In full screen mode, you can press the PREVIOUS/NEXT button to display the previous or the next photo. Press the PLAY/PAUSE to start an automatic slide show, or press the Enter/Escape button to enter folder navigation mode.

Note: Some images may not be displayed. Try to convert the image in JPEG.

10. Browsing all files

To browse all files stored in the player,

(1) Press and hold the M button to display the main menu.
(2) Select"Navigation" and press the M button to enter the browser mode.
(3) Press PREVIOUS/NEXT button to select a file that you want to view, and press the M button to play or display it.

11. Deleting file

(1) In the folder navigation mode, select the file that you want to delete.
(2) Press and hold the VOL- button until a dialogue box appears.
(3) Use the PREVIOUS/NEXT button to select "YES" and press the M button to confirm.

12. Customizing Settings

To customize the player settings:

(1) On the main menu, select the "Settings" option and press the M button to enter the system settings mode.
(2) Press the PREVIOUS/NEXT button to select the setting option and press the Enter/Escape button to confirm or press the M button to cancel/return.

Music

Repeat Mode

(1) Once: Play current track once and then stop
(2) Repeat 1: Repeat current track
(3) Folder once: Play all audio files in the current folder and stop after playing
(4) Folder Repeat: Repeat all audio files in the current folder
(5) All Once: Play all audio files stored in the player and stop after playing all
(6) All Repeat: Repeat all audio files stored in the player
(7) Intro: Play the first 10 seconds of every audio file

Play mode

(1) Order: Play audio files in order
(2) Shuffle: Play audio files randomly

EQ Select

Normal, 3D, Rock, Pop, Classical, Bass, Jazz, User EQ

User EQ Set

(User-defined equalizer setting)

(1) Press the PRIVOUS/NEXT button to switch EQ column.
(2) Press the VOL+/VOL- button to adjust value.
(3) Repeat pressing the NEXT button until the cursor is on the X button, and then press the M button to confirm.
(4) Go to the EQ Select menu, and select User EQ to enable the equalizer setting.

Auto Browse

Photo Browse

(Set interval between the previous and the next slide in auto slide show mode.)

Display

Blight Time

5 seconds, 10 seconds, 15 seconds, 20 seconds, 30 seconds, Always On.

Lum

(Set the brightness of the screen)

Blight Mode

Normal

Power Save (Turn off the screen when there is no activity within a certain time)

System

About: Information about the product

Upgrade: Upgrade the firmware

Default Set: Restore the player to default setting

Power Off

(Set the continuous playing time before the player is turned off automatically.)

Off, 10 minutes, 15minutes, 30 minutes, 60 minutes, 120 minutes

Language

(Select language in which the on-screen text is displayed)

Here you can choose between different languages

13. Troubleshooting

Problem - Possible Cause - Solution

• The LCD displays nothing when the device is started.

(1) Battery is too low. Charge the batte
(2) The keys are locked. Unlock the Hold switch by holding down the PLAY/PAUSE and VOL button.

• The player doesn't respond when the Play button is pressed to play an audio file.

(1) The keys are locked by Hold switch Unlock the Hold switch by holding down the PLAY/PAUSE and VOL button.

• No sound when playing an audio file.

(1) The volume is too low. Adjust the volume.
(2) Bad audio file.
Delete or skip the file.

• The player cannot be connected to the PC.

(1) The USB port is not supported by PC's motherboard. Update or replace the PC's motherboard.

• The displayed time is changing constantly.

(1) The bit rate of the MP3 file is changing during playback. Try to use fixed bit rate to compress the MP3 file.

• The PC has an error when you plug-in and unplug the player.

(1) The player is disconnected from the PC abruptly while transferring files. Do not disconnect the player from the PC when transferring files.

• Total memory displayed on the player is not in accordance with the marked amount.

(1) Part of memory is used to store programs and display characters.

• Some of MP3 files cannot be played properly.

(1) The MP3 file is compressed by a standard, such as MPEG I Layer 1 or Layer 2 that the player does not support. 1. Delete the unsupported MP3 files. 2. Use MPEG I Layer 3 standard to compress the unsupported MP3 files

- The video cannot be played.

(1) The file format is not supported.

Make sure the video is in AVI format. If not, use the provided converting tool to convert it.

(2) The video data is corrupted

Skip it or reload another file

- The photo cannot be displayed

(1) The file format is not supported

Try to use an image editor to convert it.

(2) The image resolution is beyond limitation of the device.

The device supports a maximum resolution of 2048 x 2048 Pixel. Make sure resolution of the image does not exceed this limitation.

14. Technical Specifications

Battery Type

Rechargeable li-polymer battery

Battery Life

max. 12 hours

LCD Display

1.5-inch screen

Earphone Power

5mW + 5mW

Video Format

AVI 128x128 Pixel

Audio Format

MP3, WMA

Photo Format

JPEG

Image Resolution

2048x2048 pixels (Max.)

Bit Rate

MP3: 8-320kbps; WMA: 8-320kbps

SNR

90dB

USB Port

USB2.0

Operating Temperature

0^ +45^

Storage Temperature

-20°C ~ +55°C

Operating Relative Humidity

20% 90% (40°C)

Storage Relative Humidity

20% 93% (40°C)

15. Notice

(1) Plug & Play is available only with Windows 2000/XP and Vista/7. Please install the driver in the case of Windows 98/SE.
(2) Make sure all keys are enabled before operation. If they are locked, hold down the PLAY/PAUSE and VOL button to unlock them.
(3) Please charge the battery immediately when the display indicates low battery, or the device will be powered off automatically.
(4) Please disconnect the player from PC properly to avoid data loss.
(5) When the recorded voice file is too large, the response of the device may be slow.
(6) Software Support only for Windows 2000, Windows XP and Windows Vista/7.

(INTENSO)

49377 Vechta

Germany

www.intenso.de

1. Indice

5 seconds,
10 seconds,
15 seconds,
20 seconds,
30 seconds,
Toujours allumé

Luminosite

Bloquear/desbloquear as teclas

Prima simultaneamente as teclas (Play/Pause) e (M).

Repeticao A-B durante reproducao de musica

Update firmware: Upgrade firmware

5. PodroTOBka K nCNoJIb3OBaHnIO

CoeHHHeHc KOMNbIOTepom

Ecn y Bac cTouT onepaunonHna cnTeMa Windows 98/SE, nHcTaIpyuTe dpaBep, npexde Yem noDcoeHNHTb pHeep K KOMNbIoTepy (crpy3ntb dpaBep Bbl MoKeTe no aDpecy www.intenso.de). Ecn y Bac cTouT onepaunonHna cnTeMa WIN 2000/XP/ME/Vista/7, nHcTaJIpyn daPaiBep He notpe6yeTc.

Bam Heo6xOIMO NOCTyNtB cJeDyUOzM o6pa3OM:

NoBToP A-B IJRA NOBToPA BbIbpaHHoro fparMeHTa DOpOxKn

(1) Bo Bpemra Bocnpo3BeDnna Haxmnte n ydepxnbaiTe haxaToi KhoNky "VOL+'' IINy Bblbopa Naayana NOBTopreMOro 0paarmenta.
(2) Повторно нажмп Te Кноку "VOL+" Дя Вьбopa KoHeчно Toчк. НаинaitсцИКлічecкoe NOВTOpeHne ФразмеHTa My3bIKN MexdY HauJIbHOJ N KoHeчноTochkoI.
(3)Дпяnpeкрашения nobTopeнь A-B e ue pa3 naKmTe KhoNky "VOL+".

7. Bocnpon3BeDeHne My3bIKN

IepexoBpeKIM BocnpOn3BeDeHnMy3bIKN

Дя OTOбрахеня OCHOBHorO MeHNo HaxMnte n ydepxnBaIte HaKaToN KhoNky "M".
KhoNkaMn "ПРЕдыДУША ДОPOЖKA"/"СЛЕДУЮША ДОPOЖKA" Bbl6epNTe MeHIO "Music" (My3bIka) n HaxMnte KhoNky "M" ДЯ поТВерждени NB6opa. Tepepb
yCTPOnICTBO HaxODHTcB B peXmE BOCpON3BeDEHnR My3bIKN —ДЯ BOCpON3BeDEHnR My3bIKN CM. OCHOBHbie ONEpaCIN.

IepemeueHne no nankam

"Off" (HeT), "10 minute" (10 MmHyT), "15 minute" (15 MmHyT), "30 minute" (30 MmHyT), "60 minute" (60 MmHyT), "120 minute" (120 MmHyT)

Language (R3bIK)

(BbI6opЯ3bika,HaKOTOPOM OTo6paxaetcTeKCT Ha 3kpaHe)

3decb BO3MOXKeH BbI6Op OdHOrO I3 HeCKoJIbKnx Ja3bIKOB

3apndTe aKKymyIaTOp.

(2) KhoNk3a6JIoKuPoBaHbI.

CHIMITE 6JOKINPOBky OJHOBPemHHbIM HaXaTneM KHONK

"BOCnPOn3BEdEHNE/AY3A" n "VOL".

Пюнгрывать He pearpyet Ha haxatne KhoNK "Bocnpo3BeDeHne" Дя Bocnpo3BeDEHn 3BykoBOrO paIna.

(1) KhoNk 3a6nKpObaHbI nepeKIOuATEJeM "Hold" (ФИКСАЦЯ).

CHIMITE 6JIOKINPOBky OJHOBPemHHbIM HaxaTneM KHOIOK

"BOCnPOn3BVeDEHNE/NAy3A" n "VOL".

Pn Bocnpon3BeDenHn 3BykoBOrO faiNa OTCyTCTByeT 3Byk.

(1) HeioctaToUHa rpoMkoCTb.

OtperynnpyTe rpoMkoctb.

(2) HeKOppeKTHbI 3ByKOBoI aJn.

YdaIte nn npOnyctnte daHbI paII.

HeBO3MOxHNOIOcOeINHHtB pONrPbIBaTeJb K KOMnIbIOTepy.

(1) INTEppeinc USB He noDepxKnBaETcC nCTeMHoN PlaToN KOMnbIOTepa.

3aMeHnte cncTeMHyIO nnAty KOMNbIOTepa Ha 6OJee COBpeMeHHyIO nINNCnPaBHyIO.

OTo6paXaemoe BpeMa NOCToHNO 3MeHReTc.

(1)BoBpemBaCnpOn3BeDeHnMaMeHaeTcKOpOCTbNtOKa6ntOBpaJnaMP3.

Nonpo6yIe BbIIOJIHNITcKaTne 4aJna MP3, nCNoJIb3yra NOCTOARHHU CKOpocTb

NOTOKa.

He BocnpOn3BODnTcBnDeoΦaŋ.

(1)Φopmat paINa He noIepeKnBaetc.

Y6eIITecb B TOM, YTO BnJeO nMeet oopMaT AVI. B npotNBHom cnyae

Ppeo6pa3yIe erO c nOMoIbIO ppeDycMOtpeHHOrO IHCTpyMeHTa Ppeo6pa3OBaHnI.
