SF 2205 - Vacuum Cleaner ALPINA - Free user manual and instructions

Brand	ALPINA
Model	SF 2205
Product type	Bagless vacuum cleaner (cyclonic)
Power supply	Mains AC
Nominal voltage	220-240 V
Vacuum cleaner type	Canister
On/off button	Yes, on the unit
Suction control	Electronic speed control
Main filter	Washable Centri-HEPA
Pre-motor filter	Yes, washable
Air outlet filter	Yes, washable
Dust container capacity	Approximately 1.5 L (not specified, estimate)
Cable rewinding	Yes, automatic
Motor protection	Protection thermostat (automatic shutdown in case of overheating)
Included accessories	Flexible hose, extension tube, brush
Recommended use	Indoor, dry floors
Warranty	2 years
Filter maintenance	Wash with water, dry 24h, every 6 months or as needed
Container type	Transparent, easy emptying
Country of origin	Not specified

Frequently Asked Questions - SF 2205 ALPINA

How to assemble the ALPINA SF 2205 vacuum cleaner?

To assemble the vacuum cleaner, first connect the flexible hose to the air intake duct until you hear a click. Then, attach the extension tube to the curved end of the hose. Finally, attach the brush to the tube. Make sure all parts are properly locked in before plugging in the appliance.

How to empty the dust container of the vacuum cleaner?

Press the button on the dust container handle, then lift the container. To open the lid, press the button at the bottom of the container. Empty the contents into a trash bin. Close the lid and reinsert the container into the vacuum until it clicks.

How to clean the vacuum cleaner filters?

Always unplug the appliance before removing filters. For the Centri-HEPA filter, open the dust container and remove the filter. For the pre-motor filter, take it out of the container. For the air outlet filter, open the grille at the back of the vacuum. Rinse each filter with clean water, then air dry them for 24 hours away from any heat source. Put the dry filters back in place.

What to do if the vacuum cleaner suddenly turns off?

This may be due to motor overheating. The protection thermostat automatically cuts off power. Unplug the vacuum, turn off the switch, empty the dust container and clean the filters. Let the appliance cool down for about 1 hour. Plug it back in and turn it on.

How to rewind the power cord?

Hold the plug with one hand and press the rewinding button on the appliance. Guide the cord with the other hand to prevent whipping. Do not let the cord rewind too quickly.

Can I vacuum liquids or hot ashes with this vacuum cleaner?

No, this vacuum cleaner is designed only for dry indoor surfaces. Never vacuum liquids, hot ashes, combustible or flammable materials, or sharp objects. This could damage the appliance and pose a risk of electric shock or fire.

How to adjust the suction power?

The suction power is adjusted using the speed control button on the vacuum body. Slide the button to increase or decrease suction according to the type of surface to be cleaned.

What accessories are included with the vacuum cleaner?

The vacuum cleaner comes with a flexible hose, a telescopic metal extension tube and a main brush. These accessories allow cleaning floors, carpets and furniture.

What is the warranty period and how to claim it?

The ALPINA SF 2205 vacuum cleaner comes with a 2-year warranty from the date of purchase against defects in materials and workmanship. To claim it, keep the proof of purchase and contact the customer service of the point of sale. The warranty does not cover normal wear, damage caused by improper use or fragile parts.

Where can I find spare parts like filters?

Filters and other spare parts are available from ALPINA authorized dealers or online. You can also contact the manufacturer's customer service. It is recommended to use original parts to ensure proper operation of the appliance.

USER MANUAL SF 2205 ALPINA

Quality Home Appliances

EN SF-2205 VACUUM CLEANER

DE SF-2205 STAUBSAUGER

FR SF-2205 ASPIRATEUR

IT SF-2205 ASPIRAPOLVERE

NL SF-2205 STOFZUIGER

ES SF-2205 ASPIRADORA

CZ SF-2205 VYSAVAČ

SK SF-2205 VYSÁVAČ

RU SF-2205 ПЫЛЕСОС

HU SF-2205 PORSZÍVÓ

RO SF-2205 ASPIRATOR DE PRAF

HR SF-2205 USISAVAČ

BG SF-2205 ПРАХОСМУКАЧКА

Instruction for use

Gebrauchsanweisung

Mode d'emploi

Manuale d'uso

Gebruiksaanwijzing

White and black vacuum cleaner device with circular spool, no visible text or symbols

SF-2205

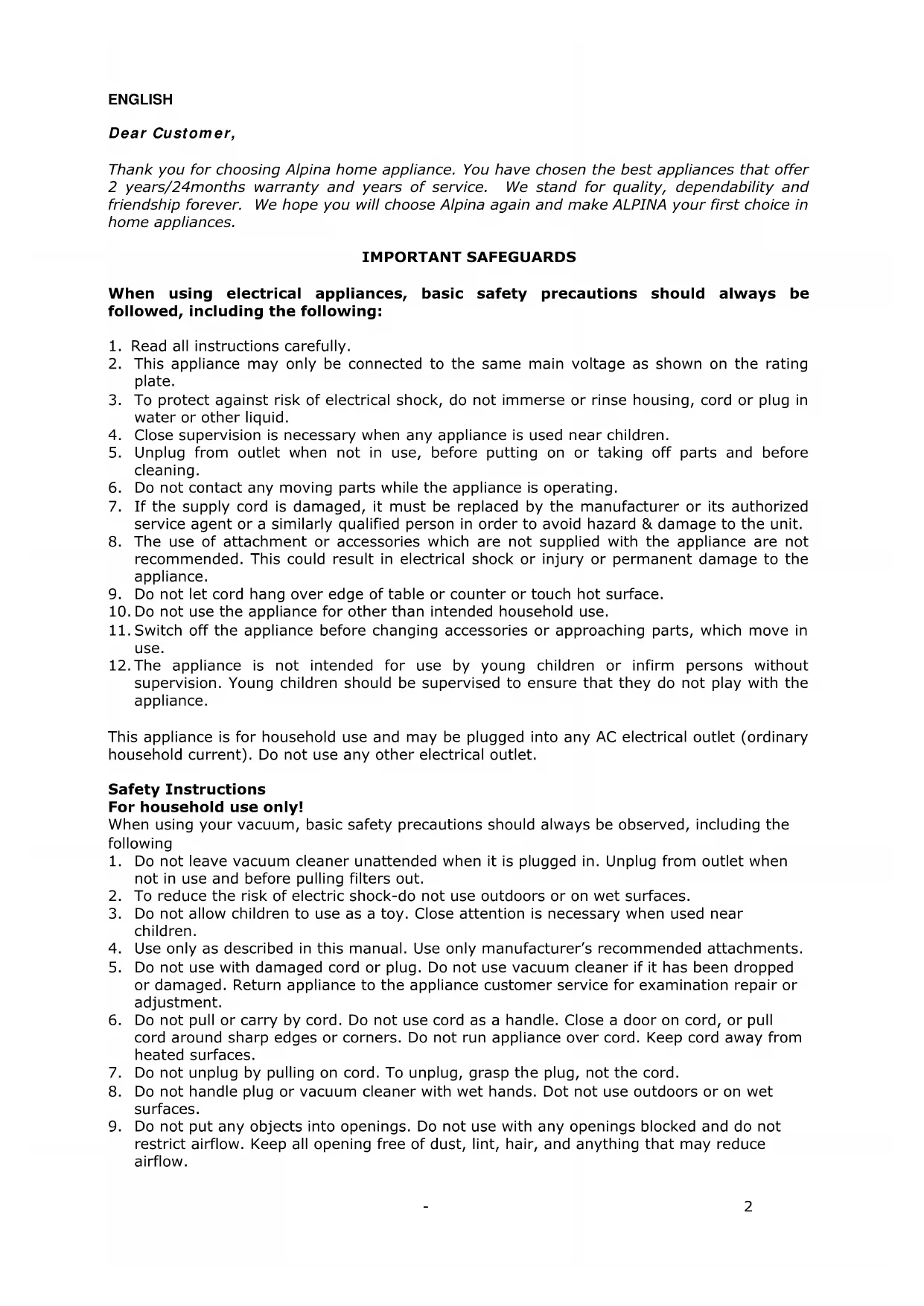

EN: For your own safety read these instructions carefully before using the appliances.

Thank you for choosing Alpina home appliance. You have chosen the best appliances that offer 2 years/24 months warranty and years of service. We stand for quality, dependability and friendship forever. We hope you will choose Alpina again and make ALPINA your first choice in home appliances.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully.
2. This appliance may only be connected to the same main voltage as shown on the rating plate.
3. To protect against risk of electrical shock, do not immerse or rinse housing, cord or plug in water or other liquid.
4. Close supervision is necessary when any appliance is used near children.
5. Unplug from outlet when not in use, before putting on or taking off parts and before cleaning.
6. Do not contact any moving parts while the appliance is operating.
7. If the supply cord is damaged, it must be replaced by the manufacturer or its authorized service agent or a similarly qualified person in order to avoid hazard & damage to the unit.
8. The use of attachment or accessories which are not supplied with the appliance are not recommended. This could result in electrical shock or injury or permanent damage to the appliance.
9. Do not let cord hang over edge of table or counter or touch hot surface.
10. Do not use the appliance for other than intended household use.
11. Switch off the appliance before changing accessories or approaching parts, which move in use.
12. The appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance.

This appliance is for household use and may be plugged into any AC electrical outlet (ordinary household current). Do not use any other electrical outlet.

Safety Instructions

For household use only!

When using your vacuum, basic safety precautions should always be observed, including the following

1. Do not leave vacuum cleaner unattended when it is plugged in. Unplug from outlet when not in use and before pulling filters out.
2. To reduce the risk of electric shock-do not use outdoors or on wet surfaces.
3. Do not allow children to use as a toy. Close attention is necessary when used near children.
4. Use only as described in this manual. Use only manufacturer's recommended attachments.
5. Do not use with damaged cord or plug. Do not use vacuum cleaner if it has been dropped or damaged. Return appliance to the appliance customer service for examination repair or adjustment.
6. Do not pull or carry by cord. Do not use cord as a handle. Close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
7. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
8. Do not handle plug or vacuum cleaner with wet hands. Dot not use outdoors or on wet surfaces.

9. Do not put any objects into openings. Do not use with any openings blocked and do not restrict airflow. Keep all opening free of dust, lint, hair, and anything that may reduce airflow.

10. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.

11. Do not pick up hard or sharp objects such as glass nails, screws, coins, etc.

12. Do not pick up hot coals, cigarette, matches or any hot, smoking, or burning objects.

13. Do not use without filters in place.

14. Turn off all controls before plugging or unplugging vacuum cleaner.

15. Use extra care when vacuuming on stairs.

16. Do not pick up flammable or combustible materials (lighter fluid, gasoline, etc.) or use in the presence of explosive liquids or vapor.

17. Do not pick up toxic material (chlorine bleach, ammonia, drain cleaner, etc.)

18. Do not in an enclosed space filled with vapors given off by oil based paints, paint thinner, moth proofing, flammable dust, or other explosive or toxic vapors.

19. Always unplug this appliance before connecting or disconnecting vacuum hose. Do not allow plug to whip when rewinding.

20. Use only on dry, indoor surfaces.

21. Do not use for any purpose other than described in this user's guide.

22. Store your appliance indoor in a cool, dry area.

23. Keep your work area well dry.

24. Do not immerse the hand vacuum into water or other liquids.

25. Keep end of hose, wands and other openings away from your face and body.

26. Do not use the cleaner to clean your pets or any animal.

27. Keep the head (eyes, ear, mouth, etc.) away from the openings, when the cleaner is working or plugging.

WARNING:

Important:

If the suction opening of the unit, the hose or the tube is blocked, switch off the vacuum clearer and remove the blocking substance before you start the unit again.

1. Do not operate the vacuum cleaner too close to heater or radiators.

2. Before inserting the power plug into the wall outlet, make sure that your hands are dry.

3. Before you start the unit, make sure to remove large or sharp objects that might damage the dust tank and hose.

4. When pulling out the power plug from the wall outlet, pull the plug not the power cord.

5. Do not use without all filters in place.

6. When using, if you learn of squeak from the cleaner, it must be suction appears to be reduced, so you must stop (make sure the cleaner is not plugging), then clean the all air filter.

Note:

If the supply cord is damaged, it must be replaced by manufacture, service agent or similarly qualified person in order to avoid a hazard.

WARNING:

Hold the plug when rewinding the cord. Do not allow the cord to whip when rewinding.

USE AND FUNCTION

Assembling vacuum cleaner

Note:

Always remove the power plug from the wall outlet before assembling or removing accessories.

1. Attaching the Flexible Hose into the vacuum connect the flexible hose into the air intake dust, push in until you hear a "click", indicating it is in its locked position.

2. Fitting the tube to the curved wand/hose extension. Push the tube into the curved wand/hose extension.

3. Fitting the Floor Brush to the tube. Push the tube into the floor brush. Adjust the tube to the desired length.

ENGLISH

Variable suction control

Note:

Once all attachments are in place, unwind a sufficient length of cable and insert the plug into the wall outlet. A yellow mark on the power cord shows the ideal cable length. Do not pull the power cord beyond the red mark.

1. Insert the power plug into the wall outlet.
2. Press the power on/off button located the unit to turn the vacuum cleaner "on".
3. To rewind the power cord, press the cord rewind button with one hand and guide the power cord with the other hand to ensure that it dose not whip causing damage or injury.
4. To adjust the suction, slide the speed control button on the suction hand to control the suction power of the vacuum cleaner.

Motor thermostat (Optional)

Important:

This motor is equipped with a motor protective thermostat. If for some reason the vacuum cleaner should overheat, the thermostat will automatically turn the unit off. Should this occur unplug the vacuum cleaner from the wall outlet and turn off switch, change dust bag and clean filters. Allow the unit to cool for approximately 1 hour. To restart, replug into wall outlet and turn switch back on.

Clean the dust barrel:

1. Press the knob on the dust cup arm

2. Lift dust barrel up

3. Press knob on low end of dust barrel to open the dust barrel cover.

Carry and move away the cleaner:

Note:

This cleaner have a handle at top rear of the body, you can use it to conveniently to carry the appliance.

Removing & cleaning pre-motor filter and air outlet filter

Warning:

Always unplug the unit from electrical outlet before getting out the dust barrel.

a. Pre-motor filter

1. Press the knob on the dust cup arm
2. Lift dust barrel up
3. Take out the pre-motor filter for cleaning and changing..

b. Centri-Hepa filter

1. Press the knob on the dust cup arm.
2. Lift dust barrel up.
3. Press knob on low end of dust barrel to open the dust barrel cover.
4. Take out the centric Hepa for clean and change.

c. Air outlet filter

1. Press the air outlet grid knob to open
2. Take out the air outlet filter for clean and change.

Please note: The sponge filter material in the cleaner will become dusty over time. This is normal and will not affect the performance of the filter. If the sponge filter is so dusty that suction does not return to 100%, then we suggest that the filter be removed then rinsed under the faucet and allowed to dry for 24 hours by airing not near the fire or some high temperature objects before refitting into the vacuum. This should be done once six months or when suction appears to be reduced obviously.

Important:

Please note that there is a safety switch inside the vacuum to prevent the unit from being run with high vacuum rate. If the vacuum is too high, the safety switch will be turned on. In this case, it can minish the vacuum rate and protect the motor from being broken.

Note:

The suction hole must be open, free of any obstructions at all times. Otherwise, the motor will overheat and could become damaged.

Important:

All filters should be checked regularly for signs of damage, preferably after each cleaning task. The filters must be replaced immediately if they become damaged. Always disconnect the vacuum from the electrical outlet when checking the filters.

GUARANTEE

This product is guaranteed for a period of 2 years from the date of purchase against defects in materials and workmanship. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is brought back to the purchase address. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as ceramic items, bulbs etc. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return and bring it to the address of purchase. If within the guarantee period, please also provide the guarantee card and proof of purchase.
