USER MANUAL KA 3422 CLATRONIC

PykoBODCTBO NO 3KcNpyatauIN

DEUTSCH . 4
NEDERLANDS . blz 9
FRANÇAIS page 13
ESPANOL. pagina 17
ITALIANO .21
ENGLISH page 25
JEZYK POLSKI. strona 29
MAGYARUL 34
YKPAIHcbla 38
PYCCKNI 42

WAARSCHUWING: GEVAAR OP VERBRANDING!

Location of Controls 3

General Safety Instructions 25

Special safety information for this unit 25

Intended Use 25

Supplied parts 26

Unpacking the appliance 26

Controls. 26

Instructions. 26

Operation 26

De-scaling 27

Cleaning 27

Storage 27

Troubleshooting 28

Technical Data 28

Disposal 28

General Safety Instructions

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
  Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you leave the room you should always turn the device off. Remove the plug from the socket.
• The device and the mains lead have to be checked regularly for signs of damage. If damage is found the device must not be used.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualified person and with a cable of the same type.
• Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

iNOTE:

This highlights tips and information.

Children and Frail Individuals

• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Don't let small children play with foils for danger of suffocation!

• This device is not intended to be used by individuals (including children) who have restricted physical, sensory or mental abilities and/or insufficient knowledge and/or experience, un-less they are supervised by an individual who is responsible for their safety or have received instructions on how to use the device.
  Children should be supervised at all times in order to ensure that they do not play with the device.

Special safety information for this unit

WARNING: DANGER OF BURNS!

• Warming plate and coffee pot get very hot.
• Never open the lid of the water tank while the coffee is percolating.

iNOTE:

During operation steam escapes above the filter holder! This can result in condensation at the top cover. This is normal and does not affect the functions of the appliance!

• Only use the appliance with water in the tank.
• Do not move the appliance during operation.

Intended Use

This appliance is intended to make coffee from ground coffee beans.

It is intended for the use in private households and similar applications such as:

• in staff kitchens of shops, offices and similar work places;
• for guests in hotels, motels and other residential facilities.

It is not intended for applications in agricultural properties or B & B.

The appliance is only to be used as described in the user manual. Do not use the appliance for any commercial purposes.

Any other use is not intended and can result in damages or personal injuries.

The manufacturer assumes no liability for damages caused by improper use.

Supplied parts

1 Automatic coffee maker
1 Filter holder
1 Glass coffee pot
1 Coffee pot lid
1 Measuring spoon

Unpacking the appliance

1. Remove the appliance from its packaging.
2. Remove all packaging materials such as films, filler material, cable clips and carton.
3. Check the contents for completeness.

NOTE:

Production residue or dust may have collected on the appliance. We recommend cleaning the appliance according to chapter "Cleaning".

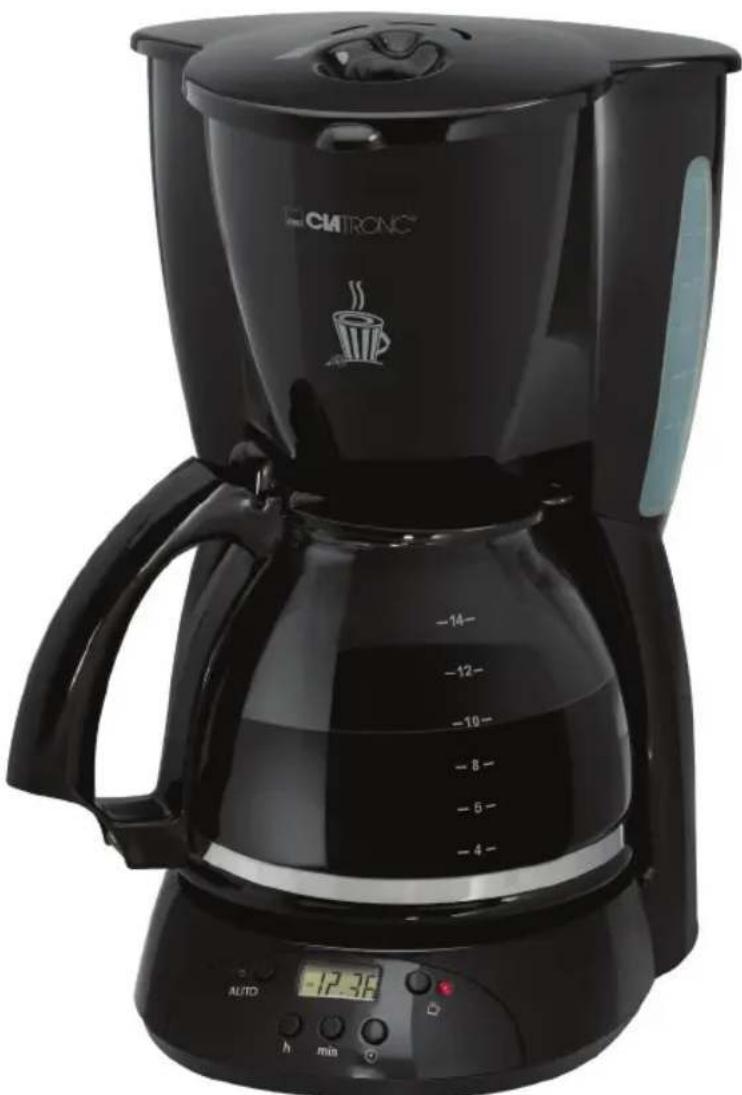

Controls

1 Brewing strength setting
2 Water tank lid
3 Filter holder
4 Anti-drip valve
5 Water tank
6 Chamber
7 Water level indicator
8 Coffee pot lid
9 Warming plate
10 Display

11

On/Off

12

programme start time

13 "min" set minutes
14 "h" set hours
15 "AUTO" switch timer operation on/off

Instructions

Placement

• Place the automatic coffee maker on a stable and level surface. Place the appliance in such way that it cannot tip over.
• Do not place the appliance in close proximity to a gas or electric stove or any other heat source.

Electric Connection

1. Ensure that your mains power corresponds with the specifications of the appliance. The specifications are printed on the type label.
2. Connect the mains cable to a properly installed and earthed 220-240 V\~, 50 Hz wall outlet.

Operation

Before making coffee for the first time operate the appliance twice with clean water only and without paper filter. This removes dust, which may have collected during transport. Follow the instructions given under "Switching on the coffee machine directly".

Operation

Set the time

Set hours: Repeatedly press the "h" button.

Set minutes: Repeatedly press the "min" button.

NOTE:

Morning and afternoon are indicated by AM or PM.

Preparing the Coffee Machine

1. Open the lid of the water tank.
2. Fill cold water according to the desired amount of cups of coffee into the rear water tank. The water level is displayed on the indicator.

NOTE:

• Fill the tank with the coffee pot.
• Set the brewing strength first.
• Select the range from strong to weak.

CAUTION:

Do not overfill the tank! Do not fill it above the "max" mark.

1. Ensure that the filter holder is properly attached.
2. Turn over the lower fold of the paper filter (size 1x4) and place it in the filter funnel. Then fill it with coffee powder.
3. Now close the lid of the water tank.
4. Place the pot on the warming plate.

CAUTION: DRIP STOP

Your appliance comes with a drip stop. It closes when removing the coffee pot. This prevents coffee from dripping onto the warming plate if there is still water in the filter.

• Ensure that the lid is attached to the coffee pot. It opens the drip stop.
• If there is still water in the tank, place the pot underneath as soon as possible. Otherwise the filter might overflow.

Switching on the coffee machine directly:

Please follow the instructions under points "Preparing the Coffee Machine".

1. Press the button once. The indicator next to the button lights up red. The appliance is operational.

NOTE:

• The unit switches itself off automatically about 2 hours after the brewing. The indicator next to the button turns off.
• Press the button once to switch off the appliance earlier. The indicator next to the button turns off.

Automatic operation:

Please follow the instructions under points "Preparing the Coffee Machine".

1. Press and hold the button. Do not release the button while setting the start time as follows.
2. Set start time: Set hours: Repeatedly press the "h" button.

Set minutes: Repeatedly press the "min" button.

NOTE:

• Morning and afternoon are indicated by AM or PM.

• You exit the programming mode upon releasing the button.

• Press the "AUTO" button once to start TIMER operation. The indicator next to the "AUTO" button lights up green.

NOTE:

• The appliance switches on automatically at the preset time.
• The green indicator turns off and the red indicator next to the button lights up.
• Press the "AUTO" button once to deactivate TIMER operation. The green indicator turns off.
• Press the button once to start the coffee making process earlier. The indicator next to the button lights up red.

The Coffee Is Ready

iNOTE:

The brewing process lasts approximately 10 minutes.

• When no more coffee is flowing through the filter you can remove the pot.
• Turn the device off.
• Would you like to keep the remaining coffee warm? Leave the machine switched on until the pot is empty.

iNOTE:

The filter holder can be removed from the machine by its handle.

This makes it easier to dispose of the old coffee filter, for example.

De-scaling

De-scaling is necessary when the brewing time increases substantially.

• Use only commercially available citrus acid-based descaler.
• Follow the recommended instructions for use.

WARNING:

• Afterwards you should boil fresh water in the pot three or four times in order to rinse out residues of the descaling agent.
• Do not use any coffee powder!
• Do not use this water for consumption.

Cleaning

WARNING:

• Before cleaning, always remove the mains plug and wait until the device has cooled down.
• Do not immerse the device in water. Otherwise this might result in an electric shock or fire.

CAUTION:

• Do not use a wire brush or any abrasive items.

• Do not use any acidic or abrasive detergents.

• The exterior of the device should be cleaned as necessary with a slightly damp cloth - without any additives.

• Remove spilled coffee grounds with a paper towel from the inner casing. Afterwards wipe with a damp cloth.
• The coffee pot and the filter holder should be cleaned by rinsing in warm water. Use a soft brush if necessary.

Storage

• Clean the appliance as described and let it dry completely.
• For longer periods of non-use we recommend storing the appliance in its original packaging.
  Always store the appliance in a well-ventilated and dry place out of reach of children.

Troubleshooting

Problem Possible cause Solution
The appliance does not work.	The appliance is not connected to mains power.	Check the wall outlet with a different appliance.
		Insert the plug properly in the wall outlet.
		Check the fuse.
	The appliance is defective. Contact o	ur service or a repair center.
Filter blockage: coffee grounds spill over the edge of the filter.	The sequence for preparing the coffee machine was not observed.	1. First fill the tank and the filter.2. Close the lid of the tank.3. Put the coffee pot with lid on the warming plate.Otherwise the anti-drip valve does not work.
	The filter holder is not properly placed on the chamber (6).	The filter holder grip fits into the recess of the chamber.
	The drip stop is closed: The coffee pot is not on the warming plate or the lid is not on the coffee pot.	1. Switch the appliance off. Disconnect from mains power supply.2. Place the coffee pot with lid on the warming plate for the filter to drain.3. Dispose of the paper filter.4. Clean the appliance as described.
	Too much coffee powder in the filter.
Coffee grounds in the coffee.	The paper filter is too small.	Use a paper filter size “1x4”.
	Too much coffee powder in the filter.	Use less coffee powder.
The brewing process takes too long.	Limescale deposits in the appliance.	Decalcify the appliance as described.

Technical Data

Model: KA3422

Power supply: 220 - 240 V~, 50 Hz

Power consumption: 780 - 920 W

Filling quantity: approx. 1.5 Liter

Protection class:

Net weight: approx. 1.65 kg

Subject to technical changes without prior notice!

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the "Wheelie Bin" Symbol

Take care of our environment, do not dispose of electrical appliances via the household waste.

Dispose of obsolete or defective electrical appliances via municipal collection points.

Please help to avoid potential environmental and health impacts through improper waste disposal.

You contribute to recycling and other forms of utilization of old electric and electronic appliances.

Your municipality provides you with information about collecting points.
