OBJ_BUCH-832-003.book Page 2 Monday, January 16, 2012 3:04 PM3 |

2 609 140 904 | (16.1.12) Bosch Power Tools

OBJ_BUCH-832-003.book Page 3 Monday, January 16, 2012 3:04 PM2 609 140 904 | (16.1.12) Bosch Power Tools 4 |

OBJ_BUCH-832-003.book Page 4 Monday, January 16, 2012 3:04 PM5 | 2 609 140 904 | (16.1.12) Bosch Power Tools

OBJ_BUCH-832-003.book Page 5 Monday, January 16, 2012 3:04 PM6 | Deutsch 2 609 140 904 | (16.1.12) Bosch Power Tools Deutsch

WARNUNG OBJ_BUCH-832-003.book Page 6 Monday, January 16, 2012 3:04 PMDeutsch | 7

OBJ_BUCH-832-003.book Page 7 Monday, January 16, 2012 3:04 PM8 | Deutsch

Senior Vice President

Dr. Eckerhard Strötgen

Engineering Director

PT/ESI ACHTUNG OBJ_BUCH-832-003.book Page 9 Monday, January 16, 2012 3:04 PM10 | Deutsch

2 609 140 904 | (16.1.12) Bosch Power Tools

OBJ_BUCH-832-003.book Page 10 Monday, January 16, 2012 3:04 PMDeutsch | 11

General Power Tool Safety Warnings

Read all safety warnings and all in-

structions. Failure to follow the warnings

and instructions may result in electric shock, fire and/or seri-

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-

operated (corded) power tool or battery-operated (cordless)

f Keep work area clean and well lit. Cluttered or dark areas

f Do not operate power tools in explosive atmospheres,

such as in the presence of flammable liquids, gases or

dust. Power tools create sparks which may ignite the dust

f Keep children and bystanders away while operating a

power tool. Distractions can cause you to lose control.

f Power tool plugs must match the outlet. Never modify

the plug in any way. Do not use any adapter plugs with

earthed (grounded) power tools. Unmodified plugs and

matching outlets will reduce risk of electric shock.

WARNING OBJ_BUCH-832-003.book Page 12 Monday, January 16, 2012 3:04 PMEnglish | 13

Bosch Power Tools 2 609 140 904 | (16.1.12)

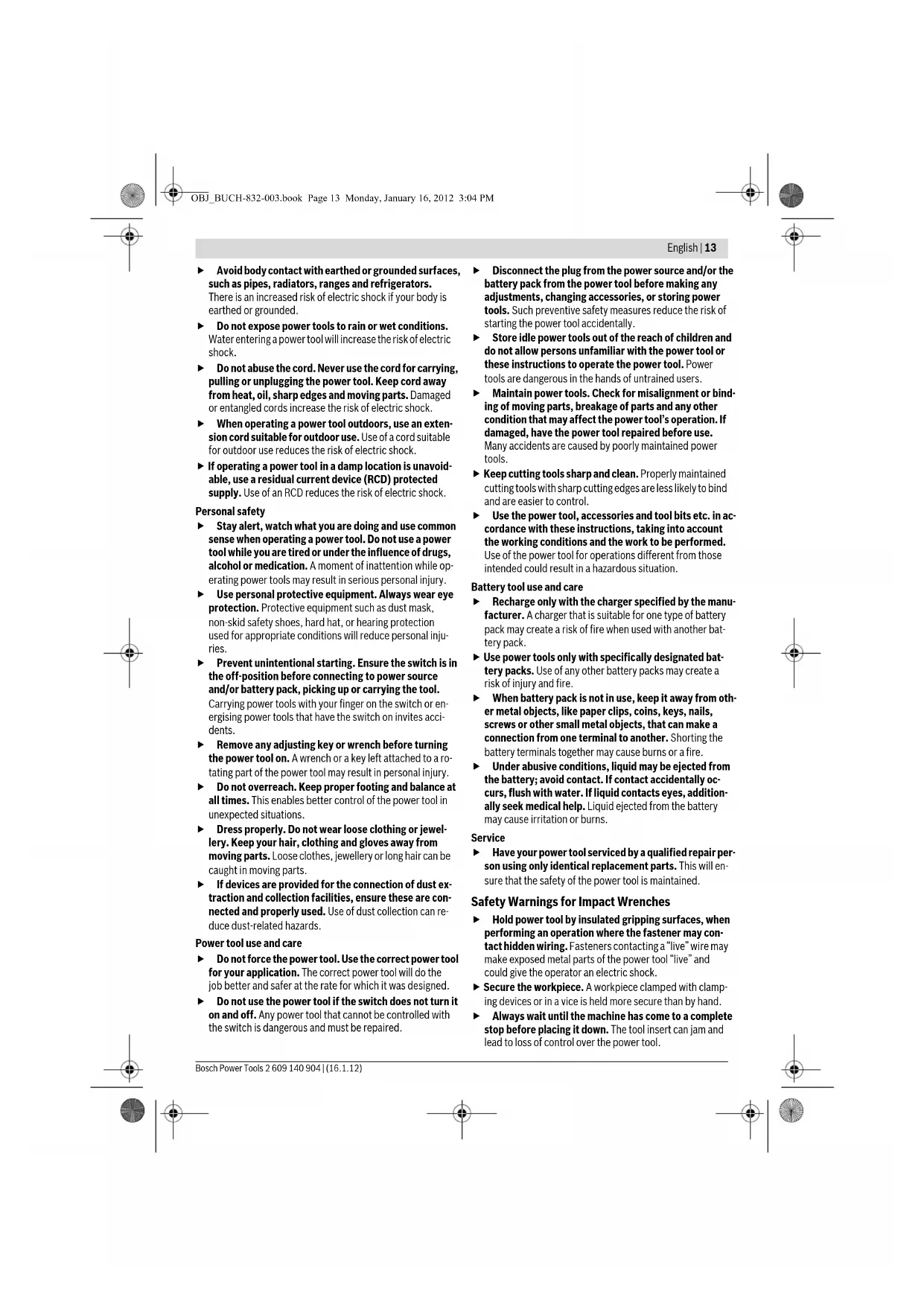

f Avoid body contact with earthed or grounded surfaces,

such as pipes, radiators, ranges and refrigerators.

There is an increased risk of electric shock if your body is

earthed or grounded.

f Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of electric

f Do not abuse the cord. Never use the cord for carrying,

pulling or unplugging the power tool. Keep cord away

from heat, oil, sharp edges and moving parts. Damaged

or entangled cords increase the risk of electric shock.

f When operating a power tool outdoors, use an exten-

sion cord suitable for outdoor use. Use of a cord suitable

for outdoor use reduces the risk of electric shock.

f If operating a power tool in a damp location is unavoid-

able, use a residual current device (RCD) protected

supply. Use of an RCD reduces the risk of electric shock.

f Stay alert, watch what you are doing and use common

sense when operating a power tool. Do not use a power

tool while you are tired or under the influence of drugs,

alcohol or medication. A moment of inattention while op-

erating power tools may result in serious personal injury.

f Use personal protective equipment. Always wear eye

protection. Protective equipment such as dust mask,

non-skid safety shoes, hard hat, or hearing protection

used for appropriate conditions will reduce personal inju-

f Prevent unintentional starting. Ensure the switch is in

the off-position before connecting to power source

and/or battery pack, picking up or carrying the tool.

Carrying power tools with your finger on the switch or en-

ergising power tools that have the switch on invites acci-

f Remove any adjusting key or wrench before turning

the power tool on. A wrench or a key left attached to a ro-

tating part of the power tool may result in personal injury.

f Do not overreach. Keep proper footing and balance at

all times. This enables better control of the power tool in

unexpected situations.

f Dress properly. Do not wear loose clothing or jewel-

lery. Keep your hair, clothing and gloves away from

moving parts. Loose clothes, jewellery or long hair can be

caught in moving parts.

f If devices are provided for the connection of dust ex-

traction and collection facilities, ensure these are con-

nected and properly used. Use of dust collection can re-

duce dust-related hazards.

Power tool use and care

f Do not force the power tool. Use the correct power tool

for your application. The correct power tool will do the

job better and safer at the rate for which it was designed.

f Do not use the power tool if the switch does not turn it

on and off. Any power tool that cannot be controlled with

the switch is dangerous and must be repaired.

f Disconnect the plug from the power source and/or the

battery pack from the power tool before making any

adjustments, changing accessories, or storing power

tools. Such preventive safety measures reduce the risk of

starting the power tool accidentally.

f Store idle power tools out of the reach of children and

do not allow persons unfamiliar with the power tool or

these instructions to operate the power tool. Power

tools are dangerous in the hands of untrained users.

f Maintain power tools. Check for misalignment or bind-

ing of moving parts, breakage of parts and any other

condition that may affect the power tool’s operation. If

damaged, have the power tool repaired before use.

Many accidents are caused by poorly maintained power

f Keep cutting tools sharp and clean. Properly maintained

cutting tools with sharp cutting edges are less likely to bind

and are easier to control.

f Use the power tool, accessories and tool bits etc. in ac-

cordance with these instructions, taking into account

the working conditions and the work to be performed.

Use of the power tool for operations different from those

intended could result in a hazardous situation.

Battery tool use and care

f Recharge only with the charger specified by the manu-

facturer. A charger that is suitable for one type of battery

pack may create a risk of fire when used with another bat-

f Use power tools only with specifically designated bat-

tery packs. Use of any other battery packs may create a

risk of injury and fire.

f When battery pack is not in use, keep it away from oth-

er metal objects, like paper clips, coins, keys, nails,

screws or other small metal objects, that can make a

connection from one terminal to another. Shorting the

battery terminals together may cause burns or a fire.

f Under abusive conditions, liquid may be ejected from

the battery; avoid contact. If contact accidentally oc-

curs, flush with water. If liquid contacts eyes, addition-

ally seek medical help. Liquid ejected from the battery

may cause irritation or burns.

f Have your power tool serviced by a qualified repair per-

son using only identical replacement parts. This will en-

sure that the safety of the power tool is maintained.

Safety Warnings for Impact Wrenches

f Hold power tool by insulated gripping surfaces, when

performing an operation where the fastener may con-

tact hidden wiring. Fasteners contacting a “live” wire may

make exposed metal parts of the power tool “live” and

could give the operator an electric shock.

f Secure the workpiece. A workpiece clamped with clamp-

ing devices or in a vice is held more secure than by hand.

f Always wait until the machine has come to a complete

stop before placing it down. The tool insert can jam and

lead to loss of control over the power tool.

OBJ_BUCH-832-003.book Page 13 Monday, January 16, 2012 3:04 PM14 | English 2 609 140 904 | (16.1.12) Bosch Power Tools f Do not open the battery. Danger of short-circuiting.

Protect the battery against heat, e. g., against

continuous intense sunlight, fire, water, and

moisture. Danger of explosion.

f In case of damage and improper use of the battery, va-

pours may be emitted. Provide for fresh air and seek

medical help in case of complaints. The vapours can irri-

tate the respiratory system.

f Use the battery only in conjunction with your Bosch

power tool. This measure alone protects the battery

against dangerous overload.

f Use only original Bosch batteries with the voltage list-

ed on the nameplate of your power tool. When using oth-

er batteries, e. g. imitations, reconditioned batteries or

other brands, there is danger of injury as well as property

damage through exploding batteries.

Product Description and

Read all safety warnings and all instruc-

tions. Failure to follow the warnings and in-

structions may result in electric shock, fire

and/or serious injury.

While reading the operating instructions, unfold the graphics

page for the machine and leave it open.

The machine is intended for driving in and loosening screws

and bolts as well as for tightening and loosening nuts within

the respective range of dimension.

The numbering of the product features refers to the illustra-

10 Handle (insulated gripping surface)

11 Screwdriver bit with ball catch*

12 Universal bit holder*

*Accessories shown or described are not part of the standard de-

livery scope of the product. A complete overview of accessories

can be found in our accessories program.

0 –3200 0–3200 0–3200 0–3200

Maximum torque, hard screwdriving

application according to ISO5393 Nm 150 150 160 160

Weight according to EPTA-Procedure

0 –3200 0–3200 0–3200 0–3200

Maximum torque, hard screwdriving

application according to ISO5393 Nm 170 170 180 180

OBJ_BUCH-832-003.book Page 14 Monday, January 16, 2012 3:04 PMEnglish | 15

Bosch Power Tools 2 609 140 904 | (16.1.12)

Noise/Vibration Information

Measured sound values determined according to EN 60745.

Typically the A-weighted noise levels of the product are:

Sound pressure level 96 dB(A); Sound power level

(triax vector sum) and uncertainty K

determined according to EN 60745:

Impact tightening of fasteners of the maximum capacity of the

The vibration emission level given in this information sheet

has been measured in accordance with a standardised test

given in EN 60745 and may be used to compare one tool with

another. It may be used for a preliminary assessment of expo-

The declared vibration emission level represents the main ap-

plications of the tool. However if the tool is used for different

applications, with different accessories or poorly maintained,

the vibration emission may differ. This may significantly in-

crease the exposure level over the total working period.

An estimation of the level of exposure to vibration should also

take into account the times when the tool is switched off or

when it is running but not actually doing the job. This may sig-

nificantly reduce the exposure level over the total working pe-

Identify additional safety measures to protect the operator

from the effects of vibration such as: maintain the tool and the

accessories, keep hands warm, organise work patterns.

Declaration of Conformity

We declare under our sole responsibility that the product de-

scribed under “Technical Data” is in conformity with the fol-

lowing standards or standardization documents: EN 60745

according to the provisions of the directives 2011/65/EU,

2004/108/EC, 2006/42/EC.

f Use only the battery chargers listed on the accessories

page. Only these battery chargers are matched to the lith-

ium ion battery of your power tool.

Note: The battery is supplied partially charged. To ensure full

capacity of the battery, completely charge the battery in the

battery charger before using your power tool for the first time.

Weight according to EPTA-Procedure

0 –3200 0–3200 0–3200 0–3200

Maximum torque, hard screwdriving

application according to ISO 5393

Weight according to EPTA-Procedure

Please observe the article number on the type plate of your machine. The trade names of the individual machines may vary.

GDS 18 V-LI Professional

Senior Vice President

Dr. Eckerhard Strötgen

Engineering Director

PT/ESI OBJ_BUCH-832-003.book Page 15 Monday, January 16, 2012 3:04 PM16 | English 2 609 140 904 | (16.1.12) Bosch Power Tools The Lithium-Ion battery can be charged at any time without

reducing its service life. Interrupting the charging procedure

does not damage the battery.

The Lithium-Ion battery is protected against deep discharging

by the “Electronic Cell Protection (ECP)”. When the battery is

empty, the machine is switched off by means of a protective

circuit: The inserted tool no longer rotates.

Do not continue to press the On/Off

switch after the machine has been au-

tomatically switched off. The battery can be damaged.

The battery is equipped with a NTC temperature control

which allows charging only within a temperature range of be-

tween 0 °C and 45 °C. A long battery service life is achieved

Observe the notes for disposal.

Removing the Battery

The battery 5 is equipped with two locking levels that should

prevent the battery from falling out when pushing the battery

unlocking button 6 unintentionally. As long as the battery is

inserted in the power tool, it is held in position by means of a

To remove the battery 5, press the unlocking button 6 and

pull out the battery toward the front. Do not exert any force.

Changing the Tool (see figure A— C)

f Before any work on the machine itself (e. g. mainte-

nance, tool change, etc.) as well as during transport

and storage, remove the battery from the power tool.

There is danger of injury when unintentionally actuating

f Regularly clean the power tool’s air vents. The motor’s

fan will draw the dust inside the housing and excessive ac-

cumulation of powdered metal may cause electrical haz-

GDR 14,4 V-LI/GDR 18 V-LI/GDX 14,4 V-LI/GDX 18 V-LI:

Pull the locking sleeve 2 forward, push the insert tool to the

stop into the tool holder 1 and release the locking sleeve 2 to

lock the insert tool.

Use only screwdriver bits with ball catch 11 (DIN 3126-E6.3).

Other screwdriver bits 13 can be used with a universal bit

holder with ball catch 12.

Pull the locking sleeve 2 forward and remove the insert tool.

GDS 14,4 V-LI/GDS 18 V-LI/GDX 14,4 V-LI/GDX 18 V-LI:

f When working with an application tool, pay attention

that the application tool is connected securely on the

tool holder. When the application tool is not securely con-

nected with the tool holder, it can come off during applica-

Slide the application tool 14 onto the square drive of the tool

However based on the system, if the application tool 14 ap-

pears wobbly after connecting securely on the tool holder 1;

this has no influence on the function/safety.

The tool holder 1 with the tool is driven by an electric motor

via a gear and impact mechanism.

The working procedure is divided into two phases:

Screwing in and tightening (impact mechanism in action).

The impact mechanism is activated as soon as the screwed

connection runs tight and thus load is put on the motor. In this

instance, the impact mechanism converts the power of the

motor to steady rotary impacts. When loosening screws or

nuts, the process is reversed.

Inserting the Battery

f Use only original Bosch lithium ion batteries with the

voltage listed on the nameplate of your power tool. Us-

ing other batteries can lead to injuries and pose a fire haz-

Set the rotational direction switch 7 to the centre position to

protect the power tool against accidental starting.

Insert the charged battery 5 from the front into the base of the

power tool until the battery is securely locked.

Reversing the Rotational Direction (see figure D)

The rotational direction switch 7 is used to reverse the rota-

tional direction of the machine. However, this is not possible

with the On/Off switch 8 actuated.

Right rotation: For driving in screws and tightening nuts,

press the rotational direction switch 7 through to the left

Left Rotation: For loosening and unscrewing screws and

nuts, press the rotational direction switch 7 through to the

Switching On and Off

To start the machine, press the On/Off switch 8 and keep it

The power light 9 lights up when the On/Off switch 8 is slightly

or completely pressed, and allows the work area to be illumi-

nated when lighting conditions are insufficient.

To switch off the machine, release the On/Off switch 8.

WARNING OBJ_BUCH-832-003.book Page 16 Monday, January 16, 2012 3:04 PMEnglish | 17

Bosch Power Tools 2 609 140 904 | (16.1.12)

The speed of the switched on power tool can be variably ad-

justed, depending on how far the On/Off switch 8 is pressed.

Light pressure on the On/Off switch 8 results in a low rotation-

al speed. Further pressure on the switch results in an increase

f Apply the power tool to the screw/nut only when it is

switched off. Rotating tool inserts can slip off.

The torque depends on the impact duration. The maximum

achieved torque results from the sum of all individual torques

achieved through impact. The maximum torque is achieved

after an impact duration of 6–10 seconds. After this dura-

tion, the tightening torque is increased only minimally.

The impact duration is to be determined for each required

tightening torque. The actually achieved tightening torque is

always to be checked with a torque wrench.

Screw Applications with Hard, Spring-loaded or Soft Seat

When in a test, the achieved torques in an impact series are

measured and transferred into a diagram, resulting in the

curve of a torque characteristic. The height of the curve corre-

sponds with the maximum reachable torque, and the steep-

ness indicates the duration in which this is achieved.

A torque gradient depends on the following factors:

– Strength properties of the screws/nuts

– Type of backing (washer, disc spring, seal)

– Strength properties of the material being screwed/bolted

– Lubrication conditions at the screw/bolt connection

The following application cases result accordingly:

–A hard seat is given for metal-to-metal screw applications

with the use of washers. After a relatively short impact du-

ration, the maximum torque is reached (steep characteris-

tic curve). Unnecessary long impact duration only causes

damage to the machine.

–A spring-loaded seat is given for metal-to-metal screw ap-

plications, however with the use of spring washers, disc

springs, studs or screws/nuts with conical seat as well as

when using extensions.

–A soft seat is given for screw applications, e. g., metal on

wood or when using lead washers or fibre washers as back-

For a spring-loaded seat as well as for a soft seat, the maxi-

mum tightening torque is lower than for a hard seat. Also, a

clearly longer impact duration is required.

Reference Values for Maximum Screw/Bolt Tightening Torques

Calculated from the tensional cross-section; utilization of the yield point 90 % (with friction coefficient μ total = 0.12).

As a control measure, always check the tightening torque with a torque wrench.

Before screwing larger, longer screws into hard materials, it is

advisable to predrill a pilot hole with the core diameter of the

of the screw length.

Note: Pay attention that no metal particles enter the power

With the belt clip 4, the machine can be hung onto a belt. The

user has both hands free and the machine is always at hand.

Recommendations for Optimal Handling of the Battery

Protect the battery against moisture and water.

Store the battery only within a temperature range between

0 °C and 50 °C. As an example, do not leave the battery in the

Occasionally clean the venting slots of the battery using a soft,

clean and dry brush.

A significantly reduced working period after charging indi-

cates that the battery is used and must be replaced.

Observe the notes for disposal.

Maintenance and Service

Maintenance and Cleaning

f Before any work on the machine itself (e. g. mainte-

nance, tool change, etc.) as well as during transport

and storage, remove the battery from the power tool.

There is danger of injury when unintentionally actuating

f For safe and proper working, always keep the machine

and ventilation slots clean.

according to DIN 267

Standard Screws/Bolts High-strength Bolts

3.6 4.6 5.6 4.8 6.6 5.8 6.8 6.9 8.8 10.9 12.9

OBJ_BUCH-832-003.book Page 17 Monday, January 16, 2012 3:04 PM18 | English

2 609 140 904 | (16.1.12) Bosch Power Tools

Replacing the Carbon Brushes (see figure E)

Check the length of the carbon brushes approx. every

2–3 months and replace the carbon brushes if required.

Never replace only a single carbon brush!

Note: Use only carbon brushes supplied by Bosch and intend-

ed specifically for your product.

– Unscrew the caps 16 using a suitable screwdriver.

– Replace the spring-loaded carbon brushes 15 and screw

the caps back on again.

If the machine should fail despite the care taken in manufac-

turing and testing procedures, repair should be carried out by

an after-sales service centre for Bosch power tools.

In all correspondence and spare parts order, please always in-

clude the 10-digit article number given on the type plate of

After-sales Service and Customer Assistance

Our after-sales service responds to your questions concern-

ing maintenance and repair of your product as well as spare

parts. Exploded views and information on spare parts can al-

Our customer service representatives can answer your ques-

tions concerning possible applications and adjustment of

products and accessories.

Robert Bosch Ltd. (B.S.C.)

Fax: +353 (01) 4 66 68 88

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Customer Contact Center

Republic of South Africa

Hotline: +27 (011) 6 51 96 00

35 Roper Street, New Centre

E-Mail: bsctools@icon.co.za

KZN – BSC Service Centre

Unit E, Almar Centre

E-Mail: bsc.dur@za.bosch.com

Western Cape – BSC Service Centre

Democracy Way, Prosperity Park

The contained lithium-ion batteries are subject to the Danger-

ous Goods Legislation requirements. The user can transport

the batteries by road without further requirements.

When being transported by third parties (e.g.: air transport or

forwarding agency), special requirements on packaging and

labelling must be observed. For preparation of the item being

shipped, consulting an expert for hazardous material is re-

Dispatch batteries only when the housing is undamaged.

Tape or mask off open contacts and pack up the battery in

such a manner that it cannot move around in the packaging.

Please also observe possibly more detailed national regula-

The machine, rechargeable batteries, accessories

and packaging should be sorted for environmental-

Do not dispose of power tools and batteries/rechargeable

batteries into household waste!

OBJ_BUCH-832-003.book Page 18 Monday, January 16, 2012 3:04 PMFrançais | 19 Bosch Power Tools 2 609 140 904 | (16.1.12) Only for EC countries:

According to the European Guideline

2002/96/EC, power tools that are no long-

er usable, and according to the European

Guideline 2006/66/EC, defective or used

battery packs/batteries, must be collected

separately and disposed of in an environ-

mentally correct manner.

Batteries no longer suitable for use can be directly returned

Robert Bosch Ltd. (B.S.C.)

Battery packs/batteries:

Please observe the instructions in

section “Transport”, page 18. Subject to change without notice. Français

Avertissements de sécurité

AVERTISSEMENT OBJ_BUCH-832-003.book Page 19 Monday, January 16, 2012 3:04 PM20 | Français

OBJ_BUCH-832-003.book Page 21 Monday, January 16, 2012 3:04 PM22 | Français

Senior Vice President

Dr. Eckerhard Strötgen

Engineering Director

ATTENTION OBJ_BUCH-832-003.book Page 23 Monday, January 16, 2012 3:04 PM24 | Français

ADVERTENCIA OBJ_BUCH-832-003.book Page 26 Monday, January 16, 2012 3:04 PMEspañol | 27

OBJ_BUCH-832-003.book Page 27 Monday, January 16, 2012 3:04 PM28 | Español

2011/65/UE, 2004/108/CE, 2006/42/CE.

Senior Vice President

Dr. Eckerhard Strötgen

Engineering Director

OBJ_BUCH-832-003.book Page 30 Monday, January 16, 2012 3:04 PMEspañol | 31

OBJ_BUCH-832-003.book Page 31 Monday, January 16, 2012 3:04 PM32 | Español

MR P R O D U C T O C E R T I F I C A D O C E R T I F I E D P R O D U C T ATENÇÃO OBJ_BUCH-832-003.book Page 33 Monday, January 16, 2012 3:04 PM34 | Português

OBJ_BUCH-832-003.book Page 35 Monday, January 16, 2012 3:04 PM36 | Português

Senior Vice President

Dr. Eckerhard Strötgen

Engineering Director

ATENÇÃO OBJ_BUCH-832-003.book Page 37 Monday, January 16, 2012 3:04 PM38 | Português

Conforme as Directivas Europeias

AVVERTENZA OBJ_BUCH-832-003.book Page 39 Monday, January 16, 2012 3:04 PM40 | Italiano

OBJ_BUCH-832-003.book Page 41 Monday, January 16, 2012 3:04 PM42 | Italiano

Senior Vice President

Dr. Eckerhard Strötgen

Engineering Director

PT/ESI ATTENZIONE OBJ_BUCH-832-003.book Page 43 Monday, January 16, 2012 3:04 PM44 | Italiano

2 609 140 904 | (16.1.12) Bosch Power Tools

OBJ_BUCH-832-003.book Page 44 Monday, January 16, 2012 3:04 PMItaliano | 45

WAARSCHUWING OBJ_BUCH-832-003.book Page 46 Monday, January 16, 2012 3:04 PMNederlands | 47

OBJ_BUCH-832-003.book Page 48 Monday, January 16, 2012 3:04 PMNederlands | 49

Senior Vice President

Dr. Eckerhard Strötgen

Engineering Director

PT/ESI LET OP OBJ_BUCH-832-003.book Page 50 Monday, January 16, 2012 3:04 PMNederlands | 51

Bosch Power Tools 2 609 140 904 | (16.1.12)

OBJ_BUCH-832-003.book Page 52 Monday, January 16, 2012 3:04 PMDansk | 53 Bosch Power Tools 2 609 140 904 | (16.1.12) Dansk

OBJ_BUCH-832-003.book Page 54 Monday, January 16, 2012 3:04 PMDansk | 55

2004/108/EF, 2006/42/EF.

Senior Vice President

Dr. Eckerhard Strötgen

Engineering Director

OBJ_BUCH-832-003.book Page 56 Monday, January 16, 2012 3:04 PMDansk | 57

Bosch Service Center

VARNING OBJ_BUCH-832-003.book Page 58 Monday, January 16, 2012 3:04 PMSvenska | 59

mm M6–M14 M6–M14 M6–M14 M6–M14

OBJ_BUCH-832-003.book Page 60 Monday, January 16, 2012 3:04 PMSvenska | 61

mm M6–M16 M6–M16 M6–M16 M6–M16

Senior Vice President

Dr. Eckerhard Strötgen

Engineering Director

OBS OBJ_BUCH-832-003.book Page 62 Monday, January 16, 2012 3:04 PMSvenska | 63

Bosch Service Center

ADVARSEL OBJ_BUCH-832-003.book Page 64 Monday, January 16, 2012 3:04 PMNorsk | 65

Senior Vice President

Dr. Eckerhard Strötgen

Engineering Director

PT/ESI OBS OBJ_BUCH-832-003.book Page 67 Monday, January 16, 2012 3:04 PM68 | Norsk

2 609 140 904 | (16.1.12) Bosch Power Tools

OBJ_BUCH-832-003.book Page 68 Monday, January 16, 2012 3:04 PMNorsk | 69

OBJ_BUCH-832-003.book Page 69 Monday, January 16, 2012 3:04 PM70 | Suomi 2 609 140 904 | (16.1.12) Bosch Power Tools Transport

VAROITUS OBJ_BUCH-832-003.book Page 70 Monday, January 16, 2012 3:04 PMSuomi | 71

OBJ_BUCH-832-003.book Page 71 Monday, January 16, 2012 3:04 PM72 | Suomi

Senior Vice President

Dr. Eckerhard Strötgen

Engineering Director

PT/ESI HUOM OBJ_BUCH-832-003.book Page 73 Monday, January 16, 2012 3:04 PM74 | Suomi

2 609 140 904 | (16.1.12) Bosch Power Tools

OBJ_BUCH-832-003.book Page 74 Monday, January 16, 2012 3:04 PMSuomi | 75

OBJ_BUCH-832-003.book Page 76 Monday, January 16, 2012 3:04 PMEëëçíéêÜ | 77

OBJ_BUCH-832-003.book Page 78 Monday, January 16, 2012 3:04 PMEëëçíéêÜ | 79

Senior Vice President

Dr. Eckerhard Strötgen

Engineering Director

PT/ESI OBJ_BUCH-832-003.book Page 79 Monday, January 16, 2012 3:04 PM80 | EëëçíéêÜ

2 609 140 904 | (16.1.12) Bosch Power Tools

OBJ_BUCH-832-003.book Page 80 Monday, January 16, 2012 3:04 PMEëëçíéêÜ | 81

OBJ_BUCH-832-003.book Page 81 Monday, January 16, 2012 3:04 PM82 | EëëçíéêÜ

OBJ_BUCH-832-003.book Page 84 Monday, January 16, 2012 3:04 PMTürkçe | 85

Senior Vice President

Dr. Eckerhard Strötgen

Engineering Director

PT/ESI DIKKAT OBJ_BUCH-832-003.book Page 86 Monday, January 16, 2012 3:04 PMTürkçe | 87

Bosch Power Tools 2 609 140 904 | (16.1.12)

OBJ_BUCH-832-003.book Page 88 Monday, January 16, 2012 3:04 PMPolski | 89

OBJ_BUCH-832-003.book Page 89 Monday, January 16, 2012 3:04 PM90 | Polski

OBJ_BUCH-832-003.book Page 90 Monday, January 16, 2012 3:04 PMPolski | 91

Senior Vice President

Dr. Eckerhard Strötgen

Engineering Director

PT/ESI UWAGA OBJ_BUCH-832-003.book Page 92 Monday, January 16, 2012 3:04 PMPolski | 93

Bosch Power Tools 2 609 140 904 | (16.1.12)

OBJ_BUCH-832-003.book Page 93 Monday, January 16, 2012 3:04 PM94 | Polski

Robert Bosch Sp. z o.o.

VAROVÁNÍ OBJ_BUCH-832-003.book Page 95 Monday, January 16, 2012 3:04 PM96 | Česky

OBJ_BUCH-832-003.book Page 96 Monday, January 16, 2012 3:04 PMČesky | 97 Bosch Power Tools 2 609 140 904 | (16.1.12) Servis

OBJ_BUCH-832-003.book Page 97 Monday, January 16, 2012 3:04 PM98 | Česky

2004/108/ES, 2006/42/ES.

Senior Vice President

Dr. Eckerhard Strötgen

Engineering Director

POZOR OBJ_BUCH-832-003.book Page 99 Monday, January 16, 2012 3:04 PM100 | Česky

POZOR OBJ_BUCH-832-003.book Page 101 Monday, January 16, 2012 3:04 PM102 | Slovensky

OBJ_BUCH-832-003.book Page 103 Monday, January 16, 2012 3:04 PM104 | Slovensky

Senior Vice President

Dr. Eckerhard Strötgen

Engineering Director

PT/ESI POZOR OBJ_BUCH-832-003.book Page 105 Monday, January 16, 2012 3:04 PM106 | Slovensky

2 609 140 904 | (16.1.12) Bosch Power Tools

OBJ_BUCH-832-003.book Page 106 Monday, January 16, 2012 3:04 PMSlovensky | 107

FIGYELMEZTETÉS OBJ_BUCH-832-003.book Page 108 Monday, January 16, 2012 3:04 PMMagyar | 109

OBJ_BUCH-832-003.book Page 110 Monday, January 16, 2012 3:04 PMMagyar | 111

Senior Vice President

Dr. Eckerhard Strötgen

Engineering Director

FIGYELEM OBJ_BUCH-832-003.book Page 112 Monday, January 16, 2012 3:04 PMMagyar | 113

OBJ_BUCH-832-003.book Page 113 Monday, January 16, 2012 3:04 PM114 | Magyar 2 609 140 904 | (16.1.12) Bosch Power Tools Tippek

OBJ_BUCH-832-003.book Page 114 Monday, January 16, 2012 3:04 PMÐóññêèé | 115 Bosch Power Tools 2 609 140 904 | (16.1.12) Ðóññêèé

Россия, 129515, Москва OBJ_BUCH-832-003.book Page 115 Monday, January 16, 2012 3:04 PM116 | Ðóññêèé

OBJ_BUCH-832-003.book Page 117 Monday, January 16, 2012 3:04 PM118 | Ðóññêèé

Senior Vice President

Dr. Eckerhard Strötgen

Engineering Director

PT/ESI OBJ_BUCH-832-003.book Page 118 Monday, January 16, 2012 3:04 PMÐóññêèé | 119

Bosch Power Tools 2 609 140 904 | (16.1.12)

OBJ_BUCH-832-003.book Page 119 Monday, January 16, 2012 3:04 PM120 | Ðóññêèé

OBJ_BUCH-832-003.book Page 120 Monday, January 16, 2012 3:04 PMÐóññêèé | 121

ME77 OBJ_BUCH-832-003.book Page 122 Monday, January 16, 2012 3:04 PMÓêðà¿íñüêà | 123

OBJ_BUCH-832-003.book Page 124 Monday, January 16, 2012 3:04 PMÓêðà¿íñüêà | 125

OBJ_BUCH-832-003.book Page 125 Monday, January 16, 2012 3:04 PM126 | Óêðà¿íñüêà

Senior Vice President

Dr. Eckerhard Strötgen

Engineering Director

PT/ESI OBJ_BUCH-832-003.book Page 126 Monday, January 16, 2012 3:04 PMÓêðà¿íñüêà | 127

Bosch Power Tools 2 609 140 904 | (16.1.12)

OBJ_BUCH-832-003.book Page 127 Monday, January 16, 2012 3:04 PM128 | Óêðà¿íñüêà

AVERTISMENT OBJ_BUCH-832-003.book Page 129 Monday, January 16, 2012 3:04 PM130 | Română

OBJ_BUCH-832-003.book Page 130 Monday, January 16, 2012 3:04 PMRomână | 131

OBJ_BUCH-832-003.book Page 131 Monday, January 16, 2012 3:04 PM132 | Română

prevederilor Directivelor 2011/65/UE, 2004/108/CE,

Senior Vice President

Dr. Eckerhard Strötgen

Engineering Director

PT/ESI OBJ_BUCH-832-003.book Page 132 Monday, January 16, 2012 3:04 PMRomână | 133

Bosch Power Tools 2 609 140 904 | (16.1.12)

OBJ_BUCH-832-003.book Page 133 Monday, January 16, 2012 3:04 PM134 | Română

Conform Directivei Europene 2002/96/CE

sculele electrice scoase din uz şi, conform

Directivei Europene 2006/66/CE,

OBJ_BUCH-832-003.book Page 135 Monday, January 16, 2012 3:04 PM136 | Áúëãàðñêè

OBJ_BUCH-832-003.book Page 136 Monday, January 16, 2012 3:04 PMÁúëãàðñêè | 137

OBJ_BUCH-832-003.book Page 138 Monday, January 16, 2012 3:04 PMÁúëãàðñêè | 139

Senior Vice President

Dr. Eckerhard Strötgen

Engineering Director

PT/ESI OBJ_BUCH-832-003.book Page 139 Monday, January 16, 2012 3:04 PM140 | Áúëãàðñêè

2 609 140 904 | (16.1.12) Bosch Power Tools

OBJ_BUCH-832-003.book Page 140 Monday, January 16, 2012 3:04 PMÁúëãàðñêè | 141

OBJ_BUCH-832-003.book Page 142 Monday, January 16, 2012 3:04 PMSrpski | 143 Bosch Power Tools 2 609 140 904 | (16.1.12) Srpski

OBJ_BUCH-832-003.book Page 144 Monday, January 16, 2012 3:04 PMSrpski | 145

¼" Imbus/½" ¼" Imbus/½" ¼" Imbus/½" ¼" Imbus/½"

Senior Vice President

Dr. Eckerhard Strötgen

Engineering Director

PT/ESI PAŽNJA OBJ_BUCH-832-003.book Page 146 Monday, January 16, 2012 3:04 PMSrpski | 147

Bosch Power Tools 2 609 140 904 | (16.1.12)

OPOZORILO OBJ_BUCH-832-003.book Page 148 Monday, January 16, 2012 3:04 PMSlovensko | 149

OBJ_BUCH-832-003.book Page 150 Monday, January 16, 2012 3:04 PMSlovensko | 151

OBJ_BUCH-832-003.book Page 151 Monday, January 16, 2012 3:04 PM152 | Slovensko

Senior Vice President

Dr. Eckerhard Strötgen

Engineering Director

PT/ESI POZOR OBJ_BUCH-832-003.book Page 152 Monday, January 16, 2012 3:04 PMSlovensko | 153

Bosch Power Tools 2 609 140 904 | (16.1.12)

OBJ_BUCH-832-003.book Page 156 Monday, January 16, 2012 3:04 PMHrvatski | 157

Senior Vice President

Dr. Eckerhard Strötgen

Engineering Director

PT/ESI POZOR OBJ_BUCH-832-003.book Page 158 Monday, January 16, 2012 3:04 PMHrvatski | 159

Bosch Power Tools 2 609 140 904 | (16.1.12)

OBJ_BUCH-832-003.book Page 159 Monday, January 16, 2012 3:04 PM160 | Hrvatski

OBJ_BUCH-832-003.book Page 162 Monday, January 16, 2012 3:04 PMEesti | 163

Senior Vice President

Dr. Eckerhard Strötgen

Engineering Director

PT/ESI TÄHELEPANU OBJ_BUCH-832-003.book Page 164 Monday, January 16, 2012 3:04 PMEesti | 165

Bosch Power Tools 2 609 140 904 | (16.1.12)

BRĪDINĀJUMS OBJ_BUCH-832-003.book Page 166 Monday, January 16, 2012 3:04 PMLatviešu | 167

OBJ_BUCH-832-003.book Page 167 Monday, January 16, 2012 3:04 PM168 | Latviešu

OBJ_BUCH-832-003.book Page 168 Monday, January 16, 2012 3:04 PMLatviešu | 169

Senior Vice President

Dr. Eckerhard Strötgen

Engineering Director

PT/ESI UZMANĪBU OBJ_BUCH-832-003.book Page 170 Monday, January 16, 2012 3:04 PMLatviešu | 171

Bosch Power Tools 2 609 140 904 | (16.1.12)

OBJ_BUCH-832-003.book Page 171 Monday, January 16, 2012 3:04 PM172 | Latviešu

OBJ_BUCH-832-003.book Page 173 Monday, January 16, 2012 3:04 PM174 | Lietuviškai

OBJ_BUCH-832-003.book Page 175 Monday, January 16, 2012 3:04 PM176 | Lietuviškai

Senior Vice President

Dr. Eckerhard Strötgen

Engineering Director

DĖMESIO OBJ_BUCH-832-003.book Page 177 Monday, January 16, 2012 3:04 PM178 | Lietuviškai

OBJ_BUCH-832-003.book Page 178 Monday, January 16, 2012 3:04 PMLietuviškai | 179

OBJ_BUCH-832-003.book Page 179 Monday, January 16, 2012 3:04 PM180 | ﻲﺑﺮﻋ

Engineering Director

PT/ESIDr. Egbert Schneider

Senior Vice President

“ﺔﻴﺋﺎﺑﺮﻬﻜﻟﺍ ﺓﺪﻌﻟﺍ” ﺢﻠﻄﺼﻤﺑ ﺪﺼﻘﻳ

Engineering Director

PT/ESIDr. Egbert Schneider

Senior Vice President

OBJ_BUCH-832-003.book Page 193 Monday, January 16, 2012 3:04 PM2 609 140 904 | (16.1.12) Bosch Power Tools

OBJ_BUCH-832-003.book Page 194 Monday, January 16, 2012 3:04 PM
