Product Type	LCD Monitor
Brand	Sanyo
Model	42LM5R
Screen Size	42 inches (107 cm)
Native Resolution	1366 x 768 (WXGA)
Contrast Ratio	1500:1
Viewing Angles	178° horizontal and 178° vertical
Color System	PAL, SECAM, NTSC 3.58
Power Supply	100-240 V AC, 50/60 Hz
Video Inputs	AV1 (SCART), AV2 (BNC RGB/YUV), AV3 (Composite), DVI-D, PC (D-Sub 15)
Video Outputs	AV2 (RGB/YUV), AV3 (Composite)
Audio Output	Speakers 2 x 6 W, line output Cinch
Serial Port	RS-232C (input/output) and PJ-NET 25-pin
Remote Control	Yes, with AA batteries
Image Modes	Natural, Full, Zoom, Title, Normal
Image Adjustments	Brightness, contrast, color, sharpness, color temperature, noise reduction
Audio Adjustments	Volume, balance, bass, treble, surround
Sleep Timer	Yes, adjustable from 5 to 120 minutes
Child Lock	Yes
Winter Mode	Yes (ambient temperature ≤4°C)
Power Saving	Automatic standby after 1 minute without signal
Maintenance and Cleaning	Unplug before cleaning, use a damp cloth, do not apply liquid directly
Safety	Do not open the cover, entrust repairs to a qualified technician, unplug during storms
OSD Languages	French, German, Italian, Spanish, Dutch, etc.

Frequently Asked Questions - 42LM5R SANYO

How do I change the input source?

Press the TV/AV button on the remote control several times or hold it down for a few seconds to display the selection menu. Use the P▲ or P▼ keys to choose the desired mode: AV1, RGB, AV2 (Y, Pb, Pr or RGB H/V), AV3, DVI or PC.

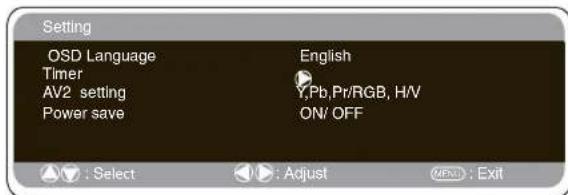

How do I set the sleep timer?

Press MENU, select Settings, then Timer. Use the ▲+ or ▲- keys to set the duration from 5 to 120 minutes. When activated, a symbol appears when pressing Recall.

What should I do if the remote control does not work?

Check that the batteries are inserted correctly (respect the + and - polarities) and that they are not dead. Make sure the Remote Lock function is not activated (disable it in the Installation menu).

How do I clean the screen?

First unplug the monitor from the power outlet. Use a soft, damp cloth (no liquid cleaners or aerosols directly). Gently wipe the screen and casing.

Why is the image quality poor?

Adjust the brightness and contrast levels in the Image menu. Also check the cable connections and the resolution of the input signal.

How do I activate the child lock?

Hold down the green button on the remote control for 5 seconds to access the Installation menu. Select Child Lock and activate it with the ▲+ or ▲- keys. This function prevents the use of the buttons on the back of the device.

How do I use PC mode?

Connect your PC to the PC-IN (D-Sub 15) or RGBHV (BNC) port. Select PC or AV2 (RGBHV) mode using the TV/AV key. The PC menu allows you to adjust brightness, contrast, position, phase, and clock. Use Auto Adjustment to optimize the image.

What should I do if there is no sound?

Check if the volume is not set to silent (press the mute button). Ensure that external speakers are properly connected and that the audio settings (balance, bass, treble) are appropriate.

How do I mount the monitor on the wall?

Use a wall mounting kit approved by the manufacturer. Leave a space of 5 cm between the screen and the wall, and 10 cm at the top and sides. Attach the monitor securely according to the provided instructions. The power cord must remain accessible.

How do I save energy?

Activate the Power Save function in the Settings menu (PC mode). It puts the monitor into standby after 1 minute without signal. You can also use the Eco image mode which reduces brightness.

USER MANUAL 42LM5R SANYO

GB English Page 2\~12

F Français Page 13\~22

Line drawing of a rectangular electronic device with a label 'apto' at the bottom (no other text or symbols)

Please read this Instruction book before using your LCD monitor. We wish you many hours of pleasure from your new LCD monitor

CAUTION: Please read and retain for your safety. This unit has been engineered and manufactured to assure your personal safety, but improper use can result in potential electric shock or fire hazards. In order not to defeat the safeguards incorporated in this monitor observe the following basic rules for its installation, use and servicing.

Installation and Use

Do not allow anything to rest on the power cord. Do not locate this LCD monitor where the cord will be damaged by people walking on it.

Do not overload wall outlets and extension cords as this can result in fire or electric shock.

A suitable socket outlet must be provided near to the monitor and shall be easily accessible

Do not place this LCD monitor near any heat sources such as radiators, heaters, stoves and other heat-generating products (including amplifiers).

Do not place your LCD monitor on an unstable stand, shelf or table. Serious injury to an individual, and damage to the LCD monitor may result if it should fall. Your sales person can recommend approved wall mounting kit. A special wall mounting kit is available for this model.

This LCD monitor should be operated only from the type of power source indicated on the monitor or as indicated in the Operating Instructions. If you are not sure of the type of power supply, consult your sales person or your local power company.

For added protection it is strongly recommended that this LCD monitor is supplied via an approved earth fault protection device.

WARNING: To prevent injury the LCD monitor must be securely attached to the wall in accordance with the manufacturers installation instructions.

IMPORTANT:

This product must be earthed

This unit is not disconnected from the mains unless the mains lead is unplugged. The installer must make sure that the mains plug is easily accessible.

Do not use immediately after moving the LCD monitor from a low temperature to a high temperature environment, as this causes condensation, which may result in fire, electric shock, or other hazards. Before cleaning, unplug the monitor from the wall socket.

Do not mount near an open flame source. Open flames must never be used near this LCD monitor.

This LCD monitor should not be built in or enclosed in any way, heat build up will reduce the life of the monitor.

This LCD monitor should have a minimum distance of 5cm away from the wall and the monitor should have 10cm distance around the top and sides.

Always mount using recommended and substantial fixtures and fittings.

The rear finned section around the cabinet functions as a heat sink, removing heat away from the monitor. The external surface of the cabinet (finned area) must not be covered or the airflow restricted in anyway by enclosing the LCD monitor.

Do not apply liquid cleaners or aerosol cleaners directly onto the LCD monitor. Use a damp cloth for cleaning.

ADDITIONAL FOR NORTH AMERICA AND CANADA:

This monitor must NOT be permanently mounted to the building structure. It must be mounted in such a way that it can be removed using basic tools.

The power supply cord must NOT be attached to the building surface. The power supply cord must NOT be routed through walls, ceiling, floors, or other similar openings in the building structure.

The power supply cord MUST be positioned so as to prevent physical damage.

Important: (UK only)

THIS PRODUCT MUST BE EARTHED

This equipment is fitted with an approved mains lead and an approved non rewireable UK mains plug. To change a fuse in this type of plug proceed as follows:

1. Remove the fuse cover and fuse.
2. Fit a new fuse which should be a BS1362 13 Amp A.S.T.A. or BSI approved type.
3. Ensure that the fuse cover is correctly refitted.

If the fuse cover is lost or damaged the plug must NOT be used but replaced with a serviceable plug.

If the fitted plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place. If the mains plug contains a fuse, this should have a rating of 13 Amp, ensure the fuse cover is correctly fitted. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 13 Amp.

Note: The severed plug must be destroyed to avoid a possible shock hazard should it be inserted into a 13 Amp socket elsewhere.

The wires in this mains lead are coloured in accordance with the following code:

Blue ----> Neutral

Brown ----> Live

Green and Yellow ----> Earth

1. The Blue wire must be connected to the terminal which is marked with the letter "N" or coloured BLACK.
2. The Brown wire must be connected to the terminal with the letter "L" or coloured RED.
3. The Green and Yellow wire must be connected to the terminal which is marked with the letter "E" or coloured GREEN or GREEN and YELLOW.

Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of the lead - not simply over the wires.

Do not attempt to bypass the safety purpose of the grounding type plug.

THIS UNIT IS NOT DISCONNECTED FROM THE MAINS UNLESS THE MAINS LEAD IS UNPLUGGED.

THE INSTALLER MUST MAKE SURE THE MAINS LEAD IS EASILY ACCESSIBLE.

Servicing

Your monitor is fully transistorised and does not contain any user serviceable components.

You must not remove the rear cover of the monitor by yourself. The apparatus is working with high voltages and could damage objects or even endanger people. Leave all required repair and service jobs to an authorised service technician. He will exclusively use such spare parts that are complying with the same safety standards as applicable to the original parts. The use of original spare parts can prevent fire, shock and other hazards.

Unplug the LCD monitor from the wall outlet and refer servicing to qualified service personnel under the following conditions:

■ If the power cord or plug is damaged.
■ If liquid has been spilt in to the LCD monitor.
■ If the LCD monitor has been exposed to rain or water.
■ If the LCD monitor has been dropped or the cabinet has been damaged.
■ If the LCD monitor exhibits a distinct change in performance.
■ If the LCD monitor does not operate normally by following the operating instructions.

Adjust only those controls that are covered in the operating instructions as improper adjustment of other controls may result in damage. This will often require extensive work by a qualified technician to restore the monitor to normal operation.

Important recycling information.

Your SANYO product is designed and manufactured with high quality materials and components which can be recycled and reused.

This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately.

In the European Union there are separate collection systems for used electrical and electronic products.

Please help us to conserve the environment we live in!

Note: This symbol mark and recycle system are applied only to EU countries are not applied to other countries of the world.

Declaration of Conformity: North America and Canada

Model Number: CE42LM5R

Trade name : Sanyo

Responsible party :SANYO FISHER COMPANY

Address:21605 Plummer Street,Chatsworth,California 91311

Telephone :[phone]

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interence that may cause undesired operation.

AC Power Cord Requirement

The AC Power Cord supplied with this LCD monitor meets the requirement for use in the country in which you purchase it.

AC Power Cord for the United States and Canada:

AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories (UL) and certified by the Canadian Standard Association (CSA).

AC Power Cord has a grounding-type AC line plug. This is a safety feature to make sure that the plug will fit into the power outlet. Do not try to defeat this safety feature. Should you be unable to insert the plug into the outlet, contact your electrician.

THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE

End-User License

The product (meaning the equipment or appliance to which this documentation relates) incorporates Software (the software applications, utilities and modules embedded within the Product) which is owned by Sanyo or its licensors. Before using the product, please read the End-User License Conditions detailed below. If you do not agree to the terms and conditions of the End-User License, Please do not proceed to use the Product-repack the Product unused and return it to your supplier together with proof of purchase for a full refund. By using the product, you agree to be bound by the terms and conditions of the End-User License.

License Grant, Conditions and restrictions

1. Sanyo grants you a non-exclusive, world-wide (subject to export controls), non-transferable (except as permitted by 2 below), royalty-free license to use the Software upon and with the Product.

2. You may not transfer any of your license rights in the Software without the prior written consent of SANYO and if consent is provided then the Software shall only be transferred in conjunction with the transfer of the Product AND provided that the transferee has read and agreed to accept the terms and conditions of this license.

3. You must ensure that the copyright, trademark and other protective notices contained in the Software are maintained and not altered or removed.

4. The Software provided hereunder is copyrighted and licensed (not sold). SANYO especially does not transfer title or and ownership rights in the Software to you. The Software provided hereunder may contain or be derived from portions of materials provided to SANYO under license by a third party supplier.

5. Except as expressly permitted by statute you may not;

- use the Software in conjunction with any other computer hardware other than the product;

● copy all or part of the Software;

● incorporate all (or any of) the Software into other programs developed by (or on behalf of) you and/or used by you;

- reverse-engineer, decompile or disassemble the Software;

- make the Software (or any part of it) available, or permit its redistribution, for use with any computer hardware other than the Product; or rent, lease, gift, loan, sell, distribute or transfer possession of the whole or any part of the Software.

Termination

This license is effective until terminated. This license will terminate automatically without notice if you fail to comply with any of its provisions.

Disclaimer

1. The Software is (to the extent permitted by law) supplied 'as is' and SANYO and its suppliers expressly exclude all warranties, express or implied, including (but not limited to) warranties of satisfactory quality, fitness for purpose and non-infringement (save to the extent that the same are not capable of exclusion at law).

2. In no circumstances will SANYO be liable for any direct, indirect, consequential, or incidental damage (including loss of profits, business interruption, loss of data or the cost of procurement of substitute goods, technology or services) arising out of the use or the inability to use the Software (save to the extent that such liability is not capable of exclusion at law).

General

1. This End-User License will be governed by laws of England and the User may only bring claims in the English Courts and SANYO shall be entitled to bring a claim in the courts of any jurisdiction.

2. This End-User License is governed by the laws of the State of California. The End-User and Sanyo agree that any action to enforce or interpret the terms of this End-User License shall be brought only in the appropriate state or federal court located in Los Angeles County, California. The End-User and Sanyo hereby submit to the exclusive jurisdiction and venue of such court.

3. The above terms and conditions supersede any prior agreement, oral or written, between you and SANYO relating to the Software.

Step : 1 Mains Connection

■ Connect the display unit to VGA, BNC and Scart connector as required.

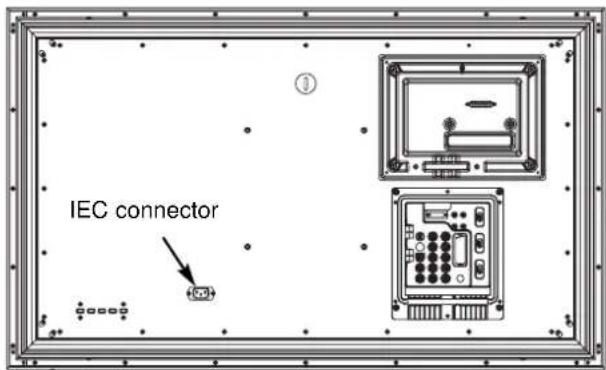

1. Connect the IEC power connector to the mains connector at the rear of the LCD monitor as shown above.
2. Connect the power cord of the LCD monitor to a wall outlet.
   As this product does not have a mains On/Off switch, please ensure your mains plug is easily accessible.
   The LCD monitor is prepared for a mains voltage AC100\~240V, 50Hz/60Hz. To completely switch off the mains, or when the display unit is not to be used for an extended period of time, it is advisable to disconnect the power cord from the power outlet.

Illustration of a plug inserted into an electrical outlet with a smiley face (no text or symbols)

Electrical outlet with a black plug inserted into the socket (no text or symbols visible)

Please use the correct mains lead supplied with the set for your area
3. Warning: To prevent injury, the unit must be securely attached to the wall in accordance with the installation instructions.

WARNING! High voltages are used in the operation of this set. Refer service to qualified service personnel.

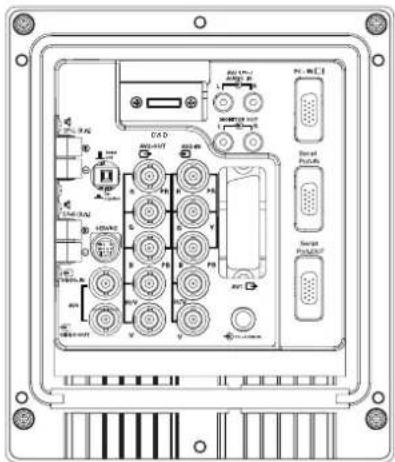

Step : 2 Connections

■ INPUT selection

To switch between AV1, RGB, AV2 (RGB H/V or Y, Pb, Pr) AV3, DVI or PC mode press the TV/ AV button on your remote control repeatedly or press and hold the TV/AV button for a few seconds and a selection menu will appear on screen. Use the P▲ or P▼ buttons to select the correct input.

1. AV1

SCART connection

1. RGB

TTL input (5V RGB signals) into SCART terminal

1. Y,Pb,Pr/ RGBHV connection (AV2)

This LCD monitor has a choice of Y, Pb, Pr or RGB H/V connections. You can connect your DVD player to the Y, Pb, Pr terminals instead of using a scart lead. This can support high definition in analogue component form. RGB H/V can be used as a PC input via the BNC terminals. Both options support a large range of resolutions (page 12).

4.AV3

Composite (CVBS) signal input

AV3 OUT is to output the composite video signal from the VIDEO IN so that you can connect monitors with the use of a loop through function.

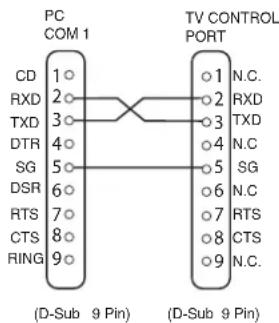

1. RS232C IN/OUT: Is a input for external commands to control the monitor (see page 9).

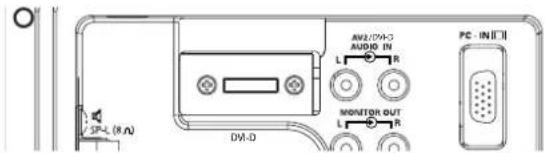

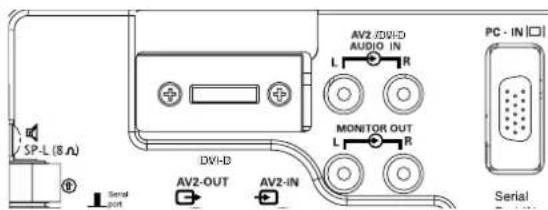

2. DVI-D (Digital Video Interface)

This monitor has a DVI connector. This is located at the back of the monitor next to the phono sockets. This input will support a large range of resolutions as shown on page 12. See page 7 for details of menu operation.

7 PC connection

This LCD monitor has a PC connector (PC-IN D-SUB). You can connect a PC to the LCD monitor and use it as a monitor display (see page 8). This input will support a large range of resolutions (see pg12). Audio can be connected via the 3.5mm PC audio in socket.

1. External Audio Output

To output the audio signal from AV 1,2,3, PC and DVI. The speaker impedance should be 8 ohms.

9.PJ Net IN/OUT: Has the ability for PJ-NET to be connected to control the monitor using a network.

1. Use of Monitor Audio Output Connections:

The audio monitor out sockets on the rear of the set provide a fixed level audio output for reproducing sound via your audio equipment.

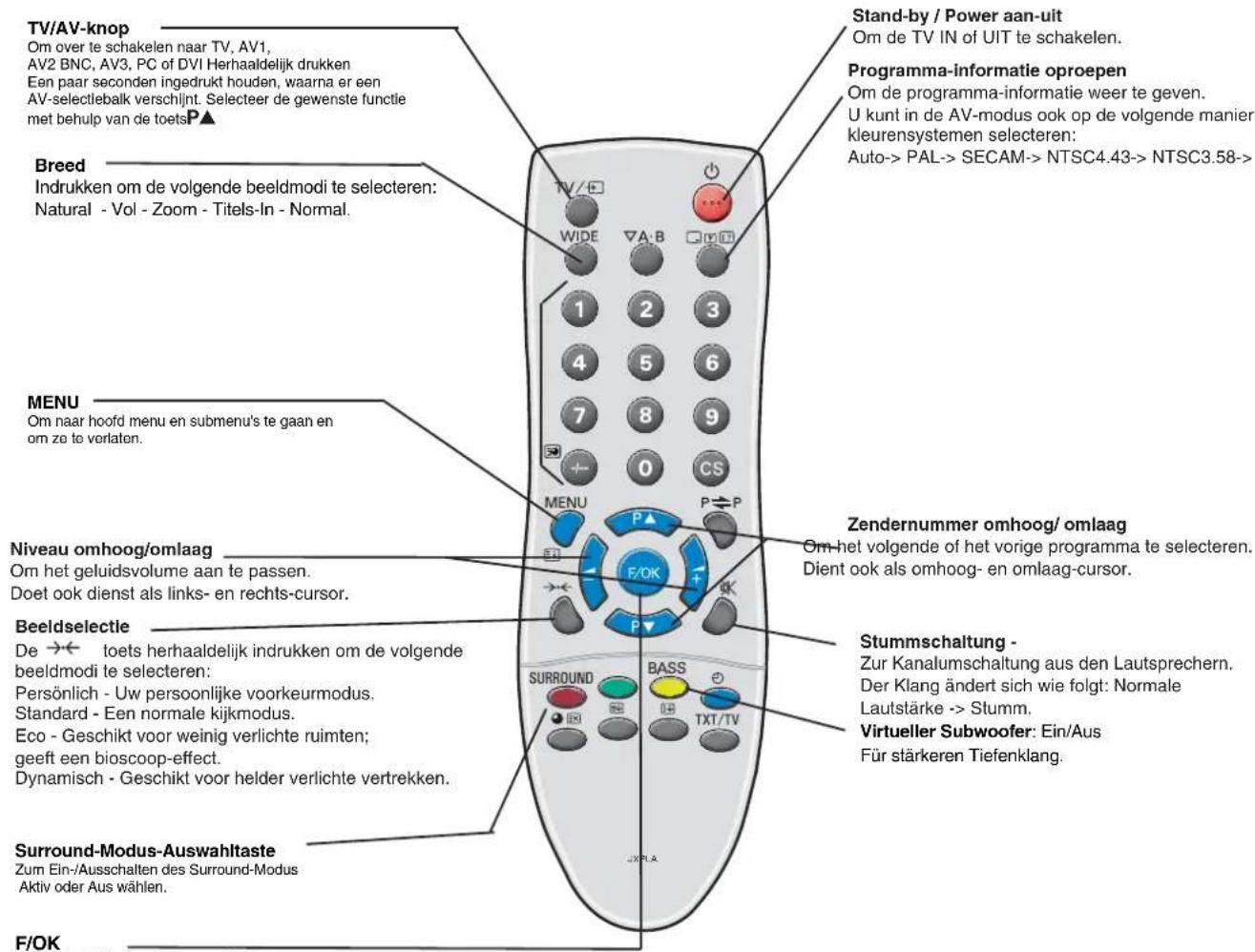

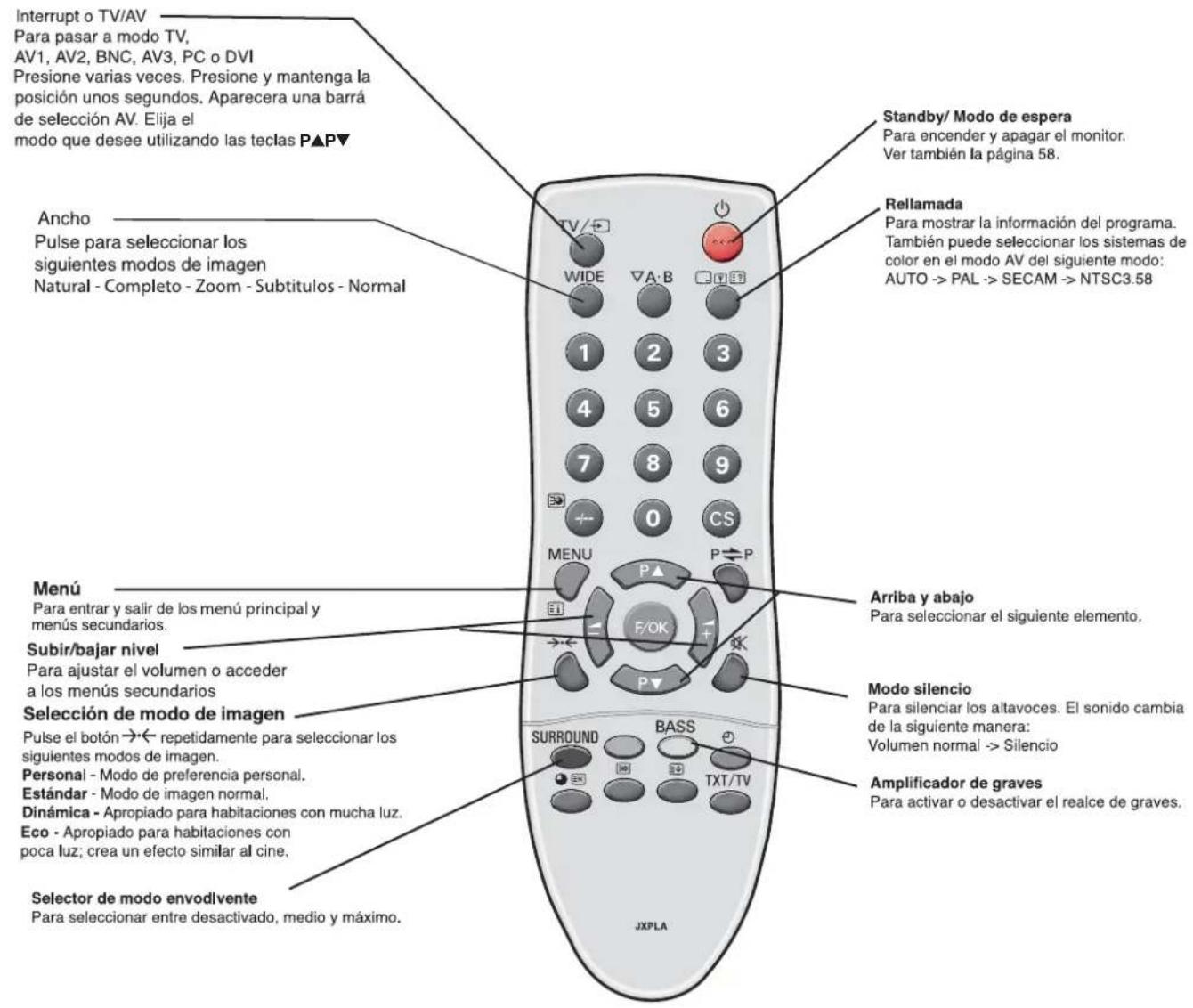

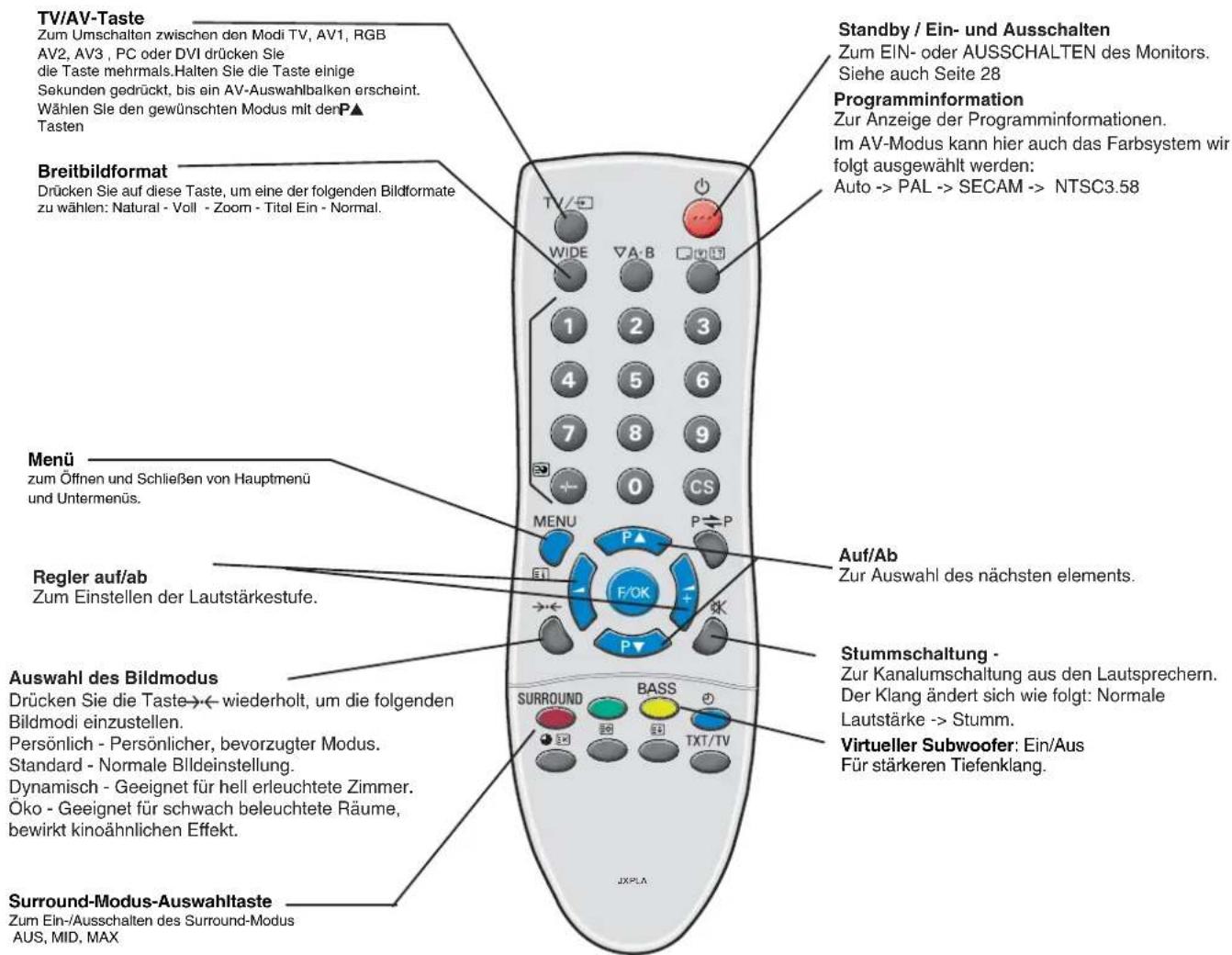

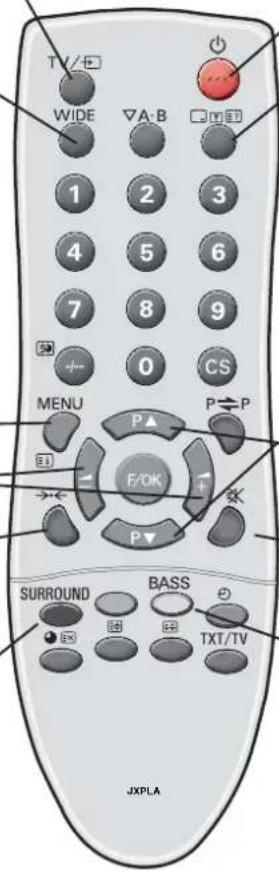

TV/AV button

To switch from AV1, RGB, AV2, AV3, DVI or PC mode press repeatedly or Press and hold in a few seconds, an AV selection menu appears. Select the mode you require using the P▲P▼ buttons

Screen mode selector

To select the screen mode, Natural, Full, Zoom, Title-in or Normal. Refer to page 10

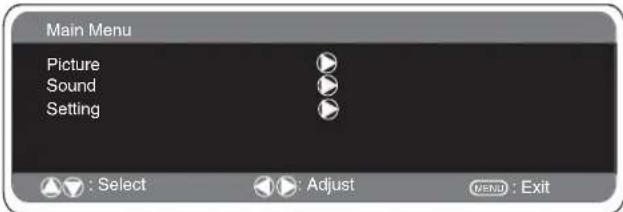

MENU

To enter and exit the main menu, and sub menus.

Level up/down

To adjust the sound volume level, or enter sub menus

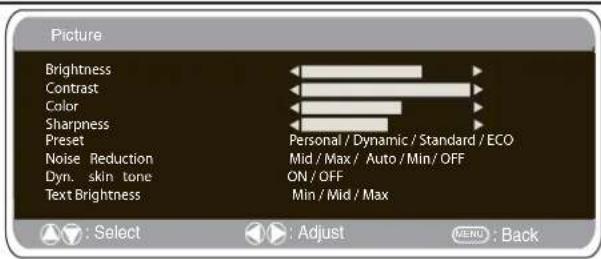

Picture mode selection

Press the →← button repeatedly to select the following picture modes.

Personal - Personal preference mode.

Dynamic - Suitable for brightly lit rooms. Standard - Normal viewing mode.

Eco - Suitable for dimly lit rooms and gives a cinema - like effect.

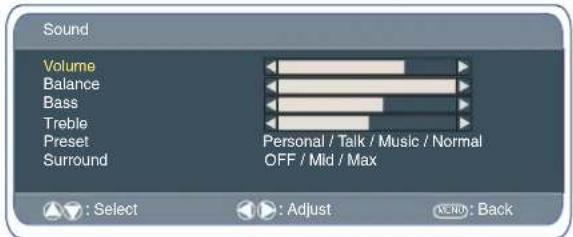

Surround mode selector

To select the surround mode, OFF, MID, MAX

Standby

To switch the monitor on and off. Also see page 7

Recall

To display Input selection information and the

OFF Timer if set.

You can also select colour systems in AV mode as follows

AUTO -> PAL -> SECAM -> NTSC3.58

Up and down

To select the next item

Sound mute

To mute the sound from the speakers.

The sound changes as follows;

Normal volume -> Mute

Bass expander

To get an emphasised bass sound ON or OFF.

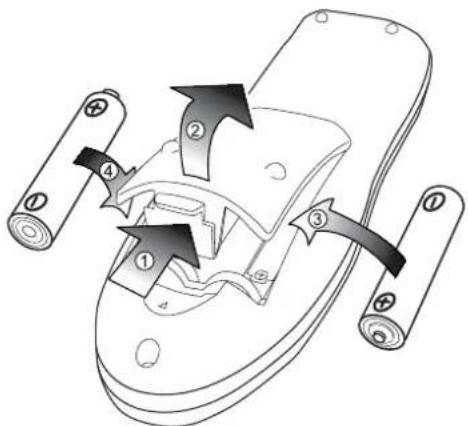

Remote control battery installation

Install two "AA" 1.5 volt batteries so that the "+" and "-" marks on the batteries match the "+" and "-" marks inside the unit into the remote control handset.

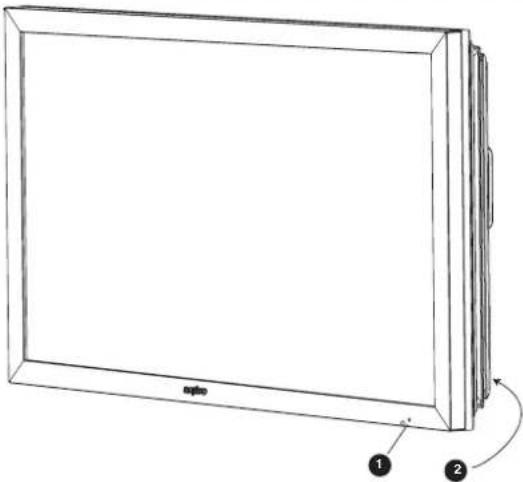

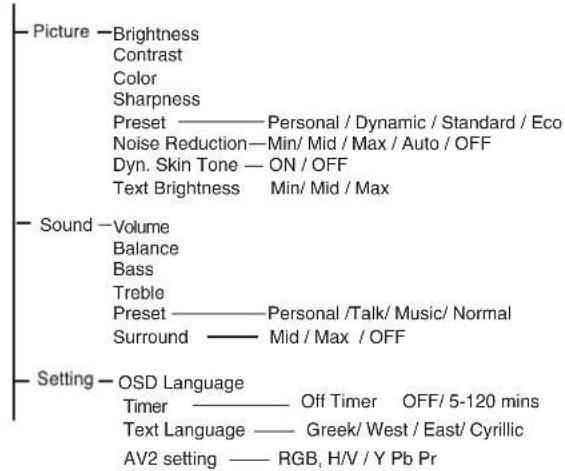

Controls and Menus

Line drawing of a rectangular electronic device with labeled components (no text or symbols on the body)

1. The LCD display has a Standby light to show there is power.

Switching into/from standby mode

The Standby mode is used for switching the LCD monitor off for short periods of time. In standby mode the monitor is switched off but is still receiving mains power.

● To turn the monitor into standby mode, press the ⏻ button. The blue power indicator illuminates more brightly.
● To turn the monitor ON from standby mode, press any of the following buttons: ⏻, P▲, P▼ or 0-9 buttons.

If you find the power indicator flashing, disconnect power cord from the power outlet and contact our Service desk.

This warning is a sign to let you know that the power protection function of this TV set is now operating.

2. Control buttons (bottom corner of back cover)

Menu/F button: rotate between volume, Brightness, contrast, colour, sharpness and OSD language.

Input/ OK button: switch between AV1, RGB, AV2, AV3, DVI and PC mode.

buttons: provide up and down adjustments.

button: To switch from display to standby mode. (to switch off completely disconnect the monitor from the power supply)

Menu Operation

Many of your monitors functions are controlled through the menu function, using the remote control handset.

MENU

During menu operation the bottom of the on screen display will show which controls can be used for menu navigation. Press the MENU button to enter the main menu.

A sub menu is selected using the P▲ or P▼ button and pressing the ▲+ button when the required sub menu is highlighted. When you have finished you can press the MENU button to exit, then the MENU button again to exit the main menu.

Picture menu

1. Press the MENU button. Select Picture using the P▲ or PV button. Press the ▲+button to enter. Set the picture settings for your "personal" preference.
2. Use the P▲ or P▼ button to select eg. Brightness and the ▲+ ▲- button to adjust levels.
3. Preset : You can select either your "Personal" settings, or Dynamic, Standard or Eco settings.
4. Noise Reduction: May be used to reduce any local picture 'noise' (granular appearance) being experienced by using ▲+ or ▲- button to select between Mid / Max / Auto / OFF /Min.
5. Dynamic skin tone: May be used to enhance skin tone by using ▲+or ▲- button to select between On / Off. Tint : is only available if NTSC equipment is connected.
6. Text Brightness: May be adjusted by using ▲+or▲- button to select between Min / Mid / Max. Press the MENU button to return to Main Menu. These settings automatically store when you exit the menu.

Sound menu

Press the MENU button and select Sound using the P▲ or PV buttons, press the ▲+ button to enter.

Select and adjust to obtain the best sound settings for your environment using the P▲ or P▼ and ▲+ or ▲- buttons. Press the MENU button to return to Main Menu. These settings automatically store when you exit the menu. Press the MENU button to exit menu.

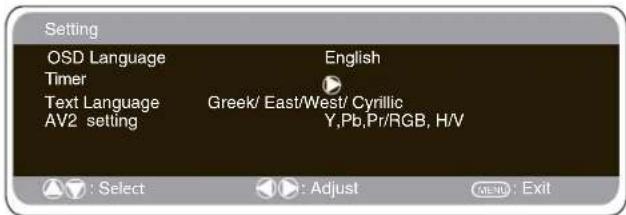

Setting menu

■ OSD Language

Use the ▲+ or ▲- button to select the preferred OSD language (English, French, German, Italian, Spanish, Dutch). Press the MENU button to return to main menu.

■ Off-timer setting

The Off timer will switch the monitor into the standby mode when the selected time has elapsed.

Press the MENU button. Select Setting using the P▲ or P▼ button press the ▲+ button to enter. Select Timer using the P▲ or P▼ button, press ▲+ button to enter Timer Menu. Press the ▲+ or ▲-button to change time.

The time changes in 5 minute steps. The maximum time is 120 minutes.

If you have set the off timer, a count down display appears in the corner of the screen when the recall button is pressed.

If the monitor is switched off by the standby button ⏻ on the remote control or by the standby switch ⏻ on the back of the LCD monitor the timer settings will be cancelled.

■ Text Language

Press the MENU button. Select Setting using the P▲ or P▼ button press the ▲- button to enter. Select Text language using the P▲ or P▼ button. Press the ▲+ or ▲- button to select West, East, Greek or Cyrillic. Press the MENU button to exit.

TGE		EAS		GKB		CYRILLIC
ENGLISH	GERMAN	POLISH	ESTONIAN	ENGLISH	FINNISH	POLISH	SLOVENIAN
SWED ISH	ITALIAN	ROMANIAN	CZECH	GERMAN	DANISH	GERMAN	RUSSIAN
FINNISH	HUNGARIAN	SLOVAKAN	CROATIAN	SWE DISH	HUNGARIAN	CROATIA N	LETTISH
FRENCH	SPANISH	GERM AN	SLOVENIAN	IT ALIAN	REN CH
TURKISH	DANISH			SLOVENAN	T URKISH
PORTUGUE SE				GREEK	CROATIAN

■ AV2 setting

Press the MENU button. Select Setting using the P▲ or P▼ button press the ▲+ button to enter. Select AV2 setting using the P▲ or P▼ button.

Press the ▲+ or ▲- button to select either Y,Pb,Pr or RGB H/V. Press the MENU button to exit, this automatically stores your changes. Press the MENU button again to exit the main menu.

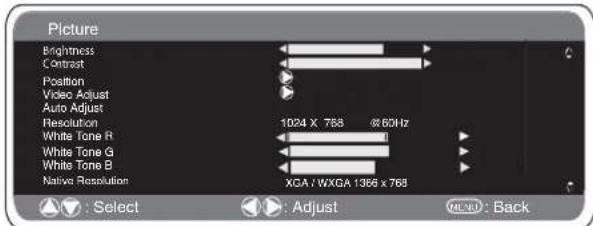

PC menu settings

Connect your PC to either PC-IN or RGBHV on the rear of the set. Once connected select PC mode or AV2 (RGBHV, see page 5 for AV2 input settings) via the TW-□ button on your remote control. The set will become a monitor for the PC.

By pressing the MENU button on the remote control a menu window will appear on screen, this allows the settings to be adjusted. To adjust the Picture settings select picture using the P▲ or P▼ buttons on the remote control then the ▲+ button to enter the fol lowing picture settings menu.

Press the ▲+ or ▲- buttons to adjust the Picture brightness and the same to adjust the contrast of the picture.

Picture position changes the picture horizontally and vertically. Press the ▲+ button to enter the sub menus, adjustment is carried out using the ▲+ or ▲- buttons on the remote control.

Video adjust changes the Phase and the clock of the screen. If the picture is blurred or grainy this function will adjust it to a clearer picture, adjustment is carried out using the ▲+ or ▲- buttons on the remote control.

Auto Adjust will automatically centralize the picture by using the + button. This will change all the above settings automatically. Auto adjust can also be achieved by pressing the rec E? button on the remote control without having to select the menu.

Resolution displays the current resolution of the picture. This is for information only and cannot be adjusted.

White tone: Using the ▲+or ▲- buttons it is possible to adjust the colour tone of the picture using the White tone Red(R) / Green (G)/ Blue(B). This will adjust the picture to show more or less of the chosen colour. For example if red is selected you can adjust the proportion of red in the picture to increase or decrease using the ▲+ or ▲- buttons.

Native Resolution is used when the PC can output WXGA 1366 x 768. The setting on your Monitor set can be changed to receive XGA/WXGA signal using the + or - buttons. Once the native resolution has been selected, save the settings by switching the monitor off then on using the standby button.

For Sound settings refer to sound menu (Page 8)

Setting: Press the menu button on your remote control and using the P▲ or P▼ buttons to select Settings. The ▲+ button will enter the settings menu.

PC menu settings

OSD Language, Timer and AV2 settings are the same as in all input modes (pg 8).

Power save if turned ON will switch the monitor into Powersave mode after 1 minute if no signal is detected, the LED light will turn a brighter blue to indicate stand by. The monitor will automatically turn back on when a signal has been detected (PC input / RGBHV).

Use ▲+ or ▲- buttons to select power save ON or OFF.

Press the menu button twice to initiate Powersave.

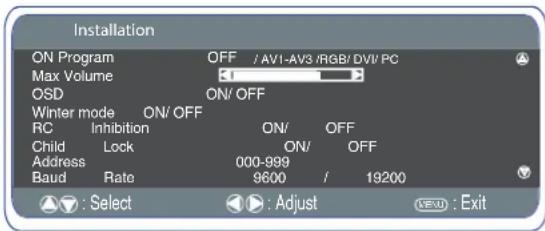

Installation Menu

This LCD monitor allows you to set up the following:-

SETTING PROCEDURE

1. Press and hold the green button on the Remote control handset for 5 seconds.(Installation menu will appear)

2. Use the P▲ or PV▼ button to highlight each option, use the ▲+ or ▲- button to adjust each option.

■ On Program

Select ON program using the P▲ or P▼ button, select the start up position using the ▲+ or ▲- buttons.

(Off / AV1 / RGB/ AV2/ AV3/ DVI/ PC)

Press the MENU button to exit the menu.

Max Volume

Select Max volume using the P▲ or P▼button, use the ▲+ or ▲- buttons to set the maximum volume required.

■ OSD (On screen display)

Select OSD using the P▲ or PV button, select ON / OFF using the ▲+ or ▲- buttons. Selecting OFF will inhibit the OSD. To re-instate OSD, press and hold the green button on the remote control to re-enter installation menu and select OSD ON.

■ Winter mode

This Function can be activated when the LCD monitor is used during cold temperature conditions, approximately 38^ F/4°C or below to maintain picture performance.

Using the P▲ or PV▼ button select winter mode, once highlighted you can select ON or OFF by pressing the ▲+ or ▲- button. IMPORTANT: The AC cord should not be disconnected during the operation of Winter mode function.

When in winter mode, power consumption is higher than normal standby consumption. This is entirely due to the operation of heating circuitry. We strongly recommend to turn off Winter mode when the ambient temperature is above 38^ F/4°C.

■ RC Inhibition

You can prevent unwanted remote control operation by selecting RC Inhibition. When selected an inhibit symbol will appear on screen when a button is pressed on the remote control.

Select using the P▲ or P▼ button. Press the ▲+ or ▲- button to select On or OFF.

To re-instate RC operation press and hold the green button on the remote control and select RC inhibition OFF.

■ Child lock

You can prevent unwanted operation of the LCD monitor via the buttons on the rear of the monitor. Select using the P▲ or P▼ button. Press the ▲+ button to select On or OFF.

Disconnecting the mains supply before exiting installation menu will cancel the following features On program, RC inhibition, Address and Baud Rate.

RS232C settings

This monitor can be controlled via the RS232C connector using a suitable computer/ control commands.

Serial Interface Specification

Transfer Specification

1. Transmission Speed: initial setting value is 19200.

2. Transmission speed can be changed via the Installation menu. (see below baud rate)

ITEM	SPECIFICATION
Synchronous system	Asynchronous
Transmission Speed	9600 / 19200
Data Length	8 bit
Parity	None
Stop Bit	1
Flow Control	None

Connection

The Designated RS-232C serial cable must be used for a connection to a computer and LCD monitor.

The TV command is defined by one command/ one line that starts with "C" and ends with carriage return. (0x0D)

There are two types of commands:

Functional Execution Command e.g Co5[CR] (table on page 64) Status Read Commands e.g "CR0 [CR] (see table on page 64)

Setting the monitor address in RS232 mode

To Access Installation mode press the green button on the remote control and hold for 5 seconds (Installation menu will appear).

Each monitor can have a specific Address for example 007, which enables the monitor to be controlled individually and will not affect other monitors connected to a controlling PC.

Address format command

The addressing format command is used for operating multiple monitor sets from a single PC via the RS232C command line. If you set your monitor address to '000', it will never respond to any addressing command from the PC.

If the address from the PC is 'FFF', all monitor sets will execute the command.

The Address format command is defined by one command, one line which starts with 'A' and ends with carriage return.(0 x0D)

The Monitor starts to decode when it receives a carriage return. (0x0D)

An address is added at the top of a control command Example:

Functional execution command:

"A001C05" [CR] means address is 001 and the control command is C05

Status read command

"A001CR0"[CR] means address is 001 and command is CR0.

The monitor can set its own address in the Installation option menu (above) The address range is 000 - 999, the default address will be 000

The baud rate indicates the unit for transfer speed of data from the PC to the monitor sets

Selecting of picture size

■ Screen options

Today there are various transmission formats with different size ratios, eg. 4:3, 16:9 and video formats such as letterbox.

Press the WIDE button repeatedly to select your desired setting.

When in High Resolution (720p / 1080i) YPbPr or DVI, the picture will remain fixed in 16:9 format 'Full size' and may not be changed.

Natural

4:3 16:9		Letterbox Video
Stretches the picture horizontally to fill the screen. The picture is more stretched at the edges.	The picture fills the screen and is proportionally correct.	The black bars top and bottom remain and the height is compressed to fit the picture area.

■ Zoom

4:3	16:9	Letterbox Video
The correct picture width is maintained but the top and bottom are cropped.	Zooms in slightly cropping the top and bottom.	The black bars top and bottom are smaller and the picture height is compressed slightly.

■ Title - In

4:3	16:9	Letterbox Video
As Zoom (16:9), but bottom is compressed even more to allow subtitles to be seen.	As Zoom (16:9), but bottom is compressed even more to allow subtitles to be seen.	As Zoom (16:9), but bottom is compressed even more to allow subtitles to be seen.

Full

4:3 16:9		Letterbox Video
The whole screen is filled stretching the width.	The whole screen is filled with the correct picture ratio.	The black bars top and bottom are present and the height is compressed.

Normal

4:3	16:9	Letterbox Video
The correct ratio is maintained with black bars on the left and right.	Black bars left and right, picture height is stretched.	Black bars left, right, top and bottom.

Specification

Common specification

Power source

100\~240V 50Hz/60Hz

Colour system

PAL NTSC3.5,SECAM

AV terminal

AV1: Scart CENELEC Standard

Input: Composite video, RGB (5V RGB with 5V sync to pin 14) and audio-L/R

Output: Composite video and audio L/R

AV2: BNC

Input: RGB, H and V / Y, Pb, Pr and audio L/R

Output: RGB, H and V / Y, Pb, Pr

AV3: BNC

Input: Composite video

Output: Composite video

Audio Monitor.Out: CINCH L/R

Audio Speaker out: 2 x 6W

DVI Input : DVI-D GROUP Standard

PC Input: Mini D-SUB 15 PIN and

Audio 3.5mm Jack

Serial port: RS232C: Input / Output

Net Organiser: POA-LN01 (optional)

When ordering these products, give the Name and Type No. to the sales dealer.

Contrast Ratio 1500:1

Screen(inches/ cm) 42" / 107 cm

(viewing measured

diagonally)

Display Native Resolution 1366 x 768 (WXGA)

Viewing angles H:178°, V:178°

Dimensions (WxHxDmm) 1027x620x167..5

Weight (kg) 34

Helpful hints

- Check if monitor is plugged in.

- Check monitor is not in standby mode

■ POOR PICTURE, SOUND OK

- Adjust BRIGHTNESS/ CONTRAST LEVELS (too low).

■ NO COLOUR, PICTURE OK

● Adjust COLOUR control.

- Check lead connections

● Does the signal input have colour

■ REMOTE CONTROL DOES NOT WORK

● Check batteries are inserted correctly

- Check condition of batteries

- Check to see if remote control inhibit is set ON

■ PICTURE OK, NO SOUND

- Check external speakers are connected correctly

- Check lead connections to external equipment

● Volume turned down or mute selected

PC signal support timing

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Remark
720_400	31.47	70.09	DOS(VGA)
640_480	31.50	60.00	DOS(VGA VESA 60Hz)
640_480	37.50	75.00	VGA VESA 75Hz
640_480	37.86	72.81	VGA VESA 70Hz
640_480	37.86	74.38	VGA
640_480	35.00	67.00	Mac.
640_480	34.97	66.60	Mac LC 13"
800_600	35.16	56.25	SVGA VESA 56Hz
800_600	37.90	60.32	SVGA VESA 60Hz
800_600	46.90	75.00	SVGA VESA 75Hz
800_600	32.70	51.09	SVGA
800_600	34.50	55.38	SVGA
800_600	37.90	61.03	SVGA
800_600	38.00	60.51	SVGA
800_600	38.60	60.31	SVGA
832_624	49.00	74.00	Mac.
1024_768	48.40	60.00	XGA VESA 60Hz
1024_768	56.50	70.00	XGA VESA 70Hz
1024_768	60.000	75.00	XGA VESA 75Hz
1024_768	44.00	54.58	XGA
1024_768	46.90	58.20	XGA
1024_768	47.00	58.30	XGA
1024_768	48.50	60.02	XGA
1024_768	58.03	72.00	XGA
1024_768	60.31	74.92	XGA
1024_768	61.00	75.70	XGA
1024_768	60.24	75.08	MAC_Normal 19"
1280_960	60.00	60.00	SXGA VESA 60Hz
1280_1024	79.976	75.025	SXGA VESA 75Hz
1280_1024	62.50	58.60	SXGA
1280_1024	63.370	60.01	SXGA
1280_1024	63.34	59.98	SXGA
1280_1024	63.74	60.01	SXGA
1280_1024	63.79	60.18	SXGA
1280_1024	63.90	60.00	SXGA
1280_1024	71.69	67.19	SXGA
1280_1024	76.97	72.00	SXGA
1280_1024	81.13	76.107	SXGA
1152_864	64.20	70.40	SXGA
1152_900	61.20	65.20	SXGA
1152_900	61.85	66.00	SXGA
1152_900	71.40	75.60	SXGA
1152_870	68.68	75.06	MAC_Normal 21"
1280_960	75.00	75.08	Mac.
1280_1024	80.00	75.00	Mac..
1600_1200	75.00	60.00	UXGA VESA 60Hz
1366_768	48.36	60.00	WXGA
1360_768	47.70	60.00	WXGA

Component signal support timing

Resolution H	Horizontal frequency y (KHz)	Vertical frequency (Hz)	Remark
720x480 15	735 60i SDTV 480i
720x576 15	625 50i SDTV 576i
720x480 31	25 60p SDTV 480p
720x576 31	25 50p DTV 576p		S
1280x720 45	.00 60p IHTV 7 20p
1280x720 37	.50 50p HDTV 7 20p
1920x1080 3	3.75 60i	HDTV 1 080i
1920x1080 2	8.13 50i	IHTV 1 080i

DVI-D SIGNAL SUPPORT TIMING

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Remark
640_480 31.43	59.88		VGA VESA 60Hz
640_480 37.86	72.81		VGA VESA 72Hz
640_480	37.5	75	VGA VESA 75Hz
640_480 34.97	66.6 MAC LC 13"
640_480	35	66.67	MAC_ NORMAL 13"
800_600 35.16	56.25		SVGA VESA 56Hz
800_600 37.88	60.32		SVGA VESA 60Hz
800_600	46.875	75 SVGA	VESA 75Hz
832_624 49.72	74.55	MAC_ NORMAL 16"
1024_768	48.36	60 XGA	VESA 60Hz
1024_768	60.23	75.03	XGA VESA 75Hz
1024_768	56.47	70.07	XGA VESA 70Hz
1024_768	60.24	75.08	MAC_ NORMAL 19"
1152_870	68.68	75.06	MAC_ NORMAL 21"
1280_1024	63.98	60.02	SXGA VESA 60Hz
720_480	31.7	59.94	480p
768_575 31.25	50		575p
1280_720	37.5	50	720p-50Hz
1280_720	45	60	720p-60Hz
1366_768	48.36	60	WXGA
1360_768	47.7	60	WXGA
1920_1080	28.125	50	1080i-50Hz
1920_1080	33.75	60	1080i-60Hz

Depending on the condition of signals and the type and length of cables, these signals may not be properly viewed.
To save the native resolution 1366_768 setting switch the monitor off then on using the standby button.

Installation/Utilisation

Adresse : 21605 Plummer Street, Chatsworth, Californie 91311

Concession de license, conditions et restrictions

4.AV3

Entrée de signal composite (CVBS)

7. Connexion PC

Touche TV/AV

Permet de permuter entre les modes

AV1, RGB, AV2, AV3, PC or DVI

Diagram of a mechanical component with arrows indicating assembly or movement (no text or symbols present)

Line drawing of a rectangular electronic device with a base and top panel, showing internal components and a curved arrow indicating rotation (no text or symbols)

Dimensions (Lx H x P mm) 1027x620x167.5

Poids (kg) 34

Conseils Pratiques

■ PAS D'IMAGE NI DE SON

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Adresse: 21605 Plummer Street, Chatsworth, California 91311

Telefon: +1 - [phone]

Electrical outlet with two plug connectors (no text or symbols visible)

4. AV3

Mechanical assembly diagram showing a sliding slide with attached components and directional arrows indicating motion (no text or symbols)

Line drawing of a rectangular electronic device with two labeled parts (1 and 2) and an arrow indicating rotation or assembly (no text or symbols on the device itself)

Audio Monitor Out: CINCH :L/R

DIT PRODUCT MOET GEAARD ZIJN

4. AV3

6. DVI-D (Digital Video Interface)

Technical diagram of a mechanical component with arrows indicating motion or assembly (no text or symbols present)

Line drawing of a rectangular electronic device with labeled components (1 and 2), no text or symbols present.

Parte responsabile :SANYO FISHER COMPANY

Indirizzo : 21605 Plummer Street, Chatsworth, California 91311

Telefono :[phone]

Hand holding a plug inserted into an electrical outlet with a smiley face (no text or symbols visible)

Electrical outlet with two 2-pin socket and three 3-pin plug, no text or symbols visible

4.AV3

Interruttore TV/AV

Line drawing of a rectangular electronic device with labeled parts (1 and 2), no text or symbols present.

SANYO Industries (U.K.) Limited

Oulton Works, School Road, Lowestoft,

Suffolk, NR33 9NA, United Kingdom.

Consigli Utili

■ QUANDO NON E' PRESENTE NÉ SUONO NÉ IMMAGINE

Close-up of a black electrical plug inserted into an open socket (no text or symbols visible)

4.AV3

7 Conexión a PC

Line drawing of a rectangular electronic device with labeled components (1 and 2), no text or symbols present.

PC signal support timing

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Remark
720_400	31.47	70.09	DOS(VGA)
640_480	31.50	60.00	DOS(VGA VESA 60Hz)
640_480	37.50	75.00	VGA VESA 75Hz
640_480	37.86	72.81	VGA VESA 70Hz
640_480	37.86	74.38	VGA
640_480	35.00	67.00	Mac.
640_480	34.97	66.60	Mac LC 13"
800_600	35.16	56.25	SVGA VESA 56Hz
800_600	37.90	60.32	SVGA VESA 60Hz
800_600	46.90	75.00	SVGA VESA 75Hz
800_600	32.70	51.09	SVGA
800_600	34.50	55.38	SVGA
800_600	37.90	61.03	SVGA
800_600	38.00	60.51	SVGA
800_600	38.60	60.31	SVGA
832_624	49.00	74.00	Mac.
1024_768 48.40	60.00		XGA VESA 60Hz
1024_768 56.50	70.00		XGA VESA 70Hz
1024_768	60.000	75.00	XGA VESA 75Hz
1024_768 44.00	54.58		XGA
1024_768 46.90	58.20		XGA
1024_768 47.00	58.30		XGA
1024_768 48.50	60.02		XGA
1024_768 58.03	72.00		XGA
1024_768 60.31	74.92		XGA
1024_768 61.00	75.70		XGA
1024_768 60.24	75.08		MAC_Norma I 19"
1280_960	60.00	60.00	SXGA VESA 60Hz
1280_1024	79.976	75.025	SXGA VESA 75Hz
1280_1024 62.50	58.60		SXGA
1280_1024 63.370	60.01		SXGA
1280_1024 63.34	59.98		SXGA
1280_1024 63.74	60.01		SXGA
1280_1024 63.79	60.18		SXGA
1280_1024 63.90	60.00		SXGA
1280_1024 71.69	67.19		SXGA
1280_1024 76.97	72.00		SXGA
1280_1024 81.13	76.107		SXGA
1152_864 64.20	70.40		SXGA
1152_900 61.20	65.20		SXGA
1152_900 61.85	66.00		SXGA
1152_900 71.40	75.60		SXGA
1152_870 68.68	75.06		MAC_Norma I 21"
1280_960 75.00	75.08		Mac.
1280_1024 80.00	75.00		Mac_.
1600_1200	75.00	60.00	UXGA VESA 60Hz
1366_768	48.36	60.00	WXGA
1360_768	47.70	60.00	WXGA

Component signal support timing

Resolution Horizontal frequency (KHz)	Vertical frequency (Hz)	Dot Clock Frequency(Mhz)	Remark
720x480 15.735 60i 12.27 SDTV 4 80i
720x576 15.625 50i 13.50 SDTV 5 76i
720x480 31.25 60p 27 SDTV 4 80p
720x576 31.25 50p 27 HDTV 5 76p
1280x720 45.00 60p 74.25 HDTV 720p
1280x720 37.50 50p 74.25 HDTV 720p
1920x1080 33.75	60i 74.25	HDTV 1080i
1920x1080 28.13	50i 74.25	HDTV 1080i
1920x1080 31.25	50i 74.25	HDTV 1152i

DVI-D SIGNAL SUPPORT TIMING

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Remark
640_480	31.43	59.88 VGA	VESA 60Hz
640_480	37.86	72.81 VGA	VESA 72Hz
640_480	37.5	75	VGA VESA 75Hz
640_480	34.97	66.6 MAC	LC 13"
640_480	35	66.67	MAC_ NORMAL 13"
800_600	35.16	56.25 SVGA	A VESA 56Hz
800_600	37.88	60.32 SVGA	A VESA 60Hz
800_600	46.875	75 SVGA	VESA 75Hz
832_624	49.72	74.55	MAC_ NORMAL 16"
1024_768	48.36	60	XGA VESA 60Hz
1024_768	60.23	75.03	XGA VESA 75Hz
1024_768	56.47	70.07	XGA VESA 70Hz
1024_768	60.24	75.08	MAC_ NORMAL 19"
1152_870	68.68	75.06	MAC_ NORMAL 21"
1280_1024	63.98	60.02	SXGA VESA 60Hz
720_480	31.7	59.94	480p
768_575	31.25	50	575p
1280_720	37.5	50	720p-50Hz
1280_720	45	60	720p-60Hz
1366_768	48.36	60	WXGA
1360_768	47.7	60	WXGA
1920_1080	28.125	50	1080i-50Hz
1920_1080	33.75	60	1080i-60Hz

Depending on the condition of signals and the type and length of cables, these signals may not be properly viewed.
To save the native resolution 1366_768 setting switch the monitor off then on

RS-232C COMMAND TABLES

Functional Execution Command Table

Command	Item	Comment
C00	Power ON
C01	Power OFF
C23	Wide “Auto” direct
C24	Wide “Natural” direct
C29	Wide “Full” direct
C0F	Wide “Normal” direct
C30	Picture	Toggle (Dynamic, Standard, Eco, Perconal)
C70	AV1 direct
C71	RGB direct
C72	AV2 RGBHV direct
C73	AV2 YPbPr direct
C74	AV3 direct
C75	DVI direct
C76	PC direct
C64	PC Auto adjust
C92	Factory settings
CF PSAVE ON	Power save ON
CF PSAVE OFF	Power save OFF
CF CLOK ON	Child Lock ON
CF CLOK OFF	Child Lock OFF
CF DEA RMCY	RC inhibition OFF
CF DEA RMCN	RC inhibition ON

“---”_means "No Function".

Status Read Command Table

Command	Item	Note
CRO	Power	On, Standby, power error,...
CR1	Input Mode	AV1, AV2,..., HDMI, PC
CR WIDE	Wide Mode	Auto, Normal, Full,...
CR PICTURE	Picture mode	Dynamic, Standard, ...
CR SIGNAL	Signal existence	Signal / No signal
CR CHILD	Child Lock	On / Off
CR PSAVE	Power Save (On/Off)	On / Off
CR TM	Panel operating time

“----”_means "No Function"

Part No. 1KA6P1P0364-B

N4JR
