USER MANUAL 42WPX1 SANYO

Please read this Instruction book before using your LCD monitor. We wish you many hours of pleasure from your new LCD monitor

CAUTION: Please read and retain for your safety. This unit has been engineered and manufactured to assure your personal safety, but improper use can result in potential electric shock or fire hazards. In order not to defeat the safeguards incorporated in this monitor observe the following basic rules for its installation, use and servicing.

Installation and Use

Do not allow anything to rest on the power cord. Do not locate this LCD monitor where the cord will be damaged by people walking on it.

Do not overload wall outlets and extension cords as this can result in fire or electric shock.

A suitable socket outlet must be provided and shall be easily accessible.

Do not place this LCD monitor near any heat sources such as radiators, heaters, stoves and other heat-generating products (including amplifiers).

Do not place your LCD monitor on an unstable stand, shelf or table. Serious injury to an individual, and damage to the LCD monitor may result if it should fall. Your sales person can recommend approved wall mounting kit. A special wall mounting kit is available for this model.

This LCD monitor should be operated only from the type of power source indicated on the monitor or as indicated in the Operating Instructions. If you are not sure of the type of power supply, consult your sales person or your local power company.

For added protection it is strongly recommended that this LCD monitor is supplied via an approved earth fault protection device.

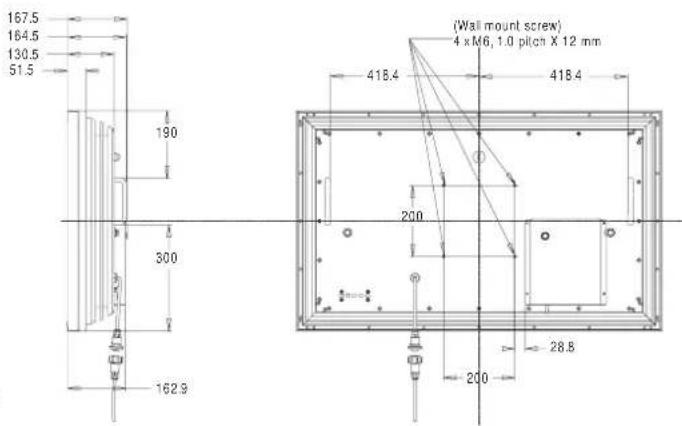

WARNING: To prevent injury the LCD monitor must be securely attached to the wall in accordance with the manufacturers installation instructions.

IMPORTANT:

This product must be earthed

This unit is not disconnected from the mains unless the mains lead is unplugged. The installer must make sure that the waterproof inline coupler is easily accessible.

This monitor is tested to IP56 standard rating.

This monitor is not protected against temporary or continuous immersion in liquid.

Do not use immediately after moving the LCD monitor from a low temperature to a high temperature environment, as this causes condensation, which may result in fire, electric shock, or other hazards. Before cleaning, unplug the monitor from the wall socket.

Do not mount near an open flame source. Open flames must never be used near this LCD monitor.

This LCD monitor should not be built in or enclosed in any way, heat build up will reduce the life of the monitor.

This LCD monitor should have a minimum distance of 5cm away from the wall and the monitor should have 10cm distance around the top and sides.

Always mount using recommended and substantial fixtures and fittings.

The rear finned section around the cabinet functions as a heat sink, removing heat away from the monitor. The external surface of the cabinet (finned area) must not be covered or the airflow restricted in anyway by enclosing the LCD monitor.

The operating temperature range of this monitor is guaranteed 0^ 40^ / 32^ 104^ . It is not recommended to install the screen in direct sunlight without adequate shading, as this will cause the temperature of the panel to rise above the maximum specified. Doing so may cause a black shadow to appear on the screen, which will disappear when the screen temperature returns to within the specification. This "of course" does not produce any harmful effect on the lifetime of the monitor.

Do not apply liquid cleaners or aerosol cleaners directly onto the LCD monitor. Use a damp cloth for cleaning.

Important: (UK only)

THIS PRODUCT MUST BE EARTHED

This equipment is fitted with an approved inline waterproof mains coupler and an approved non rewireable UK mains plug. To change a fuse in this type of plug proceed as follows:

1. Remove the fuse cover and fuse.
2. Fit a new fuse which should be a BS1362 13 Amp A.S.T.A. or BSI approved type.
3. Ensure that the fuse cover is correctly refitted.

If the fuse cover is lost or damaged the plug must NOT be used but replaced with a serviceable plug.

If the fitted plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place. If the mains plug contains a fuse, this should have a rating of 13 Amp, ensure the fuse cover is correctly fitted. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 13 Amp.

Note: The severed plug must be destroyed to avoid a possible shock hazard should it be inserted into a 13 Amp socket elsewhere.

The wires in this mains lead are coloured in accordance with the following code:

Blue -Neutral

Brown ---->Live

Green and Yellow ---> Earth

1. The Blue wire must be connected to the terminal which is marked with the letter "N" or coloured BLACK.
2. The Brown wire must be connected to the terminal with the letter "L" or coloured RED.
3. The Green and Yellow wire must be connected to the terminal which is marked with the letter "E" or coloured GREEN or GREEN and YELLOW.

Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of the lead - not simply over the wires.

Do not attempt to bypass the safety purpose of the grounding type plug.

THIS UNIT IS NOT DISCONNECTED FROM THE MAINS UNLESS THE MAINS LEAD IS UNPLUGGED.

THE INSTALLER MUST MAKE SURE THE WATERPROOF INLINE COUPLER IS EASILY ACCESSIBLE.

Important recycling information.

Your SANYO product is designed and manufactured with high quality materials and components which can be recycled and reused.

This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately.

In the European Union there are separate collection systems for used electrical and electronic products.

Please help us to conserve the environment we live in!

Note: This symbol mark and recycle system are applied only to EU countries are not applied to other countries of the world.

Servicing

Your monitor is fully transistorised and does not contain any user serviceable components.

You must not remove the rear cover of the Monitor by yourself. The apparatus is working with high voltages and could damage objects or even endanger people. Leave all required repair and service jobs to an authorised service technician. He will exclusively use such spare parts that are complying with the same safety standards as applicable to the original parts. The use of original spare parts can prevent fire, shock and other hazards.

Unplug the LCD monitor from the wall outlet and refer servicing to qualified service personnel under the following conditions:

If the power cord or plug is damaged.
If liquid has been spilt in to the LCD monitor.
If the LCD monitor has been dropped or the cabinet has been damaged.
If the LCD monitor exhibits a distinct change in performance.
If the LCD monitor does not operate normally by following the operating instructions.

Adjust only those controls that are covered in the operating instructions as improper adjustment of other controls may result in damage. This will often require extensive work by a qualified technician to restore the monitor to normal operation.

End-User License

The product (meaning the equipment or appliance to which this documentation relates) incorporates Software (the software applications, utilities and modules embedded within the Product) which is owned by Sanyo or its licensors. Before using the product, please read the End-User License Conditions detailed below. If you do not agree to the terms and conditions of the End-User License, Please do not proceed to use the Product- repack the Product unused and return it to your supplier together with proof of purchase for a full refund. By using the product, you agree to be bound by the terms and conditions of the End-User License.

License Grant, Conditions and restrictions

1. Sanyo grants you a non-exclusive, world-wide (subject to export controls), non-transferable (except as permitted by 2 below), royalty-free license to use the Software upon and with the Product.
2. You may not transfer any of your license rights in the Software without the prior written consent of SANYO and if consent is provided then the Software shall only be transferred in conjunction with the transfer of the Product AND provided that the transferee has read and agreed to accept the terms and conditions of this license.
3. You must ensure that the copyright, trademark and other protective notices contained in the Software are maintained and not altered or removed.
4. The Software provided hereunder is copyrighted and licensed (not sold). SANYO especially does not transfer title or and ownership rights in the Software to you. The Software provided hereunder may contain or be derived from portions of materials provided to SANYO under license by a third party supplier.

5. Except as expressly permitted by statute you may not;

6. use the Software in conjunction with any other computer hardware other than the product;

7. copy all or part of the Software;

8. incorporate all (or any of) the Software into other programs developed by (or on behalf of) you and/or used by you;

9. reverse-engineer, decompile or disassemble the Software;
10. make the Software (or any part of it) available, or permit its redistribution, for use with any computer hardware other than the Product; or rent, lease, gift, loan, sell, distribute or transfer possession of the whole or any part of the Software.

Termination

This license is effective until terminated. This license will terminate automatically without notice if you fail to comply with any of its provisions.

Disclaimer

1. The Software is (to the extent permitted by law) supplied 'as is' and SANYO and its suppliers expressly exclude all warranties, express or implied, including (but not limited to) warranties of satisfactory quality, fitness for purpose and non-infringement (save to the extent that the same are not capable of exclusion at law).
2. In no circumstances will SANYO be liable for any direct, indirect, consequential, or incidental damage (including loss of profits, business interruption, loss of data or the cost of procurement of substitute goods, technology or services) arising out of the use or the inability to use the Software (save to the extent that such liability is not capable of exclusion at law).

General

1. This End-User License will be governed by laws of England and the User may only bring claims in the English Courts and SANYO shall be entitled to bring a claim in the courts of any jurisdiction.
2. The above terms and conditions supersede any prior agreement, oral or written, between you and SANYO relating to the Software.

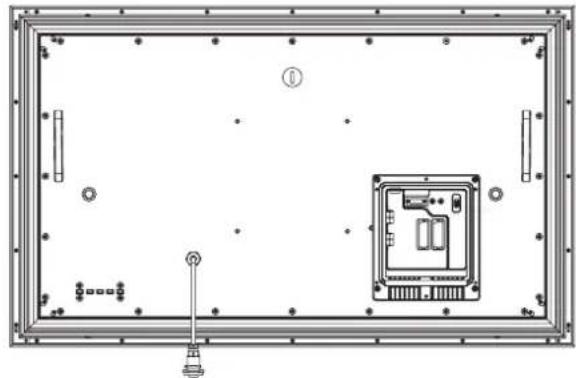

Step:1 Mains Connection

Connect the display unit to Aerial, VGA, HDMI and Scart connectors as required.

1. Connect the inline power connector to the connector attached to the rear of the LCD monitor as shown above.
2. Connect the power cord of the LCD monitor to a wall outlet.
   As this product does not have a mains On/Off switch, please ensure your mains plug is easily accessible.
   The LCD monitor is prepared for a mains voltage AC220~240V, 50Hz. To completely switch off the mains, or when the LCD monitor is not to be used for an extended period of time, it is advisable to disconnect the power cord from the power outlet or disconnect the mains lead.

Please use the correct mains lead supplied with the set for your area.
3. Warning: To prevent injury, the unit must be securely attached to the wall in accordance with the installation instructions.

WARNING! High voltages are used in the operation of this set. Refer service to qualified service personnel.

Step:2 Connections

INPUT selection

To switch between TV, AV1, RGB, AV2, HDMI or PC mode press the TV/ AV button on your remote control repeatedly or press and hold the TV/AV button for a few seconds and a selection menu will appear on screen. Use the 5 or 6 buttons to select the correct input.

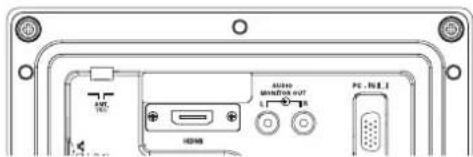

1.HDMI (High Definition Multimedia Interface)

This monitor has an HDMI connector. Connect to the HDMI source and select HDMI using the remote control. This input will support a large range of resolutions as shown on page 13.

This connection is located at the back of the monitor set.

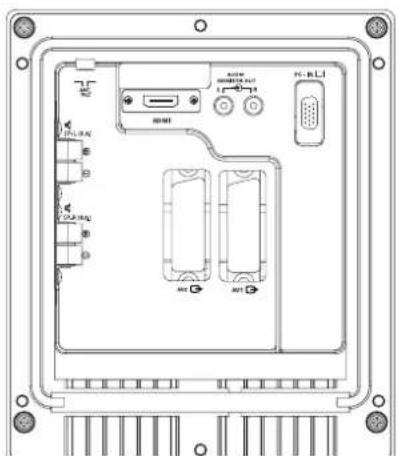

2.AV1/AV2

You can connect your DVD player or other scart connected equipment to the AV1 and AV2 scart connection terminals at the rear of the monitor as required.

3. PC connection

This LCD monitor has a PC connector (PC-IN D-SUB) You can connect a PC to the LCD monitor and use it as a monitor display (see page 9). This input will support a large range of resolutions as shown on page 13.

4. External Audio Output

To output the audio signal from AV 1,2, PC and HDMI. The speaker impedance should be 8 ohms.

5. Use of Monitor Audio Output Connections

The audio monitor out socket on the rear of the set provide a fixed level audio output for reproducing sound via your audio equipment.

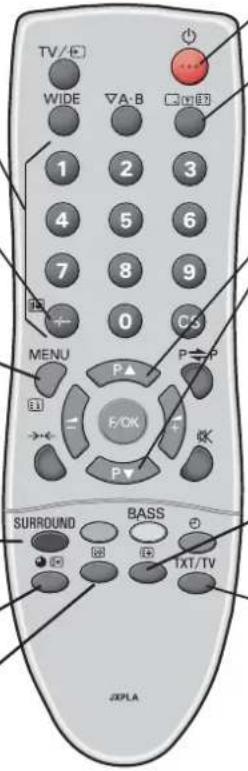

TV/AV button

To switch from TV, AV1,RGB, AV2, HDMI or PC mode press repeatedly or Press and hold in a few seconds, an AV selectionbar appears. Select the mode you require using the 5 6 keys

Screen mode selector

To select the screen mode, Natural, Full Zoom , Title-in, Normal. Full, Normal when in PC mode. Refer to page 11

Direct programme selector

For direct access to programmes using (0-9) numeric buttons. For selection of programme position 10 - 99, for example 23, first press - / - button and press 2 and 3 numeric buttons.

MENU

To enter and exit the main menus and sub menus. Also see page 6

Levels up/down To adjust the menu levels

Picture mode selection

Press the button repeatedly to select the following picture modes.
Personal - Personal preference mode.
Dynamic - Suitable for brightly lit rooms.
Standard - Normal viewing mode.
Eco - Suitable for dimly lit rooms and gives a cinema - like effect.

Surround mode selector

To select the surround mode, OFF, MID, MAX

F/OK

To memorise channels

Standby

To switch the monitor on and off. Also see page 6

Recall

To display the programme/ input information and the Off timer if set.
You can also select colour systems in AV mode as follows AUTO PAL SECAM NTSC3.58

CS button

Press button to scan through all available channels and back to the original channel.

Programme swap

To switch between current and previous programme position watched.

Programme up and down

To select the next programme number or previous programme number.

Sound mute

To mute the sound from the speakers. The sound changes as follows;

Normal volume Mute

Bass expander

To get an emphasised bass sound ON or OFF.

Time display

In the TV mode if teletext is available the teletext clock will be displayed on the screen. Press again to cancel.

Teletext/TV selector

To access this feature press the TXT/TV button to the picture changes from TV - TXT - MIX and back to TV.

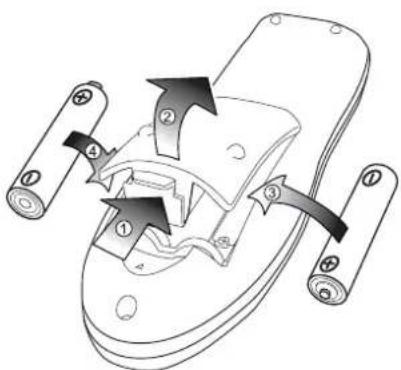

Step : 2 Remote control battery installation

Install two "AA" 1.5 volt batteries so that the "+" and "-" marks on the batteries match the "+" and "-" marks inside the unit into the remote control handset.

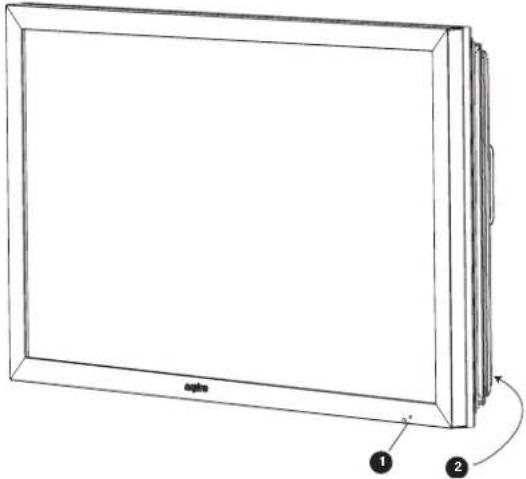

Controls and Menus

1. The LCD display will have a Standby light to show there is power.

Switching into/from standby mode

The Standby mode is used for switching the LCD monitor off for short periods of time. In standby mode the monitor is switched off but is still receiving mains power.

To turn the monitor into standby mode, press the 4 button. The blue power indicator illuminates more brightly.
To turn the monitor ON from standby mode, press any of the following buttons: 4, 5, 6 or 0-9 buttons.

If you find the power indicator flashing, disconnect power cord from the power outlet and contact our Service desk.

This warning is a sign to let you know that the power protection function of this TV set is now operating.

2. Control buttons (bottom corner of back cover)

Menu/F button: rotate between volume, Brightness, contrast, colour, sharpness and OSD language
Input/ OK button: Switch between TV, AV1,RGB,AV2, HDMI and PC mode.

ed buttons: Change TV and provide up and down adjustments.

4 button: To switch from display to standby mode (to switch off completely disconnect the monitor from the power supply).

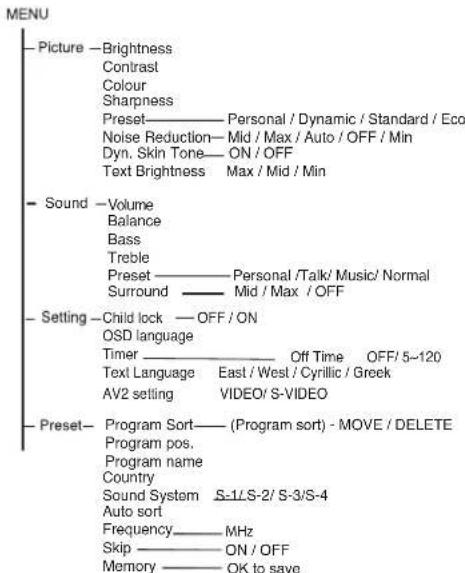

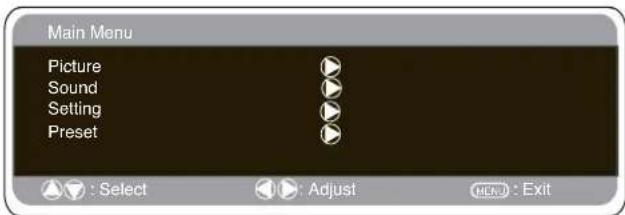

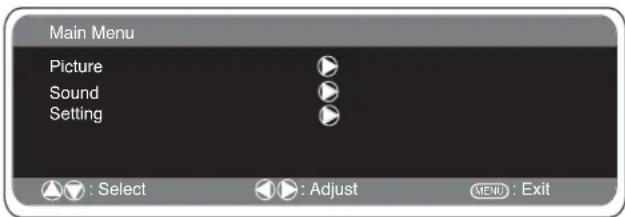

Menu Operation

Many of your monitors functions are controlled through the menu function, using the remote control handset.

During menu operation the bottom of the on screen display will show which controls can be used for menu navigation. Press the MENU button to enter the main menu.

A sub menu is selected using the 5 or 6 button and pressing the 1 button when the required sub menu is highlighted. When you have finished you can press the MENU button to exit, then the MENU button again to exit the main menu.

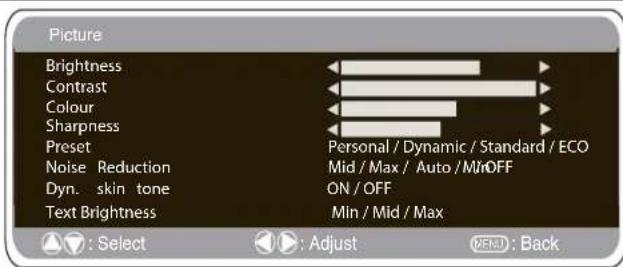

Picture menu

1. Press the MENU button. Select Picture using the 5 or 6 button. Press the1 button to enter.
   Set the picture settings for your "personal" preference.
   2.Use the 5 or 6 button to select eg.Brightness and the 1
   or 2 button to adjust levels.
2. Preset : You can select either your "Personal" settings, or Dynamic, Standard or Eco settings.
3. Noise Reduction: May be used to reduce any local picture 'noise' (granular appearance) being experienced by using 1 or 2 to select between Mid / Max / Auto / Min / OFF.
4. Dynamic skin tone: May be used to enhance skin tone by using 1 or 2 to select between On / Off.
   Tint : is only available if NTSC equipment is connected.
5. Text Brightness: May be adjusted by using 1 or 2 button to select between Min / Mid / Max. To exit press the MENU button twice.
   Your personal settings are automatically saved when you exit the menu.

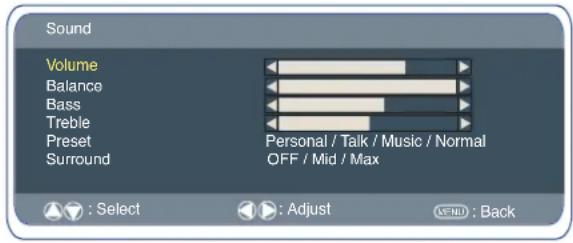

Sound menu

Press the MENU button and select Sound using the 5 or 6 buttons, press the1 button to enter.

Select and adjust to obtain the best sound settings for your environment using the 5 or 6 and 1 or2 buttons. Press the MENU button to return to Main Menu. These settings automatically store when you exit the menu. Press the MENU button to exit menu.

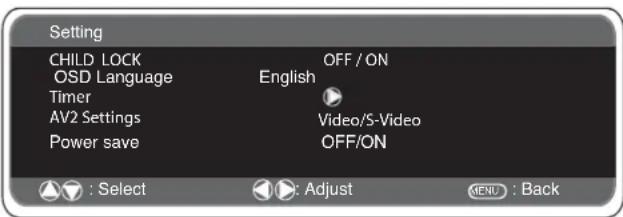

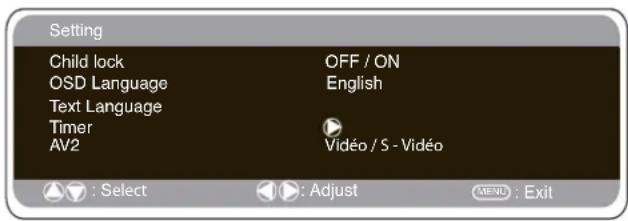

Setting menu

Child lock

You can prevent unwanted operation on the LCD monitor via the buttons on the rear of the monitor.

1. Press the MENU button. Select Setting using the 5 or 6 button. Press the1 button to enter.
2. Select Child lock using the 5 or 6 button.
3. Set the Child lock to Off or On by pressing the 1 or 2 button.
4. Press the MENU button twice to exit.

OSD Language

Use the 1 or 2 button to select the preferred OSD language (English, French, German, Italian, Spanish, Dutch). Press the MENU button to exit

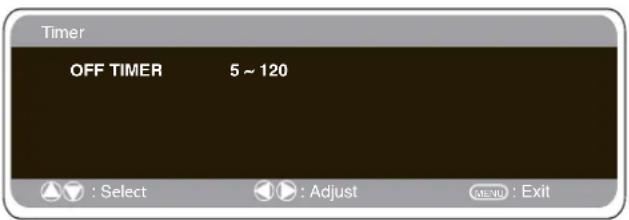

Off-timer setting

The Off timer will switch the monitor into the standby mode when the selected time has elapsed.

1. Press the MENU button. Select Setting using the 5 or 6 button press the1 button to enter.
2. Select Timer using the 5 or 6 button.
3. Press the 1 or 2 button to change time.

The time changes in 5 minute steps. The maximum time is 120 minutes.

If you have set the off timer, a display appears in the corner of the

screen, when the recall button is pressed.
If the monitor is switched off by the standby button 4 on the remote control or by the standby switch 4 on the rear of the monitor set the timer settings will be cancelled.

Text Language

1. Press the MENU button. Select Setting using the 5 or 6 button press the1 button to enter.
2. Select Text language using the5 or 6 button.
3. Press the 1 or 2 button to select West, East, Greek or Cyrillic.

WEST		EAST		GREEK		CYRILLIC
ENGLISH	GERMAN	POLISH	ESTONIAN	ENGLISH	FINISH	POLISH	SLOVENIAN
SWEDISH	ITALIAN	ROMANIAN	CZECH	GERMAN	DANISH	GERMAN	RUSSIAN
FINNISH	HUNGARIAN	SLOVAKIAN	CROATIAN	SWEDISH	HUNGARIAN	CROATIAN	LETTISH
FRENCH	SPANISH	GERMAN	SLOVENIAN	ITALIAN	FRENCH
TURKISH	DANISH			SLOVENIAN	TURKISH
PORTUGUESE				GREEK	C ROATIAN

1. Press the MENU button to exit.

AV2 setting

In setting menu, to select AV2 press the 6 button. AV2 can be configured to accept composite Video or S-Video inputs, depending on your external equipment.

1. Press the MENU button. Select Setting using the 5 or 6 button press the1 button to enter.
2. Select AV2 setting using the 5 or 6 button.
3. Press the 1 or 2 button to select Video or S-Video.
4. Press the MENU button to exit, this automatically stores your changes.
5. Press the MENU button to exit the main menu.

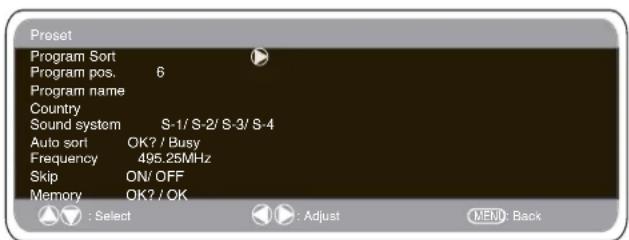

Preset menu

1. Press the MENU button.

1. Select Preset using the 5 or 6 button. Press the 1 button to enter.

The preset menu can be used to tune new channels, to re-order channels and their programme positions, and to make fine adjustments to the tuning (page 8).

MENU OPERATION

Preset Menu

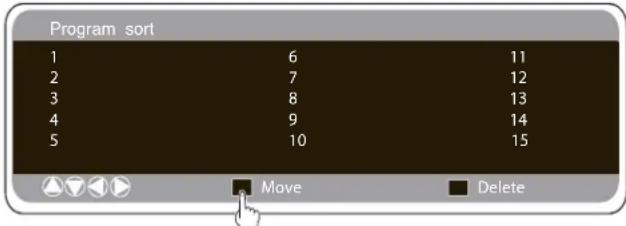

■ Program sort.

Use this channel sorting feature to move the channels between two programme positions. This feature is particularly useful after automatic tuning.

You have to choose a programme that you wish to move from one position to another.

1. Select programme position eg. 4.
2. Press the Green button.
3. Select Channel position you would like the channel moved to eg.7
4. Press the Green button again.
5. Press the MENU button twice to exit.

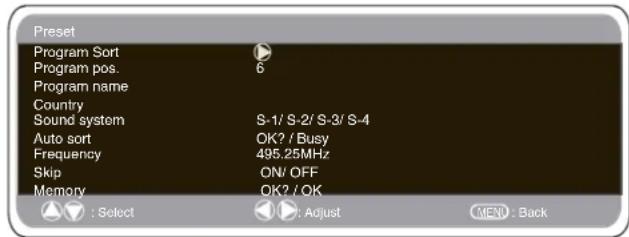

■ Program Name.

With this feature individual channels may be renamed by using the 1 or 2 and5 or 6 buttons.

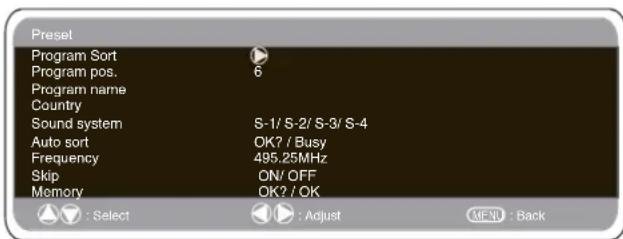

Auto sort (auto tuning and sorting)

1. Select Auto sort by using the 5 or 6 button. Press the OK button to start scan.

1. While Scan is in progress, channel frequencies will be captured and stored automatically, starting from position one.

Skip.

Skip is situated directly beneath Frequency on the screen.
When 'ON' it removes access to a channel using the 5 or 6 button. The only way that selected channel can be accessed will be by using the numerical keys on the remote control.
To memorise, select 'memory' using the 6 button and then press the F/OK button

Memory.

Memory is situated directly beneath Skip on the screen. This is used to memorise the frequency and skip features. Pressing the OK button will change the display from 'OK?' to 'OK' signalling successful memorisation.

Channel Table

The table below shows the receivable channels and channel allocation for this LCD monitor.

Displayed channel no.	Italian channels	CCR channels	OIR channels	Vision frequency [MHz]	Displayed channel no.	Italian channels	CCR channels	OIR channels	Vision frequency [MHz]
C 1	43.25				C75	X	X	R3	69.25
C 2	E2	R1	48.25		C76	Y	Y	R3	76.25
C 3	E3	R3	55.25		C77	C/Z Z	Z	R4	25
C 4	E4	R2	62.25		C78	Z+1 Z+2	Z+2	R5	25
C 5	E5	R6	175.25		C79	S1	S1	90	25
C 6	E6	R7	182.25		C80	S1	S1	97	25
C 7	E7	R8	189.25		C81	S2	S2	95	105.25
C 8	E8	R9	196.25		C82	S3	S3	95	112.25
C 9	E9	R10	205.25		C83	S4	S4	95	119.25
C10	H	R11	210.25		C84	S5	S5	95	133.25
C11	H1	R11	217.25		C85	S6	S6	95	140.25
C12	H2	R12	224.25		C86	S7	S7	95	147.25
					C87	S8	S8	95	154.25
C21	21	E21	E21	471.25	C88	S9	S9	95	161.25
C22	22	E22	E22	479.25	C89	S10	S10	95	168.25
C23	23	E23	E23	487.25	C90	S11	S11	95	231.25
C24	24	E24	E24	495.25	C91	S12	S12	95	238.25
C25	25	E25	E25	503.25	C92	S13	S13	95	245.25
C26	26	E26	E25	511.25	C93	S14	S14	95	252.25
C27	27	E27	E27	519.25	C94	S15	S15	95	255.25
C28	28	E28	E28	527.25	C95	S16	S16	95	266.25
C29	29	E29	E29	535.25	C96	S17	S17	95	273.25
C30	30	E30	E30	543.25	C97	S18	S18	95	280.25
C31	31	E31	E31	551.25	C98	S19	S19	95	287.25
C32	32	E32	E32	559.25	C99	S20	S20	95	294.25
C33	33	E33	E33	567.25
C34	34	E34	E34	575.25	H21	S21	S21	95	303.25
C35	35	E35	E35	583.25	H22	S22	S22	95	311.25
C36	36	E36	E36	591.25	H23	S23	S23	95	319.25
C37	37	E37	E37	599.25	H24	S24	S24	95	327.25
C38	38	E38	E38	607.25	H25	S25	S25	95	335.25
C39	39	E39	E39	615.25	H26	S26	S26	95	343.25
C40	40	E40	E40	623.25	H27	S27	S27	95	351.25
C41	41	E41	E41	631.25	H28	S28	S28	95	359.25
C42	42	E42	E42	639.25	H29	S29	S29	95	367.25
C43	43	E43	E43	647.25	H30	S30	S30	95	375.25
C44	44	E44	E44	655.25	H31	S31	S31	95	383.25
C45	45	E45	E45	663.25	H32	S32	S32	95	391.25
C46	46	E46	E46	671.25	H33	S33	S33	95	399.25
C47	47	E47	E47	679.25	H34	S34	S34	95	407.25
C48	48	E48	E48	687.25	H35	S35	S35	95	415.25
C49	49	E49	E49	695.25	H36	S36	S36	95	423.25
C50	50	E50	E50	703.25	H37	S37	S37	95	431.25
C51	51	E51	E51	711.25	H38	S38	S38	95	439.25
C52	52	E52	E52	719.25	H39	S39	S39	95	447.25
C53	53	E53	E53	727.25	H40	S40	S40	95	455.25
C54	54	E54	E54	735.25	H41	S41	S41	95	463.25

Frequency.

The frequency shown is the current frequency of the channel selected. (frequency changes during auto sort)

1. Select Frequency by using the 5 or 6 button. (Refer to the channel table.)

You can either...

a) Enter the frequency using the 0-9 buttons referring to the channel table.
b) Press and hold the 1 or 2 buttons until the frequency starts scanning (about 5 seconds), scanning will stop when a channel is found.
c) Press intermittently to de-tune the frequency if required.

Repeat above until the correct channel is found.

1. Press the 5 or 6 button to select Memory. Press the OK button to store the new frequency.

Connect your PC to PC-IN on the rear of the set.
Once connected select PC mode via the v button on your remote control. The set will become a monitor for the PC.
By pressing the MENU button on the remote control a menu window will appear on screen, this allows the settings to be adjusted.

To adjust the Picture settings select picture using the5 or 6 buttons on the remote then the1 button to enter the following picture settings menu.

Press the 1 or 2 buttons to adjusted the Picture brightness and the same to adjust the contrast of the picture.

Picture position changes the picture horizontally and vertically.

Press the1 button to enter the sub menu, adjustment is carried out using the1 or 2 buttons on the remote control.

Video adjust changes the Phase and the clock of the screen. If the picture is blurred or grainy this function will adjust it to a clearer picture, adjustment is carried out using the 1 or 2 buttons on the remote control.

Auto Adjust will automatically adjust the picture by using the 1 button. This will change all the above settings automatically.

Auto adjust can also be achieved by pressing the -? /recall button on the remote control without having to select the menu.

Resolution displays the current resolution of the picture. This is for information only and cannot be adjusted.

White tone: Using the 1 or2 buttons it is possible to adjust the colour tone of the picture using the White tone Red(R) / Green (G)/ Blue(B). This will adjust the picture to show more or less of the chosen colour. For example if red is selected you can adjust the proportion of red in the picture to increase or decrease using the 1 or 2 buttons

Native Resolution is used when the PC can output WXGA 1366× 768 . The setting on your Monitor set can be changed to receive XGA/WXGA signal using the1 or 2 buttons.Once the native resolution has been selected, save the settings by switching the monitor off then on using the standby button.

For Sound settings refer to sound menu (Page 7)

Setting: Press the menu button on your remote and using the 5 or 6 buttons to select Settings. The 1 button will enter the settings menu.

Child lock, OSD Language,Timer and AV2 settings are the same as in all other input modes (pg 7).

Power save if turned ON will switch the monitor into Powersave

mode after 1 minute if no signal is detected, the LED light will turn a brighter blue to indicate stand by. The monitor will automatically turn back on when a signal has been detected (PC input). Use1 or 2 buttons to select power save ON or OFF.

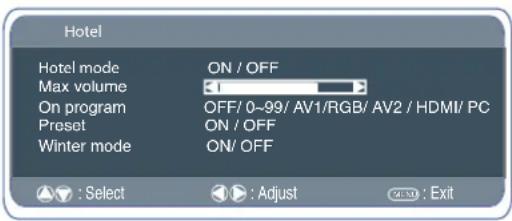

Hotel Mode

This LCD monitor set allows you to set up the following:

Prohibition of presetting.

This prohibits the use of tuning.

Programme position at Start up

SETTING PROCEDURE

1. Press and hold the green button on the remote control handset for 5 seconds to enter the hotel menu.

2. Use the 5 or 6 button to highlight Hotel Mode, use the 1 to switch ON or OFF. Use the 5 or 6 button to highlight each option, use the 1 or 2 button to adjust each option.

3. Max Volume:Select Max volume using the 5 or 6 button, use the 1 or 2 buttons to set the maximum volume required.

4. On Program: Select ON program using the 6 button, select the start up

position using the 1 or 2 buttons. (OFF-0-1-2-3-4....99-AV1-RGB-AV2-HDMI-PC)

1. Winter mode: This Function can be activated when the LCD monitor is used during cold temperature conditions, approximately 38^ / 4^ or below to maintain picture performance.

Using the 5 or 6 button select winter mode, once highlighted you can select ON or OFF by pressing the 1 or 2 button. IMPORTANT: The AC cord should not be disconnected during the operation of Winter mode function.

When in winter mode, power consumption is higher than normal standby consumption. This is entirely due to the operation of heating circuitry. We strongly recommend to turn off Winter mode when the ambient temperature is above 38^ / 4^ .

1. Press the MENU button to exit from the menu.

Direct access to page.

All the numeric buttons can be used to select a page number directly. If you need page 301, then press 3 then 0 and then 1.

Sub page access.

Some text pages are made up of several sub pages which rotate automatically. If you wish to view page 4 of 8 then press the sub page button.

"----" will appear. Enter 0004 and the page will appear.

Index page selector

This selects one of the teletext index pages.

Direct Access to subject headings.

Coloured headings are displayed at the bottom of the screen, the four coloured buttons give access to the corresponding subject or pages.

Cancel

To view the TV picture in the teletext mode while waiting for sub page to change or page to update.

Hold

This stops the currently viewed page from changing

The word "HOLD" will appear instead of the page number.

Press again to Cancel.

Standby

To switch the TV on and off.

Reveal switch.

This reveals hidden items on the teletext page eg:a hidden answer to a quiz question.

Page up and down

To select the next or previous page numbers

Size switch

This will make either the top half or the bottom half of the page expand to fill the screen.

Teletext / TV

to access this feature press the TXT/TV button the picture changes from TV-TXT-MIX and back to TV.

Teletext

Teletext reception

If your aerial signal is poor, the teletext operation may be erratic.

Teletext brightness level

You can change the teletext brightness level. Please return to TV mode.(See Picture menu -Text Brightness on page 6).

Other functions

Auto shut off

This monitor will automatically switch into the standby mode, 10 minutes after an aerial signal is no longer received. The remaining time before the set will switch off is displayed on the screen.

Sound system selection and Programme information

Press the -? button to display programme information such as current programme number, station name, stereo status, sound system and Off Timer period remaining (if set). This will remain on screen for 5 seconds

S-1: B/G sound system
S-2: D/K sound system
S-3: I Sound system
S-4: France SECAM L/L' system

Selecting of picture size

Screen options

Today there are various transmission formats with different size ratios, eg. 4:3, 16:9 and video formats such as letterbox.

When in High Resolution (720p / 1080i) HDMI, the picture will remain fixed in 16:9 format 'Full size' and may not be changed.

Natural

4:3 16:9		Letterbox Video
Stretches the picture horizontally to fill the screen. The picture is more stretched at the edges.	The picture fills the screen and is proportionally correct.	The black bars top and bottom remain and the height is compressed to fit the picture area.

Zoom

4:3	16:9	Letterbox Video
The correct picture width is maintained but the top and bottom are cropped.	Zooms in slightly cropping the top and bottom.	The black bars top and bottom are smaller and the picture height is compressed slightly.

Title-In

4:3 16:9		Letterbox Video
TITLES TO SCREEN	TITLES TO SCREEN	TITLES TO SCREEN
As Zoom (16:9), but bottom is compressed even more to allow subtitles to be seen.	As Zoom (16:9), but bottom is compressed even more to allow subtitles to be seen.	As Zoom (16:9), but bottom is compressed even more to allow subtitles to be seen.

Full

4:3 16:9		Letterbox Video
The whole screen is filled stretching the width.	The whole screen is filled with the correct picture ratio.	The black bars top and bottom are present and the height is compressed.

Normal

4:3 16:9		Letterbox Video
The correct ratio is maintained with black bars on the left and right.	Black bars left and right, picture height is stretched.	Black bars left, right, top and bottom.

Specification

Common specification

Power source 220~240V 50Hz

Television system System I B/G, D/K, L'L

Colour system PAL/NTSC3.58 (in AV mode),SECAM

Channel coverage UHF: 21-69,

VHF:E2-E12,F2-F10,R1-R12

CATV:X,Y,S1-S41,B-Q

Aerial input impedance 75 ohm

AV terminal

AV1: CENELEC Standard

Input: Composite video, RGB (5V RGB with 5V sync to

pin 14) and audio-L/R

Output: TV-output with composite video and audio-L/R

AV2: CENELEC Standard

Input: Composite video, S-VHS and audio-L/R

Output: Monitor-output with composite video and

audio-L/R

Audio Monitor.Out: CINCH L/R

Audio Speaker out: 2 × 6W

HDMI Input: HDMI group Standard

PC Input: 15-pin D-Sub type

Contrast Ratio 1500:1

Screen(inches/cm) 42" / 107 cm

viewing measured diagonally)

Display Native Resolution 1366 X 768 (WXGA)

Viewing angles H:178°, V:178°

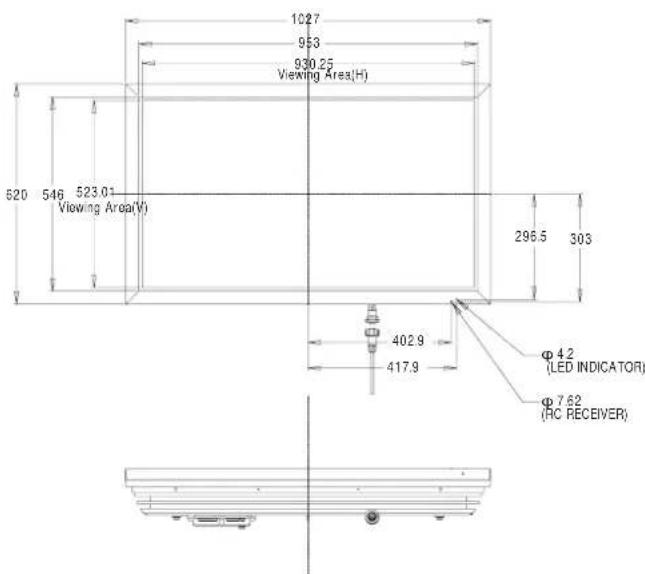

Dimensions (WxHxDmm) 1027x620x167.5

Weight (kg) 35.5

Helpful hints

NO PICTURE,

• Check if the monitor is plugged in.
  Try a different channel, if OK, probably station trouble.
• Check monitor is not in standby by mode.

POOR PICTURE

Adjust BRIGHTNESS control.
Adjust FINE TUNING control.
- Check aerial connections.

NO COLOUR, PICTURE OK

Adjust COLOUR control.
Adjust FINE TUNING control.
- Does the programme/ signal have colour?
- Check lead connections.

WEAK PICTURE

• Check aerial connections on back of set.
• Check aerial for broken wires.
  Re-orientate aerial.

■ REMOTE CONTROL DOES NOT WORK

• Check batteries are inserted correctly
• Check condition of batteries
• Check to see if remote control inhibit is set ON

The following faults are not caused by the receiver:

"GHOSTS"

Reflections of signals from mountains or high buildings will cause multiple images, called "Ghosts". These abnormal conditions can be reduced to a minimum by repositioning the aerial or by installing a new one suited for your area.

"INTERFERENCE"

Interference may be caused by electrical appliances, car ignition systems, etc. This should normally be a temporary condition, but should this interference persist, contact your dealer.

MODEL:CE42WPX1

PC signal support timing

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Remark
720_400 31.47	70.09		DOS(VGA)
640_480 31.50	60.00		DOS(VGA VESA 60Hz)
640_480 37.50	75.00		VGA VESA 75Hz
640_480 37.86	72.87		VGA VESA 70Hz
640_480 37.86	74.38		VGA
640_480 35.00	67.00		Mac.
640_480 34.97	66.60		Mac LC 13"
800_600 35.16	56.25		SVGA VESA 56Hz
800_600 37.90	60.32		SVGA VESA 60Hz
800_600 46.90	75.00		SVGA VESA 75Hz
800_600 32.70	51.09		SVGA
800_600 34.50	55.38		SVGA
800_600 37.90	61.03		SVGA
800_600 38.00	60.51		SVGA
800_600 38.60	60.31		SVGA
832_624 49.00	74.00		Mac.
1024_768	48.40	60.00	XGA V ESA 60Hz
1024_768	56.50	70.00	XGA V ESA 70Hz
1024_768	60.000	75.00	XGA VESA 75Hz
1024_768	44.00	54.58	XGA
1024_768	46.90	58.20	XGA
1024_768	47.00	58.30	XGA
1024_768	48.50	60.02	XGA
1024_768	58.03	72.00	XGA
1024_768	60.31	74.92	XGA
1024_768	61.00	75.70	XGA
1024_768	60.24	75.08	MAC_Normal 19"
1280_960	60.00	60.00	SXGA VESA 60Hz
1280_1024 79.976	75.025		SXGA VESA 75Hz
1280_1024	62.50	58.60	SXGA
1280_1024 63.870	60.01		SXGA
1280_1024	63.34	59.98	SXGA
1280_1024	63.74	60.01	SXGA
1280_1024	63.79	60.18	SXGA
1280_1024	63.90	60.00	SXGA
1280_1024	71.69	67.19	SXGA
1280_1024	76.97	72.00	SXGA
1280_1024	81.13 76.107		SXGA
1152_864	64.20	70.40	SXGA
1152_900	61.20	65.20	SXGA
1152_900	61.85	66.00	SXGA
1152_900	71.40	75.60	SXGA
1152_870	68.68	75.06	MAC_No mali 21"
1280_960	75.00	75.08	Mac.
1280_1024	80.00	75.00	Mac...
1600_1200	75.00	60.00	UXGA VESA 60Hz
1366_768	48.36	60.00	WXGA
1360_768	47.70	60.00	WXGA

Installation/Utilisation

Entree: video composite, S-VHS and audio-L/R

Sortie: Monitor-output with composite video and audio-L/R

Dimensions (L x H x P mm) 1027x620x167.5

Poids (kg) 35.5

Conseils Pratiques

PAS D'IMAGE NI DE SON

PAS DE COULEURS, IMAGE CORRECTE

Concession de license, conditions et restrictions

1.HDMI (High Definition Multimedia Interface)

OFF/0~99/AV1/RGB/AV2/HDMI/PC

Ausgange:Monitor-output with composite video and audio-L/R

Audio Monitor Out: CINCH:L/R

DIT PRODUCT MOET GEAARD ZIJN

1.HDMI (High Definition Multimedia Interface)

S-1: B/G -> S-2: D/K -> S-3: I -> S-4: France SECAM L/L system.

Input: Composite video, S-VHS and audio-L/R

1.HDMI (High Definition Multimedia Interface)

Audio speaker out: 2x 6W

Ingresso HDMI:HDMI standard

Input PC: Mini D-SUB 15 pol e

Presa audio da 3,5 mm

SANYO Industries (U.K.) Limited

Oulton Works, School Road, Lowestoft,

Suffolk, NR33 9NA, United Kingdom

MODEL:CE42WPX1

QUANDONONE'PRESENTENESUONONIMMAGINE

PC signal support timing

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Remark
720_400	31.47	70.09	DOS(VGA)
640_480	31.50	60.00	DOS(VGA VESA 60Hz)
640_480	37.50 75.00		VGA VESA 75Hz
640_480	37.86 72.81		VGA VESA 70Hz
640_480	37.86	74.38	VGA
640_480	35.00	67.00	Mac.
640_480	34.97	66.60	Mac LC 13"
800_600	35.16	56.25	SVGA VESA 56Hz
800_600	37.90	60.32	SVGA VESA 60Hz
800_600	46.90	75.00	SVGA VESA 75Hz
800_600	32.70	51.09	SVGA
800_600	34.50	55.38	SVGA
800_600	37.90	61.03	SVGA
800_600	38.00	60.51	SVGA
800_600	38.60	60.31	SVGA
832_624	49.00	74.00	Mac.
1024_768	48.40	60.00	XGA VESA 60Hz
1024_768	56.50	70.00	XGA VESA 70Hz
1024_768	60.000	75.00	XGA VESA 75Hz
1024_768	44.00	54.58	XGA
1024_768	46.90	58.20	XGA
1024_768	47.00	58.30	XGA
1024_768	48.50	60.02	XGA
1024_768	58.03	72.00	XGA
1024_768	60.31	74.92	XGA
1024_768	61.00	75.70	XGA
1024_768	60.24	75.08	MAC_Normal 19"
1280_960	60.00	60.00	SXGA VESA 60Hz
1280_1024 79.376 75.025			SXGA VESA 75Hz
1280_1024	62.50	58.60	SXGA
1280_1024 63.370 60.01			SXGA
1280_1024	63.34	59.98	SXGA
1280_1024	63.74	60.01	SXGA
1280_1024	63.79	60.18	SXGA
1280_1024	63.90	60.00	SXGA
1280_1024	71.69	67.19	SXGA
1280_1024	76.97	72.00	SXGA
1280_1024	81.13	76.107	SXGA
1152_864	64.20	70.40	SXGA
1152_900	61.20	65.20	SXGA
1152_900	61.85	66.00	SXGA
1152_900	71.40	75.60	SXGA
1152_870	68.68	75.06	MAC_Normal 21"
1280_960	75.00	75.08	Mac.
1280_1024	80.00	75.00	Mac..
1600_1200	75.00	60.00	UXGA VESA 60Hz
1366_768	48.36	60.00	WXGA
1360_768	47.70	60.00	WXGA
