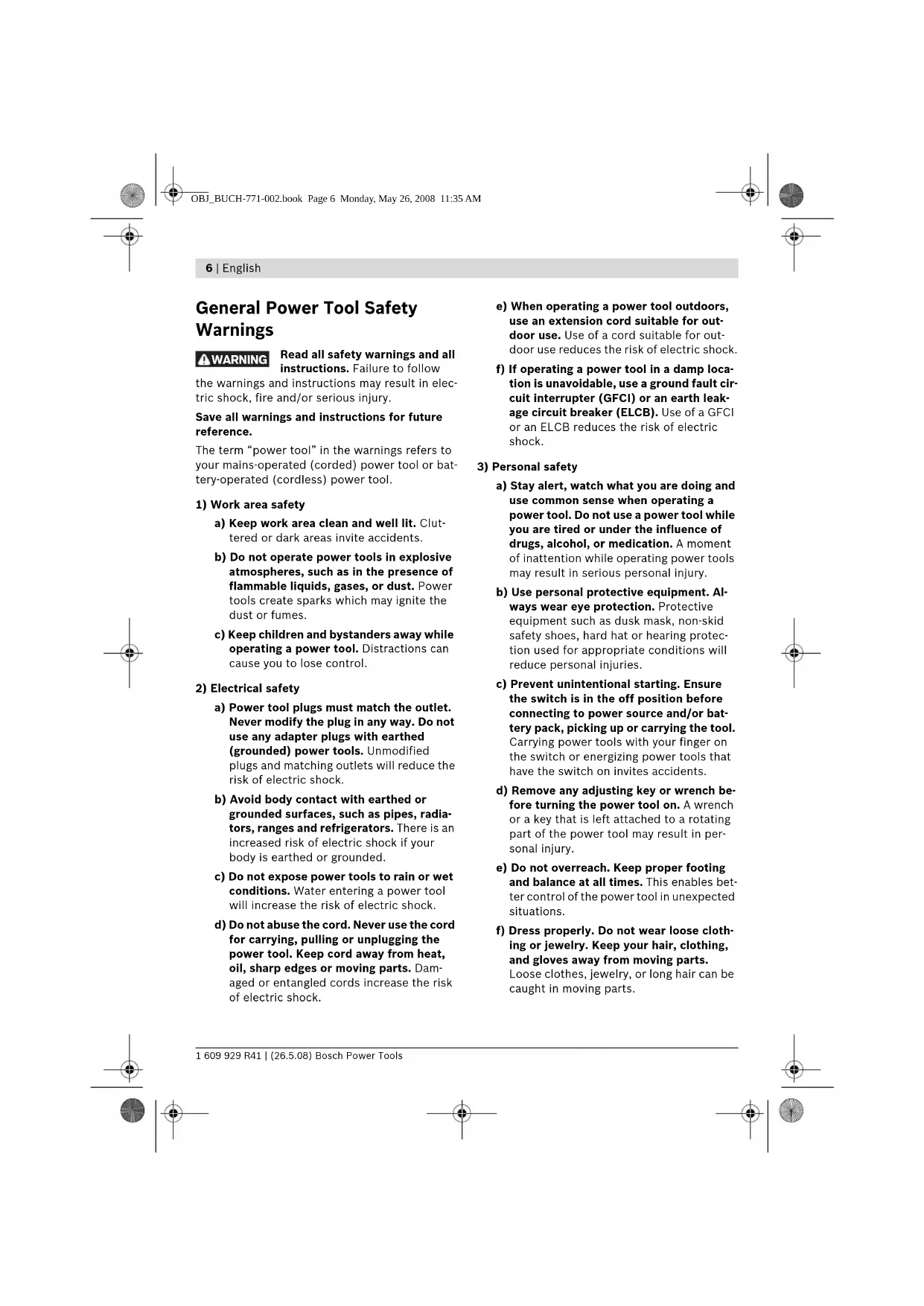

General Power Tool Safety

Read all safety warnings and all

instructions. Failure to follow

the warnings and instructions may result in elec-

tric shock, fire and/or serious injury.

Save all warnings and instructions for future

The term “power tool” in the warnings refers to

your mains-operated (corded) power tool or bat-

tery-operated (cordless) power tool.

a) Keep work area clean and well lit. Clut-

tered or dark areas invite accidents.

b) Do not operate power tools in explosive

atmospheres, such as in the presence of

flammable liquids, gases, or dust. Power

tools create sparks which may ignite the

c) Keep children and bystanders away while

operating a power tool. Distractions can

cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet.

Never modify the plug in any way. Do not

use any adapter plugs with earthed

(grounded) power tools. Unmodified

plugs and matching outlets will reduce the

risk of electric shock.

b) Avoid body contact with earthed or

grounded surfaces, such as pipes, radia-

tors, ranges and refrigerators. There is an

increased risk of electric shock if your

body is earthed or grounded.

c) Do not expose power tools to rain or wet

conditions. Water entering a power tool

will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord

for carrying, pulling or unplugging the

power tool. Keep cord away from heat,

oil, sharp edges or moving parts. Dam-

aged or entangled cords increase the risk

e) When operating a power tool outdoors,

use an extension cord suitable for out-

door use. Use of a cord suitable for out-

door use reduces the risk of electric shock.

f) If operating a power tool in a damp loca-

tion is unavoidable, use a ground fault cir-

cuit interrupter (GFCI) or an earth leak-

age circuit breaker (ELCB). Use of a GFCI

or an ELCB reduces the risk of electric

a) Stay alert, watch what you are doing and

use common sense when operating a

power tool. Do not use a power tool while

you are tired or under the influence of

drugs, alcohol, or medication. A moment

of inattention while operating power tools

may result in serious personal injury.

b) Use personal protective equipment. Al-

ways wear eye protection. Protective

equipment such as dusk mask, non-skid

safety shoes, hard hat or hearing protec-

tion used for appropriate conditions will

reduce personal injuries.

c) Prevent unintentional starting. Ensure

the switch is in the off position before

connecting to power source and/or bat-

tery pack, picking up or carrying the tool.

Carrying power tools with your finger on

the switch or energizing power tools that

have the switch on invites accidents.

d) Remove any adjusting key or wrench be-

fore turning the power tool on. A wrench

or a key that is left attached to a rotating

part of the power tool may result in per-

e) Do not overreach. Keep proper footing

and balance at all times. This enables bet-

ter control of the power tool in unexpected

f) Dress properly. Do not wear loose cloth-

ing or jewelry. Keep your hair, clothing,

and gloves away from moving parts.

Loose clothes, jewelry, or long hair can be

caught in moving parts.

WARNING OBJ_BUCH-771-002.book Page 6 Monday, May 26, 2008 11:35 AMEnglish | 7

Bosch Power Tools 1 609 929 R41 | (26.5.08)

g) If devices are provided for the connection

of dust extraction and collection facili-

ties, ensure these are connected and

properly used. Use of dust collection can

reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the cor-

rect power tool for your application. The

correct power tool will do the job better

and safer at the rate for which it is de-

b) Do not use the power tool if the switch

does not turn it on or off. Any power tool

that cannot be controlled with the switch

is dangerous and must be repaired.

c) Disconnect the plug from the power

source and/or the battery pack from the

power tool before making any adjust-

ments, changing accessories, or storing

power tools. Such preventive safety mea-

sures reduce the risk of starting the power

d) Store idle power tools out of the reach of

children and do not allow persons unfa-

miliar with the power tool or these in-

structions to operate the power tool.

Power tools are dangerous in the hands of

e) Maintain power tools. Check for misalign-

ment or binding of moving parts, break-

age of parts and any other condition that

may affect the power tool’s operation. If

damaged, have the power tool repaired

before use. Many accidents are caused by

poorly maintained power tools.

f) Keep cutting tools sharp and clean. Prop-

erly maintained cutting tools with sharp

cutting edges are less likely to bind and are

g) Use the power tool, accessories, tool bits

etc. in accordance with these instruc-

tions, taking into account the working

conditions and the work to be performed.

Use of the power tool for operations differ-

ent from those intended could result in a

hazardous situation.

5) Battery tool use and care

a) Recharge only with the charger specified

by the manufacturer. A charger that is

suitable for one type of battery pack may

create a risk of fire when used with anoth-

b) Use power tools only with specifically

designated battery packs. Use of any oth-

er battery packs may create a risk of injury

c) When battery pack is not in use, keep it

away from other metal objects, like paper

clips, coins, keys, nails, screws or other

small metal objects, that can make a con-

nection from one terminal to another.

Shorting the battery terminals together

may cause burns or a fire.

d) Under abusive conditions, liquid may be

ejected from the battery; avoid contact. If

contact accidentally occurs, flush with

water. In liquid contacts eyes, additional-

ly seek medical help. Liquid ejected from

the battery may cause irritation or burns.

a) Have your power tool serviced by a quali-

fied repair person using only identical re-

placement parts. This will ensure that the

safety of the power tool is maintained.

Power Tool-specific Safety

f Hold the power tool with a firm grip. High re-

action torque can briefly occur while driving in

and loosening screws.

f Secure the workpiece. A workpiece clamped

with clamping devices or in a vice is held more

secure than by hand.

f Avoid unintentional switching on. Ensure the

On/Off switch is in the off position before in-

serting battery pack. Carrying the power tool

with your finger on the On/Off switch or in-

serting the battery pack into power tools that

have the switch on invites accidents.

OBJ_BUCH-771-002.book Page 7 Monday, May 26, 2008 11:35 AM1 609 929 R41 | (26.5.08) Bosch Power Tools 8 | English

f Do not open the battery. Danger of short-cir-

Protect the battery against heat, e.g., al-

so against continuous sun irradiation and

fire. There is danger of explosion.

f In case of damage and improper use of the

battery, vapors may be emitted. Provide for

fresh air and seek medical help in case of

complaints. The vapors can irritate the respi-

f When the battery is defective, liquid can es-

cape and come into contact with adjacent

components. Check any parts concerned.

Clean such parts or replace them, if required.

f Use the battery only in conjunction with your

Bosch power tool. This measure alone pro-

tects the battery against dangerous overload.

Functional Description

Read all safety warnings and all in-

structions. Failure to follow the

warnings and instructions may result

in electric shock, fire and/or serious

While reading the operating instructions, unfold

the graphics page for the tool and leave it open.

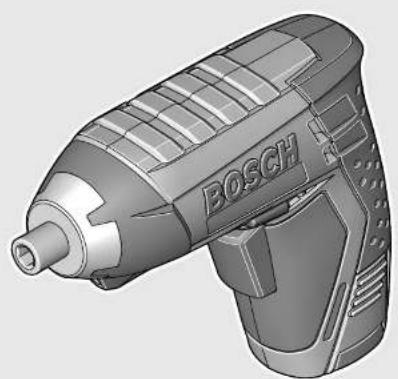

The machine is intended for driving in and loos-

The numbering of the product features refers to

the illustration of the power tool on the graphics

3 Battery release button

7 “Power Light” *The accessories illustrated or described are not in-cluded as standard delivery. Technical Data

Battery Charging (see figure A)

f Use only the battery chargers listed on the

accessories page. Only these battery charg-

ers are matched to the lithium ion battery of

Note: The battery is supplied partially charged.

To ensure full capacity of the battery, completely

charge the battery in the battery charger before

using your power tool for the first time.

The lithium ion battery can be charged at any

time without reducing its service life. Interrupt-

ing the charging procedure does not damage the

The lithium ion battery is protected against deep

discharging by the “Electronic Cell Protection

(ECP)”. When the battery is empty, the machine

is switched off by means of a protective circuit:

The inserted tool no longer rotates.

Do not continue to press the

On/Off switch after the ma-

chine has been automatically switched off. The

battery can be damaged.

Cordless Screwdriver GSR ProDrive

hard/soft screwdriving

application according

Weight according to EP-

TA-Procedure 01/2003

kg 0.5 Please observe the article number on the type plate of your power tool. The trade names of individual tools may vary. WARNING OBJ_BUCH-771-002.book Page 8 Monday, May 26, 2008 11:35 AMEnglish | 9

Bosch Power Tools 1 609 929 R41 | (26.5.08)

To remove the battery 4, press the unlocking but-

tons 3 and pull out the battery downwards. Do

not exert any force.

The battery is equipped with an NTC tempera-

ture control which allows charging only within a

temperature range of between 0 °C and 45 °C. A

long battery service life is achieved in this man-

Observe the notes for disposal.

Changing the Tool (see figure B)

f Before any work on the power tool (e. g.,

maintenance, tool change, etc.) as well as

during transport and storage, set the rota-

tional direction switch to the center posi-

tion. Unintentional actuation of the On/Off

switch can lead to injuries.

f Do not use double-sided screwdriver blades

that are longer than 25 mm.

Insert the screwdriver bit 1 directly into the tool

Inserting the Battery

f Use only original Bosch lithium ion batteries

with the voltage listed on the nameplate of

your power tool. Using other batteries can

lead to injuries and pose a fire hazard.

Note: Use of batteries not suitable for the ma-

chine can lead to malfunctions of or cause dam-

age to the power tool.

Set the rotational direction switch 6 to the center

position in order to avoid unintentional starting.

Insert the charged battery 4 into the handle so

that it can be felt to engage and faces flush

Reversing the Rotational Direction

The rotational direction switch 6 is used to re-

verse the rotational direction of the machine.

However, this is not possible with the On/Off

Right rotation: For driving in screws push the ro-

tational direction switch 6 left to the stop.

Left Rotation: For loosening or unscrewing

screws, push the rotational direction switch 6

Switching On and Off

To start the power tool, press the On/Off switch

5 and keep it pressed.

The light 7 is lit when the On/Off switch 5 is

slightly or completely pressed in, and allows for

illumination of the work area under unfavorable

lighting conditions.

To switch off the power tool, release the On/Off

The speed of the switched on power tool can be

variably adjusted, depending on how far the

On/Off switch 5 is pressed.

Light pressure on the On/Off switch 5 results in

a low rotational speed. Further pressure on the

switch results in an increase in speed.

Fully Automatic Spindle Locking (Auto-lock)

When the On/Off switch 5 is not pressed, the

drill spindle and thus the tool holder are locked.

This enables screws to be screwed in, even when

the battery is empty and allows for the tool to be

used as a screwdriver.

Temperature Dependent Overload Protection

When using as intended for, the power tool can-

not be subject to overload. When the load is too

high or the allowable battery temperature range

of 0–70 °C is exceeded, the speed is reduced.

The power tool will not run at full speed until

reaching the allowable battery temperature.

OBJ_BUCH-771-002.book Page 9 Monday, May 26, 2008 11:35 AM1 609 929 R41 | (26.5.08) Bosch Power Tools

Protection Against Deep Discharging

The lithium ion battery is protected against deep

discharging by the “Electronic Cell Protection

(ECP)”. When the battery is empty, the machine

is switched off by means of a protective circuit:

The inserted tool no longer rotates.

Working Instructions

f Apply the power tool to the screw only when

it is switched off. Rotating tool inserts can

Before screwing larger, longer screws into hard

materials, it is advisable to predrill a pilot hole

with the core diameter of the thread to approx.

of the screw length.

Maintenance and Service

Maintenance and Cleaning

f Before any work on the power tool (e. g.,

maintenance, tool change, etc.) as well as

during transport and storage, set the rota-

tional direction switch to the center posi-

tion. Unintentional actuation of the On/Off

switch can lead to injuries.

f For safe and proper working, always keep

the power tool and the ventilation slots

When the battery is no longer operative, please

refer to an authorized after-sales service agent

for Bosch power tools.

If the power tool should fail despite the care tak-

en in manufacturing and testing procedures, re-

pair should be carried out by an after-sales ser-

vice center for Bosch power tools.

In all correspondence and spare parts orders,

please always include the 10-digit article number

given on the type plate of the power tool.

After-sales Service and Customer Assis-

Our after-sales service responds to your ques-

tions concerning maintenance and repair of your

product as well as spare parts. Exploded views

and information on spare parts can also be found

Our customer consultants answer your questions

concerning best buy, application and adjustment

of products and accessories.

In case of a claim, repair or purchase of replace-

ment parts or in case of queries or other prob-

lems, please contact your local dealer or Bosch

HK and Macau Special Administrative Regions

Robert Bosch Hong Kong Co. Ltd.

21st Floor, 625 King’s Road

North Point, Hong Kong

OBJ_BUCH-771-002.book Page 10 Monday, May 26, 2008 11:35 AMEnglish | 11

Liberty Square Building

Bosch Service – Training Centre

2869-2869/1 Soi Ban Kluay

Rama IV Road (near old Paknam Railway)

Republic of Singapore

Robert Bosch (SEA) Pte. Ltd – Vietnam

Representative Office

Saigon Trade Center, Suite 1206

37 Ton Duc Thang Street,

Ben Nghe Ward, District 1

Tel.: +84 (8) 9111 374 – 9111 375

Fax: +84 (8) 9111376

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Customer Contact Center

The battery is tested according to UN document

ST/SG/AC.10/11/Rev.3 Part III, subsection 38.3.

It has effective protection against internal over-

pressure and short circuiting as well as devices

for the prevention of violent rupture and danger-

ous reverse current flow.

The lithium-equivalent content in the battery is

below applicable limit values. Therefore, the bat-

tery is not subject to national or international

regulations pertaining to dangerous mediums,

neither as an individual component nor when in-

serted into a machine. However, the regulations

governing dangerous goods may be relevant

when transporting several batteries. In this case,

it can be necessary to comply with special condi-

tions (e.g., concerning the packaging). For more

information, please refer to the instruction sheet

(in English) under the following Internet address:

http://purchasing.bosch.com/en/start/

Allgemeines/Download/index.htm.

Power tools, accessories and packaging should

be sorted for environmental-friendly recycling.

Battery packs/batteries:

Please observe the information

under “Transport”, page 12.

Do not dispose of battery packs/batteries into

household waste, fire or water. Battery

packs/batteries should be collected, recycled or

disposed of in an environmental-friendly manner.

Subject to change without notice.

OBJ_BUCH-771-002.book Page 12 Monday, May 26, 2008 11:35 AM中文 | 13

Bosch Power Tools 1 609 929 R41 | (26.5.08)

OBJ_BUCH-771-002.book Page 16 Monday, May 26, 2008 11:35 AM中文 | 17

d) 󵍵󵥲󶠡󵲉 󵠓󴕝 󵫍󴚢󳾾󴀵󴕝 󵡽󴱹󵨽 󵑙󵨽 󴗈󵲉 󵠓󴕝 󳾼

OBJ_BUCH-771-002.book Page 26 Monday, May 26, 2008 11:35 AM󳝓󰽤󲞫 | 27

Robert Bosch Korea Mechanics and Electronics Ltd.

OBJ_BUCH-771-002.book Page 40 Monday, May 26, 2008 11:35 AMTiøng Vi·t | 41

OBJ_BUCH-771-002.book Page 46 Monday, May 26, 2008 11:35 AMFrançais | 47

“ﺔﻴﺋﺎﺑﺮﻬﻜﻟﺍ ﺓﺪﻌﻟﺍ” ﺢﻠﻄﺼﻤﺑ ﺪﺼﻘﻳ

ﺩﺎﺘﻋ ﺀﺍﺪﺗﺭﺍ ﺪﳛ .ﺔﻴﻗﺍﻭ ﺕﺍﺭﺎﻈﻧ
