Thank you for purchasing the Wireless USB Adapter that provides the easiest way to wireless networking. This User Manual contains detailed instructions in the operation of this product. Please keep this manual for future reference.

1 Wireless 54Mbps USB Adapter

The Wireless USB Adapter (hereafter called the Adapter) is a high-efficiency wireless LAN Adapter for wireless networking at home, in office or in public places. The data rate can be up to 54 Mbps and auto-negotiated to 48, 36, 24, 18, 12, 9, 6Mbps (IEEE 802.11g), or 11, 5.5, 2, 1Mbps (IEEE802.11b).

With the Adapter, you can roam between conference room and office without being disconnected the LAN cables; in addition, sharing files and printers can be easy tasks. The Wireless USB Adapter is available to Microsoft Windows operating systems (Windows® XP/2000/ME/98SE and Vista) and can be integrated into networking with either Ad-hoc mode (computer-to-computer, without an Access Point), Infrastructure mode (computer-to-access point, an Access Point is required) or Access Point Mode.

The device offers quick and easy access among wired network and wireless network. The Wireless USB Adapter also supports WPA/WPA2 security, it increases the level of data protection and access control for Wireless LAN.

1.1 How the Adapter works

Ad-hoc Mode: An Ad-hoc network is a local area network or other small network, especially one with wireless or temporary plug-in connections, in which some of the network devices are part of the network only for the duration of a communications session. Users in the network can share files, print to a shared printer, and access the Internet with a shared modem. In this kind of network, new devices can be quickly added; however, users can only communicate with other wireless LAN computers that are in this wireless LAN workgroup, and are within range.

Infrastructure Networking Mode: The difference between Infrastructure network and Ad-hoc network is that the former one includes an Access Point. In an Infrastructure network, the Access Point can manage the bandwidth to maximize bandwidth utilization. Additionally, the Access Point enables users on a wireless LAN to access an existing wired network, allowing wireless users to take advantage of the wired networks resources, such as Internet, email, file transfer, and printer sharing. The scale and range of the Infrastructure networking are larger and wider than that of the Ad-hoc networking.

Access Point Mode: PC with Wireless USB Adapter work as an Access Point (only with WEP). You can save money and make a little network using Your PC+Adapter as an Access Point.

1.2 System Requirements

Before installing the Adapter, your PC should meet the following:

■ PC with available USB V2.0/1.1* slot
Intel® Pentium®III 600Mhz or compatible processor with 128MB RAM
■ Windows 98SE/ME/2000/XP or Vista operating system
■ Minimum 15 Mbytes free disk space for installing the driver and utilities
- CD-ROM drive

*When plug the device in the USB 1.1/1.0 port, the real throughput will be up to 6Mbps only when running 11Mbps or higher speed

1.3 Package Contents

Unpack the package and check all the items carefully. If any item contained is damaged or missing, please contact your local dealer as soon as possible. Also, keep the box and packing materials in case you need to ship the unit in the future. The package should contain the following items:

■ One Wireless USB Adapter
■ One USB Cable
■ One Quick Start Guide
- One CD with driver/utilities and user's manual

1.4 Product View

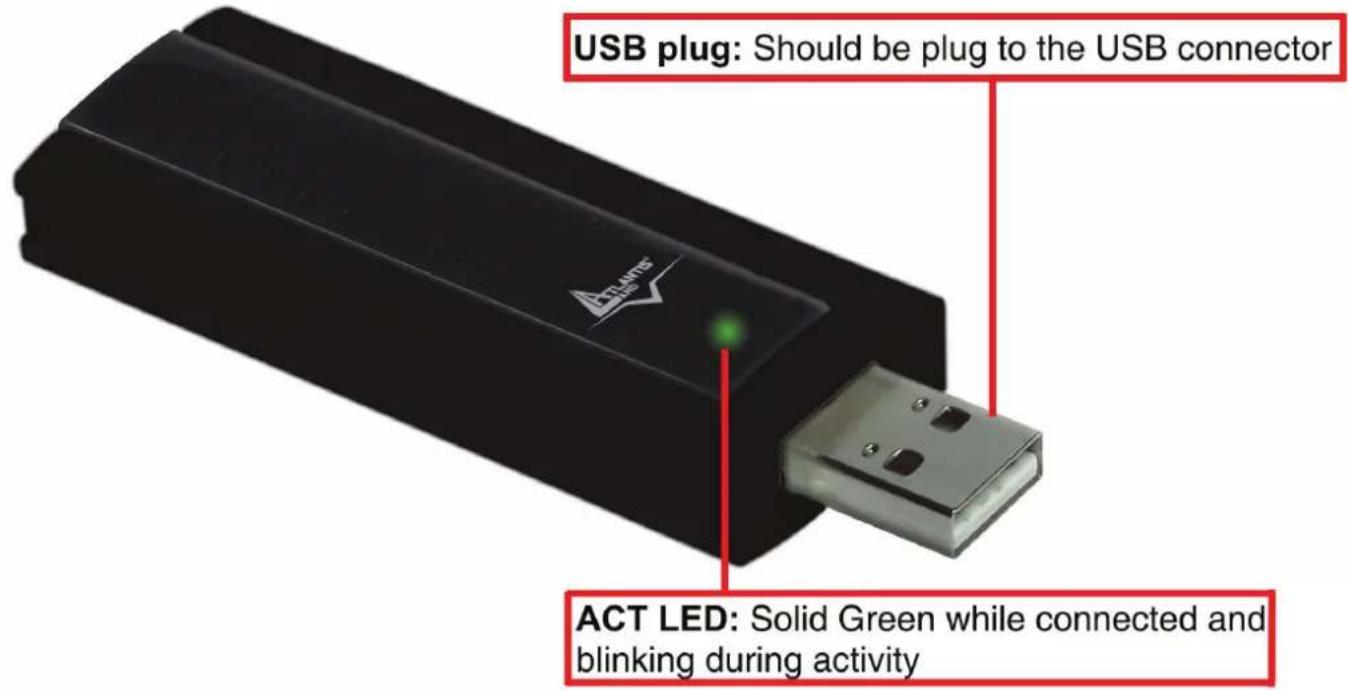

USB plug: Should be plug to the USB connector ACT LED: Solid Green while connected and blinking during activity

2 Software and Driver Installation (Windows ME/XP/2000)

This section describes the procedures of installing the driver and utility. Follow the instruction step by step to finish the installation. If you use Windows® ME, please prepare the Windows® Setup CD at hand before installing the driver; because the system will ask you to insert the Setup CD to copy files during the installation.

Start Windows. Insert the driver CD into your CD-Rom drive.

Go to your Windows Start menu and choose Run, type "CDRom:\USB\Setup.exe" in the dialog box and click OK. Simply follow the instructions below which outline what you need to do.

NOTE:

Do not plug Wireless USB Adapter before to install the USB Driver.

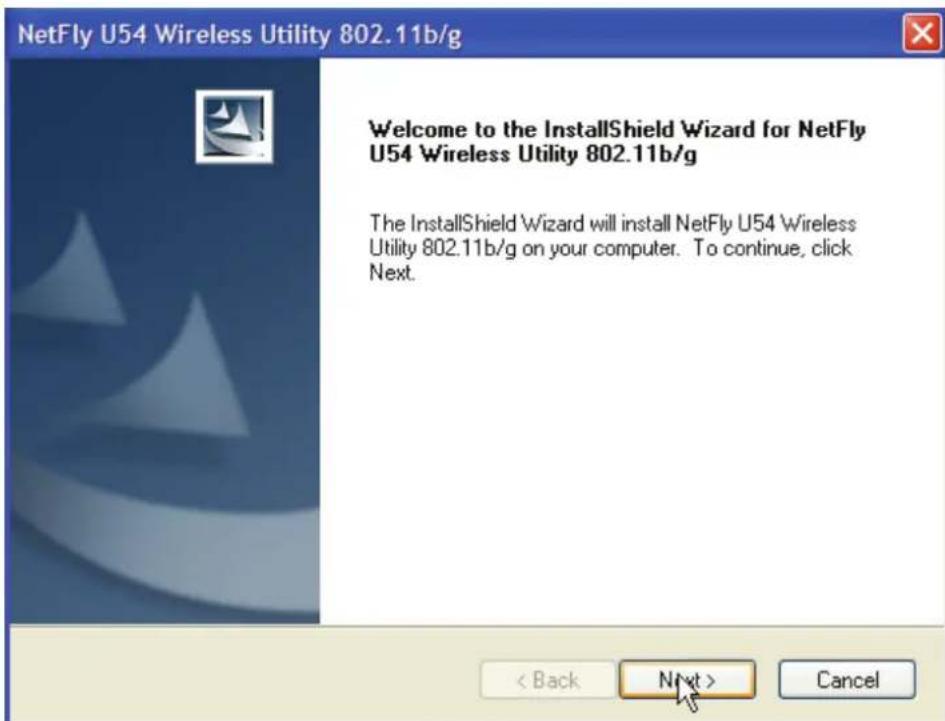

NetFly U54 Wireless Utility 802.11b/g Welcome to the InstallShield Wizard for NetFly U54 Wireless Utility 802.11b/g The InstallShield Wizard will install NetFly U54 Wireless Utility 802.11b/g on your computer. To continue, click Next.

Click Next.

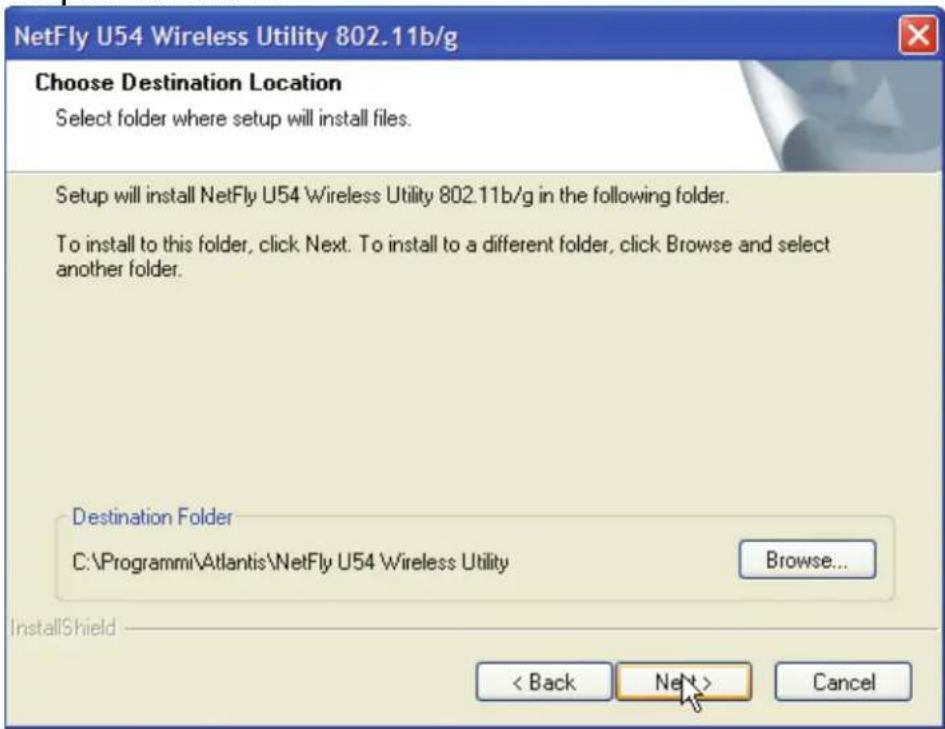

NetFly U54 Wireless Utility 802.11b/g Choose Destination Location Select folder where setup will install files. Setup will install NetFly U54 Wireless Utility 802.11b/g in the following folder. To install to this folder, click Next. To install to a different folder, click Browse and select another folder. Destination Folder C:\Programmi\Atlantis\NetFly U54 Wireless Utility Browse... InstallShield < Back Next > Cancel

Click Next (Click Browse in order to change the destination folder), then click Finish.

Software Installation

The software you are installing has not passed Windows Logo testing to verify its compatibility with Windows XP. (Tell me why this testing is important.)

Continuing your installation of this software may impair or destabilize the correct operation of your system either immediately or in the future. Microsoft strongly recommends that you stop this installation now and contact the software vendor for software that has passed Windows Logo testing.

Continue Anyway

STOP Installation

Click Continue Anyway (when windows titled "Digital Signature Not Found" appear) to continue the installation.

Please plug Wireless USB Adapter into USB Slot, it will be recognized and auto installed.

Click Next, then select Install Software Automatically and click Next.

When windows titled "Hardware Installation" or "Software Installation" appear, press Continue Anyway to go on then click Finish.

3 Driver Installation (Windows Vista)

• Plug NetFly U-54 USB Wireless Adapter to PC.
• Select Locate and install driver software (Found New Hardware).
  • Select Continue (User Account Control).
• Select Install this driver software anyway (Windows security).
• Select Close.

3.1 Connection to AP

This section describes the procedures of using Windows VISTA Wireless Utility.

• Click Start button, then Contro Panel (Classic View). Double click Network and Sharing Center icon.
• Click Network and Sharing Center, after click Manage network connections.
• Double-click on Wlan icon (NetFly U54 Wireless USB Adapter). Now the wireless NIC updates information on surrounding wireless network.
• Chose Your Wireless Network and click on Connect. If selected Network supports WEP or WPA/WPA2 You have to chose Authentication and Security tab in order to connect to the wireless network.

4. Wireless Network Utility (Windows ME/XP/2000)

4.1 Introduction

After installing the driver, the Adapter provides a convenient and powerful utility that allows you to set up, configure, and know your networking status easily and clearly.

You will see the icon( ) on the Windows task bar when you finish the installation.

When You click on this icon in the Windows task bar You can see 3 different links:

• Open Utility Windows
• Use Microsoft Wireless Zero Configuration
• Exit

NOTE:

In windows XP, it provides wireless configuration utility named "windows Wireless zero configuration" which provides basic configuration function for Wireless USB Adapter.

Please select WZC as main utility. To make it easier for user to select the correct utility. NetFly U54 Wireless Utility will let user make the selection when it first ran after XP boot. Click the icon of will bring up the selection window and let user make the selection.

4.2 Using the Configuration Utility

Double-click the Wireless LAN icon (or right-click and then select Open Utility Window) to launch the Configuration Utility. With the Wireless USB Adapter utility, users can configure all the functions provided by the Wireless Monitor Utility. Double-click the utility icon that appears in the taskbar.

4.3 Site Survey and Connection

Under this page, system will display the information of surrounding APs from last scan result. List information's include SSID, BSSID, Signal, Channel, Encryption algorithm, and Network type as picture shown.

NOTE:

Check that wireless USB Adapter works as client (Mode is Station).

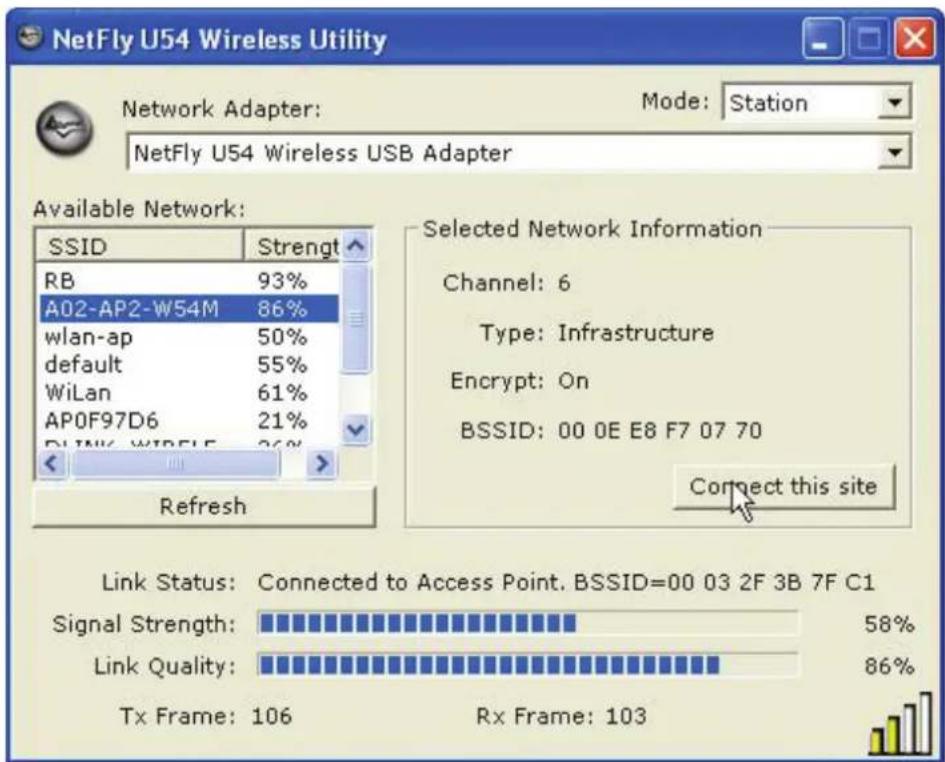

NetFly U54 Wireless Utility Network Adapter: Mode: Station NetFly U54 Wireless USB Adapter Available Network: SSID Strength RB 93% A02-AP2-W54M 86% wlan-ap 50% default 55% WiLan 61% AP0F97D6 21% LINK WIRELE 26% Refresh Selected Network Information Channel: 6 Type: Infrastructure Encrypt: On BSSID: 00 0E E8 F7 07 70 Connect this site Link Status: Connected to Access Point. BSSID=00 03 2F 3B 7F C1 Signal Strength: 58% Link Quality: 86% Tx Frame: 106 Rx Frame: 103

Refresh: Issue an rescan command to wireless NIC to update information on surrounding wireless network.

Connect this Site: Command to connect to the selected network. You will see the icon( ) on the Windows task bar when USB is connected to selected Access Point. If selected AP supports WEP or WPA/WPA2 You have to follow the next instructions.

NOTE:

If selected AP supports WEP or WPA/WPA2 You have to chose Authentication and Security tab in order to connect to the wireless network.

Click No (in the windows Use previuos WEP/WPA settings)

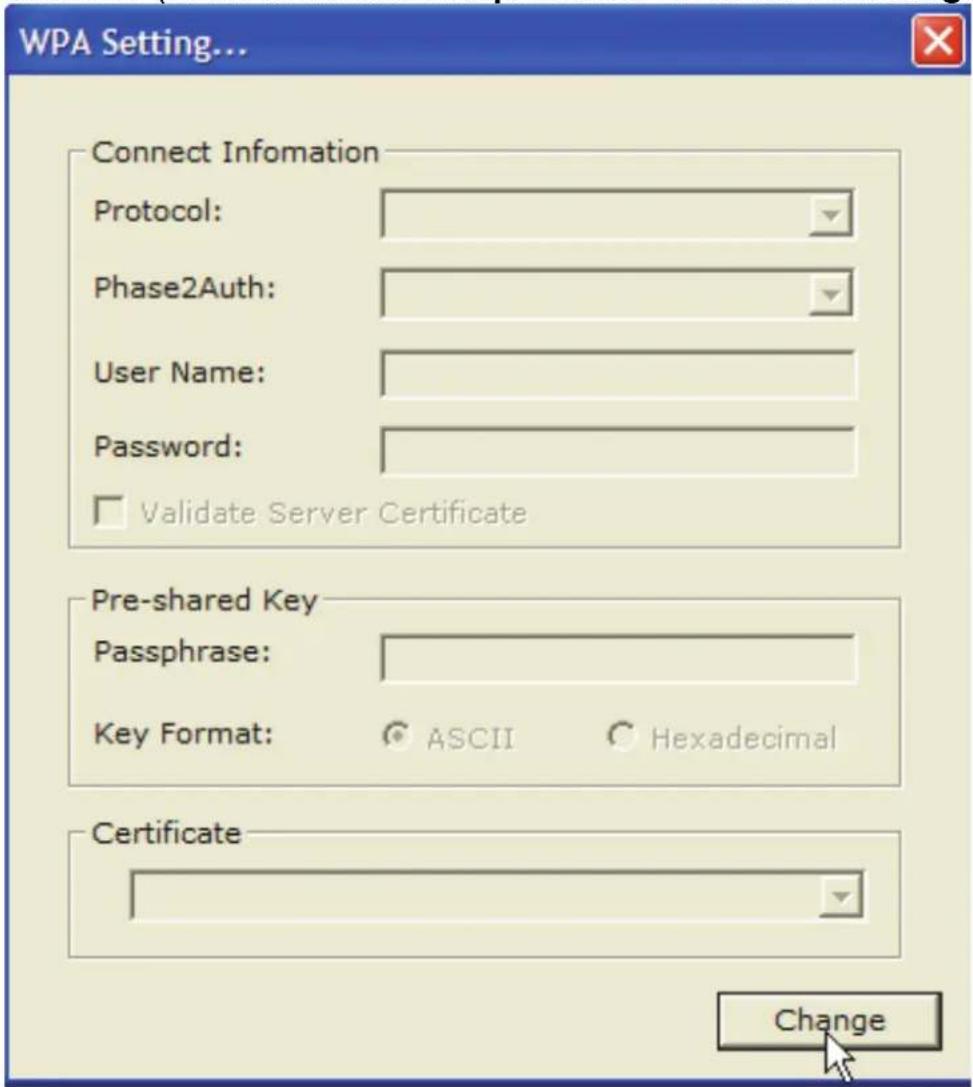

WPA Setting... Connect Information Protocol: Phase2Auth: User Name: Password: Validate Server Certificate Pre-shared Key Passphrase: Key Format: ASCII Hexadecimal Certificate Change

Then click Change, please verify that ASCII is selected, then insert the new password. Click Apply and close the windows.

This picture is the link status page; it displays the detail information current connection.

You will see the icon( ) on the Windows task bar when USB is connected to selected Access Point.

4.4 Profile

Profile can book keeping your favorite wireless setting among your home, office, and other public hotspot. You may save multiple profiles, and activate the correct one at your preference. When USB is connected to selected Access Point, click More

Settings.

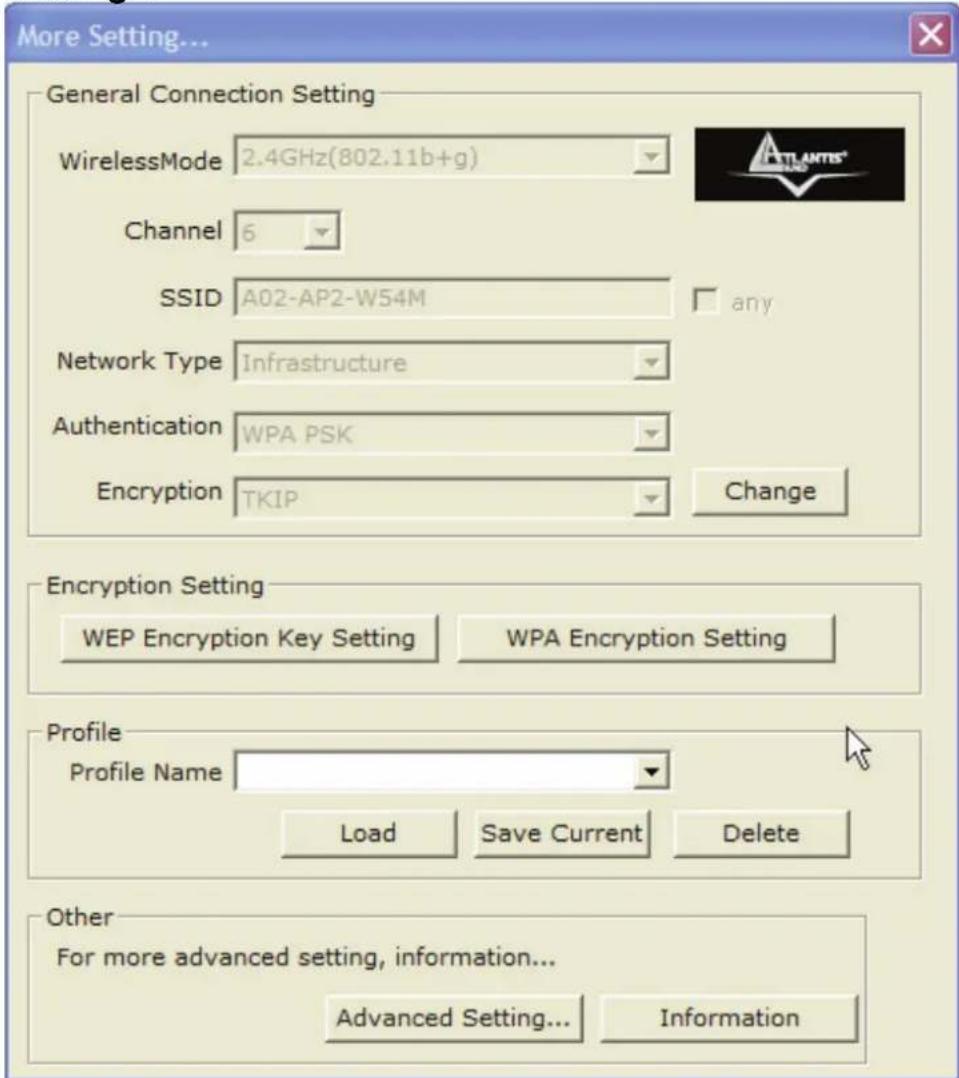

More Setting... General Connection Setting WirelessMode 2.4GHz(802.11b+g) Channel 6 SSID A02-AP2-W54M any Network Type Infrastructure Authentication WPA PSK Encryption TKIP Change Encryption Setting WEP Encryption Key Setting WPA Encryption Setting Profile Profile Name Load Save Current Delete Other For more advanced setting, information... Advanced Setting... Information

Profile Name: Displays the name of current profile. One device can have many profiles, but only one profile can be loaded at a time.

Save Current: Enter a new profile name and then click on the Save Current button to save the profile.

Load: Select a profile from the drop-down list and then click on the Load button.

Delete: To delete an existing profile, select it from the drop-down list and then click on the Delete button.

4.5 Advanced Settings

The Advanced Settings allows you to configure the WMM QoS Mode, Power consumption, and threshold values.

When USB is connected to selected Access Point, click More Settings then

Advanced Settings.

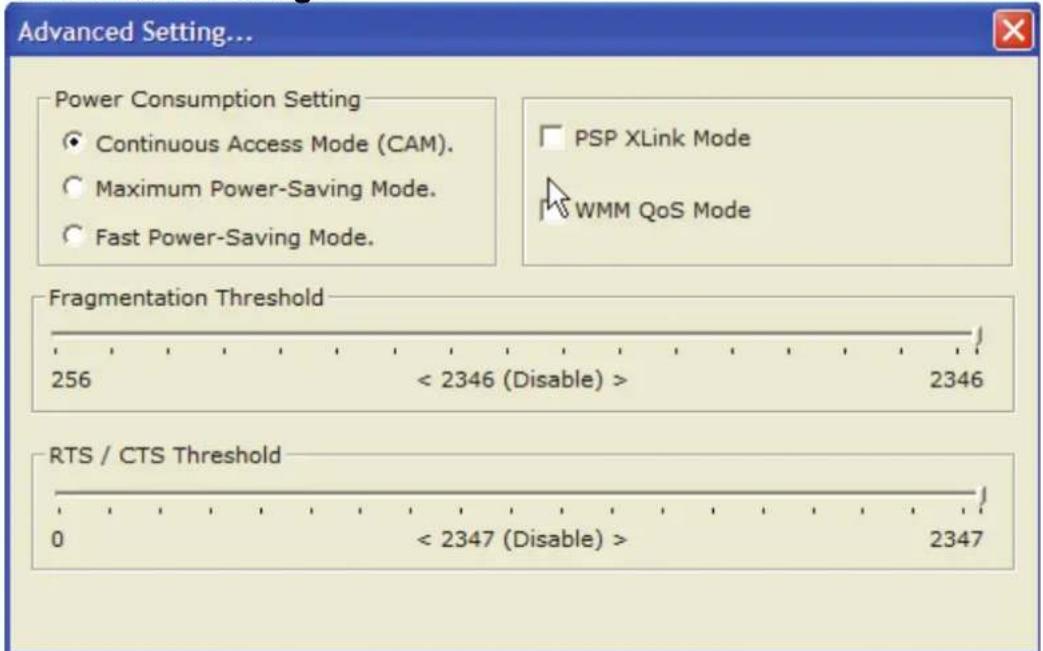

Advanced Setting... Power Consumption Setting Continuous Access Mode (CAM). Maximum Power-Saving Mode. Fast Power-Saving Mode. PSP XLink Mode WMM QoS Mode Fragmentation Threshold 256 < 2346 (Disable) > 2346 RTS / CTS Threshold 0 < 2347 (Disable) > 2347

• Power Consumption Setting: If your desktop or notebook is connected to external power, select Continuous Access Mode (CAM), if your notebook is using a battery, select Maximum Power-Saving Mode, or Fast Power-Saving Mode.
• WMM QoS Mode: select in order to activate Wi-Fi Multimedia Mode.
- Fragmentation Threshold: To set the number of bytes used for the fragmentation boundary for directed messages. Default is 2346 bytes.
• RTS Threshold: To set the size of RTS/CTS packet size. Default is 2347 bytes.

4.6 Soft AP

This page can setting and display Soft AP detail information.

Mode : Select the profile Access Point from the drop-down list.

Definition of each field.

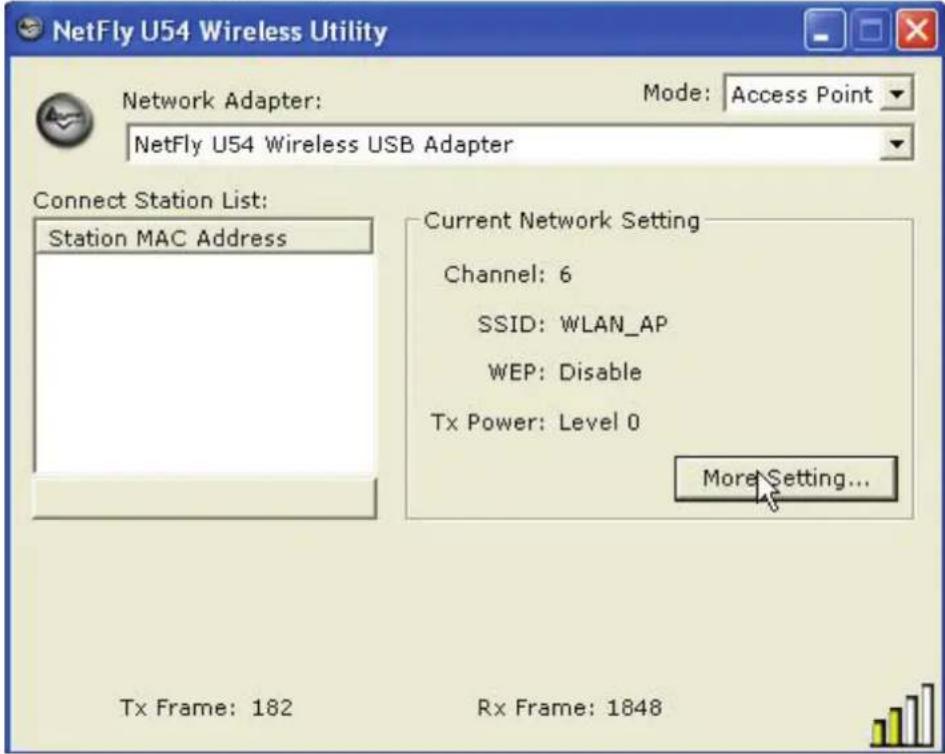

NetFly U54 Wireless Utility Network Adapter: Mode: Access Point NetFly U54 Wireless USB Adapter Connect Station List: Station MAC Address Current Network Setting Channel: 6 SSID: WLAN_AP WEP: Disable Tx Power: Level 0 More Setting... Tx Frame: 182 Rx Frame: 1848

Click More Settings:

General Connection Settings:

• Wireless Mode: Select wireless mode 802.11 b/g mixed, 802.11b only are supported. System default is 802.11 b/g mixed.
• Channel: The channel that AP will operate in. User can select the channel range from 1 to 11 for North America (FCC) domain, 1 to 13 for European (ETSI) domain.
• SSID: Service Set Identifier, which is a unique name shared among all clients and nodes in a wireless network. The SSID must be identical for each clients and nodes in the wireless network.
• Hide SSID: While SSID Broadcast is enabled, all wireless clients will be able to communicate with the access point. For secure purpose, user may want to disable SSID broadcast to allow only those wireless clients with the AP SSID to communicate with the access point.

Authentication and Security

This function is used to protect wireless communication from eavesdropping. A secondary function of encryption is to prevent unauthorized access to a wireless network, and it can be achieved by using the Encryption function. This Adapter provides only WEP security when used in Access Point mode.

• Fragmentation Threshold: To set the number of bytes used for the fragmentation boundary for directed messages. Default is 2340 bytes.
  • RTS Threshold: To set the size of RTS/CTS packet size. Default is 2340 bytes.
• Preamble: Preamble frames. Long preamble (128 bits sync field) and short preamble (56 bits sync field) are supported. System default is long preamble.
• Mac Address Filter: AP connected or can't connect with Mac address that user setting.

Filter Type	Reject	Access	Disable
Result	Access Control function doesn’t allows clients whose MAC addresses in the list will be able to connect to this Access Point.	Access Control function allows clients whose MAC addresses in the list will be able to connect to this Access Point.	Access Point doesn’t check MAC addresses

- Bridge Adapter: Select the device where you want the wireless packets to be sent to.

The range of radio frequencies used by IEEE 802.11g wireless devices is called a “channel”. Channels available depend on your geographical area. You may have a choice of channels (for your region) so you should use a different channel than an adjacent AP (access point) to reduce interference. Interference occurs when radio signals from different access points overlap causing interference and degrading performance.

Adjacent channels partially overlap however. To avoid interference due to overlap, your AP should be on a channel at least five channels away from a channel that an adjacent AP is using. For example, if your region has 11 channels and an adjacent AP is using channel 1, then you need to select a channel between 6 or 11.

How to configure WEP security:

This function is used to protect wireless communication from eavesdropping.

- Open System: with the same WEP key between the stations, the stations don't need to be authenticated, and this algorithm was set to default. Please select WEP or 802.11x Settings in order to complete the configuration.

- Shared Key: with the same WEP key between the stations in this Authentication algorithm, this type will use packets with encryption by transferring a challenge text which will be acknowledge by both side of the stations. In order to choose which authentication algorithm will be used, you must know which one the station supports this algorithm first. Please select WEP or 802.11x Settings in order to complete the configuration.

If you select 64bit in Hex format, you must type 10 values in the following range (0\~F, hexadecimal), or 64bit in ASCII format, you must type 5 values in the following range (0\~9, A\~Z and a\~z Alphanumeric). If you select 128bit in Hex format, you must type 26 values (0\~F, hexadecimal), or 128bit in ASCII format, you must type 13 values in the following range (0\~9, A\~Z and a\~z Alphanumeric).

	ASCII	HEX
64 bit 5*X	10*Y
128 bit 13*X	26*Y
256bit	29*X	58*Y

X=[(0\~9, A\~Z, a\~z Alphanumeric]

Y=[0\~9, A\~F Hexadecimal]

Be sure that the USB Adapter and the wireless station (AP) were set in the same key.

5 Uninstallation (Windows ME/XP/2000)

To uninstall the Wireless USB Adapter:

- Select Start->All programs->Atlantis->NetFly U54 Wireless Utility and select Uninstall.

• Click OK, then Finish.
• Now You can remove the Adapter.

6 Troubleshooting

Common Problems and Solutions

This chapter provides solutions to problems that may occur during the installation and operation of the WLAN 802.11g USB Adapter. Read the descriptions below to solve your problems.

1. My computer cannot find the Adapter

■ Make sure the Adapter has no physical damage.
■ Make sure the Adapter is properly inserted into USB slot.
■ Try the Adapter in other USB slots.
- Try another Adapter in that particular USB slot.

2. Cannot access any network resources from the computer. Make sure that the notebook PC is powered on.

■ Make sure that the notebook PC is powered on.
■ Make sure that the Adapter is configured with the same SSID and security options as the other computers in the infrastructure configuration.

Disable "Windows XP Wireless Zero Configuration

In Windows XP, it is recommended that you use the WLAN 802.11g Utility. Right after the installation, before opening the Utility, please follow the steps below to disable the Windows XP Zero Configuration:

1 Go to "Control Panel" and double click "Network Connections".
2 Right-click "Wireless Network Connection" of WLAN 802.11g Wireless LAN, and select "Properties".
3 Select "Wireless Networks" tab, and uncheck the check box of "Use Windows to configure my wireless network settings", and then click "OK".

Frequently Asked Questions

1. Can I run an application from a remote computer over the wireless network?

This will depend on whether or not the application is designed to be used over a network. Consult the application's user guide to determine if it supports operation over a network.

2. Can I play computer games with other members of the wireless network?

Yes, as long as the game supports multiple players over a LAN (local area network). Refer to the game's user guide for more information.

3. What is Spread Spectrum?

Spread Spectrum technology is a wideband radio frequency technique developed by the military for use in reliable, secure, mission-critical communications systems. It is designed to trade off bandwidth efficiency for reliability, integrity, and security. In other words, more bandwidth is consumed than in the case of narrowband transmission, but the trade-off produces a signal that is, in effect, louder and thus easier to detect, provided that the receiver knows the parameters of the spread-spectrum signal being broadcast. If a receiver is not tuned to the right frequency, a spread-spectrum signal looks like background noise. There are two main alternatives, Direct Sequence Spread Spectrum (DSSS) and Frequency Hopping Spread Spectrum (FHSS).

4. What is DSSS? What is FHSS? And what are their differences?

Frequency-Hopping Spread-Spectrum (FHSS) uses a narrowband carrier that changes frequency in a pattern that is known to both transmitter and receiver. Properly synchronized, the net effect is to maintain a single logical channel. To an unintended receiver, FHSS appears to be short-duration impulse noise. Direct-Sequence Spread-Spectrum (DSSS) generates a redundant bit pattern for each bit to be transmitted. This bit pattern is called a chip (or chipping code). The longer the chip, the greater the probability that the original data can be recovered. Even if one or more bits in the chip are damaged during transmission, statistical techniques embedded in the radio can recover the original data without the need for retransmission. To an unintended receiver, DSSS appears as low power wideband noise and is rejected (ignored) by most narrowband receivers.

5. Would the information be intercepted while transmitting on air?

WLAN features two-fold protection in security. On the hardware side, as with Direct Sequence Spread Spectrum technology, it has the inherent security feature of scrambling. On the software side, WLAN offers the encryption function (WEP) to enhance security and access control.

6. What is WEP?

WEP is Wired Equivalent Privacy, a data privacy mechanism based on a 64-bit or 128-bit shared key algorithm, as described in the IEEE 802.11 standard.

7. What is infrastructure mode?

When a wireless network is set to infrastructure mode, the wireless network is configured to communicate with a wired network through a wireless access point.

8. What is roaming?

Roaming is the ability of a portable computer user to communicate continuously while moving freely throughout an area greater than that covered by a single access point. Before using the roaming function, the workstation must make sure that it is the same channel number with the access point of dedicated coverage area.

9. What is ISM band?

The FCC and their counterparts outside of the U.S. have set aside bandwidth for unlicensed use in the ISM (Industrial, Scientific and Medical) band. Spectrum in the vicinity of 2.4 GHz, in particular, is being made available worldwide. This presents a truly revolutionary opportunity to place convenient high-speed wireless capabilities in the hands of users around the globe.

10. What is the IEEE 802.11g standard?

Approved in June, 2003 as an IEEE standard for wireless local area networks (WLANs), 802.11g offers wireless transmission over relatively short distances at up to 54 megabits per second (Mbps) compared with the 11 megabits per second of the 802.11b (Wi-Fi) standard. Like 802.11b, 802.11g operates in the 2.4 GHz range and is thus compatible with it.

7 Product Support

I you have any problems with the WirelessUSB Adapter, please consult this manual. If you continue to have problems you should contact the dealer where you bought this device. If you have any other questions you can contact the Atlantis Land company directly at the following address:

Atlantis Land SpA

Viale De Gasperi, 122

Illustration of four laptops connected to a central computer tower, with curved lines indicating data or communication (no text or symbols present)

Figure 2-2

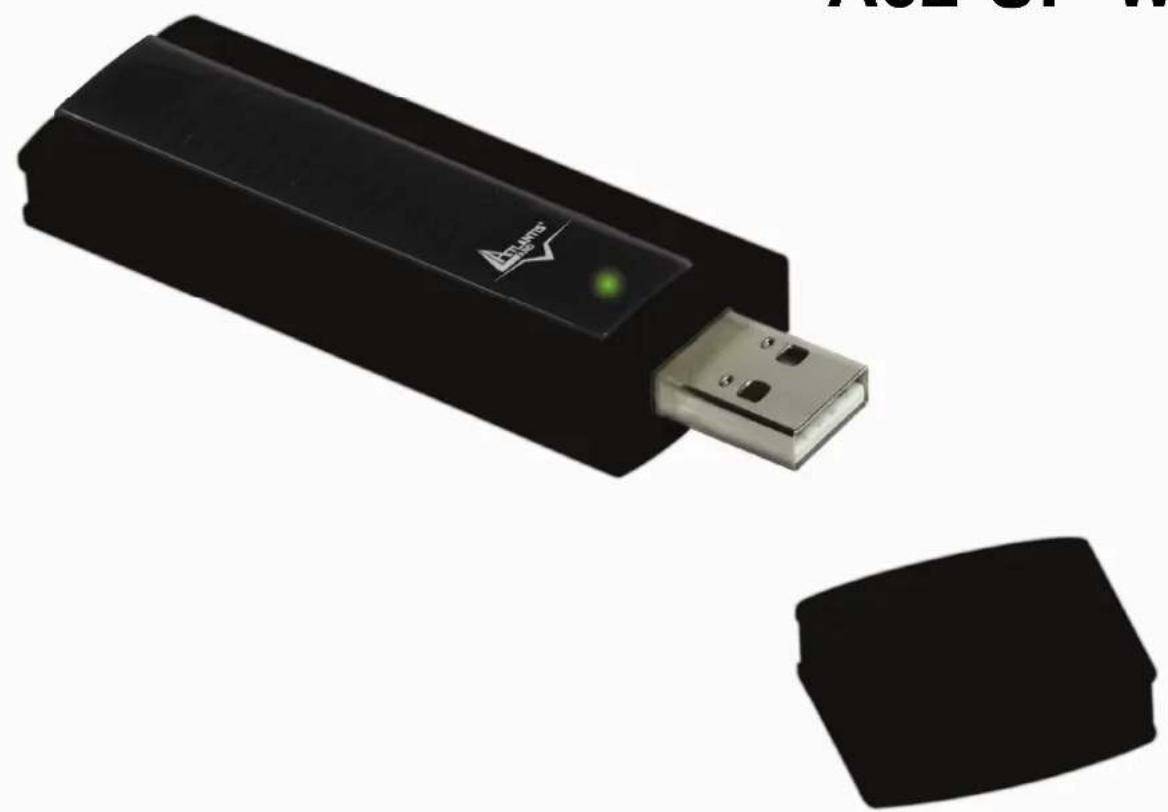

USB plug: Should be plug to the USB connector ACT LED: Solid Green while connected and blinking during activity

2 Installation (Windows ME/2000 et XP)

NetFly U54 Wireless Utility 802.11b/g Welcome to the InstallShield Wizard for NetFly U54 Wireless Utility 802.11b/g The InstallShield Wizard will install NetFly U54 Wireless Utility 802.11b/g on your computer. To continue, click Next.

Cliquer sur Next.

NetFly U54 Wireless Utility 802.11b/g Choose Destination Location Select folder where setup will install files. Setup will install NetFly U54 Wireless Utility 802.11b/g in the following folder. To install to this folder, click Next. To install to a different folder, click Browse and select another folder. Destination Folder C:\Programmi\Atlantis\NetFly U54 Wireless Utility Browse... InstallShield < Back Next > Cancel

NetFly U54 Wireless Utility Network Adapter: Mode: Station NetFly U54 Wireless USB Adapter Available Network: SSID Strength RB 93% A02-AP2-W54M 86% wlan-ap 50% default 55% WiLan 61% AP0F97D6 21% LINK WIRELF 26% Refresh Selected Network Information Channel: 6 Type: Infrastructure Encrypt: On BSSID: 00 0E E8 F7 07 70 Connect this site Link Status: Connected to Access Point. BSSID=00 03 2F 3B 7F C1 Signal Strength: 58% Link Quality: 86% Tx Frame: 106 Rx Frame: 103

WPA Setting... Connect Information Protocol: Phase2Auth: User Name: Password: Validate Server Certificate Pre-shared Key Passphrase: Key Format: ASCII Hexadecimal Certificate Change

FRANCAIS

More Setting... General Connection Setting WirelessMode 2.4GHz(802.11b+g) Channel 6 SSID A02-AP2-W54M any Network Type Infrastructure Authentication WPA PSK Encryption TKIP Change Encryption Setting WEP Encryption Key Setting WPA Encryption Setting Profile Profile Name Load Save Current Delete Other For more advanced setting, information... Advanced Setting... Information

NetFly U54 Wireless Utility Network Adapter: Mode: Access Point NetFly U54 Wireless USB Adapter Connect Station List: Station MAC Address Current Network Setting Channel: 6 SSID: WLAN_AP WEP: Disable Tx Power: Level 0 More Setting... Tx Frame: 182 Rx Frame: 1848

Illustration of five laptops connected to a central tower, with curved lines indicating data or communication (no text or symbols present)

Figura 2-2

USB plug: Should be plug to the USB connector ACT LED: Solid Green while connected and blinking during activity

NetFly U54 Wireless Utility 802.11b/g Welcome to the InstallShield Wizard for NetFly U54 Wireless Utility 802.11b/g The InstallShield Wizard will install NetFly U54 Wireless Utility 802.11b/g on your computer. To continue, click Next. < Back Next > Cancel

NetFly U54 Wireless Utility 802.11b/g Choose Destination Location Select folder where setup will install files. Setup will install NetFly U54 Wireless Utility 802.11b/g in the following folder. To install to this folder, click Next. To install to a different folder, click Browse and select another folder. Destination Folder C:\Programmi\Atlantis\NetFly U54 Wireless Utility Browse... InstallShield < Back Next > Cancel

NetFly U54 Wireless Utility Network Adapter: Mode: Station NetFly U54 Wireless USB Adapter Available Network: SSID Strength RB 93% A02-AP2-W54M 86% wlan-ap 50% default 55% WiLan 61% AP0F97D6 21% LINK WIRELF 26% Refresh Selected Network Information Channel: 6 Type: Infrastructure Encrypt: On BSSID: 00 0E E8 F7 07 70 Connect this site Link Status: Connected to Access Point. BSSID=00 03 2F 3B 7F C1 Signal Strength: 58% Link Quality: 86% Tx Frame: 106 Rx Frame: 103

WPA Setting... Connect Information Protocol: Phase2Auth: User Name: Password: Validate Server Certificate Pre-shared Key Passphrase: Key Format: ASCII Hexadecimal Certificate Change

More Setting... General Connection Setting WirelessMode 2.4GHz(802.11b+g) Channel 6 SSID A02-AP2-W54M any Network Type Infrastructure Authentication WPA PSK Encryption TKIP Change Encryption Setting WEP Encryption Key Setting WPA Encryption Setting Profile Profile Name Load Save Current Delete Other For more advanced setting, information... Advanced Setting... Information

NetFly U54 Wireless Utility Network Adapter: Mode: Access Point NetFly U54 Wireless USB Adapter Connect Station List: Station MAC Address Current Network Setting Channel: 6 SSID: WLAN_AP WEP: Disable Tx Power: Level 0 More Setting... Tx Frame: 182 Rx Frame: 1848

Tel: [phone] (Fax: [phone])

Help Desk :+39.(0)2.9390763

APPENDIX A

For some European Country, it may have its own domain; users are responsible for ensuring that the channel set configuration is in compliance with the regulatory standards of these countries.

Country Code Region	Channel	Regulatory	Doma
0	1-11	USA/CANADA
1	1-13	ETSI(Europe)
2	10-11	Spain
3	10-13	France
4	14	MKK
5	1-14	Japan (MKKI Telecom)
6	3-9	Israel
7	5-13	Israel

APPENDIX B

TECHNICAL FEATURES

Physical Interface

-Host Interface: USB v1.1/2.0

-Operation Voltage: 3.3V

-LEDs: Link status

Wireless Interface:

-Chipset: Atheros® (ZD1211B)

-Antenna: Printed antenna

Security:

-WEP encryption (64-bit/128-bit)

-WPA-PSK and WPA2-PSK

-WPA and WPA2

Radio Specifications:

-Frequency Range: 2.412 \~ 2.497Ghz

-Standard Compliance: 802.11b, 802.11g

-Modulation: 802.11g: OFDM / 802.11b: CCK(11Mbps) / DQPSK(2Mbps) / DBPSK(1Mbps)

-Operating Channel: US/Canada: 11 (1\~11)/ Europe: 13 (1\~13) / France: 4 (10\~13)

-Transmission Rate:

802.11b: 1, 2, 5.5, 11Mbps

802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps

-Operation Range: [Indoor: < 25 m / Outdoor: < 80 m]

-RF max. output power: 14dBm @ 802.11g mode, 15dBm @ 802.11b mode

-Receiver Sensitivity(802.11g mode): -68 dBm (typically)*

-Receiver Sensitivity(802.11b mode): -80 dBm (typically)**

-Access Mode: Ad-Hoc and Infrastructure mode

Advanced Wireless Features

- Quality of Service (QoS) [802.11e, WMM]

- PSP XLink Mode

- Access Point Mode (Windows XP)

System Requirements

- PC with available USB V2.0/1.1*** slot

-Intel® Pentium®III 600Mhz or compatible processor with 128MB RAM

-Windows 98SE/ME/2000/XP or Vista

-Minimum 15 Mbytes free disk space for installing the driver and utilities

-CDRom drive

Physical and Environmental:

-Storage Temperature: -10\~65°C

-Operating Temperature: 0\~40°C

-Humidity: 10% - 90% RH, no condensation

-Dimensions: 66 x 26 x 9 mm

-Continuous Current Consumption: 360 mA (Rx), 362 mA (Tx)

Certifications:

-CE (Europe)

*10% PER(Packet Error Rate)

** 8% PER(Packet Error Rate)

***When plug the device in the USB 1.1/1.0 port, the real throughput will be up to 6Mbps only when running 11Mbps or higher speed

All rights registered

Microsoft and Windows are registered trademarks of Microsoft Corporation

All trade names and marks are registered trademarks of respective companies

Specifications are subjected to change without prior notice. No liability for technical errors and/or omissions

Performance and Throughput are influenced by many factors (interference, noise, environments)

Atlantis Land S.p.A. Viale De Gasperi, 122 Mazzo di Rho – MI – Italy [e-mail] [e-mail]

Where solutions begin
