USER MANUAL NetFly UP3 WN ATLANTIS-LAND

Wireless N 150Mbps NANO USB Adapter

MultiLanguage Manual

NetFly UP3 WN

Atlantis

ITALIANO

This product is covered by Atlantis 2 years warranty. For more detailed informations please refer to the web site www.atlantis-land.com.

For more detailed instructions on configuring and using this device, please refer to the online manual.

FRANCAIS

APPENDICE B: WPS (Wi-Fi Protected Setup) 28

APPENDICE C: AP Mode 30

1.PRODUCT OVERVIEW 43

1.1 How the Adapter works 44
1.1 System Requirements 45

2.PACKAGE CONTENTS 45

3.SOFTWARE INSTALLATION 45

3.1 Utility and Driver Installation 46
3.2 Uninstallation 46

4.HARDWARE INSTALLATION 46

4.1 Hardware Installation for USB Adapter 46
4.2 Using the Configuration Utility 46

5. UTILITY 48

5.1 General 48
5.2 Profiles 48
5.3 Available Network 49
5.4 Status 52

Atlantis

5.5 Statistics 52
5.6 WPS 54

WPS(PBC Mode)Configuration 54

1. Support 54
   APPENDIX A: Connect to a network using Windows client 56
   APPENDIX B: IP Address in DHCP Client Mode 58
   APPENDIX C: Troubleshooting 60

FRANCAIS

1.ADAPTATEUR WIRELESS 67

Fax: [phone]

Website: http://www.atlantis-land.com

Email: [e-mail]

APPENDICE B: WPS (Wi-Fi Protected Setup)

APPENDICE C: AP Mode

No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, whether electronic, mechanical, photocopying, recording or otherwise without the prior writing of the publisher. Windows™ 98SE/2000/ME/XP/VISTA are trademarks of Microsoft® Corp. Pentium is trademark of Intel. All copyright reserved.

The Atlantis logo is a registered trademark of Atlantis. All other names mentioned may be trademarks or registered trademarks of their respective owners. Subject to change without notice. No liability for technical errors and/or omissions.

Wireless LAN, Health and Authorization for use

Radio frequency electromagnetic energy is emitted from Wireless LAN devices. The energy levels of these emissions however are far much less than the electromagnetic energy emissions from wireless devices like for example mobile phones. Wireless LAN devices are safe for use frequency safety standards and recommendations. The use of Wireless LAN devices may be restricted in some situations or environments for example:

• On board of airplanes, or
• In an explosive environment, or
  In case the interference risk to other devices or services is perceived or identified as harmful

In case the policy regarding the use of Wireless LAN devices in specific organizations or environments (e.g. airports, hospitals, chemical/oil/gas industrial plants, private buildings etc.) is not clear, please ask for authorization to use these devices prior to operating the equipment.

Regulatory Information/disclaimers

Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications made to this device that are not expressly approved by the manufacturer may void the user's authority to operate the equipment. The Manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, of the substitution or attachment.

Manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines.

CE Mark Warning

In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

CE in which Countries where the product may be used freely:

Atlantis

Germany, UK, Italy, Spain, Belgium, Netherlands, Portugal, Greece, Ireland, Denmark, Luxembourg, Austria, Finland, Sweden, Norway and Iceland.

France: except the channel 10 through 13, law prohibits the use of other channels.

CE/EMC Restriction of Liability

The product described in this handbook was designed, produced and approved according to the EMC-regulations and is certified to be within EMC limitations.

If the product is used in an uncertified PC, the manufacturer undertakes no warranty in respect to the EMC limits. The described product in this handbook was constructed, produced and certified so that the measured values are within EMC limitations. In practice and under special circumstances, it may be possible, that the product may be outside of the given limits if it is used in a PC that is not produced under EMC certification. It is also possible in certain cases and under special circumstances, which the given EMC peak values will become out of tolerance. In these cases, the user himself is responsible for compliance with the EMC limits.

Declaration of Conformity

This equipment has been tested and found to comply with Directive 1999/5/CE of the European Parliament and of the Council on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity. After assessment, the equipment has been found to comply with the following standards: EN 300.328 (radio), EN 301 489-1, EN 301 489-17 (electromagnetic compatibility) and EN 60950 (safety). This equipment may be used in all European Union contries and in all countries applying Directive 1999/5/CE, without restriction, with the exception of the following countries:

France (FR): When this equipment is used outdoors, output power is limited to within the frequency bans listed on the chart. For more info, consult the website www.artelcom.fr.

Location	Frequency Band (MHz)	Power (EIRP)
Indoor (no restriction)	2400-2483,5	100mW(20dBm)
Outdoor	2400-2454	100mW(20dBm)
	2454-2483,5	10mW(10dBm)

Italy(IT): For more info, consult the website www.comunicazioni.it

Luxembourg: General authorization requie for network and service supply.

Norway (NO): This subsection does not apply for geographical area within a radius of 20km from the center of Ny Alesund.

Atlantis

Russia (CCP): only for indoor application.

CE

Hereby We declare that this product is in compliance with the essential requirements and other relevant provisions of Directive "Electromagnetic Compatibility" and 1999/5/CE within CE Marking Requirement.

CE Declaration is available on the web site www.atlantis-land.com.

Important information for the correct recycle/treatment procedures of this equipment

The crossed-out wheeled bin symbol printed on the unit label or unit packaging indicates that this equipment must not be disposed of as unsorted municipal waste but it should be collected separately.

The waste of electric and electronic equipment must be treated separately, in order to ensure that hazardous materials contained inside the equipment are not buried thereby providing potential future problems for the environment and human health. Moreover, it will be possible to reuse and recycle some parts of the waste of electric and electronic equipment, contributing to reduce the quantities of waste to be disposed of and the depletion of natural resources.

As user of this equipment, you are responsible to return this waste of electronic equipment to an authorised collection facility set up by your Municipality. More detailed information on your nearest collection centre can be obtained from your Municipality or from other competent local entities.

If you are replacing the old equipment with a new equivalent product, the distributor must take-back the old equipment free of charge on a one-to one basis as long as the equipment is of equivalent type and fulfilled the same functions as the supplied equipment.

Your role in participating to the separate collection of waste of electric and electronic equipment is essential to ensure that environmental protection and human health objectives connected to a responsible treatment and recycling activities are achieved.

PS.: The above mentioned information are reported herewith in compliance with Directive 2002/96/CE, which requires a separate collection system and specific treatment and disposal

Atlantis

procedures for the waste of electric and electronic equipments (WEEE). For further and more detailed information, we invite you to visit our website at www.atlantis-land.com

CE Logo with attention Mark ( C C ) aren't fully compliant with minimum dimensions requirement to European Directive due to limited sticker area.

WEEE BIN Logo () isn't really compliant with minimum dimensions requirement to European Directive due to limited sticker area.

Atlantis suggest to visit the web site www.atlantis-land.com in order to retrieve update manual, techsheet and driver.

Before starting, take a few minutes to read this manual. Read all of instructions and save this manual for later reference.

Atlantis

Thank you for purchasing the Wireless USB Adapter that provides the easiest way to wireless networking. This User Manual contains detailed instructions in the operation of this product. Please keep this manual for future reference.

1.PRODUCT OVERVIEW

Thank you for purchasing the NetFly that provides the easiest way to wireless networking.

The NetFly (hereafter called the USB Adapter) is a high-efficiency wireless LAN USB Adapter for wireless networking at home, in office or in public places. With the Adapter, you can roam between conference room and office without being disconnected the LAN cables; in addition, sharing files and printers can be easy tasks.

The NetFly is available to Microsoft Windows operating systems (Windows XP/VISTA/7, Linux and Mac OS X) and can be integrated into networking with either Ad-hoc mode (computer-to-computer, without an Access Point), Infrastructure mode (computer-to-access point, an Access Point is required) or Access Point Mode.

The device offers quick and easy access among wired network and wireless network. The NetFly also supports WPA/WPA2 security, it increases the level of data protection and access control for Wireless LAN.

Last but not least WPS and WMM supports offers an high throughput for HD Video Streaming and an easy way to make sure you wireless network.

Access Point Mode: PC with Wireless USB Adapter work as an Access Point. You can save money and make a little network using Your PC+Adapter as an Access Point. This features is available only on selected SO (Vista/7).

Atlantis

1.1 How the Adapter works

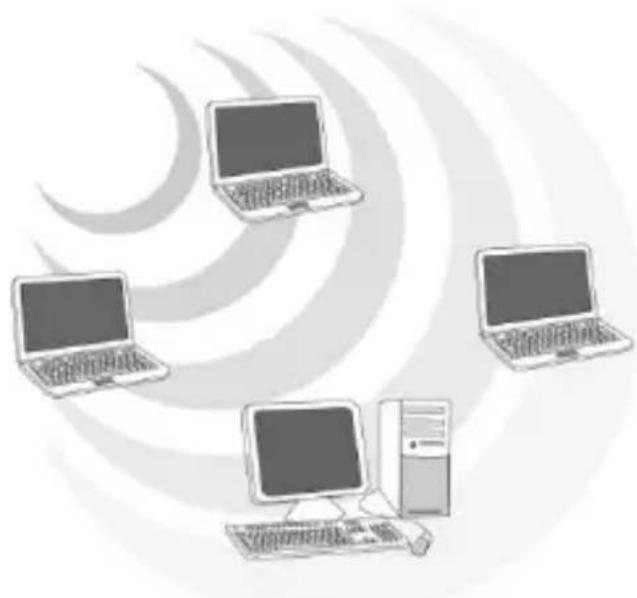

Ad-hoc Mode: An Ad-hoc network is a local area network or other small network, especially one with wireless or temporary plug-in connections, in which some of the network devices are part of the network only for the duration of a communications session. Users in the network can share files, print to a shared printer, and access the Internet with a shared modem. In this kind of network, new devices can be quickly added; however, users can only communicate with other wireless LAN computers that are in this wireless LAN workgroup, and are within range.

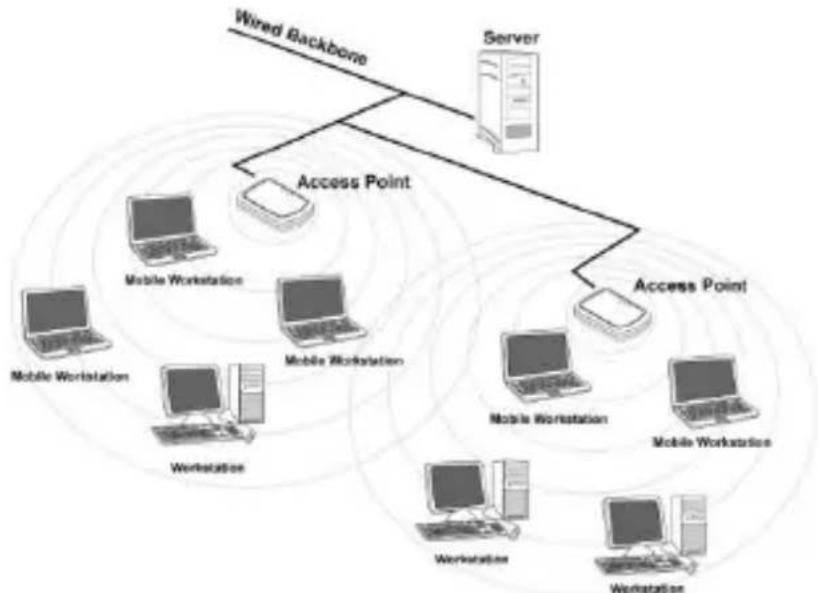

Infrastructure Networking Mode: The difference between Infrastructure network and Ad-hoc network is that the former one includes an Access Point. In an Infrastructure network, the Access Point can manage the bandwidth to maximize

Atlantis

bandwidth utilization. Additionally, the Access Point enables users on a wireless LAN to access an existing wired network, allowing wireless users to take advantage of the wired networks resources, such as Internet, email, file transfer, and printer sharing. The scale and range of the Infrastructure networking are larger and wider than that of the Ad-hoc networking.

Access Point Mode: PC with Wireless USB Adapter works as an Access Point. You can save money and make a little network using Your PC+Adapter as an Access Point. This features is available only on selected SO (Vista/7).

1.1 System Requirements

Before installing the Adapter, your PC should meet the following:

PC with available USB V2.0/1.1*
Intel Pentium®III 600Mhz or compatible processor with 512 MB RAM
- Windows® XP/Vista/7, Mac OS X and Linux operating system
Minimum 45 Mbytes free disk space for installing the driver and utilities
- CD-Rom drive

The throughput is limited to 6Mbps if the wireless N Mini USB adapter is plugged on an USB rev1.1 slot.

2. PACKAGE CONTENTS

Open the box of the NetFly Wireless Adapter and carefully unpack it. The box should contain the following items:

One NetFly USB Wireless Adapter
- One MultiLanguage Quick Start Guide (English, French and Italian)
CD-Rom with Utility, Driver and Manual (English, French and Italian)
- 1 x Warranty Card and 1 x WEEE Card

If any item is found missing or damaged, please contact your local reseller for replacement.

3. SOFTWARE INSTALLATION

This section will lead you to install the driver and utility of the Wireless LAN Adapter/Card.

Atlantis

3.1 Utility and Driver Installation

• Insert the CD-ROM and the Auto-run program will appear (alternatively, open a file browser and double click on the start.htm file located in the CD directory).
• Click on A02-UP3-WN icon to select NetFly USB Home Page.
• Select Driver and the install wizard will begin installing the software. Follow the install wizard instructions to complete the installation.
• Follow the Install Shield Wizard Instructions. Click Next to continue and finish it.

If you need to install the driver/utility manually, refer each Windows OS to the following CD-Rom directory path: CD-ROM:\A02-UP3-WN\Driver

Please plug Wireless USB Adapter into USB Slot, it will be recognized and auto installed.

The installation program will help you to setup the Wireless LAN utility.

3.2 Uninstallation

To uninstall the Wireless USB Adapter, go to the Control Panel of your system.

• Open the Add/Remove Programs.
• Select the Realtek Wireless LAN Driver & Utility in the Add/Remove Programs and then click on the Remove.
• Click on Remove ALL [or Overwrite the older version install without remove].
  Then chose Yes, I want to restart my computer and click Finish.

Now You can remove the Adapter.

4. HARDWARE INSTALLATION

4.1 Hardware Installation for USB Adapter

Please plug the Wireless adapter (only when requested from OS) to a free USB slot on the PC.

4.2 Using the Configuration Utility

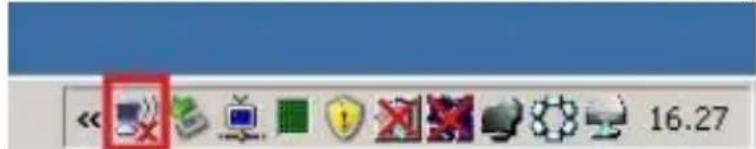

When the Wireless LAN Adapter was installed, you will see the icon on the Windows task bar. The user can configure the wireless settings using the Wireless Adapter Configuration Utility. Double-click the utility icon that appears in the taskbar

Atlantis

ICON	INFORMATION
	Excellent
	Not connected yet
	Device not recognized

When You click on this icon in the Windows task bar You can see 4 different links:

• Launch Config Utilities
  Information
• Hide
• Exit

5. UTILITY

Double-click the Wireless LAN icon (or right-click and then select Launch Config Utilities) to launch the Configuration Utility. With the Wireless Adapter utility, users can configure all the functions provided by the Wireless Monitor Utility. Double-click the utility icon that appears in the taskbar.

The Wireless Monitor Utility includes 6 tabs: General, Profile, Available Network, Status, Statistics, WPS.

5.1 General

You can check details about the Link (Status, Tx, RX, Network Type, Authentication and Security, SSID) and USB Adapter (MAC, IP, Subnet and Gateway).

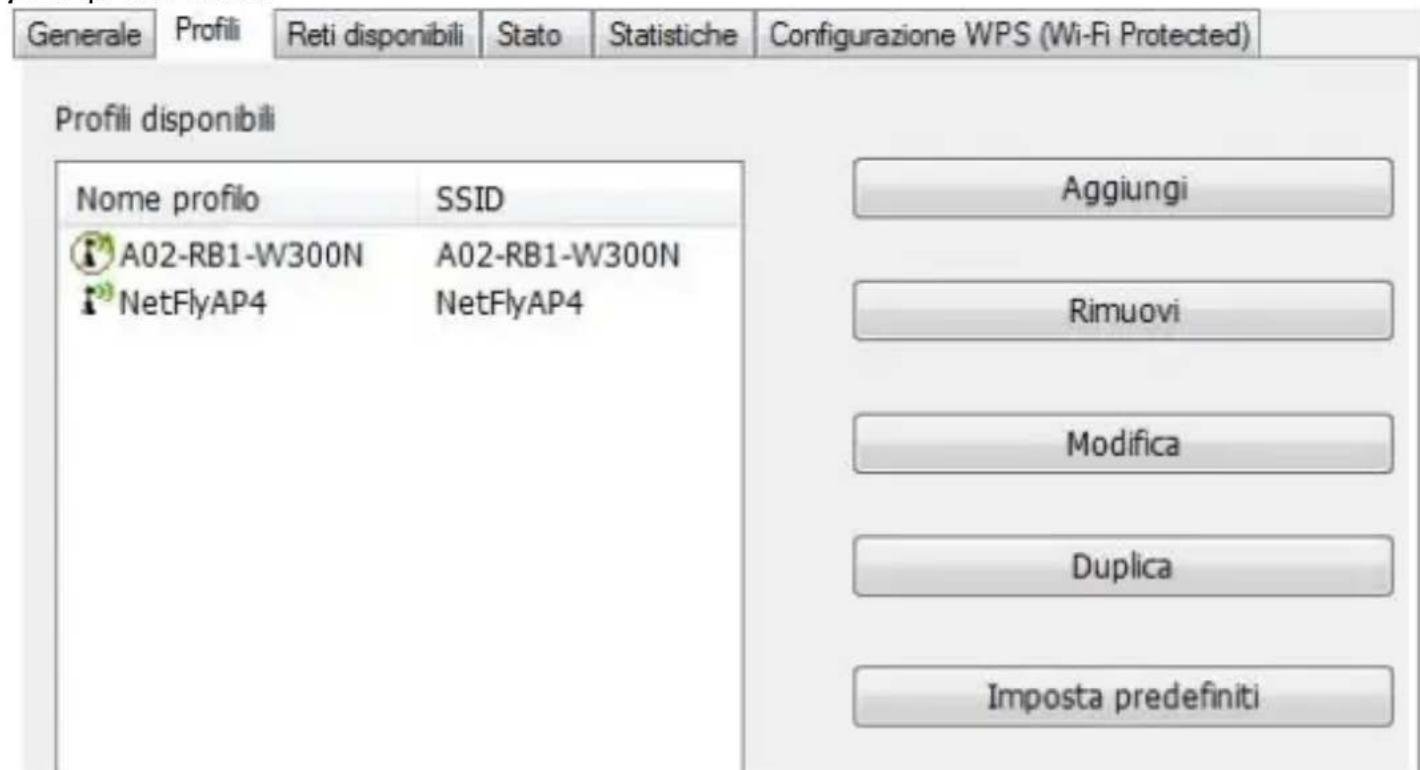

5.2 Profiles

Profile can book keeping your favorite wireless setting among your home, office, and other public hotspot. You may save multiple profiles, and activate the correct one at your preference.

Click Edit (Modifica) button to change the selected Profile or click Activate (Imposta Predefiniti) button, after choose a profile, in order to use selected profile for current connection.

If you need to add a new connection profile please go to tab Available Network.

The active profile will be underlined with a circle around the icon ( ).

Atlantis

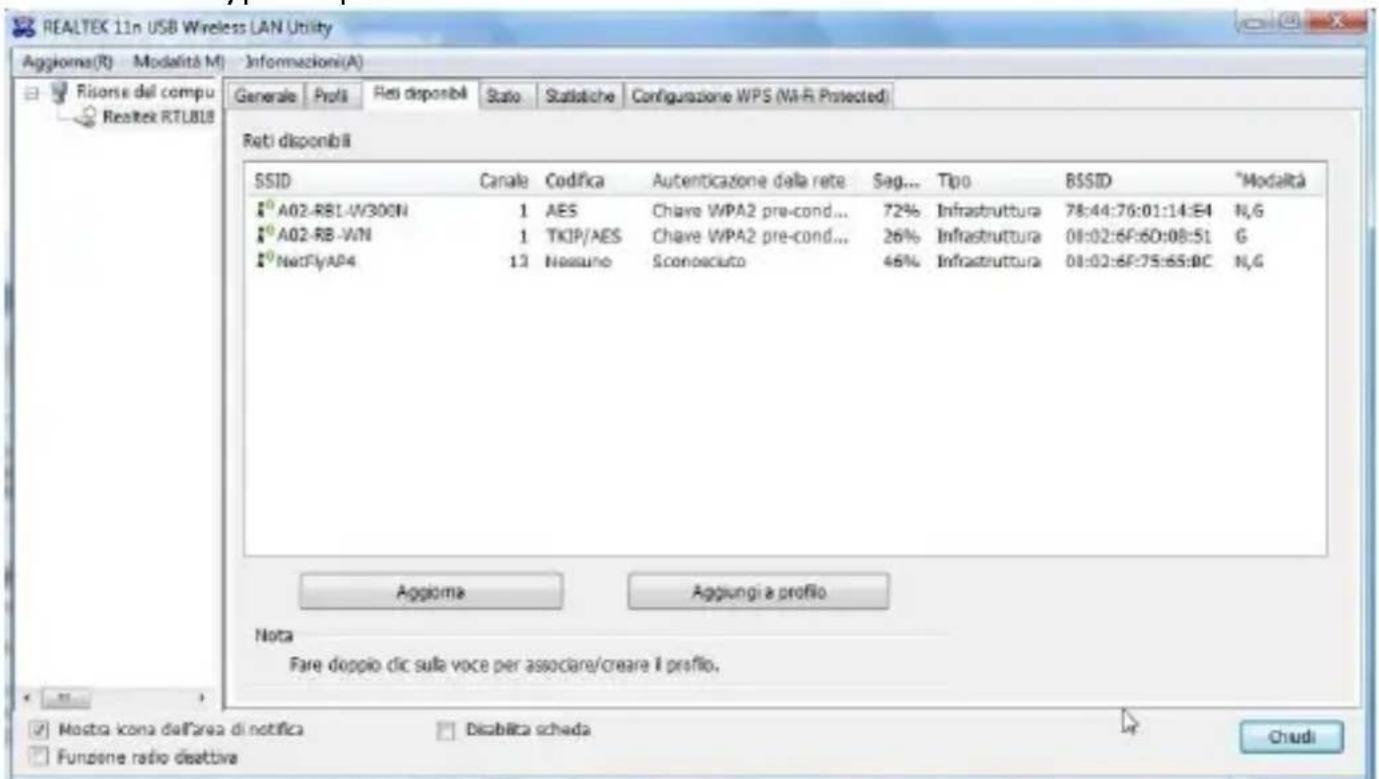

5.3 Available Network

Under the Network page, system will display the information of surrounding APs from last scan result. List information's include SSID, Signal, Channel, Encryption algorithm, and Network type as picture shown.

Rescan(Aggiorna): Issue an rescan command to wireless NIC to update information on surrounding wireless network.

Add to Profile (Aggiungi a profile): select an AP profile, click Add to Profile. It will bring up profile page and save user's setting to a new profile.

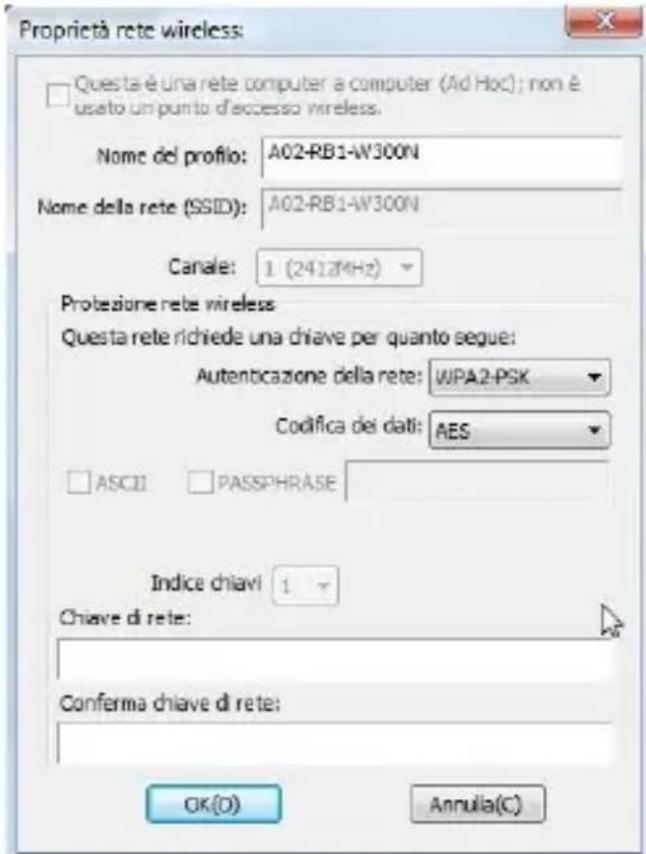

If selected AP supports WEP or WPA/WPA2 You have to chose Authentication and Security tab in order to connect to the wireless network.

Atlantis

• Nome Profilo : Diqit the Name of profile.
• Nome della rete (SSID): You can watch the SSID.
• Channel (Canale) : You can watch the channel number.

Click on Authentication and Security tab in order to configure wirless security

WPA2-PSK and WPA-PSK

Select encryption type between TKIP or AES.

Insert pre-shared key to use between AP and client (8-32 characters).

Atlantis suggest to use WPA2-PSK with AES. WEP or

WPA/WPA2-PSK with TKIP can introduce degradations of wireless performance.

Be sure that the USB Adapter and the wireless station (AI) were set in the same key.

How to configure WEP security:

If you select 64bit in Hex format, you must type 10 values in the following range (0~F, hexadecimal), or 64bit in ASCII format, you must type 5 values in the following range (0~9, A~Z and a~z Alphanumeric).

If you select 128bit in Hex format, you must type 26 values (0~F, hexadecimal), or 128bit in ASCII format, you must type

Atlantis

	13 values in the following range (0~9, A~Z and a~z Alphanumeric).
	ASCII	HEX
64 bit	5*X	10*Y
128 bit	13*X	26*Y
X=[(0~9, A~Z, a~z Alphanumeric]Y=[0~9, A~F Hexadecimal]Be sure that the USB Adapter and the wireless station (AP were set in the same key.WEP is not completely secure. If possible please use WPA-PSK.

To use this type of security WAP 802.11x and WPA2 802.11x, RADIUS server is needed. For additional information about this configuration, please see section Help.

Atlantis

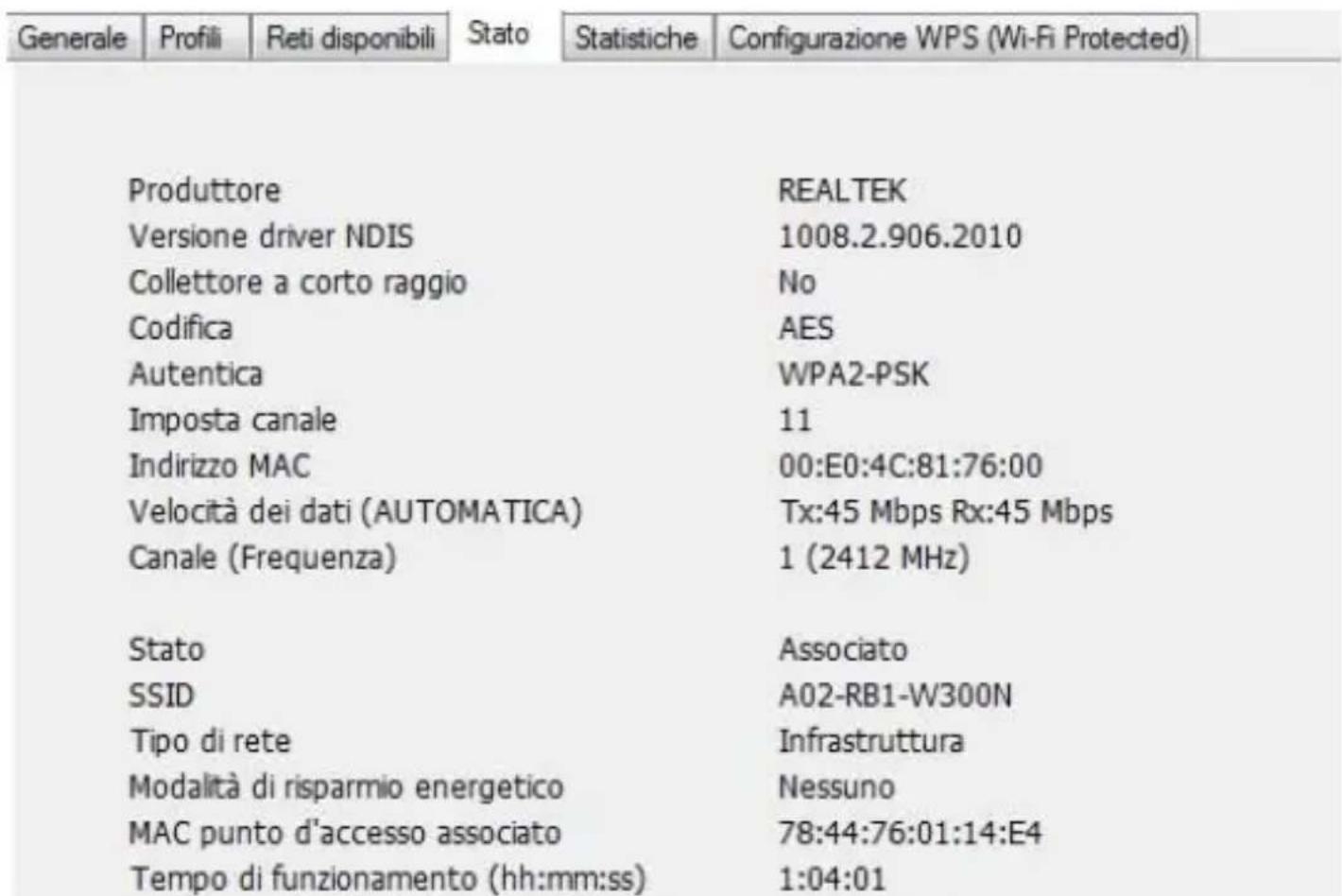

5.4 Status

You can check details about the Link (Status, SSID, Network Type, AP's MAC, Link Time) and USB Adapter (Chipset, Driver version, Authentication and Security, MAC, Tx and RX, Channel)

5.5 Statistics

Statistics page displays the detail counter information based on 802.11 MIB counters. This page translates that MIB counters into a format easier for user to understand. The picture shows the detail page layout.

Atlantis

Generale

Profili

Retidisponibili

Stato

Statistische

Configurazione WPS (Wi-Fi Protected)

• Frames Transmitted Successfully: Frames successfully sent.
• Frames Transmitted Successfully Without Retry: Frames successfully sent without any retry.
• Frames Transmitted Successfully After Retry: Frames successfully sent with one or more retries.
• Frames Fail To Receive ACK After All Retries: Frames failed transmit after hitting retry limit.
• RTS Frames Successfully Receive CTS: Successfully receive CTS after sending RTS frame.
  RTS Frames Fail To Receive CTS: Failed to receive CTS after sending RTS.
• Frames Received Successfully: Frames received successfully.
• Frames Received With CRC Error: Frames received with CRC error.
• Frames Dropped Due To Out-of-Resource: Frames dropped due to
  resource issue.
  Duplicate Frames Received: Duplicate received frames.

Click Reset for erase all statistics.

Atlantis

5.6 WPS

WPS is a set of specifications (supported by 802.11n draft) that will help you to configure your network easily.

It exists 2 ways to use WPS: PBC (Push Button Configuration) mode and PIN mode.

WPS (PBC Mode) Configuration

Following, is possible to find a procedure to configure a wireless secure connection by WPS (PCB Mode):

Before starting procedure, be sure that:

• There isn't any AP in WPS mode active.

• Access Point that are in WPS mode have finished its scan for devices.

• Click on PBC button to start synchronization process between AP and client.

• Press PCB button on AP.

For more informations:
http://www.wi-fi.org/files/kc_80_20070104_Introducing_Wi-Fi_ProTECTED_Setup.pdf
http://www.wi-fi.org/files/wp_18_20070108_Wi-Fi_ProTECTED_Setup_WP_FINAL.pdf

6. Support

For technical questions and support, please contact our help-desk by ticket on http://www.atlantis-land.com/ita/supporto.php.

For generic informations, please send an e-mail to [e-mail].

For presales informations, please send an e-mail to [e-mail].

Atlantis SpA

Via S. Antonio, 8/10

20020 Lainate (MI)

Fax: [phone]

Website: http://www.atlantis-land.com

Atlantis

Email: [e-mail]

Atlantis

APPENDIX A: Connect to a network using Windows client

MS Windows XP and Windows VISTA/7 can manage the USB client with its embedded utility for wireless networks; MAC OS X requires an external management utility (provided on the CD) to set and manage the USB/ wireless client.

Windows 7

You can access the Connect to a network dialog box from many locations in Windows 7, including the following:

• By clicking Start, and then Control Panel (select Large/Small Icon) then click on Network and Sharing Center icon. Click on Connect to a Netzok.
• From the Manage wireless connections (in the Wireless) select the wireless network SSID and click Connect.

If any wireless network is available, please check that the USB/PCI wireless client is correctly installed on your PC.

Windows VISTA

You can access the Connect to a network dialog box from many locations in Windows Vista, including the following:

• By clicking Start, and then Connect to from the Windows Vista desktop
  From the Manage wireless connections dialog box
• From the Connect/Disconnect context menu option of a wireless network adapter in the Network Connections folder.
• Select Wireless (on the combo box) in the filed Show, select the wireless network SSID and click Connect.

If any wireless network is available, please check that the USB/PCI wireless client is correctly installed on your PC.

Atlantis

Windows XP

Double click on Wireless network icon on the system tray (see picture).

• Select the wireless network SSID and click Connect.

If any wireless network is available, please check that the USB/PCI wireless client is correctly installed on your PC.

In windows XP, it provides wireless configuration utility named windows zero configuration which provides basic configuration function for Wireless USB Adapter. Currently, Realtek's utility provides WPA-PSK supplicant's functionality. If user required WPA function.

Please select WZC as main utility. To make it easier for user to select the correct utility. Realtek Utility will let user make the selection when it first ran after XP boot. Click the icon of will bring up the selection window and let user make the selection. When coexisting with WZC, Realtek Utility only provides monitoring function, such as link status, site surveying, statistic counters and advance feature status

APPENDIX B: IP Address in DHCP Client Mode

Configuring PC (Windows 2000)

• Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and Dial-up Connections.
  Double-click LAN Area Connection/Wireless.
  In the LAN Area Connection/Wireless Status window, click Properties.
• Select Internet Protocol (TCP/IP) and click Properties.
• Select the Obtain an IP address automatically and the Obtain DNS server address automatically radio buttons.
• Click OK to finish the configuration.

Configuring PC (WindowsXP)

• Go to Start / Control Panel (in Classic View). In the Control Panel, double-click on Network Connections.
  Double-click Local Area Connection/Wireless.
  In the LAN Area Connection/Wireless Status window, click Properties.
• Select Internet Protocol (TCP/IP) and click Properties.
• Select the Obtain an IP address automatically and the Obtain DNS server address automatically radio buttons.
• Click OK to finish the configuration.

Configuring PC (Windows Vista)

• Go to Start / Control Panel (in Classic View). In the Control Panel, double-click on Network and Sharing Center icon.
• Click Manage Network connections then double-click Local Area Connection/Wireless and click Properties.
• Click Continue (Windows needs your permission to continue).
• Select Internet Protocol Version 4 (TCP/IP) and click Properties.
• Select the Obtain an IP address automatically and the Obtain DNS server address automatically radio buttons.
• Click OK to finish the configuration

Atlantis

Configuring PC (Windows 7)

• Go to Start / Control Panel (select Large/Small Icon). In the Control Panel, double-click on Network and Sharing Center icon.
• Click Change Adapter Settings then double-click Local Area Connection/Wireless and click Properties.
• Click Continue (Windows needs your permission to continue).
• Select Internet Protocol Version 4 (TCP/IP) and click Properties.
• Select the Obtain an IP address automatically and the Obtain DNS server address automatically radio buttons.
• Click OK to finish the configuration

APPENDIX C: Troubleshooting

This chapter provides solutions to problems that may occur during the installation and operation of the WLAN 802.11n USB Adapter. Read the descriptions below to solve your problems.

QUESTION	SOLUTION
My computer cannot find the Adapter	·Make sure the Adapter has no physical damage. ·Make sure the Adapter is properly inserted into USB slot. ·Try the Adapter in other USB slots. ·Try another Adapter in that particular USB slot.
Cannot access any network resources from the computer. Make sure that the notebook PC is powered on	·Make sure that the notebook PC is powered on. ·Make sure that the Adapter is configured with the same SSID and security options as the other computers in the infrastructure configuration.
Disable "Windows XP Wireless Zero Configuration	In Windows XP, it is recommended that you use the WLAN 802.11n Utility. Right after the installation, before opening the Utility, please follow the steps below to disable the Windows XP Zero Configuration: ·Go to Control Panel and double click Network Connections. ·Right-click Wireless Network Connection of WLAN 802.11n Wireless LAN, and select Properties. ·Select Wireless Networks tab, and uncheck the check box of Use Windows to configure my wireless network settings, and then click OK.
Can I run an application from a remote computer over the wireless network?	This will depend on whether or not the application is designed to be used over a network. Consult the application's user guide to determine if it supports operation over a network.
Can I play computer games with other	Yes, as long as the game supports multiple players over a LAN (local area network).

Atlantis

members of the wireless network?	Refer to the game's user guide for more information.
What is Spread Spectrum?	Spread Spectrum technology is a wideband radio frequency technique developed by the military for use in reliable, secure, mission-critical communications systems. It is designed to trade off bandwidth efficiency for reliability, integrity, and security. In other words, more bandwidth is consumed than in the case of narrowband transmission, but the trade-off produces a signal that is, in effect, louder and thus easier to detect provided that the receiver knows the parameters of the spread-spectrum signal being broadcast. If a receiver is not tuned to the right frequency, a spread-spectrum signal looks like background noise. There are two main alternatives, Direct Sequence Spread Spectrum (DSSS) and Frequency Hopping Spread Spectrum (FHSS).
What is DSSS? What is FHSS? And what are their differences?	Frequency-Hopping Spread-Spectrum (FHSS) uses a narrowband carrier that changes frequency in a pattern that is known to both transmitter and receiver. Properly synchronized, the net effect is to maintain a single logical channel. To an unintended receiver, FHSS appears to be short-duration impulse noise. Direct-Sequence Spread-Spectrum (DSSS) generates a redundant bit pattern for each bit to be transmitted. This bit pattern is called a chip (or chipping code). The longer the chip, the greater the probability that the original data can be recovered. Even if one or more bits in the chip are damaged during transmission, statistical techniques embedded in the radio can recover the original data without the need for retransmission. To an unintended receiver, DSSS appears as low power wideband noise and is rejected (ignored) by most narrowband receivers.
Would the information be intercepted while	WLAN features two-fold protection in security. On the hardware side, as with Direct Sequence Spread

Atlantis

transmitting on air?	Spectrum technology, it has the inherent security feature of scrambling. On the software side, WLAI offers the encryption function (WEP) to enhance security and access control.
What is WEP?	WEP is Wired Equivalent Privacy, a data privacy mechanism based on a 64-bit or 128-bit shared key algorithm, as described in the IEEE 802.11 standard.
What is infrastructure mode?	When a wireless network is set to infrastructure mode, the wireless network is configured to communicate with a wired network through a wireless access point.
What is roaming?	Roaming is the ability of a portable computer user to communicate continuously while moving freely throughout an area greater than that covered by a single access point. Before using the roaming function, the workstation must make sure that it is the same channel number with the access point dedicated coverage area.
What is ISM band?	The FCC and their counterparts outside of the U.S. have set aside bandwidth for unlicensed use in the ISM (Industrial, Scientific and Medical) band. Spectrum in the vicinity of 2.4 GHz, in particular, is being made available worldwide. This presents a truly revolutionary opportunity to place convenient high-speed wireless capabilities in the hands of users around the globe.
What is the IEEE 802.11g standard?	Approved in June, 2003 as an IEEE standard for wireless local area networks (WLANs), 802.11g offers wireless transmission over relatively short distances at up to 54 megabits per second (Mbps), compared with the 11 megabits per second of the 802.11b (Wi-Fi) standard. Like 802.11b, 802.11g operates in the 2.4 GHz range and is thus compatible with it.
What is the IEEE 802.11n standard?	Is an IEEE standard for wireless local area networks (WLANs), 802.11n offers wireless transmission over relatively short distances at up to 600 megabits (more bandwidth 40Mhz instead of 20Mhz and more flux) per second (Mbps) compared with the 54/11

Atlantis

megabits per second of the 802.11g/b (Wi-Fi) standard. Like 802.11b/g, 802.11n operates in the 2.4 GHz range and is thus compatible with it.

Atlantis

Copyright

• Launch Config Utilities
  Information
• Hide
• Exit

Atlantis

5. LOGICIEL DE CONFIGURATION POUR WINDOWS

5.3 Available Network

Fax: [phone]

Website: http://www.atlantis-land.com

Email: [e-mail]

APPENDICE C: AP Mode

APPENDIX A: Technical Specifications

Technical Specs
Standards	IEEE 802.11b/g/n
Chipset	Realtek® 8188CUS
Interface	USB V2.0/V1.1
LED	1 (Status)
WPS	Yes (SW button)
Antenna	Internal Striped Antenna
Advanced Features	AP Mode on Windows 7/Vista/XP WMM
Frequency Band	2412 ~ 2483 MHz
Radio Technology	IEEE 802.11g/n: Orthogonal Frequency Division Multiplexing (OFDM) IEEE 802.11b: Direct Sequence Spread Spectrum (DSSS)
Modulations Scheme	DBPSK/DQPSK/CCK/OFDM
Media Access Protocol	CSMA/CA with ACK
Transmission Rate	Up to 150Mbps (auto-sense with auto fallback)
Security	64/128-bit WEP, WPA-PSK, WPA2-PSK
Transmitting Power	802.11b/g/n: up to 16 ± 1 dBm
Receiver Sensitivity	802.11b (1Mbps): -90dBm @8% PER 802.11b (6Mbps): -88dBm @8% PER 802.11b (11Mbps): -85dBm @8% PER 802.11g (54Mbps): -68dBm @10% PER 802.11n (150Mbps): -68dBm @10% PER
Number of Operational Channel	Europe (13)
Range Coverage	Indoor: up to 100 meters Outdoor: up to 300 meters
Supported OS	MS Windows® VISTA (32/64-bit) MS Windows® XP (32/64-bit) MS Windows® 7 (32/64-bit) Linux Kernel 2.6.18 ~ 2.6.35 Mac OS X 10.4/10.5/10.6 (Intel) Mac OS X 10.4/10.5 (PowerPC)
Certifications	CE (Europe), WHQL Certification for driver
Dimensions(mm)	14 x 7 x 10 (without USB)
Temperature Range	Operation: 0°C ~ 32°C Storage: -10°C ~ 60°C

Atlantis

Humidity	10% ~ 75% (non Condensing)
Continuos Current Consumption	240mA (Tx), 370mA (Rx)
System Requirements	PC with available USB V2.0/1.1 slotIntel Pentium® III 600Mhz or compatible processor with 512MB RAMWindows XP/Vista/7, Mac OS X or Linux operating systemMinimum 45 Mbytes free disk space for installing the driver and utilitiesCD-Rom drive
Package Contents	One NetFly USB Wireless AdapterQuick Start Guide (English, French and Italian)CD-Rom with Utility, Driver and Manual (English, French and Italian)1 x Warranty Card and 1 x WEEE Card

All rights registered

Microsoft and Windows are registered trademarks of Microsoft Corporation

Mac OS X is a trademark of Apple Inc.

All trade names and marks are registered trademarks of respective companies

Specifications are subjected to change without prior notice.

No liability for technical errors and/or omissions.

Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate.

Environmental factors will adversely affect wireless signal range.

Compatibility with draft 802.11n devices from other manufacturers is not guaranteed.

CE Logo with attention Mark aren't fully compliant with minimum dimensions requirement to European Directive due to limited sticker area.
