Product Type	Network card / WiFi PCIe adapter
Brand	ATLANTIS-LAND
Model	NetFly PCIe1 WN
WiFi Standards	IEEE 802.11 b/g/n (up to 300 Mbps for the high-speed model)
Host Interface	PCI Express
Antennas	1 antenna 2 dBi (model A02-PCIE-WN) or 2 antennas 2 dBi (model A02-PCIE1-W300N)
Dimensions (approx.)	120 x 21 x 18 mm (standard PCIe card)
Weight	Approximately 30 g
Power	Via PCI Express slot (low power consumption)
Security	WPA/WPA2, WEP 64/128 bits, IEEE 802.11i
Max Transfer Speed	300 Mbps (model A02-PCIE1-W300N) or 150 Mbps (model A02-PCIE-WN)
Supported Operating Systems	Windows 2000/XP/Vista/7, Linux (kernel 2.6.18)
Operating Modes	Infrastructure and Ad-Hoc
Package Contents	Adapter, antenna(s), quick installation guide, CD-ROM (drivers and manuals)
Warranty	2 years
Operating Temperature	0°C to 40°C
Operating Humidity	10% to 90% (non-condensing)
Certifications	CE, Directive 1999/5/EC
Safety Distance	At least 30 cm between antennas and users
Recycling	Do not dispose of with household waste, selective collection (WEEE)
System Requirements	Free PCI Express slot, 600 MHz processor, 512 MB RAM, 45 MB hard disk, CD-ROM drive

Frequently Asked Questions - NetFly PCIe1 WN ATLANTIS-LAND

How to physically install the PCI Express card?

Turn off the computer and unplug the power cable. Open the case, unscrew the bracket of a free PCI Express slot, carefully insert the card (without forcing), then secure it with the screw. Close the case and reconnect the power.

Which drivers to install and in what order?

Before inserting the card, insert the CD-ROM and start the driver installation. Select the corresponding model and operating system. Follow the wizard, restart the computer, then insert the PCIe card.

How to configure the WiFi connection under Windows 7?

Go to Control Panel > Network and Sharing Center > Manage network connections. Click on Connect to a network, select your WiFi network, enter the security key, and confirm.

What to do if the computer does not detect the card?

Check that the card is properly inserted into the slot and not damaged. Try another PCI Express slot. Make sure the drivers are installed before inserting the card.

How to secure my wireless connection?

Use WPA2 encryption (recommended) or WEP with a complex key. Configure the SSID and enable MAC filtering if possible. Update the firmware and drivers.

Can I use this card with Windows XP?

Yes, Windows XP is supported. After driver installation, make sure Windows manages the wireless connection via the built-in utility (Wireless Network Configuration).

What is the maximum speed of this card?

It depends on the model: up to 150 Mbps for model A02-PCIE-WN and up to 300 Mbps for model A02-PCIE1-W300N (802.11n standard).

How to uninstall the card drivers?

Go to Control Panel > Add or Remove Programs (Windows 2000/XP) or Programs and Features (Vista/7). Select Realtek Wireless Lan Card, click on Change/Remove, then choose Remove. Restart if necessary.

Does the card work under Linux?

Yes, but only with kernel 2.6.18 and tested distributions. Atlantis Land does not guarantee operation on other configurations. Check the manufacturer's website for more info.

What does the crossed-out trash bin symbol on the packaging mean?

This symbol indicates that the equipment should not be disposed of with household waste. It must be taken to a selective collection center for waste electrical and electronic equipment (WEEE) to be recycled properly.

USER MANUAL NetFly PCIe1 WN ATLANTIS-LAND

Electronic hardware component with two black RF antennas and a green PCI chip labeled 'Atlantis' (no additional text or symbols visible)

Wireless N PCI Express CARD

MultiLanguage Manual

NetFly PCIe WN

NetFly PCIe1 WN

Atlantis

ITALIANO

This product is covered by Atlantis Land 2 years warranty. For more detailed informations please refer to the web site www.atlantis-land.com.

For more detailed instructions on configuring and using this device, please refer to the online manual.

FRANCAIS

3.1 Utility and Driver Installation 28

3.2 Uninstallation.... 29

1. HARDWARE INSTALLATION 29

4.1 Hardware Installation for PCI-E Card....29

1. Connect to a network using Windows client.... 30

2. Support.... 32

APPENDIX A: IP Address in DHCP Client Mode 33

APPENDIX B: Troubleshooting 35

FRANCAIS

1. ADAPTATEUR WIRELESS.... 42

APPENDIX A: Country Channel List 52

APPENDIX B: Technical Specifications 53

A02-PCIE(1)-W(300)N_GX01 (v1.01 Mar 2010)

Atlantis

AVVERTENZE

Screenshot of a software toolbar with icons and a numeric value 16.27 highlighted

20020 Lainate (MI) - Italy

Website: http://www.atlantis-land.com

Email: [e-mail]

No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, whether electronic, mechanical, photocopying, recording or otherwise without the prior writing of the publisher. Windows™ 98SE/2000/ME/XP/VISTA are trademarks of Microsoft® Corp. Pentium is trademark of Intel. All copyright reserved.

The Atlantis Land logo is a registered trademark of Atlantis Land. All other names mentioned mat be trademarks or registered trademarks of their respective owners. Subject to change without notice. No liability for technical errors and/or omissions.

Wireless LAN, Health and Authorization for use

Radio frequency electromagnetic energy is emitted from Wireless LAN devices. The energy levels of these emissions however are far much less than the electromagnetic energy emissions from wireless devices like for example mobile phones. Wireless LAN devices are safe for use frequency safety standards and recommendations. The use of Wireless LAN devices may be restricted in some situations or environments for example:

• On board of airplanes, or
• In an explosive environment, or
- In case the interference risk to other devices or services is perceived or identified as harmful

In case the policy regarding the use of Wireless LAN devices in specific organizations or environments (e.g. airports, hospitals, chemical/oil/gas industrial plants, private buildings etc.) is not clear, please ask for authorization to use these devices prior to operating the equipment.

Regulatory Information/disclaimers

Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications made to this device that are not expressly approved by the manufacturer may void the user's authority to operate the equipment. The Manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, of the substitution or attachment. Manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines.

CE Mark Warning

In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

CE in which Countries where the product may be used freely:

Atlantis

Germany, UK, Italy, Spain, Belgium, Netherlands, Portugal, Greece, Ireland, Denmark, Luxembourg, Austria, Finland, Sweden, Norway and Iceland.

France: except the channel 10 through 13, law prohibits the use of other channels.

CE/EMC Restriction of Liability

The product described in this handbook was designed, produced and approved according to the EMC-regulations and is certified to be within EMC limitations.

If the product is used in an uncertified PC, the manufacturer undertakes no warranty in respect to the EMC limits. The described product in this handbook was constructed, produced and certified so that the measured values are within EMC limitations. In practice and under special circumstances, it may be possible, that the product may be outside of the given limits if it is used in a PC that is not produced under EMC certification. It is also possible in certain cases and under special circumstances, which the given EMC peak values will become out of tolerance. In these cases, the user himself is responsible for compliance with the EMC limits.

Declaration of Conformity

This equipment has been tested and found to comply with Directive 1999/5/CE of the European Parliament and of the Council on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity. After assessment, the equipment has been found to comply with the following standards: EN 300.328 (radio), EN 301 489-1, EN 301 489-17 (electromagnetic compatibility) and EN 60950 (safety). This equipment may be used in all European Union countries and in all countries applying Directive 1999/5/CE, without restriction, with the exception of the following countries:

France (FR): When this equipment is used outdoors, output power is limited to within the frequency bans listed on the chart. For more info, consult the website www.art-telecom.fr.

Location	Frequency Band (MHz)	Power (EIRP)
Indoor (no restriction)	2400-2483,5	100mW(20dBm)
Outdoor	2400-2454	100mW(20dBm)
	2454-2483,5	10mW(10dBm)

Italy(IT): For more info, consult the website www.comunicazioni.it

Luxembourg: General authorization requie for network and service supply.

Norway (NO): This subsection does not apply for geographical area within a radius of 20 km from the center of Ny Alesund.

Atlantis

Russia (CCP): only for indoor application.

CE!

Declaration of Conformity

Hereby We declare that this product is in compliance with the essential requirements and other relevant provisions of Directive "Electromagnetic Compatibility" and 1999/5/CE within CE Marking Requirement.

CE Declaration is available on the web site www.atlantis-land.com.

Important information for the correct recycle/treatment procedures of this equipment

The crossed-out wheeled bin symbol printed on the unit label or unit packaging indicates that this equipment must not be disposed of as unsorted municipal waste but it should be collected separately.

The waste of electric and electronic equipment must be treated separately, in order to ensure that hazardous materials contained inside the equipment are not buried thereby providing potential future problems for the environment and human health.

Moreover, it will be possible to reuse and recycle some parts of the waste of electric and electronic equipment, contributing to reduce the quantities of waste to be disposed of and the depletion of natural resources.

As user of this equipment, you are responsible to return this waste of electronic equipment to an authorised collection facility set up by your Municipality. More detailed information on your nearest collection centre can be obtained from your Municipality or from other competent local entities.

If you are replacing the old equipment with a new equivalent product, the distributor must take-back the old equipment free of charge on a one-to one basis as long as the equipment is of equivalent type and fulfilled the same functions as the supplied equipment.

Your rôle in participating to the separate collection of waste of electric and electronic equipment is essential to ensure that environmental protection and human health objectives connected to a responsible treatment and recycling activities are achieved.

Atlantis

PS.: The above mentioned information are reported herewith in compliance with Directive 2002/96/CE, which requires a separate collection system and specific treatment and disposal procedures for the waste of electric and electronic equipments (WEEE). For further and more detailed information, we invite you to visit our website at www.atlantis-land.com

CE Logo with attention Mark ( ) aren't fully compliant with minimum dimensions requirement to European Directive due to limited sticker area.

WEEE BIN Logo () isn't fully compliant with minimum dimensions requirement to European Directive due to limited sticker area.

Atlantis Land suggest to visit the web site www.atlantisland.com in order to retrieve update manual, techsheet and driver.

Illustration of an open book with a magnifying glass resting on it (no text or symbols visible)

Before starting, take a few minutes to read this manual. Read all of instructions and save this manual for late reference.

Atlantis

Thank you for purchasing NetFly PCIe Wireless that provides the easiest way to wireless networking. This User Manual contains detailed instructions in the operation of this product. Please keep this manual for future reference.

1. PRODUCT OVERVIEW

The NetFly (hereafter called the Adapter) is a high-efficiency wireless LAN Card/Adapter for wireless networking at home, in office or in public places. With the Adapter, you can roam between conference room and office without being disconnected the LAN cables; in addition, sharing files and printers can be easy tasks.

The NetFly is available to Microsoft Windows operating systems (Windows XP/2000/VISTA/7, Linux) and can be integrated into networking with either Ad-hoc mode (computer-to-computer, without an Access Point), Infrastructure mode (computer-to-access point, an Access Point is required).

The device offers quick and easy access among wired network and wireless network. The NetFly also supports WPA/WPA2 security, it increases the level of data protection and access control for Wireless LAN.

MIMO radio technology (available only on 300Mbps devices) and multiple Antennas provide extended coverage and low throughput fluctuations.

PCI Express technology offers several advantages over the common PCI interface, such as a higher speeds between the adapter's board and the host computer and in addition has lower power requirements.

1.2 System Requirements

Before installing the Adapter, your PC should meet the following:

• PC with available PCIe slot
- Intel ^ Pentium ^ III 600Mhz or compatible processor with 512 MB RAM
- Windows ^ 2000/XP/Vista/7 and Linux operating system
• Minimum 45 Mbytes free disk space for installing the driver and utilities
- CD-Rom drive

2. PACKAGE CONTENTS

Open the box of the NetFly Wireless Adapter/Card and carefully unpack it. The box should contain the following items:

• NetFly PCIe Wireless Card
• 2 dBi Antenna (only for A02-PCIE-WN)
- 2*2 dBi Antennas (only for A02-PCIE1-W300N)

Atlantis

• One MultiLanguage Quick Start Guide (English, French and Italian)
• CD-Rom with Utility, Driver and Manual (English, French and Italian)
• 1 x Warranty Card and 1 x WEEE Card

If any item is found missing or damaged, please contact your local reseller for replacement.

3. SOFTWARE INSTALLATION

This section will lead you to install the driver and utility of the Wireless LAN Adapter/Card.

3.1 Utility and Driver Installation

• Insert the CD-ROM and the Auto-run program will appear (alternatively, open a file browser and double click on the start.htm file located in the CD directory).
• Click A02-PCIE(1)-W(300)N to select NetFly PCIe Wireless Home Page.
• Select the Driver for Your OS and the install wizard will begin installing the software.
• Follow the Install Shield Wizard Instructions. Click Next to continue and finish it.

NOTE:

If you need to install the driver/utility manually, refer each Windows OS to the following CD-Rom directory path: CD-ROM:\A02-PCIE-WN\Driver\.

Please plug PCIe Card (shut down before the computer the PC) into PCI Express Slot (check the next section), it will be recognized and auto installed.

The installation program will help you to setup the Wireless LAN utility.

NOTE:

Optional (How do I know if my adapter is installed properly?)

Go to Start > My Computer > Properties then select the Hardware Tab. Click the + sign, next to Network Adapters. Right-click on Realtek RTL8191(2)SE Wireless LAN 802.11n PCI-E NIC. Select Properties to check that the drivers are installed properly. Look under Device Status to check that the device is working properly.

Click OK to continue.

3.2 Uninstallation

To uninstall the Wireless PCIe Card, go to the Control Panel of your system.

• Open the Add/Remove Programs.
• Select the Realtek Wireless Lan Card in the Add/Remove Programs and then click on the Remove.
• Click on Remove ALL.
  • Then chose Yes, I want to restart my computer and click Finish.

Now (shut down before the computer the PC) You can remove the PCIe Card.

4. HARDWARE INSTALLATION

4.1 Hardware Installation for PCI-E Card

The setup of the Wireless LAN Card can be performed using the following steps:

• Shut down the computer, unplugs its power cord, and remove the chassis cover.
• Insert the contact edge of the NetFly card into the connector of any available PCI Express slot. Press the card firmly into the connector such that the card's contacts are fully seated in the connector.
  • Install the bracket screw and secure the card to the computer chassis.
• Visually inspect the PCIe Card and make sure that it is fully plugged in to the PCI Express slot.
  • Cover the computer's chassis.
• Switch computer power on.

The OS will start an automatic hardware discovery procedure in order to find and install the best driver available for the device.

NOTE:

Make sure that there is a well environment that there is n much intrusion to have a better connection.

5. Connect to a network using Windows client

MS Windows XP and Windows VISTA/7 can manage the USB/PCI client with its embedded utility for wireless networks; Windows 2000 requires an external management utility (provided on the CD) to set and manage the USB/PCI wireless client.

Windows 7

You can access the Connect to a network dialog box from many locations in Windows 7, including the following:

• By clicking Start, and then Control Panel (select Large/Small Icon) then click on Network and Sharing Center icon. Click on Connect to a Network.
• From the Manage wireless connections (in the Wireless) select the wireless network SSID and click Connect.

NOTE:

If any wireless network is available, please check that the USB/PCI wireless client is correctly installed on your PC.

Windows VISTA

You can access the Connect to a network dialog box from many locations in Windows Vista, including the following:

• By clicking Start, and then Connect to from the Windows Vista desktop
• From the Manage wireless connections dialog box
- From the Connect/Disconnect context menu option of a wireless network adapter in the Network Connections folder.
- Select Wireless (on the combo box) in the filed Show, select the wireless network SSID and click Connect.

NOTE:

If any wireless network is available, please check that the USB/PCI wireless client is correctly installed on your PC.

Windows XP

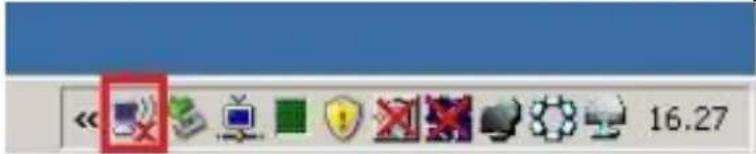

• Double click on Wireless network icon on the system tray (see picture).

<<< 16.27

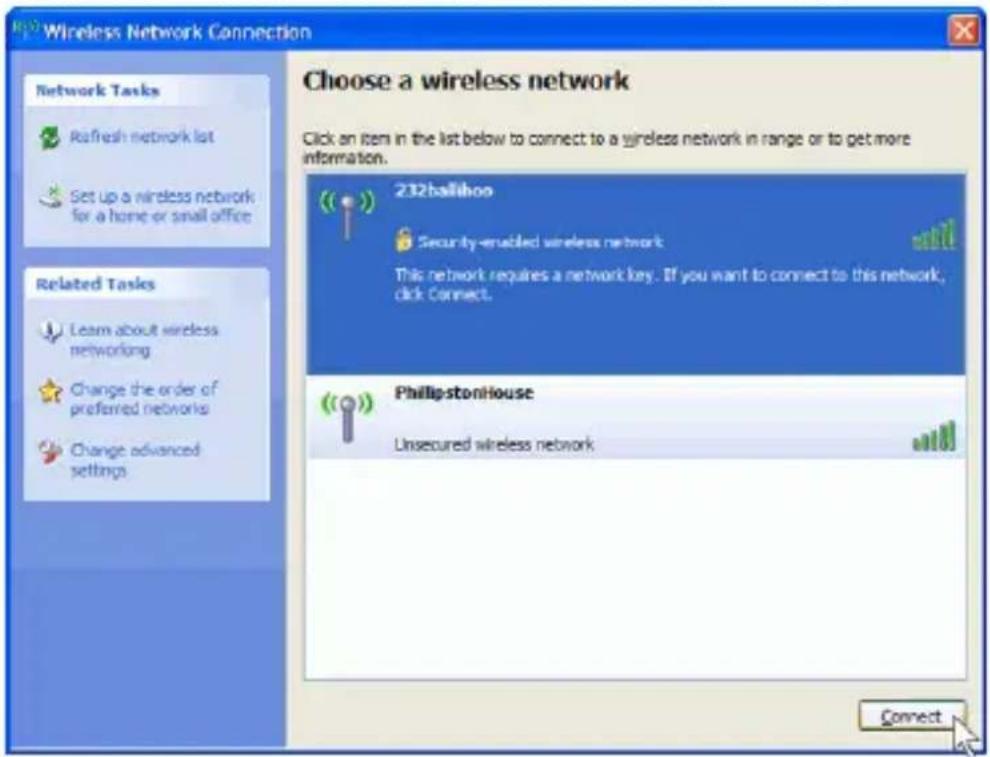

- Select the wireless network SSID and click Connect.

Wireless Network Connection Choose a wireless network Click an item in the list below to connect to a wireless network in range or to get more information. Network Tasks Refresh network list Set up a wireless network for a home or small office Related Tasks Learn about wireless networking Change the order of preferred networks Change advanced settings 232hallihoo Security-enabled wireless network This network requires a network key. If you want to connect to this network, click Connect. Philipstonhouse Unsecured wireless network Connect

NOTE:

If any wireless network is available, please check that the USB/PCI wireless client is correctly installed on your PC.

NOTE:

In windows XP, it provides wireless configuration utility named windows zero configuration which provides basic configuration function for Wireless PCIe Card.

Right after the installation, please follow the steps below to activate the Windows XP Zero Configuration:

Go to "Control Panel" and double click "Network Connections".

Right-click "Wireless Network Connection" of WLAN 802.11q Wireless LAN, and select "Properties".

Atlantis

Select "Wireless Networks" tab, and check "Use Windows to configure my wireless network settings", and then click "OK".

6. Support

For technical questions and support, please contact our help-desk by ticket on http://www.atlantis-land.com/ita/supporto.php.

For generic informations, please send an e-mail to [e-mail].

For presales informations, please send an e-mail to [e-mail].

Atlantis

Via S. Antonio 8/10

20020 Lainate (MI) - Italy

Website: http://www.atlantis-land.com

Email: [e-mail]

APPENDIX A: IP Address in DHCP Client Mode

Configuring PC (Windows 2000)

• Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and Dial-up Connections.
  • Double-click LAN Area Connection/Wireless.
• In the LAN Area Connection/Wireless Status window, click Properties.
• Select Internet Protocol (TCP/IP) and click Properties.
• Select the Obtain an IP address automatically and the Obtain DNS server address automatically radio buttons.
• Click OK to finish the configuration.

Configuring PC (WindowsXP)

• Go to Start / Control Panel (in Classic View). In the Control Panel, double-click on Network Connections.
  • Double-click Local Area Connection/Wireless.
  • In the LAN Area Connection/Wireless Status window, click Properties.
• Select Internet Protocol (TCP/IP) and click Properties.
• Select the Obtain an IP address automatically and the Obtain DNS server address automatically radio buttons.
• Click OK to finish the configuration.

Configuring PC (Windows Vista)

• Go to Start / Control Panel (in Classic View). In the Control Panel, double-click on Network and Sharing Center icon.
• Click Manage Network connections then double-click Local Area Connection/Wireless and click Properties.
• Click Continue (Windows needs your permission to continue).
• Select Internet Protocol Version 4 (TCP/IP) and click Properties.
• Select the Obtain an IP address automatically and the Obtain DNS server address automatically radio buttons.
• Click OK to finish the configuration

Atlantis

Configuring PC (Windows 7)

• Go to Start / Control Panel (select Large/Small Icon). In the Control Panel, double-click on Network and Sharing Center icon.
• Click Change Adapter Settings then double-click Local Area Connection/Wireless and click Properties.
• Click Continue (Windows needs your permission to continue).
  • Select Internet Protocol Version 4 (TCP/IP) and click Properties.
• Select the Obtain an IP address automatically and the Obtain DNS server address automatically radio buttons.
• Click OK to finish the configuration

APPENDIX B: Troubleshooting

This chapter provides solutions to problems that may occur during the installation and operation of the WLAN 802.11n USB Adapter/PCI Card. Read the descriptions below to solve your problems.

QUESTION	SOLUTION
My computer cannot find the Adapter	Make sure the Adapter has no physical damage.Make sure the Adapter is properly inserted into PCIE/PCI/USB slot.Try the Adapter in other PCIE/PCI/USB slots.Try another Adapter in that particular USB slot.
Cannot access any network resources from the computer.Make sure that the notebook PC is powered on	Make sure that the notebook PC is powered on.Make sure that the Adapter is configured with the same SSID and security options as the other computers in the infrastructure configuration.
Disable "Windows XP Wireless Zero Configuration	In Windows XP, it is recommended that you use the WLAN 802.11n Utility. Right after the installation, before opening the Utility, please follow the steps below to disable the Windows XP Zero Configuration:Go to Control Panel and double click Network Connections.Right-click Wireless Network Connection of WLAN 802.11n Wireless LAN, and select Properties.Select Wireless Networks tab, and uncheck the check box of Use Windows to configure my wireless network settings, and then click OK.
Can I run an application from a remote computer over the wireless network?	This will depend on whether or not the application is designed to be used over a network. Consult the application's user guide to determine if it supports operation over a network.
Can I play computer games with other	Yes, as long as the game supports multiple players over a LAN (local area network).

Atlantis

members of the wireless network?	Refer to the game's user guide for more information.
What is Spread Spectrum?	Spread Spectrum technology is a wideband radio frequency technique developed by the military for use in reliable, secure, mission-critical communications systems. It is designed to trade off bandwidth efficiency for reliability, integrity, and security. In other words, more bandwidth is consumed than in the case of narrowband transmission, but the trade-off produces a signal that is, in effect, louder and thus easier to detect, provided that the receiver knows the parameters of the spread-spectrum signal being broadcast. If a receiver is not tuned to the right frequency, a spread-spectrum signal looks like background noise. There are two main alternatives, Direct Sequence Spread Spectrum (DSSS) and Frequency Hopping Spread Spectrum (FHSS).
What is DSSS? What is FHSS? And what are their differences?	Frequency-Hopping Spread-Spectrum (FHSS) uses a narrowband carrier that changes frequency in a pattern that is known to both transmitter and receiver. Properly synchronized, the net effect is to maintain a single logical channel. To an unintended receiver, FHSS appears to be short-duration impulse noise. Direct-Sequence Spread-Spectrum (DSSS) generates a redundant bit pattern for each bit to be transmitted. This bit pattern is called a chip (or chipping code). The longer the chip, the greater the probability that the original data can be recovered. Even if one or more bits in the chip are damaged during transmission, statistical techniques embedded in the radio can recover the original data without the need for retransmission. To an unintended receiver, DSSS appears as low power wideband noise and is rejected (ignored) by most narrowband receivers.
Would the information	WLAN features two-fold protection in security. On

Atlantis

be intercepted while transmitting on air?	the hardware side, as with Direct Sequence Spread Spectrum technology, it has the inherent security feature of scrambling. On the software side, WLAN offers the encryption function (WEP) to enhance security and access control.
What is WEP?	WEP is Wired Equivalent Privacy, a data privacy mechanism based on a 64-bit or 128-bit shared key algorithm, as described in the IEEE 802.11 standard.
What is infrastructure mode?	When a wireless network is set to infrastructure mode, the wireless network is configured to communicate with a wired network through a wireless access point.
What is roaming?	Roaming is the ability of a portable computer user to communicate continuously while moving freely throughout an area greater than that covered by a single access point. Before using the roaming function, the workstation must make sure that it is the same channel number with the access point of dedicated coverage area.
What is ISM band?	The FCC and their counterparts outside of the U.S. have set aside bandwidth for unlicensed use in the ISM (Industrial, Scientific and Medical) band. Spectrum in the vicinity of 2.4 GHz, in particular, is being made available worldwide. This presents a truly revolutionary opportunity to place convenient high-speed wireless capabilities in the hands of users around the globe.
What is the IEEE 802.11g standard?	Approved in June, 2003 as an IEEE standard fo wireless local area networks (WLANs), 802.11g offers wireless transmission over relatively short distances at up to 54 megabits per second (Mbps) compared with the 11 megabits per second of the 802.11b (Wi-Fi) standard. Like 802.11b, 802.11g operates in the 2.4 GHz range and is thus compatible with it.
What is the IEEE 802.11n standard?	Is an IEEE standard for wireless local area networks (WLANs), 802.11n offers wireless transmission over relatively short distances at up to 600 megabits (more bandwidth 40Mhz instead of

Atlantis

20Mhz and more flux) per second (Mbps) compared with the 54/11 megabits per second of the802.11g/b (Wi-Fi) standard. Like 802.11b/g, 802.11n operates in the 2.4GHzrange and is thus compatible with it.

Atlantis

Copyright

Screenshot of a software toolbar with icons and a numeric value 16.27

20020 Lainate (MI) - Italy

Website: http://www.atlantis-land.com

Email: [e-mail]

APPENDIX A: Country Channel List

For some European Country, it may have its own domain; users are responsible for ensuring that the channel set configuration is in compliance with the regulatory standards of these countries.

Country Name	Classification	Range
Argentina, Bahrain, Brazil, Canada, Chile, Croatia, Ecuador, Hong Kong, Malaysia, Mexico, Panama, Peru, Philippines, Puerto Rico, Romania, Saudi Arabia, Taiwan, Unite States of America, Uruguay, Venezuela, Yugoslavia	0	CH1~11
Australia, Austria, Belarus, Belgium, Bolivia, Bulgaria, China, Colombia, Costa Rica, Cyprus, Czech Republic, Denmark, Egypt, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, India, Indonesia, Ireland, Israel, Italy, Japan3, Jordan, Kuwait, Latvia, Lebanon, Latvia, Lebanon, Liechtenstein, Lithuania, Luxembourg, Macedonia, Morocco, Netherlands, New Zealand, Nigeria, Norway, Paraguay, Poland, Portugal, Russia, Singapore, Slovakia, Slovenia, South Africa, South Korea, Spain, Sweden, Switzerland, Thailand, Turkey, United Arab Emirates, United Kingdom	1	CH1~13
France2	3	CH10~13
Japan	5	CH1~14
Japan2	4	CH14~14

APPENDIX B: Technical Specifications

Technical Specs
Code	A02-PCIE-WN
Standards	IEEE 802.11b/g/n
Chipset	Realtek® 8191SE
Interface	PCI-E (x1 PCI Express Slot)
LED	2 (Link, ACT)
WPS	Yes (Software)*
Antenna	2dBi dipole antenna with R-SMA connector
Frequency Band	2412 ~ 2472 MHz
Radio Technology	IEEE 802.11g/n: Orthogonal Frequency Division Multiplexing (OFDM)IEEE 802.11b: Direct Sequence Spread Spectrum (DSSS)
Modulations Scheme	DBPSK/DQPSK/CCK/OFDM
Media Access Protocol	CSMA/CA with ACK
Transmission Rate	Up to 150Mbps (auto-sense with auto fallback)
Security	64/128-bit WEP, WPA-PSK, WPA2-PSK
Transmitting Power	802.11b/g/n: up to 15 ± 1 dBm
Receiver Sensitivity	802.11b (11Mbps): -85dBm @8% PER802.11g (54Mbps): -74dBm @10% PER802.11n (150Mbps): -68dBm @10% PER
Number of Operational Channel	Europe (13)
Range Coverage	Indoor: up to 100 metersOutdoor: up to 300 meters
Supported OS	MS Windows ® VISTA (32/64-bit)MS Windows ® XP (32/64-bit)MS Windows ® 2000 (SP4 required)MS Windows ® 7 (32/64-bit)Linux Kernel 2.6.18
Certifications	CE (Europe)
Dimensions(mm)	70 x 48 x 2 (PCB)
Temperature Range	Operation: 0°C ~ 40°CStorage: -10°C ~ 60°C
Humidity	10% ~ 75% (non Condensing)
Continuos Current Consumption	220mA (Tx), 380mA (Rx)

Atlantis

System Requirements	Desktop computer with an available 64-bit PCI Express slotIntel® Pentium®III 600Mhz or compatible processor with 512MB RAMWindows® 2000/XP/Vista/7 or Linux operating systemMinimum 45 Mbytes free disk space for installing the driver and utilitiesCD-Rom drive
Package Contents	NetFly PCIe Wireless Card2 dBi AntennaQuick Start Guide (English, French and Italian)CD-Rom with Utility, Driver and Manual (English, French and Italian)1 x Warranty Card and 1 x WEEE Card
Technical Specs
Code	A02-PCIE1-W300N
Standards	IEEE 802.11b/g/n
Chipset	Realtek® 8192SE
Interface	PCI-E (x1 PCI Express Slot)
LED	2 (Link, ACT)
WPS	Yes (Software)*
Antenna	2*2dBi dipole antennas with R-SMA connector
Frequency Band	2412 ~ 2472 MHz
Radio Technology	IEEE 802.11g/n: Orthogonal Frequency Division Multiplexing (OFDM)IEEE 802.11b: Direct Sequence Spread Spectrum (DSSS)
Modulations Scheme	DBPSK/DQPSK/CCK/OFDM
Media Access Protocol	CSMA/CA with ACK
Transmission Rate	Up to 300Mbps (auto-sense with auto fallback)
Security	64/128-bit WEP, WPA-PSK, WPA2-PSK
Transmitting Power	802.11b/g/n: up to 15 ± 1 dBm
Receiver Sensitivity	802.11b (11Mbps): -85dBm @8% PER802.11g (54Mbps): -74dBm @10% PER802.11n (150Mbps): -65dBm @10% PER802.11n (300Mbps): -65dBm @10% PER
Number of Operational Channel	Europe (13)
Range Coverage	Indoor: up to 100 metersOutdoor: up to 300 meters
Supported OS	MS Windows ® VISTA (32/64-bit)MS Windows ® XP (32/64-bit)MS Windows ® 2000 (SP4 required)MS Windows ® 7 (32/64-bit)Linux Kernel 2.6.18
Certifications	CE (Europe)
Dimensions(mm)	70 x 58 x 2 (PCB)
Temperature Range	Operation: 0°C ~ 40°CStorage: -10°C ~ 60°C
Humidity	10% ~ 75% (non Condensing)
Continuos Current Consumption	220mA (Tx), 380mA (Rx)

Atlantis

System Requirements	Desktop computer with an available 64-bit PCI Express slotIntel® Pentium®III 600Mhz or compatible processor with 512MB RAMWindows® 2000/XP/Vista/7 or Linux operating systemMinimum 45 Mbytes free disk space for installing the driver and utilitiesCD-Rom drive
Package Contents	NetFly PCIe Wireless Card2*2 dBi AntennasQuick Start Guide (English, French and Italian)CD-Rom with Utility, Driver and Manual (English, French and Italian)1 x Warranty Card and 1 x WEEE Card

All rights registered

Microsoft and Windows are registered trademarks of Microsoft Corporation

All trade names and marks are registered trademarks of respective companies

Specifications are subjected to change without prior notice. No liability for technical errors and/or omissions

Performance and Throughput are influenced by many factors (interference, noise, environments)

*available only with Realtek Utility.

Red circular button with a silver ring and gray center (no text or symbols)

Atlantis

Via Pelizza da Volpedo, 59 Cinisello Balsamo – MI – Italy [e-mail]
