USER MANUAL HSMR 5597 AEG

GB Hair and Beard Clippers

+ Nose and ear hair trimmer

Black and orange AEG hairbrush with black and orange filter, mounted on a base (no text or symbols visible)

Close-up of a black and orange AEG electric toothbrush with a metallic clip (no text or symbols visible)

AEG

Location of Controls Page 3

User manual......Page 51

Hair and beard clippers Page 52

Nose and ear hair trimmer Page 56

Technical Specifications Page 58

Disposal Page 59

Język polski

Spis treści

Technical diagram of a hairbrush with numbered parts for identification

Technical line drawings of a hairbrush and its internal components (no text or symbols)

D-47906 Kempen/Germany

WAARSCHUWING: Ontploffingsgevaar!

De scheerkop is vergrendeld in de behuizing.

Location of Controls

1= aprox. 3,0 mm
3= aprox. 6,0 mm
5= aprox. 10,0 mm
7= aprox. 13,0 mm
9= aprox. 16,0 mm

36

Español

Cargar la unidad

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects

NOTE:

This highlights tips and information.

Safety instructions

General Safety Instructions

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• Use the device for private and its intended purpose only. The device is not intended for commercial use.
• The power adaptor is only intended for use in dry environment.
• Ensure that the output voltage, currency and polarity of the power adaptor correspond to the nameplate specifications!
• Do not touch the power adaptor with wet hands!
• Disconnect from mains power supply if not in use, when attaching accessories, during cleaning and when malfunctioning.
• Regularly check the device and cable for signs of damage. Do not continue to operate the device in case of damage.

52 English

• Do not repair the device by yourself. Please contact authorized personnel. In order to avoid hazards, a damaged mains cable must be replaced with an equivalent cable by the manufacturer, our customer service or any other qualified specialist.
  • Do only use original parts.
• Please observe the following "Special safety instructions".

Children and disabled persons

- For the safety of your children, keep any packing parts (plastic bags, cartilage, Styrofoam etc.) out of their reach.

WARNING!

Don't let small children play with foils for danger of suffocation!

- This device is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and/or knowledge unless they have been given supervision or instructions concerning the use of the device by a person responsible for their safety.

• Supervise children to ensure they do not play with the device.

Handling of batteries

WARNING: Danger of explosion!

Do not expose the batteries to high temperatures or direct sunlight. Never throw batteries into fire.

Hair and beard clippers

Special safety instructions for this appliance

RISK OF ELECTRIC SHOCK!

Do not use this unit in close proximity to water if the power adaptor is connected (e.g. bath tub, wash basin or other containers filled with water).

• Do not operate the hair and beard clippers with wet hands.
• Only cut dry hair with this unit.
• Only use this unit to cut head hair and beard.

• Do not press the clipper head too firmly onto the skin. Danger of injury.
• Charge the unit in a cool and dry location.
  • Only use the supplied power adapter.

Location of Controls

1 Attachment comb
2 Thinning function
3 Cutting length adjustment
4 Indicator light
5 Charger socket
6 On/Off switch
7 Cutting length display
8 Clipper head

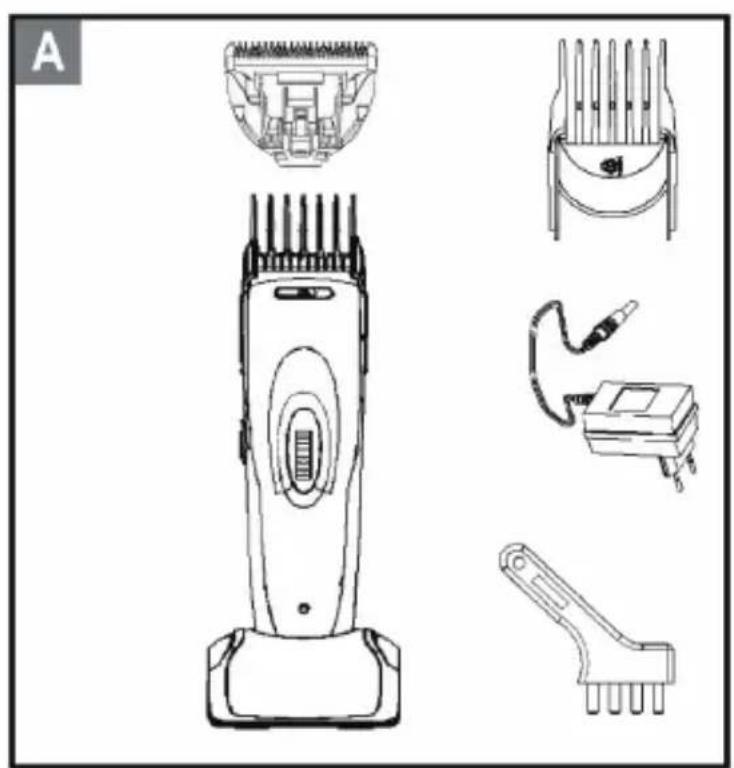

Accessories (Fig. A)

1 Clipper head
1 Hair clipper
1 Charging station/stand
1 Cutting length comb
1 Power adapter
1 Cleaning brush

Table: Cutting step versus cutting length

Cutting step Cutting length

1= approx. 3.0 mm
3= approx. 6.0 mm
5= approx. 10.0 mm
7= approx. 13.0 mm
9= approx. 16.0 mm

54 English Charging the Unit

• Turn the unit off. "0" can be seen on the switch (6).
• Connect the power adaptor connector with one of the following jacks.

• The socket directly at the bottom end of the unit (5).
• Alternatively place the unit in the charging station. The socket is at the rear.

- Plug the power adaptor into a 230 V/50 Hz wall outlet.

• The indicator light remains red during the charging process.

i NOTE:

The charge indicator does not indicate the state of charge of the rechargeable battery.

• Charge the unit before first use for 10 hours.

i NOTE:

• After initial use, do not charge the battery for longer than 8 hours at one time.

- If the battery is empty, the appliance can be operated from the mains. To do so, connect the adapter directly to the clipper.

CAUTION:

After 8 hours always disconnect from mains power supply.

NOTE LIFETIME RECHARGEABLE BATTERY

You can extent the lifetime of the rechargeable battery by following these steps:

• Only charge after the battery is nearly exhausted.
• Do not charge for more than 8 hours.
- Charge the unit at temperatures between 0^ and +40^ C .

Adjust Cutting Length

1. Attach the cutting length comb.

2. Set the desired cutting length:

3. Increasing the cutting length? Turn the wheel (3) in the direction of the blade.

4. Decreasing the cutting length? Turn the wheel (3) in the direction of the charger socket.

i NOTE:

You can read the setting from the display (7).

Cut Hair / Beard

• Select the cutting length.
• Switch the appliance on. "I" can be seen on the switch (6) and the indicator lamp lights up green.

NOTE:

Start with the longest setting and cut your hair / beard in steps to the desired length.

Outlining and Shaving the Neck

• The clipper head allows precise outlining the shape of the beard, even in difficult to reach places as well as a clean shaving of the hairline at the neck.
  • Turn the hair clipper off with the switch (6).
• Remove the cutting length comb (1) and turn the hair clipper on again.

Thinning function

• Slide the button (2) towards "☐". The blade is partly covered.
  • Only the hairs which meet the blade first are cut.
• Slide the button towards "○" to turn off the function.

Finish Operation

- Switch off the appliance. "0" can be seen on the switch (6).

Cleaning and Maintenance

• Regular cleaning and maintenance ensures optimum results and long lifetime.
• Turn the unit off and disconnect from mains power supply, if necessary.

WARNING:

- Do not submerge the unit in water.

CAUTION:

• Do not use a wire brush or other abrasives.

• Do not use sharp or abrasive cleaning agents.

• Use the cleaning brush to remove remaining hair after use.

• Remove the attachment comb (1).

English

Attach/Remove Clipper Head

The clipper head is locked to the casing.

1. Slide the button (2) towards "○".
2. Push back the clipper head with both thumbs to open the catch.
3. Regularly apply 1 - 2 drops acid-free oil to the clipper head.
4. Replace the clipper head after cleaning first at the bottom and then at the cutting area.
5. Clean the casing with a slightly damp cloth, if necessary.
6. Replace the attachment comb.

Nose and ear hair trimmer

Special safety instructions for this appliance

WARNING: Risk of injuries!

• Do not use the appliance if the shaving head, blade holder or blade are deformed or damaged!
• Do not remove the shaving head during operation!
• Do not introduce the appliance further into the nostril / auricle than to the narrow tip of the shaving head.

CAUTION:

• The shaving head and blade are precision-machined and must not to be exposed to heavy loading, impacts or similar.
• Do not put any sharp objects into the shaving head.

• Protect the appliance from moisture or liquids.

• This appliance is only meant for removing nose and ear hair. Do not use the appliance for any other purposes.

• Switch off the appliance before cleaning and removing the batteries.

Scope of delivery (without fig.)

1 Nose and ear hair trimmer
1 Transparent protection cap for the shaving head

English

Inserting of the battery (Battery is not included in the scope of delivery)

1. Turn the lower cover towards " " and remove it.

2. Insert a 1.5 V battery of the type MIGNON AA into the battery compartment. The positive pole (+) has to show towards the shaving head.

3. Close the battery compartment again: Place the marker on the cover "" to the symbol "". Turn the cover towards " " until it snaps audibly into place.

Usage

1. Remove the transparent protection cap.

2. Slide the switch towards "OFF" in order to turn on the appliance.

3. When the switch snaps audibly into place, the appliance works continuously.

4. If you release the switch before it snaps audibly into place, the appliance will switch off again.

5. Guide the tip of the shaving head into the nostril or auricle.

WARNING:

Only remove the prominent nose or ear hair. Do not forcefully push the appliance into the nostril / auricle. You can hurt yourself when it is inserted too deep!

1. Slide the switch back towards "ON" after usage in order to switch off the device.
2. Clean the shaving head with the cleaning brush after usage.
3. Put the transparent protection cap back on.

Cleaning

WARNING:

• Do not submerge the unit in water.

CAUTION:

• Do not use a wire brush or other abrasives.
- Do not use sharp or abrasive cleaning agents.

58

English

1. Switch off the appliance before cleaning.
2. Remove the battery from the battery compartment.
3. Loosen the shaving head by turning it anticlockwise and remove it.
4. Remove remaining hair from the blade holder using the cleaning brush. You can also blow off the remaining hair from the holder.
5. Place the shaving head onto the blade holder again. Turn it tight clockwise until it snaps audibly into place.
6. Put the transparent protection cap back on.

Noise emission

The workplace-related emission value is less than 70 dB(A).

Technical Specifications

Model: HSM/R 5597 NE Net weight incl. adapter: approx. 0.267 kg

Power adapter (Hair and beard clippers)

Protection class:....II

Power supply: AC 100-240 V, 50/60 Hz, 0.2 A max.

Output: DC 3.0 V, 600 mA, 1.8 W max.

Rechargeable battery (Hair and beard clippers): 2 x 1.2 V, 600 mAh NiMH

Run time: max. 45 minutes

Charging time: 8 hours

Battery (Nose and ear hair trimmer):....1x 1.5 V, Typ: MIGNON LR6, AA, UM3

Subject to change without prior notice!

This device complies with all current CE directives, such as electromagnetic compatibility and low voltage directive and is manufactured according to the latest safety regulations.

Remove / Dispose of Rechargeable Batteries

Hair and beard clippers

This unit is equipped with a rechargeable Ni-MH battery.

Remove the battery before disposing of the unit.

As a consumer you are legally bound to return exhausted batteries/rechargeable batteries.

WARNING:

Disconnect from mains power supply before removing the battery!

• Remove the 4 screws on the bottom of the housing with a small Philips head screw-driver.
  • Separate both halves of the casing.
• Remove the rechargeable battery.

Return the battery at a collection point for batteries and/or hazardous waste. Ask your municipality for further information.

Nose and ear hair trimmer

• Remove the battery from the battery compartment.
• Dispose of the battery at an appropriate collection point or distributor. This product must not be disposed of in standard domestic refuse.

Disposal

Meaning of the "Wheelie Bin" Symbol

Take care of our environment, do not dispose of electrical applications via the household waste.

Dispose of obsolete or defective electrical appliances via municipal collection points.

Please help to avoid potential environmental and health impacts through improper waste disposal.

You contribute to recycling and other forms of utilization of old electric and electronic appliances.

Your municipality provides you with information about collecting points.
