Product Type	Keyboard Case for iPad
Brand	Logitech
Model	Keyboard Case Ultrathin
Compatibility	iPad (compatible models not specified)
Connection	Bluetooth
Power Supply	Rechargeable battery via micro-USB
Battery Life	Up to 6 months (average usage 2 h/day)
Indicator Light	Green (charging/fully charged), red (low battery), blue (detection/connection)
Function Keys	Search, language switch, virtual keyboard, selection, cut/copy/paste, play/pause, volume, screen lock
iPad Attachment	Magnetic
Package Contents	Keyboard case, micro-USB cable, cleaning cloth, documentation
Dimensions (approximate)	Approximately 25 cm x 19 cm x 1.5 cm
Weight (approximate)	Approximately 350 g
Maintenance	Clean with the provided cloth, avoid liquids
Repairability	Replaceable battery (remove cover with screwdriver)

Frequently Asked Questions - Keyboard Case Ultrathin LOGITECH

How do I connect the keyboard case to my iPad?

Make sure the keyboard is powered on (On/Off switch). Enable Bluetooth on your iPad in Settings > Bluetooth. Press the Bluetooth connection button on the keyboard. Select 'Logitech Ultrathin KB cover' from the list of devices. If a PIN is requested, enter it using the physical keyboard.

How do I recharge the keyboard case battery?

Connect the provided micro-USB cable between the keyboard case and a computer USB port. The indicator flashes green while charging and becomes solid green when fully charged. Recharge when the indicator briefly shows red after powering on.

What is the battery life?

The battery life can reach up to 6 months with average usage of two hours per day. Turn off the keyboard when not in use to save battery.

How do I use the function keys?

Hold the Fn key and press the corresponding key: Fn+1 for search, Fn+2 to change language, Fn+3 to show/hide the virtual keyboard, Fn+4/Fn+5 for text selection, Fn+6 to Fn+8 for cut/copy/paste, Fn+9 for play/pause, Fn+0 for mute, Fn+dash/plus for volume, Fn+delete to lock the screen.

What should I do if my iPad does not connect?

Check that the keyboard is powered on and iPad Bluetooth is enabled. Restart the keyboard by turning it off and on again. Press the Bluetooth connection button to restart detection. If the problem persists, recharge the battery.

How do I clean the keyboard case?

Use the provided cloth to gently clean the surface. Avoid any liquids or abrasive products that could damage the keyboard.

How do I store the iPad in the case for transport?

Remove the iPad, rotate it screen down with the home button on the right, then place it back on the case. The magnetic attachment holds it in place.

Can I connect the keyboard case to another iPad?

Yes. Turn on the keyboard, enable Bluetooth on the new iPad, press the Bluetooth connection button on the keyboard, then select 'Logitech Ultrathin KB cover' in the Bluetooth settings.

What is the meaning of the indicator lights?

Flashing green: battery charging. Solid green: battery charged (above 5%). Red: low battery (below 5%). Fast flashing blue: detection mode. Slow flashing blue: reconnecting. Solid blue: Bluetooth connection established.

How do I replace the battery at the end of its life?

Remove the keyboard cover using a screwdriver, disconnect the battery and remove it. Dispose of the battery and product in accordance with local regulations.

USER MANUAL Keyboard Case Ultrathin LOGITECH

Getting started with

Logitech® Ultrathin Keyboard Cover

Contents

English. 3 19

Deutsch . 11 Italiano. 27

www.logitech.com/support 35

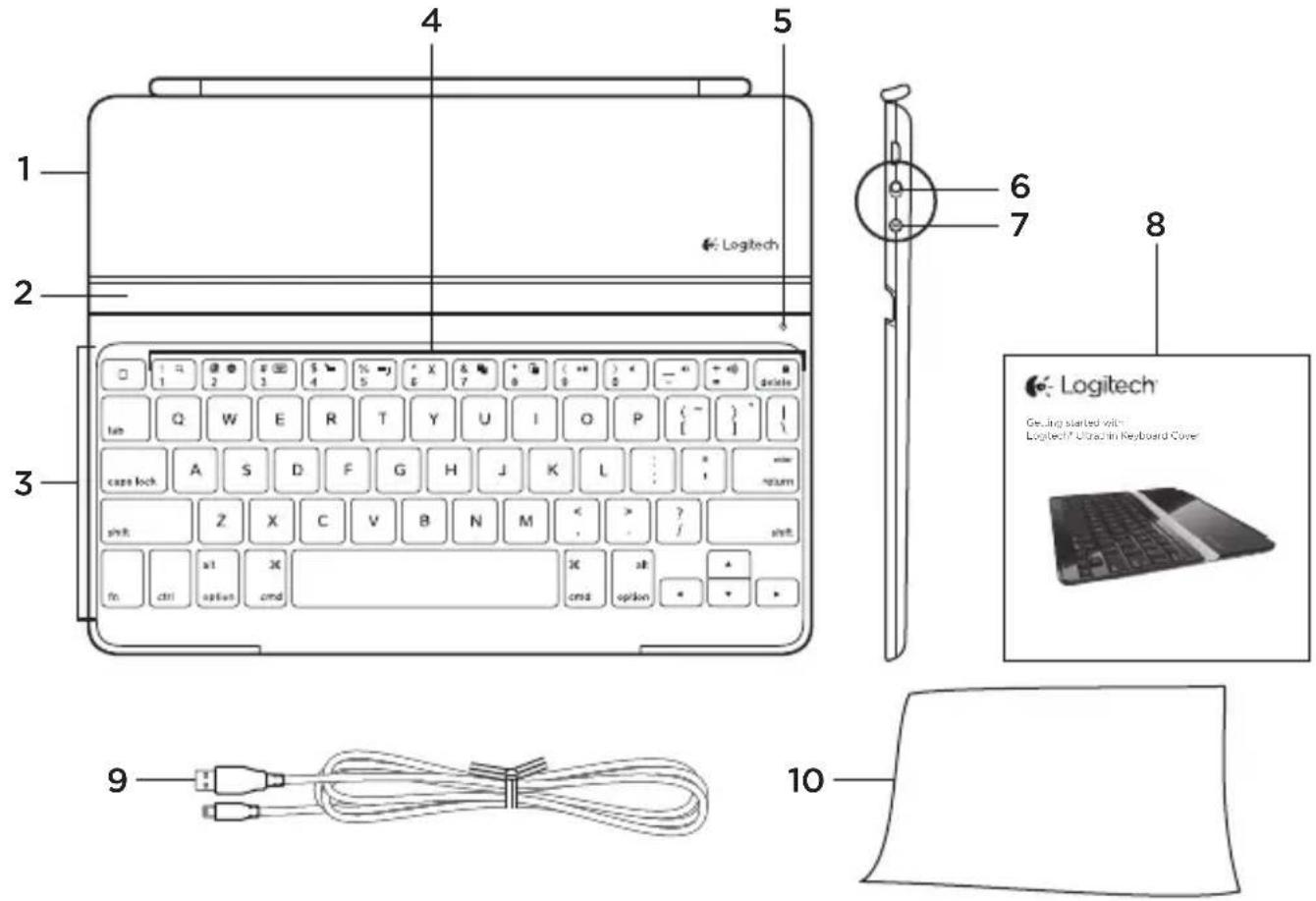

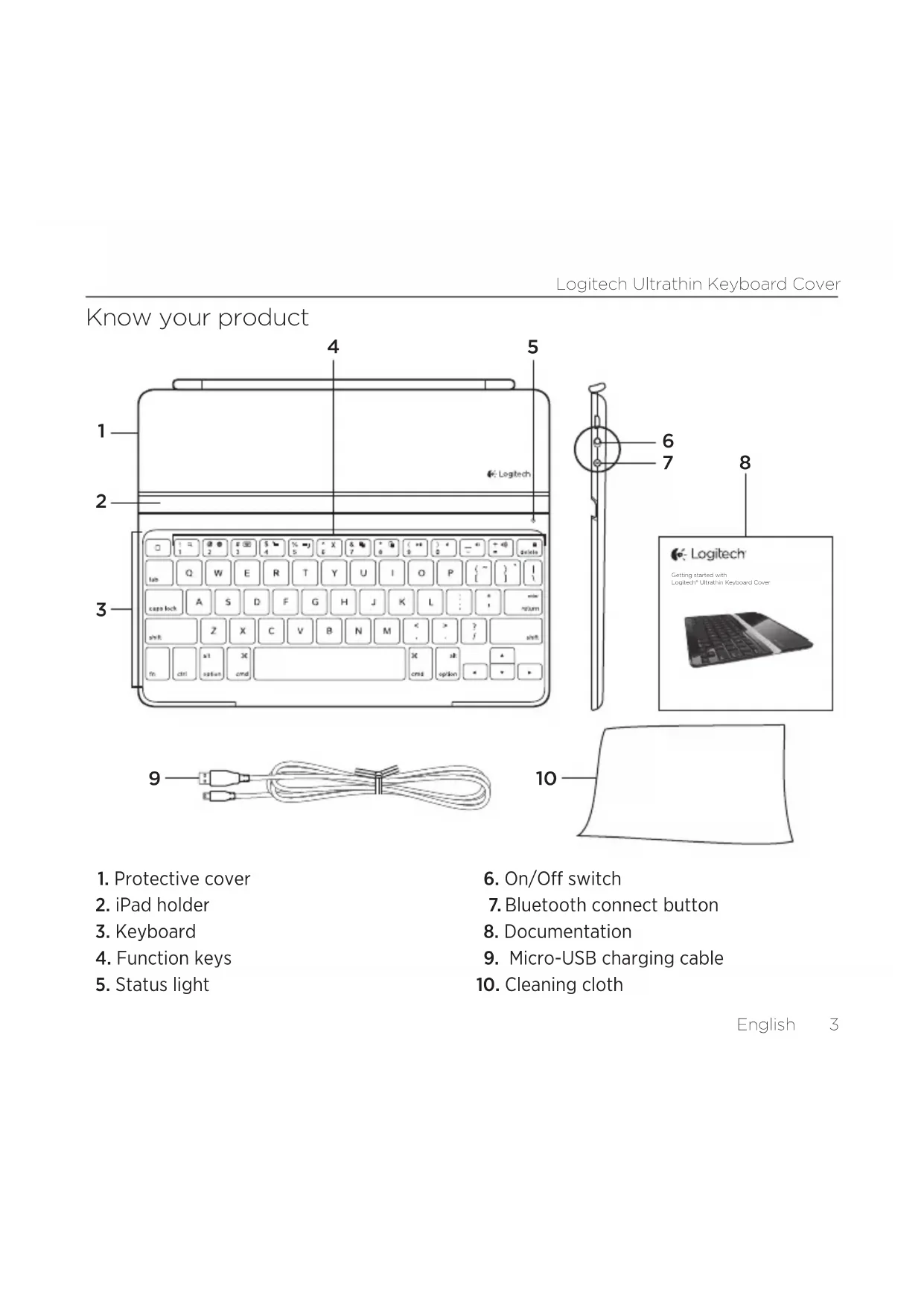

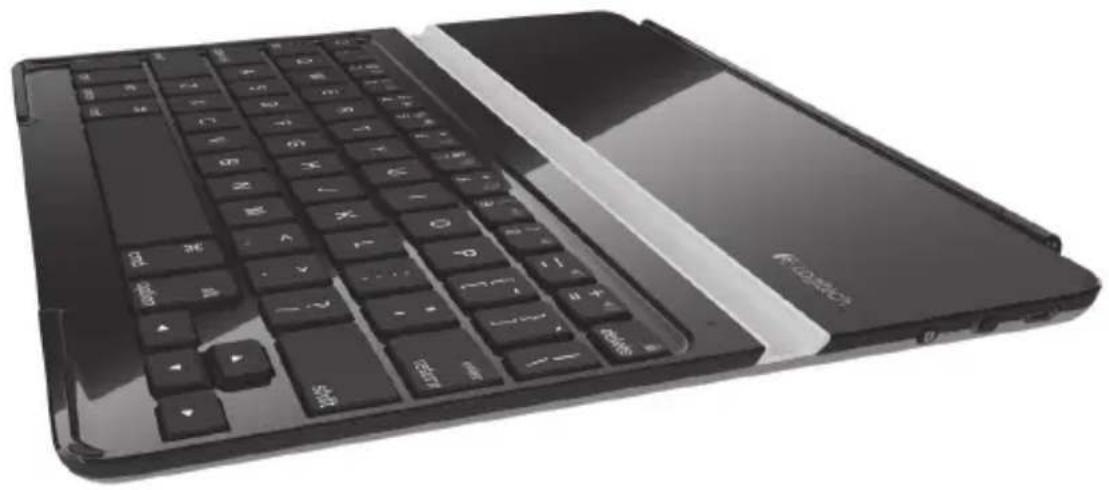

Know your product

1. Protective cover
2. iPad holder
3. Keyboard
4. Function keys

5. Status light

6. On/Off switch

7. Bluetooth connect button
8. Documentation
9. Micro-USB charging cable
10. Cleaning cloth

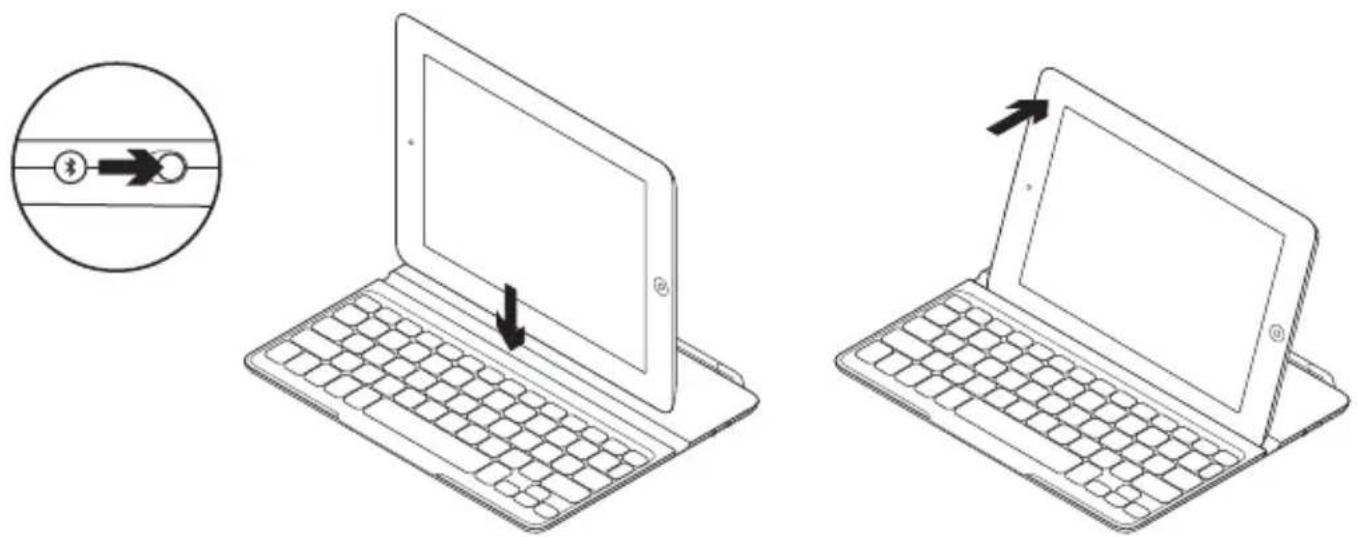

Set up your product

1. Turn on the Keyboard Cover:

2. Bluetooth discovery starts automatically and continues for 15 minutes. The Status light blinks blue.
   If the Status light briefly turns red, charge the batteries. For more information, see "Charge the batteries."

3. Make sure your iPad's Bluetooth feature is on. Select Settings > General > Bluetooth > On.

4. Select "Logitech Ultrathin KB cover" on the iPad's Devices menu.

5. If your iPad requests a PIN, enter the code using the Keyboard Cover and not your iPad's virtual keyboard. After the Bluetooth connection is made, the Status light briefly turns blue, and then it turns off.
6. Place the iPad on the Keyboard Cover.

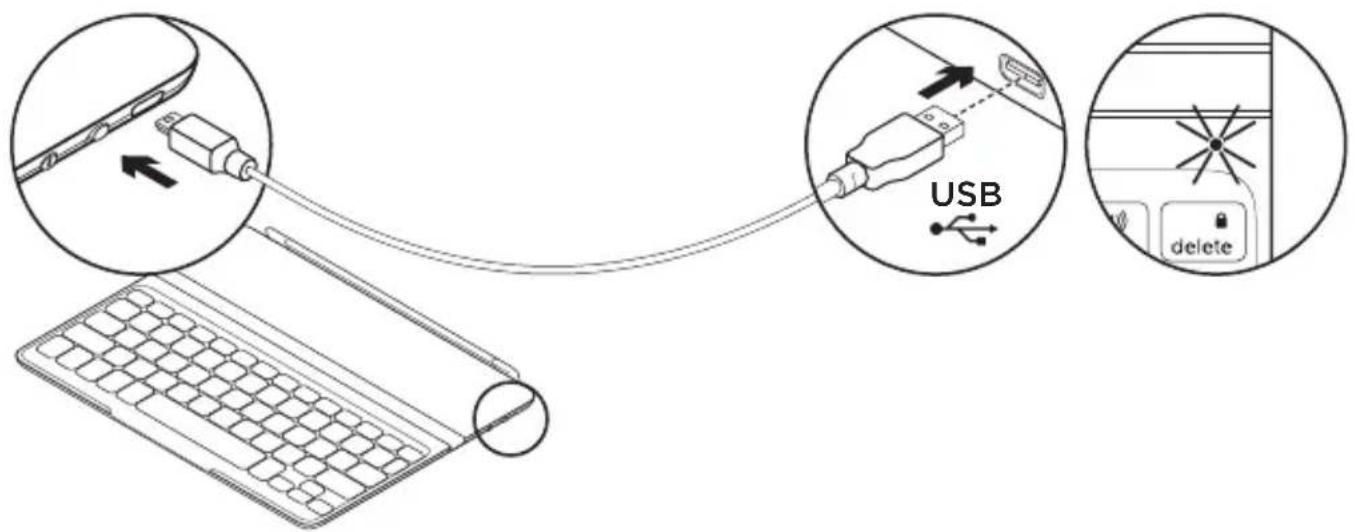

Charge the batteries

1. Plug the Micro-USB Charging cable into the Keyboard Cover and a USB port on a computer. The Status light blinks green.
2. Charge the batteries until the Status light turns solid green.

Battery information:

• A fully charged battery provides about 6 months of power when the Keyboard Cover is used about two hours a day.
• Charge the batteries when the Status light briefly turns red after the Keyboard Cover turns on.
• When not in use, turn off the Keyboard Cover to conserve battery power.
  The Keyboard Cover enters sleep mode if powered on and not used. Press any key to wake.

Visit Product Central

There's more information and support online for your product. Take a moment to visit Product Central to learn more about your new Keyboard Cover.

Browse online articles for setup help, usage tips, or information about additional features.

Connect with other users in our Community Forums to get advice, ask questions, and share solutions.

At Product Central, you'll find a wide selection of content:

• Tutorials
  Troubleshooting
  Support community
• Software downloads
  Online documentation
  Warranty information
• Spare parts (when available)

Go to www.logitech.com/support/ ultrathinkeyboardcover

Use your product

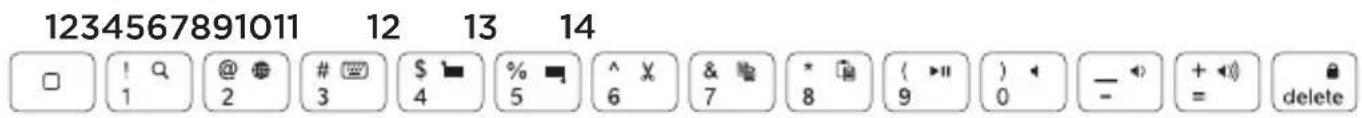

Product features

1. Home Displays the iPad Home screen.
   Function keys To use, press and hold the Fn key, and then press a key listed below.
2. Fn + 1 = Search Launches the iPad search function.
3. Fn + 2 = Switch language Switches the keyboard language.
4. Fn + 3 = Virtual keyboard Shows/ hides the virtual keyboard.
5. Fn + 4 = Select left Selects text on the left, word by word.

6. Fn + 5 = Select right Selects text on the right, word by word.

7. Fn + 6 = Cut

8. Fn + 7 = Copy

9. Fn + 8 = Paste

10. Fn + 9 = Play/Pause

11. Fn + 0 = Mute
12. Fn + dash = Volume down
13. Fn + plus = Volume up
14. Fn + delete = Lock screen Locks or unlocks the iPad screen.

Status light indications

Light Description
Blinking green The battery is charging.
Green The battery is charged (more than 5%).
Red Battery power is low (less than 5%). Charge the batteries.
Blinking blue Fast: Key	Keyboard Case is in discovery mode. Slow: Keyboard Case is trying to reconnect to your Apple device.
Solid blue Bluetooth	pairing is successful.

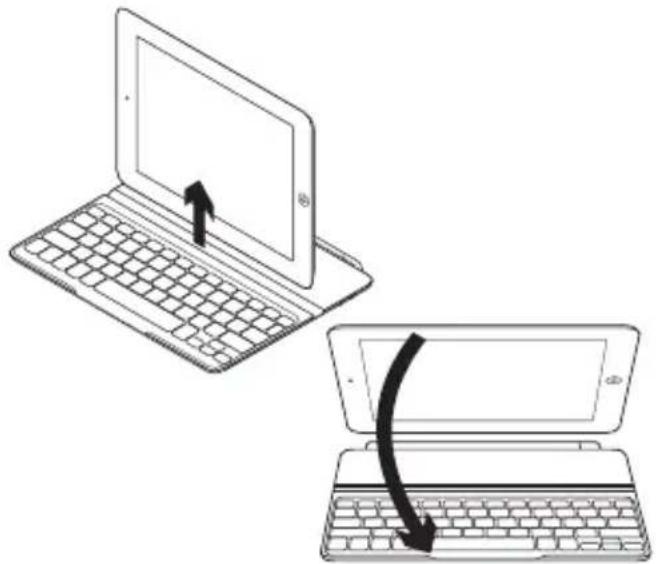

Storing the iPad for travel

1. Lift the iPad from the Keyboard Cover.
2. Rotate the iPad, with the screen side down, so the Home button is on the right.
3. Place the iPad on to the Keyboard Cover. A magnetic clip holds the iPad in position.

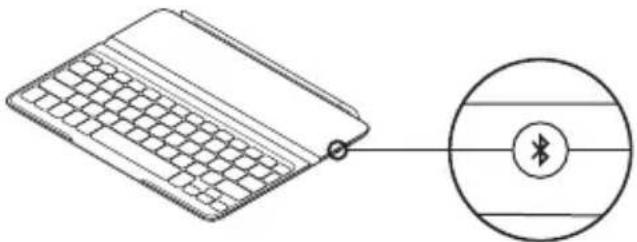

Connecting to a different iPad

1. Make sure the Keyboard Cover is turned on.
2. Check that your iPad's Bluetooth feature is on. Select Settings > General > Bluetooth > On.
3. Press the Bluetooth Connect Button. The Keyboard Cover is discoverable for 3 min.
4. Select "Logitech Ultrathin KB cover" on the iPad's Devices menu.
5. If your iPad requests a PIN, enter the code using the Keyboard Cover and not your iPad's virtual keyboard. After the Bluetooth connection is made, the Status light briefly turns blue, and then it turns off.
6. Place the new iPad on the Keyboard Cover.

Troubleshooting

The Keyboard Cover does not work

• Press any key to wake the Keyboard Cover from sleep mode.
• Turn the Keyboard Cover Off and then back On.
• Recharge the internal batteries. For more information, refer to "Charge the batteries."
• Re-establish the Bluetooth connection between the Keyboard Cover and iPad:
• Verify that iPad's Bluetooth feature is turned on.
• Choose "Logitech Ultrathin KB cover" from the Devices menu on your iPad. The Status light briefly turns blue after the Bluetooth connection is made.

What do you think?

Please take a minute to tell us.
Thank you for purchasing our product.

www.logitech.com/ithink

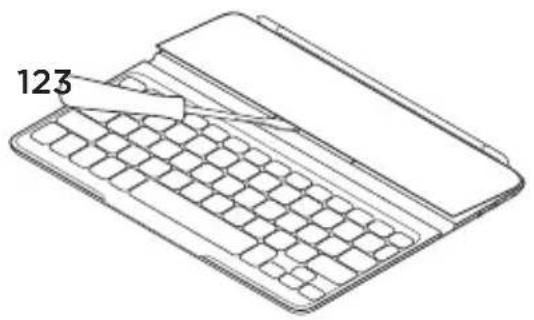

Battery disposal at product end of life

1. Pry off top cover of keyboard with screwdriver.

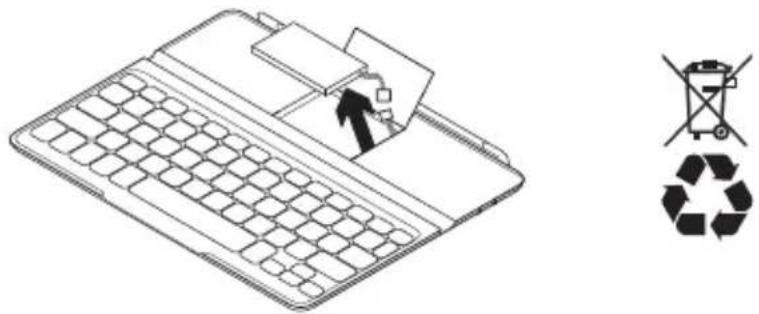

2. Detach battery from circuit board and remove battery.

1. Dispose of your product and its battery according to local laws.

www.logitech.com/ithink

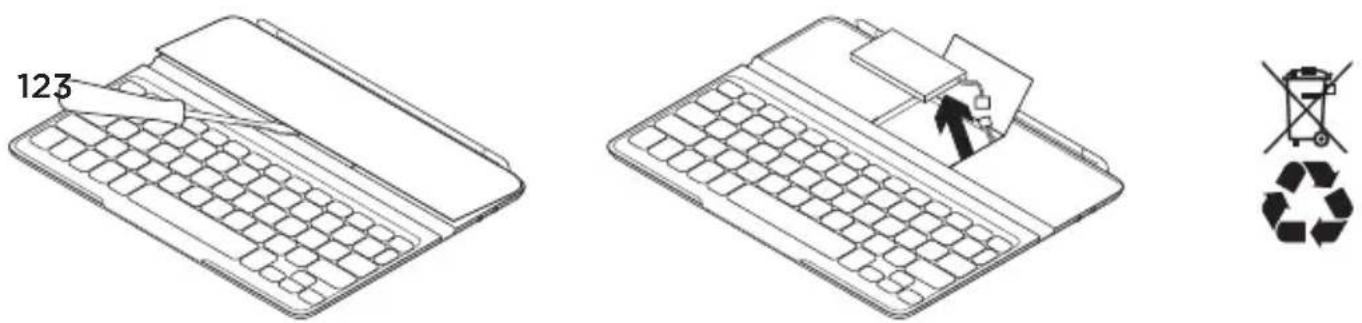

Akkuentsorgung
