Getting started with

www.logitech.com/k750-mac/support

What's in the box

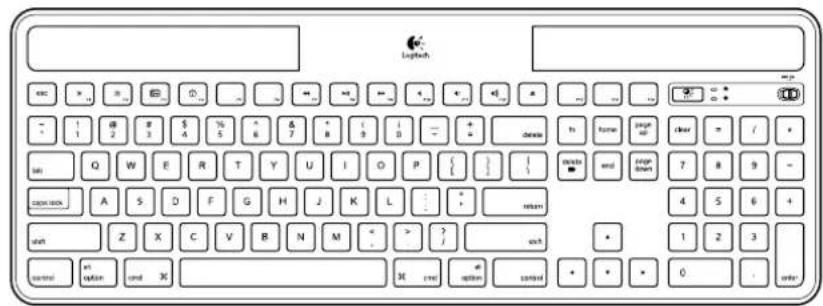

Wireless Solar Keyboard K750 for Mac

Unifying receiver

Wireless extender

Cleaning cloth

Setting up the keyboard

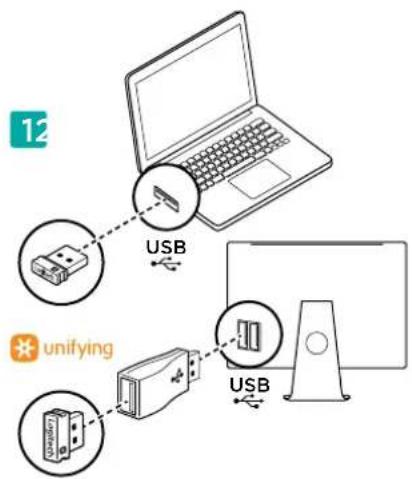

1. Plug the Unifying receiver into a computer USB port. For iMac, Mac Mini and Mac Pro, use the Wireless extender to minimize the possibility of radio frequency (RF) interference.

2. Pull the tab to activate the keyboard.
3. Turn on the keyboard.

How much light is needed?

The K750 requires only a modest level of light to operate and store energy. Indirect sunlight or indoor illumination is fine.

When exposed to dim room light on a continuous basis, the K750 has enough power for use. Because indoor environments usually have periods of darkness, a moderate level of room lighting is recommended for much of the day. The recharge time for the K750 is much less in brightly lit environments or when the K750 is placed in direct sunlight.

The K750 stores energy automatically, even when turned off. This stored energy allows you to use the K750 without light for a while. With a full charge, the K750 can operate up to three months in total darkness before needing a recharge.

Checking for adequate light

How do you know whether there's enough light for the K750? Use the Check Light hot key. The K750 tells you if it's getting enough illumination.

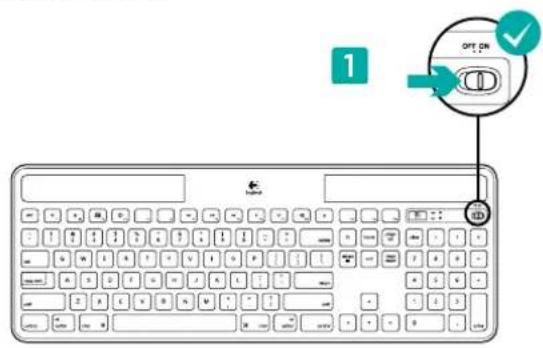

1. Make sure the K750 is turned on.

2. Press the Check Light hot key. The Check Light LED will flash either green or red, or it won't produce any light at all. For more information, see Reading the Check Light LED.

Reading the Check Light LED

• Check Light LED flashes green. The K750 is receiving enough light and is ready for use.
• Check Light LED flashes red. The K750 requires more light to continue working on a long-term basis.

Note: If the Check Light LED produces no light, please see Help with setup for more information.

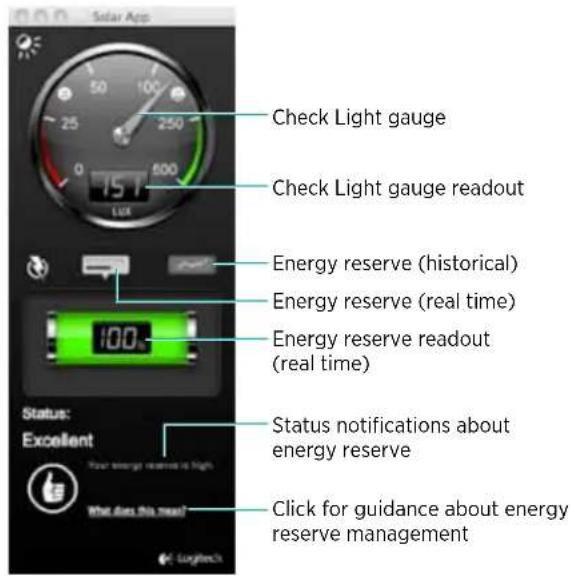

Using the Solar App

Want an easy and more visual way of checking the available light falling on the K750 while keeping track of the keyboard's energy reserve? Download and install the Solar App from www.logitech.com/k750-mac/solarapp

The Solar App operates in the background and notifies you whenever there is a change (up or down) in the K750's energy reserve.
Try to keep the Check Light gauge pointing at 100 lux or higher to make sure the K750 will have plenty of energy.
- To bring the Solar App to the foreground, press the Check Light hot key on the keyboard. The Solar App will pop up, and the Check Light gauge will activate immediately.

Keyboard features

Decrease display brightness

Increase display brightness

Mission control*

Dashboard

Rewind

Play/Pause

Fast-forward

Mute sound

Decrease volume

Increase volume

Eject disc

*Only works with OS X Lion default Keyboard Shortcuts. See Help with setup section for more details.

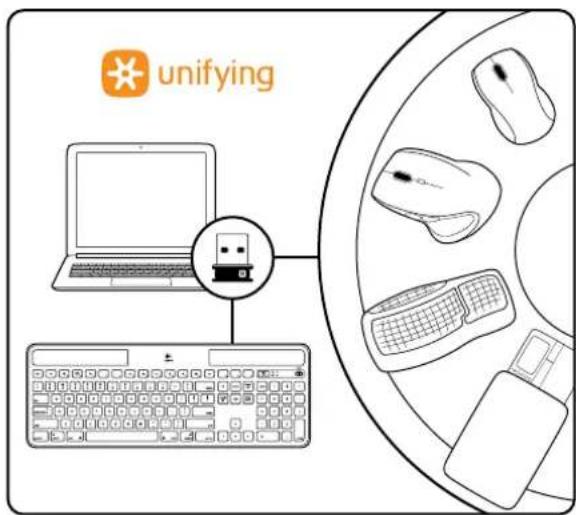

Plug it. Forget it. Add to it.

You've got a Logitech Unifying receiver. Now add a compatible wireless keyboard or mouse that uses the same receiver.

It's easy. Just start the Logitech Unifying software and follow the onscreen instructions.

For more information and to download the software, visit www.logitech.com/unifying

*Go to Applications/Utilities/Logitech Unifying Software

Help with setup

Keyboard not working

• Check the Unifying receiver. Also, try changing USB ports.
• Move closer? Try moving the K750 closer to the Unifying receiver, or plug the Unifying receiver into the Wireless extender if you are using an iMac, Mac Mini, or Mac Pro.
• Is the K750 turned on? Slide the keyboard Off/On switch to Off and then to On position.
• Re-establish the connection. Use the Unifying software to reset the connection between the K750 and Unifying receiver. Refer to the Unifying section in this guide for more information.
• Restart the computer.
• Press the Check Light hot key. If the Check Light LED produces no light, the K750 is out of energy. To use the K750 again, significantly increase the amount of light over the keyboard to a level you might see in a brightly lit office. It may take a day or two for the K750 to recharge when exposed to this increased level of illumination, but only several hours if the K750 is placed in direct sunlight.

Note: Any time the Check Light LED flashes red automatically, the K750 is nearly out of energy and needs more light to keep working on a long-term basis.

• Download and use the Solar App. This handy widget gives you an easy and more visual way of checking the available light hitting the K750 while keeping track of the keyboard's energy reserve. Download the Solar App from www.logitech.com/ k750-mac/solarapp

Mission Control on F3 key not working

This feature only works with OS X Lion default Keyboard Shortcuts. To restore default shortcuts, go to your Mac System Preferences>Keyboard>Keyboard Shortcuts>Mission Control>Restore Defaults.

If you are using Leopard (Mac OS 10.5) or Snow Leopard (10.6) you can re-assign this key to do 'Expose'. Go to Keyboard Shortcuts. Select Expose. Double click the shortcut and then press the F3 key on the keyboard.

Handling the product at end of life

When you have made the decision to stop using your product, recycle it according to your local laws. Follow the instructions below to remove the battery (not user replaceable) from the keyboard, and then recycle both the keyboard and battery as recommended in steps 3 and 4.

1. Use a screwdriver to open the battery tray.
2. Carefully remove the battery from the tray.
3. Hand over the spent battery to the appropriate collection point for the recycling of batteries.
4. Hand over the product to the appropriate collection point for the recycling of electrical and electronic equipment.
