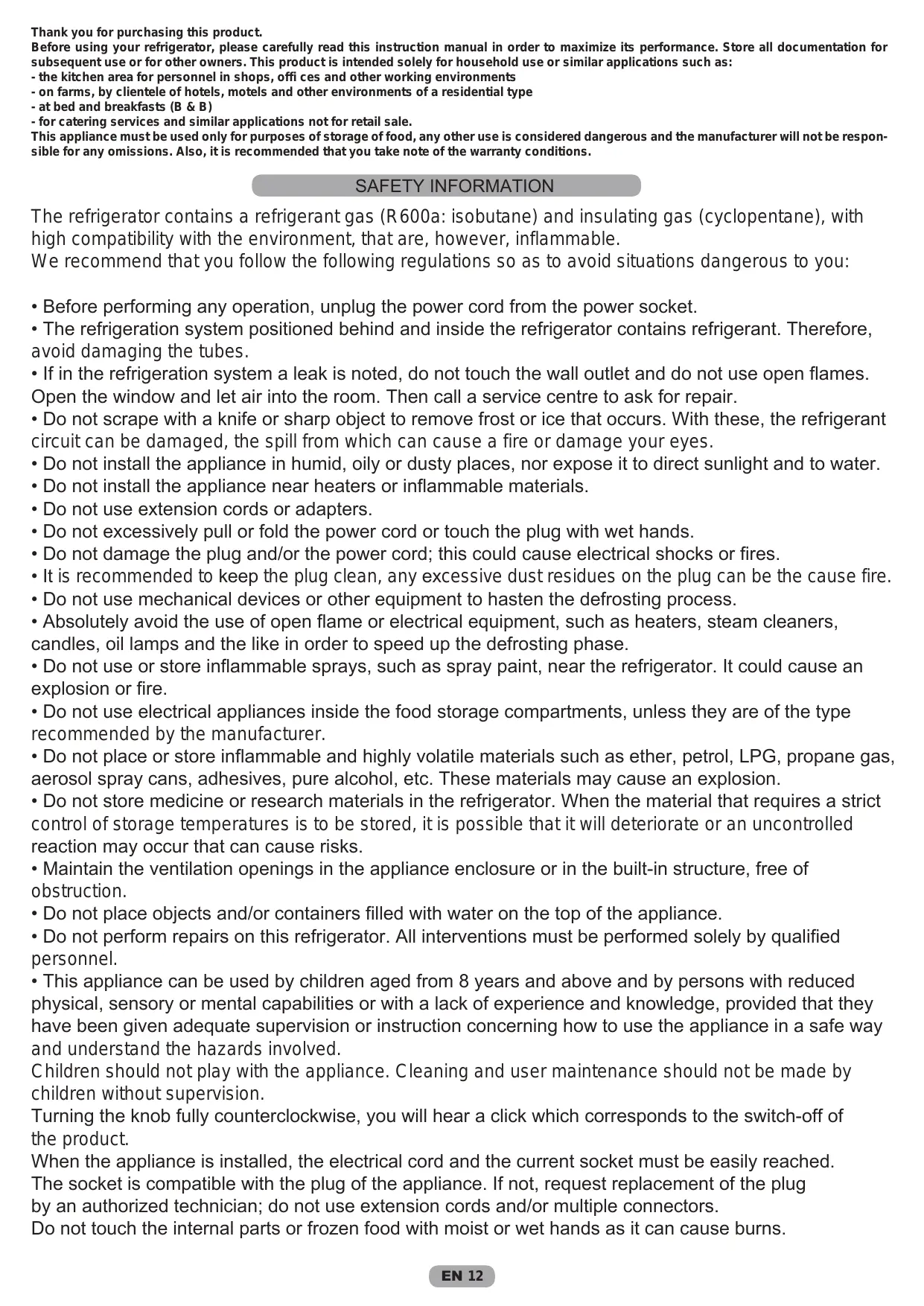

Thank you for purchasing this product. Before using your refrigerator, please carefully read this instruction manual in order to maximize its performance. Store all documentation for subsequent use or for other owners. This product is intended solely for household use or similar applications such as: = the kitchen area for personnel in shops, offi ces and other working environments - on farms, by clientele of hotels, motels and other environments of a residential type - at bed and breakfasts (B & B) - for catering services and similar applications not for retail sale. This appliance must be used only for purposes of storage of food, any other use is considered dangerous and the manufacturer will not be respon- sible for any omissions. Also, itis recommended that you take note of the warranty conditions. SAFETY INFORMATION The refrigerator contains a refrigerant gas (R600a: isobutane) and insulating gas (cyclopentane), with high compatibility with the environment, that are, however, inflammable. We recommend that you follow the following regulations so as to avoid situations dangerous to you: - Before performing any operation, unplug the power cord from the power socket. - The refrigeration system positioned behind and inside the refrigerator contains refrigerant. Therefore, avoid damaging the tubes. - Ifin the refrigeration system a leak is noted, do not touch the wall outlet and do not use open flames. Open the window and let air into the room. Then call a service centre to ask for repair. + Do not scrape with a knife or sharp object to remove frost or ice that occurs. With these, the refrigerant circuit can be damaged, the spill from which can cause a fire or damage your eyes. + Do not install the appliance in humid, oily or dusty places, nor expose it to direct sunlight and to water. + Do not install the appliance near heaters or inflammable materials. + Do not use extension cords or adapters. + Do not excessively pull or fold the power cord or touch the plug with wet hands. + Do not damage the plug and/or the power cord; this could cause electrical shocks or fires. - Itis recommended to keep the plug clean, any excessive dust residues on the plug can be the cause fire. + Do not use mechanical devices or other equipment to hasten the defrosting process. - Absolutely avoid the use of open flame or electrical equipment, such as heaters, steam cleaners, candles, oil lamps and the like in order to speed up the defrosting phase. + Do not use or store inflammable sprays, such as spray paint, near the refrigerator. lt could cause an explosion or fire. + Do not use electrical appliances inside the food storage compartments, unless they are of the type recommended by the manufacturer. + Do not place or store inflammable and highly volatile materials such as ether, petrol, LPG, propane gas, aerosol spray cans, adhesives, pure alcohol, etc. These materials may cause an explosion. + Do not store medicine or research materials in the refrigerator. When the material that requires a strict control of storage temperatures is to be stored, itis possible that it will deteriorate or an uncontrolled reaction may occur that can cause risks. - Maintain the ventilation openings in the appliance enclosure or in the built-in structure, free of obstruction. + Do not place objects and/or containers filled with water on the top of the appliance. + Do not perform repairs on this refrigerator. AI interventions must be performed solely by qualified personnel. - This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or with a lack of experience and knowledge, provided that they have been given adequate supervision or instruction concerning how to use the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance should not be made by children without supervision. Turning the knob fully counterclockwise, you will hear a click which corresponds to the switch-off of the product. When the appliance is installed, the electrical cord and the current socket must be easily reached. The socket is compatible with the plug of the appliance. If not, request replacement of the plug by an authorized technician; do not use extension cords and/or multiple connectors. Do not touch the internal parts or frozen food with moist or wet hands as it can cause burns. EN 12

( Scrapping old appliance )

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials. Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules: - WEEE should not be treated as household waste; - WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present. In many countries, when you buy a new appliance, the old one may be retumed to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment. [( Conformity ) By placing the € € mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product. WARNINGS: + Do not install the appliance in a damp or wet location as this could compromise the insulation and result in leakage. Furthermore, on the exterior of the same, condensate could accumulate + Do not place the appliance in locations outside or near sources of heat or exposed to direct sunlight. The appliance operates properly within the range of environmental temperatures indicated: #10 +32°C for the climatic class SN #16 +32°C for the climatic class N +16 +38°C for the climatic class ST. +16 +43'C for the climatic class T (See the nameplate of the product) + Do not place containers with liquids on top of the appliance. + Wait at least 3 hours after final placement before placing the appliance in operation. (( Electrical connection ) After shipping, place the appliance vertically and wait at least 2 - 3 hours before connecting it to the electrical system. Before inserting the plug into the electrical socket, make sure that: + The socket is earthed and in compliance with the law. + The socket can withstand the maximum power load of the appliance, as indicated on the nameplate of the refrigerator. + The power supply voltage is within the amounts indicated on the nameplate of the refrigerator. + The cord must not be folded or compressed. + The cord must be checked regularly and replaced solely by authorized technicians. + The manufacturer declines any liability whenever these safety measures are not respected. (É Appliance start-up ) Remove all wrapping/packaging present inside the appliance and clean with water and baking soda or neutral soap. After the installation, wait 2 - 3 hours to allow time for the refrigerator/ freezer to stabilize at normal working temperature, before placing fresh or frozen foods inside. Ifthe power cord becomes disconnected, wait at least five minutes before restarting the refrigeratorl freezer. At this point, the appliance is ready for use. C Turning On/Off (no display) ) + The thermostat unit for control of the appliance is located inside of the refrigerator compartment (Fig. 1). Rotate the thermostat knob of the thermostat beyond the “0” position. The light is on when the refrigerator door is open. Turning the knob to “0” completely turns off the product. (Temperature adjustment (no display) ) + The temperature adjustment of both compartments is effected by rotating the thermostat knob (Fig. 2). Select the desired position: + For colder temperature in the refrigerator and in the freezer, by turning towards 5. + For temperature less cold in the refrigerator and in the freezer, by rotating in the direction of 0. Poser. Condiians F7 Summer or amant temperature Betneen 255

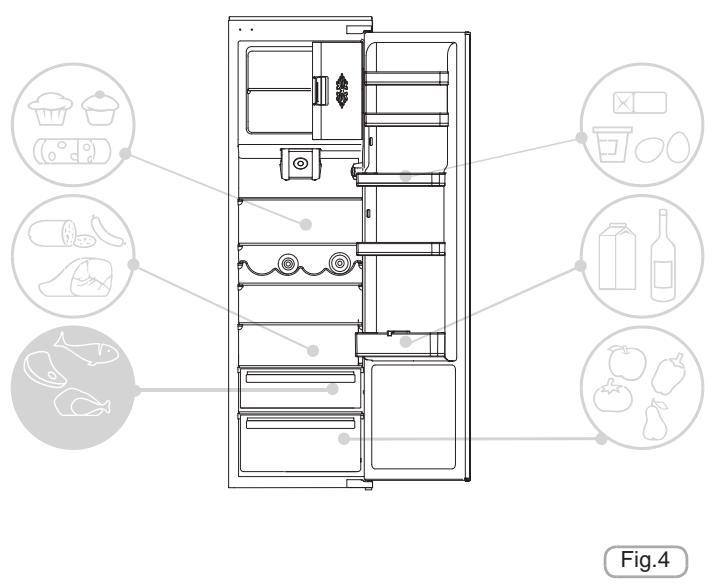

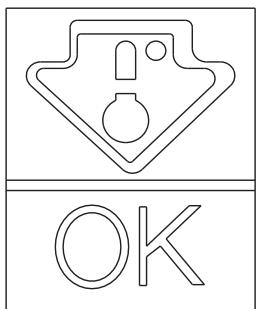

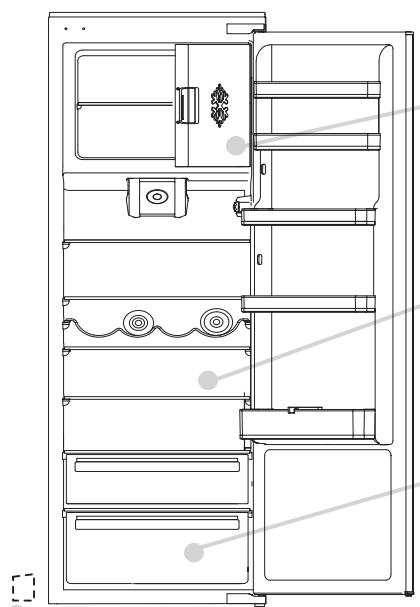

+ To maintain the best flavour, nourishment and freshness of food, it is advisable to store them in the refrigerator compartment as shown in Fig. 6 below, making sure to wrap them in aluminium or plastic sheets or in appropriate covered containers to avoid cross-contamination. (É Refrigerator zone ) Fruit / Vegetables + To decrease fruit and vegetable moisture losses they must be wrapped in plastic materials such as, for example, flms or bags and then inserted in he fruitvegetable zone. In this way rapid deterioration is avoided FRIDGE ZONE Indicator of the temperature in the coldest zone {not all models) Some models are equipped with an indicator of the temperature in the refrigerator compartment in the coldest zone, for you to be able to control the average temperature. This symbol indicates the coldest zone of the refrigerator (Fig. 5). Check that on the indicator of the temperature, the word OK is clearly shown (Fig. 6). If the word does not appear, this means that the tempera- ture is too high: adjust the temperature to a cooler setting and wait for about 10 hours. Recheck the indicator: if necessary, proceed with à new adjustment.

0< 1 If large quantities of food are inserted or the refrigerator door frequentiy opened, it is normal for the indicator fails to show OK. Wait at least 10 h before adjusting the knob to a higher setting.

Freezer zone ) Use the table below for the compariments Freezing process can only occur in the compartments { Practical recommendations ) Place food on the shelves in a homogeneous manner to allow air to circulate properly and to cool it. + Avoid contact between the food and the far end walls of the refrigerator compartment. + Do not introduce hot foods as they can cause deterioration of existing ones and increase energy consumption. + Remove the wrappings of foods before inserting them. + Do not put in dishes or other containers unless previously washed. +Do not obstruct the cold air ventilator openings with food. + Do not cover the glass shelf of the vegetable bin to allow for proper air circulation. + Do not store bottes in the freezer compariment as they can burst when frozen. + In the case of prolonged power outage, keep the doors closed so that foods remain cold as long as possible. + The installation of the appliance in a hot and humid location, with frequent door openings and storing large amounts of vegetables can cause the formation of condensate and affect the performance of the unit itself. + To prevent excessive energy consumption, the frequent or prolonged opening of the doors is not recommended

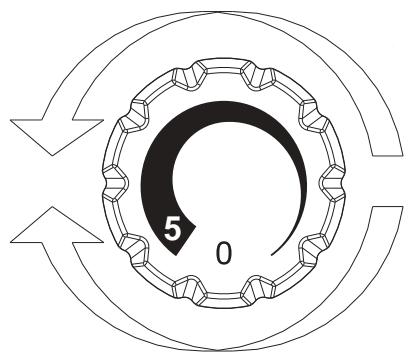

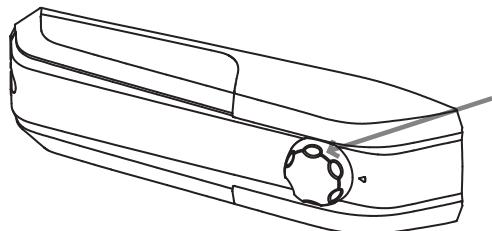

+ Foods must be fresh. + Freeze small amounts of food at a time in order to freeze quickly. Never exceed the maximum amount indicated on the rating label. + During freezing, do not open the freezer door. + Food must be sealed, airtight. + Separate food to be frozen by those already frozen. + Label bags or containers to keep an inventory of frozen foods. + Once defrosted, do not ever refreeze foods and consume them promptiy. NOTE: *PRODUCTS WITHOUT DISPLAY (_ Defrosting the refrigerator compartment ) Normally it is not necessary to intervene with the thermostat knob. Only in case you find excessive cooling of he products contained During normal functioning, the refrigerator is automatically defrosted. in the refrigerator compartment, gentiy tuming the thermostat knob There is no need to dry the drops of water present on the rear wall or to oua 0 x recommended (Fig- es knob to th 1 post eliminate the frost (depending on functioning). n completion of freezing, retum the knob io the usual position. The water is conveyed to the rear part through the drain hole found there and the heat of the compressor causes it to evaporate. + Keep the drainage pipe (Fig. 8) clean in the refrigerator compartment to keep it free of water. The rating plate states the maximum quantity of foods that can be frozen, (see figure 8). Defrosting of the fridge compartment occurs automatically in this (Figure 8) product. We recommend you defrost the freezer area when the layer of frost is more than 3 mm thick.

A small amount of frost or drops of water on the back of the fridge

compartment when the fridge is working is normal. Make sure the water outlet is always clean and make sure foods do not I touch the back or sides of the fridge compartment. N.B. Here you will find your appliance rating plate: it includes all the data to be transmitted to the Customer Service should a fault arise. Important: if your ambient temperature is high, the appliance may operate continuously, thus building up excessive frost on the inner wall of the fridge. In this case, turn the fridge knob to a warmer setting (1-2). The most energy-saving configuration requires drawers, food box and shelves to be positioned in the product, please refer to the above pictures

Defrosting the freezer compartment {static products without NO-FROST technology) When the layer of frost present in the freezer compartment exceeds 3mm, itis recommended to proceed with the defrosting as itincreases energy consumption.

1) Rotate the knob to the ,0“ position (Fig 9)

3) Remove the frozen food and temporarily place them in a cool

4) Leave the freezer door open to speed defrosting.

7) Reconnect the power cord and set the desired values.

8) Wait a moment and reintroduce the frozen foods.

Absolutely avoid the use of open flames or electrical appliances, such as heaters, steam cleaners, candlles, oil lamps and the like to accelerate the defrosting phase. Do not scrape with a knife or sharp object to remove frost or ice present, These can damage the refrigerant circuit, the leakage of which can cause a fire or damage your eyes. | Defrosting the freezer compartment (NO-FROST products) Defrosting is automatic.

MAINTENANCE AND CLEANING

(( Lighting ) LED lighting The p roductis equipped with LED lights, please contact the Technical Assistance Service in case of replacement. Compared to traditional light bulbs, the LEDs last longer and are environmentally friendly. (( Cleaning ) NOTICE: «Before each operation, remove the refrigerator plug from the power socket to prevent electric shocks. + Do not pour water directly on the outside or inside ofthe refrigerator itself. This could lead to oxidation and damaging of the electrical insulation. IMPORTANT: To prevent cracking of the inside surfaces and plastic parts, follow these suggestions: + Wipe away any food oils adhered to plastic components. + The intemal parts, gaskets and external parts can be cleaned with a cloth with warm water and baking soda or a neutral soap. Do not use solvents, ammonia, bleach or abrasives. + Remove the accessories, for example, the shelves, from the refrigerator and from the door. Wash in hot soapy water. Rinse and thoroughly dry. «The back ofthe appliance tends to accumulate dust which can be eliminated with the use of à vacuum cleaner, after having switched off and disconnected the appliance from the electrical outlet. This provides greater energy efficiency. ENERGY SAVINGS For better energy savings, we suggest:

• Installing the appliance away from heat sources and not exposed to direct sunlight and in a well ventilated room. + Avoid putting hot food into the refrigerator to avoid increasing the internal temperature and therefore causing continuous functioning of the compressor. + Do not excessively stuff foods so as to ensure proper air circulation. + Defrost the appliance in case there is ice (see DEFROSTING) to facilitate the transfer of cold. «In case of absence of electrical energy, itis advisable to keep the refrigerator door closed. + Open or keep the doors of the appliance open as little as possible + Avoid adjusting the thermostat to temperatures too cold. Remove dust present on the rear of the appliance (see CLEANING). AVOIDING NOISES During its operation, the refrigerator emits some absolutely normal noises, such as + HUMMING, the compressor is running. + RUMBLINGS, RUSTLINGS and HISSING, the refrigerant is flowing through the tubes. *TICKS and CLICKS, the operation shutdown of the compressor. Small measures to r ed uce the vibration nois es: + Containers touch each other: Avoid contact between containers and glass recipients. + Drawers, shelves, bins vibrate: Check the proper installation of internal accessories. NOTE: The refrigerant gas produces noise even when the compressor is off; itis not a defect, itis normal. H you hear a clicking sound inside the appliance, itis normal as due to expansion of the various materials.

REVERSIBILITY OF THE DOOR

The doors ofthe appliance can be reversed so as to allow the opening to the right or left according to exigency NOTE: «inversion of the doors must be performed by qualified technical personnel. + inversion of the doors is not covered by the warranty. EN 16

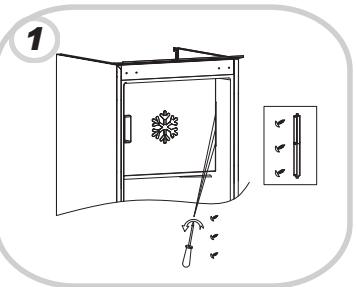

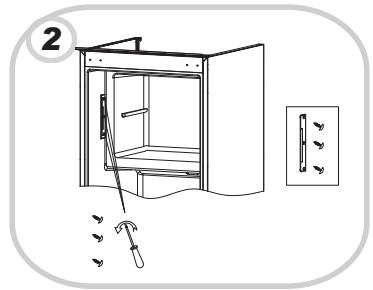

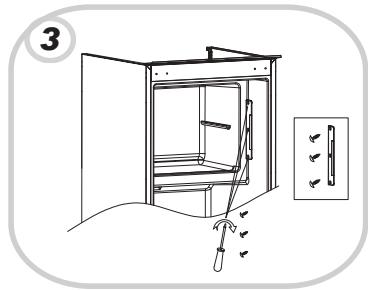

Remove the right bottom hinge Use the spare hinge and cover Remove the upper plate and Remove the upper door. and left plastic plugs, and ref from the accessories bag, and hinge by screw driver. them onto the opposite side. fit into the left bottom Reassemble the doors and hinges workings from bottom to top, from 1-2. 5 —®

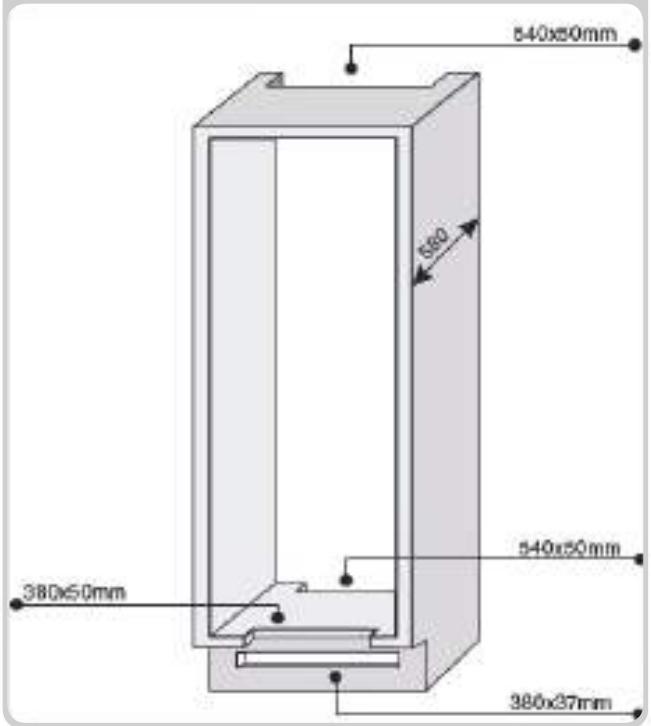

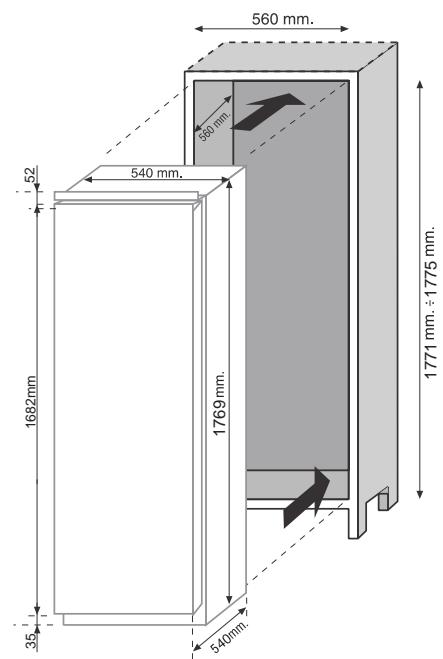

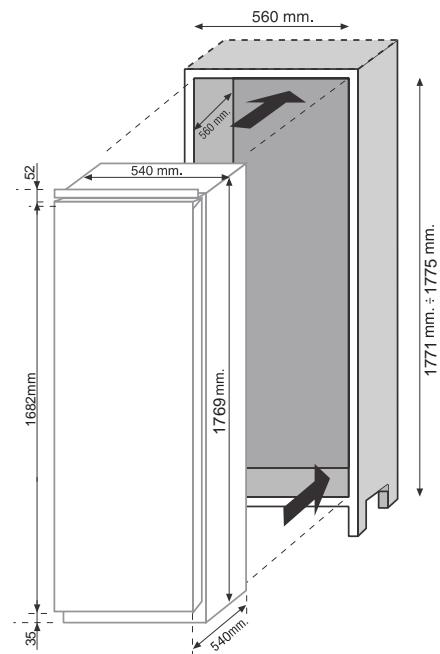

PRODUCT DIMENSIONS AND BUILT-IN COMPARTMENT

560 mm. AM 21775 mm, 1769mm. EN 17

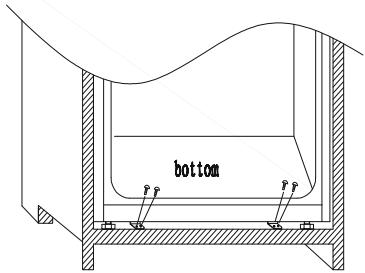

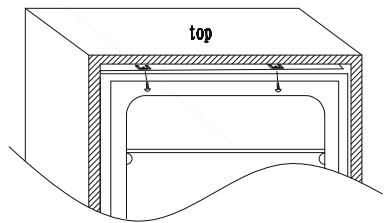

INSTALLATION OF THE APPLIANCE IN THE COLUMN Insertthe appliance into the column, placing it on After ensuring the match between appliance door the opposite site of the hinges, and make sure 3-5 and column door, then screw the appliance upper mm distance gap. part to the cabinet 1 3-52. top à E ( D Screw the appliance lower part. Fitthe seal to the appliance, cut off the excessive part ifnecessary. Fitthe bottom parts with plastic covers. 3 4 ==>

COUPLING OF THE PANELS OF THE PRECAUTIONS FOR THE CORRECT

BUILT-IN COLUMN OF THE OPERATION

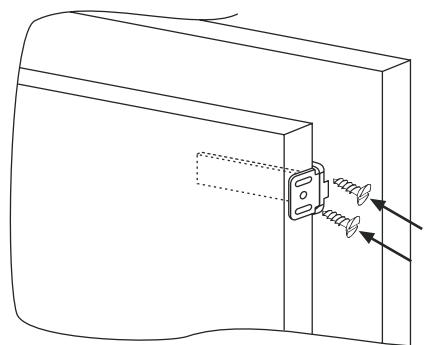

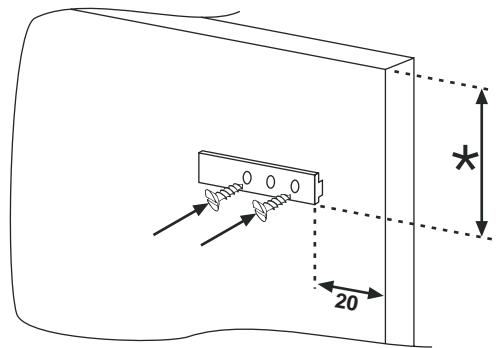

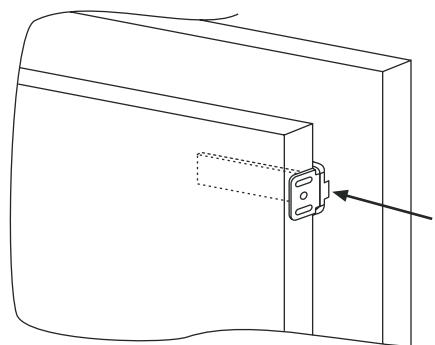

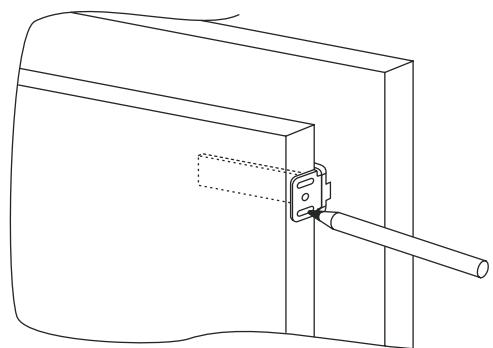

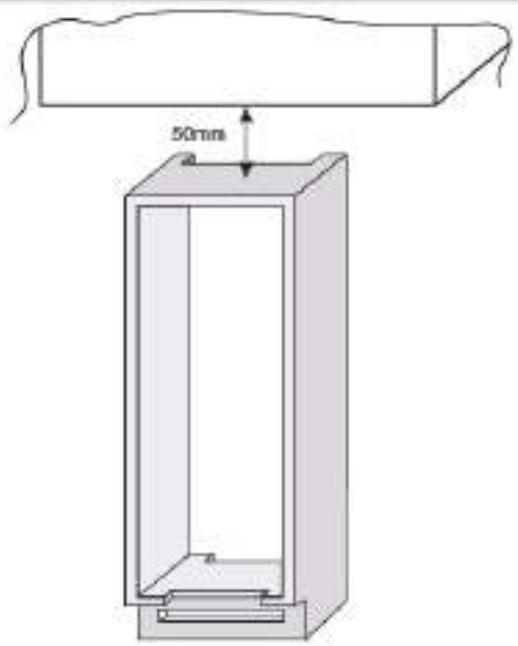

APPLIANCE DOORS Once the product has been embedded, place the rear part of the The appliance is equipped with coupling devices for the appliance doors column in contact with the wall so as to prevent access to the compres- with the column panels (loader slide). sor compartiment. US x For the product to operate correct itis essential to allow adequate air Secure the slide in the inner part of the panel ofthe built-in column atthe ee circulation so as to cool down the condenser located in the rear part of desired height and at approx. 20 mm. From the outer wire of the door. the appliance. For this reason, the column must be equipped with a rear chimney, whose upper opening must not be blocked and with à front slot which will be covered with à ventilation grilL Size of ther unit cut outs. Open the doors of the built-in column and the fridge. Position the built-in Fr loader in the slide, then fitit into the fridge door. 3805 Om Mark the fixing points for the screws and drill with à bit of a diameter of 2.5mm. Room to leave between the unit and ceiling. / c: Sornn 7 — , 7 Connect the appliance door to the cabinet panel keeping the loader slots as guidelines. ES] Ifthe appliance is notto be used for à long time:

1) Tum the appliance OFF (see Operation)

2) Extract the plug or remove the safety device

3) Clean the appliance

4) Leave the doors of the appliance open:

TROUBLESHOOTING PROBLEM

REMEDY ) le illumination light bulb does not The refrigerator and freezer do not suffi cientiy cool. The food in the refrigerator freezes. The bottom of the refrigerator compartment is wet or droplets are present. Presence of drops or water on the back wall of the refrigerator. Presence of water in the vegetable drawer. The motor runs continuously. The frozen food is thawing. WI-FI light flashes 3 sec on - 1 sec off. +Electricity absence. + Door switch is blocked. -The doors are not closed. + The doors are frequentiy opened + Erroneous setting of the temperature «The refrigerator and freezer have been excessively filed. + Surrounding temperature is too low + No electrical power. + Erroneous setting of the temperature + Food in contact with the back wall. + The freezing of too much fresh food causes a lowering of the temperature of the refrigerator The drain tube could be clogged. + Normal operation of the refrigerator. + Lack of air circulation. + Vegetables and fruits with too much moisture + The doors are not closed. The doors are opened frequentiy. + Ambient temperature is very high + Thickness of frost than 3mm. + The ambient temperature range below climate class ofthe product. The compressor starts rarely + The freezer door is not closed. + Router off. + Lacking connection. «The power cord is not properly plugged in. + Check whether the appliance is switched off. (see Temperature Adjustment). *Ensure that there is a current in the house. ‘Check thatitis active. + Check thatthe door and gaskets close properly. + Avoid unnecessary opening ofthe doors for a period of time. + Check the temperature setting and, ifitis possible, cool even more (see Temperature adjustment) + Wait for the stabilization ofthe temperature of the refrigerator or freezer. «Check thatthe ambient temperature is in accordance with whatis indicated on the nameplate (see Installation) «The power cord is not properly plugged in. + Check whether the appliance is switched off (see Temperature adjustment) +Ensure that in the home there is current. + Check the temperature setting (see Temperature Adjustment) and, if possible, decrease tempera- ture setting. + Separate the food from the back wall of the refrigerator.

• Do notexceed the maximum amount to be frozen (see Freezing).

• Clean the drain tube with a stick or the like to allow the discharge of water. *Itis not a defect (see Defrosting). - Verify that your glass shelftray vegetables are not put foods that prevent air circulation. + Wrap the fruit and vegetable materials plastic such as, for example, films, bags or containers.

• Make sure the doors are closed and if the seals close property. + Avoid unnecessary open ports for a certain period. + Verify that the ambient temperature is in accordance with the specifications on the nameplate (see Installation).

• Setthe display/thermostat a warmer temperature.
• Defrost the unit (see Defrosting). + Move the unit to a warmer or heat the room. + Make sure the door is closed and thatthe gasket is sealing properly. + Switch the router on. *Resetthe product (see WI-F1) IF YOU ARE NOT SOLVED THE PROBLEM, CONTACT THE SERVICE CENTER, PLEASE GIVE THE TYPE OF FAULT AND THE INFORMATION ON THE PLATE OF THIS APPARATUS TO INSIDE THE REFRIGERATOR COMPARTMENT: + The model of equipment. + The number of series. EN 20
