USER MANUAL ROBOTCLEAN ACCU XS UBBINK

Robotclean Accu XS Operating Manual and Parts List

General information

Dear customer,

This operating manual contains important information on commissioning and use. Read the operating manual carefully before using the pool cleaner. This applies particularly to the safety advice. Otherwise, you may injure yourself or damage the pool cleaner. Keep the operating manual for future use. If you pass the pool cleaner on to a third party, be sure to hand over this operating manual as well. These operating instructions can also be downloaded as a PDF file from our website www.outsideliving.com.

Safety instructions

This device may be used by children from the age of 8 upwards and also by people with physical, sensory or mental disabilities or lacking suitable knowledge and experience, provided they are supervised or have been instructed in the use of the device and understand the resulting hazards. Cleaning and user maintenance must not be carried out by unsupervised children.

The pool cleaner is intended exclusively for private use only and is not suitable for commercial applications. Only use the pool cleaner as described in this operating manual. Any other use is considered improper and can lead to damage to property and/or personal injury. The pool cleaner is not a toy. The manufacturer or dealer accepts no liability for damage resulting from improper or incorrect use.

• Make sure that the pool cleaner is placed on a level and stable surface for assembly.
• Only use the power supply unit in a properly installed socket with a mains voltage of 230 V AC indoors.
  The power supply for the power supply unit must be at least 3.5 metres away from the pool. The power supply must be supplied via a residual current circuit breaker (RCCB) with a rated residual current of no more than 30mA .
• The power supply unit may not come into contact with water or moisture.
• Remove the power supply unit from the socket immediately if a fault occurs or if the appliance is not used for a longer period of time.
  Only use the supplied power supply unit.
• Do not pull the power supply unit by the cable to remove the plug from the socket.
• Lay the power supply unit cable so that it cannot come into contact with sharp-edged or hot objects.
• Keep the pool cleaner and the power supply unit out of the reach of children.
• Do not place the pool cleaner or the power supply unit near extreme temperatures and protect the transformer from moisture
  The power cable of the power supply unit cannot be replaced. If the cable is damaged, the affected device may no longer be used and must be disposed of properly.
• Do not enter the swimming pool when the pool cleaner is in operation.
  Before using your pool cleaner, remove all objects from the pool that could affect the performance of the pool cleaner.
• Do not switch the pool cleaner on before it is in the water.
  Take the pool cleaner out of the pool after each use. If you leave the pool cleaner in the pool all the time, this may result in additional service requirements.

Check the pool cleaner and scope of delivery

Risk of damage,

If you open the packaging carelessly with a sharp knife or other pointed object, the pool cleaner or accessories may be damaged. Remove the pool cleaner from the packaging. Check whether the pool cleaner or the accessories are damaged. If this is the case, contact the dealer immediately.

Assembly

Once you have removed the pool cleaner from the packaging, you can put the pool cleaner into operation. Proceed as follows:

• Install the spatula (F) to boost the suction effect if the pool floor is very dirty. It is not recommended to install the spatula (F) if the pool floor is uneven or has many holes. This can cause the pool cleaner to get caught and damage the foil
• Mount the handle (A) on the pool cleaner with both included screws
• Connect the power supply unit (G) to a suitable socket (see safety instructions), insert the charging plug into the charging socket (H) underneath the pool cleaner and fully charge the pool cleaner (4 hours)
  To protect the swivel plates, please note that the pool cleaner must not be placed upside down
  The indicator lamp on the charger must be illuminated red during the charging process
  The indicator lamp on the charger lights up green after the pool cleaner has been fully charged
  After you have removed the charging plug from the charging socket (H), make sure that the rubber plug is fitted to the charging socket (H)
  Charge up the cleaner fully before each use
• Mount the retrieval hook (E) on a suitable rod (not included in the scope of delivery)

Commissioning

Only use the pool cleaner at temperatures between 10^ and 35^
- Hold the pool cleaner by the handle (A), immerse it in the water and make rotating movements so that air can escape from the pool cleaner. S
- Switch the pool cleaner on at the on/off switch (I) underneath the pool cleaner, carefully lower it into the water and carefully lower it to the bottom using the retrieval hook (E)
- The pool cleaner emits an acoustic signal as long as the pool cleaner is not completely submerged in water
The pool robot starts automatically after approx. 5 seconds.
- Make sure that the pool cleaner is not lowered along the wall, as this can damage the foil/pool

Setting the running property

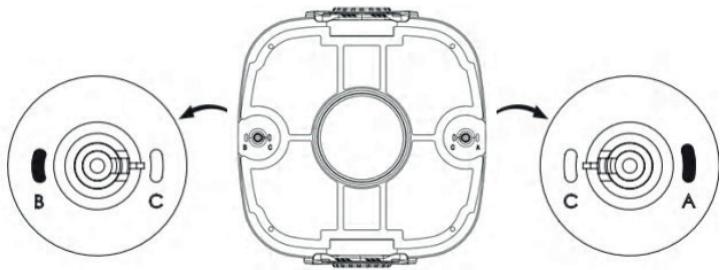

The pool cleaner has 2 adjustable wheels (19). Turning the wheels changes the running behaviour of the pool cleaner. To adjust, open the two buckles (22) and remove the chassis (D). Remove the two wheels and fit them according to the following guidelines for the following pools:

Robotclean Accu XS Operating Manual and Parts List

Combination	Suitable for pool
A – C	Suitable for most pools
B – C	For smaller angles than A – C
C – C	For rectangular or long pools
A – B	For round pools

Cleaning process

General advice

• The Accu XS RobotClean is intended for regular cleaning of the pool floor.
  The robot must be used in clean water.
  The pH-value of the pool water should be between 7.0 and 7.4.
• When commissioning the pool after winter storage, the floor must be cleaned for the first time with a landing net or vacuum cleaner before the robot is used.

The pool cleaner works according to the chaotic cleaning principle, which means that it automatically changes direction as soon as it touches the pool wall. The battery is drained after approx. 50 minutes of cleaning. Then remove the pool cleaner, charge it according to the installation instructions and carry out the cleaning process again if necessary. The pool cleaner and filter should be cleaned after every cleaning process.

Periods out of use

The pool cleaner must be dried sufficiently after finishing cleaning. Whenever the pool cleaner is not in use, it should be stored in a shady and well ventilated place. Frost and direct sunlight should be avoided.

Maintenance and care

Cleaning the filter

Open the two buckles (22), take off the cover (B) and remove the filter (12). Clean the filter (12) and the inside of the chassis (D) under a tap or hose

1

Ⅲ

Cleaning the housing

Only use water and a soft cloth. Be careful not to apply too much pressure to the housing, otherwise it may be destroyed. Do not use a coarse sponge or detergent.

Robotclean Accu XS Operating Manual and Parts List

Repairs

If the housing or power supply unit are damaged, a repair is not possible. You may not continue using the affected part and must dispose of the weather station or the transmitter.

Ordering spare parts

When ordering spare parts, or in the course of troubleshooting according to the item "Troubleshooting", we require the following information:

1. Article name
2. Article number of device
3. Copy of the invoice
4. Error description

Technical data

Article	7505519
Power supply unit (rechargeable battery)
Input voltage	AC 230 V / 50 Hz
Output voltage	DC 12.6 V / 1 A
ROBOTCLEAN
Input voltage	DC 12.6 V, max. 30 W
Storage temperature	10°C – 40°C
Working temperature	10°C – 35°C
Max. immersion depth	2 m
Battery capacity	2600 mAh
Battery operating time	Max. 50 min
Dimensions	175 x 340 x 350 mm
Technical properties
Type of cleaning	Floor
Cleaning surface	max. 50 m²
Safety system (over-voltage protection)	Yes
Filter unit	180 Micron
Suction power	7 m³/h

Troubleshooting

Do not repair the pool cleaner yourself! If you use unsuitable parts for the repair, the risk of an electrical short circuit can increase greatly. Some problems may be caused by minor faults that you can fix yourself. To do this, follow the instructions below according to the problem in question.

If this does not solve the problem, please contact the customer service department and keep the required information at hand according to the item "Ordering spare parts".

Fault	Cause	Solution
The pool cleaner does not emit an acoustic signal and the rotor does not turn in the water	Battery too low	Charge up the battery
	Internal error	Contact your salesperson
The pool cleaner emits an acoustic signal but does not start in the water	Internal error	Contact your salesperson
The pool cleaner does not clean the entire pool floor	Incorrect setting of adjustable wheels	Change the wheels setting according to the Commissioning point
	Filter blocked	Clean the pool cleaner
	Battery drained	Charge the battery and repeat the cleaning process

Robotclean Accu XS Operating Manual and Parts List

WARRANTY

Our products are subject to stringent quality controls. However, we are very sorry if this device does fail to work properly. The following applies to the assertion of warranty claims:

1. These warranty conditions are intended exclusively for consumers, i.e. natural persons who do not intend to use this product in the course of their commercial or other self-employed activities.
2. Our warranty service covers the repair of material and manufacturing defects or the replacement of the device.
3. Warranty claims are valid for a maximum of 2 years from the date of purchase. The assertion of warranty claims after the expiry of the warranty period is excluded.
4. If the article is covered by the warranty, it will be repaired free of charge or replaced free of charge by an equivalent or similar article of our choice.

Repair or replacement of the device does not result in an extension of the warranty period, nor does this service initiate a new warranty period for the device or for any installed spare parts.

The following exclusions apply to our warranty:

• Damage to the device due to failure to observe the operating instructions
  Non-compliance with the maintenance and safety regulations or by exposure of the device to abnormal environmental conditions or by lack of care.
• Damage to the device caused by misuse or improper application (such as overloading the device or using non-approved application tools or accessories), penetration of foreign bodies into the device (such as chemicals, oils, or similar), use of force or external influences (such as damage due to dropping).
• Damage to the device or parts of the device resulting from normal, customary or other natural wear and tear.

The EU Declaration of Conformity can be requested from the following address: www.outsideliving.com

Disposal of packaging

Dispos of the packaging according to type. Put cardboard and card into waste paper, and foil and bags in the recyclables collection

Separate collection and disposal of used appliances

e care of professional recycling, or directly to the manufacturer. Disposal is free of charge for you.

BATTERIE RÜCKNAHE

Battery type	Chemical system
Rechargeable battery	Lithium-ion (Li-ion)

Disposal of batteries and rechargeable batteries:

Batteries and rechargeable batteries may not be disposed of in the household waste. Consumers are legally obliged to take batteries and rechargeable batteries for separate collection.

Batteries and rechargeable batteries can be handed in free of charge at a collection point in your municipality/district or in shops so that they can be disposed of in an environmentally friendly way and valuable raw materials can be recovered. In case of improper disposal, toxic ingredients may be released into the environment, causing adverse health effects to humans, animals and plants.

Batteries and rechargeable batteries contained in electrical appliances must be disposed of separately from the appliance whenever possible. Only return batteries and rechargeable batteries when they are discharged.

For batteries and rechargeable batteries containing lithium, tape off the terminals before disposal to prevent external short-circuiting. A short circuit can lead to a fire or explosion.
