USER MANUAL KIT VANNE BY-PASS UBBINK

Contents of the pack

• Two 90^ elbows to be bonded
• Two 90^ Tee pieces to be bonded
  Three valves
• Two 50 × 38 barbed connectors to be bonded
  One 125ml tin of adhesive
  PVC cleaner 500ml

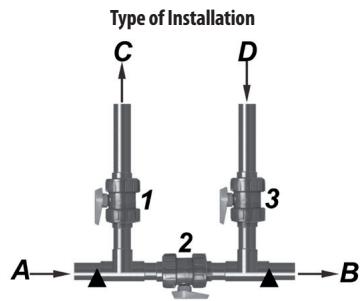

A: Filtration
B:Backflow
C: Heat pump water input
D: Heat pump water output
: Bond the 50 × 38 barbed connectors here (this only applies to 38mm pipes)

Adjusting the water flow

Maximum flow:

• Valve 2 100% closed
• Valves 1 and 3100% open

Minimum flow:

-Valve 250% open
- Valve 150% open
- Valve 3 100% open

Medium flow:

• Valve 2 25% open
• Valve 1 75% open
• Valve 3 100% open

Isolating the heat pump for overwintering or maintenance:

• Valve 2 100% open
• Valves 1 and 3100% closed

Successful bonding

• Cut the tube perpendicular to the axis using a saw suitable for going through PVC
• Clean the pipe and the connectors with the PVC cleaner
• Do not use sandpaper to clean the PVC flexible hose
• The surface must be matte and once clean should not be touched again
• Apply adhesive working in the same direction as the axis of the tube and the connectors
• After applying the adhesive, attach the two parts and push in fully, without turning or screwing and hold for a few moments. Then remove surplus adhesive with the brush.

• Do not apply adhesive in temperatures below 5^ . You should complete the bonding within one minute.

Bypasskit

Leveringsomvang

Outside Living Industries France SARL

Outside Living Industries BeLux BVNR

Wondelgemkaai 10

B-9000 Gent

www.outsideliving.com

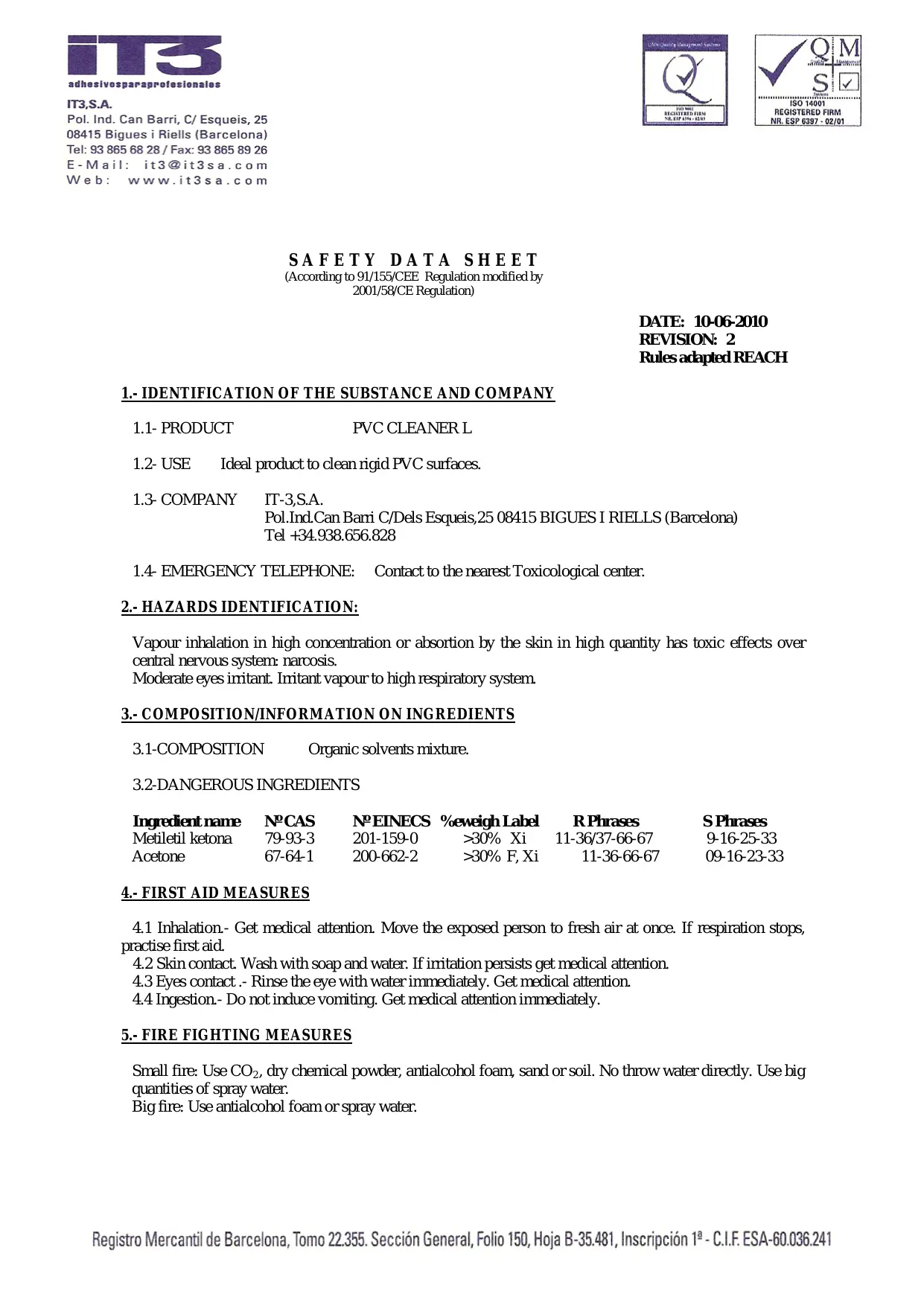

SAFETY DATA SHEET
