USER MANUAL AZURA UBBINK

DETAIL DES BESCHLÂGE-SETS

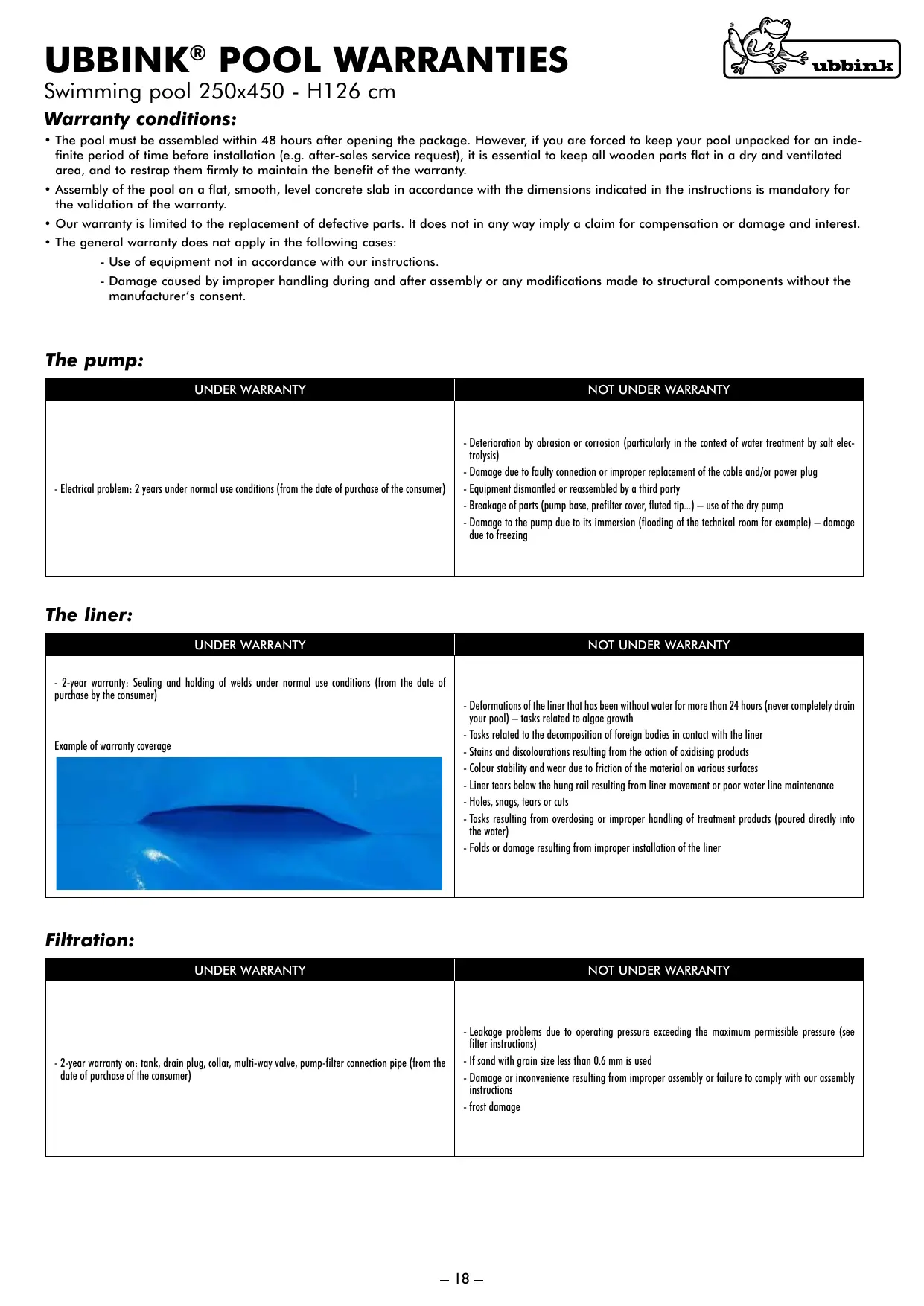

Swimming pool 250x450 - H126 cm Warranty conditions: + The pool must be assembled within 48 hours after opening the package. However, if you are forced to keep your pool unpacked for an inde- finite period of time before installation (.g. after-sales service request), it is essential to keep all wooden paris flat in a dry and ventilated area, and to restrap them firmly to maintain the benefit of the warranty. + Assembly of the pool on a flat, smooth, level concrete slab in accordance with the dimensions indicated in the instructions is mandatory for the validation of the warranty. + Our warranty is limited to the replacement of defective parts. lt does not in any way imply a claim for compensation or damage and interest. + The general warranty does not apply in the following cases: - Use of equipment not in accordance with our instructions. - Damage caused by improper handling during and after assembly or any modifications made to structural components without the manufacturer's consent. The pump:

UNDER WARRANTY | NOT UNDER WARRANTY

- Deterioration by abrasion or corrosion (particularly in the context of water treatment by salt elec- trolysis) - Damage due to faulty connection or improper replacement of the cable and/or power plug = Electrical problem: 2 years under normal use conditions [from the date of purchase of the consumer) | _- Equipment dismantled or reassembled by a third party = Bréakage of parts (pump base, prefiter cover, fluted tip. — use of the dry pump - Damage to the pump due to its immersion (flooding of the technical room for example) — damage due to freezing The liner:

UNDER WARRANTY | NOT UNDER WARRANTY

= 2-year warranty: Sealing and holding of welds under normal use conditions [om the date of purchase by the consumer) - Deformations of the liner that has been without water for more than 24 hours (never completely drain your pool) — tasks related to algae growth = Tusks related to the decomposition of foreign bodies in contact with the liner Example of warranty coverage 2 Stains and discolourations resulting from the action of oxdising products = Colour stability and wear due to friction of the material on various surfaces - Liner tears below the hung rail resulting from liner movement or poor water line maintenance = Holes, snags, tears or cuis = Tasks resulting from overdosing or improper handling of treatment products (poured directly into the water) - Folds or damage resulting from improper installation of the liner Filtration:

UNDER WARRANTY | NOT UNDER WARRANTY

= Leckage problems due to operating pressure exceding the maximum permissible pressure (see filter instructions) = 2:year warranty on: tank, drain plug, collr, multi-way valve, pump-fler connection pipe (from the |_- lÉsand with grain size less than 0.6 mm is used date of purchase of the consumer) = Damage or inconvenience resulting from improper assembly or failure to comply with our assembly instructions - frost damage —18-

The wooden structure: Wood is a material that remains natural. Wood is a natural material, i can have imperfections. À number of them are normal and superfcal. They are excluded from the warranty because they do not affect the strength and durability of your pool. Cracks Resin Shade differences Longitudinal ribs and knots Round knots Retention of oven products Surface mould Cracks, splits and tears Wood is subject to dimensional variations depending on humidity and temperature. When it dries, it retrads irregularly, causing cracks to appear. These can be impressive, but they do not affect the mechanical characteristics and strength of the product. Resin upwelling During the autoclave treciment of resinous species, the alternation of vacuum and pressure can led to stcky resin residues on the surface of the wood. To remove them, simply scratch them gently with a suitable tool. Colour differences All wood species have variations in colour. Exposure of wood to UV rays will significantly attenuate them. Presence of knots The knoïs correspond to the trace of the branches of the tree. Our woods are selected to limit the quantity and size as much as possible. Retention of oven products Autocave treated wood often shows greenish or whitish traces on the surface that disappear over time. Surface mould Woods are prone to mould caused by microscopi fungi. This surface phenomenon, reinforced by heat, humidity and lack of ventilation, is characterised by spots ranging from light blue to black blue. À simple wiping or exposure of the wood to the outside makes it easy to remove them. lt should be remembered that treated woods in dass 4 are of course protected against fungal attack. Additional processing No additional treatment or application af a wood preservative for your Ubbink® pool is required. When exposed to UV rays, the wood will turn grey over fime without affecing ts durabiliy. However, you can apply a microporous stain compatible with the autoclave treatment to preserve its original colour if you wish. Storage and assembly of your pool IE you do not wish to install your pool immediately, it is necessary to store your package properly, without unpacking it, in a cool and well-ventilated place, or failing that, protected from the elements and the sun. , however, you are forced to unpack your pool, it would be imperative to recondition the package, flat beams, and restrap it firm. Once unpacked, the structure must be assembled within 48/72 hours.

UNDER WARRANTY | NOT UNDER WARRANTY

= Changes in wood colour due to dimañc effects - Natural deformations (cracks, splits, and knots that do not affect the mechanical resistance of the wood in any way} - Imperfections that do not affect the solidity of the structure: resin build-up, difference in colour of the beams, rétention of profer products giving the wood a greenish appearance and grey/black surface mould resulting from a lack of ventilation of the packaged structure = Assembly or storage defects resulting in deformation ofthe wall slats [assembly carried out long after opening the package without restrapping) - 15-year warranty against rot and attack by ood-hring inscs {from the date of purchase by the |. Deformation of the beams caused by water pressure, which does not alter he mechanical resistance consumer) when installed on a smooth, level concret sa ofthe pool in any way = Deformaton of the structure resulting from non-complint slb assembly - Deterioration of the structure resulting from semi-underground or non-compliant underground installation (waterproofing sheet and gravel badkil mandatory) = Strudural degradation resulting from treatment of the wood with aquaphobic products that do not allow the wood to breathe: tar, varnish, gluze... - Breaks or missing tabs of less than 30 cm that do not affect the mechanical resistance of the pool = Slight deformations that do not prevent the interlocking of the beams

UBBINK® After-Sales Service Swimming pool 250x450 - H126 cm IMPORTANT: After-sales service will only be processed with points of sale. + Mandatory parts to apply the warranty: / Checkout ticket/proof of purchase J Photo of the damaged part or problem encountered / Warranty form below duly completed J Serial number Example of a structural problem: Example of a liner problem:

No. appearing on notice No. appearing on white tarpaulin No. appearing on packaging board Store: Client: City: Address: Contact: City: Direct phone: Tel:

+ Key points on the partially sunk swimming pool or on the inground installation Before you begin to assemble the pool, make sure that you have all the necessary parts. IMPORTANT: |f you choose to partially sink your swimming pool, make sure that you embed the pump and the filtration unit at the same level as the pool in an enclosed, waterproof place. To ensure that the filtration unit works efficient, it must always be positioned below the level of the water. CAUTION: In the case of a partially sunk swimming pool, before you put any water into the pool, you must have 2 safety system in place for the prevention of drowning, which complies with your national safety standards VAN During the excavation phase make sure that the side walls are secured. 1 wooden structure of the pool 2 crushed gravel all around the pool 3 Dimpled sheet HDPE 4 Concrete plate under pool

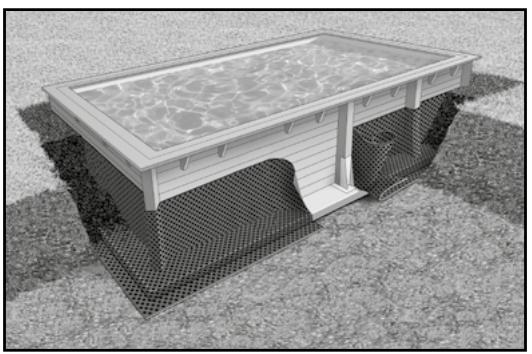

• lnsal the wacerproofing sheet (not provided) on £he outer sides of the pool to drain ff ranwater, The height of the liner must correspond £o the level of the bank of gravel.

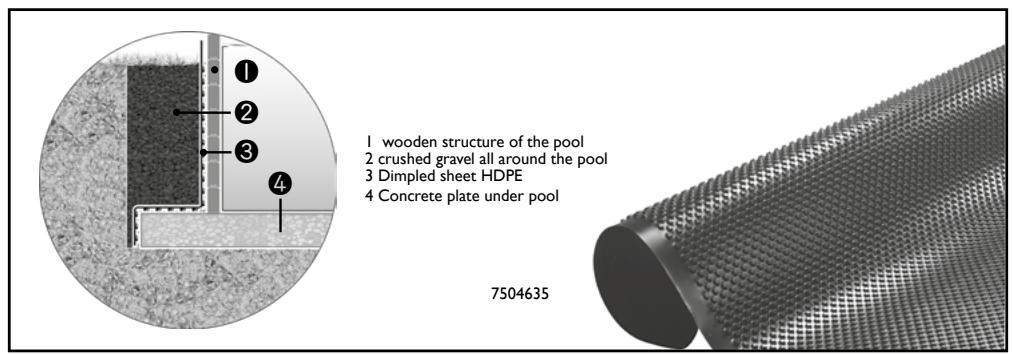

• The dimpled sde so be placed against the pool structure, leaving an air gap betwezn che we slope and the pool wall The dimpled structure provides for a convenient distribution of the slope pressure, und at the same time for a low point load (compres-sive strength: 250 kN/m:)

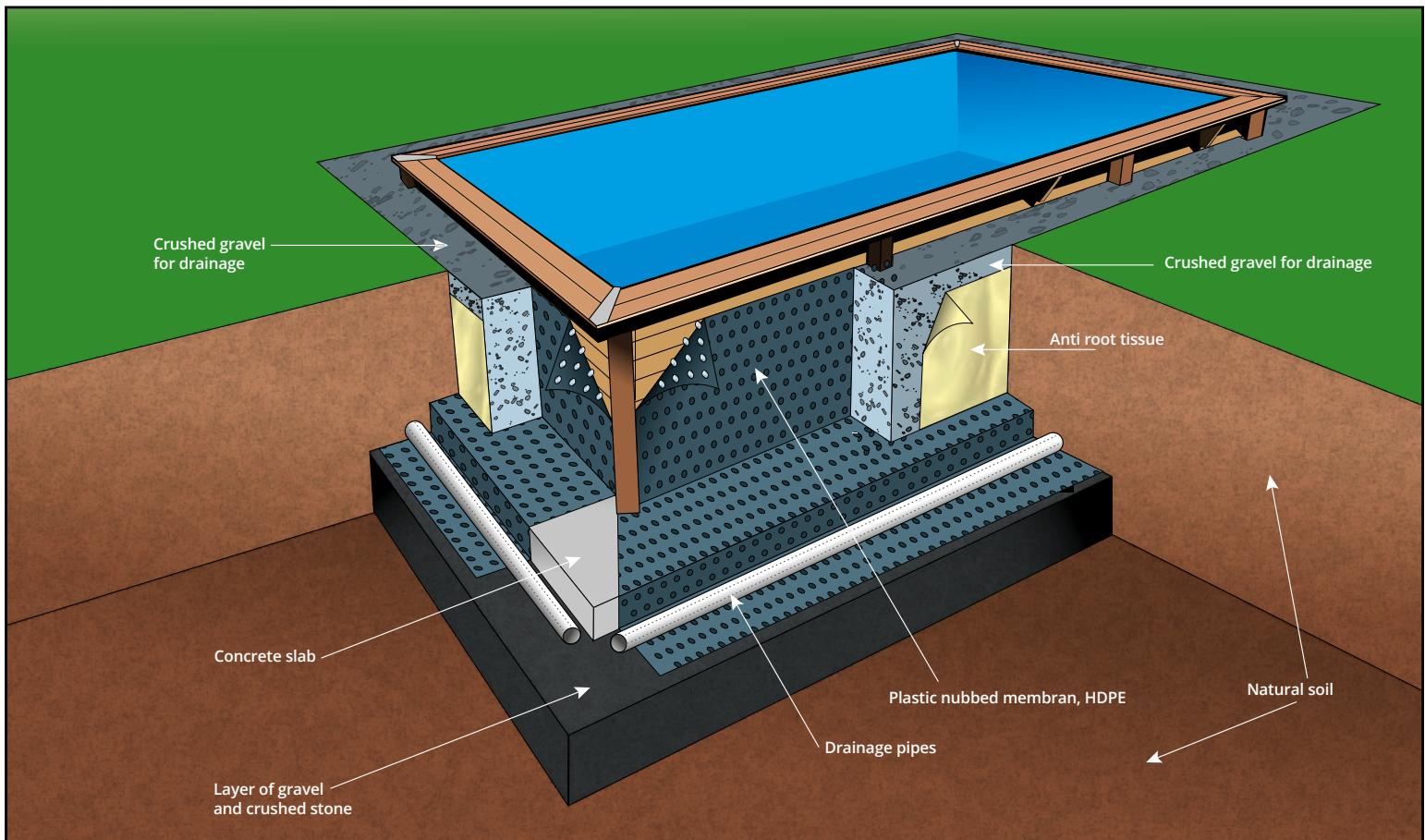

• il he pool with water before backfling the circumference with gravel. Fil the circumference of he pool with gravel.Be careful not £o destort the structure when ackfilling. CTUSNed gravel > for drainage le Crushed gravel for drainage Concrete slab 77 Plastic nubbed membran, HDPE

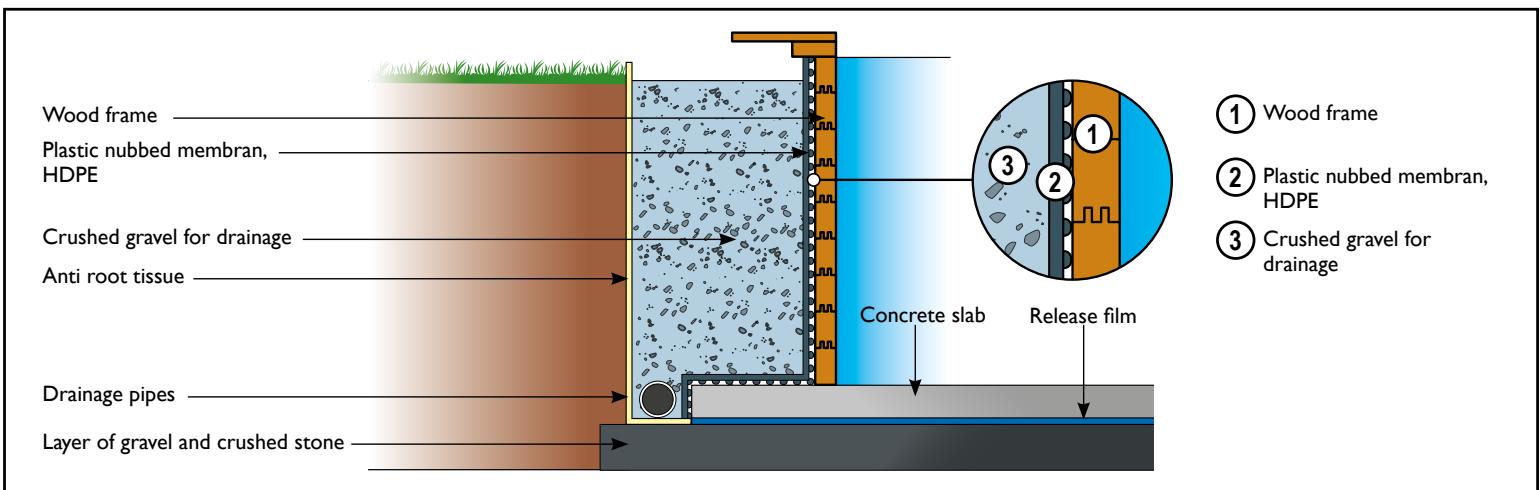

Po \orainage pipes Layer of gravel and crushed stone g (D Wood frame C2) Prastic nubbed membran, HDPE Wood frame Plastic nubbed membran, HDPE Crushed gravel for drainage Crushed gravel for drainage Anti root tissue crete slab Release film Drainage pipes Layer of gravel and crushed stone

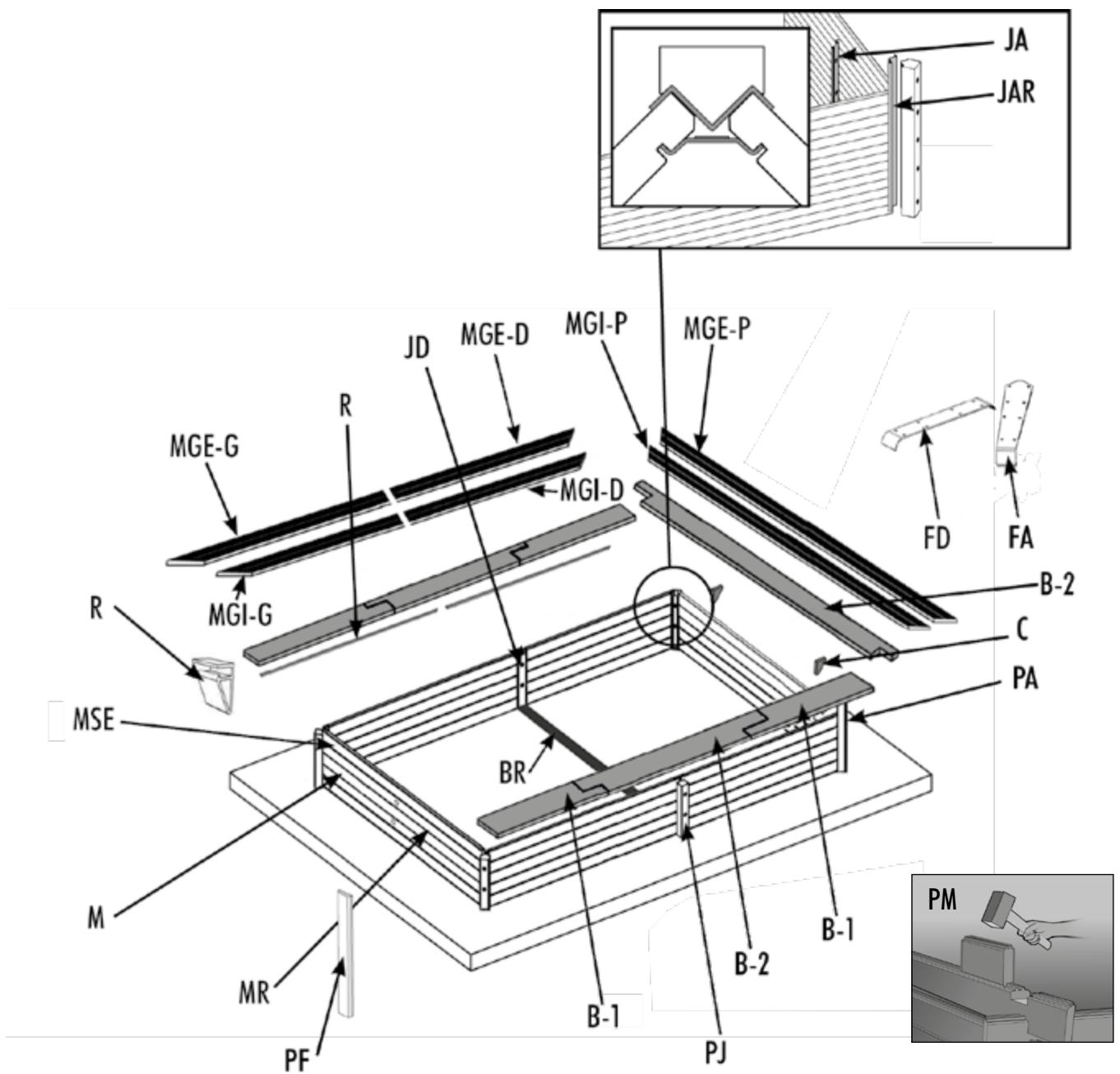

ÂÀ Before starting the assembly, make sure that you have all the necessary parts by taking an inventory from the parts list provided on page 9. + Installation on concrete slab is mandatory and imperative for warranty validation. Thickness: 20 cm minimum. Make sure that the slab is perfectly flat, smooth and level. SUMMARY: [1] la Place the wooden posts in the metal bases (PSI) SUMMARY: 1b = Retrofit the first row of beams, The tabs are designed to correctly align the beams: during their interlocking, absence or grall size breaks do not in any way affect he mechanial resistance of the wood. solidy and the ssembiy of the pool C1] - Wall assembly 1e - Secure these beams in place using the metal studs (corner and right). Fix with the bottom boit 12x160 loosely. Position gl she Bols ofthe J and K bag: 12 x 160 for the mecal bases and 12 x 120 in £he upper pare of the posts @ -rcinorcemens and bracke instalation 19 Nes al che beams sing ühe Maroyr piece provided fo this purpose. Postion the delivery beam (MR) in ch row facing Le = Check the algnment of he shoes (chalk line) and iagonals (10 m tape) A = B @ "or cine vais 1f=Tighten all boits on al posts. 1g- Drill the central hole (diam, 8 mm), strike the first anchor pin 8 x 90 and tighten. Drill the remaining holes (diam. 20 mm), [4] - Felt and liner installation strike the 20 x 160 anchor bolts and tighcen. Repeat the operation on each base. 1h Prepare he driling ofthe upper beams,respecüng the dimensions Ii Nail the finishing boards to the posts - Nozzle and skimmer cutting Q fr copine installation Q - ice [2] 2a - Start by fixing the supplied PRG metal plate below the support boards with the screws. Position the horizontal reinforcements flush with the upper edge outside the structure. Level, pre-drill and screw from the inside of the pool until the screw heads are covered. 2b- Pre-drill 3 holes diameter 6 mm (on the corners) 2c - Enlarge the holes to a depth of 45 mm using a 12 mm diameter flat dril bit and screw in using 3 6x90 screws.

2 - Pre-drill 3 holes of diameter 6 mm and screw to the junctions using 3 screws 6x90.

2e - Position the brackets in the up-down direction, draw their positions, drill and screw until the screw heads are drowned. 2f- Screw the horizontal reinforcement with the brackets. [3] 3a — Screw the skimmer vent into the upper beam using 2 round head screws to be removed from the screw bag provided in the skimmer box. 3b = Install the skimmer square outer seal and the skimmer body 3e = Fix the assembly with the 8 round head screws to be removed from the screw bag provided in the skimmer box, tightening effectivel for a good seal. (Screwr in by hand) 34 - Seal. Place a rectangular joint on the skimmer frame, making sure it adheres well./At the outlet, place the cork seal (A) in contact with the wall and then superimpose one of the 2 white round joines (B) making sure chat they adhere well 3e Drill che rals co size (3 cm from the ends and then cvery 20 em approximatel}) 3f= Screw che frs liner ral with 440 stainless steel screws. 3g- Acthe comers, pardiall cut the rail into «Vo shapes so that the profile can be bent. Screw on both sides of the corner at 3 em and then screw all the rals together. The rail of a wal can be composed of several segments placed end to end First of all, careful and smooth. clean the concrete slab and remove splinters or shavings from the walls with abrasive paper to make all supports clean 4a — Install the protective felt for the floor. 4b — Cur the protective felt with a cutter or a pair of scissors. 4c - Place the liner in place at an outside temperature between 20 and 25°C. Ad — Match the corners of the liner with the bottom corners of the pool 4e — Hang the liner in the lip of the rail starting at an angle 4f- Stretch the liner to the maximum, 4g- Put in 2 cm of water. 4h — Remove folds and re-submerge up to 5 cm below the discharge nozzle. 6 Sa Stop immersion beneath the nozzle. Sb = Position the discharge nozze from inside the pool Se — Cut the liner at the ozzleleaving a gap of around 2 mm. Insert the second white round gasket (B) and the discharge nozzle. Sd = Tighten che outer nur of che nozzle sufficiently to ensure cightness by means, if necessary. of the cip mentioned in the diagram. $e = Cover the threaded part of che end cap with fon tape in a councer.clockwise direction. Minimum 20 revolutions. Screw the end cap to the outlet.Install one of the 4m discharge pipes and fix it with à metal camp. Place the other end of the pipe in the pool and ref up to 5 cm below the skimmer. sf Afrer covering the Teflon threaded part, serew the threaded stop vae inco the skimmer body. Close the valve. Cover the chreaded part of the nozzle with the Teflon tape counter-clockwise. Minimum 20 revolutions.Serew the end cap to the vale. Sg- Mark the location of the skimmer joint. SR = Instal the gasker and skimmer frame Si Screw che skimmer assembly cogether using the 18 flat head screws to be removed from the screw bag provided in the skimmer box. $j= Cut the liner inside che skimmer frame. Final place the flange cover by cliping it into place Sk- Correct water level at mid-heighe of the skimmer. The coping is a finishing element. It is strictly forbidden to walk, run or sit on it. Are not covered by warranty: colour changes, deformations (cracks, fissures, checks, knots or splinters) natural or resulting from improper installation. 6a — Pre-drill the inner coping stones approximately every 70 cm and screw them in. Start at least 3 cm from the ends. éb — Pre-dril the outer edges. éc — Screw in the outer coping stones. 7a - Position the stainless steel ladder in a free position with brackets, screws. 7b — Mark the circumference of the stainless steel tubes with a pencil 7e - Drill the coping and reinforcement with a 50 mm diameter hole saw. Identify the location of the bracket fixing screws and drill holes. 7d - Place the bracker in the hole and secure with two 6x60 screws. 7e Position the wooden ladder against the horizontal reinforcement below the coping

71- Locate and drill the holes.

78 Mark the locations of each bolt on each of the rungs and drill holes to lock the ladder. _42-

USE AND MAINTENANCE OF TIMBER SWIMMING POOLS © Failure to comply with the maintenance instructions may lead to serious risks to health, particularly where children are concerned.

1. TREATING THE WATER

Your swimming pool installation is complete! Before you get into the pool for the first time, it is essential to “prepare” the water. Bathing often leads to a good deal of pollution caused by things like vegetation, earth, dust, sweat, saliva, hair, grease, etc. The swimming pool water must be protected from these substances in order to avoid various micro-organisms developing. In order to do this, a few simple rules may be applied: + His a good idea to have the filter running during the day, as it is bathing that causes most of the pollution. Regulate the timing of the filter according to the temperature of the water. The higher the temperature of the water, the more easily bacteria will grow. Water Temperature < 10° 10-12° 12-16° 16-24° | 24-27° | 27-30° Filtration time 2h 4h 6h 8h 10-12h | -> 20h Generally speaking, whatever type of system you have, any impurities should be removed if the pool is cleaned regularly using the filter. The sand filter: When the amount of impurities in the sand increases, the circulation of the water becomes less efficient and consequently the pressure increases. Refer to the notes on maintaining the filtration unit for cleaning it. - Analyse the water in your swimming pool: it is a worth checking the pH level (degree of acidity or alkalinity of the water) every week. lt should always range between 7.2 and 7.6. An incorrect pH level may result in the water treatment products working less efficiently, may accelerate the development of chloramines (causing unpleasant odours and irritation of the mucous membranes...) and the corrosion of any metal paris. - Treat the water regularly: a weekly disinfectant treatment (bromine, chlorine and active oxygen.) against bacteria will avoid all the problems caused by poor quality water. One treatment every fortnight with an algaecide effectively combats the initial appearance and further development of algae © Using and storing chlorinated products Remember that these are dangerous products that must be stored and used only as directed by the manufacturers. Do not mix chemical products with each other. Store products in tightly closed containers in a cool and well ventilated place; do not expose to direct sunlight. If using a container for measuring out chemicals, rinse thoroughly after each use. Read the safety information and instructions provided on each label carefully. Keep all chemicals out of reach of children. - Everyday remove as much dirty matter from the pool as possible with a fishing net (fallen leaves, dead insects…) and clean the surface of the water regularly to remove greasy deposits. - Empty the pump container. Just like the skimmer container, it is a good idea to empty it regularly to maintain the optimum filtration level. Annual treatment: In order to have clean water all the time, clean the filter, change about to %4 of the water in the pool and look after it properly through the winter. Change all the water in your pool every 3 to 4 years. Problems and solutions :

PROBLEMS CAUSES SOLUTIONS

i Oxidation of metallic salts (iron or copper) present 1: Water clear with greenish or in the water used to fill the pool Check the pH level. Put in a calcium and metal stabiliser when you fil the pool. Clean out the filter. Large number of brown stains on ihe sides of the pool. pH level too low. Corrosion of metal parts. Remove sediment and filter continuousy. Water being used to fill he pool is high in iron or manganese

. Water has a yellow or brownish tint See 1. Chlorinate thoroughly. Clean the filter. Remove Organic and colloidal impurities NAN

. Water milky and cloudy Inorganic substancesinereasing the hardness of the | Check the pH level. Put in a calcium and metal water stabiliser when you fil the pool.

— Slimy green deposits on Îhe sides of the pool Build up of algae Chlorinate thoroughly. Treat with an algaecide Check the pH level. Put in a calcium and metal

5. Sides of the pool have an Calcium deposits caused by hard water stabiliser. IF the pool is empty clean with a pool

Uneven appearance sebiiser 6. Irritation to skin and eyes, unpleasant Presence of combined chlorine (chloramine) Adiust the pH level. Chlorinate thoroughly. Put in odour fresh water

7. Evidence of corrosion pH level too low Increase the pH level to 7.0 — 7.4

- The wood Wood is a living substance which is subject to variations in humidity and temperature. Over the course of time wood is liable to swell, tiny cracks or splits may appear. Such occurrences do not in any way alter the wood”s resistance or the durability of our materials. Furthermore, a deformity in the sides of the pool caused by the pressure of the water may occur, mainly on the central and lower planks (under maximum water pressure) — this is normal. On the understanding that the pool has been assembled according to the instructions provided, there is no cause for concern here regarding the stability ofthe structure. The sterilising high pressure steam treatment of all the timber parts protects the wood from being attacked by insects and fungi. This treatment gives the timber a greenish hue which does not pose any danger to humans. At any rate, this colour will fade with time. According to how much it is exposed to direct sunlight, the wood will gradually take on a silvery grey appearance. This process can be slowed down by using a glaze or protective oil, which ideally should be applied a few weeks after the swimming pool has been installed [this will stabilise the structure and reduce the greenish tinge caused by the steam treatment…). - The liner The liner is a flexible PVC membrane and is exceptionally fragile. Therefore make sure that the water in the swimming pool is absolutely clean and that the pH level is not too high. = The surface of the water is the most exposed to a variety of deposits so it must be cleaned regularly with the appropriate products { no solvents and no abrasives should be used). = Never put any undiluted treatment product directly on to the liner as this may cause discoloration. The solid blocks of these products must be dissolved in a chlorine diffuser or ion the skimmer basket. - When you pause the filtration system, particularly in winter, it is essential to treat the pool to prevent the build up of moss and calcium. © Never completely drain the pool. You must never allow the liner to be left for more than 24 hours without water in the pool otherwise it may change shape, cracks may appear, etc. Stains on the liner: causes and solutions COLORS OF THE SPOTS POSSIBLE CAUSES WHAT SHOULD YOU DO White 1. Discoloration of the material due to contact | ; KL solution with a chemical (chlorine…) White /grey 1. Calcium deposis 1. Droin the pool, have it cleaned by machine, refil the basin, get the water balance right and put in anl enti-calcium treatment. 1. Migration of bacteria which have developed | 3} Lu ihe bH level and the temperature of he water. Carry out a high- power cleaning trealment and Pink underneath he membrane as a result of an re pl F ; jt a Pig power gere énderbiee hum run the filter for 48 hours non-siop. To prevent this recurring keep the pH level bebween 7 an & T. Algae T.Correct ihe pH level, Carry out a high- power cleaning irealment and run the filter for 48 hours non- reen 2.accelerated deterioration of the surface ofthe | stop, have the pool cleaned by machine. water due to sun and oxidising products 2. Use a descaler, brush the slains hen vacuum he deposits Orenge/brown | 1: Dead algae 1. Brush the sides of he pool and vacuum the deposiis. g 2. Water contains iron oxide or copper 2. Lower the pH level and ihe temperature of the water, brush he stains then vacuum the deposis légraien ot pacte which have developed 1.Lower the pH level and the temperature of the water. Carry out a high- power cleaning treatment and Black ee a run the filter for 48 hours non-stop. To prevent this recurring keep the pH level between 6.8 and 7.0 metals iron Ver” ] ‘ater contains heavy 2. Lower the pH level and the temperature of the water, brush the stains then vacuum the deposits Liner is sticky | à àoue 1.Correct ihe pH level, Carry out a high- power cleaning treaïment and run the filer for 48 hours or has grease 2 Wéler contains heavy metals (iron, silver …) non-stop, have the pool cleaned by machine. deposits d 2... Lower the pH level and the temperature of the water, brush the stains then vacuum ihe deposits

3. WINTER CARE AND SAFETY

Winter care is an essential element of maintaining the pool. The aim of this operation is to avoid the builel up of too many algae and calcium deposits inside the basin during the winter. By adding a winter care product you will be protecting the water and your pool in winter, thus making it easier to clean at the start of the new season. © His imperative that you do not completely drain the pool in the winter (or for a long period of time). In fact totally draining the pool does not improve the condition either of the liner or of the structure of the basin, since the water plays a dual role, providing thermal insulation and ballast. The pool is better protected from weather hasards, the water pressure prevents anything going through the sides of the pool (in case of ground movement) and offsets the pressure of soil and groundwater. Details about winter care of the filter are given in the notes provided with the tank. His a good idea to remove the ladder and put it away in a safe place. For safety reasons, this ladder must only be used for accessing the pool. You should cover the swimming pool with a winter canvas cover or better still a tarpaulin safety cover certified according to safety standard NF P 90 308. In this case you will have to remove any snow from the cover regularly. But having a cover over the pool does not mean that you do not need to be vigilant. You will have to check the state of the water regularly and if the water is turning green you will have to treat it using a chlorine solution. Finally, make sure that rainwater can drain away properly around the pool.

4. DISMANTLING THE POOL

Whilst it is possible to do so, dismantling the pool is not recommended. In fact, it may cause damage to the component parts and repositioning the liner when reassembling the pool is a very delicate operation. —62-
