USER MANUAL WX261 WX261.9 WORX

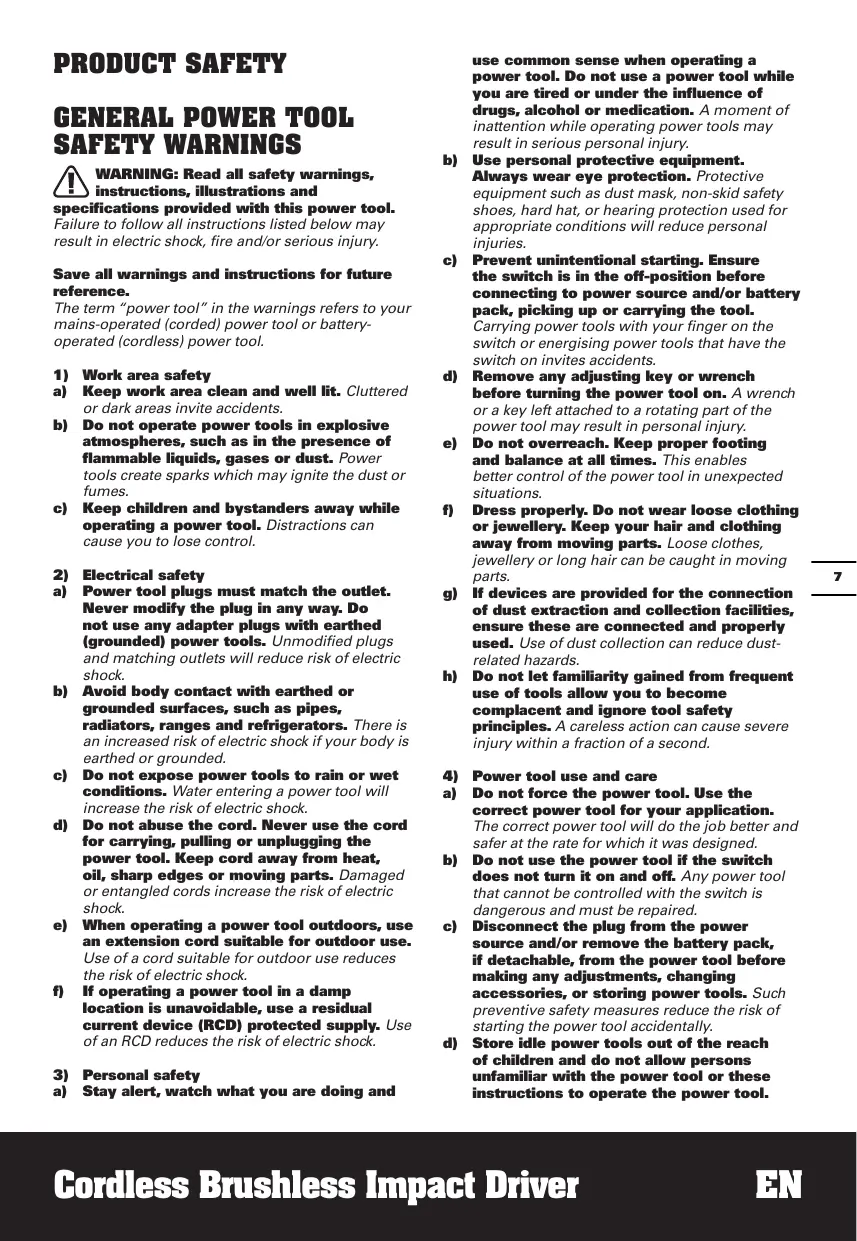

WARNING: Read all safety warnings, instructions, illustrations and
specifications provided with this power tool.
Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and
use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment.
Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5) Battery tool use and care
a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130^ may cause explosion.
g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.
6) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.
SCREWDRIVER SAFETY WARNING
- Hold the power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
SAFETY WARNINGS FOR BATTERY PACK
a) Do not dismantle, open or shred cells or battery pack.
b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
f) Seek medical advice immediately if a cell or battery pack has been swallowed.
g) Keep battery pack clean and dry.
h) Wipe the battery pack terminals with a clean dry cloth if they become dirty.
i) Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure.
j) Do not maintain battery pack on charge when not in use.
k) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.
I) Battery pack gives its best performance
when it is operated at normal room temperature (20^ ± 5^) .
m) When disposing of battery packs, keep battery packs of different electrochemical systems separate from each other.
n) Recharge only with the charger specified by WORKX.Do not use any charger other than that specifically provided for use with the equipment. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
o) Do not use any battery pack which is not designed for use with the equipment.
p) Keep battery pack out of the reach of children.
q) Retain the original product literature for future reference.
r) Remove the battery from the equipment when not in use.
s) Dispose of properly.
t) Do not mix cells of different manufacture, capacity, size or type within a device.
u) Do not remove battery pack from its original packaging until required for use.
v) Observe the plus (+) and minus (-) marks on the battery and ensure correct use.
SYMBOLS
| To reduce the risk of injury, user must read instruction manual | |
| Warning | |
| Wear ear protection | |
| Wear eye protection | |
| Wear dust mask |
| Li-Ion Li-Ion | Li-Ion battery This product has been marked with a symbol relating to 'separate collection' for all battery packs and battery pack. It will then be recycled or dismantled in order to reduce the impact on the environment. Battery packs can be hazardous for the environment and for human health since they contain hazardous substances. |
| Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste. | |
| Do not burn | |
| Wear protective gloves | |
| Don't touch the machine if it overheats | |
| High speed | |
| Low speed | |
| Lock | |
| Screwdriving | |
| Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice. |
COMPONENT LIST
| 1. | FORWARD/ REVERSE ROTATION CONTROL |
| 2. | SOFT GRIP HANDLE |
| 3. | HOOK |
| 4. | BATTERY PACK RELEASE BUTTON |
| 5. | BATTERY PACK |
| 6. | ON/OFF SWITCH WITH VARIABLE SPEED CONTROL |
| 7. | VARIABLE 3-SPEED CONTROL BUTTON |
| 8. | LED LIGHT |
| 9. | 50MM SCREWDRIVER BIT (PH2)* |
| 10. | BATTERY CAPACITY INDICATOR |
| 11. | COLLET LOCKING SLEEVE |
| 12. | BIT CLIP |
- Not all the accessories illustrated or described are included in standard delivery.
TECHNICAL DATA
Type designation WX261 WX261.9 (2 - designation of machinery, representative of screwdriver)
| WX261 | WX261.9 | |
| Rated voltage | 20V --- Max** | |
| No-load speed | 0-3000/min | |
| Impact rate | 0-3750bpm | |
| Max torque | 230N.m | |
| Chuck capacity | 6.35mm | |
| Machine weight | 1.5kg | 1.2kg |
**Voltage measured without workload. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts.
NOISE INFORMATION
| A weighted sound pressure LpA = 83.6dB(A) |
| KpA= 3dB(A) |
| A weighted sound power LwA = 94.6dB(A) |
| KwA= 3dB(A) |
| Wear ear protection. |
VIBRATION INFORMATION
| Vibration total values (triax vector sum) determined according to EN 62841: |
| Vibration emission value: |
| an=7.446m/s2Uncertainty K = 1.5m/s2 |
The declared vibration total value and the declared noise emission value have been measured in accordance with a standard test method and may be used for comparing one tool with another.
The declared vibration total value and the declared noise emission value may also be used in a preliminary assessment of exposure.
WARNING: The vibration and noise emissions during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used especially what kind of workpiece is processed dependant on the following examples and other variations on how the tool is used:
How the tool is used and the materials being cut or drilled.
The tool being in good condition and well maintained.
The use of the correct accessory for the tool and ensuring it is sharp and in good condition.
The tightness of the grip on the handles and if any anti vibration and noise accessories are used.
And the tool is being used as intended by its design and these instructions.
This tool may cause hand-arm vibration syndrome if its use is not adequately managed.
WARNING: To be accurate, an estimation of exposure level in the actual conditions of use should also take account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period.
Helping to minimise your vibration and noise exposure risk.
Always use sharp chisels, drills and blades.
Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate).
If the tool is to be used regularly then invest in anti vibration and noise accessories.
Plan your work schedule to spread any high vibration tool use across a number of days.
ACCESSIONS
| WX261 | WX261.9 | |
| Battery Pack (WA3551) | 1 | / |
| Charger(WA3880) | 1 | / |
| 50mm screwdriver bit (PH2) | 1 | 1 |
| Hook | 1 | 1 |
| Bit clip | 1 | 1 |
We recommend that you purchase your accessories listed in the above list from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.
OPERATING INSTRUCTIONS
NOTE: Before using the tool, read the instruction book carefully.
Intended Use
This tool is intended for the fastening and loosening of bolts, nuts and various threaded fasteners. This tool is not intended for use as a drill.
ASSEMBLY AND OPERATION
| ACTION | FIGURE |
| BEFORE OPERATION | |
| Checking the Battery Pack Condition | See Fig .A1 |
| Removing the Battery Pack | See Fig. A2 |
| Charging the Battery Pack | See Fig. A3 |
| Installing the Battery Pack | See Fig. A4 |
| ASSEMBLY AND ADJUSTMENT | |
| Assembling the Hook and Bit Clip | See Fig. B1, B2, B3, B4 |
| Inserting the Bits | See Fig. C1 |
| Removing the Bits | See Fig. C2 |
| Forward / Reverse / LockWARNING: Never change the direction of rotation when the chuck is rotating, wait until it is stopped! | See Fig. D1, D2, D3 |
| OPERATION | |
| Operating the On/Off SwitchWARNING: Do not operatefor long periods at lowspeed because excess heat willbe produced internally.Variable 3-SpeedPress the red button to selectpreferred rotation speed, levels 1to 3, with 3 being the fastest.The operating speed will be illuminated. | See Fig. E |
| LED Light IndicatorBefore operation, the light will beactivated when the On/Off switchis slightly depressed, and willautomatically turn off 10 secondsafter the On/Off switch is released.The tool and battery are equippedwith a protection system. The Lightwill quickly flash (approximately oncea second, and stop flashing whenyou release the trigger), the systemwill automatically cut off power tothe tool to extend battery life.The tool will automatically stop duringoperation if the tool and/or batteryare placed under one of the followingconditions:Overloaded: The tool is operatedin a manner that causes it to drawan abnormally high current. In thissituation, release the Trigger Switchon the tool and stop the applicationthat caused the tool to becomeoverloaded. Then pull the TriggerSwitch again to restart.Overheated: Under the conditionabove, if the tool does not start, theTool and Battery are overheated. Inthis situation, let the Tool and Batterycool before pulling the Trigger Switchagain.Low battery voltage: Theremaining Battery capacity is too lowand the tool will not operate. In thissituation, remove and recharge theBattery.WARNING: To turn on thelight, press the On/Off switchand make sure the Forward/ReverseRotation Control is on right/leftposition. |
TROUBLE SHOOTING
1. I CAN NOT FIT THE BATTERY INTO THE BATTERY CHARGER. WHY?
The battery can be inserted into the charger only in
one direction. Turn the battery around until it can be inserted into the slot.
2. REASONS FOR DIFFERENT BATTERY PACK WORKING TIMES
Charging time problems, as above, and having not used a battery pack for a prolonged time will reduce the battery pack working time. This can be corrected after several charge and discharge operations by charging & working with your drill. Heavy working conditions such as large screws into hard wood will use up the battery pack energy faster than lighter working conditions. Do not re-charge your battery pack below 0^ (32^) and above 40^ (104^) as this will affect performance.
MAINTENANCE
Remove the battery pack from the tool before carrying out any adjustment, servicing or maintenance.
Your power tool requires no additional lubrication or maintenance.
There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust. Occasionally you may see sparks through the ventilation slots. This is normal and will not damage your power tool.
FOR BATTERY TOOLS
The ambient temperature range for the use and storage of tool and battery is 0^ - 45^ (32^ - 113^) . The recommended ambient temperature range for the charging system during charging is 0^ - 40^ (32^ - 104^) .
ENVIRONMENTAL PROTECTION
Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your authorities or retailer for recycling advice.
DECLARATION OF CONFORMITY
We,
Positec Germany GmbH
Gruner Weg 10, 50825 Cologne, Germany
Declare that the product
Description Battery operated screwdriver
Type designation WX261 WX261.9
(2-designation of machinery, representative of screwdriver)
Function Tightening and loosening screws, nuts
Complies with the following Directives:
2006/42/EC
2014/30/EU
2011/65/EU&{EU}2015/863
Standards conform to
EN 62841-1
EN 62841-2-2
EN 55014-1
EN 55014-2
The person authorized to compile the technical file, Name Marcel Filz
Address Positec Germany GmbH
Grüner Weg 10, 50825 Cologne, Germany
2019/10/09
Allen Ding
Deputy Chief Engineer, Testing & Certification
Positec Technology (China) Co., Ltd
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
PRODUKTSIGHERHEIT
2019/10/09
Allen Ding
Deputy Chief Engineer, Testing & Certification
Positec Technology (China) Co., Ltd
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
SECURITE DU PRODUIT
AVERTISSEMENTS DE SECURITE GENERAUX POUR L'OUTIL
INFORMATIONS RELATIVES AU BRUIT
INFORMATIONS RELATIVES AUX VIBRATIONS
The recommended ambient temperature range for the charging system during charging is 0^ a40°C. (32^104^)
PROTECTION DE L'ENVIRONNEMENT
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
SIGUREZZA DEL PRODOTTO
AVVISI GENERALI PER LA SICUREZZA DEGLI UTENSILI A MOTORE
$$ K _ {p A} = 3 d B (A) $$
Potenza acustica ponderata A L_wA = 94.6dB(A)
$$ \mathrm {K} _ {\mathrm {w A}} = 3 \mathrm {d B} (\mathrm {A}) $$
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
Descripción Battery operated screwdriver
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
PRODUCTVEILIGHEID
ALGEMENE VEILIGHEIDSWAARSCHUWINGEN VOOR VERMOGENSMACHINE
WAARSCHUWING Lees alle
VEILIGHEIDSWAARSCHUWING M.B.T. DEIMPULSSCHROEVENDRAIER
WAARSCHUWING: Voor de
10, 50825 Cologne, Germany
2019/10/09
Allen Ding
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
BEZPIECZENSTWO PRODUKTU
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
OCHRONA SRODOWISKA
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
SECURITATEA PRODUSULUI
AVERTISMENTEGENERALE DESIGURANTA PENTRUUNELTE ELECTRICE
ATENTIONARE: Citi toate atentionarile de siguranta siparcurgeti toaste instruunile, ilustraillle sificacitile ataate acsteie scule electricle. Nerespectarea tuturo instrucjunilor enumerate mai jos poate duce la electrocutare, incendiu si/sau leziune corporalà gravă.
| WX261 | WX261.9 | |
| Accumulator (WA3551) | 1 | / |
SOLUTIONI LA PROBLEM
1. NU POR INTRODUCE BATERIA IN INCÁRCÁTOR. DE CE?
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
BEZPECNOST VYROBKA
OBECNÁ BEZPEČNOSTNI UPOZORNÉNÍ PRO ELEKTRICKÉ NASTROJE
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
PRODUKTSÄKERHET
GENERELLA SÄKERHETSVARNING-AR FÖR ELVERKTYG
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
VARNOSTIZDELKA
SPLOŠNA VARNOSTNA OPOZORILA
OPOZORILO: Pred uporabo orodja, pozorno preberite vsa varnostna opozorila, navodila, pregleje ilustracione ter preverite tehnicne podatke orodja.
you've got the power
www.worx.com
Copyright © 2019, Positec. All Rights Reserved.
AR01473700
