USER MANUAL SAPHIR N°880109 TRIGANO

95.5m => Rayon 2.75m

93.6m => Rayon = 1.8m

#2.91m => Rayon = 1.455m

9 2,91 m => Radius = 1,455 m

9 2,91 m => Radio = 1,455

BELANGRIJ K! Voor de geldigheid van de garantie moet u het bewijs van aankoop bewaren met de stempel van de verkoper evenals de aankoopdatum en het kwaliteitscontroleformulier. Het is verplicht om alle beschadigde onderdelen zo snel mogelijk te vervangen. Gebruik alleen door TRIGANO J ARDIN goedgekeurde onderdelen.

VARUNA-SAPHIR-CANYON Rond 61 Handleiding 880109-herz A This article has been designed for family use outdoors under adult supervision. It may not be used under any circumstances for communal or public sites (schools, day care, parks, playgrounds...).

CONTENTS 1. Overview... 2. Pool Composition. 3. Screws for structure (excluding pool wall) 4. Tools and Equipment Required for Assembly (not supplied with the kit). 5. Preparing the site... 6. Assembling the plastic profiles on the posts 7... Assembling the bottom rails 8. Installation of the pool wall 9. Installing the liner (to be installed barefoot) … 10. Filling the pool... 11. Installation of the ledge pieces and covering plates. 12. Filtration 13. Maintenance and Use Guidelines 14. Dismantling the pool 15. Safety Guidelines. 16. Winterising Guidelines 17. Warranty … Read carefully and keep with the pool’s Quality Control Sheet for future reference Please quote the reference number below for any future after-sales inquiries about your pool.

IMPORTANT Please read this manual carefully and keep it for future reference. Similarly, the manuals for other components (skimmer, filter, etc.) should also be kept.

Assembly must be performed by adults (at least two people) following the preparation and assembly instructions (assembly should take one to two days excluding any earthwork and plumbing).

We suggest you assemble your ladder before assembling your pool (if your pool is equipped with a ladder). Using a pool kit implies compliance with the safety instructions described in the maintenance manual and user guide.

Before assembling your pool, make any declarations (at the town hall for instance) and fulfil other requirements (such as taking out insurance) in order to obtain any authorisations for your project, for which you will be responsible.

- Do not attempt installation in windy weather as the pool wall will be very difficult to handle.

- Properly tighten all screws. Inadequate tightening may cause structural failure.

- Handle the PVC liner carefully during assembly. Do not use a knife to open the box and avoid having sharp objects nearby.

We decline any responsibility in cases of non-compliance with the assembly instructions

We strongly recommend you install your pool on a 10 cm-thick reinforced concrete slab. However, you can also assemble the pool on stable ground following all the steps indicated in this guide.

4. Tools and Equipment Required for Assembly (not supplied with the kit)

Y__ Size 10 mm and 14 mm spanners Y Sheet metal cutters / File Y Peg

Y__ Phillips and flat head screwdrivers Y Rustproofing agent %_ Hacksaw or handyman knife

Y_ Screwdriver Y Wooden board Y Concrete slab 30 x 30 x 5 cm and/or Y_ Hammer Y Stakes breezeblocks

Y _Rope Y Decametre Y Concrete

VARUNA-SAPHIR-CANYON Round

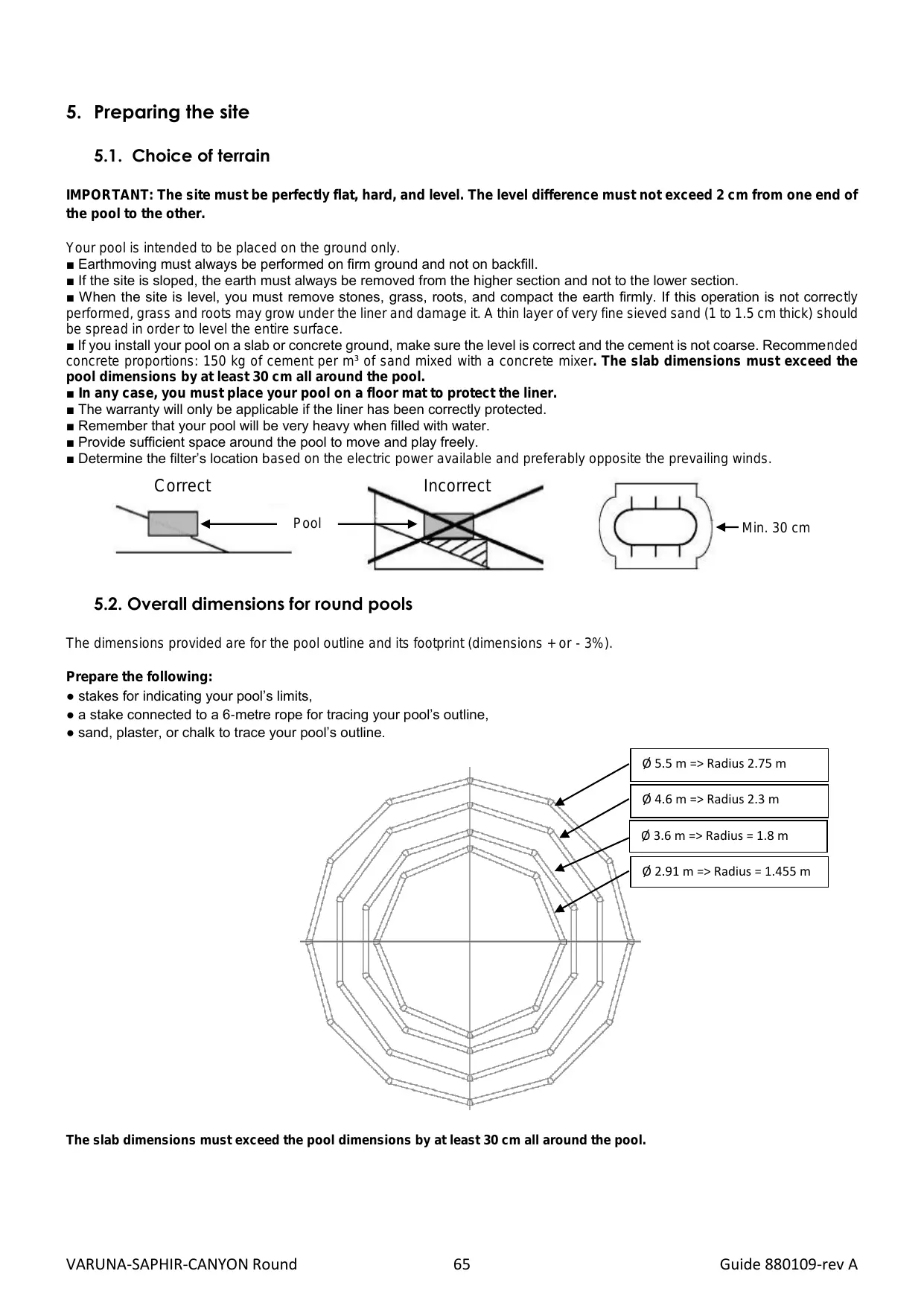

5. Preparing the site

5.1. Choice of terrain

IMPORTANT: The site must be perfectly flat, hard, and level. The level difference must not exceed 2 cm from one end of the pool to the other.

Your pool is intended to be placed on the ground only.

= Earthmoving must always be performed on firm ground and not on backfill.

= Ifthe site is sloped, the earth must always be removed from the higher section and not to the lower section.

= When the site is level, you must remove stones, grass, roots, and compact the earth firmly. If this operation is not correctly performed, grass and roots may grow under the liner and damage it. A thin layer of very fine sieved sand (1 to 1.5 cm thick) should be spread in order to level the entire surface.

= If you install your pool on a slab or concrete ground, make sure the level is correct and the cement is not coarse. Recommended concrete proportions: 150 kg of cement per m° of sand mixed with a concrete mixer. The slab dimensions must exceed the pool dimensions by at least 30 cm all around the pool.

= In any case, you must place your pool on a floor mat to protect the liner.

= The warranty will only be applicable if the liner has been correctly protected.

= Remember that your pool will be very heavy when filled with water.

= Provide sufficient space around the pool to move and play freely.

= Determine the filter's location based on the electric power available and preferably opposite the prevailing winds.

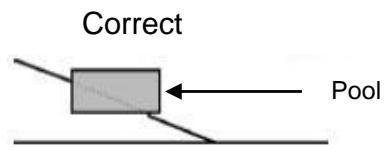

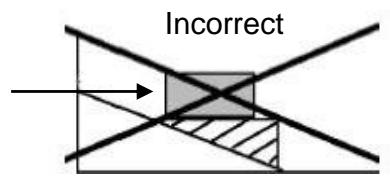

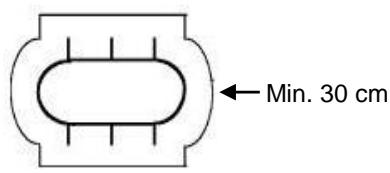

Correct » Incorrect + Pool — <— Min. 30 cm L_— , V

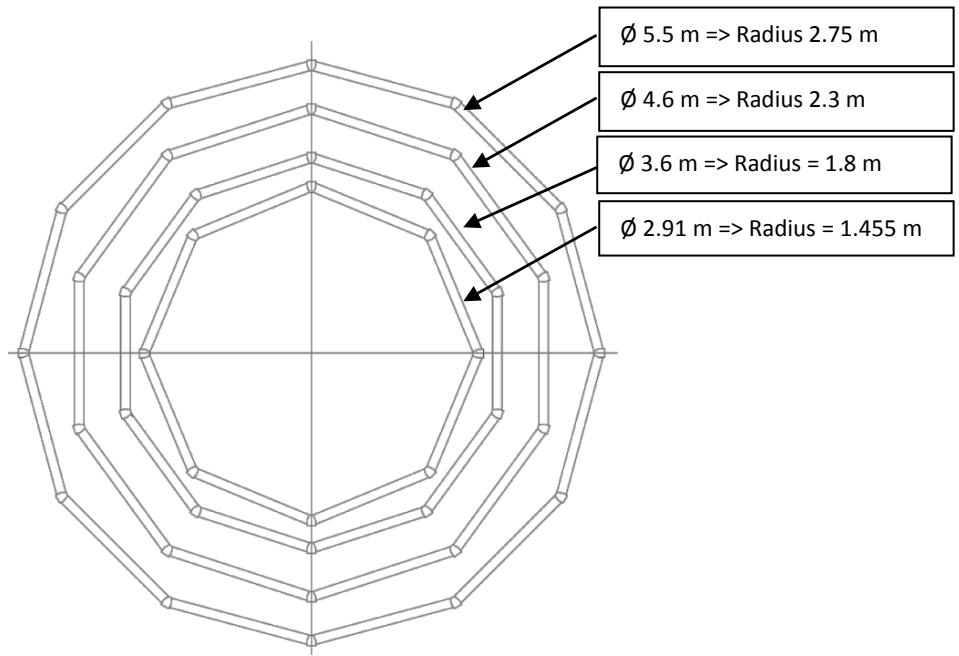

5.2. Overall dimensions for round pools

The dimensions provided are for the pool outline and its footprint (dimensions + or - 3%)

Prepare the following:

+ stakes for indicating your pool's limits,

+ a stake connected to a 6-metre rope for tracing your pool's outline, e sand, plaster, or chalk to trace your pool's outline.

9 5.5 m => Radius 2.75 m

9 4.6 m => Radius 2.3 m

9 3.6 m => Radius = 1.8 m

9 2.91 m => Radius = 1.455 m

The slab dimensions must exceed the pool dimensions by at least 30 cm all around the pool.

VARUNA-SAPHIR-CANYON Round 65 Guide 880109-rev A

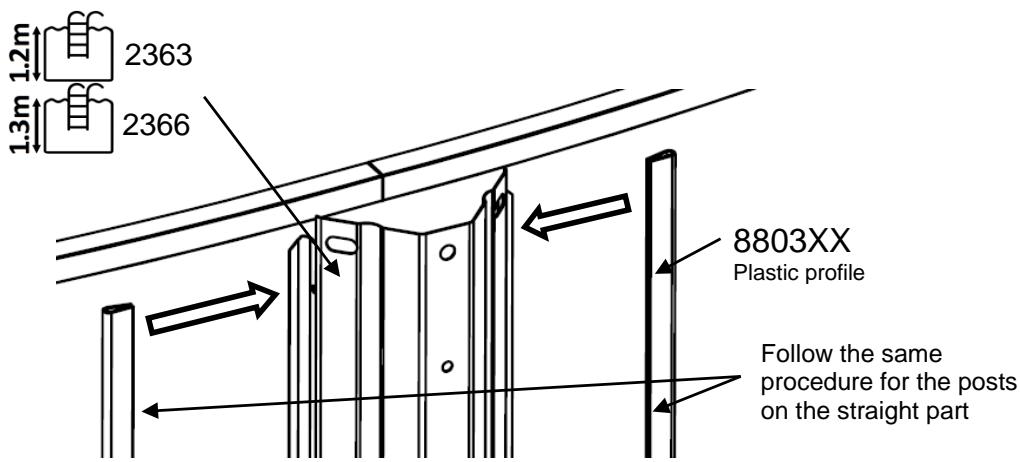

6. Assembling the plastic profiles on the posts

Before starting to assemble the posts themselves, assemble the plastic profiles on to the posts.

procedure for the posts | | ie on the straight part

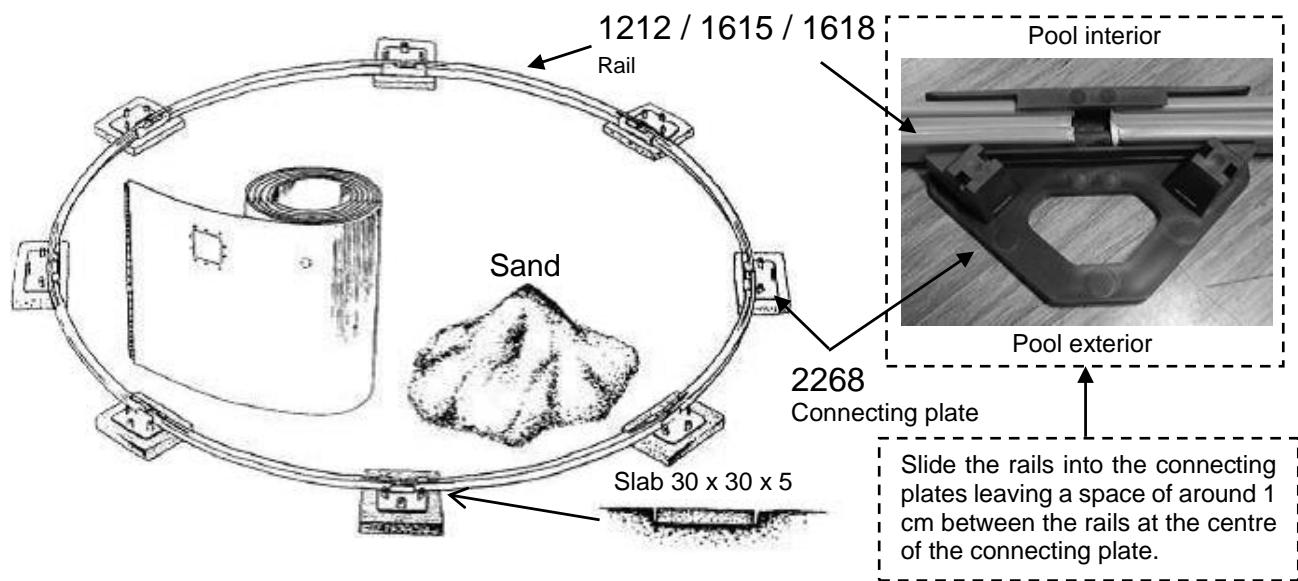

7. Assembling the bottom rails

If the pool is not installed on a concrete slab, place a concrete plate approximately 30 x 30 x 5 cm in size at each connecting point of the bottom rails. These plates must be placed in such a way that their surface arrives exactly at ground level.

WARNING: The entire length of the connecting plate must be laid flat over the flat surface. Using a slab that is too short, or the absence of a slab, could make installation inadequate or cause the swimming pool to collapse.

Before assembling the bottom rails of the swimming pool, place the lining inside the pool enclosure.

Slide the rails into the connecting Slab 30x30 x5 plates leaving a space of around 1

TEST 1 cm between the rails atthe centre 1 si d ofthe connecting plate. d

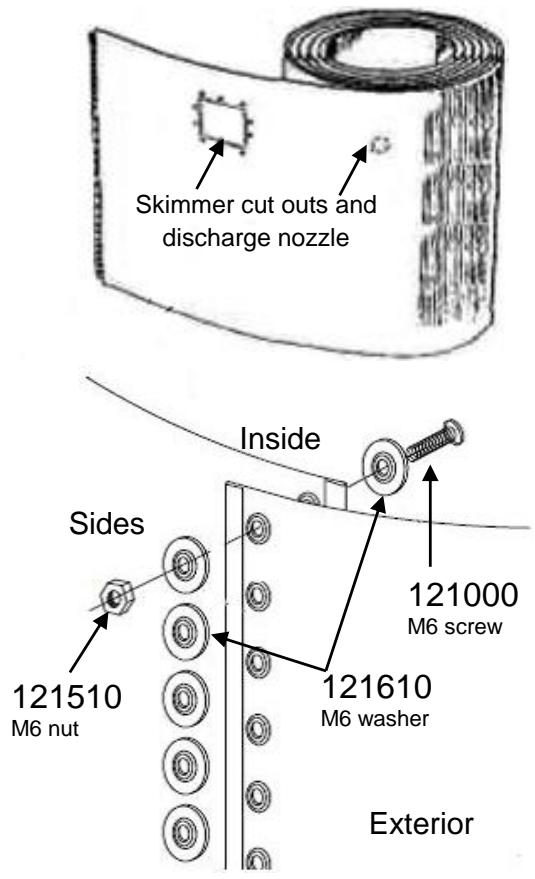

8. Installation of the pool wall

WARNING: An incorrectiy installed metal sheet could cause the pool to collapse. Do not install the metal sheet in windy weather.

Use the ladder to enter and exit the pool during installation. Take the pool wall out of the box and place it on top of the box or on a board for easy unravelling. Ensure that the skimmer cutoutis placed on the top part of the metal sheet, with the opening positioned facing the prevailing wind, so that the wind blows any impurities towards the skimmer.

Skimmer cut outs and discharge nozzle

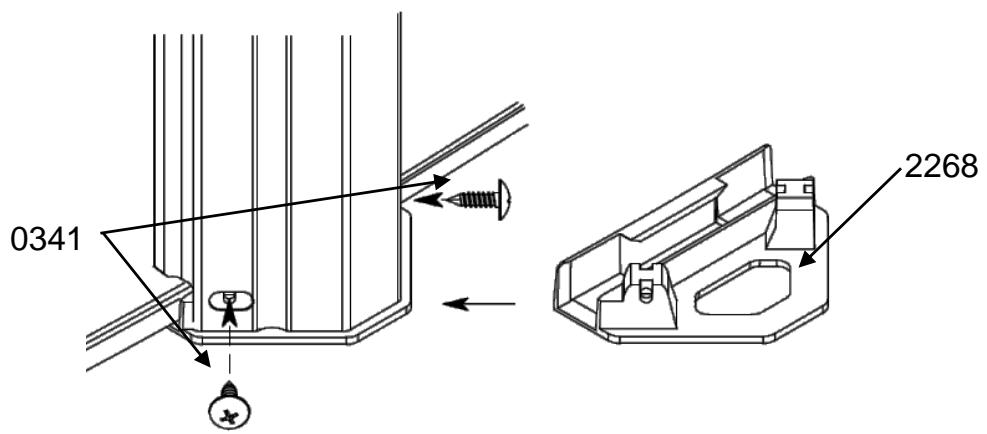

Start in the middle of a connecting plate so that the bolts are hidden by a vertical post. ] oin the extremities ofthe metal sheet using the bolts and washers. The screw heads must be on the inside of the pool and the nuts on the outside. Ensure that all the bolt holes are used. It is very important for all the bolts to be adequately tightened to ensure a solid join. To protect the liner, stick a protection band (duct tape) over the screws on the inside of the pool.

IMPORTANT: Increase the stability and ri ty of the metal sheet by provisionally installing the top metal profiles and the vertical posts as you proceed with the assembly.

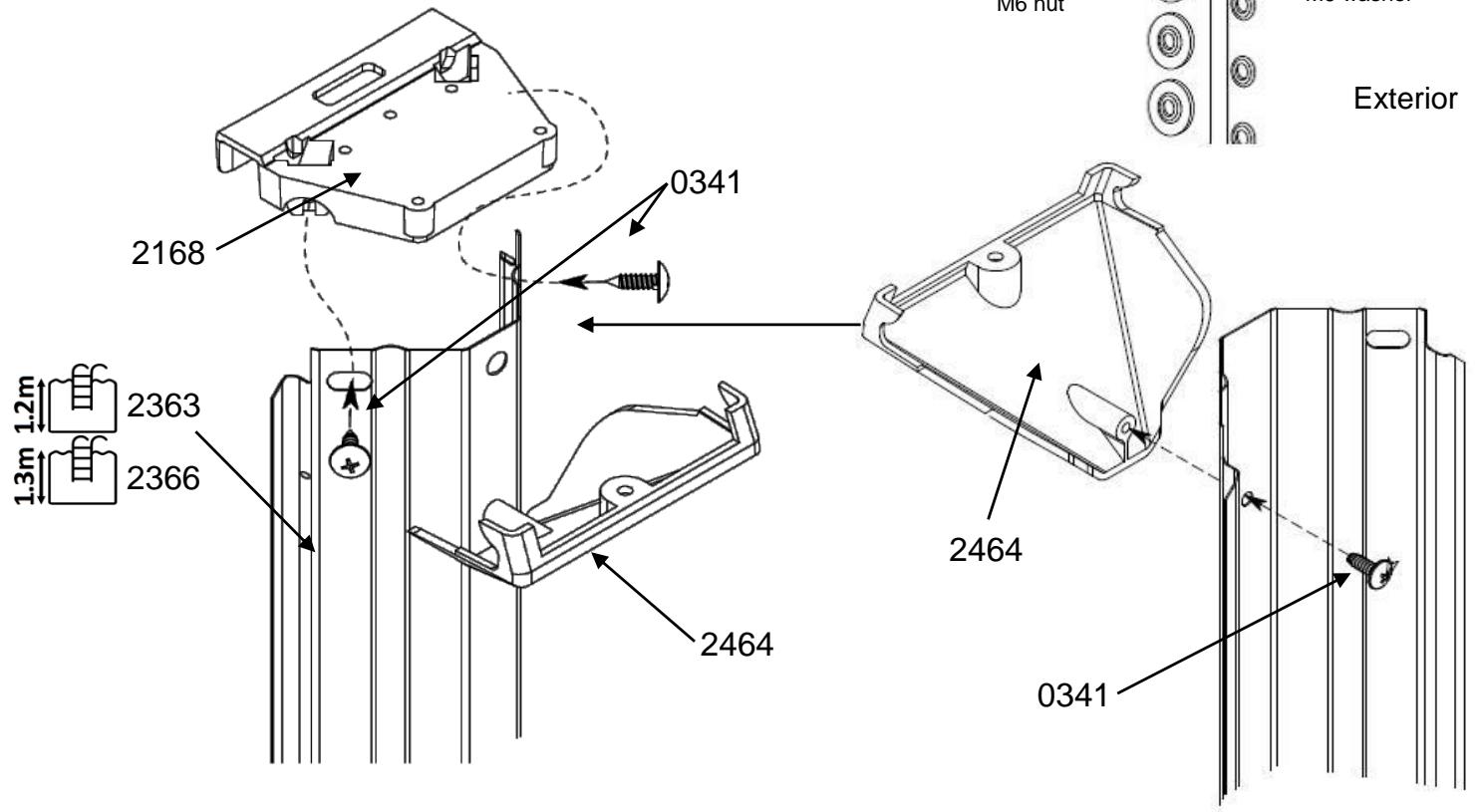

121000 Fix the covering plate supports to the posts before assembly. On the lower part, @) M6 screw fix the posts to their connecting plate using 2 screws; on the upper part, fix the À posts to their connecting plate with 2 loosely tightened screws. 121510 (@) 121610 M6 nut Ù|@ MSwasher © nl Exterior (Q} (==)

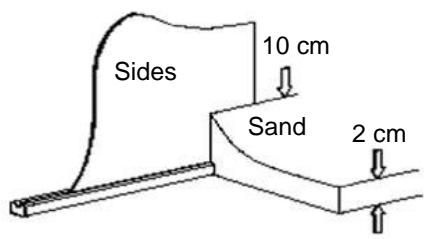

E VARUNA-SAPHIR-CANYON Round 67 Guide 880109-rev A LAYING THE GROUND SHEET OR GEOTEXTILE FILM (note that the ground sheet is not included in all kits)

Itis important to backfill 8 to 10 cm (mound of fine sand) all around the base of the inside of the pool and, particularly, along the sides of the pool, and to cover the entire surface of the pool with a 2 cm layer of sand. The sand prevents the liner from sliding under the metal sheet and protects it from perforation from the protruding parts of the pool structure.

Cover the prepared ground with a geotextile film that goes 10 to 12 cm up the wall. Stick the film to the wall in various places using double-sided adhesive tape. The geotextile film prevents algae from spreading under the liner.

POOL WALL CUT OUTS After assembling the pool wall, make the skimmer and discharge nozzle cutouts using metal cutters or sharp pliers. File the edges of the cut outs and apply rustproofing agent. We advise wearing gloves during this process.

9. Installing the liner (to be installed barefoot)

WARNING: This is a delicate process and must be carried out with utmost caution.

We recommended installing the liner when the outdoor temperature is between 18°C and 25°C. Use the ladder to enter and exit the pool during installation. Unfold the liner inside the pool and spread it out until it reaches the edges of the pool. The side where the seams are smooth is the inside of the liner.

After removing 2 or 3 of the upper rails on the rounded sides, start to pull the edges of the liner above cc ER, the wall allowing it to overhang by 10 to 20 cm. Hold it in place temporarily with clothes pegs or using RUN a the rails provided for this purpose. Do not over-stretch the liner. Use your feet to spread the bottom of

the liner out until it reaches the base of the metal sheet wall. Repeat this on the opposite side and in two other areas. This will enable you to check thatthe liner is properly centred. There should not be any large folds running across it. Continue to lift the liner all around the pool, holding it in place with other clothes pegs

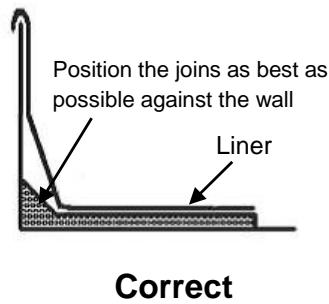

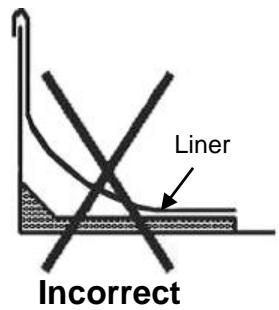

Important! Position the joins as best as The liner must be lying against the bottom possible against the wall of the pool before water is added. Liner

Incorrect Correct 10.Filling the pool

WARNING: Do not use recovered water (from a well or river, for example). 1212 or 1615 or 1618

Start filling the pool with 1 or 2 cm of water. Spread the liner out on the bottom and remove any wrinkles by sliding them with the flat of your hand from the centre of the pool towards the edge, until they are completely gone.

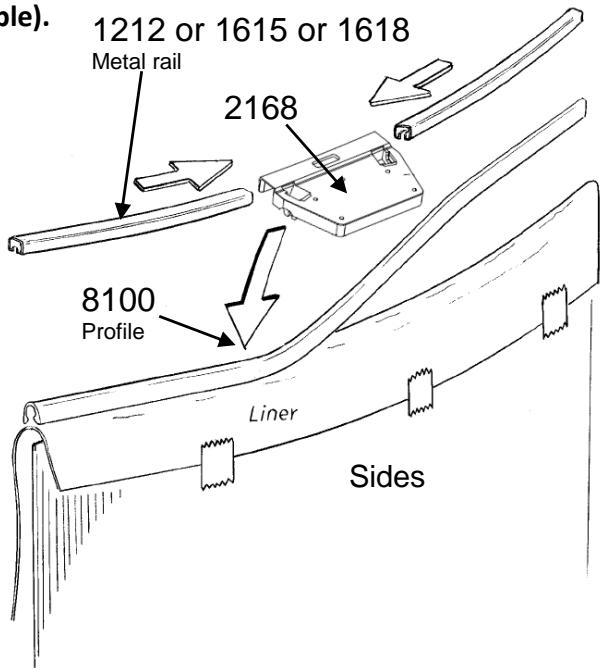

Once the liner is in place, you can then install the plastic and metal profiles as well as the connecting plates. Cut off the excess of the last plastic profile. Install the top rails perpendicular to the bottom rails and place the connecting plates back on the rails without fixing them.

You must stay in or nearby the pool until the water level reaches a height of 20 cm. From within the pool, gently tap the base to position the pool wall on the ground tracks. At this stage, if the liner is laid correctly, you can permanently fix the connecting plates with the fastening screws.

Ensure that the cut outs in the liner for the skimmer and discharge nozzle

have been done before totally filling the pool with water (see chapter 12: “FILTRATION”).

VARUNA-SAPHIR-CANYON Round 68 Guide 880109-rev A

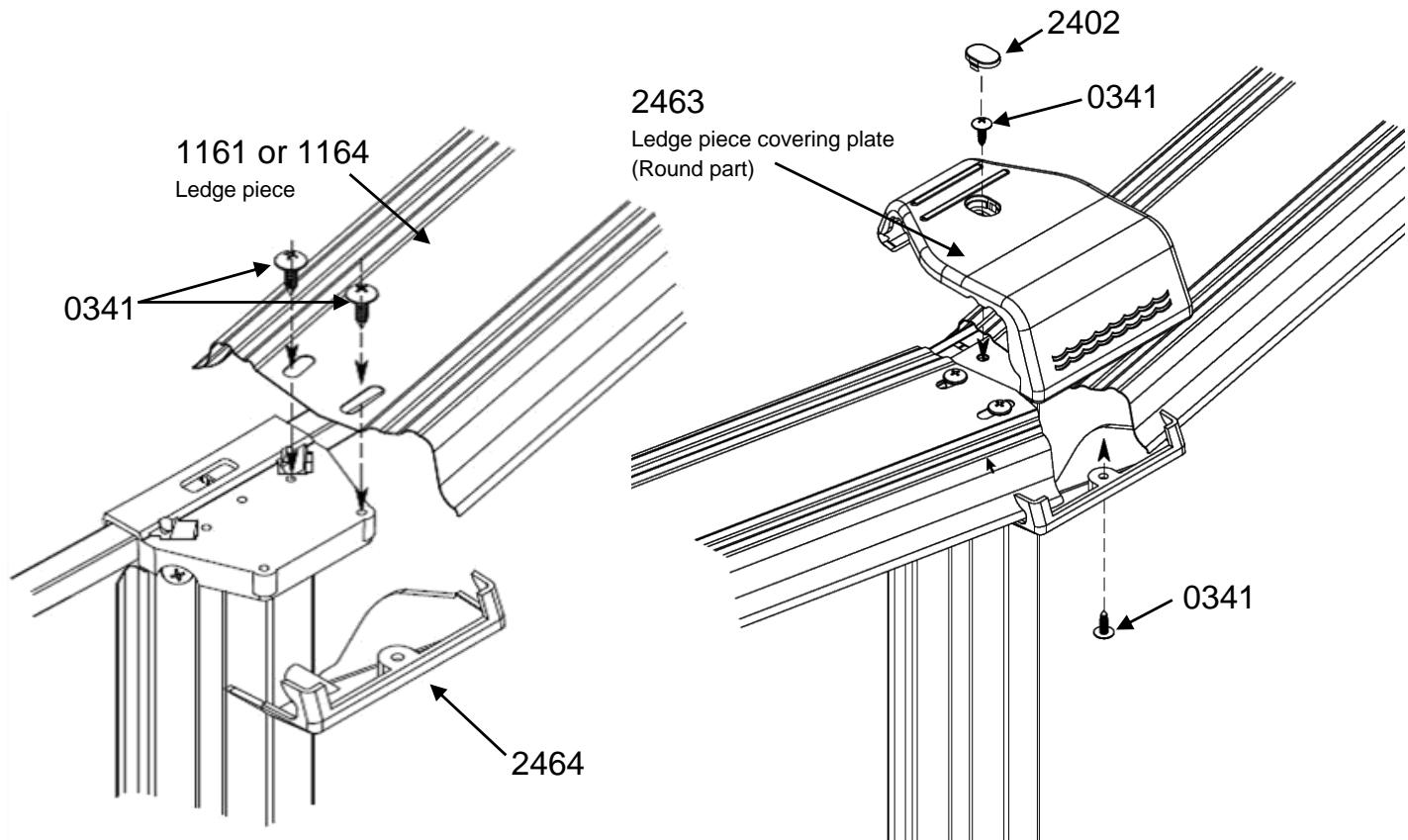

11.Installation of the ledge pieces and covering plates

The ledge pieces must be assembled in a certain position. The widest edge must be on the outside.

The ledge pieces must be positioned between the posts.

Each ledge piece extremity must be screwed onto a top plate or connecting plate. You may need to gently move the posts to the left or right to install the ledge pieces. Do not fully tighten the screws until they are all in place.

Fit the covering plates over the extremities of the ledge pieces and centre them. The narrowest part of the covering plate should be located on the inside of the pool.

Ledge piece covering plate {Round part)

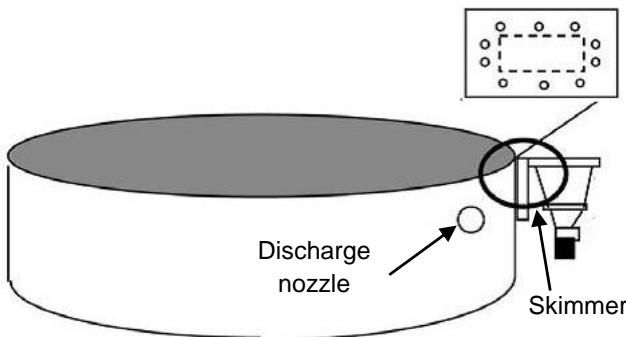

IMPORTANT: All filtration systems comply with installation standard NF C 15-100 stipulating that all electrical devices located within 3.50 m of the pool and freely accessible must be powered by very low voltage (12 v

Any device powered with 220 V must be located at least 3.50 m from the edge of the pool. This means that:

= This means that for a filter, the device must be installed more than 3.50 m from the pool,

= For filtering skimmers (depending on the kit), the transformer must be located more than 3.50 m from the pool.

NOTE: All threaded connectors should be attached with Teflon

tape, wound in the opposite direction of the thread. Filtration size Sand Aqualoon ball Te o Seek advice from the manufacturer for any modifications to one or more Filtration 4 mi/h 20kg 5608 filtration system elements. LEUR m In 35kg 980 8 Depending on the filter media used, refer to the quantities listed opposite [Filtration 8m°/h 75kg 21008 to be put in the tank. Filtration 10 m°/h 75 kg 2100 g Filtration 12 m°/h 75 kg 2100 8

TO ASSEMBLE THE FILTER SYSTEM, REFER TO THE USER GUIDE IN THE FILTRATION BOX VARUNA-SAPHIR-CANYON Round 69 Guide 880109-rev A

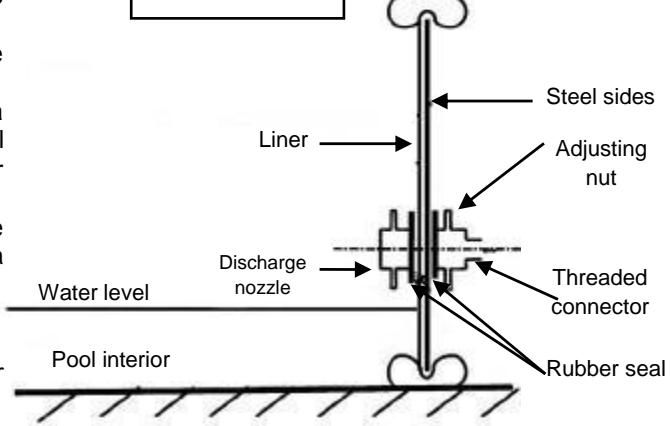

12.1. Installing the discharge nozzle

When assembling pools with a filtration system operating through the pool wall, the following procedures must be carried out:

= When the pool's water level reaches 5 or 6 cm from the discharge nozzle, install the nozzle as follows (see figure 1).

= Cut out the part of the liner covering the discharge nozzle using a metal cutter (see figure 2) and pull the cut out liner back onto the pool wall. You may find it helpful to place a piece of flat wood on the other side of the liner to the cut out to keep it down.

= From the inside of the pool, install the rubber joint and the discharge nozzle (see figure 3) and screw in from the outside of the pool with a clamping nut.

= Screw the connector or stopper valve (depending on the model). = install the ringed hose and the hose clamp. # Connect the corrugated pipe to the valve (return to pool) from the filter

Figure 1 Line Discharge 2 Water level nozzle Pool interior a

(threaded connector with Teflon tape and ring clamp).

7 Steel sides Discharge LT

nozzle Adjusting nut

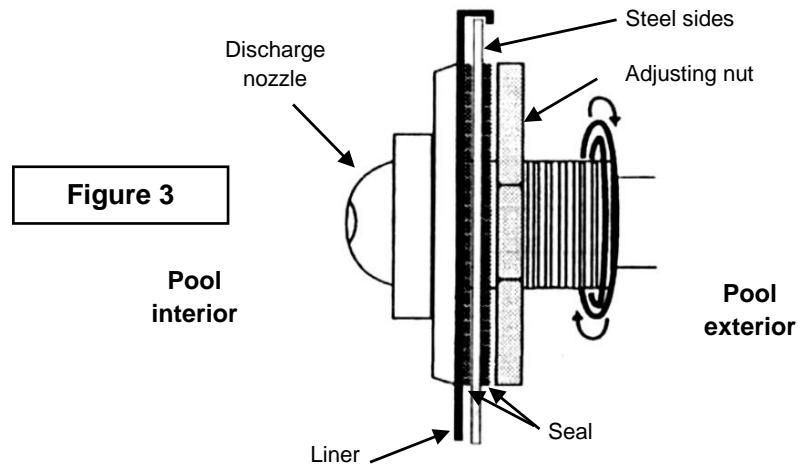

Figure 3 Pool Pool Interior Av] exterior

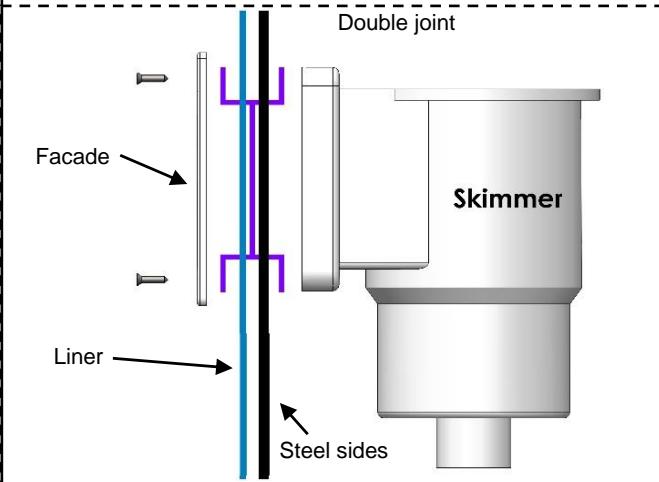

12.2. Installing the skimmer

When the water level in the pool reaches 5 to 6 cm below the skimmer, install it using the type of joint included with your skimmer (single or double). (Figure 4):

= By pressing on the liner (using, for example, a pen cap), find the pre- drilled holes in the plate.

= Stamp the holes using a Philips-head screwdriver.

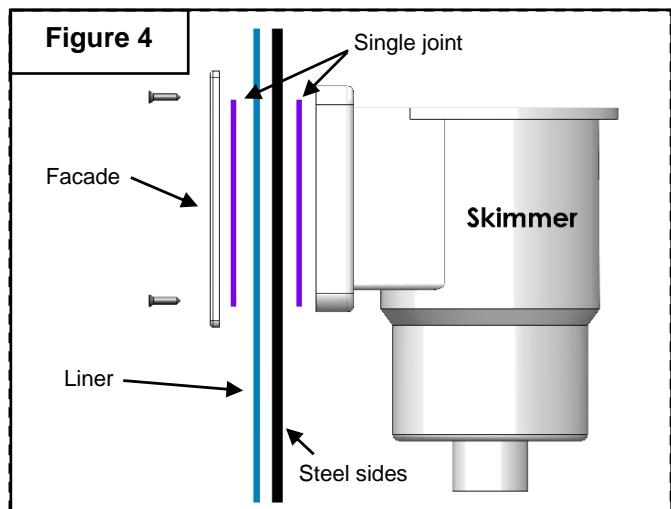

= Position the rubber joints according to figure 4.

= Place the flange (or frame) on the rubber joint.

= Screw the flange onto the metal sheet.

= Screw the threaded connector or stopper valve (depending on the model) with Teflon tape, the pipe and the ring clamp on to the skimmer.

= Cut out the part of the liner obstructing the skimmer from inside the pool.

= Connect the corrugated pipe from the skimmer to the filter pump. # Let the water level rise up to the middle of the skimmer. = Check the seal and tighten the screws if necessary.

= Permanent water-resistance will only be obtained after tightening all the screws progressively and regularly.

For permanent water-resistance, retighten all the screws

WARNING: Do not tighten the screws of the skimmer and discharge nozzle until the water level is a few centimetres from the parts to be installed. The water pressure should stretch the liner out nicely.

VARUNA-SAPHIR-CANYON Round 70

13. Maintenance and Use Guidelines

Non-compliance with maintenance instructions may cause serious health risks, particularly for children.

FILTRATION In order to eliminate suspended solids, you must have a good filtration system. During the season when you are using your pool, the filtration system must be operated each day, long enough to ensure the water volume is renewed at least every 24 hours (the minimum filtration duration depends on use and water temperature). We recommend splitting the filtration into 2 periods (once in the morning and once at night).

Inner wall dimensions => 92.91m 93.6m 94.6m 95.5m Water volume 10m 13m 21.5 m° 31m Filtering capacity 3m/h | 4m/h | 3m/h | 4m°/h | 6m/h | 3m°/h | 4m/h | 6m/h | 6m°/h | 8m°/h Daily filtration duration 3hrs20[2hrs 30 [4 hrs 20 |3hrs20/|2hrs10|7hrs10[5hrs30|3hrs30[5hrs10] 4hrs You must:

= Ensure that suction ports are free of obstructions.

= Replace any element or set of elements that become deteriorated. Only use parts that have been approved by the manufacturer.

= Stop the filtration system during maintenance operations.

= Periodically check the filter's clogging level.

= Please consult the filter instructions for filtration system maintenance and use.

= Check the fill level.

ACCESSORIES The following accessories are required for proper pool maintenance: surface accessories (example: net), bottom accessories, monitoring and repair accessories (example: repair kit).

Before using a robotic cleaner, clean the filter media of your filter system. Refer to the instructions provided with your filter system. Also check the filtration power necessary for the correct functioning of your equipment.

3 operations are required for treating the water:

= Adjusting the water's pH level using a test kit and pH corrector. The pH (potential hydrogen) indicates whether and to which extent the water is acidic or alkaline. The ideal for pool water is to be as close as possible to the pH of lacrimal fluid, i.e. 7.4.

= Combating algae using an anti-algae product.

# Disinfecting the water using chlorinated products in order to destroy any microorganisms.

These treatment and monitoring operations should be performed at least once a week to ensure proper water quality. Water treatment chemicals must be stored in a dry, ventilated area and out of reach of children.

WARNING: Never put chlorine or other agents directly in the pool, as this could damage the liner.

= Place a container filled with water at the foot of the ladder so people can rinse their feet before getting into the pool

# À thermal cover (bubble cover) will allow you to enjoy your pool to the fullest since it will heat the water, avoid heat loss at night, prevent leaves and insects from falling in the water and prevent the chlorine from evaporating.

= No diving or walking on the ledge pieces.

FILLING AND EMPTYING You should fill the pool so that the water level is at least in the middle of the skimmer. You should never completely drain the pool. If absolutely necessary, draining should not be performed during high winds and should be performed as quickly as possible. Do not leave the pool empty for more than 24 hours as the liner may shrink.

Specific Cases and Handling

Your pool is equipped with a filtration system that removes physical impurities such as insects, hair, leaves, and so on. The chemical treatment of the water, which complements the physical treatment, is necessary for keeping the water fit for bathing During normal use, weekly cleaning of your pool is sufficient. However, you may encounter unusual problems that may be resolved by following the recommendations in the table below.

VARUNA-SAPHIR-CANYON Round 71 Guide 880109-rev A TREATING THE WATER: problems and solutions

Issues Causes Solutions

Adjust the pH Wash the filter (BACKWASH position until the water evacuated to the drains is clean enough for a sand filter system).

Hard water and presence of

< Cloudy Water suspended particles

e Chlorine odour : Adjust the pH.

pH too high : e Eye and nose : : Shock with chlorine. irritation Chloramine content too high Wash the filter. e Green water Green water: algae formation or Brush the walls and skimmer basket. e Slippery floors and | proliferation Adjust the pH. walls Brown water: presence of organic Shock-treat the system using a suitable cleaning agent and e Brown water matter. clean the filter (see the filter guidelines)

Remove the deposits with a brush or a robotic cleaner.

+ Rough walls Hard water Clean the pool and descale the filter with suitable agents.

Adjust the pH. Add a water hardness regulating agent.

Presence of greasy deposits onthe | Clean the waterline with a suitable agent.

+ Black waterline waterline. Do notuse a flocculating agent with Aqualoon balls

14.Dismaniling the pool

We strongly advise against dismantling your pool. If, however, you are obliged to dismantle your pool, repeat the assembly process in reverse WARNING: Do not lift the liner when it is still filled with water.

To dismantle the pool, we recommend you take the following precautions:

= Empty the pool by siphoning off the water with a pipe, or by using the filter pump.

= Wash all the elements with soapy water.

Do not use products containing caustic soda to wash the liner.

= Hose down all the elements with clean water and dry (to avoid perforating the liner, only clean inside the pool structure; dry out of sunlight, as soon as possible. Do not allow prolonged exposure to the air).

= In the event of an incident (perforated liner), it may be easily fixed, even in water, using a special liner repair glue.

= Once fully dry, wrap the liner (no talcum powder) in an opaque plastic bag and store it in a closed box. Store the liner in a dry area, protected from frost and vermin, and avoid contact with heat.

= Roll up the metal sheet wall without bending it and tie it in position with a cord.

15.Safety Guidelines

Your children’s safety depends on you!

The risk is greatest with children under the age of 5. Accidents don't just happen to others! Be prepared for them! Never leave a child alone near water of any kind. Never let your child out of your sight. Prohibit pool access if the filtration system(s) is damaged.

Reminder of a few basic safety rules, monitor and be ready to act:

= Children should be monitored closely at all times.

= Designate a single person responsible for safety.

= Keep children under stricter supervision when there are multiple users in the pool = Never leave a child alone near a swimming pool.

= Never leave a child who cannot swim without adult supervision.

lever let a child swim alone.

= Ask people who are not strong swimmers to use personal flotation equipment.

= Equip your child with suitable armbands or floaters when near the pool.

= Provide life preservers and poles beside the pool.

= Teach your children to swim as soon as possible.

= Wet the back of your neck, arms, and legs before entering the water.

= Never enter the water too quickly, particulany after a meal, extended sun exposure, or intensive effort. = Learn lifesaving techniques, particularly those specific to children.

= Prohibit diving and jumping into the pool.

= Prohibit running and lively games in and around the pool.

= Do not walk or sit on the ledge pieces.

= Do not climb along the wall.

= The ladder must be placed on a solid base and always be level.

= You must always face the ladder when entering or exiting the pool.

= Never use the ladder for other purposes than that for which it was intended, i.e. entering and exiting the pool. Itis not intended for diving or jumping.

= The ladder must be removed when not swimming.

= Do not leave toys near the pool and in the pool when it is not supervised

VARUNA-SAPHIR-CANYON Round 72 Guide 880109-rev A

= Periodically check that all pool parts are in good condition (e.g.: traces of rust on bolts and screws). Tighten or changes screws and nuts as necessary.

= Never modify parts; never remove parts; and never drill holes in the pool.

= Keep the water clear and clean at all times.

= Never operate the filtration system while using your pool.

= Follow the installation instructions carefully, and consult the safety instructions for use and storage on chemical agent packaging.

= Store chemical agents out of the reach of children:

= Memorise emergency numbers and display them near the pool (fire brigade or ambulance: 999 or 112, poison control centre, etc.).

= Make sure you have a telephone near the pool so you do not need to leave your children unattended when you make a call

= Prohibit pool access if the filtration system is damaged.

We recommend you secure access to the finished pool using a protective device. The equipment listed below may contribute to safety. Under no circumstances does it replace close surveillance.

= Protective barrier (as per NF P306) with a constantly closed gate (a hedge, for example, may not be considered a barrier). = Cover (as per NF P 308) or manual or automatic protective shelter (as per NF P 309) correctly installed and secured. = Electronic presence or fall detector (as per NF P 307), operating and operational.

In case of accident:

= Help the child out of the water as quickly as possible.

= immediately call the emergency services and follow the instructions provided. = Replace wet clothing with warm blankets.

16.Winterising Guidelines

# Do not empty your pool.

= Remove floating debris (leaves, small branches, insects, etc.) using the net.

# Clean the bottom of the pool using a vacuum brush (or venturi).

= Check the pH using a test kit and adjust as necessary.

= Use a winterising agent proportionally to the pool's water volume (see explanatory note on the product label). = Run the filter for about 4 hours.

# Lower the water level to below the skimmer opening.

= Thoroughly drain the filtration unit (pump and tank) and store it above freezing temperatures.

= Cap the discharge nozzle and disconnect the hoses (not included in the kit).

= install winter air pillows (not included). They reduce pressure on the pool walls in the event of ice formation. = Cover the pool with a winter cover.

REMARKS: If you do not cover your pool and the water freezes, never break the ice. When it is cold, you can place a floating object in your pool in order to minimise the pressure caused by ice formation.

The structure and accessories of our swimming pools have a 2-year warranty against all manufacturing defects, in the framework of normal use of the pool. It does not cover the wear and tear of parts.

This warranty is limited to exchanging defective parts with your reseller.

Liners are warranted for two years solely for seam defects (peeling). The warranty shall not cover holes due to improper handling during assembly or using unsuitable treatment agents. Porosity issues and fading are caused by misuse or unsuitable treatment agents. The filters are under warranty for two years under normal use and in compliance with the assembly instructions except for seals and wear parts.

Products cannot be modified. Only TRIGANO J ARDIN replacement parts should be used. For any Customer Service enquiries please visit the following website: http://sav.triganojardin.com

IMPORTANT! For the warranty to be valid, you must keep proof of purchase including the reseller’s stamp as well as the purchase date and the quality control sheet. You must change all damaged items or set of items as soon as possible. Only use TRIGANO J ARDIN approved parts.

VARUNA-SAPHIR-CANYON Round 73 Guide 880109-rev A Lire

We thank you and congratulate you for having acquired a pool from TRIGANO PISCINES. This pool will guarantee you exceptional quality and reliability and we hope it will meet your expectations.
