USER MANUAL OSMOSE N°880114 TRIGANO

This article has been designed for family use outdoors under adult supervision. It may not be used under any circumstances for communal or public sites (schools, day care, parks, playgrounds...).

IMPORTANT

Please read this manual carefully and keep it for future reference. Similarly, the manuals for other components (skimmer, filter, etc.) should also be kept.

Assembly must be performed by adults (at least two people) following the preparation and assembly instructions (assembly should take one to two days excluding any earthwork and plumbing).

We suggest you assemble your ladder before assembling your pool (if your pool is equipped with a ladder).

Using a pool kit implies compliance with the safety instructions described in the maintenance manual and user guide.

Before assembling your pool, make any declarations (at the town hall for instance) and fulfil other requirements (such as taking out insurance) in order to obtain any authorisations for your project, for which you will be responsible.

WARNING

• Do not attempt installation in windy weather as the pool wall will be very difficult to handle.
• Properly tighten all screws. Inadequate tightening may cause structural failure.
• Handle the PVC liner carefully during assembly. Do not use a knife to open the box and avoid having sharp objects nearby.

We decline any responsibility in cases of non-compliance with the assembly instructions

CONTENTS

1. Overview 63
2. Pool Composition 63
3. Screws for structure (excluding pool wall) 63
4. Tools and Equipment Required for Assembly (not supplied with the kit) 64
   5.Preparing the site 64
5. Assembling the plastic profiles on the posts 65
6. Assembling the bottom rails 65
7. Installation of the pool wall 66
8. Installing the liner (to be installed barefoot) 67
9. Filling the pool 68
10. Installation of the ledge pieces and covering plates 68
11. FILLTRATION 69
12. Maintenance and Use Guidelines 70
13. Dismantling the pool 72
14. Safety Guidelines 72
15. Winterising Guidelines 73
16. Warranty 73

Read carefully and keep with the pool's Quality Control Sheet for future reference

Please quote the reference number below for any future after-sales inquiries about your pool.

1. Overview

We firmly advise that you install your pool on a 10 cm thick reinforced concrete slab. However, you can also assemble the pool on stable ground following all the steps indicated in this guide.

2. Pool Composition

OSMOSE ROUND pool Anthracite	Exterior dimensions	3,90m			4,85m			5,75m
	Steel sides dimensions	3,60m			4,60m			5,50m
	Pool height	1.32m			1.32m			1.32m
	Colour	Anthracite	Brown		Anthracite	Brown		Anthracite	Brown
COMPOSITION
Sides + Fastenings		x	x		x	x		x	x
Ladder		x	x		x	x		x	x
Liner		x	x		x	x		x	x
Filtration system in 1 or 3 boxes (tank+pump+valve)		x	x		x	x		x	x
SKIMMER PACKAGE ALL COLOURS
Skimmer assembly		1	1		1	1		1	1
2 x 4.5 m corrugated pipes		1	1		1	1		1	1
Bag of 20 x 1280 mm grey profiles	880341	1	1	1	1	1	1	1	1	1
Bag of 20 x 1280 mm brown profiles	880348	1	1	1	1	1	1	1	1	1
Bag of 4 x 1280 mm grey profiles	880342							1	1	1
Bag of 4 x 1280 mm brown profiles	880354							1	1	1
PACKAGE (5/8 RAIL-2) ALL COLOURS
Top and bottom metal rails 1.13 m	1212	20	20
Top and bottom metal rails 1.43 m	1615				20	20
Top and bottom metal rails 1.43 m	1618							24	24
PACKAGE (7HN-EX-2) ANTHRACITE/GREY
Ledge piece 1.13 m	1171G	10
Ledge piece 1.44 m	1174G				10			12
Top plastic profile (liner fastener)	8100	9			11			14
Vertical post 1.32 m (round part)	2377G	10			10			12
PACKAGE (7HN-BX-2) BROWN/WOOD
Ledge piece 1.13 m	1171M		10
Ledge piece 1.44 m	1174M					10			12
Top plastic profile (liner fastener)	8100		9			11			14
Vertical post 1.32 m (round part)	2377M		10			10			12
PACKAGE (7P-EX-3) ANTHRACITE/GREY
Top connecting plate (round part)	2176	10			10			12
Bottom connecting plate (round part)	2276	10			10			12
Interior ledge piece covering plate (round part)	2475G	10			10			12
Exterior ledge piece covering plate (round part)	2476G	10			10			12
Phillips-head screw Ø5x18	0341	120			120			144
PACKAGE (7P-BX-3) BROWN/WOOD
Top connecting plate (round part)	2176		10			10			12
Bottom connecting plate (round part)	2276		10			10			12
Interior ledge piece covering plate (round part)	2475M		10			10			12
Exterior ledge piece covering plate (round part)	2476M		10			10			12
Phillips-head screw Ø5x18	0341		120			120			144

	Reference	Quantity
Wall screw packet	880125
M6 screw	121000	33
M6 nut	121510	33
M6 washer	121610	33

3. Screws for structure (excluding pool wall)

	Name	Reference
18mm	Sheet metal screws∅ 5 x 18	0341

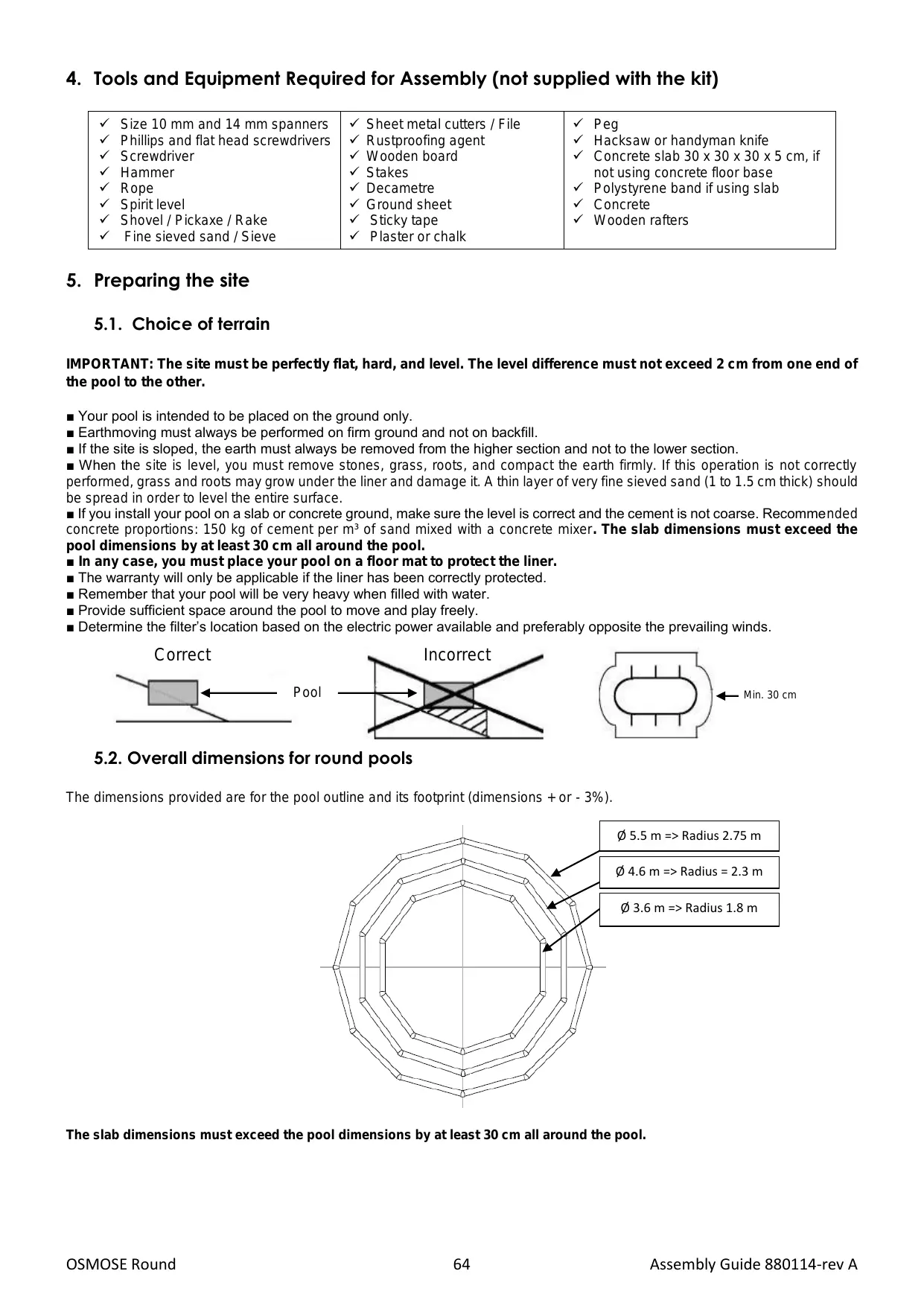

4. Tools and Equipment Required for Assembly (not supplied with the kit)

✓ Size 10 mm and 14 mm spanners ✓ Phillips and flat head screwdrivers ✓ Screwdriver ✓ Hammer ✓ Rope ✓ Spirit level ✓ Shovel / Pickaxe / Rake ✓ Fine sieved sand / Sieve

✓ Sheet metal cutters / File ✓ Rustproofing agent ✓ Wooden board ✓ Stakes ✓ Decametre ✓ Ground sheet ✓ Sticky tape ✓ Plaster or chalk

✓ Peg ✓ Hacksaw or handyman knife ✓ Concrete slab 30 x 30 x 30 x 5 cm, if not using concrete floor base ✓ Polystyrene band if using slab ✓ Concrete ✓ Wooden rafters

5. Preparing the site

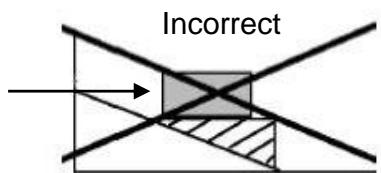

5.1. Choice of terrain

IMPORTANT: The site must be perfectly flat, hard, and level. The level difference must not exceed 2 cm from one end of the pool to the other.

• Your pool is intended to be placed on the ground only.
  Earthmoving must always be performed on firm ground and not on backfill.

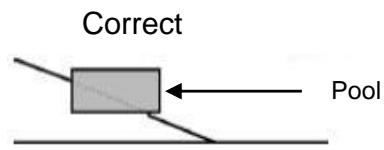

  If the site is sloped, the earth must always be removed from the higher section and not to the lower section.
  ■ When the site is level, you must remove stones, grass, roots, and compact the earth firmly. If this operation is not correctly performed, grass and roots may grow under the liner and damage it. A thin layer of very fine sieved sand (1 to 1.5 cm thick) should be spread in order to level the entire surface.
  If you install your pool on a slab or concrete ground, make sure the level is correct and the cement is not coarse. Recommended concrete proportions: 150kg of cement per m^3 of sand mixed with a concrete mixer. The slab dimensions must exceed the pool dimensions by at least 30~cm all around the pool.
  In any case, you must place your pool on a floor mat to protect the liner.
  The warranty will only be applicable if the liner has been correctly protected.
  Remember that your pool will be very heavy when filled with water.
  ■ Provide sufficient space around the pool to move and play freely.
  Determine the filter's location based on the electric power available and preferably opposite the prevailing winds.

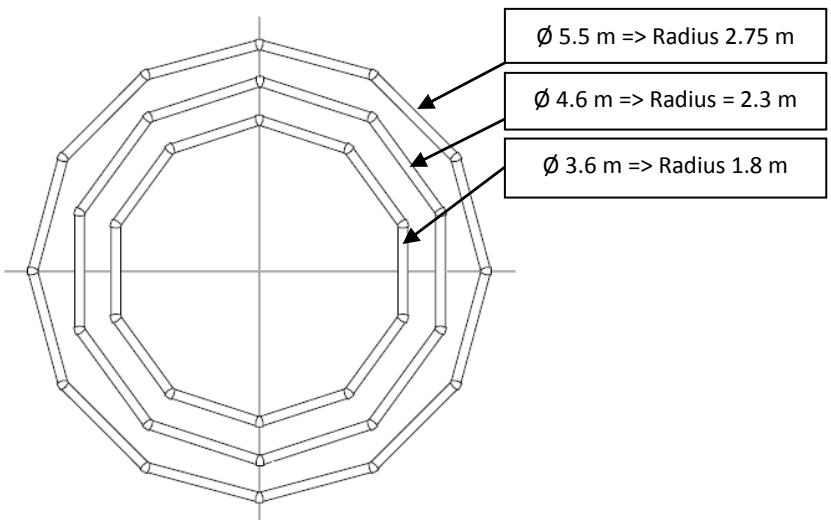

5.2. Overall dimensions for round pools

The dimensions provided are for the pool outline and its footprint (dimensions + or - 3%).

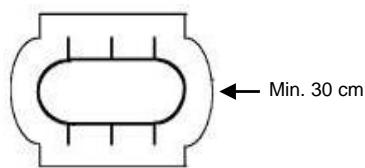

The slab dimensions must exceed the pool dimensions by at least 30~cm all around the pool.

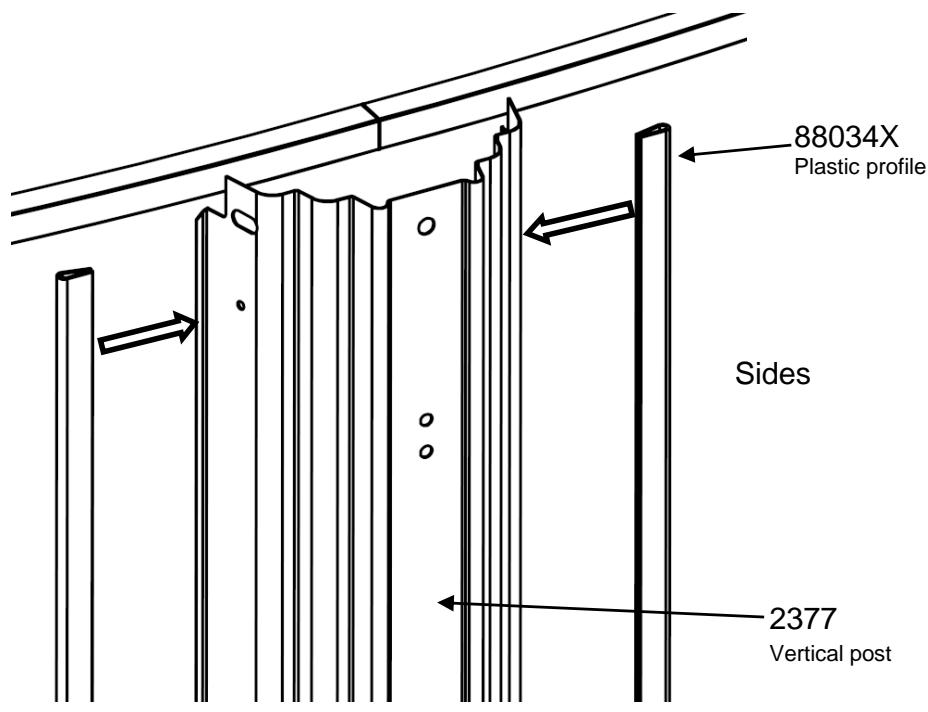

6. Assembling the plastic profiles on the posts

Before beginning to assemble your pool, assemble the plastic profiles on to the posts.

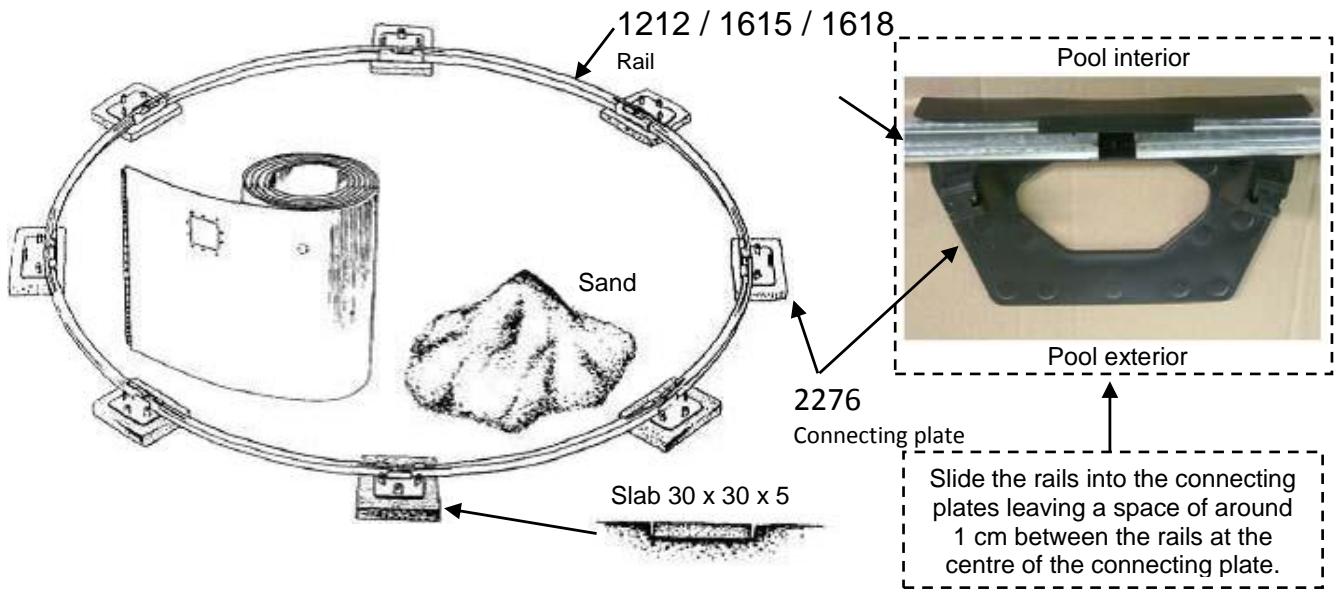

7. Assembling the bottom rails

If the pool is not installed on a concrete slab, place a concrete plate approximately 30 × 30 × 5 cm in size at each connecting point of the bottom rails. These plates must be placed in such a way that their surface arrives exactly at ground level.

WARNING: The entire length of the connecting plate must be laid flat over the flat surface. Using a slab that is too short, or the absence of a slab, could make installation inadequate or cause the swimming pool to collapse.

Before assembling the bottom rails of the swimming pool, place the lining inside the pool enclosure.

8. Installation of the pool wall

WARNING: An incorrectly installed metal sheet could cause the pool to collapse. Do not install the metal sheet in windy weather.

Use the ladder to enter and exit the pool during installation. Take the pool wall out of the box and place it on top of the box or on a board for easy unravelling. Ensure that the skimmer cut out is placed on the top part of the metal sheet, with the opening positioned facing the prevailing wind, so that the wind blows any impurities towards the skimmer.

Start in the middle of a connecting plate so that the bolts are hidden by a vertical post. Join the extremities of the metal sheet using the bolts and washers. The screw heads must be on the inside of the pool and the nuts on the outside. Ensure that all the bolt holes are used. It is very important for all the bolts to be adequately tightened to ensure a solid join. To protect the liner, stick a protection band (duct tape) over the screws on the inside of the pool.

IMPORTANT: Increase the stability and rigidity of the metal sheet by provisionally installing the top metal profiles and the vertical posts as you proceed with the assembly.

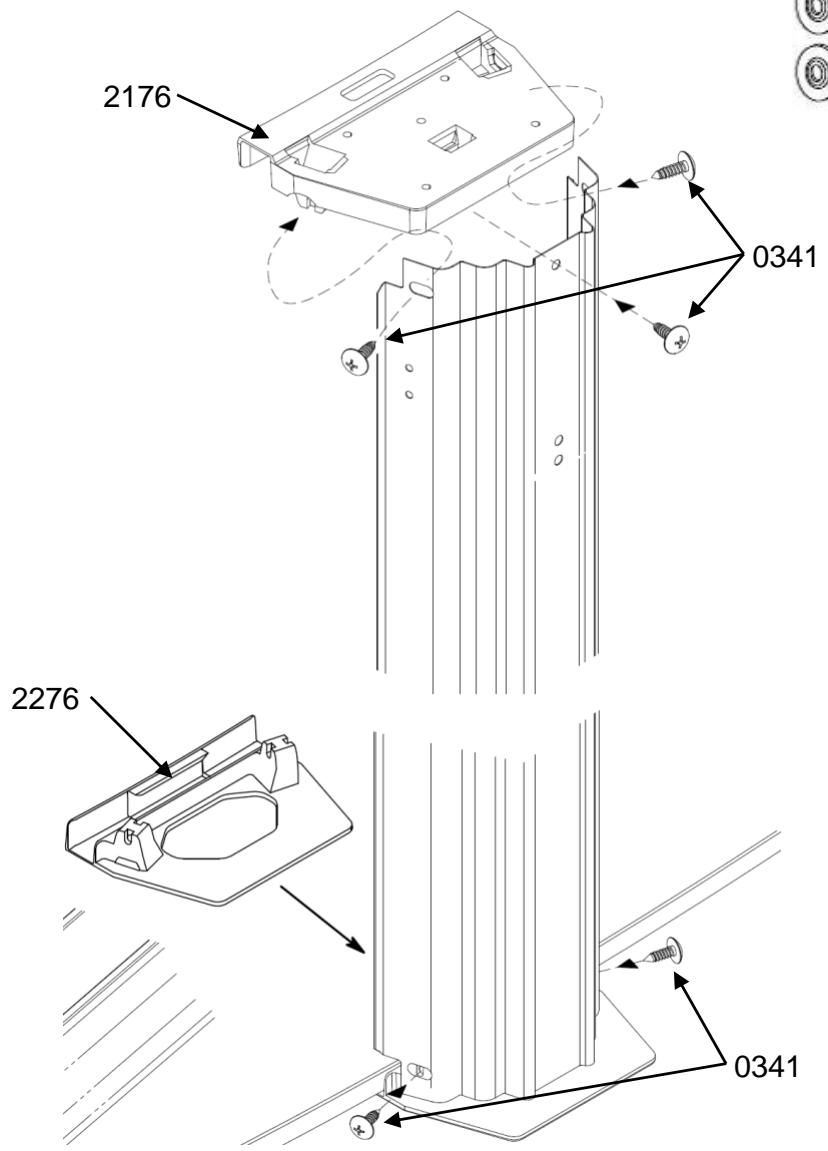

Fix the covering plate supports to the posts before assembly. On the lower part, fix the posts to their connecting plate using 2 screws; on the upper part, fix the posts to their connecting plate with 2 loosely tightened screws.

INSTALL THE GROUND SHEET OR GEOTECTILE FILM (note: the ground sheet is not included in all kits)

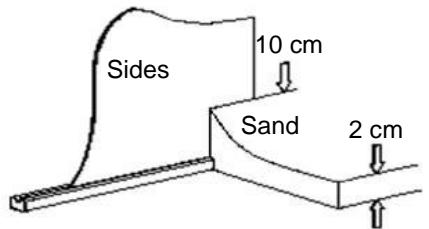

It is important to backfill 8 to 10cm (mound of fine sand) all around the base of the inside of the pool and, particularly, along the sides of the pool, and to cover the entire surface of the pool with a 2cm layer of sand. The sand prevents the liner from sliding under the metal sheet and protects it from perforation from the protruding parts of the pool structure.

Cover the prepared ground with a geotextile film that goes 10 to 12cm up the wall. Stick the film to the wall in various places using double-sided adhesive tape. The geotextile film prevents algae from spreading under the liner.

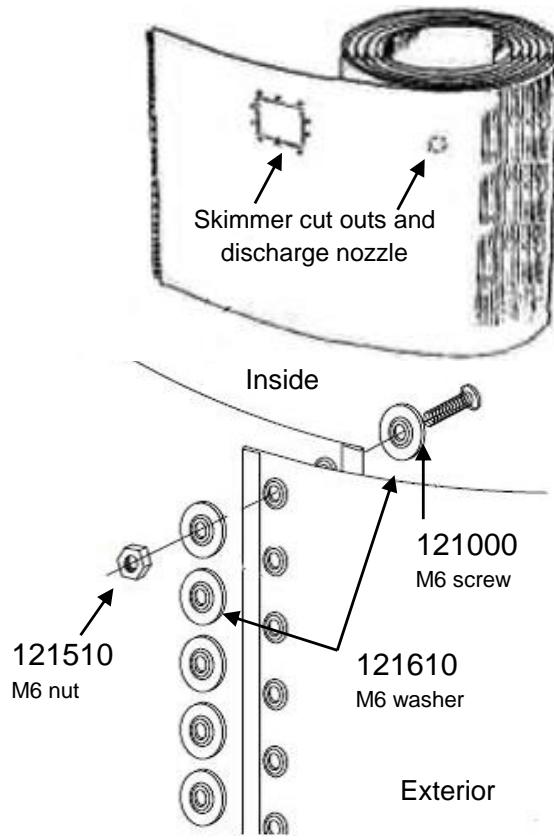

POOL WALL CUT OUTS

After assembling the wall, make the skimmer and discharge nozzle cut outs using metal cutters. File the edges of the cut outs and apply rustproofing agent. We advise wearing gloves during this process.

9. Installing the liner (to be installed barefoot)

WARNING: This is a delicate process and must be carried out with utmost caution.

We recommended installing the liner when the outdoor temperature is between 18^ and 25^ . Use the ladder to enter and exit the pool during installation. Unfold the liner inside the pool and spread it out until it reaches the edges of the pool. The side where the seams are smooth is the inside of the liner.

After removing 2 or 3 of the upper rails, start to pull the edges of the liner above the wall allowing it to overhang by 10 to 20~cm . Hold it in place temporarily with clothes pegs or using the rails provided for this purpose. Do not over-stretch the liner. Use your feet to spread the bottom of the liner out until it reaches the base of the metal sheet wall. Repeat this on the opposite side and in two other areas. This will enable you to check that the liner is properly centred. There should not be any large folds running across it. Continue to lift the liner all around the pool, holding it in place with other clothes pegs.

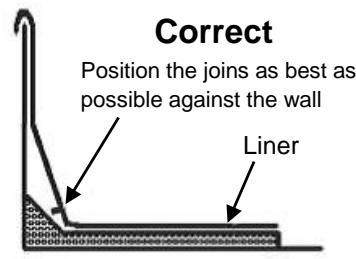

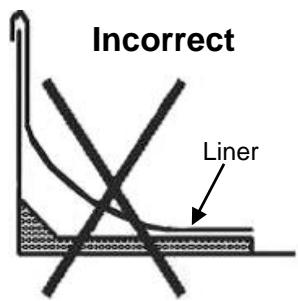

Important!

The liner must be lying against the bottom of the pool before water is added.

10. Filling the pool

WARNING: Do not use recovered water (from a well or river, for example).

Start filling the pool with 1 or 2cm of water. Spread the liner out on the bottom and remove any wrinkles by sliding them with the flat of your hand from the centre of the pool towards the edge, until they are completely gone.

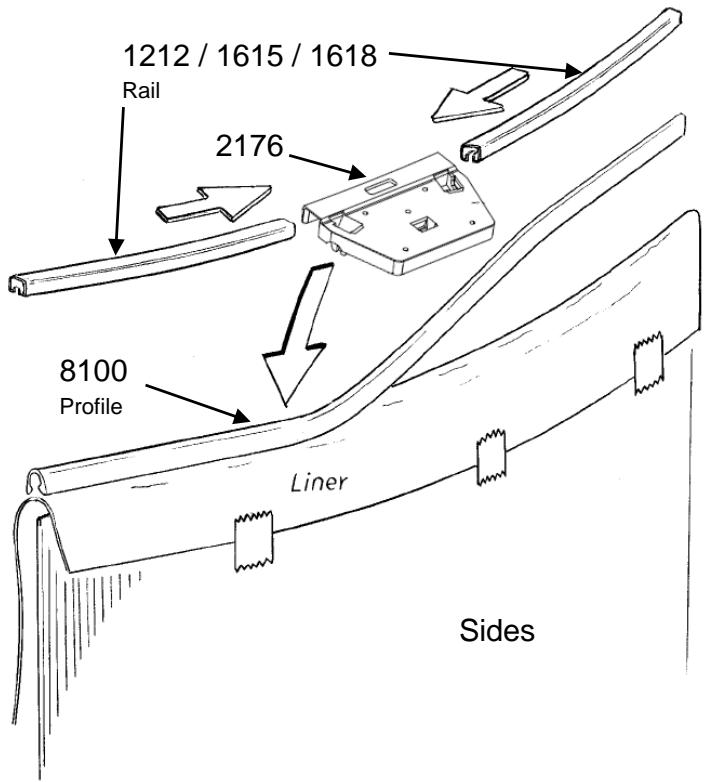

Once the liner is in place, you can then install the plastic and metal profiles as well as the connecting plates. Cut off the excess of the last plastic profile. Install the top rails perpendicular to the bottom rails and place the connecting plates back on the rails without fixing them.

You must stay in or nearby the pool until the water level reaches a height of 20~cm . From within the pool, gently tap the base to position the pool wall on the ground tracks. At this stage, if the liner is laid correctly, you can permanently fix the connecting plates with the fastening screws.

The cut outs in the liner for the installation of the skimmer and the discharge nozzle must be done before totally filling the pool with water (see chapter 12 "filtration").

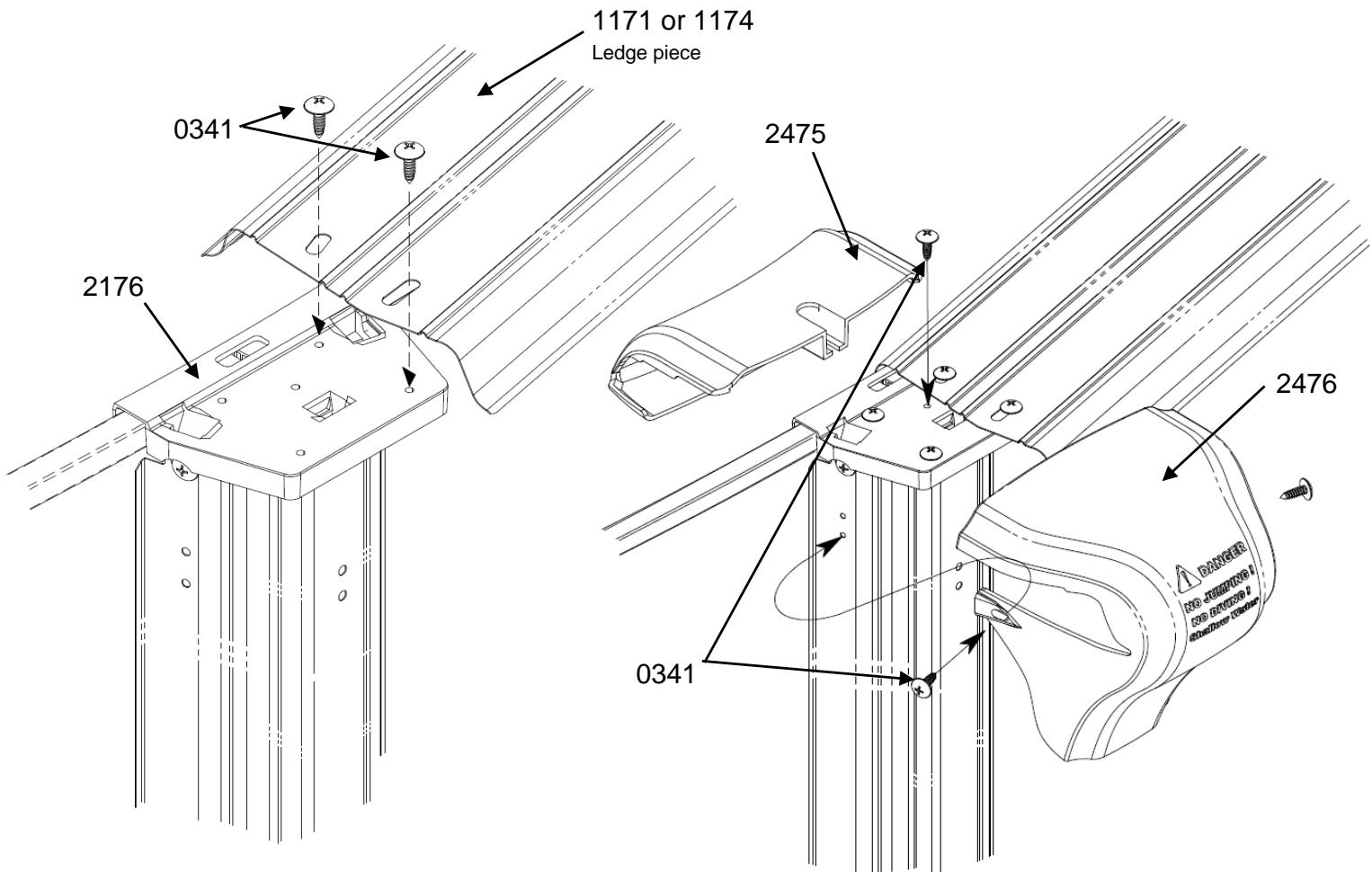

11.Installation of the ledge pieces and covering plates

The ledge pieces must be assembled in a certain position. The widest edge must be on the outside.

The ledge pieces must be positioned between the posts.

The ends of the ledge pieces are fixed to a connecting plate using screws. You may need to gently move the posts to the left or right to install the ledge pieces. Do not fully tighten the screws until they are all in place.

Fit the covering plates over the extremities of the ledge pieces and centre them. The narrowest part of the covering plate should be located on the inside of the pool.

12. FILTRATION

IMPORTANT: All filtration systems comply with installation standard NF C 15-100 stipulating that all electrical devices located within 3.50m of the pool and freely accessible must be powered by very low voltage (12 V).

Any device powered with 220V must be located at least 3.50m from the edge of the pool. This means that:

This means that for a filter, the device must be installed more than 3.50m from the pool,
- For filtering skimmers (depending on the kit), the transformer must be located more than 3.50m from the pool.

NOTE: All threaded connectors should be attached with Teflon tape, wound in the opposite direction of the thread.

Seek advice from the manufacturer for any modifications to one or more filtration system elements.

Depending on the filter media used, refer to the quantities listed opposite to be put in the tank.

TO ASSEMBLE THE FILTER SYSTEM, REFER TO THE USER GUIDE IN THE FILTRATION BOX

Filtration size	Sand	Aqualoon ball
Filtration 4 m3/h	20 kg	560 g
Filtration 6 m3/h	35 kg	980 g
Filtration 8m3/h	75 kg	2100 g
Filtration 10 m3/h	75 kg	2100 g
Filtration 12 m3/h	75 kg	2100 g

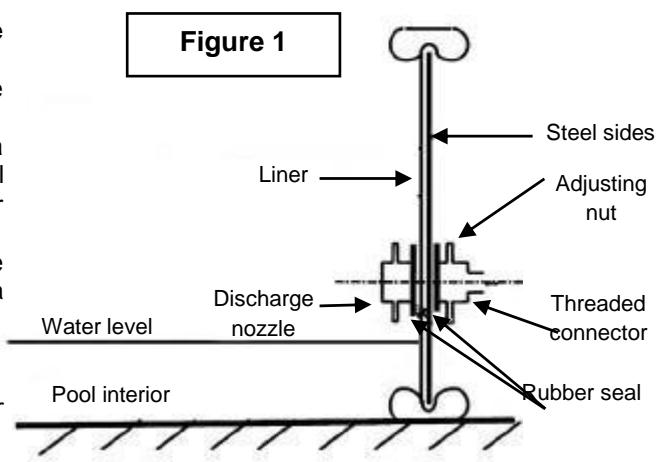

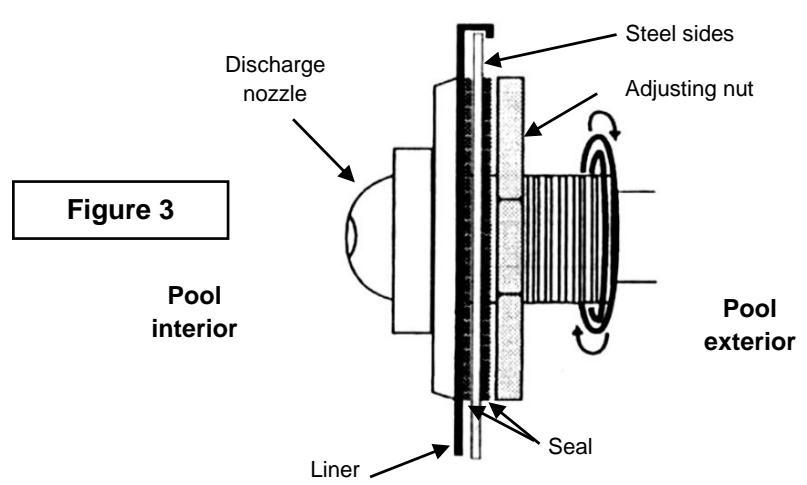

12.1. Installing the discharge nozzle

When assembling pools with a filtration system operating through the pool wall, the following procedures must be carried out:
- When the pool's water level reaches 5 or 6cm from the discharge nozzle, install the nozzle as follows (see figure 1).
- Cut out the part of the liner covering the discharge nozzle using a metal cutter (see figure 2) and pull the cut out liner back onto the pool wall. You may find it helpful to place a piece of flat wood on the other side of the liner to the cut out to keep it down.
- From the inside of the pool, install the rubber joint and the discharge nozzle (see figure 3) and screw in from the outside of the pool with a clamping nut.
- Screw the connector or stopper valve (depending on the model).
Install the ringed hose and the hose clamp.
- Connect the corrugated pipe to the valve (return to pool) from the filter (threaded connector with Teflon tape and ring clamp).

Figure 2

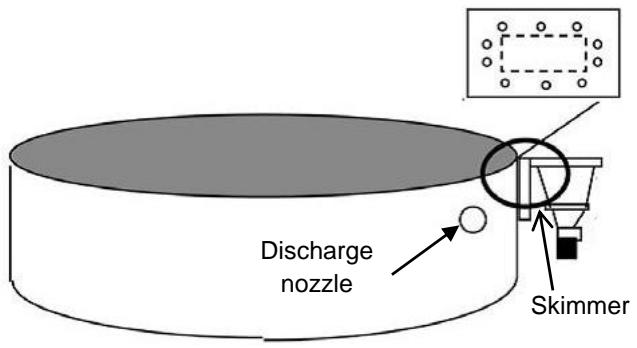

12.2. Installing the skimmer

When the water level in the pool reaches 5 to 6cm below the skimmer, install it using the type of joint included with your skimmer (single or double). (Figure 4):

• By pressing on the liner (using, for example, a pen cap), find the predrilled holes in the plate.
  Stamp the holes using a Philips-head screwdriver.

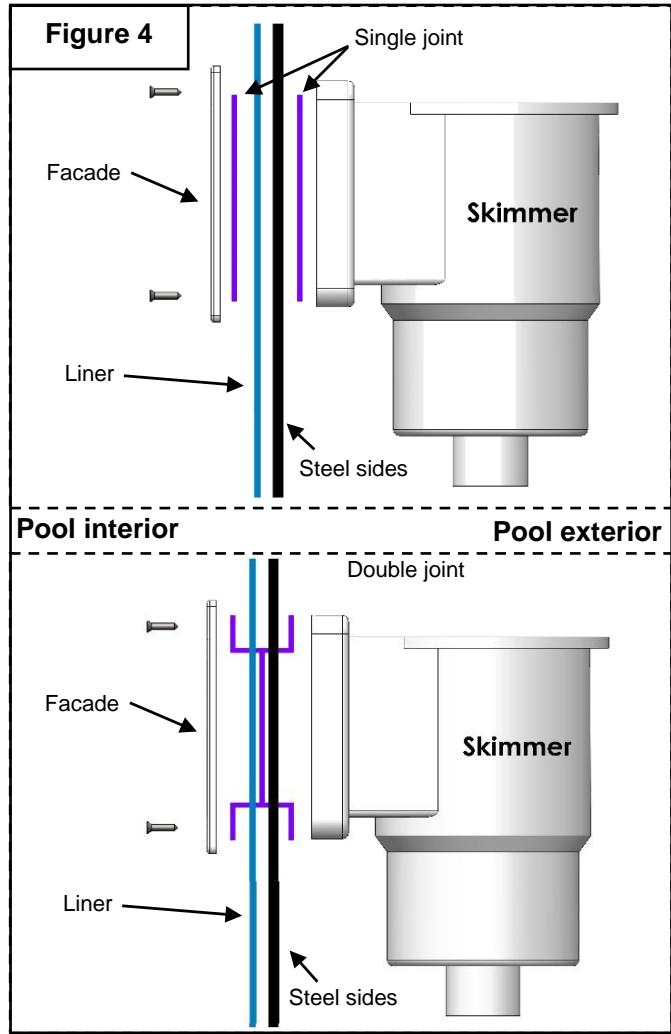

  Position the rubber joints according to figure 4.

• Place the flange (or frame) on the rubber joint.
  Screw the flange onto the metal sheet.

• Screw the threaded connector or stopper valve (depending on the model) with Teflon tape, the pipe and the ring clamp on to the skimmer.

• Cut out the part of the liner obstructing the skimmer from inside the pool.
• Connect the corrugated pipe from the skimmer to the filter pump.
• Let the water level rise up to the middle of the skimmer.
  Check the seal and tighten the screws if necessary.
  ■ Permanent water-resistance will only be obtained after tightening all the screws progressively and regularly.

For permanent water-resistance, retighten all the screws over the course of the next few days.

WARNING: Do not tighten the screws of the skimmer and discharge nozzle until the water level is a few centimetres from the parts to be installed. The water pressure should stretch the liner out nicely.

13. Maintenance and Use Guidelines

Non-compliance with maintenance instructions may cause serious health risks, particularly for children.

Filtration

In order to eliminate suspended solids, you must have a good filtration system. During the season when you are using your pool, the filtration system must be operated each day, long enough to ensure the water volume is renewed at least every 24 hours (the minimum filtration duration depends on use and water temperature). We recommend splitting the filtration into 2 periods (once in the morning and once at night).

Inner wall dimensions =>	Ø 3.6 m	Ø 4.6 m		Ø 5.5 m
Water volume	13 m³	21.5 m³		31 m³
Filtration capacity (depending on the kit)	4 m³/h	4 m³/h	6 m³/h	6 m³/h	8 m³/h
Daily filtration duration	3 hrs 15	5 hrs 30	3 hrs 30	5 hrs	4 hrs

You must:

• Ensure that suction ports are free of obstructions.
• Replace any element or set of elements that become deteriorated. Only use parts that have been approved by the manufacturer.
• Stop the filtration system during maintenance operations.
  Periodically check the filter's clogging level.
  Please consult the filter instructions for filtration system maintenance and use.
  Check the fill level.

ACCESSORIES

The following accessories are required for proper pool maintenance: surface accessories (example: net), bottom accessories, monitoring and repair accessories (example: repair kit).

Before using a robotic cleaner, clean the filter media of your filter system. Refer to the instructions provided with your filter system. Also check the filtration power necessary for the correct functioning of your equipment.

CHEMICAL TREATMENT

3 operations are required for treating the water:

Adjusting the water's pH level using a test kit and pH corrector. The pH (potential hydrogen) indicates whether and to which extent the water is acidic or alkaline. The ideal for pool water is to be as close as possible to the pH of lacrimal fluid, i.e. 7.4.
Combating algae using an anti-algae product.
Disinfecting the water using chlorinated products in order to destroy any microorganisms.
These treatment and monitoring operations should be performed at least once a week to ensure proper water quality. Water treatment chemicals must be stored in a dry, ventilated area and out of reach of children.

WARNING:

Never put chlorine or other agents directly in the pool, as this could damage the liner.

TIPS:

• Place a container filled with water at the foot of the ladder so people can rinse their feet before getting into the pool.
  A thermal cover (bubble cover) will allow you to enjoy your pool to the fullest since it will heat the water, avoid heat loss at night, prevent leaves and insects from falling in the water and prevent the chlorine from evaporating.
  No diving or walking on the ledge pieces.

FILLING AND EMPTYING

You should fill the pool so that the water level is at least in the middle of the skimmer.

You should never completely drain the pool. If absolutely necessary, draining should not be performed during high winds and should be performed as quickly as possible. Do not leave the pool empty for more than 24 hours as the liner may shrink.

Specific Cases and Handling

Your pool is equipped with a filtration system that removes physical impurities such as insects, hair, leaves, and so on. The chemical treatment of the water, which complements the physical treatment, is necessary for keeping the water fit for bathing. During normal use, weekly cleaning of your pool is sufficient. However, you may encounter unusual problems that may be resolved by following the recommendations in the table below.

TREATING THE WATER: problems and solutions
Issues	Causes	Solutions
• Cloudy Water	Hard water and presence of suspended particles	Adjust the pH Wash the filter (BACKWASH position until the water evacuated to the drains is clean enough for a sand filter system).
• Chlorine odour • Eye and nose irritation	pH too high Chloramine content too high	Adjust the pH. Shock with chlorine. Wash the filter.
• Green water • Slippery floors and walls • Brown water	Green water: algae formation or proliferation. Brown water: presence of organic matter.	Brush the walls and skimmer basket. Adjust the pH. Shock-treat the system using a suitable cleaning agent and clean the filter (see the filter guidelines)
• Rough walls	Hard water	Remove the deposits with a brush or a robotic cleaner. Clean the pool and descale the filter with suitable agents. Adjust the pH. Add a water hardness regulating agent.
• Black waterline	Presence of greasy deposits on the waterline.	Clean the waterline with a suitable agent. Do not use a flocculating agent with Aqualoon balls

14. Dismantling the pool

We strongly advise against dismantling your pool. If, however, you are obliged to dismantle your pool, repeat the assembly process in reverse.

WARNING: Do not lift the liner when it is still filled with water.

To dismantle the pool, we recommend you take the following precautions:

• Empty the pool by siphoning off the water with a pipe, or by using the filter pump.
  Wash all the elements with soapy water.
  Do not use products containing caustic soda to wash the liner.
  Hose down all the elements with clean water and dry (to avoid perforating the liner, only clean inside the pool structure; dry out of sunlight, as soon as possible. Do not allow prolonged exposure to the air).
  In the event of an incident (perforated liner), it may be easily fixed, even in water, using a special liner repair glue.
  Once fully dry, wrap the liner (no talcum powder) in an opaque plastic bag and store it in a closed box. Store the liner in a dry area, protected from frost and vermin, and avoid contact with heat.
  Roll up the metal sheet wall without bending it and tie it in position with a cord.

15. Safety Guidelines

Your children's safety depends on you!

The risk is greatest with children under the age of 5. Accidents don't just happen to others! Be prepared for them! Never leave a child alone near water of any kind. Never let your child out of your sight. Prohibit pool access if the filtration system(s) is damaged.

Reminder of a few basic safety rules, monitor and be ready to act:

Children should be monitored closely at all times.
- Designate a single person responsible for safety.
- Keep children under stricter supervision when there are multiple users in the pool.
- Never leave a child alone near a swimming pool.
- Never leave a child who cannot swim without adult supervision.
- Never let a child swim alone.
■ Ask people who are not strong swimmers to use personal flotation equipment.
Equip your child with suitable armbands or floaters when near the pool.
- Provide life preservers and poles beside the pool.
Teach your children to swim as soon as possible.
Wet the back of your neck, arms, and legs before entering the water.
Never enter the water too quickly, particularly after a meal, extended sun exposure, or intensive effort.
- Learn lifesaving techniques, particularly those specific to children.
Prohibit diving and jumping into the pool.
Prohibit running and lively games in and around the pool.
- Do not walk or sit on the ledge pieces.
- Do not climb along the wall
The ladder must be placed on a solid base and always be level.
You must always face the ladder when entering or exiting the pool.
- Never use the ladder for other purposes than that for which it was intended, i.e. entering and exiting the pool. It is not intended for diving or jumping.
The ladder must be removed when not swimming.
- Do not leave toys near the pool and in the pool when it is not supervised.
Periodically check that all pool parts are in good condition (e.g.: traces of rust on bolts and screws). Tighten or changes screws and nuts as necessary.
- Never modify parts; never remove parts; and never drill holes in the pool.
- Keep the water clear and clean at all times.
- Never operate the filtration system while using your pool.
■ Follow the installation instructions carefully, and consult the safety instructions for use and storage on chemical agent packaging.
Store chemical agents out of the reach of children.
■ Memorise emergency numbers and display them near the pool (fire brigade: or ambulance: 999 or 112, poison control centre, etc.).
Make sure you have a telephone near the pool so you do not need to leave your children unattended when you make a call.
Prohibit pool access if the filtration system is damaged.

We recommend you secure access to the finished pool using a protective device. The equipment listed below may contribute to safety. Under no circumstances does it replace close surveillance.

• Protective barrier (as per NF P306) with a constantly closed gate (a hedge, for example, may not be considered a barrier).
• Cover (as per NF P 308) or manual or automatic protective shelter (as per NF P 309) correctly installed and secured.
  Electronic presence or fall detector (as per NF P 307), operating and operational.

In case of accident:

Help the child out of the water as quickly as possible.
- Immediately call the emergency services and follow the instructions provided.
Replace wet clothing with warm blankets.

16. Winterising Guidelines

• Do not empty your pool.
• Remove floating debris (leaves, small branches, insects, etc.) using the net.
  Clean the bottom of the pool using a vacuum brush (or venturi).
• Check the pH using a test kit and adjust as necessary.
  ■ Use a winterising agent proportionally to the pool's water volume (see explanatory note on the product label).
  Run the filter for about 4 hours.
  Lower the water level to below the skimmer opening.
  Thoroughly drain the filtration unit (pump and tank) and store it above freezing temperatures.
• Cap the discharge nozzle and disconnect the hoses (not included in the kit).
  Install winter air pillows (not included). They reduce pressure on the pool walls in the event of ice formation.
• Cover the pool with a winter cover.

REMARKS: If you do not cover your pool and the water freezes, never break the ice. When it is cold, you can place a floating object in your pool in order to minimise the pressure caused by ice formation.

17. Warranty

The structure and accessories of our swimming pools have a 2-year warranty against all manufacturing defects, in the framework of normal use of the pool. It does not cover the wear and tear of parts.

This warranty is limited to exchanging defective parts with your reseller.

Liners are warranted for two years solely for seam defects (peeling). The warranty shall not cover holes due to improper handling during assembly or using unsuitable treatment agents. Porosity issues and fading are caused by misuse or unsuitable treatment agents. The filters are under warranty for two years under normal use and in compliance with the assembly instructions except for seals and wear parts.

Products cannot be modified. Only TRIGANO JARDIN replacement parts should be used. For any Customer Service enquiries please visit the following website: http://sav.triganojardin.com

IMPORTANT! For the warranty to be valid, you must keep proof of purchase including the reseller's stamp as well as the purchase date and the quality control sheet. You must change all damaged items or set of items as soon as possible. Only use TRIGANO JARDIN approved parts.

We thank you and congratulate you for having acquired a pool from TRIGANO PISCINES.

This pool will guarantee you exceptional quality and reliability and we hope it will meet your expectations.

TRIGANO JARDIN

Le Boulay 41170 CORMENON

FRANCE

http://sav.triganojardin.com
