USER MANUAL BHB6602X BRANDT

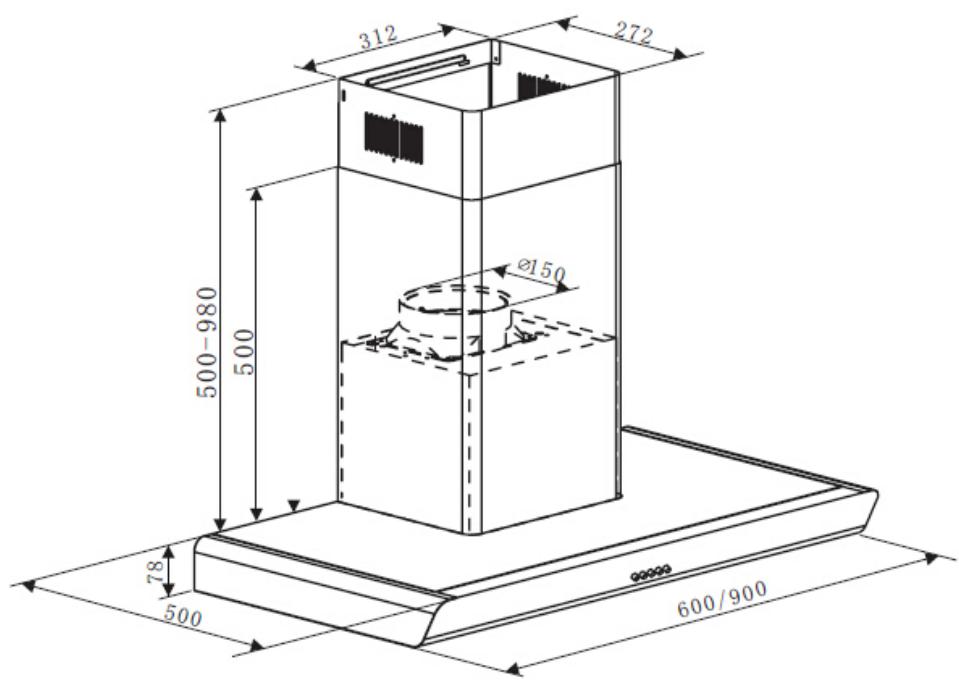

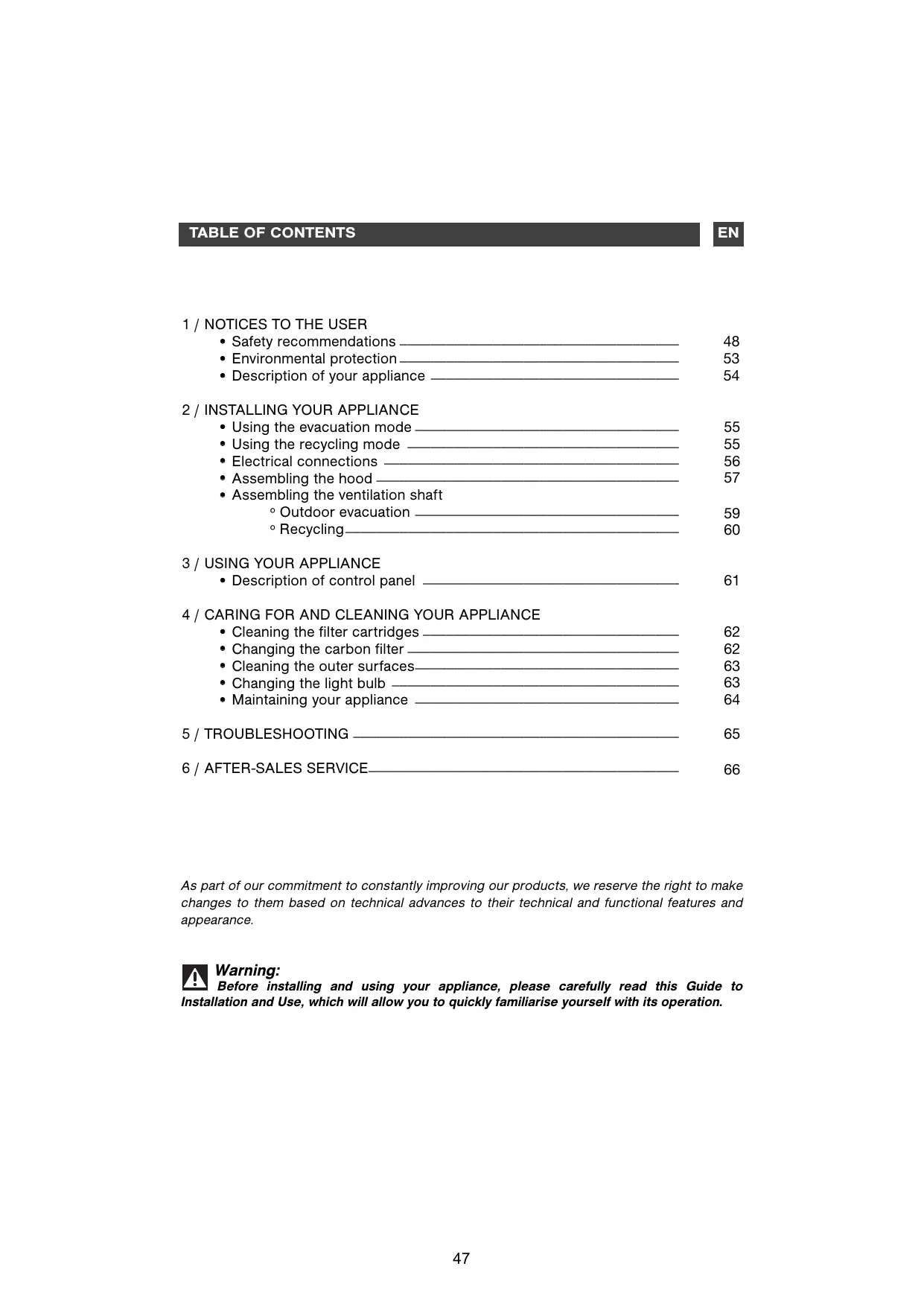

+ Safety recommendations 48 + Environmental protection 53 + Description of your appliance 54

2 / INSTALLING YOUR APPLIANCE

+ Using the evacuation mode 55 + Using the recycling mode 55

• Electrical connections 56 + Assembling the hood 57 + Assembling the ventilation shaft ° Outdoor evacuation 59 ° Recycling 60

3 / USING YOUR APPLIANCE

+ Description of control panel 61

4 } CARING FOR AND CLEANING YOUR APPLIANCE

+ Cleaning the filter cartridges 62 + Changing the carbon filter 62 + Cleaning the outer surfaces. 63 + Changing the light bulb 63 + Maintaining your appliance 64 5 / TROUBLESHOOTING 65 6 / AFTER-SALES SERVICE 66 As part of our commitment to constantly improving our products, we reserve the right to make changes to them based on technical advances to their technical and functional features and appearance. A Warning: Before installing and using your appliance, please carefully read this Guide to Installation and Use, which will allow you to quickly familiarise yourself with its operation.

Attention Keep this user guide with your appliance. If the appliance is ever sold or transferred to another person, ensure that the new owner receives the user guide. Please become familiar with these recommendations before installing and using your oven. They were written for your safety and the safety of others. Safety and important precautions À These instructions are also available on the Brandt web site. Please take heed of this advice when installing and using your appliance. These instructions are intended to protect your safety and the safety of others. Keep this manual with your appliance. If you sell or give the appliance to anyone else, make sure that you also give them this manual. e_In order to constantly improve our products, we reserve the right to to make changes to their technical, functional or aesthetic characteristics in line with technological progress. e Make a note of the references of your appliance on the "Consumer Service" page so that you can readily find them in future.

Important precautions e This appliance is designed for use by consumers in the home. Do not use it for commercial or industrial purposes or for any other purpose for which it is not intended. e Unpack the appliance as soon as you receive it. Check its general appearance. Make a note of any reservations on the delivery slip and keep a copy. e This appliance can be used by children aged under 8 and by persons with diminished physical, sensory or mental capacities, or persons without any experience or knowledge, provided that they are properly attended to or are given the instructions on how to use the appliance in complete safety and that any potential risks are anticipated. Children must not play with this appliance. The appliance must not be cleaned and maintained by unattended children. e Caution: The accessible parts of this appliance may become hot when used with cooking equipment.

Electrical risks e All the power supply circuits must be disconnected before touching the connection terminals. l1f the power cord is damaged, it must be replaced by the manufacturer, its after-sales service or a similarly qualified person in order to avoid any danger. e The appliance can be disconnected by using an accessible power outlet or by incorporating a switch in the fixed lines, in accordance with the installation rules. e Do not change or attempt to change the characteristics of this appliance. Doing so can be dangerous. e The appliance must only be repaired by an approved specialist. e Always disconnect the hood before cleaning or maintaining it. e Never use steam or high-pressure tools to clean your appliance (for the purposes of electrical safety). e The appliance can be disconnected by using an accessible power outlet or by incorporating a switch in the fixed lines, in accordance with the installation rules.

e Do not change or attempt to change the characteristics of this appliance. Doing so can be dangerous. e The appliance must only be repaired by an approved specialist. e Always disconnect the the hood before cleaning or maintaining it. e Never use steam or high-pressure tools to clean your appliance (for the purposes of electrical safety). Risk of asphyxiation e The regulations applying to the evacuation of air must be obeyed. The air must not be sent into a duct used to evacuate fumes from appliances that use gas or other fuels (this does not apply to appliances that only emit air into the room). e The room must be suitably ventilated when the range hood is used at the same time as appliances that use gas or other fuels (this does not apply to appliances that only emit air into the room).

Risk of fire e It is forbidden to flambé food or to turn on gas rings that are not covered by a cooking recipient beneath the hood, as the flames may sucked in and damage the appliance. e Keep a constant eye on fryers used beneath the hood. When heated to very high temperatures, oil and fat can catch fire. e Clean the appliance and replace the filters at the recommended frequency. Accumulated deposits of grease can cause a fire. e Itis forbidden to use the hood above a fuel fire (wood, coal, etc.). e lf the hood is installed above a gas-fired appliance, leave at least 70 cm between the top of the range and the underside of the hood. If the instructions of the range installed under the hood specify a distance greater than 70 cm, then this distance must be respected. A Warning In the case of a kitchen heated by a device connected to a chimney (a stove, for exam- ple) the "recycling" version of the hood should be installed. Do not use the hood without metal filters. Suitable ventilation should be provided in the room when the hood is used at the same time as appliances operated by gas or another combustible fuel.

+ ENVIRONMENTAL PROTECTION — This appliance's packaging material is recyclable. Help recycle it and protect the environment by dropping it off in the municipal receptacles provided for this purpose. — Your appliance also contains a great amount of recyclable material. lt is marked with this label to indicate the used appliances that should not be mixed with other waste. This way, the appli- ance recycling organised by your manufacturer will be done under the best possible conditions, in compliance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment. Contact your town hall or your retailer for the used appli- ance collection points closest to your home. — We thank you doing your part to protect the environment. Warning Installation should only be performed by installers and qualified technicians. Warning Remove the protective film from the cartridge filter before use.

2 / INSTALLING YOUR APPLIANCE [EN |

- The appliance must be unplugged during installation or when any repairs or maintenance work is being performed. - Ensure that the network voltage corresponds to the voltage noted on the identification plate located inside the hood. -Ithe electrical installation at your residence requires any changes in order to hook up your Appliance, call upon a professional electrician. = the hood is being used in evacuation mode, do not connect the appliance to a combustion gas exhaust duct (boiler, chimney, etc.) or to a CMV (controlled mechanical ventilation) system - Under no circumstances should the exhaust duct empty into the attic. - Install the hood at a safe distance of at least 70 cm from an electric, gas or combined cooking hob.

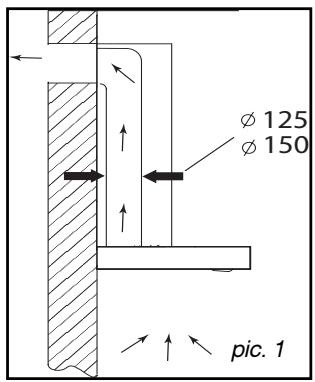

USING THE EVACUATION MODE

If vou possess an outlet to the exterior F— (pic. 1) Your hood can be connected to this outlet using a flue (minimum diameter © mm that is enamelled, in aluminium, flexible or made of inflammable material). f your flue is less than 125 mm in diameter, you must use the recy- cling mode. PHN pie. 1

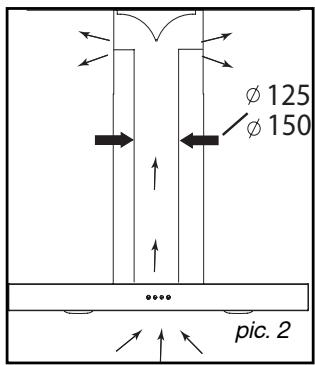

If you do not possess an outlet to the exterior UT LL

(pic. 2) 125) All of our appliances can be used in recycling 6150 mode. 7 In this case, you should add an active carbon t filter which will keep in odours. (See Chapter 4: Changing the carbon filter.) [a] Advice on how to save energy To make optimal use of your appliance, keep the length ofthe duct and the number of bends in the duct to a strict minimum.

EN | 2 / INSTALLING YOUR APPLIANCE

+ ELECTRICAL CONNECTIONS During installation and maintenance opera- tions, the appliance must be unplugged from the electrical grid: fuses must be cut off or removed The electrical connections are made before the appliance is installed in its housing Ensure that: -the electrical installation has sufficient volt- age, -the electrical wires are in good condition -the diameter of the wires complies with the installation requirements. A Warning This appliance is delivered with a HO5VVF power cord that has three-

0.75 mm° conductors (neutral, phase and

ground). It must be connected to the main power supply (which should be a 220-240 V single phase current) via a CEI 60083 stan- dardised socket that should remain accessi- ble after installation, in keeping with installa- tion guidelines. We cannot be held responsible for any acci- dent resulting from an inexistent, defective or incorrect ground lead. The fuse for your installation must be 10 or 16A. If the power cable is damaged, call the after-sales serv- ice department in order to avoid danger. A | Warning If the electrical installation at your res- idence requires any changes in order to hook up your appliance, call upon a profes- sional electrician. A Warning Hf the hood displays any malfunctions, unplug the appliance or remove the fuse cor- responding to the electrical socket where your appliance is plugged in.

2 / INSTALLING YOUR APPLIANCE [EN |

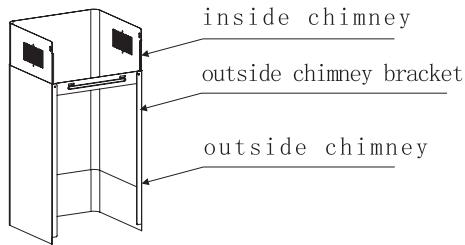

+ ASSEMBLING THE HOOD inside chimney bracket FN Warning The hood must be installed in compli- ance with all applicable regulations concern- ing the ventilation of premises. In France these regulations are described in DTU 61.1 from the CSTB. In particular, the evacuated air should never be conveyed to a duct used to evacuate smoke from appliances that use gas or other combustible fuels. Unused ducts may only be used after approval from a competent specialist. The minimum distance between the cooking surface and the lowest part of the hood must be 70 cm at least. If the instructions for the hob installed under the hood specify a distance of more than 70 cm, this requirement must be respected. r outlet Fixing to the wall: -Draw a vertical line on the wall centered on the cook top. Pic 4 “in a suitable position, drill 3 holes and Insert the 3 wall plugs for the hook. Drill 2 holes and insert the 2 wall plugs for the inside chimney bracket (Pic 3) -Screw the hook to the wall with 3 screws. Screw the inside chimney bracket to the wall with 2 screws. Ensure they are perfectiy leveled. (Pic 3) -Use 4 screws to fix the air outlet onto the motor unit and insert the extension tube. (Pic

- Hang the motor unit in the hook (Pic 5) and fix the motor unit with 2 safety screws (Pic 6) Pic 6

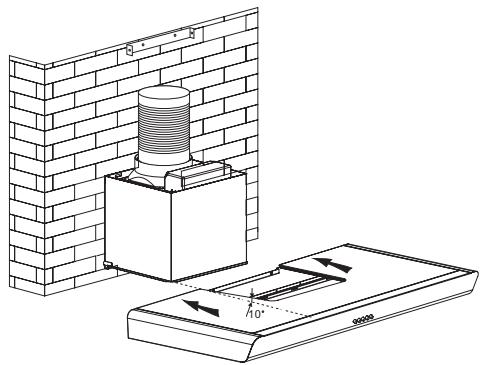

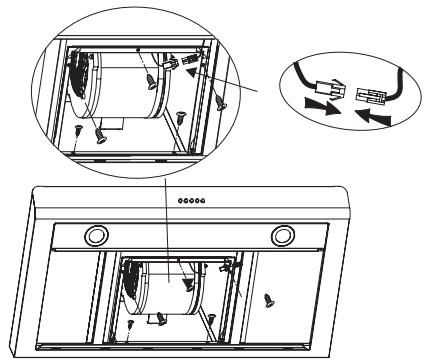

-Lift the hood body and slide it into the motor unit (Pic 7) then fasten it with 5 screws.(Pic 8) -Remove the Aluminum filters and connect the cable (Pic 8) -Fix the outside chimney bracket into the outside chimney, ensuring the inside chimney can move up and down freely. (Pic 9) Pic 9 - Then put the chimneys onto the hood and fix the inside chimney with the bracket by 2 screws.(Pic 10)

2 / INSTALLING YOUR APPLIANCE [EN |

+ ASSEMBLING THE VENTILATION

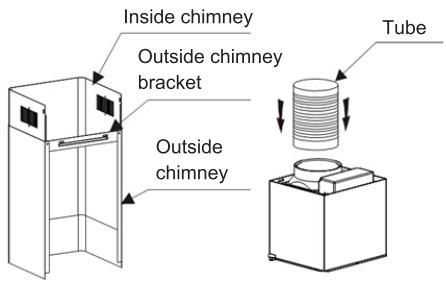

SHAFT + Outdoor evacuation - Calculate the final height for fixing the duct sup- port U-bracket (Pic 3). - Mark the two holes accordingly - Drill 8 mm diameter holes and secure the duct support bracket, ensuring that it is fixed on the same axis as the hood (Pic 3). - Fix the flat bracket behind the lower duct (Pic 11). —Fix the two ducts to the hood (Pic 12). - Connect the sleeve to the air outlet to the out- side. (Pic 13). - Make the electrical connection to the hood using the mains supply cable - Lift the upper duct up to the celling and fix it to the bracket using the screws. (Pic 14). Inside chimney Outside chimney bracket Outside chimney Pic. 11 Pic. 12 Pic. 13 Pic. 14

[EN | 2 / INSTALLING YOUR APPLIAN

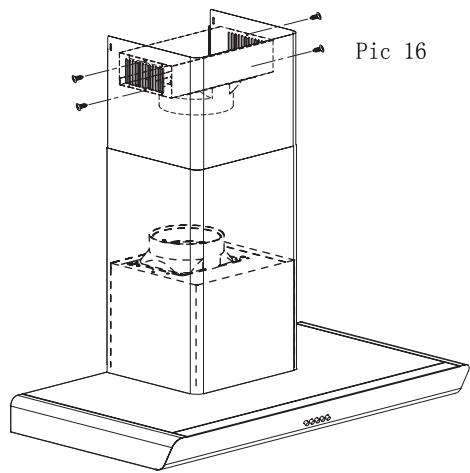

• Recycling -Calculate the final height for fixing the duct support U-bracket (Pic 3). -Mark the two holes. . Pic 15 -Drill 8 mm diameter holes and secure the duct support bracket, ensuring that it is fixed in the same axis as the hood (Pic 3). -Fix the flat bracket behind the lower duct (Pic 11). -Fit the sleeve adapter on the deflector (Pic 15). -Connect the extendable sleeve to the deflec- tor. -Fit the two parts of the duct on to the hood (Pic 12). -Fit the deflector (Pic 15) into the upper duct by the ventilation inlets (Pic 16). -Make the electrical connection to the hood using the mains supply cable. “Lift the upper duct up to the ceiling and fix it to the bracket using the two screws. (Pic 14). Tip For optimal use of your appliance, we recommend that you connect the hood to a 150 mm- diameter flue (not delivered with the appliance). Minimise the number of angles and bends and the lengths of the flue. In the event that the hood will be operated using outdoor evacuation, you should ensure a sufficient inflow of fresh air to avoid a pressure deficiency in the room. Warning Do not use tools to remove the safety film of hood

3 / USING YOUR APPLIANC [EN |

+ DESCRIPTION OF CONTROL PANEL

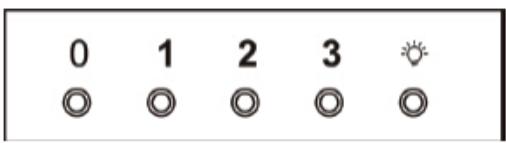

Push button 0 14 2 3 *% 1.Push stop button, and the motor will stop 2.Push the Low button, and the motor runs at low speed. 3.Push the Mid button, and the motor runs at mid speed. 4.Push the High button, and the motor runs at high speed. 5.Push the light button and the two lights will come on. Push it again and the light will turn off. a} Advice on how to save energy Adjust the speed to the cooking method and the number of pans in use. It is preferable to use the rings atthe back ofthe range.

[EN | 4 / CARING FOR AND CLEANING YOUR APPLIANC FN Warning Always unplug the hood before cleaning it or performing other maintenance acts. Regular maintenance of your appliance is a guarantee of proper functioning, good perform- ance and durability. AI Warning Failure to respect the guidelines for cleaning the appliance and filters may cause fires. Please carefully adhere to the maintenance recommendations.

CLEANING THE FILTER CAR-

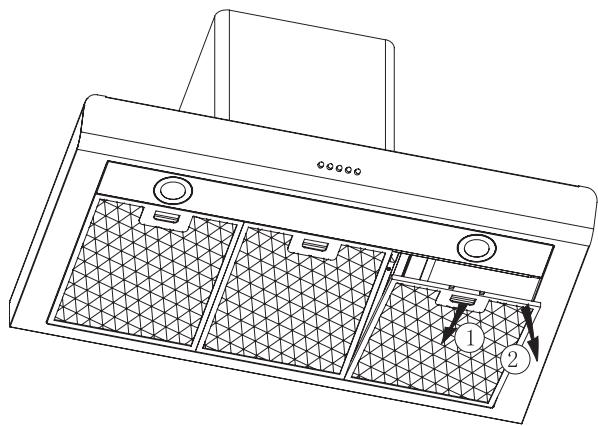

TRIDGES They must be cleaned after approximately 30 hours of use or at least once a month. These filters can be cleaned in a vertical posi- tion in your dishwasher. Use a brush, hot water and mild detergent. Rinse and dry them thoroughly before return- ing them to the hood. + Dismantling the filter cartridge — Turn the built-in filter cartridge handle. — Tilt the filter cartridge downward

CHANGING THE CARBON FIL-

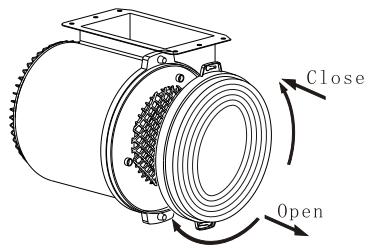

TER (optional) Replace it after approximately 120 hours of use. Close

- Do the operation in the reverse order to put Open a new filter back ë DK - Put the filter cartridges back. — Remove the filter cartridges - Turn the carbon filter to remove it

4 / CARING FOR AND CLEANING YOUR APPLIANCE [EN |

+ CLEANING THE OUTER SURFACES

To clean the outside of your hood, use soapy water, but never use abrasive creams, corrosive detergents, scrubbing sponges or brushes. Wipe down with a soft, damp cloth.

+ CHANGING THE LIGHT BULB

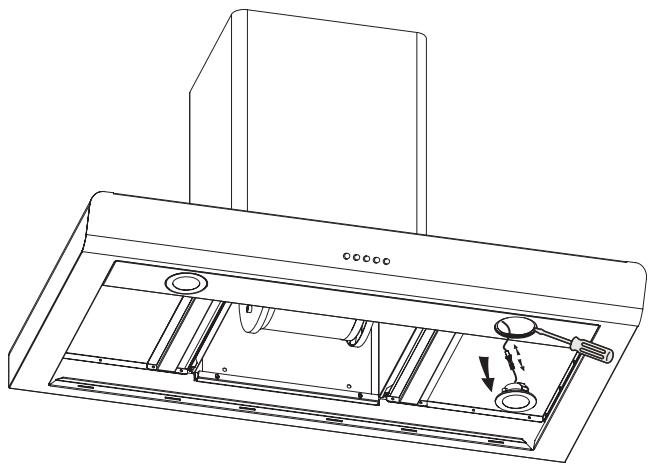

FN Warning The power supply must be turned off before changing the light bulb,either by removing the plug or by using the circuit breaker switch. Model with LED — Remove the lighting port — Change the LED — Replace the bulb by repeating these steps in reverse order.

[EN | 4 / CARING FOR AND CLEANING YOUR APPLIANC Warning by unplugging it or by using the circuit breaker switch.

+ MAINTAINING YOUR APPLIANCE

Before carrying out any work, the power supply to the hood must be turned off, either MAINTENANCE

PRODUCTS/ACCESSORIES TO USE Top surface and acces- sories Never use metal scouring pads, abrasive products or excessively stiff brushes. To clean the body and the light- ing port, you should use only commercial household cleaning products diluted in water and then rinse using clean water, dry- ing with a soft cloth. Filter cartridge This filter traps fatty vapours and dust. This component plays an important role in ensuring the effectiveness of your hood. In the event of tough stains, use a non-abrasive cream, then rinse with clean water. Use a commercial household cleaning product then rinse abundantiy and dry. These filters can be cleaned in a vertical posi- tion in your dishwasher. (Do not allow them to touch dirty dishes or silverware. } Activated carbon filter This filter traps odours and must be changed at least once a year depending on your level of use. You should order these filters from your dealer (quoting the ref- erence shown on the identifica- tion plate located inside the hood) and note the date the filter was changed

5 / TROUBLESHOOTING [EN | SYMPTOMS SOLUTIONS Ensure that: + The power is not cut off. The hood is not + A speed has been selected. working... Ensure that: + The selected motor speed is sufficient for the The hood is not operating] quantity of smoke and vapours to be cleared. effectively.. * The kitchen is sufficiently ventilated to allow for fresh air intake. + The carbon filter is not worn (hood operating in recycling mode). Ensure that: The hood stopped work. | * The power is not out off. mg + The single-pole cut-off device was not acti- vated.

Any maintenance on your equipment should be undertaken by : - either your dealer, - or another qualified mechanic who is an authorized agent for the brand appliances. When making an appointment, state the full reference of your equipment (model, type and serial number). This information appears on the manufacturer's nameplate attached to your equipment.

7 | Ecodesign information / Technical product fic [EN] This device complies with the delegated regulations (EU) 65/2014 and 66/2014 of the European Commission on the eco design requirements and energy labeling of household hoods. symbol Value Unit Brand Brandt Model number BHB6602X Annual energy consumption JAEC 568 Jkwh/annum Energy efficiency index EEi 622 | Fluid dynamic efficiency index FDE as | Lighting efficiency index LE sos | Grease filtering efficiency IGFE 827 | Time increase factor Ti F Maximum volumetric airflow of the cooker hood CE 620.7 Im/h Volumetric airflow at best efficiency point Qser 829.0 ]m/h Static pressure at the best efficiency point P ee B6a | Power consumption at the best efficiency point War [1342 [w Nominal power consumption of lighting system We 4.0 w Average illumination of the lighting system Eruae [203 [LuyW Power consumption in off mode P. 0.00 [w Power consumption in standby mode P. - w Volumetric airflow at the highest speed setting in normal use - 593.4 Im/h [Volumetric airflow at the lowest speed setting in normal use - 3522 [m°/h [Volumetric airflow in intensive or boost mode - - m°/h Sound power emissions at the highest speed setting in normal use |- 68 dB(Lwa) Sound power emissions at the lowest speed setting in normal use |- 58 dB(Lwa) Sound power emissions in intensive / boost mode F F- JdB(Lwa)

[EN| 7 | Écodesign information / Technical product fiche symbol Value Unit Brand Brandt Model number BHB6902X Annual energy consumption JAEC 57.5 |kWh/annum Energy efficiency index EEi 623 | Fluid dynamic effciency index FDE 23.7 |- Lighting efficiency index LE 403 |- Grease filtering efficiency GFE 815 |- [Time increase factor 11 - Maximum volumetric airflow of the cooker hood Qrnax 6337 |m°/h Volumetric airflow at best efficiency point Que [336.6 m°/h Static pressure at the best efficiency point P sep 344 P Power consumption at the best efficiency point Wa [1360 |w Nominal power consumption of lighting system We 4.0 W Average illumination of the lighting system E miaae [161 [Lux/W Power consumption in off mode pe 0.00 |w Power consumption in standby mode P. - W Volumetric airflow at the highest speed setting in normal use D 606.0 [m°/h Volumetric airflow at the lowest speed setting in normal use D 358.8 [m°/h Volumetric airflow in intensive or boost mode je - m/h Sound power emissions at the highest speed setting in normal use|- 70 dB(Lwa) Sound power emissions at the lowest speed setting in normal use |- 59 dB(Lwa) Sound power emissions in intensive / boost mode - dB(Lwa)
