| Product type | Electric hedge trimmer |
| Brand | STIHL |
| Model | HSE 71-700 |
| Power consumption | 600 W |
| Rated voltage | 230-240 V |
| Frequency | 50 Hz |
| Rated current | 2.8 A |
| Cutting length | 700 mm |
| Tooth spacing | 36 mm |
| Blade speed | 2800 rpm |
| Sharpening angle | 28° relative to blade plane |
| Weight (without cable) | 4.3 kg |
| Protection class | II (double insulation) |
| Sound pressure level (LpA) | 85 dB(A) |
| Sound power level (LwA) | 96 dB(A) |
| Vibration left handle | 3.2 m/s² |
| Vibration right handle | 2.0 m/s² |
| Safety devices | Two-hand control, quick blade stop, blade guard, anti-cut protector (depending on version) |
| Handle | Adjustable rotating handle |
| Included accessories | Blade guard |
| Maintenance | Regular cleaning, lubrication with STIHL resin solvent, sharpening by professional |
| Repairability | Original STIHL spare parts recommended, repairs by authorized dealer |
Frequently Asked Questions - Hse71-700, 600 W L.70 cm STIHL
User questions about Hse71-700, 600 W L.70 cm STIHL
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Electric hedge trimmer in PDF format for free! Find your manual Hse71-700, 600 W L.70 cm - STIHL and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Hse71-700, 600 W L.70 cm by STIHL.
USER MANUAL Hse71-700, 600 W L.70 cm STIHL
STIHL HSE 61, 71, 81
Gebrauchsanleitung
Instruction Manual
Notice d'emploi
HSE 61, HSE 71, HSE 81

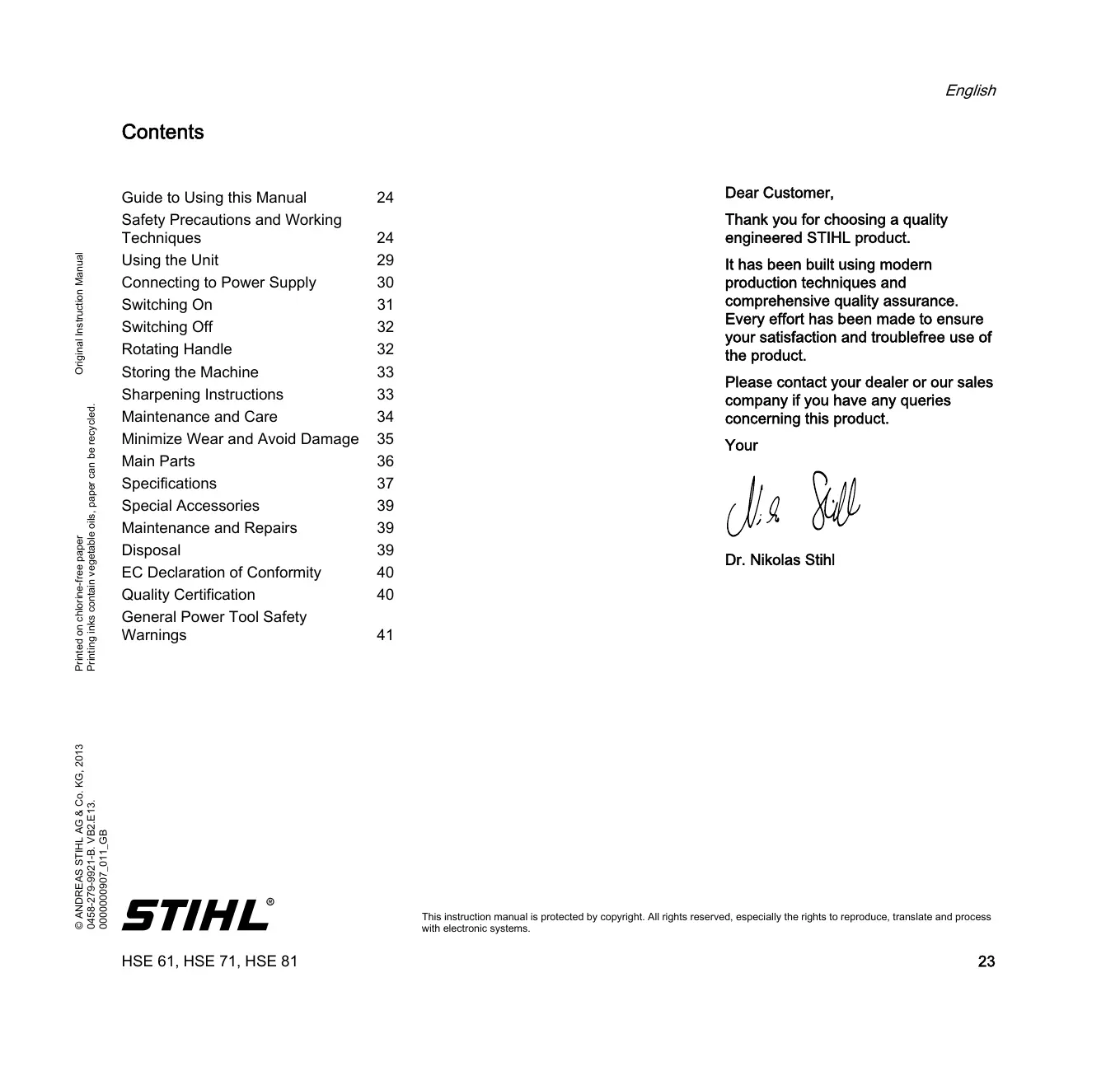

Guide to Using this Manual 24
Safety Precautions and Working Techniques 24
Using the Unit 29

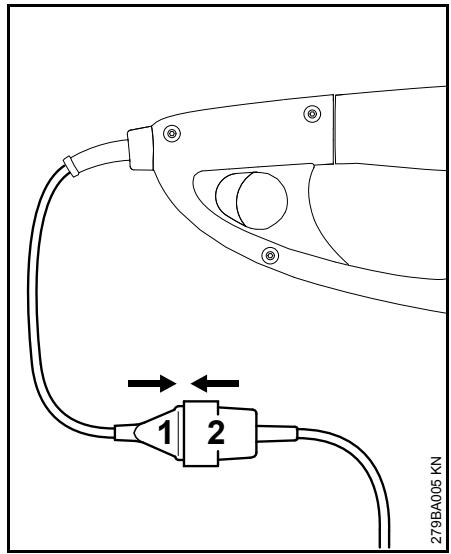

Connecting to Power Supply 30

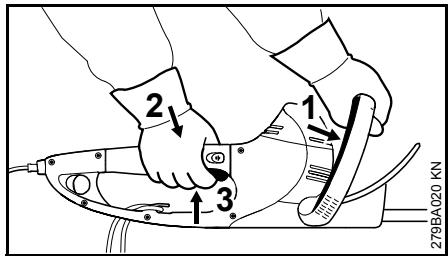

Switching On 31

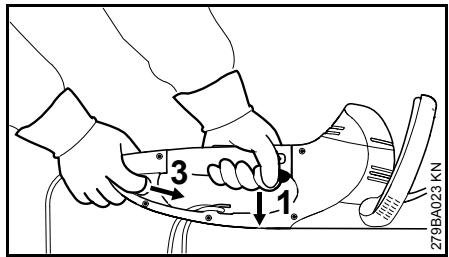

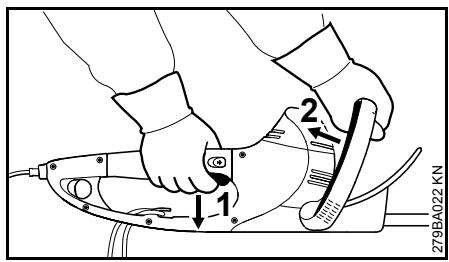

Switching Off 32
Rotating Handle 32
Storing the Machine 33

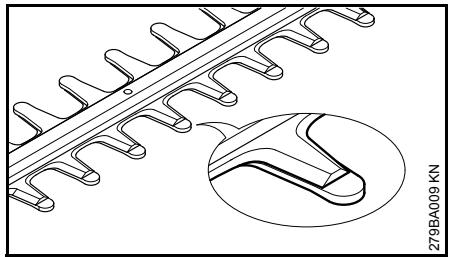

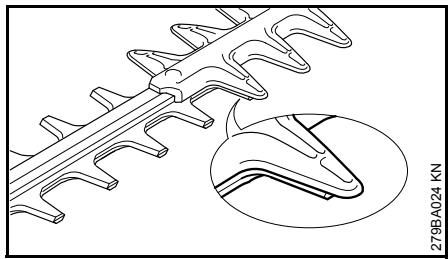

Sharpening Instructions 33
Maintenance and Care 34
Minimize Wear and Avoid Damage 35

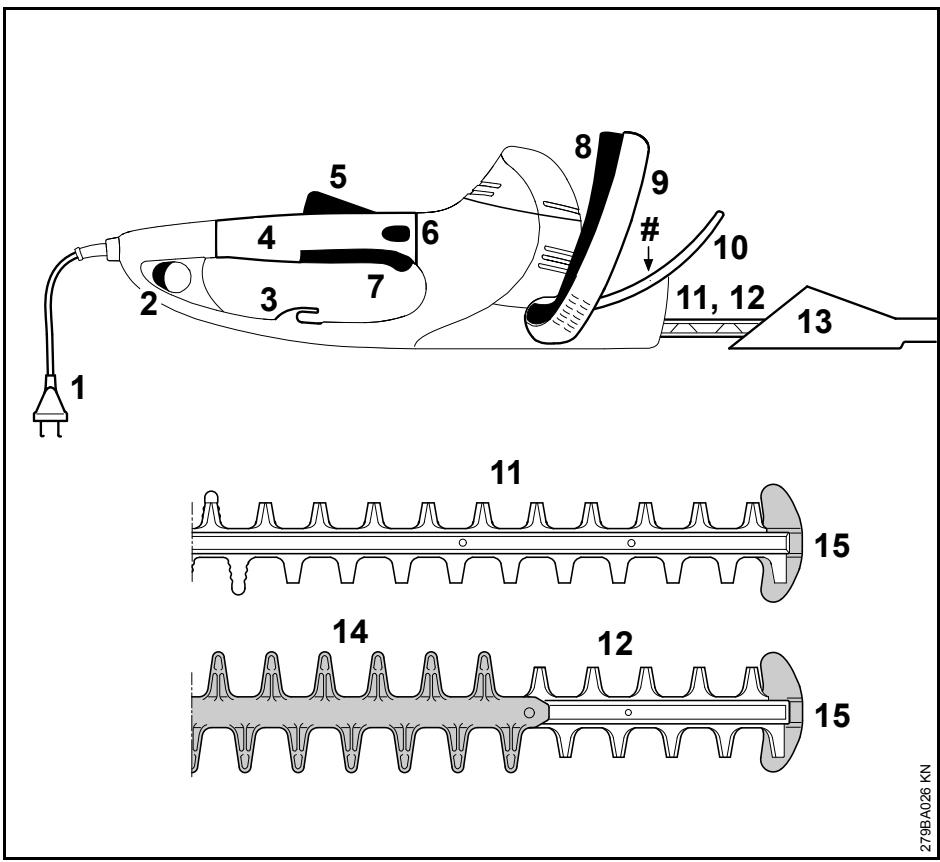

Main Parts 36
Specifications 37
Special Accessories 39
Maintenance and Repairs 39
Disposal 39
EC Declaration of Conformity 40
Quality Certification 40
General Power Tool Safety
Warnings 41
STIHL
HSE 61, HSE 71, HSE 81
Dear Customer,
Thank you for choosing a quality engineered STIHL product.
It has been built using modern production techniques and comprehensive quality assurance. Every effort has been made to ensure your satisfaction and troublefree use of the product.
Please contact your dealer or our sales company if you have any queries concerning this product.
Your
Dr. Nikolas Stihl
Guide to Using this Manual
Pictograms
All the pictograms attached to the machine are shown and explained in this manual.
Symbols in text
WARNING
Warning where there is a risk of an accident or personal injury or serious damage to property.
NOTICE
Caution where there is a risk of damaging the machine or its individual components.
Engineering improvements
STIHL's philosophy is to continually improve all of its products. For this reason we may modify the design, engineering and appearance of our products periodically.
Therefore, some changes, modifications and improvements may not be covered in this manual.
Safety Precautions and Working Techniques
Some special safety precautions must be observed when working with this power tool because it has very sharp cutting blades and is powered by electricity.
It is important that you read the instruction manual before first use and keep it in a safe place for future reference. Non-observance of the instruction manual may result in serious or even fatal injury.
Applicable local safety standards and ordinances.
If you have not used this type of power tool before: Have your dealer or other experienced user show you how to operate your power tool or attend a special course in its operation.
Minors should never be allowed to use a power tool.
Keep bystanders, especially children, and animals away from the work area.
When the power tool is not in use, shut it off so that it does not endanger others. Secure it against unauthorized use.
The user is responsible for avoiding injury to third parties or damage to their property.
Do not lend or rent your power tool without the instruction manual. Be sure that anyone using it understands the information contained in this manual.
The use of noise emitting power tools may be restricted to certain times by national or local regulations.
To operate the power tool you must be rested, in good physical condition and mental health.
If you have any condition that might be aggravated by strenuous work, check with your doctor before operating a power tool.
Do not operate the power tool if you are under the influence of any substance (drugs, alcohol) which might impair vision, dexterity or judgment.
Use your hedge trimmer only for cutting hedges, shrubs, scrub and similar materials.
It must not be used for any other purpose because of the increased risk of accidents and damage to the machine.
To reduce the risk of accidents, always disconnect the plug from the power supply before carrying out any work on the power tool.
Never jerk the power cord to disconnect it from the wall outlet. To unplug, grasp the plug, not the cord.
Unsuitable extension cords can be extremely dangerous.
Make sure that the conductor cross section (wire gauge) of extension cords meets the minimum requirements - see chapter on "Connecting to Power Supply".
When you use an extension cord, make sure the plug and coupling are waterproof or positioned in such a way that they cannot come into contact with water.
Only use parts and accessories that are explicitly approved for this power tool by STIHL or are technically identical. If you have any questions in this respect, consult a servicing dealer. Use only high quality parts and accessories in order to avoid the risk of accidents and damage to the machine.
STIHL recommends the use of original STIHL replacement parts. They are specifically designed to match the product and meet your performance requirements.
Never attempt to modify your power tool in any way since this may increase the risk of personal injury. STIHL excludes all liability for personal injury and damage to property caused while using unauthorized attachments.
Do not use a pressure washer to clean the unit. The solid jet of water may damage parts of the unit.
Do not spray the power tool with water.
Clothing and Equipment
Wear proper protective clothing and equipment.
Clothing must be sturdy but allow complete freedom of movement. Wear snug-fitting clothing, an overall and jacket combination, do not wear a work coat.
Avoid clothing that could get caught on branches or brush or moving parts of the machine. Do not wear a scarf, necktie or jewelry. Tie up and confine long hair (e.g. with a hair net, cap, hard hat, etc.).
Wear sturdy shoes with non-slip soles.
Safety Glasses, Hearing Protection
Wear safety glasses and hearing protection, e.g. earplugs or ear muffs.
Wear safety glasses. Hearing protection is recommended, e.g. earplugs or ear muffs.
Wear heavy-duty gloves.
STIHL offers a comprehensive range of personal protective clothing and equipment.

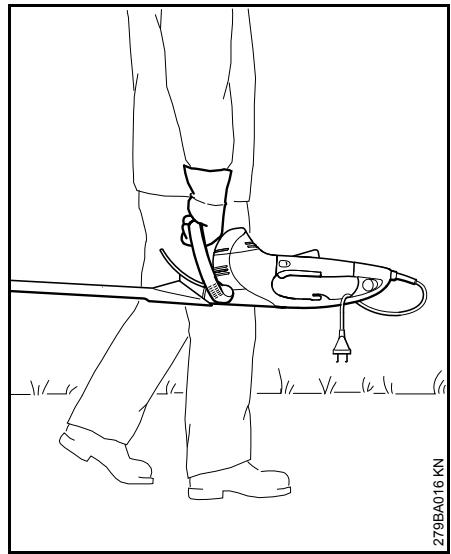

Transporting the Power Tool
Always switch off the power tool, unplug it from the power supply and fit the blade scabbard - even when you carry the unit for short distances.
Carry the power tool by the handle - cutting blades behind you.
In vehicles: Properly secure the power tool to prevent turnover and damage.
Before Starting Work
Check that your power tool is properly assembled and in good condition – refer to appropriate chapters in the instruction manual.
Voltage and frequency of the machine (see rating plate) and the voltage and frequency of your power supply must be the same.
- Check the connecting cord, plug and extension cord for damage. Never use damaged cords, couplings and plugs or connecting cords that do not comply with regulations.
Receptacles of extension cords must be splash-proof.
Position and mark the power supply cord so that it cannot be damaged or stepped on, tripped over or endanger others.
Trigger switch lockout, trigger, switch lever and auxiliary switch must move freely and return to the idle position when they are released.
Cutting blades securely mounted and in good condition (clean, move freely, not warped), properly sharpened and thoroughly sprayed with STIHL resin solvent (lubricant).
- Check cutter guard (if fitted) for damage.
- Never attempt to modify the controls or safety devices in any way.
- Keep the handles dry and clean – free from oil and dirt – for safe control of the power tool.
To reduce the risk of personal injury, do not operate your power tool if it is damaged or not properly assembled.
To reduce the risk of electric shock:
Always connect the power tool to a properly installed wall outlet.
Make sure the extension cord used complies with the regulations for the intended application.
- Check that the insulation of the power cord, extension cord, plug and coupling is in good condition.
Holding and Controlling the Power Tool
Always hold the power tool firmly with both hands on the handles. Wrap fingers and thumbs firmly around the handles.

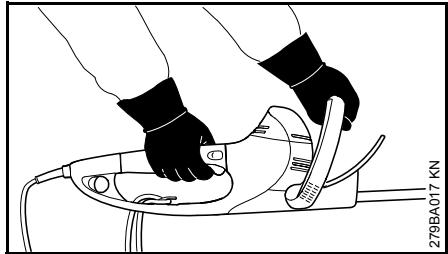

Right-handers
Right hand on the control handle and left hand on the loop handle.

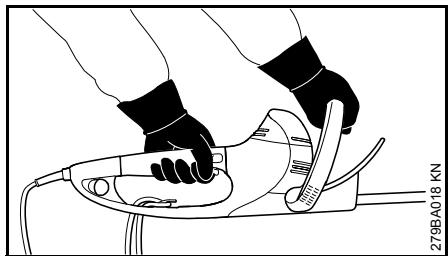

Left-handers
Left hand on the control handle and right hand on the loop handle.
Make sure you have firm and secure footing and hold the power tool so that the cutting blades are always away from your body.
During Operation
In case of imminent danger or in an emergency, switch off the motor immediately - release the trigger or switch lever or trigger or auxiliary switch.
Check that there are no bystanders in the general work area.
Watch the cutting blades at all times - do not cut areas of the hedge that you cannot see.
Be extremely careful when cutting tall hedges, check the other side of the hedge before starting work.
The drive motor is not waterproof. To reduce the risk of a short circuit or electrocution, never work with the power tool in the rain or in wet or very damp locations.
Do not leave the machine outdoors in the rain.
Your power tool is equipped with a system designed to quickly stop the cutting blades - they come to an immediate standstill as soon as you release the trigger switch or the switch lever, or the auxiliary switch.
Check this function at regular short intervals. To reduce the risk of injury, do not operate your power tool if the cutting blades continue to run after switch-off. Contact your servicing dealer.
Take special care in slippery conditions, on slopes or uneven ground.
Clear away fallen branches, scrub and cuttings.
Watch out for obstacles: Roots, tree stumps or holes which could cause you to trip or stumble.
When working at heights:
Always use a lift bucket
- Never work on a ladder or in a tree
- Never work on an insecure support
Be particularly alert and cautious when wearing hearing protection because your ability to hear warnings (shouts, alarms, etc.) is restricted.
To reduce the risk of accidents, take a break in good time to avoid tiredness or exhaustion.
Work calmly and carefully – in daylight conditions and only when visibility is good. Stay alert so as not to endanger others.
The gearbox becomes hot during operation. To reduce the risk of burn injury, do not touch the gearbox housing.
If your power tool is subjected to unusually high loads for which it was not designed (e.g. heavy impact or a fall), always check that it is in good condition before continuing work – see also "Before Starting Work". Make sure the safety devices are working properly. Do not continue operating your power tool if it is damaged. In case of doubt, have the unit checked by your servicing dealer.
Inspect the hedge and work area to avoid damaging the cutting blades:
- Remove stones, rocks, pieces of metal and other solid objects.
- When working close to the ground, make sure that no sand, grit or stones get between the blades.
Take particular care when cutting hedges next to or against wire fences.
To avoid the risk of electrocution, do not touch electric power lines - never cut through electric power lines.
Do not touch the cutting blades while the motor is running. If the cutting blades become jammed by thick branches or other obstructions, switch off immediately and disconnect the plug from the power supply before attempting to free the blades.
If the hedge is very dusty or dirty, spray the blades with STIHL resin solvent from time to time during cutting. This helps reduce blade friction as well as the aggressive effects of sap and the buildup of dirt particles.
The dust that occurs during operation may be harmful to health. If dust levels are very high, wear a suitable respirator.
If the power supply cord is damaged, immediately disconnect the plug from the wall outlet to avoid the risk of electric shock.
Never jerk the power cord to disconnect it from the wall outlet. To unplug, grasp the plug, not the cord.
Avoid damage to the power supply cord.
Do not drive over it, pinch or tug it.
Position the connecting and extension cords correctly:
- Do not chafe on edges, pointed or sharp objects
- Do not squeeze through gaps in doors or windows
If cords are twisted – unplug the power tool and straighten them out - Never touch the cutting attachment
Always unwind the extension cord completely from the cable drum to reduce the risk of fire from overheating.
Before leaving the power tool unattended: Switch off the power tool and unplug it from the power supply.
Check the cutting blades at regular short intervals during operation or immediately if there is a noticeable change in cutting behavior:
- Switch off the power tool, wait for the cutting blades to come to a standstill, disconnect plug from power supply.
- Check condition and tightness, look for cracks.
- Check sharpness.
Always switch off the power tool and unplug it from the power supply before replacing the cutting blades. This avoids the risk of injury from the motor starting unintentionally.
To reduce the risk of fire, always clean plant residue, chips, leaves and excess lubricant off the motor.
After finishing work
Always clean dust and dirt off the machine - do not use any grease solvents for this purpose.
Spray the blades with STIHL resin solvent. Run the motor briefly so that the solvent is evenly distributed.
Vibrations
Prolonged use of the power tool may result in vibration-induced circulation problems in the hands (whitefinger disease).
No general recommendation can be given for the length of usage because it depends on several factors.
The period of usage is prolonged by:
- Hand protection (wearing warm gloves)
Work breaks
The period of usage is shortened by:
- Any personal tendency to suffer from poor circulation (symptoms: frequently cold fingers, tingling sensations).
Low outside temperatures.
The force with which the handles are held (a tight grip restricts circulation).
Continual and regular users should monitor closely the condition of their hands and fingers. If any of the above
symptoms appear (e.g. tingling sensation in fingers), seek medical advice.
Maintenance and Repairs
Always switch off the machine and disconnect the plug from the power supply before carrying out any maintenance work to reduce the risk of injury from the motor starting unintentionally.
Service the machine regularly. Do not attempt any maintenance or repair work not described in the instruction manual. Have all other work performed by a servicing dealer.
STIHL recommends that you have servicing and repair work carried out exclusively by an authorized STIHL servicing dealer. STIHL dealers are regularly given the opportunity to attend training courses and are supplied with the necessary technical information.
Only use high-quality replacement parts in order to avoid the risk of accidents and damage to the machine. If you have any questions in this respect, consult a servicing dealer.
STIHL recommends the use of genuine STIHL replacement parts. They are specifically designed to match your machine model and meet your performance requirements.
Never attempt to modify your power tool in any way since this will increase the risk of personal injury.
Regularly check that the insulation of the power cord and plug is in good condition and shows no sign of ageing (brittleness).
Electrical components, e.g. power cord, may only be repaired or replaced by a qualified electrician.
Clean plastic components with a cloth. Do not use aggressive detergents. They may damage the plastic.
Do not spray the machine with water.
Check tightness of mounting screws on safety devices and the cutting attachment and retighten if necessary.
Clean cooling air inlets in motor housing as necessary.
Store the machine is a safe and dry place.
Using the Unit
Cutting Season
Observe country-specific or municipal rules and regulations for cutting hedges.
Do not use your power tool during other people's rest periods.
Preparations
Use lopping shears or a chain saw to cut out thick branches first.

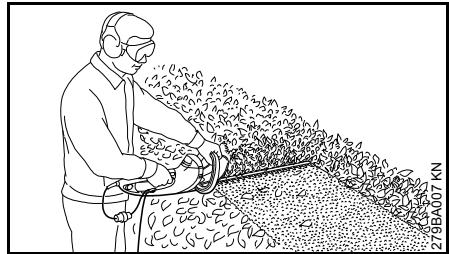

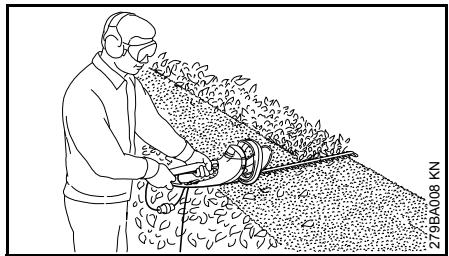

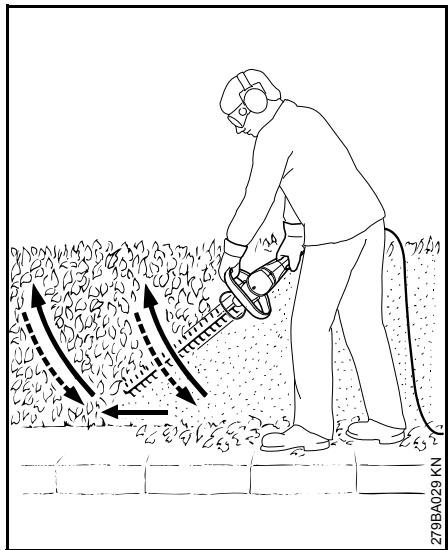

Cutting Sequence
Cut the sides of the hedge first, then the top.
If a radical cut is necessary, cut a little at a time in several stages.

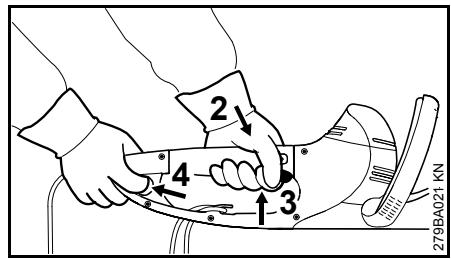

Rotating handle
Your hedge trimmer is equipped with a rotating handle to enhance user comfort - see chapter on "Rotating Handle".
Disposal
Do not throw cuttings into the garbage can - they can be composted.
Working Technique
Vertical cut
Swing the cutting blade from the bottom upwards in an arc – lower the nose of the blade, move along the hedge and then swing the blade up again in an arc.
Any working position above head height is tiring. To minimize the risk of accidents, work in such positions for short periods only.

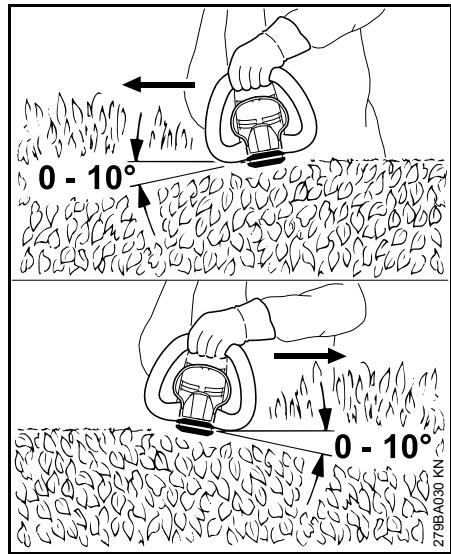

Horizontal cut
Hold the cutting blade at an angle of 0^ to 10^ as you swing the hedge trimmer horizontally, using both sides of the blade.
Swing the cutting blade in an arc towards the outside of the hedge so that the cuttings are swept to the ground.
If the hedge is wide, cut it in several passes – one hand on the front switch lever – one hand on the control handle.
To extend your reach, hold the control handle with one hand and operate the auxiliary switch at the rear of the control handle with the other hand.
Connecting to Power Supply
The voltage and frequency of the machine (see rating plate) must match the voltage and frequency of the power connection.
The minimum fuse protection of the power connection must comply with the specifications - see "Specifications".
The machine must be connected to the power supply via an earth-leakage circuit breaker to disconnect the power supply if the differential current to earth exceeds 30mA .
The power connection must correspond to IEC 60364 and relevant national regulations.
Depending on the supply voltage and cord length, the minimum conductor cross section of the extension cord must be as follows:
| Cord length | Minimum cross section |
| 220 V – 240 V: | |
| up to 20 m | 1.5 mm² |
| 20 m to 50 m | 2.5 mm² |
| 100 V – 127 V: | |
| up to 10 m | AWG 14 / 2.0 mm² |
| 10 m to 30 m | AWG 12 / 3.5 mm² |
- Insert the plug (1) into the extension cord coupling (2).

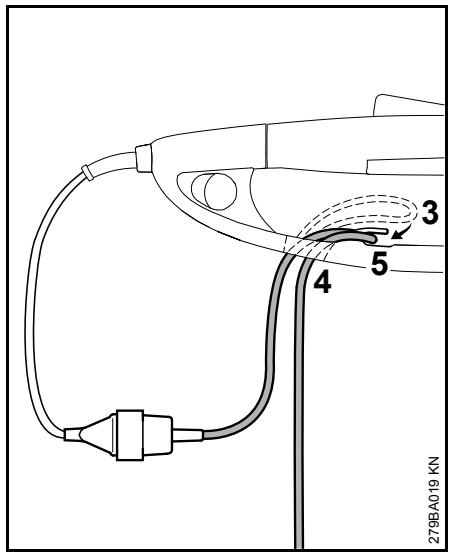

Strain Relief (Cord Retainer)
Make a loop (3) in the extension cord.
Pass the loop (3) through the opening (4).
- Slip the loop (3) over the hook (5) and pull it tight.
- Connect the extension cord plug to a properly installed wall outlet.
Switching On
Make sure you have a secure and balanced footing.
- Stand upright - hold the power tool in a relaxed position.
- Make sure the cutting attachment is not touching the ground or any other objects.
- Hold the unit with both hands – one hand on the control handle – one hand on the loop handle.
- Push the switch lever (1) against the loop handle and hold it there.
- Push down the trigger switch lockout (2), depress the trigger switch (3) and hold them in that position.
The machine is designed for two-hand operation, i.e. it will run only when the operator's hands are on the switch lever (1) and trigger switch (3).
To extend reach
- Hold the power tool with both hands – one hand on the control handle – one hand on the auxiliary switch at the rear end of the control handle.
- Operate the auxiliary switch (4) and hold it in that position.
- Push down the trigger switch lockout (2), depress the trigger switch (3) and hold them in that position.
The machine is designed for two-hand operation, i.e. it will run only when the operator's hands are on the auxiliary switch (4) and trigger switch (3).
Switching Off
- Release the trigger switch (1) and the switch lever (2).
Extended reach position:
- Release the trigger switch (1) and auxiliary switch (3).
HSE61,71
The blades are covered by the blade guard in the idle position.
HSE 81
The blades are partly covered by the blade guard in the idle position.
Other hints
- During longer work breaks – disconnect the plug from the power supply.
- When the machine is not in use, shut it off so that it does not endanger others.
- Secure it against unauthorized use.
Rotating Handle
- Move the two buttons (1) in the direction of the arrows and hold them there.
- Rotate the handle (2) to the required position.
- Release the two buttons and engage the handle in position.
The handle (2) cannot be rotated while the trigger switch (3) is depressed.
Storing the Machine
For periods of 3 months or longer
Clean the cutting blades, check condition and spray with STIHL resin solvent.
Fit the blade scabbard.
- Thoroughly clean the machine, especially the cooling air inlets.
- Store the machine in a dry, locked location – the blade scabbard can be mounted to the wall for this purpose – out of the reach of children and other unauthorized persons.
Sharpening Instructions
When cutting performance and behavior begin to deteriorate, i.e. blades frequently snag on branches: Resharpen the cutting blades.
It is best to have the cutting blades resharpened by a dealer on a workshop sharpener. STIHL recommends a STIHL servicing dealer.
It is also possible to use a flat crosscut sharpening file. Hold the sharpening file at the prescribed angle (see "Specifications").
- Only sharpen the cutting edge – do not file blunt projecting parts of the cutting blade or the cutting blade guard (see "Main Parts and Controls")
Always file towards the cutting edge.
The file only sharpens on the forward stroke - lift it off the blade on the backstroke.
Use a whetstone to remove burr from cutting edge. - Remove as little material as possible.
After sharpening, clean away filing or grinding dust and then spray the cutting blades with STIHL resin solvent.
NOTICE
Do not operate your machine with dull or damaged cutting blades. This may cause overload and will give unsatisfactory cutting results.
Maintenance and Care
| The following intervals apply to normal operating conditions only. If your daily working time is longer or operating conditions are difficult (very dusty work area, etc.), shorten the specified intervals accordingly. | before starting work | after finishing work or daily | weekly | monthly | every 12 months | if problem | if damaged | if required | |
| Complete machine | Visual Inspection | X | |||||||
| Clean | X | ||||||||
| Two-hand control | Check function - the cutting blades must quickly come to a standstill when the trigger switch or switch lever, or the trigger switch, or auxiliary switch is released | X | |||||||
| Cooling inlets | Visual Inspection | X | |||||||
| Clean | X | ||||||||
| Cutting blades | Visual Inspection | X | |||||||
| Clean 2) | X | ||||||||
| Sharpen 1)2) | X | ||||||||
| Have replaced by dealer 1) | X | ||||||||
| Gearbox and connecting rod | Have checked by servicing dealer 1) after every 50 hours of operation | ||||||||
| Have gearbox topped up with STIHL gear lubricant by servicing dealer 1) | X | ||||||||
| Carbon brushes | Have checked by servicing dealer 1) after every 100 hours of operation | ||||||||
| Have replaced by dealer 1) | X | ||||||||
| All accessible screws and nuts | Retighten | X | |||||||
| Safety labels | Replace | X | |||||||
1) STIHL recommends a STIHL servicing dealer.
2) Spray with STIHL resin solvent after cleaning
Minimize Wear and Avoid Damage
Observing the instructions in this manual helps reduce the risk of unnecessary wear and damage to the power tool.
The power tool must be operated, maintained and stored with the due care and attention described in this instruction manual.
The user is responsible for all damage caused by non-observation of the safety precautions, operating and maintenance instructions in this manual. This includes in particular:
Alterations or modifications to the product not approved by STIHL.
Using tools or accessories which are neither approved or suitable for the product or are of a poor quality.
Using the product for purposes for which it was not designed.
Using the product for sports or competitive events.
Consequential damage caused by continuing to use the product with defective components.
Maintenance Work
All the operations described in the "Maintenance Chart" must be performed on a regular basis. If these maintenance operations cannot be performed by the owner, they should be performed by a servicing dealer.
STIHL recommends that you have servicing and repair work carried out exclusively by an authorized STIHL
servicing dealer. STIHL dealers are regularly given the opportunity to attend training courses and are supplied with the necessary technical information.
If these maintenance operations are not carried out as specified, the user assumes responsibility for any damage that may occur. Among other things, this includes:
- Damage to the motor due to neglect or deficient maintenance (e.g. not cleaning cooling air inlets).
- Damage due to incorrect electrical connection (voltage, inadequately rated connecting cords).
Corrosion and other consequential damage resulting from improper storage. - Damage to the product resulting from the use of poor quality replacement parts.
Parts Subject to Wear and Tear
Some parts of the power tool are subject to normal wear and tear even during regular operation in accordance with instructions and, depending on the type and duration of use, have to be replaced in good time. Among other parts, this includes:
Cutting blades
Main Parts
1 Power cord
2 Auxiliary switch
3 Strain relief (cord retainer)
4 Control handle with rotating grip
5 Trigger switch lockout
6 Handle lock
7 Trigger
8 Switch lever
9 Loop handle
10 Hand guard
11 Cutting blades (HSE 61, 71) - see "Specifications"
12 Cutting blades (HSE 81) - see "Specifications"
13 Blade scabbard
14 Blade guard (HSE 81 only)
15 Tip guard
Serial number
Specifications
Engine
HSE 61
Voltage: 230 - 240 V
Rated current: 2.1 A
Frequency: 50 Hz
Power consumption: 500 W
Fuse: min. 10 A
Insulation: II, 1
HSE 71
Voltage: 230 - 240 V
Rated current: 2.6 A
Frequency: 50 Hz
Power consumption: 600 W
Fuse: min. 10 A
Insulation: II, 1
HSE 81
Voltage: 230 - 240 V
Rated current: 2.8 A
Frequency: 50 Hz
Power consumption: 650 W
Fuse: min. 10 A
Insulation: II, 1
Cutting Blades
HSE 61
Sharpening angle: 34^
Tooth spacing: 29 mm
Stroke rate: 3,200/min
Cutting length: 500 mm, 600 mm
HSE 71
Sharpening angle: 28^
Tooth spacing: 36 mm
Stroke rate: 2,800/min
Cutting length: 600 mm, 700 mm
HSE 81
Sharpening angle: 45^
Tooth spacing: 36 mm
Stroke rate: 2,800/min
Cutting length: 500 mm, 600 mm, 700 mm
Weight
HSE 61
500 mm blade: 4.0 kg
500 mm blade1): 4.6 kg
600 mm blade: 4.2 kg
HSE 71
600 mm blade: 4.2 kg
500 mm blade1): 4.8 kg
700 mm blade: 4.3 kg
700 mm blade1): 4.9 kg
HSE 81
500 mm blade: 4.1 kg
600 mm blade: 4.2 kg
700 mm blade: 4.4 kg
700 mm blade1): 5.0 kg
1) Version with 10 meter power supply cord for UK
Noise and Vibration Data
Noise and vibration data are determined on the basis of the rated maximum speed.
For further details on compliance with Vibration Directive 2002/44/EC see www.stihl.com/vib/
Sound pressure level L_p to EN 60745-2-15
HSE 61
500 mm blade: 83 dB(A)
600 mm blade: 83 dB(A)
HSE 71
600 mm blade: 85 dB(A)
700 mm blade: 85 dB(A)
HSE 81
500 mm blade: 85 dB(A)
600 mm blade: 86 dB(A)
700 mm blade: 86 dB(A)
Sound power level L_w to EN 60745-2-15
HSE 61
500 mm blade: 94 dB(A)
600 mm blade: 94 dB(A)
HSE 71
600 mm blade: 96 dB(A)
700 mm blade: 96 dB(A)
HSE 81
500 mm blade: 96 dB(A)
600 mm blade: 97 dB(A)
700 mm blade: 97 dB(A)
Vibration measurement a_hv to EN 60745-2-15
HSE 61
500 mm blade:
Left handle: 3.6 m/s^2
Right handle: 3.2 m/s^2
HSE 61
600 mm blade:
Left handle: 3.6 m/s^2
Right handle: 3.2 m/s^2
HSE 71
600 mm blade:
Left handle: 3.2 m/s^2
Right handle: 2.0 m/s^2
HSE 71
700 mm blade:
Left handle: 3.2 m/s^2
Right handle: 2.0 m/s^2
HSE 81
500 mm blade:
Left handle: 2.9 m/s^2
Right handle: 2.0 m/s^2
HSE 81
600 mm blade:
Left handle: 3.1 m/s^2
Right handle: 2.1 m/s^2
HSE 81
700 mm blade:
Left handle: 3.1 m/s²
Right handle: 2.1 m/s²
The K-factor in accordance with Directive 2006/42/EC is 2.5dB(A) for the sound pressure level and sound power level; the K-factor in accordance with Directive 2006/42/EC is 2.0m/s^2 for the vibration measurement.
The vibration values quoted above have been measured according to a standardized test procedure and may be used to compare electric power tools.
Depending on the type of usage, the vibrations that actually occur may differ from the values quoted.
The vibration values quoted may be used for an initial assessment of the user's exposure to vibrations.
The actual exposure to vibrations has to be evaluated. This process may also take into account times during which the electric power tool is switched off and times during which it is switched on but running without load.
Observe measures to reduce vibration exposure to protect the user - see section on "Vibrations" in chapter on "Safety Precautions and Working Techniques".
REACH
REACH is an EC regulation and stands for the Registration, Evaluation, Authorisation and Restriction of Chemical substances.
For information on compliance with the REACH regulation (EC) No. 1907/2006 see www.stihl.com/reach.
Special Accessories
Safety glasses
STIHL resin solvent
STIHL gear lubricant for hedge trimmers
Contact your STIHL dealer for more information on these and other special accessories.
Maintenance and Repairs
Users of this machine may only carry out the maintenance and service work described in this user manual. All other repairs must be carried out by a servicing dealer.
STIHL recommends that you have servicing and repair work carried out exclusively by an authorized STIHL servicing dealer. STIHL dealers are regularly given the opportunity to attend training courses and are supplied with the necessary technical information.
When repairing the machine, only use replacement parts which have been approved by STIHL for this power tool or are technically identical. Only use high-quality replacement parts in order to avoid the risk of accidents and damage to the machine.
STIHL recommends the use of original STIHL replacement parts.
Original STIHL parts can be identified by the STIHL part number, the STIHL logo and the STIHL parts symbol (the symbol may appear alone on small parts).
Disposal
Observe all country-specific waste disposal rules and regulations.
STIHL products must not be thrown in the garbage can. Take the product, accessories and packaging to an approved disposal site for environment-friendlyly recycling.
Contact your STIHL servicing dealer for the latest information on waste disposal.
EC Declaration of Conformity
confirms that the product described below
Category: Electric hedge trimmer
Make: STIHL
Model: HSE 61
HSE 71
HSE 81
Serial identification: 4812
conforms to the specifications of Directives 2011/65/EC, 2006/42/EC, 2004/108/EC and 2000/14/EC and has been developed and manufactured in compliance with the following standards:
EN 55014-1, EN 55014-2, EN 60745-1, EN 60745-2-15, EN 61000-3-2, EN 61000-3-3
The measured and guaranteed sound power levels were determined according to Directive 2000/14/EC, Annex V, using the ISO 11094 standard.
Measured sound power level
HSE 61
500 mm blade: 94 dB(A)
600 mm blade: 94 dB(A)
HSE 71
600 mm blade: 95 dB(A)
700 mm blade: 95 dB(A)
HSE 81
500 mm blade: 96 dB(A)
600 mm blade: 96 dB(A)
700 mm blade: 96 dB(A)
Guaranteed sound power level
HSE 61
500 mm blade: 96 dB(A)
600 mm blade: 96 dB(A)
HSE 71
600 mm blade: 97 dB(A)
700 mm blade: 97 dB(A)
HSE 81
500 mm blade: 98 dB(A)
600 mm blade: 98 dB(A)
700 mm blade: 98 dB(A)
Technical documents deposited at:
The year of manufacture and serial number are applied to the product.
Done at Waiblingen, 01.08.2112
Director Group Product Management
Quality Certification
All STIHL products comply with the highest quality standards.
An independent organization has certified that all products manufactured by STIHL meet the strict requirements of the ISO 9001 standard for quality management systems in terms of product development, materials purchasing, production, assembly, documentation and customer service.
General Power Tool SafetyWarnings
This chapter reproduces the preformulated, general safety precautions specified in the EN 60745 European standard for hand-held motor-operated electric tools. STIHL is required by law to print these standardized texts verbatim.
WARNING
Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord extension suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and/or battery pack, picking up or carrying the power tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for connection of dust extraction and -collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting attachments sharp and clean. Properly maintained cutting attachments with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories, tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
5) Service
a) Have your electric power tool serviced by a qualified repair person using only original replacement parts. This will ensure that the safety of the power tool is maintained.
Hedge Trimmer SafetyWarnings
- Keep all parts of the body away from the cutting blades. Do not remove cut material or hold material to be cut when blades are moving. Make sure the switch is off when clearing jammed material. A moment of inattention while operating the hedge trimmer may result in serious personal injury.
- Carry the hedge trimmer by the handle with the cutting blades stopped. When transporting or storing the hedge trimmer always fit the blade scabbard. Proper handling of the hedge trimmer will reduce possible personal injury from the cutting blades.
Always hold your electric power tool by the insulated handles because the cutting blades may contact hidden electrical wires or your own power cord. Any blade contact with a live wire may energize metallic parts of the power tool and result in an electric shock. - Keep the power cord away from cutting area. During operation the power cord may be hidden in shrubs and can be accidentally severed by the blade.
Table des matieres
Indications concernant la presente
Notice d'emploi 44
HSE 61, HSE 71, HSE 81
Chere cliente, cher client,
Puisance absorbee: 600 W
Fusible: au moins
10 A
Classe de protection: II, 回
HSE 81
Tension nominale : 230 - 240 V
Puisance absorbee: 650 W
Fusible: au moins
10 A
Classe de protection: II, 回
Couteaux
HSE 61
(Service Homologation Products)
Snitlaengde 700 mm1): 5,0 kg
HSE 61, HSE 71, HSE 81
Kjare kunde
Afiar as laminas de corte 225
Afiar as láminas de corte
HSE 61, HSE 71, HSE 81
Geachte client(e),
Zwaardlengthe: 500 mm, 600 mm,
700 mm
Gewicht
HSE 61
Zwaardlengthe 500~mm 4,0 kg
Zwaardlengthe 500mm^1) 4,6kg
Zwaardlengthe 600~mm 4,2 kg
HSE 71
Fevikcs oyniecs aospaleias yia nAekpiKa mXavnmuata 279
STIHL
HSE 61, HSE 71, HSE 81
Ayantnte TELaTn,
Euxapotoupe 8epa yia nV anopaaon aac va ayopaoet eva Tpoiov TioiotaTc STIHL.
To Tpoiov auto exei kataakeuaotei e ouxpovec meobouc napaywyns kai katw anto ektev n etpa diaaqaliontioTntac. ATO nTv TLEUPa mac exoupe katabae kahe duvatn TPOOTaEIA wote TO mXavma auto va AVTATOKpvetai OTIC TPOOdkiec aC kai va aac Eaaqawlaizepyaia xwpi TpObaeta.
Av exe otioeodhntote atopiec oxetikae to mnxavna oac, auteuuvtheta otov avtipoosnto ato tov onio to ayopaoate, n auteuthetaiaoc otov eiaayyea mac.
△iKoSσaS,
S_1 = 12 · AC · PD = 12 × CD × DE = 14
. Nikolas Stihl
