WT 612 C W566C - Washing machine VALBERG - Free user manual and instructions

Type of appliance	Freestanding front-loading washing machine
Brand	VALBERG
Commercial model	WT 612 C W566C
Internal reference	989809
Washing capacity	6,0 kg
Maximum spin speed	1200 tr/min
Energy efficiency class	C
Energy efficiency index (EEI)	68,4
Washing efficiency index	1,031
Spin efficiency class	C
Electricity consumption (ECO 40-60 program, nominal load)	0,554 kWh/cycle
Water consumption (ECO 40-60 program, nominal load)	43 L/cycle
Duration of ECO 40-60 program (nominal load)	3 h 18 min
Noise level (spin)	78 dB(A)
Noise emission class (spin)	C
Programs	ECO 40-60, Cotton, Synthetics, Wool, Steam, Baby, Sport, Jeans, Mixed, 20 °C, Quick 15', Quick 45', Rinse and spin, Spin only, Drum cleaning
Loading type	Front (door)
Dimensions (HxWxD)	88 x 40 x 61 cm
Weight	56 kg
Rated power	2100 W
Power supply	220-240 V~, 50 Hz
Maximum current	10 A
Required water pressure	0,1 MPa to 1 MPa
Installation type	Freestanding
Distributor	ELECTRO DEPOT

Frequently Asked Questions - WT 612 C W566C VALBERG

Which program should I use for wool on the VALBERG WT 612 C W566C washing machine?

To wash wool garments with the VALBERG WT 612 C W566C washing machine, use the 'Wool' program. This program is specially designed to prevent shrinkage of delicate items and offers longer pauses for gentle washing.

How do I unlock the control panel on the VALBERG WT 612 C W566C washing machine?

To unlock the control panel of the VALBERG WT 612 C W566C washing machine, press the 'Spin' and 'Delayed start' buttons simultaneously for 3 seconds. This will disable the safety lock.

How do I open the drum of the VALBERG WT 612 C W566C washing machine to load laundry?

To open the drum of the VALBERG WT 612 C W566C washing machine, make sure the appliance is in 'Off' mode. Then, pull the door handle to open it and insert the laundry.

What should I do if I get error code E61 on the VALBERG WT 612 C W566C washing machine?

Error code E61 on the VALBERG WT 612 C W566C washing machine indicates a communication problem between components. Check the electrical connections and restart the appliance. If the problem persists, contact customer service.

Does the VALBERG WT 612 C W566C washing machine have a 90-degree wash cycle?

The VALBERG WT 612 C W566C washing machine does not offer a 90-degree wash program for clothes. The 'Drum cleaning' program uses this temperature, but it should not be used with laundry.

How do I remove bad odors from the VALBERG WT 612 C W566C washing machine?

To remove bad odors from the VALBERG WT 612 C W566C washing machine, run a drum cleaning cycle without laundry or detergent. You can also regularly clean the door seal and drain filter.

Why won't my VALBERG WT 612 C W566C washing machine start?

If your VALBERG WT 612 C W566C washing machine won't start, check that the door is properly closed, the appliance is plugged in, and the water tap is open. If the problem persists, an error code may be displayed.

How do I use the wash buttons on the VALBERG WT 612 C W566C washing machine?

To use the wash buttons on the VALBERG WT 612 C W566C washing machine, first select a wash program, then adjust the temperature and spin speed as needed. Press 'Start/Pause' to begin the cycle.

USER MANUAL WT 612 C W566C VALBERG

Thank you for choosing this VALBERG product. VALBERG products are chosen, tested, and recommended by ELECTRO DEPOT, so you can be sure you are getting a top-quality, easy-to-use product that won't let you down.

We're confident your new device will be a pleasure to use every day!

Welcome to ELECTRO DEPOT.

Table of Contents

Parts Specifications

Installation Operation

Cleaning and maintenance
Trouble Shooting
Transport

Product Fiche

Parts

A Drain hose
B Control panel
C Power supply cord
Door
Detergent dispenser

Drum

Service filter

Transport hole plug

Supply hose cold water

Acoustic sponge [Optional]

Note:

• The product line chart is for reference only, please refer to real product as standard.

Specifications

Model:	989809 - WT 612 C W566C
Power Supply:	220-240V~, 50Hz
MAX. Current:	10A
Standard Water Pressure:	0.1MPa ~ 1MPa
Washing Capacity:	6.0kg

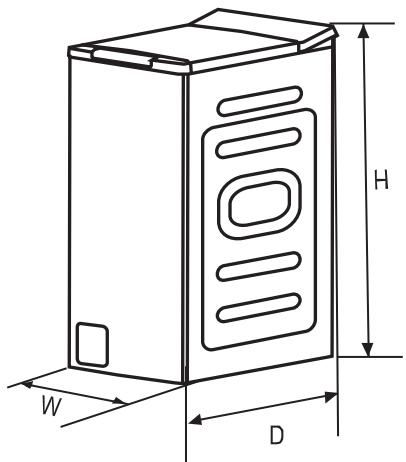

Dimension
W:	400mm
D:	610mm
H:	875mm
Weight:	56kg
Rated Power:	2100W

Installation

Installation area

Warning!

• Stability is important to prevent the product from wandering!
• Make sure that the product should not stand on the power coil

Before installing the machine, the location characterized as follows shall be selected:

Rigid, dry, and level surface
- Avoid direct sunlight
- Sufficient ventilation
- Room temperature is above 0^ C
- Keep far away from the heat resources such as coal or gas.

Unpacking the washing machine

Warning!

• Packaging material (e.g. Films, Styrofoam) can be dangerous for children.
  There is a risk of suffocation! Keep all packaging well away from children.

• Remove the cardboard box and styrofoam packing.

• Lift the washing machine and remove the base packing. Make sure the small triangle foam is removed with the bottom one together. If not, lay the unit down with side surface, then remove the small foam from the unit bottom manually.
• Remove the tape securing the power supply cord and drain hose.
• Remove the inlet hose from the drum.

B Product usage

Remove transport bolts

Warning!

• You must remove the transport bolts from the backside before using the product.
• You'll need the transport bolts again if you move the product, so make sure you keep them in a safe place.

Please take the following steps to remove the bolts:

1. Loosen the 4 transport bolts with a spanner.
2. Remove the bolts including the rubber parts and keep them for future use.
3. Close the holes using the cover caps.

Levelling the washing machine

Warning!

The lock nuts on all four feet must be screwed tightly against the housing.

1. Loosen the lock nut.
2. Turn the foot until it reaches the floor.
3. Adjust the legs and lock the nuts with a spanner. Make sure the machine is level and steady.

B Product usage

Connect the water supply hose

Warning!

To prevent leakage or water damage, follow the instructions in this chapter. Do not kink, crush or modify water inlet hose.

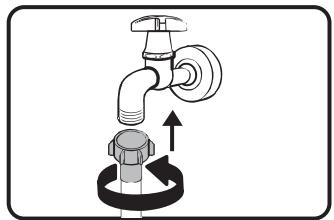

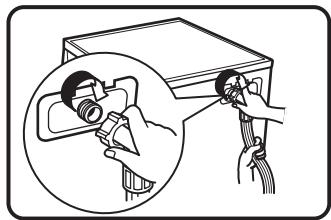

Connect the water supply hose to the water inlet valve and a water tap with cold water as indicated.

Note:

• Connect manually, do not use tools. Check if the connections are tight.

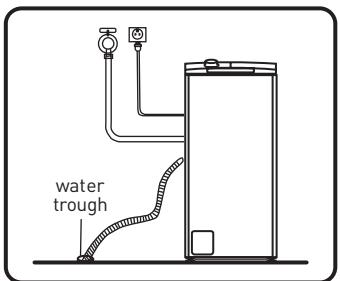

Drain Hose

Warning!

• Do not kink or protract the drain hose.
  Position drain hose properly, otherwise damage might result of water leakage.

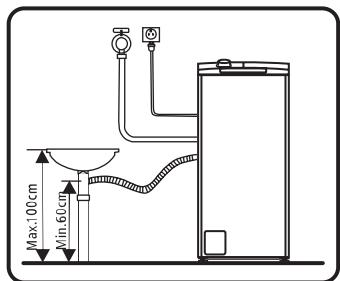

There are two ways to place the end of drain hose:

1. Put it into the water trough.
2. Connect it to the branch drain pipe of the trough.

Note:

If the machine has drain hose support, please install it like the following.

Warning!

• When installing drain hose, fix it properly with a rope.
  If drain hose is too long, do not force it into washing machine as it will cause abnormal noises.

Acoustic Sponge

Note:

• Please make sure to assemble the acoustic sponges, which can effectively reduce the noise caused by the machine while working, in order to provide you with a more peaceful and quiet living environment.

1. Get the machine laid on the floor, using some soft material like foam or clothes between the machine and floor for a protection;
2. Stick the 2x longer sponges to the longer bottom edges of machine, and the 2x shorter sponges to the shorter bottom edges.

Operation

Quick Start

Caution!

Before washing, please make sure the washing machine is installed properly.
- Your appliance was thoroughly checked before it left the factory. To remove any residual water and to neutralize potential odors, it's recommended to clean your appliance before first use. For this reason, start the Drum Clean without laundry and detergent.

Before Washing

①

②

③

4

5

6

1. Plug in
2. Open tap
3. Load
4. Add detergent
5. Close drum door
6. Close machine door

Note:

• Detergent need to be added in "case I" after selecting pre-washing for machines with this function.
  Make sure that the drum flaps are properly locked.

All metal hooks must be properly hooked inside the rear door flap.

Check the roller before each laundry, it must roll smoothly.

- Washing

1

②

③

4

1. Power On
2. Select programme
3. Select function or remain default settings
4. Press Start/Pause to start the program

Note:

Step 3 is optional.

After Washing

All lights off.

Before Each Washing

• The ambient temperature of the washing machine should be 5 - 40^ . If used under 0^ , the inlet valve and draining system may be damaged. If the machine is installed under freezing conditions, it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose can unfreeze before use.
• Please check your laundry care labels and the detergent use instructions before wash. Use non-foaming or less-foaming detergent suitable for machine washing properly.

①

②

(3)

4

5

6

1. Check the care label

B Product usage

1. Sort laundry according to color and textile type
2. Take all items out of the pockets
3. Tie together long textile strips and belts, close zips and button
4. Put small items into a laundry bag
5. Turn easy-pilling and long-pile fabric inside out

Warning!

• Do not wash articles that have been cleaned in, washed in, soaked in, or dabbed with combustible or explosive substances like wax, oil, paint, gasoline, alcohol, kerosene, and other flammable materials.
• Washing single clothes items may easily create big eccentricity and cause alarm due to unbalance. Therefore it is suggested to add one or two more laundry items to the wash so that spin can be done smoothly.
• Do not wash, or spin water-proof seats, mats, or clothing.

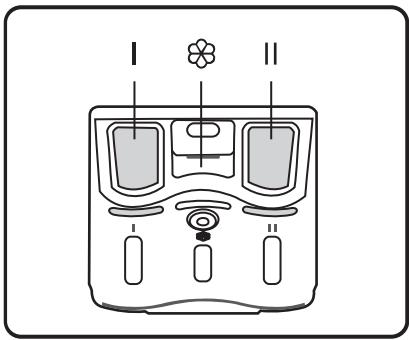

Detergent Dispenser

Pull out the dispenser

Pre Wash detergent

Main Wash detergent

Softener

Caution!

• Detergent only need to be added in "case l" after selecting pre-washing for machines with this function.
• Do not exceed the "MAX" level mark when filling in detergent, additives or softener.

Programme	I	II	⊗
Quick 15'		●	○
Rapid 45'		●	○
ECO 40-60		●	○
Steam	○	●	○
Wool		●	○
Rinse & Spin			○
Spin Only
Drum Clean
Baby Care	○	●	○
20°C	○	●	○
Sportswear	○	●	○
Jeans	○	●	○
Mix	○	●	○
Synthetic	○	●	○
Cotton	○	●	○

Means must Means optional

Detergent Recommendation

Recommended washing detergent	Wash cycles	Washing temp.	Type of laundry and textile
Heavy-duty detergent with bleaching agents and optical brighteners	Cotton, Mix	20/40/60	White laundry made from boil-proof cotton or linen
Colour detergent without bleaching agent and optical brighteners	Cotton, Mix	Cold/20/40	Coloured laundry made from cotton or linen
Color or mild detergent without optical brighteners	Synthetic	Cold/20/40	Coloured laundry made from easy care fibres or synthetic materials
Mild washing detergent	Synthetic	20/40	Delicate textiles, silk, viscose
Special wool detergent	Wool	20/40	Wool

B Product usage

Note:

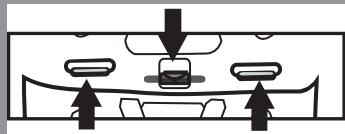

• Agglomerating or ropy detergent or additive can be diluted in some water before pouring it into the detergent dispenser, to avoid its inlet to get blocked and thus cause a water overflow.
• Please choose the suitable type of detergent to get a maximum of washing performance and a minimum of water and energy consumption
  To achieve the best cleaning result a proper detergent dosing is important.
  Use a reduced detergent amount if the drum is not filled completely.
  Always adjust the amount of detergent to the water hardness, if your tap water is soft, use less detergent.
• Dose according to how dirty your laundry is, less dirty clothes require less detergent.
  Highly concentrated (compact detergent) requires particularly accurate dosing.

Following symptoms are a sign of detergent overdosing:

• heavy foam formation
• poor washing and rinsing result

Following symptoms are a sign of detergent underdosing:

• laundry turns grey
• built-up of limescale deposits on the drum, the heating element and/ or the laundry

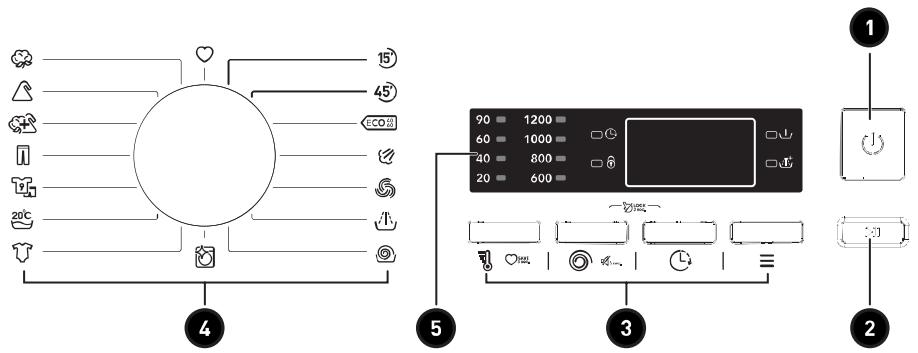

Control Panel

1 Power

Product is on/off.

2 Start/Pause

Press the button to start or pause the washing cycle.

3 Option

This allows you to select an additional function.

4 Programmes

Available according to the laundry type.

5 Display

The display shows the settings, estimated time remaining, options, and status messages for your washer. The display will remain on through the cycle.

(1) Delay
(2) Display

Wash Time Delay Time

25 2H

End Error

End E30

3 Pre Wash

Extra Rinse

Door Lock

Programmes

Model: WT 612 C W566C

Programme	Load (kg)	Default Time
	6.0
Quick 15'	2.0	0:15
Rapid 45'	2.0	0:45
ECO 40-60	6.0	3:18
Steam	3.0	1:48
Wool	2.0	1:07
Rinse & Spin	6.0	0:20
Spin Only	6.0	0:12
Drum Clean	-	1:18
Baby Care	6.0	2:01
20°C	3.0	1:01
Sportswear	3.0	0:47
Jeans	6.0	1:40
Mix	6.0	1:20
Synthetic	3.0	2:20
Cotton	6.0	2:40

Note:

• The parameters in this table are only for user's reference. The actual parameters maybe different with the parameters in above mentioned table.

WT612CW566C

Cycle	Nominal capacity in kg	Temperature setting	Cycle duration in hours and minutes	Energy consumption in kWh/operating cycle	Water consumption in liter/operating cycle	Highest temperature°C(1)	Residual moisture in %/ spin speed in rpm[2]
Quick 15'	2.0	cold	0:15	0.035	32	cold	70%/800
ECO 40-60[3]	6.0	--	3:18	0.746	47	36	62.9%/1200
	3.0	--	2:36	0.470	42	31	62.9%/1200
	2.0	--	2:36	0.303	36	24	62.9%/1200
20°C	3.0	20	1:01	0.207	38	20	70%/800
Mix	6.0	40	1:20	0.684	58	40	70%/800
Synthetic	3.0	40	2:20	0.648	37	40	70%/800
Cotton	6.0	60	2:45	1.280	58	60	60%/1200

• The above data is for reference only, and the data may change due to different actual use conditions.
  The valves given for programmes other than the ECO 40-60 programme are indicative only.
  Compliant to EN 60456: 2016/prA2019 With (EU) 2019/2014, (EU) 2019/2023.

The EU energy efficiency class is: A

Energy test program: ECO 40-60. Other as the default.

Half load for 6.0kg machine: 3.0kg .

Quarter load for 6.0kg machine: 2.0kg .

(1) The highest temperature reached by the laundry in the wash cycle for at least 5 minutes.
[2] Residual moisture after the wash cycle in water content percent and the spin speed at which this was achieved.
(3) The ECO 40-60 programme is able to clean normally soiled cotton laundry declared to be washable at 40^ or 60^ , together in the same cycle. This programme is used to assess the compliance with the regulation (EU) 2019/2023.

The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration.

Loading the household washer up to the capacity indicated for the respective programmes will contribute to energy and water savings.

Noise and remaining moisture content are influenced by the spinning speed: the higher the spinning speed in the spinning phase, the higher the noise and the lower the remaining moisture content.

Caution!

• If there is any break in the power supply while the machine is operating, a special memory stores the selected programme. The machine will continue the programme when the power supply is re-established.

Programmes

Programmes are available according to the laundry type.

Programmes
Quick 15'	Extra short programme approx, suitable for lightly soiled washing as a small amounts of laundry.
Rapid 45'	Washing few and not very dirty clothes quickly.
ECO 40-60	Able to clean normally soiled cotton laundry declared to be washable at 40°C or 60°C, together in the same cycle.
Steam	The Steam Wash can deeply penetrate the fiber, which effectively eliminate bacterias and germs, preventing odors and protecting health.
Wool	Hand or machine-washable wool or richwool textiles. Especially gentle wash programme to prevent shrinkage, longer programme pauses (textiles rest in wash liquor).
Rinse & Spin	Rinses and then spins the laundry, and then drains the water.
Spin Only	Spins and drains the water.
Drum Clean	Specially set in this machine to clean the drum and tube. It applies 90°C high temperature sterilization to make the clothes washing more green. When this programme is performed, the clothes or other washing cannot be added. When proper amount of chlorine bleaching agent is put in, the barrel cleaning effect will be better. The customer can use this programme regularly according to the need.
Baby Care	Washing the baby's clothes, it can make the baby's wear cleaner and make the rinse performance better to protect the baby skin.
20°C	Able to clean lightly soiled cotton laundry, at a nominal temperature of 20°C.
Sportswear	Washing the activewear.
Jeans	Specially for jeans.
Mix	Mixed load consisting of textiles made of cotton and synthetics.
Synthetic	Wash synthetic articles, for example: shirts, coats, blending. While washing the knitting textiles, detergent quantity shall be reduced due to its loose string construction and easily forming bubbles.
Cotton	Hard-wearing textiles, heat-resistant textiles made of cotton or linen.

Option

Model: WT 612 C W566C

Cycle	Default Temp. (°C)	Default spin speed in rpm	Additional functions
Wash cycles		1200
Quick 15'	Cold	800
Rapid 45'	20	800
ECO 40-60	--	--
Steam	40	800
Wool	40	600
Rinse & Spin	--	800
Spin Only	--	800
Drum Clean	90	--
Baby Care	60	800
20°C	20	800
Sportswear	20	800
Jeans	40	800
Mix	40	800
Synthetic	40	800
Cotton	40	800

Note:

For the maximum spin speed, program time, and other details of the ECO 40-60 program, please refer to the content on the Product Fiche page.
The table shows which cycle offers which options for adjustment. It also indicates if a setting is not available for a program.

Pre Wash

The Prewash function can get an extra wash before main wash, it is suitable for washing the dust rises to surface of the clothes; You need to put detergent into the Case (I) when select it.

Extra Rinse

The laundry will undergo extra rinse once after you select it.

Delay

Set the Delay function:

1. Select a programme;
2. Press the Delay button to choose the time 0-24H;
3. Press [Start/Pause] to commence the delay operation

Choose programme

Setting time

Start

Cancel the Delay function:

Press the [Delay] button until the display be 0H. It should be pressed before starting the programme. If the programme already started, should switch off programme to reset a new one.

Caution!

• If there is any break in the power supply while the machine is operating, a special memory stores the selected programme and when the power is restarted, the program will continue.
  It is advisable to use washing powder and not to use liquid detergent while using delay start.

Temp.

Press the button to regulate the temperature[Cold, 20^, 40^, 60^, 90^]

Spin

Press the button to change the speed.

1200:0-600-800-1000-1200

Child Lock

To avoid mis operation by children.

Choose programme

Start

Press [Spin] and [Delay]

3 sec. till buzzer beep.

Caution!

• During the "Child Lock" function is activating, the buzzer will beep, When the buttons are pressed.
  Press the two button 3sec. also to be released the function.
  The "Child Lock" will lock all buttons except Power button.
  Cut off the power supply, the kid's protection is to be released.

Mute the buzzer

Choose programme

3sec.

Press the [Spin] button

for 3sec., the buzzer is

mute.

To act the buzzer function, press the button again for 3 seconds. The setting will be kept until the next reset.

Caution!

After Muting the buzzer function, the sounds will not be activated any more.

My Cycle

To memory the frequently used programme.

After choosing the programme and setting the options, press [Temp.]

3 sec. before start to wash. The default setting course is Cotton.

Note:

Usage counter

1. Unplug the equipment for 10s and reconnect again.
2. Power on and within 10s, please press "Temp." and "Function" on control panel simultaneously and continuously for around 5s until the device display shows digits -- the value can indicate the times of equipment usage.
3. Repeat step 1 again and customer can resume to normal operation.

Cleaning and maintenance

Warning!

• Before your maintenance starts, please unplug the machine and close the tap.

Cleaning the Cabinet

Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use the wet cloth to wipe it off immediately. No sharp items are allowed.

Note:

• Formic acid and its diluted solvents or equivalent are forbidden, such as alcohol, solvents or chemical products, etc.

Cleaning the Drum

The rusts left inside the drum by the metal articles shall be removed immediately with chlorine-free detergents. Never use steel wool.

Note:

• Don't put laundry in the washing machine during the drum cleaning.

Cleaning the Inlet Filter

Note:

• Diminishing water flow is a sign that the filter need to be cleaned.

①

②

(3)

4

1. Close the tap and remove the water supply hose from it.
2. Clean the filter with a brush.
3. Unscrew the water supply hose from the backside of the machine. Pull out the filter with long nose pliers.
4. Use a brush to clean the filter.
5. Reinstall the filter to the water inlet and reconnect the water supply hose.
6. Clean the Inlet filter every 3 months to ensure the normal operation of the appliance.

Clean The Detergent Dispenser

1. Press down the arrow location on softener cover inside the dispenser drawer.
2. Lift the clip up and take out softener cover and wash all grooves with water.
3. Restore the softener cover and push the drawer onto position.

①

②

(3)

C

Cleaning and maintenance

1. Pull out the dispenser drawer with press the A.
2. Clean the dispenser drawer under water.
3. Insert the dispenser drawer.

Note:

• Do not use abrasive or caustic agents to clean plastic parts.
• Clean the detergent dispenser every 3 months to ensure the normal operation of the appliance.

Cleaning the Drain Pump Filter

Warning!

• Make sure that the machine has finished the washing cycle and is empty. Switch it off and unplug it before cleaning the drain pump filter.
• Be careful of hot water. Allow the water to cool down. Risk of scalding!
• Clean the filter periodically every 3 months to ensure the normal operation of the appliance.

①

②

(3)

4

1. Open the lower cover cap.

2. Open the filter by turning to the counter clockwise.

3. Remove extraneous matter.
4. Close the lower cover cap.

Trouble Shooting

The start of the appliance does not work or it stops during operation. First try to find a solution to the problem, If not, contact the service centre.

Description	Possible cause	Solution
Washing machine cannot start up	·Door is not closed properly	·Restart after the door is closed Check if the clothes is stuck
Door can’t be opened	·Washer’s safety protection design is working	·Disconnect the power, restart the product
Water leakage	·The connection between inlet pipe or outlet hose is not tight	·Check and fasten water pipes ·Clean up outlet hose
Detergent residues in the box	·Detergent is dampened or agglomerated	·Clean and wipe the detergent box
Indicator or display does not light	·Disconnect the power ·PC board or harness has connection problem	·Check if the power is shut down and the power plug is connected correctly
Abnormal noise	·Fixing bolts still in place ·Floor is not solid or level	·Check if the fixing (bolts) have been removed ·Check it’s installed on a solid and level floor

LED display models:

E30	·Door is not closed properly	·Restart after the door is closed ·Check if the clothes is stuck
E10	·Water injecting problem while washing	·Check if the water pressure is too low ·Straighten the water pipe ·Check if the inlet valve filter is blocked
E21	·Overtime water draining	·Check if the drain hose is blocked
Description	Possible cause	Solution
E12	• Water overflow	• Restart the washer
EXX	• Others	• Please try again first, call up service line if there are still troubles

Note:

• After the check, activate the appliance. If the problem occurs or the display shows other alarm codes again, contact the service.

Warning!

Risk of electric shock

• Never try repair an appliance which is defective of presumed to be defective. You may put your own and future users' lives in danger. Only authorised specialists are allowed to carry out this repair work.
• Improper repair will void the warranty and subsequent damages can't be recognized!

Transport

IMPORTANT STEPS WHEN MOVING THE APPLIANCE

Unplug the appliance and close the water inlet tap.
- Check, if the door and the detergent dispenser are closed properly.
- Remove the water inlet pipe and the outlet hose from the house installations.
- Let the water drain completely from the appliance (see «Maintenance Cleaning the drain pump filter»).
- Important: Re-install the 4 transport bolts in the back of the appliance.
- This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door cannot be used as a handle.

Product Fiche

Supplier's name or trade mark[a],[c]:

Supplier's address[a],[c]:

Model identifier[a]: WT 612 C W566C

General product parameters:

Parameter	Value		Parameter	Value
Rated capacity(b)(kg)	6.0		Dimensions in cm(a),(c)	Height	88
				Width	40
				Depth	61
Energy efficiency index(b)(EEIw)	68.4		Energy efficiency class(b)	C(d)
Washing efficiency index(b)	1.031		Rinsing effectiveness (g/kg)(b)	5.0
Energy consumption in kWh per cycle, based on the eco 40-60 programme. Actual energy consumption will depend on how the appliance is used.	0.554		Water consumption in litre per cycle, based on the eco 40-60 programme. Actual water consumption will depend on how the appliance is used and on the hardness of the water.	43
Maximum temperature inside the treated textile(b)(°C)	Rated capacity	36	Weighted remaining moisture content(b)(%)	62.9
	Half	31
	Quarter	24
Spin speed(b)(rpm)	Rated capacity	1200	Spin-drying efficiency class(b)	B(d)
	Half	1200
	Quarter	1200
Programme duration(b)(h:min)	Rated capacity	3:18	Type	free-standing
	Half	2:36
	Quarter	2:36

Airborne acoustical noise emissions in the spinning phase[a] (dB(A) re 1 pW)	78	Airborne acoustical noise emission class[b] (spinning phase)	C[d]
Off-mode (W) (if applicable)	0.50	Standby mode (W) (if applicable)	N/A
Delay start (W) (if applicable)	4.00	Networked standby (W) (if applicable)	N/A

Minimum duration of the guarantee offered by the supplier[a],[c]:

This product has been designed to release silver ions during the washing cycle

NO

Additional information:

Weblink to the supplier's website, where the information in point 9 of Annex II to Commission Regulation (EU) 2019/2023 (1) is found:

[a] this item shall not be considered relevant for the purposes of Article 2(6) of Regulation (EU) 2017/1369.
^[b] for the eco 40-60 programme.
(c) changes to this item shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.
^[d] if the product database automatically generates the definitive content of this cell the supplier shall not enter these data.

The actual energy consumption will depend on how the appliance is used.
- The actual water consumption will depend on how the appliance is used and on the hardness of the water.
- Delivery of the spare parts within 15 working days after having received the order.

Product Data Sheet concerning (EU) 2019/2014.

The product data sheet for your appliance can be found online.

Go to https://eprel.ec.europe.eu and enter the model identifier for your appliance to download the data sheet.

The model identifier for your appliance can be found in the technical specifications section.

Merci!

This product is guaranteed against faults caused by defects in manufacturing or the materials used for a period of two years, starting from the date of purchase.* This warranty does not cover defects or damage caused by failure to install the device correctly, incorrect use of the product, or excessive wear and tear.

*proof of purchase required.

CONDITION DE GARANTIE

FR
