USER MANUAL WF 712 C W180C VALBERG

Thank you for choosing this VALBERG product. VALBERG products are chosen, tested, & recommended by ELECTRO DEPOT,

you are getting a top-quality, easy-to-use p

that won't Let you down.

We're confident your new device will be a pleasure to use

Welcome to ELECTRO DEPO TRO DEPOT

Before the first wash cycle Preparation of the washing Detergents and additives Operation

6 Plinth covering pump access

6 Adjustable feet Ne

NOTE: Control panel layout and appearance will depend on the model.

Package with small items

Instruction for use, installation guide, warranty card (depends on model)

Inlet hose (inside the machine or already installed] + Cold intet hose (

“U"-bend (inside the machine or already installed]

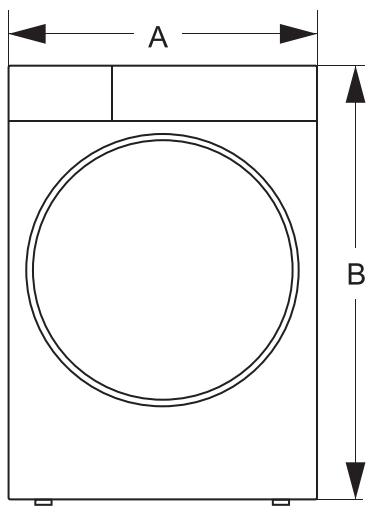

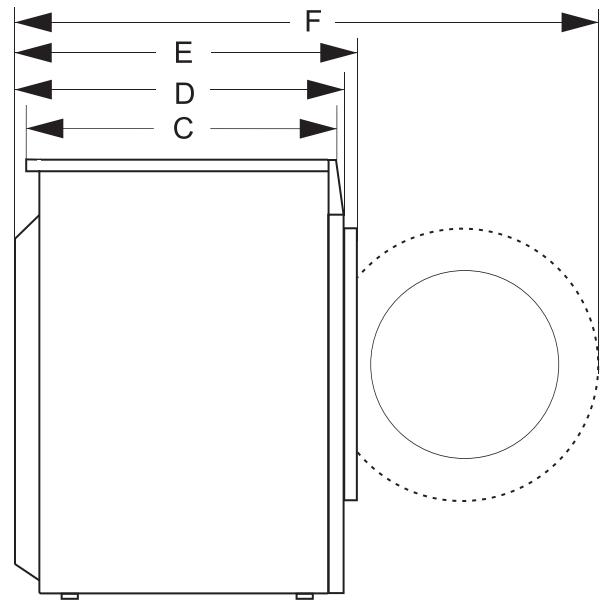

BEFORE USING THE WASHING MACHINE Removing the packaging and inspection

+ After unpacking, ensure that the washing machine is undamageld. If in doubt, do not use the washing machine. Contact After-Sales Service or your Local retailer.

+ Check that the accessories and supplied parts are all present.

+ Keepthe packaging materials (plastic bags, polystyrene parts, etc.] out of reach of children, as they are potentially dangerous.

Remove the transport bolts

Important: + Transport bolts which are not removed can cause damage to the appliance.

1. Screw off all transportation bolts for approx. 380mm with wrench following the direction of arrow shown {not fully screw it off].

2. Push four transportation bolts on horizontal direction inward and Loose transportation bolt.

3. Pull out transportation bolt together with rubber part and plastic part.

4. To ensure safety and reduce noise, you should install the transportation bolt cover supplied with the unit [see the annex accompanying the unit]. Lean and place the transportation bolt into hole and press it following the shown direction until it clicks.

appliance and in this case refit the transport bolts in reverse order.

FAN Important: Keep the transport bolts and the wrench for future transporting of the

Adjustment of the feet

The appliance must be installed on a solid and level floor surface [if necessary use a spirit level). If the appliance is to be installed on a wooden floor, distribute the weight by placing it on a 60xé0cm sheet of plywood at least 3cm in thickness and secure it to the floor. If the floor is uneven, adjust the 4 leveling feet as required; do not insert pieces of wood etc. under the feet.

1. Slacken the locknut clockwise (see arrow] using the wrench.

2. Liftthe machine slightly and adjust the height of the foot by revolving it.

VAN Important: tighten the locknut by turning it anti-clockwise towards the appliance

Connect the water supply inlet hose

1. Ifthe water inlet hose is not already installed, it must be screwed to the appliance. The blue marked hose is only for cold water.

2. Screw by hand the inlet hose onto the tap, tightening the nut.

Attention: No kinks in the hosel! The appliance must not be connected to the mixing tap of an un-pressurized water heater. Check water-tightness of connections by turning the tap completely on

Ithe hose is too short, replace it with a suitable Length of pressure resistant hose (1000 kPa min).

Check the inlet hose regularly for brittleness and cracks and replace if necessary.

The washing machine can be connected without a non-return valve.

Connect the drain hose In case the drain hose is installed as shown below: 1. Unhookit only from the right clip [see arrow]

2. Connect the drain hose to the Drain or hook it over the edge of a sink by means of the “U" bend

Notes: Ensure that there are no kinks in the drain ho: Secure the hose so that it cannot fall down. After wash phase, machine will drain out hot water.

Small hand basins are not suitable. To make an extension use a hose of the same type and secure the connections with clips.

Max. Overall drain hose Length: 2.50 m

Before the first wash cycle

To remove any residual water used during testing by the manufacturer, we recommend that

you carry out a short wash cycle without laundry.

3. Pour a little detergent (about 30 ml] into the main wash chamber UlJ of the detergent dispenser.

4. Select and start a short programme.

Preparation of the washing

1. Sortthe laundry according to... e Type of fabric / care label symbol

Cottons, mixed fibres, easy care/synthetics, wool, handwash items. + Colour Separate coloured and white items. Wash new coloured articles separately. Loading Wash items of different sizes in the same load to improve washing efficiency and distribution in the drum. + Delicates Wash small items (e.g. nylon stockings, belts etc.) and items with hooks (e.g. bras) in a cloth bag or pillow case with zip. Always remove curtain rings or wash curtains with the rings inside a cotton bag. 2. Empty all pockets Coins, safety pins etc. can damage your laundry as well as the appliance drum and tub. 3. Fasteners Close zips and fasten buttons or hooks; loose belts or ribbons should be tied together. Stain removal Blood, milk, eggs etc. are generally removed by the automatic enzyme phase of the programme. + To remove red wine, coffee, tea, grass and fruit stains etc. add a stain remover to the main wash chamber UU of the detergent dispenser. + Pre-treat heavily-soiled areas with stain remover if necessary.

+ Only use dyes that are suitable for washing machines.

+ Followthe Manufacturer's instructions.

+ Plastic and rubber parts of the washing machine can be stained by dyes.

Loading the Llaundry

2. Load the articles one at a time loosely into the drum, without overfilling. Observe the load sizes given in the quick reference guide.

Note: Overloading the machine will result in unsatisfactory washing results and creased laundry.

Detergents and additives

Always use high efficiency, Low foam detergent for a front Load machine. The choice of detergent depends on: + type of fabric (cottons, easy care/synthetics, delicate items, wool).

(@) Note: Use only specific detergents for washing wool

+ colour + the wash temperature + degree and type of soiling

Any whitish residues on dark fabrics are caused by insoluble compounds used in modern phosphate-free powder detergents. lfthis occurs, shake or brush out the fabric or use Liquid detergents. Use only detergents and additives specifically produced for domestic washing machines. When using descaling agents, dyes or bleaches for the pre-wash, make sure that they are suitable for use in domestic washing machines. Descalers could contain products which could damage your washing machine. Do not use any solvents (e.g. turpentine, benzine]. Do not wash fabrics that have been treated with solvents or flammable liquids.

Dosage Follow the dosage recommendations on the detergent pack. They depend on: + degree and type of soiling + size ofwash follow the detergent manufacturer's instructions for a full load; half Load: 3/4 the amount used for a full load; minimum load (about 1 kg): 1/2 the amount used for a full load; + water hardness in your area (ask for information from your water company). Soft water requires less detergent than hard water.

Notes: Too much detergent can result in excess foam formation, which reduces washing

efficiency. lfthe washing machine detects too much foam, it may prevent spinning. Insufficient detergent may result in grey laundry in time and also calcifies the heating system, drum and hoses.

Where to put detergent and additives The detergent drawer has three chambers [fig. “A"]

Prewash chamber | 1 + Detergent for the prewash

Mainwash chamber (li)

+ Detergent for the main wash

+ Water softener [water hardness class 4]

Softener chamber & + Fabric softener + Liquid starch Pour additives only up to the “Max” mark.

Notes: Keep detergents and additives in a safe, dry place out of the reach of children Liquid detergents can be used for programmes with prewash. However, in this case a powder detergent must be used for the main wash Do not use liquid detergents when activating the “Start Delay” function [if available on your washing machine). To prevent dispensing problems when using highly concentrated powder and liquid detergents, use the special detergent ball or bag supplied with the detergent and place it directly inside the drum. When using descaling agents, bleaches or dyes, make sure that they are suitable for washing machines. Descalers could contain compounds that can damage parts of your washing machine. Do not use any solvents in the washing machine (e.g. turpentine, benzine)

This washing machine is equipped with automatic safety functions which detect and diagnose at an early stage and react appropriately.

"Wash performance test program are: Eco 40-60. 1 Allergy Steam and Baby Steam Care both washing are suitable to sterilize the colorfast clothes. When you see the door glass with water mist, please don't put your hand on the door glass or open the dispenser to prevent burns.

Date Comparment Wash Program Functions Proush | Mainvas | Sofener | DeuyEnd | prouut | Burarine Intense Maximum spin Defauitrinse Seed s Soin | Temp. LU u] & (Q ü] Ê mes 47 pi remp. * es * * + + 3 * * * 1200 * “es * * * * 3 * * * 1200 * vs * * + + 4 * * * 100 _- “es - * _ _ ï - * _- 1200 _ vs * * _ * 2 - * * «0 * es * * + + 3 * * * 1200 * “es * * * * 2 * * * 1000 : vs * * _ * ï - * * 200 * “es * * * * 2 * * * 1200 * vs * * + * 2 * * * 1000 _ vs * * - + 2 - * * «0 * “es * * * * 2 * * E 1200 _ vs _ * _ _ ï - - - 200 _ : * * - + 2 - * _- 1200 = = = + = = ù = + = 1200

Add detergent, close the door and set the program

Load the clothes to be washed in the drum and close the door.

Add the detergent into the relevant compartments for the type of program you are going to

select, Add detergent as described in Detergent and Additives section.

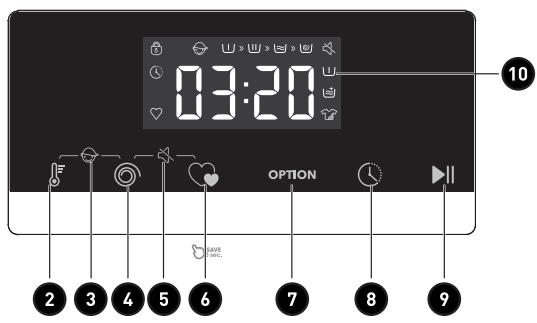

1... Turn on the power.

2. Spin program selection knob to required program, “off” must be passed through if pointer's initial position is not “off”.

3. Select washing temperature, spin speed by pressing “Temp”, “Spin” buttons. 4. Press “Option” button to select additional functions. 5. After starting the program, display window displays program Length (hours: minutes] and additional function options in sequence. Washing a Recommended bosse temperature select lues en era detergent Wool --, 20, 30, 40°C Wool fabric Mild detergent ein Coburormié 20°C 20°C Ÿ_ detergent without made from easy care : k fibres optical brighteners Cotton, Eco 40-60, : ; Dark Wash, Synihelie materials, Colour detergent Sportswear, Down, _ --, 20, 30, 40, 60°C C9 9Ure0 aunary free of bleach and ee made from cotton or ; ‘ Synthetics, Mix, , optical brighteners ne linen Quick 15 Eco 40-60, Cotton, Dark Wash, : White laundry made 2""0n9 detergent 40, 60, 90°C ‘ containing bleach Baby Steam Care, from boil-proof cotton : , and optical Allergy Steam or linen

Addition function selection

At standby state, press “Option” button to select additional function for current program. Select only one function for each press, and then corresponding icon flashes. After starting up, program cannot be changed.

+ Select the function to conduct pre-wash 50 as to enhance washing effects and better remove stains. This function is suitable for heavy dirt clothes.

+ Before inflowing, laundry detergent/washing powder can be added to pre-wash box, and washing powder must be added to main wash box.

Extra Rinse & After set the function of rinsing adding, the program runs the rinsing process once again before running the softening, and the total running time of the program increases accordingly.

The function can be selected to prolong washing time, strengthen washing effects and better remove stain.

Inlet water warning Iftap is not opened, or water pressure is over Low, display screen will prompt “F01” to give alarm.

Drainage warning Ifthe pipe is squeezed, drainage will not be smooth. In case of failing to completely drain for Long time, display screen will prompt “F03” to give alarm.

After the program starts the Door Lock icon will light up and the door will be locked.

+ After completing program, door lock unlacks automatically. When the washing machine is paused, if the door Lock apening conditions are met, the door lock will open.

+ When door lock indicator light flashes, door shall not be opened forcibly so as to avoid personal injury.

Delay end function @

Delay end function allows to run the machine at the consumers’ convenience, for example,

at night when electricity is cheaper.

*_ Onlyunder the standby mode, this button is valid for selecting the reservation time.

+ After the reservation function is selected, the time will increase Lh when each time the reservation button is pressed. Before reservation, ifthe program time does not satisfy the integral multiple of 1h, it shall be completed by pressing the reservation key for the first time, and then the time increases 1h when each time the reservation button is pressed. I the reservation is selected, before the program runs, the current reservation can be canceled by turning the button to select other programs.

+ The delay time must be longer than the wash program length as the delay time is the time program will finish. For example: if the selected program time is 02:28, the delay time selected must be between 03:00 and 24:00.

+ Whenthe reservation process is operated, the icon of ‘reservation time’ will be on. When the reservation process is finished, the icon of ‘reservation time’ will be off.

After selecting the program and setting each parameter and starting, long press the Favorite key for 3 s to memorize the selected program, temperature, rotational speed and other related settings, and then the Favorite symbol Lamp will be on Under the circumstance that the Favorite Lamp is not on, short press the Favorite key, then the program will be switched to the program memorized last time; and meantime, the temperature, rotational speed and other parameters will automatically change into the parameters memorized Last time. Atthis moment, if switching the program or pressing other keys, the panel will display a new program and parameters, and the Favorite symbol lamp will be off.

When the user uses it for the first time, if he/she has never long pressed the Favorite key to collect programs, he/she can short press the Favorite key and then the cotton linen program and its default settings will be collected by default.

When the machine is in the state of holding, pause or operation, press “Spin + Favourite” buttons for 2 seconds, The display will show mute function fault icon. All the buzzing will be turned off except the alarms.

When the machine is in the mute state, press “Spin + Favourite” buttons for 2 seconds until mute function fault icon light off. Al the buzzing will be activated.

Automatic weighting Washing machine displays “----" after startup, indicating that it is weighing automatically. It will adjust program Length (hours: minutes] automatically according to weight of clothes.

To strengthen the safety of children, this machine is equipped with Child Lock function.

When the programme starts, press “Temp. + Spin” button for 2 seconds. Child Lock icon will

light up, and then Child Lock is set up. Repeat the same operation, the Child Lock will be

+ When the Child Lock is set, all function buttons will be shielded.

+ When you turn the machine off by rotating the program selection button"Off”, child Lock is released.

+ After completing program, child Lock will automatically unlock.

To start the program

After you have selected your options and placed detergent within the detergent dispenser, turn on the water tap and press the “Start/Pause” button. The screen will display the current program progression with icons from left to right. It also displays the remaining program time.

To cancel the program or reselect the options

1. Rotate the program to “Off” for 3 seconds to turn off the machine.

2. Select the new program and options.

3. Press “Start/Pause” button to turn on the machine without adding any extra detergent.

The washing machine shows “END” at the end of the program, when the door is unlocked. If the knob is turned to “Off”, the power will be cut off. If there is no button or knob operation within 2 minutes, the program will automatically power off.

Programme Instructions

1. The eco 40-60 programme is able to clean normally soiled cotton Laundry declared to be washable about 40°C to 60°C, together in the same cycle, and that this programme is used to assess the compliance with the EU ecodesign legislation.

2. The power consumption of the off-mode is 0.49W.

3. The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration.

4. Loading the household washing machine up to the capacity indicated by the manufacturer for the respective programmes will contribute to energy and water savings.

5. Correct use of detergent, softeners and other additives. Do not apply excessive detergent. This may affect the washing results adversely.

6. Periodic cleaning, including optimal frequency, and limescale prevention and procedure.

7. Noise and remaining moisture content are influenced by the spinning speed: the higher the spinning speed in the spinning phase, the higher the noise and the Lower the remaining moisture content.

8. The product information and QR code are reflected in the energy consumption label, the product registration information can be obtained by scanning the QR code.

9. The information of standard programmes.

=== ter == Program tmperaure Godin comumplon Cnumpton nains EPS, a (min) (ihéÿee) (ef contente) To Ecoidébfutond 7 “ 32% 09m 50 sw 10 Eco dan Œ m 20 O0 00 D 12m Eco 40-60 1/4 load - 2 27 240 0.180 260 53.00 1200 me m 7 a 150 0 0 um 1® Gate & 7 si CET CE TUE TE MX 40 3 37 1:58 0.500 50.0 45.00 1200 Gut ü ï E 050 0% 0 &m en

The values given for programmes other than the eco 40-60 programme are indicative only.

Cleaning and maintenance

Care and maintenance

Appliance exterior and control panel

+ Can be washed down with a soft, damp cloth.

e A little neutral detergent (non abrasive] can also be used. ° Dry with a soft cloth.

Door seal + Clean with a damp cloth when necessary. e Check the condition of the door seal periodically.

1. Press the release lever in the main wash compartment downward and remove the drawer (fig."B").

2. Reese siphon cap from the fabric softener compartment fig." C"].

3. Wash allthe parts under running water.

4. Refit the siphon in the detergent drawer and fit the drawer back inside its housing.

We recommend that you check and clean the filter regularly, at least two or three times a year.

e Ifthe appliance is not draining properly or if it fails to perform spin cycles.

e Ifthe pump is blocked by a foreign body (e.g. buttons, coins or safety pins).

Cleaning and maintenance

MPORTANT: Ensure that the water has cooled before

. Stop the appliance and unplug it. . Insert removal tool like slotted screwdriver into the small

opening of bottom baffle, press the bottom baffle downward with much strength and openit.

. Put a flat container under filter door and then drain with

emergency drain pipe (see [draining residual water] for specific operation methods]. Then, loosen filter anticlockwise and completely unscrew and remove the filter.

. Clean the filter and the filter chamber.

. Check that the pump rotor moves freely.

. Re-insert the filter and screwit in clockwise as far as it will go. . Reinstall the plinth.

Cleaning and maintenance

Check the supply hose regularly for brittleness and cracks and replace it if necessary using a new hose of the same type (available from After-Sales Service or specialist dealer).

Mesh filter for water connection Check and clean regularly. For washing machines with an inlet hose as shown on pictures “D”,

1. Close the tap and loosen the inlet hose on the tap.

2. Clean the internal mesh filter and screwthe water inlet hose back onto the tap.

3. Now unscrew the inlet hose on the rear of the washing machine.

4. Pull off the mesh filter from the washing machine 2 connection with universal pliers and clean it. d 5. Refit the mesh filter and screwthe inlethoseon again.

6. Turn on the tap and ensure that the connections are completely water-tight.

Cleaning and maintenance

Troubleshooting guide

Depending on the model, your washing machine is equipped with various automatic safety functions. This enables faults to be detected in good time and the safety system can then react appropriately. These faults are frequently so minor that they can be resolved within a

The washing machine will not start, no indicator Llamps are on.

Check whether / Possible cause

the mains plug is inserted into the socket the wall socket is functioning correctly [use a table amp or similar appliance to test it).

The washing machine will not start. and the "Start/ Pause” indicator lamp flashes.

the door is properly closed {child safety);

the “Start/Pause” button has been pressed;

the “Water tap closed” indication lights up. Open the water tap and press the “Start/Pause” button.

The appliance stops during the programme (varies depending on model].

the door has been opened and the “Start/Pause” indicator lamp is flashing. Close the door and press the “Start/Pause” button again.

Check if there is too much foam inside, machine enters kill-foam routine. The machine will run again automatically after a period.

the washing machine's safety system has been activated (see “Fault description table].

Residue from detergent and additives Left in the detergent drawer at end of wash.

the cover grid of the softener chamber and the separator of the main wash chamber are correctly installed in the detergent dispenser and all parts are clean (see “Care and maintenance");

sufficient water is entering. The mesh filters of

the water supply could be blocked (see “Care and maintenance");

the position of the separator in the main wash chamber is adapted to the use of powder or liquid detergent (see “Detergent and additives”).

Machine vibrates during spin cycle.

the washing machine is Level and standing firmly on all four feet; the transport bolts have been removed. Before using the machine, it is imperative that the transport bolts are removed.

C Cleaning and maintenance

Final spin results are poor.

Check whether / Possible cause

The washing machine has an imbalance detection and correction system. |f individual heavy items are Loaded (e.g. bathrobes), this system may reduce the spin speed automatically or even interrupt the spin completely if it detects too great an imbalance even after several spin starts, in order to protect the washing machine.

+ Ifthe laundryis still too wet at the end of the cycle, remove some articles of laundry and repeat the spin cycle.

+ Excessive foam formation may prevent spinning. Use the correct amount of detergent.

+ Check that the spin speed selector has not been set to “0”.

If your washing machine has a time display: the programme time initially displayed is Lengthened / shortened by a period of time:

This is a normal capacity of the washing machine to

adapt to factors that can have an effect on the wash

programme time, e.g.:

+ excess foam formation;

+ Load imbalance due to heavy items of laundry;

+ prolonged heating time due to reduced inlet water temperature;

Because of influences like these, the time remaining

in the programme run is recalculated, and updated

ifnecessary. In addition, during the filling phase,

the washing machine determines the Load and if

necessary adjusts the initial programme time displayed

accordingly. During such update periods, an animation

appears on the time display.

Enter the after-sales query mode

In the OFF mode, press the * {F ” +" C9” +" (” to enter the after-sales inquiry mode.

When querying fault codes, press the * F " to page up and the * ©" to page down.

2. lt displays the number of operation cycles.

3. Press * C@ ” to switch cycles or fault codes

5. Turn the knob to «OFF», wait for 3 seconds, you will exit query mode. Fault Code List

Displayed on Display Window “por

Er S Door Lock fault ES Door unlock fault C2" Overflow or too much foam.

Cleaning and maintenance

Else fault code, “F04-F98" Electronic module fault.

“Unb” Unbalance alarm

“F01” displayed on screen

The machine is not fed with water or insufficient water. Check:

+ Faucet is fully open and has enough water pressure.

+ Water inlet pipe is knotted or not.

+ Filtering net of water inlet pipe is blocked or not (refer to maintenance and repair). + Water pipe is frozen or not.

Press “Start/Pause” key after fault is removed.

If fault occurs again, please contact with after-sale service (refer to after-sale service.).

“F03” displayed on screen

The washer is not emptied. The washer stops the program being executed. Shut down the machine and disconnect power supply. Check:

+ Drain pipe is knotted or not. + Filter in drain pump is blocked or not (refer to the cleaning of filter in drain pump}

VAN IMPORTANT: Ensure that the water has cooled before draining the appliance.

+ the drain hose is frozen up. Plug in the appliance again.

Select and start the “Spin” programme or push the “Start/Pause” button for at least 3 seconds and restart the desired programme.

Ifthe fault occurs again, please contact After-Sales Service (see “After-Sales Service").

Fault code The washer stops when the program is running. The display window shows fault code “F13”, “F14","F24", else fault codes from “F04" to “F98" or “Unb”.

If fault code “F13” is shown

Door Lock is abnormal.

Start program for 20 sec and unlock the washer door (PTC] to check whether the door is closed. Open or close it again.

After fault is removed, press “Start/Pause” key. If fault occurs again, disconnect power supply and contact with after-sale service.

If fault code “F1 Door open fault. Action: Press “Start/Pause” button. The washing machine will try to open the door.

The alarm will not be removed until the door is unlocked. Or turn the nub to off for 3 seconds to turn off the machine. Choose the desired programmme to start the machine. The alarm will be removed.

If fault code “F24” is shown

Cleaning and maintenance

Water level reaches overflow level.

Remove it by pressing “Start/Pause” key and feed water.

Select and start required program. If fault occurs again, disconnect power supply and contact with after-sale service.

If else fault code “FO4” to “F98” is shown

Electronic module fails.

Turn the nub to Off for 3 seconds to turn off the machine.

After fault is removed, press “Start/Pause” key. If fault occurs again, disconnect power supply and contact with after-sale service.

If fault code “Unb” is shown

Unbalance alarm shall be solved by the following methods.

Turn the knob to “off” for 3 seconds for shutdown, open the door, shake the clothes and put them back into the washing machine, then select the single dewatering program to dry again. 2. Too light-weighted laundry

Turn the knob to “off” for 3 seconds for shutdown, open the door, put in one or two towels, and then select the single dewatering program to dry again.

Before contacting After-Sales Service:

1. Tryto remedy the problem yourself (see “Troubleshooting Guide").

2. Restart the programme to check whether the problem has solved itself.

3. Ifthe washing machine continues to function incorrectly, call After-Sales Service.

Never Lift the appliance by the worktop when transporting.

1... Pull out the mains plug.

3. Disconnect the inlet and drain hoses.

4. Eliminate all water from the hoses and from the appliance [see “Removing the Filter”, “Draining Residual Water").

Fit the transport bolts (obligatory).

5. 6. The machine is over 55 kg in weight, two persons are needed to move it.

Instructions relatives aux programmes

WARRANTY CONDITIONS This product is guaranteed against faults cau materials

warranty does not cover defec ge caused by failure to install the devi

correctly, incorrect use of the product, or e wear and tear.

*proof of purchase required.

CONDITION DE GARANTIE Ce produit est garanti pour une période de 2 ans à partir de la date d'achat*, contre toute défaillance résultant d'un vice de fabrication ou de matériau. Cette garantie ne
