Thank you for choosing this VALBERG product.

VALBERG products are chosen, tested, and recommended by ELECTRO DEPOT, so you can be sure you are getting a top-quality, easy-to-use product that won't let you down.

We're confident your new device will be a pleasure to use every day!

Welcome to ELECTRO DEPOT.

Table of Contents

Product overview

Parts

Specifications

Product usage

Installation

Operation

Cleaning and maintenance

Cleaning and maintenance

Trouble Shooting

Transport

Product Fiche

Parts

A Top cover
B Control panel
C Power supply cord
D Drum
E Drain hose
F Service flap

G Door
H Detergent dispenser
I Water supply hose

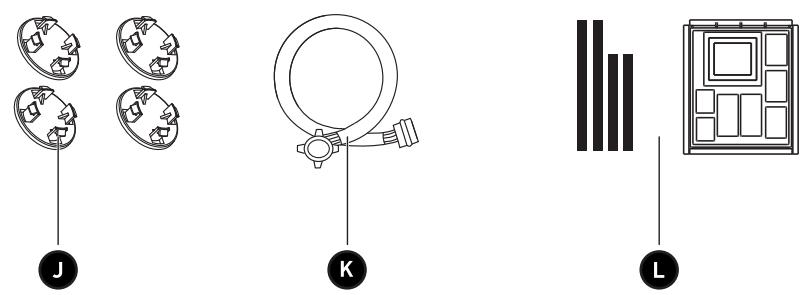

J 4 x Cover caps
K 1 x Supply hose cold water
L Acoustic sponge OR Acoustic panel

Note:

- The product picture is for illustration only, please refer to real product as reference.

Specifications

A B

C G D E F

Model:	WF 714 A W566CWF 714 A S566C	WF 814 A W566CWF 814 A S566C	WF 1214 A W566CWF 1214 A S566C
Power Supply:		220-240V~, 50Hz
MAX. Current:		10A
Standard Water Pressure:		0.05MPa ~ 1MPa
Washing Capacity:	7.0kg	8.0kg	12.0kg

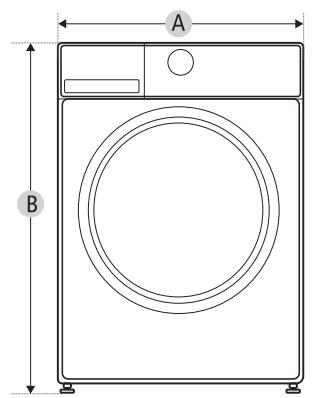

Dimension
A:	595mm	595mm	595mm
B:	850mm	850mm	850mm
C:	475mm	475mm	595mm
Weight:	63kg	63kg	76kg
Rated Power:	1900W	1900W	2000W

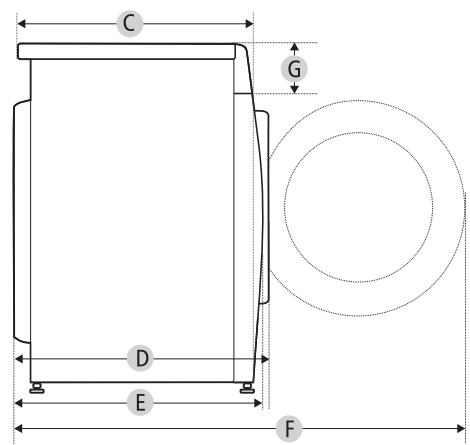

Reference Dimension
D:	540mm	540mm	659mm
E:	521mm	521mm	641mm
F:	985mm	985mm	1105mm
G:	135mm	135mm	135mm

Installation

Installation area

W W≥ 20mm

Simple line drawing of a box with a cross mark on the front panel (no text or symbols)

Warning!

• Stability is important to prevent the product from wandering! Make sure the machine is standing leveled and stable.
  • Make sure that the product does not stand onto the power cord.
• Make sure to maintain the minimum distances from the walls as shown in the picture.

Before installing the machine, the location characterized as follows shall be selected:

• Rigid, dry, and level surface
- Avoid direct sunlight
- Sufficient ventilation
• Room temperature is above 0°C
- Keep far away from the heat sources such as coal or gas burning appliances.

Unpacking the washing machine

Diagram showing a 3D box with an arrow pointing to a mechanical component, with an inset labeled 'a' highlighting a specific feature.

Warning!

• Packaging material (e.g. Films, Styrofoam) can be dangerous for children.
• There is a risk of suffocation! Keep all packaging well away from children.

1. Remove the cardboard box and styrofoam packing.
2. Lift the washing machine and remove the base packaging. Make sure the small triangle foam (a) is removed with the bottom packaging together. If not, lay the unit down on the side surface and remove it manually.

B

Product usage

1. Remove the tape securing the power supply cord and drain hose.
2. Remove the inlet hose from the drum.

Remove transport bolts

Warning!

- You must remove the transport bolts from the backside before using the product.

Diagram showing a wrench turning a mechanical component with an arrow indicating rotation (no text or symbols present)

Diagram showing a wrench turning a mechanical component with an arrow indicating rotation (no text or symbols present)

Simple line drawing with a curved arrow pointing to a circle, enclosed in a rectangular border (no text or symbols)

1. Loosen the 4 transport bolts with a spanner.
2. Remove the bolts including the rubber parts and keep them for future use.
3. Close the holes using the cover caps.

Levelling the washing machine

Warning!

• The lock nuts on all four feet must be screwed tightly against the housing.

Illustration of a hand using a tool to adjust or install a component, no text or symbols present

1. Loosen the lock nut.
2. Turn the foot until it reaches the floor.
3. Adjust the legs and lock the nuts with a spanner. Make sure the machine is level and steady.

Connect the water supply hose

Warning!

To prevent leakage or water damage, follow the instructions in this chapter.

- Do not kink, crush or modify water inlet hose.

Illustration of a person using a device to adjust or install a device, with an inset showing the magnified view of the device (no text or symbols present)

Diagram of a faucet with a valve and a valve assembly, showing directional arrows (no text or symbols)

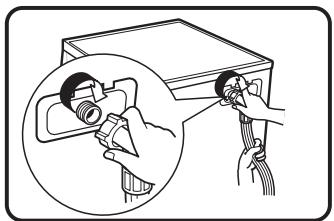

Connect the water supply hose to the water inlet valve and a water tap with cold water as indicated.

Note:

- Connect manually, do not use tools. Check if the connections are tight.

Drain Hose

Warning!

• Do not kink or protract the drain hose.
• Position drain hose properly, otherwise damage might result of water leakage.

There are two ways to place the end of drain hose:

water trough Max.100cm Min.60cm

Max.100cm Min.60cm Max.100cm

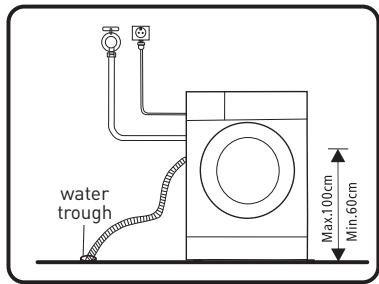

1. Put it into the water trough.

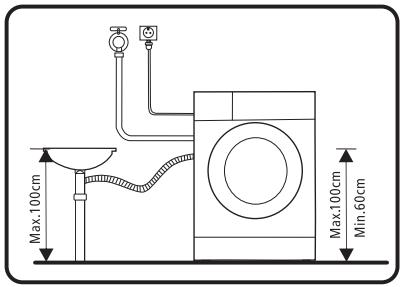

2. Connect it to the branch drain pipe of the trough.

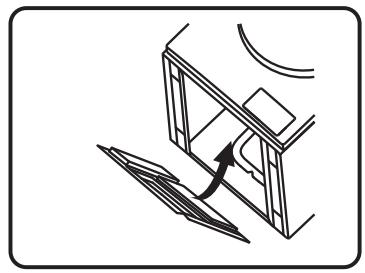

Acoustic Sponge / Panel

Note:

- Please make sure to assemble the acoustic sponges/panel, which can effectively reduce the noise caused by the machine while working, in order to provide you with a more peaceful and quiet living environment.

2x 2x

Diagram of a mechanical or architectural component with an arrow indicating direction, no text or symbols present

1. Get the machine laid on the floor, using some soft material like foam or clothes between the machine and floor for a protection;
2. Stick the longer sponges to the longer bottom edges of machine, and the shorter sponges to the shorter bottom edges, Installation of panel is same as sponges.
   • Acoustic Sponge: WF 1214 A W566C / WF 1214 A S566C
   • Acoustic Panel: WF 814 A W566C / WF 814 A S566C / WF 714 A W566C / WF 714 A S566C

Operation

Quick Start

Caution!

• Before washing, please make sure the washing machine is installed properly.
- Your appliance was thoroughly checked before it left the factory. To remove any residual water and to neutralize potential odors, it's recommended to clean your appliance before first use. For this reason, start the Cotton program at 90°C without laundry and detergent.

Calibration

It's recommended to calibrate the washing machine, so that provide the best performance. The appliance is able to detect the amount of laundry loaded. This function is optimizing the product performance by minimizing energy and water consumption, saving you money and time. For this reason it's recommended to calibrate the appliance for best use.

1. Remove all accessories from the drum and close the door;
2. Insert the mains plug to the socket;

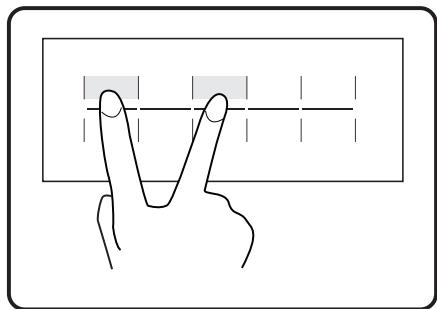

3. Switch on the washing machine and press "Boost" and "Temp." simultaneously for 10 seconds until "t19" is displayed;

Illustration of a hand pressing a button on a rectangular screen (no text or symbols)

1. Press [▷II] to start the appliance and wait till “****” is displayed.

- Before Washing

Illustration of a wall-mounted electrical socket connected to a plug, with an arrow indicating direction (no text or symbols)

①

Simple line drawing of a faucet with handle and valve (no text or symbols)

②

Simple line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

③

Diagram of a hand holding a coiled ring with an arrow indicating rotation (no text or symbols)

④

Simple line drawing of a ladder-like structure with a flower symbol, no text or labels present

⑤

1. Plug in
2. Open tap
3. Load
4. Close door
5. Add detergent

Note:

• Detergent need to be added in compartment I if the pre-wash function is selected.
• Do not put laundry beads into the detergent dispenser.

- Washing

Simple line drawing of a hand pressing a button on a square button (no text or symbols)

①

Simple diagram of a circular ring with curved arrows indicating rotation or direction (no text or symbols)

②

8:08

③

Hand pressing a button with a play symbol (no text or numbers present)

④

1. Power On
2. Select programme
3. Select function or remain default settings

4. Press Start/Pause to start the program

• After Washing

Buzzer beep and "End" on display.

Before Each Washing

• The ambient temperature of the washing machine should be 5-40°C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is installed under freezing conditions, it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose can unfreeze before use.
• Please check your laundry care labels and the detergent use instructions before wash. Use non-foaming or less-foaming detergent suitable for machine washing properly.

Simple line drawing of a sweater with a decorative tag (no text or symbols)

①

②

Diagram illustrating clothing turnover process with labeled parts and directional arrows indicating movement

③

Line drawing of two bags with circular designs, no text or symbols present

④

Simple line drawing of a money bag with a grid pattern and a small object inside (no text or symbols)

5

Line drawing of a traditional-style sweater with patterned collar and front shoulder (no text or symbols)

⑥

1. Check the care label
2. Sort laundry according to color and textile type
3. Take all items out of the pockets
4. Tie together long textile strips and belts, close zips and button
5. Put small items into a laundry bag
6. Turn easy-pilling and long-pile fabric inside out

Warning symbol with exclamation mark inside a triangle on black background

Warning!

• When washing a single clothes, it may easily cause great eccentricity and give alarm due to great unbalance. Therefore it is suggested to add one or two more clothes to be washed together so that draining can be done smoothly.
• Do not wash items that have been cleaned in, washed in or soaked in combustible or explosive substances such as wax, petroleum, paint, gasoline, alcohol, kerosene and other flammable substances, or if items may have been sprinkled with any of these substances.
• Do not wash, spin, or dry water-proof seats, mats, or clothing.

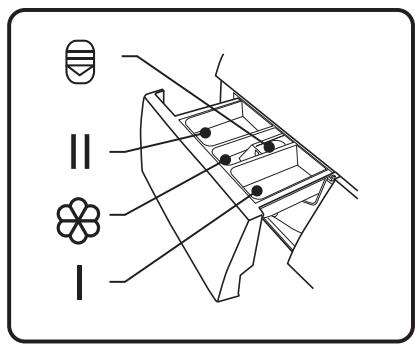

Detergent Dispenser

Technical diagram of a boat hull with labeled components and symbols

I	Pre wash
II	Main wash
	Softener

Release button to pull out the dispenser

Caution!

• Detergent only need to be added in “compartment I” after selecting pre-wash function.
• Do not put laundry beads into the detergent dispenser.

Programme	I	II /◇	◇
Cotton	○	●	○
Synthetic	○	●	○
Mix	○	●	○
Baby Care	○	●	○
Sports	○	●	○
Jeans	○	●	○
Quick 45'/15'		●	○
Steam Hygiene	○	●	○
ECO _60^40 °C ECO 40-60		●	○
20°C 20°C		●	○
Wool		●	○
Spin Only

Drum Clean

● Means must ○ Means optional

Detergent Recommendation

Recommended washing detergent	Wash cycles	Washing temp.	Type of laundry and textile
Heavy-duty detergent with bleaching agents and optical brighteners	Cotton, ECO 40-60, Mix	40/60/90	White laundry made from boil-proof cotton or linen
Colour detergent without bleaching agent and optical brighteners	Cotton, ECO 40-60, Mix, Sports	20/30/40	Coloured laundry made from cotton or linen
Color or mild detergent without optical brighteners	20°C	20	Coloured laundry made from easy care fibres or synthetic materials
Mild washing detergent	Delicate	20/30	Delicate textiles, silk, viscose

Note:

• Agglomerating or ropy detergent or additive can be diluted in some water before pouring it into the detergent dispenser, to avoid its inlet to get blocked and thus cause a water overflow.
• Please choose the suitable type of detergent to get a maximum of washing performance and a minimum of water and energy consumption
  • To achieve the best cleaning result a proper detergent dosing is important.
  • Use a reduced detergent amount if the drum is not filled completely.
• Always adjust the amount of detergent to the water hardness, if your tap water is soft, use less detergent.
• Dose according to how dirty your laundry is, less dirty clothes require less detergent.
  • Highly concentrated (compact detergent) requires particularly accurate dosing.

Following symptoms are a sign of detergent overdosing:

• heavy foam formation
• poor washing and rinsing result

Following symptoms are a sign of detergent underdosing:

• laundry turns grey
• built-up of limescale deposits on the drum, the heating element and/or the laundry

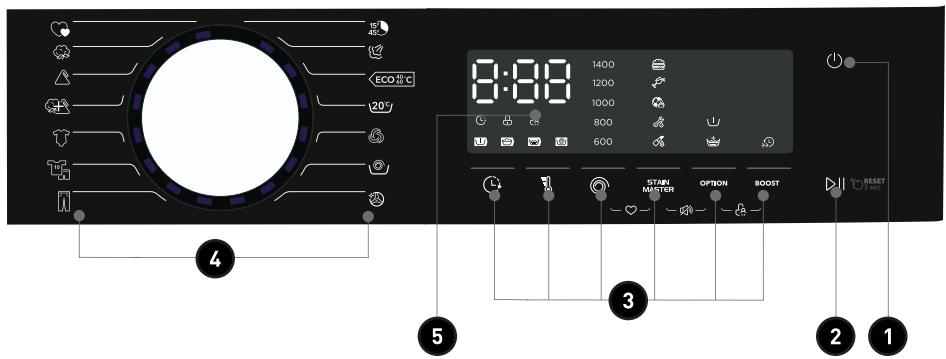

Control Panel

15 45 Eco C 20° 8:00 1400 1200 1000 800 600 STAIN MISTER OPTION BOOST RESET sec 2 1 3 5 4

1	Power	Product is on/off.
2	Start/Pause	Press the button to start or pause the washing cycle.
3	Option	This allows you to select an additional function and will light when selected.
4	Programmes	Available according to the laundry type.
5	Display	The display shows the settings, estimated time remaining, options, and status messages for your washer. The display will remain on through the cycle.

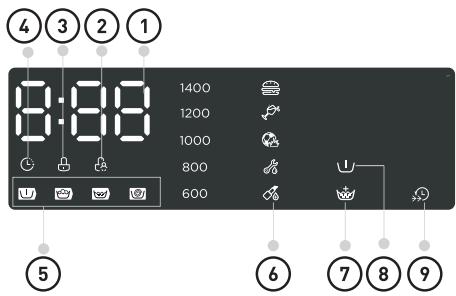

8:08' 1400 1200 1000 800 600 ④ ③ ② ① ⑤ ⑥ ⑦ ⑧ ⑨

1	Display
	Wash Time	125
	Delay Time	2H
	Speed	400
	Error	E30
	End	End
	Temp	30

2	Child Lock

3	Door Lock
4	Delay
5	Pre Wash-Wash-Rinse-Spin
6	Stain Master
7	Extra Rinse
8	Pre Wash
9	Boost

Programmes
Model: WF 714 A W566C; WF 714 A S566C; WF 814 A W566C; WF 814 A S566C; WF 1214 A S566C; WF 1214 A W566C

Programme	Load(kg)			Default Time
	7.0	8.0	12.0	7.0	8.0	12.0
Quick 45'/15'	2.0	2.0	2.0	0:45	0:45	0:45
Steam Hygiene	3.5	4.0	6.0	2:28	2:28	2:28
ECO _60^40 °C ECO 40-60	7.0	8.0	12.0	3:28	3:38	4:00
^20 °C 20°C	3.5	4.0	6.0	1:01	1:01	1:01
Wool	2.0	2.0	2.0	1:07	1:07	1:07
Spin Only	7.0	8.0	12.0	0:12	0:12	0:12
Drum Clean	-	-	-	1:18	1:18	1:18
Jeans	7.0	8.0	12.0	1:35	1:35	1:35
Sports	3.5	4.0	6.0	0:47	0:47	0:47
Baby Care	7.0	8.0	12.0	2:01	2:01	2:01
Mix	7.0	8.0	12.0	1:20	1:20	1:20
Synthetic	3.5	4.0	6.0	3:18	3:18	3:18
Cotton	7.0	8.0	12.0	3:39	3:39	3:39

• Cotton, Mix, Synthetic are auto Weighting programs. When these 3 programs are selected, the washing machine will automatically adjust the appropriate water level and wash time according to the weight of the laundry during the washing process.

WF 714 A W566C / WF 714 A S566C

Cycle	Nominal capacity in kg	Temperature setting	Cycle duration in hours and minutes	Energy consumption in kWh/operalling cycle	Water consumption in liter/operalling cycle	Highest temperature ^^(1)	Residual moisture in %/ spin speed in rpm ^(2)
^20^ 20°C	3.5	20	1:01	0.177	41	20	65%/1000
Cotton	7.0	60	3:44	1.392	65	60	53%/1400
Baby Care	7.0	60	2:01	1.212	65	60	65%/1000
Mix	7.0	40	1:20	0.696	65	40	65%/1000
Mix 60°C	7.0	60	1:30	1.158	65	60	65%/1000
Quick 45'/15'	2.0	20	0:45	0.131	31	20	70%/800
ECO ^40^ ECO 40-60 ^(3)	7.0	-	3:28	0.645	54.0	36	53.9%/1350
	3.5	-	2:42	0.389	45.0	29	53.9%/1350
	2.0	-	2:42	0.214	32.0	23	53.9%/1350

• The above data is for reference only, and the data may change due to different actual use conditions.
  • The valves given for programmes other than the ECO 40-60 programme are indicative only.
• Compliant to EN 60456:2016+A11:2020 With (EU) 2019/2014, (EU) 2019/2023, (EU) 2021/340, (EU) 2021/341,

The EU energy efficiency class is: A

Energy test program: ECO 40-60. Other as the default.

Half load for 7.0kg machine: 3.5kg.

Quarter load for 7.0kg machine: 2.0kg.

WF 814 A W566C / WF 814 A S566C

Cycle	Nominal capacity in kg	Temperature setting	Cycle duration in hours and minutes	Energy consumption in kWh/operalling cycle	Water consumption in liter/operalling cycle	Highest temperature ^^(1)	Residual moisture in %/ spin speed in rpm ^(2)
^20^ 20°C	4.0	20	1:01	0.183	44	20	65%/1000
Cotton	8.0	60	3:44	1.498	71	60	53%/1400
Baby Care	8.0	60	2:01	1.317	71	60	65%/1000
Mix	8.0	40	1:20	0.754	71	40	65%/1000
Mix 60°C	8.0	60	1:30	1.263	71	60	65%/1000
Quick 45'/15'	2.0	20	0:45	0.131	31	20	70%/800
ECO ^40^ ECO 40-60 ^(3)	8.0	-	3:38	0.752	61	39	53.9%/1350
	4.0	-	2:48	0.412	45	30	53.9%/1350
	2.0	-	2:48	0.216	36	23	53.9%/1350

• The above data is for reference only, and the data may change due to different actual use conditions.
  • The valves given for programmes other than the ECO 40-60 programme are indicative only.
• Compliant to EN 60456:2016+A11:2020 With (EU) 2019/2014, (EU) 2019/2023, (EU) 2021/340, (EU) 2021/341,

The EU energy efficiency class is: A

Energy test program: ECO 40-60. Other as the default.

Half load for 8.0kg machine: 4.0kg.

Quarter load for 8.0kg machine: 2.0kg.

WF 1214 A W566C / WF 1214 A S566C

Cycle	Nominal capacity in kg	Temperature setting	Cycle duration in hours and minutes	Energy consumption in kWh/operalling cycle	Water consumption in liter/operalling cycle	Highest temperature ^^(1)	Residual moisture in %/ spin speed in rpm ^(2)
^20^ 20°C	6.0	20	1:01	0.206	58	20	65%/1000
Cotton 60°C	12.0	60	3:44	1.919	99	60	53%/1400
Mix	12.0	40	1:20	0.988	99	40	65%/1000
Mix 60°C	12.0	60	1:30	1.684	99	60	65%/1000
Quick 45'/15'	2.0	20	0:45	0.131	31	20	75%/800
ECO ^40^ ECO 40-60 ^(3)	12.0	-	4:00	1.186	84.0	44	53.9%/1350
	6.0	-	3:00	0.618	58.0	32	53.9%/1350
	3.0	-	3:00	0.253	45.0	22	53.9%/1350

• The above data is for reference only, and the data may change due to different actual use conditions.
  • The valves given for programmes other than the ECO 40-60 programme are indicative only.
• Compliant to EN 60456:2016+A11:2020 With (EU) 2019/2014, (EU) 2019/2023, (EU) 2021/340, (EU) 2021/341,

The EU energy efficiency class is: A

Energy test program: ECO 40-60. Other as the default.

Half load for 12.0kg machine: 6.0kg.

Quarter load for 12.0kg machine: 3.0kg.

Programmes

Programmes are available according to the laundry type.

Programmes
Cotton	Hard-wearing textiles, heat-resistant textiles made of cotton or linen.
Synthetic	Wash synthetic articles, for example: shirts, coats, blending. While washing the knitting textiles, detergent quantity shall be reduced due to its loose string construction and easily forming bubbles.
Baby Care	Washing the baby's clothes, it can make the baby's wear cleaner and make the rinse performance better to protect the baby skin.
Mix	Mixed load consisting of textiles made of cotton and synthetics.
20°C 20°C	20°C default, can choose cold water.
ECO 40°C ECO 40-60	Default 40°C, not selectable, suitabale for laundry washing at about 40°C - 60°C.
Steam Hygiene	Steam is applicable for daily laundries.The steam can deeply penetrate the fiber, which effectively eliminate bacterias and germs, preventing odors and protecting your health.
Quick 45'/15'	This procedure defaults to 45', press the "Boost" to switch to 15', which is suitable for washing few and not very dirty clothes quickly. Sometimes, after the quick 15' procedure is completed, the moisture content of clothes is high.
Jeans	Specially for jeans.
Sports	Washing the activewear.
Drum Clean	Specially set in this machine to clean the drum and tube. It applies 90 °C high temperature sterilization to make the clothes washing more green. When this programme is performed, the clothes or other washing cannot be added. When proper amount of chlorine bleaching agent is put in, the barrel cleaning effect will be better. The customer can use this programme regularly according to the need.
Wool	Hand or machine-washable wool or richwool textiles. Especially gentle wash programme to prevent shrinkage, longer programme pauses (textiles rest in wash liquor).
Spin Only	Extra spin with selectable spin speed.

B

Product usage

^[1] The highest temperature reached by the laundry in the wash cycle for at least 5 minutes.
^(2) Residual moisture after the wash cycle in water content percent and the spin speed at which this was achieved.
(3) The ECO 40-60 programme is able to clean normally soiled cotton laundry declared to be washable at 40^ C or 60^ C, together in the same cycle. This programme is used to assess the compliance with the regulation (EU) 2019/2014, (EU) 2019/2023, (EU) 2021/340, (EU) 2021/341.

The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration.

Loading the household washing machine up to the capacity indicated for the respective programmes will contribute to energy and water savings.

Noise and remaining moisture content are influenced by the spinning speed: the higher the spinning speed in the spinning phase, the higher the noise and the lower the remaining moisture content.

Caution!

- If there is any break in the power supply while the machine is operating, a special memory stores the selected programme. The machine will continue the programme when the power supply is re-established.

Option

Model: WF 714 A W566C; WF 714 A S566C; WF 814 A W566C; WF 814 A S566C; WF 1214 A S566C; WF 1214 A W566C

Cycle	Default Temp. (°C)	Default spin speed in rpm	Additional functions
Wash cycles		1400
^15 Quick 45'/15'	20	800
Steam Hygiene	60	1000
ECO_60^40°C ECO 40-60	-	1400
^20°C 20°C	20	1000
Wool	40	600
Spin Only	-	1000

Brands1	Drum Clean	90	-
[75V8]	Jeans	30	800
[75V9]	Sports	20	800
	Baby Care	60	1000
[OK30]	Mix	40	1000
	Synthetic	40	1200
[OSSA]	Cotton	40	1400

Note:

• For the maximum spin speed, program time, and other details of the ECO 40-60 program, please refer to the content on the Product Fiche page.
• The table shows which cycle offers which options for adjustment. It also indicates if a setting is not available for a program.

Temp.

When needed, the washing temperature can be adjusted by pressing the temperature button in the following steps:

Cold - 20°C - 30°C - 40°C - 60°C - 90°C.

Spin

When needed, the spinning speed can be adjusted pressing the Speed button in the following steps:

1400: 0-600-800-1000-1200-1400

1500: 0-400-600-800-1000-1200-1500

Delay

1. Select a programme
2. Press the Delay button to choose the delaying time 0-24h
3. Press [Start/Pause] to start the delay operation

Choose programme

Setting time

Start

To cancel the Delay function, press the “Delay” button before starting the program until the display shows 0 h. If the program has already started, switch the appliance off and afterwards on and select a new programme.

Pre Wash

Extra washing function before the main washing cycle starts to increase the washing performance. Note: Detergent needs to be added to the compartment I.

Extra Rinse

The laundry will undergo an extra rinse after selecting this function.

Boost

The function can decrease the washing time.

STAIN MASTER

Stain Master

Stain Master offers specific treatments for five scenarios (Food, Drinks, Sports & Fitness, Outdoor & Workers, Health & Beauty) to professionally solve according laundry problems.

STAIN MASTER	Scenarios	Wash Cycles	Typical stain
	Food	Cotton, Synthetics, Mix, Baby Care, Jeans	Fresh Vegetables, Fresh Juice, Food Sauce
	Drinks	Cotton, Synthetics, Mix, Baby Care	Red wine, hot drink, soft drink
	Sports & Fitness	Cotton, Synthetics, Mix, Sports	Grass Stains, Dust, Sweat Stains
	Outdoor & Workers	Cotton, Synthetics, Mix, Sports, Jeans	Grease, Mud Stain, Carbon Pigment
	Health & Beauty	Cotton, Synthetics, Mix	Cosmetics, Blood, Drugs

My Cycle

To memory the frequently used programme.

STAIN MASTER

After choosing the programme and setting the options, press [Spin] and [Stain Master] button 3 sec. before start to wash. The default setting course is Cotton.

Child Lock

This function is meant to keep children from misusing the controls.

OPTION

BOOST

Press [Option] and [Boost] simultaneously for 3 sec until the buzzer beep. The child lock indicator switches on.

Caution!

• When the Child Lock is activated, the display will alternately show “CL” and the remaining time.
• Pressing any other button will cause the Child Lock indicator to flash.
• When the program ends, “Cl” and “END” will alternate on the display.
• The Child Lock deactivates the function of all buttons except the On/Off button and the Child lock button!
• Only the simultaneous pressing of the two buttons [Boost] and [Options] can deactivate the Child Lock!
• Please deactivate the Child Lock before selecting a new program!

Mute the buzzer

Choose programme

STAIN MASTER

OPTION

Press the [Stain Master] and [Option]

button for 3sec., the buzzer is mute.

To act the buzzer function, press the button again for 3 seconds. The setting will be kept until the next reset.

Caution!

• After Muting the buzzer function, the sounds will not be activated any more.

RESET

3 sec.

Reload

This operation can be executed during the washing progress. When the drum is still rolling and there is large amount of water with high temperature in the drum. The state is unsafe and the door cannot be opened forcefully. To press [Start/Pause] for 3 sec. to reload, and start the clothes adding in the midway function. Please follow the steps as bellow:

1. Wait until the drum stops rotation.
2. The door lock is unlocked.
3. Close the door when the clothes are reloaded and press the [DII] button.

Press[▷II]3sec.

Clothes

Reload the clothes

Start

Caution!

- Don't use the Reload function when the water level over the edge of the inner tub or the temperature is higher.

Note:

Usage counter

1. Unplug the equipment for 10s and reconnect again.
2. Power on and within 10s, please press [Delay] and [Boost] on control panel simultaneously and continuously for around 5s until the device display shows digits -- the value can indicate the times of equipment usage.
3. Repeat step 1 again and customer can resume to normal operation.

Cleaning and maintenance

Warning!

- Always unplug the appliance and close the water tap before cleaning and maintenance.

Cleaning the Cabinet

Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use a cloth to wipe it off immediately. Never use sharp items to clean the appliance.

Line drawing of a hand cleaning a washing machine (no text or symbols)

Caution!

- Never use abrasive or caustic agents. formic acids or its diluted solvents or similar substances, like alcohol or chemical products.

Cleaning the Drum

Any rust stains left inside the drum by metal articles must be removed immediately using chlorine-free detergents. Never use steel wool for cleaning the drum!

Note:

- Keep any laundry away from the machine while cleaning the drum.

Cleaning the Door Seal and Glass

Wipe the glass and seal after each wash to remove lint and stains. If lint builds up it can cause leakages.

Remove any coins, buttons and other objects from the seal after each wash.

Clean the Door Seal and Glass every month to ensure the normal operation of the appliance.

Line drawing of a hand gripping a curved object (no text or symbols)

Cleaning the Inlet Filter

Note:

- Diminishing water flow is a sign that the filter need to be cleaned.

Diagram showing a valve mechanism with rotating arrows and a base component (no text or symbols)

①

Line drawing of a hand holding a tool with a screwdriver inserted (no text or symbols)

②

Illustration of a hand holding a tool with a circular inset showing a mechanical component (no text or symbols)

③

Simple line drawing of a mechanical device with a circular component and handle (no text or symbols)

④

1. Close the tap and remove the water supply hose from it.
2. Clean the filter with a brush.
3. Unscrew the water supply hose from the backside of the machine. Pull out the filter with long nose pliers.
4. Use a brush to clean the filter.
5. Reinstall the filter to the water inlet and reconnect the water supply hose.
6. Clean the Inlet filter every 3 months to ensure the normal operation of the appliance.

Clean The Detergent Dispenser

Technical line drawing of a mechanical assembly with no visible text or symbols

①

Line drawing of a person standing on a boat hull with no text or symbols

②

Line drawing of a hand inserting a small object into a container (no text or symbols)

③

Technical line drawing of a mechanical component with no visible text or symbols

④

1. Press down the release [☐] on the softener cover and pull the dispenser drawer out of the recess.
2. Lift the softener cover off the dispenser drawer and wash both items with water.
3. Clean the inside of the recess with a brush.
4. Restore the softener cover and push the drawer back into the recess.

Note:

• Do not use abrasive or caustic agents to clean plastic parts.
• Clean the detergent dispenser every 3 months to ensure the normal operation of the appliance.

Cleaning the Drain Pump Filter

Warning!

• Make sure that the machine has finished the washing cycle and is empty. Switch it off and unplug it before cleaning the drain pump filter.
• Be careful of hot water. Allow the water to cool down. Risk of scalding!
• Clean the filter periodically every 3 months to ensure the normal operation of the appliance.

C

Cleaning and maintenance

Simple line drawing of a mechanical component with a circular feature and rotation arrow (no text or symbols)

①

Simple line drawing of a switch and panel with a circular dial (no text or symbols)

②

Simple line drawing of a kitchen appliance with a plate, spoon, and bowl (no text or symbols)

③

Hand holding a rotary knob on a control panel (no text or symbols visible)

④

Diagram showing a switch mechanism with labeled components and directional arrows indicating action

5

Diagram of a mechanical assembly with rotating components and directional arrows (no text or symbols)

⑥

1. Open the lower cover cap.
2. Rotate 90° and pull out the emergency drain hose, and take off the hose cap.
3. After water runs out, reset the drain hose.
4. Open the filter by turning to the counter clockwise.
5. Remove extraneous matter.
6. Close the lower cover cap.

Caution!

• Make sure that valve cap and emergency drain hose are reinstalled properly, cap plates should be inserted aligning to hole plates otherwise water may leak.
• Some machines don't have emergency drain hose, so step 2 and step 3 can be skipped. Rotate lower cover cap directly to make water run into basin.
• When the appliance is in use and depending on the programme selected there can be hot water in the pump. Never remove the pump cover during a wash cycle, always wait until the appliance has finished the cycle, and is empty. When replacing the cover, ensure it is securely re-tightened.

Trouble Shooting

Whenever there is a problem with the appliance, check if you can solve it following the tables below. If the problem persists, please contact the customer service.

Description	Possible cause	Solution
Appliance does not start	Door is not closed properly.Clothes are stuck.	Close the door properly and restart.Check the laundry.
Door can't be opened	Safety protection is activated.	Disconnect the power and restart.
Water leakage	Connections are not tight enough.	Check and fasten the water inlet pipe.Check and clean the outlet hose.
Detergent residues in the detergent dispenser	Detergent is damp and/or clotted.	Clean and wipe the detergent dispenser dry.
Indicator or display does not work	PC board or harness have connection problems.	Switch off the power and check if the mains plug is connected properly.
Abnormal noise	Fixing bolts still in place.Floor is not solid or level.	Check if the fixing bolts have been removed.Make sure the appliance is installed on a solid and level floor.

Error Codes

E30	Door is not closed properly	Close the door properly and restart.
E10	Water injecting problem during wash cycle.	Check if the water pressure is high enough.Straighten the water pipe.Clean the inlet valve filter.
E21	Overtime water draining	Check the drain hose for blockage.
E12	Water overflow	Restart the appliance
EXX	Others	Restart the appliance. If problem persists, please contact the customer service.

Warning!

Risk of electric shock

• Never try repair an appliance which is defective of presumed to be defective. You may put your own and future users' lives in danger. Only authorised specialists are allowed to carry out this repair work.
• Improper repair will void the warranty and subsequent damages can't be recognised!

Transport

IMPORTANT STEPS WHEN MOVING THE APPLIANCE

• Unplug the appliance and close the water inlet tap.
- Check, if the door and the detergent dispenser are closed properly.
- Remove the water inlet pipe and the outlet hose from the house installations.
- Let the water drain completely from the appliance (see «Maintenance Cleaning the drain pump filter»).
- Important: Re-install the 4 transport bolts in the back of the appliance.
- This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door cannot be used as a handle.

Product Fiche

Supplier's name or trade mark ^(a),(c) :

Supplier's address ^(a),(c) :

Model identifier ^(a) : WF 714 A W566C / WF 714 A S566C

General product parameters:

Parameter	Value		Parameter	Value
Rated capacity(b) (kg)	7.0		Dimensions in cm(a),(c)	Height 85
				Width 60
				Depth 48
Energy efficiency index(b) (EEIw)	51.5		Energy efficiency class(b)	A(d)
Washing efficiency index(b)	1.031		Rinsing effectiveness (g/kg)(b)	5.0
Energy consumption in kWh per cycle, based on the eco 40-60 programme. Actual energy consumption will depend on how the appliance is used.	0.444		Water consumption in litre per cycle, based on the eco 40-60 programme. Actual water consumption will depend on how the appliance is used and on the hardness of the water.	45
Maximum temperature inside the treated textile(b) (°C)	Rated capacity	36	Weighted remaining moisture content(b) (%)	53.9
	Half	29
	Quarter	23
Spin speed(b) (rpm)	Rated capacity	1350	Spin-drying efficiency class(b)	B(d)
	Half	1350
	Quarter	1350
Programme duration(b) (h:min)	Rated capacity	3:28	Type	free-standing
	Half	2:42
	Quarter	2:42

Product Fiche

Airborne acoustical noise emissions in the spinning phase[a] (dB(A) re 1 pW)	72	Airborne acoustical noise emission class[b] (spinning phase)	A^(d)
Off-mode (W) (if applicable)	0.50	Standby mode (W) (if applicable)	N/A
Delay start (W) (if applicable)	4.00	Networked standby (W) (if applicable)	N/A

Minimum duration of the guarantee offered by the supplier ^(a),(c) :

This product has been designed to release silver ions during the washing cycle

NO

Additional information:

Weblink to the supplier's website, where the information in point 9 of Annex II to Commission Regulation (EU) 2019/2023 (1) is found:

(a) this item shall not be considered relevant for the purposes of Article 2(6) of Regulation (EU) 2017/1369.
(b) for the eco 40-60 programme.
(c) changes to this item shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.
^[d] if the product database automatically generates the definitive content of this cell the supplier shall not enter these data.

Supplier's name or trade mark ^(a),(c) :

Supplier's address ^(a),(c) :

Model identifier ^(a) : WF 814 A W566C / WF 814 A S566C

General product parameters:

Parameter	Value		Parameter	Value
Rated capacity(b) (kg)	8.0		Dimensions in cm(a),(c)	Height 85
				Width 60
				Depth 48
Energy efficiency index(b) (EEIw)	51.9		Energy efficiency class(b)	A(d)
Washing efficiency index(b)	1.031		Rinsing effectiveness (g/kg)(b)	5.0
Energy consumption in kWh per cycle, based on the eco 40-60 programme. Actual energy consumption will depend on how the appliance is used.	0.472		Water consumption in litre per cycle, based on the eco 40-60 programme. Actual water consumption will depend on how the appliance is used and on the hardness of the water.	48
Maximum temperature inside the treated textile(b) (oC)	Rated capacity	39	Weighted remaining moisture content(b) (%)	53.9
	Half	30
	Quarter	23
Spin speed(b) (rpm)	Rated capacity	1350	Spin-drying efficiency class(b)	B(d)
	Half	1350
	Quarter	1350
Programme duration(b) (h:min)	Rated capacity	3:38	Type	free-standing
	Half	2:48
	Quarter	2:48
Airborne acoustical noise emissions in the spinning phase(a) (dB(A) re 1 pW)	72		Airborne acoustical noise emission class(b) (spinning phase)	A(d)
Off-mode (W)(if applicable)	0.50		Standby mode (W)(if applicable)	N/A
Delay start (W)(if applicable)	4.00		Networked standby(W) (if applicable)	N/A

Minimum duration of the guarantee offered by the supplier ^(a),(c) :

This product has been designed to release silver ions during the washing cycle

NO

Additional information:

Weblink to the supplier's website, where the information in point 9 of Annex II to Commission Regulation (EU) 2019/2023 (1) is found:

^[a] this item shall not be considered relevant for the purposes of Article 2(6) of Regulation (EU) 2017/1369.
(b) for the eco 40-60 programme.
^[c] changes to this item shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.
^[d] if the product database automatically generates the definitive content of this cell the supplier shall not enter these data.

Supplier's name or trade mark ^(a),(c) :

Supplier's address ^(a),(c) :

Model identifier ^(a) : WF 1214 A W566C / WF 1214 A S566C

General product parameters:

Parameter	Value		Parameter	Value
Rated capacity(b) (kg)	12		Dimensions in cm(a),(c)	Height 85
				Width 60
				Depth 60
Energy efficiency index(b) (EEIw)	52.0		Energy efficiency class(b)	A(d)
Washing efficiency index(b)	1.031		Rinsing effectiveness (g/kg)(b)	5.0
Energy consumption in kWh per cycle, based on the eco 40-60 programme. Actual energy consumption will depend on how the appliance is used.	0.544		Water consumption in litre per cycle, based on the eco 40-60 programme. Actual water consumption will depend on how the appliance is used and on the hardness of the water.	57
Maximum temperature inside the treated textile(b) (oC)	Rated capacity	44	Weighted remaining moisture content(b) (%)	53.9
	Half	32
	Quarter	22
Spin speed(b) (rpm)	Rated capacity	1350	Spin-drying efficiency class(b)	B(d)
	Half	1350
	Quarter	1350
Programme duration(b) (h:min)	Rated capacity	4:00	Type	free-standing
	Half	3:00
	Quarter	3:00
Airborne acoustical noise emissions in the spinning phase(a) (dB(A) re 1 pW)	80		Airborne acoustical noise emission class(b) (spinning phase)	C(d)
Off-mode (W)(if applicable)	0.50		Standby mode (W)(if applicable)	N/A
Delay start (W)(if applicable)	4.00		Networked standby(W) (if applicable)	N/A

Minimum duration of the guarantee offered by the supplier ^(a),(c) :

This product has been designed to release silver ions during the washing cycle

NO

Additional information:

Weblink to the supplier's website, where the information in point 9 of Annex II to Commission Regulation (EU) 2019/2023 (1) is found:

^[a] this item shall not be considered relevant for the purposes of Article 2(6) of Regulation (EU) 2017/1369.
(b) for the eco 40-60 programme.
^[c] changes to this item shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.
^[d] if the product database automatically generates the definitive content of this cell the supplier shall not enter these data.

• The actual energy consumption will depend on how the appliance is used.
- The actual water consumption will depend on how the appliance is used and on the hardness of the water.

Product Data Sheet concerning (EU) (EU) 2019/2014, (EU) 2019/2023, (EU)2021/340, (EU) 2021/341.

The product data sheet for your appliance can be found online. Go to https://eprel.ec.europa.eu and enter the model identifier for your appliance to download the data sheet.

The model identifier for your appliance can be found in the technical specifications section.

Bedankt!

C G D E F

Model:	WF 714 A W566CWF 714 A S566C	WF 814 A W566CWF 814 A S566C	WF 1214 A W566CWF 1214 A S566C
Voeding:		220-240V~, 50Hz
MAX. Stroom:		10A
Standaard waterdruk:		0,05MPa ~ 1MPa
Wascapaciteit:	7,0 kg	8,0 kg	12,0 kg
Afmetingen
A:	595mm	595mm	595mm
B:	850mm	850mm	850mm
C:	475 mm	475 mm	595mm
Gewicht:	63kg	63kg	76kg
Nominaal vermogen:	1900W	1900W	2000W
Referentie-afmetingen
D:	540mm	540mm	659mm
E:	521mm	521mm	641mm
F:	985mm	985mm	1105mm
G:	135mm	135mm	135mm

Installatie

Installatieruimte

W W≥ 20mm

Simple line drawing of a box with a cross mark on the front panel (no text or symbols)

Waarschuwing!

Diagram showing a box with an open lid and a magnified view of a device labeled 'a' (likely part of the diagram)

Waarschuwing!

Illustration of a wrench turning a tire with an arrow indicating rotation (no text or symbols)

Diagram showing a wrench turning a mechanical component with an arrow indicating rotation (no text or symbols present)

Simple line drawing with a curved arrow pointing to a circle, enclosed in a rectangular border (no text or symbols)

Illustration of a hand using a tool to lift a curved object, no text or symbols present

Illustration of a person using a device to adjust or install a device, with an inset showing the magnified view of the device (no text or symbols present)

Diagram of a faucet with a valve and a valve assembly, showing directional arrows (no text or symbols)

Diagram of a mechanical or architectural component with an arrow indicating direction, no text or symbols present

Warning symbol with exclamation mark inside a triangle on black background

Voorzichtig!

Illustration of a hand pressing a button on a rectangular screen (no text or symbols)

Illustration of a wall socket connected to a plug, with an arrow indicating direction (no text or symbols)

①

Simple line drawing of a faucet with handle and valve (no text or symbols)

②

Simple line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

③

Diagram of a hand holding a coiled ring with an arrow indicating rotation (no text or symbols)

④

Simple line drawing of a ladder with a flower symbol and label 'I' (no text or symbols present)

⑤

Simple line drawing of a hand pointing at a square button with an exclamation mark (no text or symbols)

①

Simple diagram of a circular ring with curved arrows indicating rotation or direction (no text or symbols)

②

8:08

③

Hand pressing a button with a play symbol (no text or numbers present)

④

Simple line drawing of a sweater with a tag and decorative elements (no text or symbols)

①

Illustration of a bag being folded with a handle, showing step-by-step folding (no text or symbols)

②

Diagram illustrating clothing turnover process with labeled parts and directional arrows indicating movement

③

Two handbags with circular designs, one open and one closed, shown in line drawing style (no text or symbols)

④

Simple line drawing of a money bag with a grid pattern and a small object inside (no text or symbols)

⑤

Line drawing of a traditional-style sweater with patterned collar and front shoulder (no text or symbols)

6

Technical diagram showing a mechanical component with labeled parts and symbols including a striped symbol, double-headed arrow, and a flower.

Line drawing of a hand washing a washing machine with a cloth (no text or symbols)

Voorzichtig!

Line drawing of a hand gripping a curved object (no text or symbols)

Diagram showing a mechanical component with rotational arrows indicating motion (no text or symbols)

①

Illustration of a hand holding a tool with a brush (no text or symbols)

②

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

③

Line drawing of a hand holding a tennis racket near a table (no text or symbols)

4

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

①

Line drawing of a person standing on a wooden shelf with shelves and legs (no text or symbols)

②

Illustration of a hand using a tool to remove or remove a dark object into a container (no text or symbols)

③

Technical line drawing of a mechanical component with no visible text or symbols

4

Simple line drawing of a mechanical component with a circular feature and an arrow indicating rotation (no text or symbols)

①

Simple line drawing of a device with a dial and a button, no text or symbols present

②

Line drawing of a kitchen appliance with a sink, bowl, and scale (no text or symbols)

③

Hand holding a rotary knob on a control panel (no text or symbols visible)

4

Diagram showing a switch mechanism with labeled components and directional arrows indicating action

⑤

Technical line drawing of a mechanical assembly with rotating components (no text or symbols)

⑥

C G D E F

Modelo:	WF 714 A W566CWF 714 A S566C	WF 814 A W566CWF 814 A S566C	WF 1214 A W566CWF 1214 A S566C
Fuente dealimentación:		220-240V~, 50Hz
Corriente máx.:		10A
Presión de aguaestándar:		0,05 MPa ~ 1 MPa
Capacidad delavado:	7,0 kg	8,0 kg	12,0 kg
Dimensiones
A:	595 mm	595 mm	595 mm
B:	850 mm	850 mm	850 mm
C:	475 mm	475 mm	595 mm
Peso:	63 kg	63 kg	76 kg
Potencia nominal:	1900W	1900W	2000W
Dimensión de referencia
D:	540 mm	540 mm	659 mm
E:	521 mm	521 mm	641 mm
F:	985 mm	985 mm	1105 mm
G:	135 mm	135 mm	135 mm

Instalación

Área de instalación

W W≥ 20mm

Simple line drawing of a box with a cross mark on the front panel (no text or symbols)

¡Advertencia!

Diagram showing a box with an open lid and a magnified view of a device labeled 'a' (likely part of the diagram)

¡Advertencia!

Illustration of a wrench turning a tire with an arrow indicating rotation (no text or symbols)

Diagram showing a wrench turning a mechanical component with an arrow indicating rotation (no text or symbols present)

Simple line drawing with a curved arrow pointing to a circle, enclosed in a rectangular border (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a person using a device to interact with another person, showing mechanical components and a magnified inset (no text or symbols)

Diagram of a faucet with a valve and a valve assembly, showing directional arrows (no text or symbols)

Diagram showing a mechanical or architectural component with an arrow indicating direction, no text or symbols present

Illustration of a hand pressing a button on a rectangular screen (no text or symbols)

Illustration of a wall-mounted electrical socket connected to a plug, with an arrow indicating direction (no text or symbols)

①

Simple line drawing of a faucet with handle and valve (no text or symbols)

②

Simple line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

③

Diagram of a hand holding a coiled ring with an arrow indicating rotation (no text or symbols)

④

Simple line drawing of a ladder with a flower symbol and label 'I' (no text or symbols present)

⑤

Simple line drawing of a hand pressing a button on a square panel (no text or symbols)

①

Simple diagram of a circular ring with curved arrows indicating rotation or direction (no text or symbols)

②

8:00

③

Hand pressing a button with a play symbol (no text or numbers present)

④

Simple line drawing of a sweater with a tag and patterned collar (no text or symbols)

①

②

Diagram illustrating clothing turnover process with labeled parts and directional arrows indicating movement

③

Line drawing of two bags with circular patterns, no text or symbols present

④

Simple line drawing of a money bag with a grid pattern and a small heart symbol inside (no text or symbols)

5

Line drawing of a sweater with pleated front and side ribs (no text or symbols)

⑥

Technical diagram showing a mechanical component with labeled parts and symbols including a striped symbol, double-headed arrow, and a flower.

Black and white warning sign with exclamation mark symbol, commonly used to indicate a warning or error message.

¡Precaución!

Line drawing of a hand cleaning a washing machine (no text or symbols)

¡Precaución!

Line drawing of a hand gripping a curved object (no text or symbols)

Diagram showing a mechanical or electrical component with rotating arrows and a numbered label (1) below it.

Illustration of a hand holding a tool with a brush, labeled with number 2 (no text or symbols on the diagram itself)

Illustration of a hand using a tool to adjust or install a component, with no visible text or symbols.

Illustration of a hand holding a tennis racket inside a container, with no visible text or symbols

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

①

Line drawing of a person standing on a wooden shelf with shelves and compartments (no text or symbols)

②

Line drawing of a hand using a tool to remove or remove a dark object inside a container (no text or symbols)

③

Technical line drawing of a mechanical device with internal components and an arrow indicating direction (no text or symbols)

4

Black rectangular sign with a white triangular warning symbol containing an exclamation mark

¡Advertencia!

Simple line drawing of a mechanical component with a circular feature and an arrow indicating rotation (no text or symbols)

①

Simple line drawing of a device with a circular button and an arrow pointing to it (no text or symbols)

②

Simple line drawing of a kitchen appliance with a bowl and scale (no text or symbols)

③

Illustration of a hand using a rotary switch to press or press a device (no text or symbols visible)

④

Diagram showing a switch mechanism with labeled components and directional arrows indicating action

5

Diagram of a mechanical assembly with rotating components and directional arrows (no text or symbols)

⑥

This product is guaranteed against faults caused by defects in manufacturing or the materials used for a period of two years, starting from the date of purchase.* This warranty does not cover defects or damage caused by failure to install the device correctly, incorrect use of the product, or excessive wear and tear.

*proof of purchase required.

NL

GARANTIEVOORWAARDEN
