USER MANUAL STAR LIGHT LZR BOOMTONEDJ

Consummation max : 30W

Alimentation : AC100-240V 50/60Hz

Dimensions: L 215 × I 215 × H185mm

Poids: 1,35 kg

Termination reduces signal errors and to avoid signal transmission problems and interference. It is always advisable to connect a DMX terminal.

(Resistance 120 ohm 1/4W) between pin2 (DMX-) and pin3 (DMX+) of the last fixture.

2- Safety instructions

Before using your equipment, we recommend that you read all the instructions in this manual.

ATTENTION:

CLASS 3R LASER DEVICE

EXPOSURE TO THE HAZARDOUS BEAM

LASER RADIATION

Visible and invisible LASER radiation. Avoid direct or indirect exposure to eyes or skin! LASER Class III R EN60825-1:2014 in accordance with the following European Directives:

LVD Directive n°2006/95/EC

RoHS 2 Directive n°2011/65/EU

EMC Directive n°2014/30/EU

• Keep this manual for future reference. If you resell this unit, be sure to pass this manual on to the new owner.
• Unpack the entire unit and all accessories. Check that there is no damage and that the unit is in perfect condition.
  It is important to use the supplied power cable (grounded cable).
  Always unplug the unit before servicing.
  Maximum ambient temperature for optimal operation of the device: 40^ . Do not use the device if the ambient temperature exceeds this value.
• If there is a problem with the unit, turn it off immediately. Do not attempt to repair it yourself. Contact your dealer or an authorized service center. There are no user-replaceable parts except for the fuse.
• Do not connect this device to a variable power pack such as a "Dimmer pack".
• To reduce and avoid the risk of electric shock or fire, do not use this product in a wet or humid environment.
• Do not look directly at the light beam. Light from a LASER can cause permanent damage to the eyes.
• This unit must be installed with a strong hook of adequate size for the weight carried. The device must be screwed to the hook and tightened properly to prevent it from falling due to vibrations produced by the machine during operation. The hook must be secured with a safety sling. Also make sure that the structure (or hooking point) can support at least 10X the weight of the hooked device.
• The unit must be installed by a qualified person and must be placed out of reach of the public.
• Operating Premises: Whenever possible, a LASER should be operated in a room or area reserved for that purpose, enclosed or delimited.
• The accesses of the premises and their openings to the outside must not be located in the axis of a direct beam.
• The floor must be free of obstacles. Causes of accidental reflection and scattering of laser beams must be eliminated (poorly placed windows, furniture or objects with polished faces).
• Paintings (walls, partitions, ceilings, etc.) and floor coverings should preferably be matte. In this respect, diffuse reflections of class 4 lasers, focused beams of class 3 lasers with visible or near infrared light must be considered as dangerous and treated as such.
• When using powerful lasers (class 3 with focused beam or 4), it is necessary to eliminate the possibility of the beam impacting on flammable materials (wood, paper, fabrics or plastics) which can cause fires under power densities of the order of a few W.cm-2 applied for a few seconds.
• Access to laser emission areas must be marked using signs that comply with the ministerial order of November 4, 1993 "Health and safety signs in the workplace" and

the NF X 08-003 standard "Graphic symbols and pictograms - colors and safety signs" of December 1994. This signage is completed by the mention of the class of the laser device and the instructions provided in standard NF EN 60825-1. These accesses can be controlled, at least when lasers are in operation.

• Emission control: the control panel should be placed outside of locations exposed to hazardous emissions. The control of Class 3 and 4 lasers must be under the control of a control key, removed when not in use and held by a qualified person.

Warning:

• The use of this device is exclusively reserved for professional entertainment and display activities.
• When in use, this device must be installed so that the rays remain above the eye level of the public and do not reach them in any case.
• It is forbidden to use this device for any purpose other than that for which it is intended.
• The manufacturer and distributor are not responsible for any damage caused by the BoomtoneDJ LASER. The user is responsible for the use and compliance with the regulations NF EN 60825-1:2014.

2- Technical characteristics

LED light set

Light sources:

2x10W RGBW 4in1 LEDs

LASER: 100mW red + 40mW green

Strip: 16 LED RGB 3in1

4 operating modes: DMX, Automatic, Music detection, Remote control

Coverage angle: 120 degrees

Remote control included

DMX: 15 channels

Maximum power consumption : 30W

Power supply : AC100- 240V 50/60Hz

Dimensions: L 215 × W 215 × H185mm

Weight: 1.35kg

3-Modes of Operation

Selection of the operating mode

MENU	Value	Description
d__	001~512	DMX control mode or slave mode
A1-A2-A3-	1~9	Group mode, 1-3 different mode, 1-9 motor speed from slow to fast
L1-L2-L3-L4-L5-L6-	1~9	Laser mode, 1-6 different mode, 1-9 motor speed from slow to fast
E1~7	1~9	Butterfly mode, 1-7 different mode, 1-9 motor speed from slow to fast
F1	1~9	Strobe mode, 1-9 strobe speed from slow to fast
P1~2	1~9	5050 LED Strip Mode, 1-9 speed from slow to fast
SOU_	1~4	Sound mode
ir__	On/OF	Remote control ON/OFF
VOL	1-9	Sound sensitive

A. DMX mode

This mode allows you to control your fixture with a DMX controller. Each fixture must be "addressed" from 1 to 512.

Press MENU until you see A001, press ENTER, then use the DOWN and UP keys to select the desired DMX address. Press ENTER to confirm the value. When the DMX address is flashing, it confirms that your fixture is receiving a DMX signal from your controller.

DMX protocol:

Channel	Value	Function
CH1	0	DISABLED
	1~255	Master Dimmer from dark to bright
CH2	0	No strobe
	1~255	Strobe speed from slow to fast
CH3	0	DISABLED
	1~255	Red LED linear dimmer from dark to bright
CH4	0	DISABLED
	1~255	Green LED linear dimmer from dark to bright
CH5	0	DISABLED
	1~255	Blue LED linear dimmer from dark to bright
CH6	0	DISABLED
	1~255	White LED linear dimmer from dark to bright
CH7	0	DISABLED
	1~255	Red laser linear dimmer from dark to bright
CH8	0	DISABLED
	1~255	Green laser linear dimmer from dark to bright
CH9	0	Stroboscope off
	1~255	Strobe speed from slow to fast
CH10	0~12	DISABLED
	13~75	LED strip color to choose
	76-255	LED strip 20 types of effects
CH11	0~255	Effect speed from slow to fast, CH10 valid
CH12	0~155	Position of LED motor
	156~255	LED motor rotation, speed from slow to fast
CH13	0~2	Laser engine off
	3~210	Position of the LASER motor
	211~255	Forward rotation of the laser motor, speed from slow to fast
CH14	0~10	CH1~CH13 valid
	11~45	Change to single color jump
	46~80	Mixing the change of color jump 1
	81~115	Mixing the change of color jump 2
	116~150	Sound control 1
	151~185	Sound control 2
	186~220	Sound control 3
	221~255	Sound control 4
CH15	0~255	Speed from slow to fast (more sensitive sound control), CH14 valid

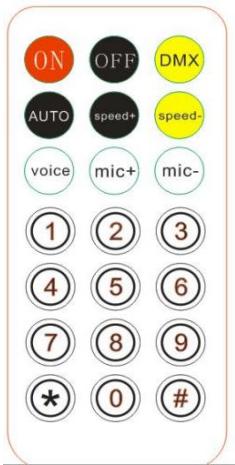

B. Use with IR remote control :

ON	Automatic operation
OFF	All disabled
DMX	DMX mode
Auto	Automatic operation mode, press to change the effect
Speed +	Automatic stroke acceleration
Speed-	Automatic downward speed
Voice	Sound control mode, press it to change the effect
Mic+.	Sound sensitive +
Mic-	Sound sensitive -
1	Group effect Auto Running
2	Red laser
3	Green laser
4	Automatic laser operation
5	Red LED
6	Green LED
7	Blue LED
8	White LED
9	Automatic operation of the LEDs
0	Automatic operation of the LED strip
*	Stroboscope
#	Sound control

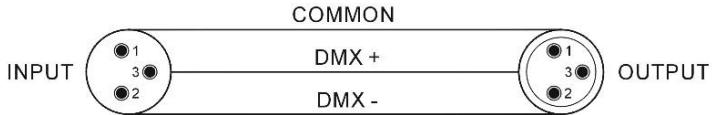

4. DMX mode (DMX connection)

Termination reduces signal errors and to avoid signal transmission problems and interference. It is always advisable to connect a DMX terminal.

(Resistance 120 ohm 1/4W) between pin2 (DMX-) and pin3 (DMX+) of the last fixture.

• If you are using a controller with a 5-pin XLR DMX output, you need to get an XLR 5-pin/3-pin adapter.

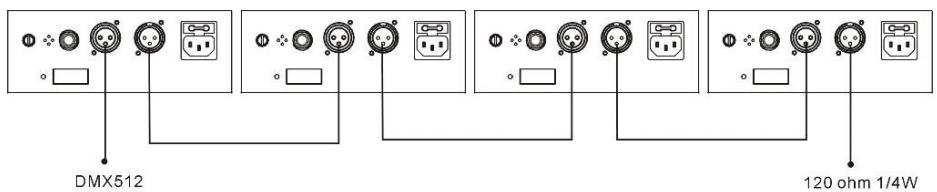

• On the last device of the DMX chain, it is recommended to use a "DMX plug". (a 120 Ohms 1/4W resistor between pin 2 (DMX-) and pin 3 (DMX+) placed in a male DMX connector).
• Connect the fixtures one after the other: DMX output to DMX input of the next fixture. The DMX cable should NEVER be a "Y" cable. The DMX-512 link carries a high speed signal. The cables used for this link must be of good quality and in good condition.
  Each fixture must have a specific DMX address in order to be controlled by the DMX controller. (see table above).

5- Troubleshooting

Here are some suggestions if you are having problems with your device.

The device does not work at all.

Check the power cord and fuse.
Make sure your outlet is well powered.

The fixture does not respond or does not respond correctly to DMX commands.

Check your DMX cables
Check your DMX addressing
Try another DMX controller
○ Make sure that your DMX cables do not run close to high-voltage cables, which could cause interference.

• Does not respond to sound

Check the selected operating mode
○ Make sure there is no DMX cable connected to DMX IN
- Tap directly on the microphone to test its responsiveness.

6- Maintenance

The exterior of the unit should be cleaned regularly. The lenses must be cleaned for optimum brightness. If the unit is installed in a dusty or smoky environment this regular maintenance is very important. It may be necessary to clean the optics from the inside as well. Unplug the unit before servicing!

• Use a clean cloth with very little glass cleaner. Always dry the cleaned parts well.
