Product type	DMX moving head LED 30W
Brand	BOOMTONEDJ
Model	Maxi Spot 30
Light source	1 30W CREE LED very high brightness
Beam angle	15°
Operating modes	Auto, Sound, DMX
PAN/TILT movement	540° / 270°
Color wheel	7 colors
Gobo wheel	7 gobos + shake and scroll effects
Dimmer	0-100% linear with variable speed stroboscope
LED ring	Extra effect
DMX channels	10 or 12 channels
Power supply	AC100V-240V 50/60Hz
Power consumption	90W max
Protection rating	IP20
Dimensions	160 x 150 x 285 mm
Net weight	2.8 kg
Gross weight	3.5 kg
Fuse	T 1A
Max ambient temperature	40°C
Maintenance	Regular exterior cleaning; clean lenses with a clean cloth and a little glass cleaner
Safety	Do not look at the beam; installation by qualified person; use sturdy hook + safety sling; structure supporting 10x the weight
Spare parts and repairability	No user-replaceable parts; contact the dealer or an authorized repairer

Frequently Asked Questions - Maxi Spot 30 BOOMTONEDJ

How to set the DMX address?

Press MENU, select Addr, then use UP and DOWN to choose an address between 1 and 512. Confirm with ENTER.

How to use Master/Slave mode?

By default, the device is in Master mode if no DMX cable is plugged into the DMX IN input. For slave, connect a DMX cable from the master's output to the slave's input. You can also configure manually via the menu SLNd (Mast, SL 1, SL 2).

How to activate Sound mode?

In the menu, select Soud and set to On. Use SEnS to adjust microphone sensitivity (0-100). Make sure no DMX cable is plugged into DMX IN.

What to do if the device does not respond to DMX commands?

Check the DMX cables (good condition, not Y-shaped), DMX addressing, and that the cables are not near high voltage cables. Try another DMX controller.

How to clean the device?

Unplug the device. Use a clean cloth with very little glass cleaner to clean the exterior and lenses. Dry thoroughly. Internal optics cleaning may be necessary in dusty environments.

What safety precautions must be followed?

Do not look directly at the light beam. Install the device out of reach of the public, with a sturdy hook and a safety sling. The structure must support at least 10 times the device's weight. Do not use in humid environments.

How to invert Pan or Tilt movement?

In the menu, select rPan or rtlLt and set to Yes to reverse direction. Confirm with ENTER.

How to reset the device?

In the menu, select rSET and confirm with ENTER. The device will reset (motors and effects).

Which DMX cables to use?

Use good quality DMX cables with 3-pin XLR connectors. The last device in the chain must be terminated with a DMX terminator (120Ω resistor between pins 2 and 3). Never use Y-cables.

What is the difference between 10-channel and 12-channel mode?

The 12-channel mode adds fine adjustment channels for Pan and Tilt (channels 2 and 4), allowing more precise movements. Other functions are identical.

USER MANUAL Maxi Spot 30 BOOMTONEDJ

Black RoHS display optical fixture with LED and blue light beam (no text or symbols visible on device body)

Maxi Spot 30

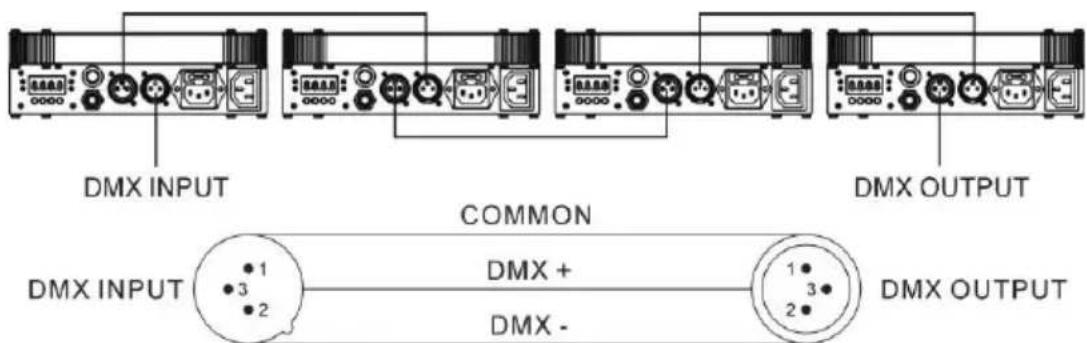

The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels.

DMX INPUT COMMON DMX INPUT 1 3 2 DMX + DMX - DMX OUTPUT 1 3 2 DMX OUTPUT

Termination reduces signal errors and to avoid signal transmission problems and interference. It is always advisable to connect a DMX terminal. (Resistance 120 ohm 1/4W) between pin2(DMX-) and pin3(DMX+) of the last fixture.

1- Safety Instructions

WARNING

Please read the instructions carefully which include important information about the installation, operation and maintenance.

• Please keep this User Manual for future consultation. If you sell the fixture to another user, be sure that he also receives this instruction booklet.
• Unpack and check carefully there is no transportation damage before using the fixture.
• It's important to ground the yellow/green conductor to earth in order to avoid electric shock.

- Disconnect main power before servicing and maintenance.

- Maximum ambient temperature is Ta : 40°C. Don't operate it where the temperature is higher than this.

- In the event of serious operating problem, stop using the fixture immediately. Never try to repair the fixture by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please contact the nearest authorized technical assistance center. There are no user serviceable parts inside the fixture.

- Do not connect the device to any dimmer pack.

- To prevent or reduce the risk of electrical shock or fire, do not expose the fixture to rain or moisture.

- Do not look directly at the LED light beam while the fixture is on.

- Do not touch any wire during operation.

- The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. Always ensure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit's weight. Also always use a safety cable that can hold 12 times of the weight of the unit when installing the fixture.

- The equipment must be fixed by professionals. And it must be fixed at a place where is out of the touch of people and has no one pass by or under it.

2- Unit Description

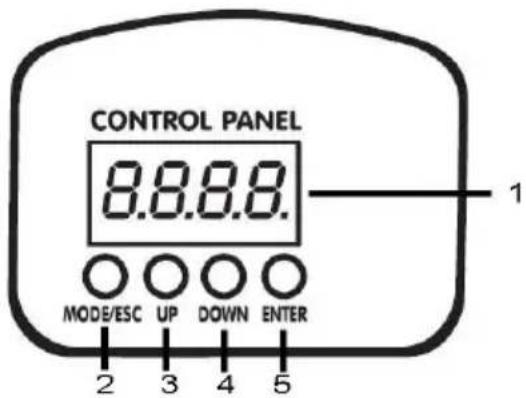

CONTROL PANEL 8.8.8. MODE/ESC UP DOWN ENTER 2 3 4 5

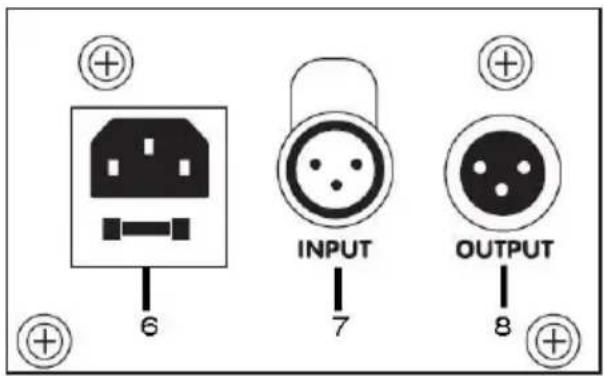

6 INPUT 7 OUTPUT 8

Buttons:

2 MENU	• To select the programming functions
3 UP	• To go forward in the selected functions
4 DOWN	• To go backward in the selected functions
5 ENTER	• To confirm the selected functions

6 Mains input: Connect to supply mains power.

7 DMX input: For DMX512 link, use 3/5-pin XLR plug cable to input DMX signal.

8 Output: For DMX512 link, use 3/5-pin XLR plug cable to link the next unit.

This BoomToneDJ fixture is complying with European standards: EN 2014/30/EU, EN 2011/65/EU, EN 2014/35/EU.

3- Technical Specifications

• 30W high brightness CREE LED
- 7 gobos
- Gobo shake effect
- Strob effect
• Operational modes : Auto, Sound, DMX
- PAN/TILT 540°-270°
- 7 colors
- Controlled by 10 or 12 DMX channels
• Linear dimmer 0\~100%
- Fast PAN/TILT Movements
• Power : AC100V\~240V 50/60Hz
- Beam angle: 15^
- Fuse: T 3A
• IP20
• Power consumption : 90W max
• Dimensions: 160 x 150 x 285 mm
• Net weight: 2.80 kg
- Gross weight : 3.5 kg

Main Function

Addr	A001-A512	512 Address setting
CHnd	12CH	12 channel setting
	10CH	10 channel setting
SLnd	MAST	Host mode
	SL 1	Console mode
	SL 2	Secondary mode
SHnd	SH 0	Effect 0 (recommended)
	SH 1	Effect 1
	SH 2	Effect 2
	SH 3	Effect 3
Soud	on	Voice activated
	oFF	Voice off
SEnS	0-99	Voice-activated sensitivity adjustment
bLAnd	bLAc	No 512 signal return to zero
	Auto	No 512 signal self-propelled
	Soun	No 512 signal sound
	HoLd	No 512 signal keeps last console state
LED	OFF	After 5 seconds off the screen
	ON	The screen is always on
dISP	no	Display reverse
	YES	Display positive
rPAN	No-Yes	X motor forward - Reverse
rTiL	No-Yes	Y motor forward - Reverse
REST	YES	System reset

4. How To Control The Unit

You can operate the unit in three ways:

1. By master/slave built-in preprogram function
2. By DMX controller
3. By sound detection

Master/Slave Built In Preprogrammed Function

The fixture will allow you to link 16 fixtures together and operate without a controller. In Master/Slave mode, the first fixture will control the others to give an

automatic, sound activated, synchronized light show. This function is good when you want an instant show. The first fixture it's DMX input cable will have nothing connect it, and the other fixtures will be set in slave mode automatically. Their DMX input cables connect the last fixture DMX output cable (daisy chain). Any fixture can act as a Master or as a Slave

DMX Controller

The fixture can be set the DMX address remotely by universal DMX controller. First, you need to programming two scenes into a chase, and then link the fixtures to the universal DMX controller. When you run the chase, all the fixtures of the chain will be set the series DMX address automatically. The fixture uses four channels. Please refer to the following diagram to set the address for the first four units.

• 10 channels DMX protocol :

Channel	Features	Instructions
1	Horizontal operation	0-255
2	Vertical operation	0-255
3	color
	0-139	Color selection
	140-255	Automatic color change from slow to fast
4	Gobo
	0-63	Fixed gobo
	64-127	Shaking gobo
	128-255	Automatic change pattern from slow to fast
5	strobe	0-255
6	Dimming	0-255
7	Motor speed	0-255
8	Automatic mode	0-255 Adjust forward rotation upwards and downward rotation backwards
9	Reset	250-255 (5 seconds)
10	Light strips	5-109 Color selection110-255 Color auto operation

• 12 channels DMX protocol :

Channel	Features	Instructions
1	Horizontal operation	0-255
2	Horizontal fine-tune	0-255
3	Vertical operation	0-255
4	Vertical fine-tune	0-255
5	color
	0-139	Color selection
	140-255	Automatic color change from slow to fast
6	Gobo
	0-63	Fixed gobo
	64-127	Shaking gobo
	128-255	Automatic change pattern from slow to fast
7	strobe	0-255
8	Dimming	0-255
9	Motor speed	0-255 from fast to slow
10	Automatic mode
	0-59	Other channels function
	60-84	Automatic mode3
	85-109	Automatic mode2
	110-134	Automatic mode1
	135-159	Automatic mode0
	160-184	Voice-control mode3
	185-209	Voice-control mode2
	210-234	Voice-control mode1
	235-255	Voice-control mode0
11	reset	250-255 (5s)
12	Light strips	5-109 Color selection110-255 Color auto operation

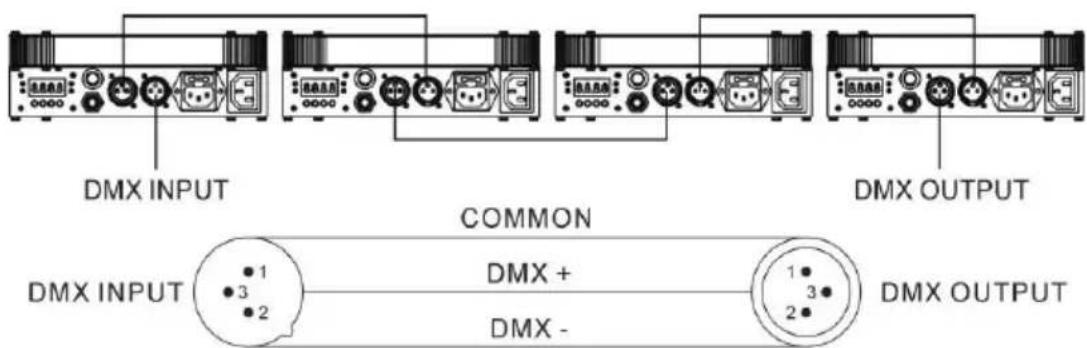

DMX512 Connections

The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels.

DMX INPUT COMMON DMX INPUT 1 3 2 DMX + DMX - 1 3 2 DMX OUTPUT

Termination reduces signal errors and to avoid signal transmission problems and interference. It is always advisable to connect a DMX terminal.

(Resistance 120 ohm 1/4W) between pin2(DMX-) and pin3(DMX+) of the last fixture.

• If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin adapter-cable.
• Connect the fixture together in a “daisy chain” by XLR plug cable from the output of the fixture to the input of the next fixture. The cable cannot be branched or split to a “Y” cable. Inadequate or damaged cables, soldered joints or corroded connectors can easily distort the signal and shut down the system
• The DMX output and input connectors are pass-through to maintain the DMX circuit when one of the units' power is disconnected.
• At last fixture, the DMX cable has to be terminated with a terminator to reduce signal errors. Solder a 120-ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last fixture.
• Each lighting fixture needs to have an address set to receive the data sent by the controller. The address number is between 0-511 (usually 0 & 1

are equal to 1).

• 3 pin XLR connectors are more popular than 5 pin XLR.
• 3 pin XLR: Pin1: GND, Pin2: Negative signal (-), Pin3: Positive signal (+)
- 5 pin XLR: Pin1: GND, Pin2: Negative signal (-), Pin3: Positive signal (+)

■ Pin4/5: Not Used.

Troubleshooting

Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting:

- The fixture does not work, no light

○ Check the connection of power and main fuse.
○ Measure the mains voltage on the main connector.

- Not responding to DMX controller

• DMX LED should be on. If not, check DMX connectors, cables to see if link properly.
• If the DMX LED is on and no response to the channel, check the address settings and DMX polarity.
• If you have intermittent DMX signal problems, check the pins on connectors or on PCB of the fixture or the previous one.
• Try to use another DMX controller.
• Check if the DMX cables run near or run alongside to high voltage cables that may cause damage or interference to DMX interface circuit.

- Some fixtures don't respond to the easy controller

• You may have a break in the DMX cabling.
• Check the LED for the response of the master/ slave mode signal.

- No response to the sound

○ Make sure the fixture does not receive DMX signal.
○ Check microphone to see if it is good by tapping the microphone.

Fixture Cleaning

The cleaning of internal must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the fixture's

optics.

• Clean with soft cloth using normal glass cleaning fluid.
  • Always dry the parts carefully.
• Clean the external optics at least every 20 days. Clean the internal optics at least every 30/60 days
