USER MANUAL JUPITER 600 BOOST

with BLUETOOTH, USB, MICRO-SD & REMOTE CONTROL

ENCEINTE ACTIVE AUTONOME 800W

Black and purple portable electronic device with two purple rings and a digital display, no visible text or symbols on the device itself.

USER MANUAL

FR - MANUEL D'UTILISATION - p. 6

NL - HANDLEIDING - p. 10

ES - MANUAL DE USO - p. 14

WITH BLUETOOTH, USB, MICRO-SD & REMOTE CONTROL

OPERATING INSTRUCTIONS

Congratulations to the purchase of your new speaker.

WARNINGS

CAUTION DO NOT OPEN THE HOUSING SHOCK HAZARD

EXPLANATION OF SIGNS

The triangle containing a lightning symbol is used to indicate whenever your health is at risk (due to electrocution, for example).

An exclamation mark in a triangle indicates particular risks in handling or operating the appliance.

CE Accordance with the requirements of CE standard

☐ Class II protection without earth connection

The product is for indoor use only

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

This device has been designed in accordance with the European EcoConception Directive.

The goal is to reduce the power consumption of devices. It is therefore equipped with an automatic standby system. After 10 minutes without any action or sound broadcast, it will automatically go into standby mode.

To restart it, you will have to use its remote control or turn off the device with the on / off button and wait 1 minute before turning it on again.

IMPORTANT SAFETY INSTRUCTIONS AND DANGER WARNINGS

• Please read the manual carefully and keep it for future reference.
• The unit shall be connected to a power supply only of the type described.
• To reduce the risk of fire or electrical shock, do not expose this unit to rain or moisture.
• Unplug the unit from the wall socket when it is not to be used for a long period of time.
• Adequate care shall be taken so that foreign objects do not fall, or liquids are not spilled into the enclosure through openings.
• Do not remove the cover or back, as there are no user-serviceable parts inside.
• The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

- Do not place on the apparatus as naked flame source, such as lighted candles.

- Do not use the unit in a tropical climate. Only for use in temperate climates.

- Please place the equipment on a level and stable platform. Never place the appliance on an unstable or movable surface. Persons could be injured or the appliance damaged by it falling down.

- A minimum distance of 0.5m around the unit must be kept to ensure sufficient ventilation and avoid overheating.

- All safety instructions and warnings must be adhered to. They are part of the manual and must be kept with the manual.

- Any guarantee claims are rendered invalid if damage occurs due to non-observance of these operating instructions. We assume no liability for any consequent damage.

- We assume no liability for personal injury or damage to property caused by incorrect handling or disrespect of the safety instructions. Any guarantee claims expires in such cases.

- Unauthorized conversions and/or modifications of the appliance are not permitted for safety and licensing reasons (CE).

• The appliance is approved for operation in dry, closed rooms only. Do not operate the device nearby water, such as in bathrooms or nearby swimming pools.
• The appliance may not be exposed to extreme temperatures ( < +5^ / > +35^ ) in operation.
• The appliance may not be subject to strong vibrations or heavy mechanical strain.
• DISCONNECT DEVICE: Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

CHARGING THE BATTERY

1. Connect the mains power plug to an AC outlet and the built-in battery will start charging. The LED lights up in red and the battery symbol displays steadily.
2. Once the battery is fully charged, the LED lights up in green.

PLEASE NOTE: If the speaker has been switched into standby mode via the remote control, the built-in battery will NOT charge.

After 10 minutes of inactivity, the unit will switch automatically into standby mode.

IMPORTANT NOTE ON LITHIUM-ION BATTERIES

1. PRIOR TO USING THE UNIT FOR THE FIRST TIME, PLEASE CHARGE FULLY THE BATTERY WITHOUT ANY INTERRUPTION.
2. CHARGE THE BATTERY REGULARLY AFTER EACH USE. DON'T WAIT UNTIL IT IS DISCHARGED!
3. DON'T ALLOW THE BATTERY TO DISCHARGE COMPLETELY, OTHERWISE IT WILL LOSE 20% OF ITS CAPACITY OR EVEN BE TOTALLY DAMAGED!

IF THE VOLTAGE BECOMES TOO LOW, THE INTERNAL CIRCUITS ARE NOT POWERED ANYMORE AND IT WILL BECOME IMPOSSIBLE TO RECHARGE THE BATTERY!

1. IF YOU DON'T USE THE UNIT FOR A LONGER PERIOD OF TIME, IT IS RECOMMENDED TO CHARGE IT AT 40% OF ITS CAPACITY AND CHECK/CHARGE IT ONCE PER MONTH.

THE LIFE TIME OF THE BATTERY DEPENDS ON THE OBSERVANCE OF THESE RECOMMENDATIONS.

** BATTERIES ARE NOT COVERED BY THE WARRANTY **

WE CANNOT BE HELD RESPONSIBLE FOR DAMAGED BATTERIES FURTHER TO THE NON-OBSERVANCE OF THESE BASIC RULES.

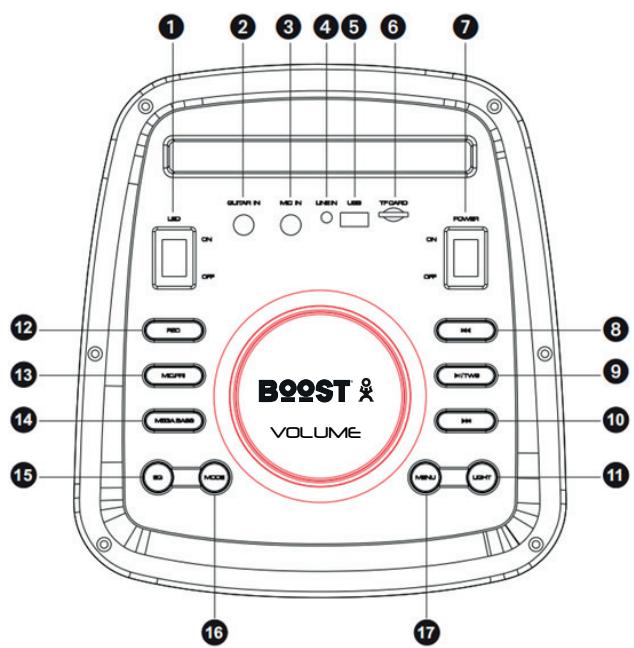

DESCRIPTION OF THE TOP PANEL CONTROLS & CONNECTORS

1. LED light on/off
2. Guitar input
3. MIC input
4. Line in (3.5mm jack cable)
5. USB Play back
6. Micro SD card play back
7. Power on/off
8. Previous song
9. Record function
10. Microphone priority

11. Mega bass

12. Short press to play/pause under USB/TF/Bluetooth, Long press to connect TWS function

13. Short press to select the next song

14. Light mode switch, short press to select different colors, long press to switch light modes.

1 2 3 4 5 6 7 SUNN MON LUN USB TPGND POWER ON OFF LED ON OFF RED MORI MEASUBS 8 9 10 11 12 13 14 15 16 17 BOOST™ VOLUME

1. EQ
2. Mode: Line in, USB/TF card, Bluetooth
3. MENU

INSTALLING THE BATTERIES IN THE REMOTE CONTROL

Remove the battery cover from the back of the remote control as shown and insert 2x AAA size batteries ensuring correct polarity

RECOMMENDATIONS FOR BATTERIES

This symbol indicates that used batteries should not be disposed of with household waste but deposed correctly in accordance with your local regulations..

Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

When the internal batteries are not to be used, remove them to avoid damage caused by battery leakage or corrosion.

ATTENTION: Danger of explosion if battery is incorrectly placed. Only replace by the same or equivalent type.

WARNING : Do not swallow the battery. Danger of chemical burns. Keep new and old batteries out of the reach of children.

If the battery compartment doesn't close properly, stop using the product and keep it out of the reach of children.

If you are in doubt whether the batteries have been swallowed or introduced into any other part of the body, contact immediately a doctor.

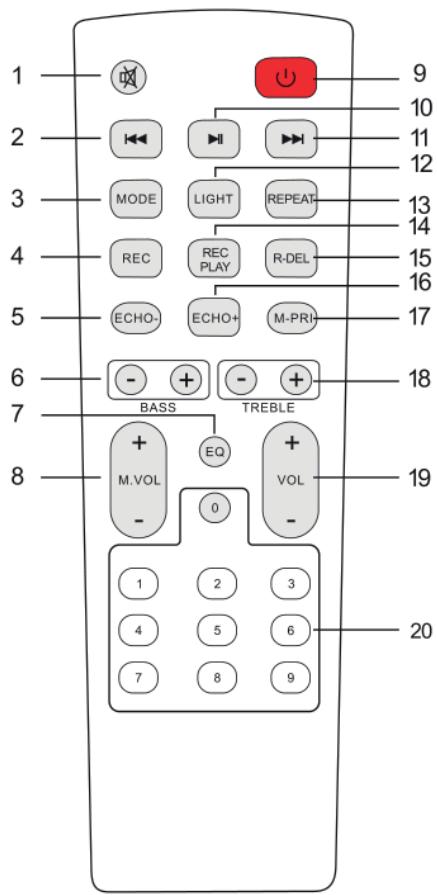

REMOTE CONTROL

1. Mute: Mutes the sound in any mode
2. Previous Song
3. Mode: Press shortly to skip to Wireless BT/LINE IN/USB/TF mode.
4. Record function: In USB/TF mode, press "REC" button to record
5. Echo-
6. BASS+/-
7. EQ function
8. Microphone Volume+/-
9. Stand by
10. Pause / Play
11. Next song
12. Changes the light mode: press to cycle through the various modes
13. Repeat function
14. Play the recorded file
15. Delete the recorded file
16. Echo+
17. Microphone priority
18. Treble+/-
19. Main Volume
20. Number buttons: In USB/TF mode enter directly the number of the desired songs

MENU BUTTON

This button cycles through different functions. Press the button and rotate the volume control to adjust the value.

Press once. TREBLE is displayed. Rotate the volume control to adjust the high frequencies

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 MODE LIGHT REPEAT REC REC PLAY R-DEL ECHO- ECHO+ M-PRI BASS TREBLE M.VOL EQ VOL - 0 1 2 3 4 5 6 7 8 9

Press twice: BASS is displayed. Rotate the volume control to adjust the low frequencies.

Press 3 times: MIC VOL is displayed. Rotate the volume control to adjust the volume of the microphone

Press 4 times: ECHO is displayed. Rotate the volume control to adjust the echo effect of the microphone.

BLUETOOTH PAIRING PROCEDURE

Press MODE button on the unit or the remote control until BT is displayed.

1. Put the cell phone within 10 meters
2. Activate the BT search function on your cell phone to search for the BT device. Please refer to the user manual for details
3. Select JUPITER6000 in the list of found devices.
4. Shortly press the PLAY/PAUSE button ▶ II to play or pause the music. Shortly press the “◀◀” or “▶◀” button to select the previous or next track.

LINE IN MODE:

Press the MODE button on the unit or the remote control until LINE is selected. Play the music of the device connected to the LINE input.

USB / MICRO-SD MODE:

1. Press MODE button to select "USB" or "TF" mode and insert the USB or TF device. The unit will automatically read and play the music in the connected device.
2. Press "▶ II" button shortly to pause or play.
3. Shortly press “◀◀” button to go to the previous song.
4. Shortly press “▶” button to go to the next song.

TWS MODE

1. Turn on the 2 speakers (BOOST-JUPITER6000). Keep the play/pause button pressed on one of the 2 speakers. The display of this speaker will show 'SLAU' and keep blinking, it will stop blinking once both speakers will be connected successfully.
2. Turn on your Bluetooth device, and put it close to the speaker within 10 meters.
3. Select 'JUPITER6000' in the list of found devices.
4. Now you can play songs from your Bluetooth device.

SPECIFICATIONS

Power supply....100-240V\~ 50/60Hz 1A
Consumption....33W
Woofer 2 x 8"/20cm
Tweeter 1"
Max. power 800W
Battery....Li-ion 7.4V=3.6Ah
BT frequency band....2402-2480MHz
Max. Bluetooth RF emission power....-2.882dBm
Dimensions 300 x 300 x 660mm
Weight....8.7kg

The above specifications are for reference only.

Design and specifications are subject to change for improvement without prior notice.

ENCEINTE ACTIVE AUTONOME 800W AVEC BLUETOOTH, USB, MICRO-SD & TELECOMMANDE

INTRODUCTION

RECOMMANDATIONS POUR LES PILES

EU Declaration of Conformity

Hereby we,

LOTRONIC SA

Avenue Zénobe Gramme, 9

1480 SAINTES

Belgium

+32.2.390.91.91

Certify and declare under our sole responsibility that the following product:

Trade name:

BOOST®

Product name:

SPEAKER WITH BLUETOOTH, USB, SD and BATTERY

Type or model:

BOOST-JUPITER6000

Conforms with the essential requirements of

RED directive 2014/53/EU, ErP directive 2009/125/EC, Commission Regulation (EC) No 1275/2008 & 801/2013, 2011/65/EU RoHS directive and the Commission Delegated Directive (EU) 2015/863

Place and date of issue: Saintes (Belgium), on 30/03/2021

Manuel De Sousa

Quality manager

LOTRONIC SA Av. Zenobe Gramme 9 1480 Saintes - Belgium Tel. [phone] Fax [phone] [e-mail] www.lotronic.net

CE

Check the product on our website

Imported from China by LOTRONIC S.A.

Avenue Zénobe Gramme 9

B-1480 Saintes
