Product type	Amplified speaker
Brand	BOOST
Model	PS 6000
Maximum power	600 W
Speakers	2 x 8" (20 cm) woofer, 2 tweeters
Power supply	100-240 V ~ 50/60 Hz, 1 A
Consumption	65 W
Integrated battery	Lead-acid, 12 V / 4.5 Ah
Dimensions (W x D x H)	320 x 300 x 630 mm
Weight	10.6 kg
Wireless connectivity	Bluetooth 4.2 (band 2402-2480 MHz)
Audio inputs	2 microphone inputs (6.35 mm jack), line input (RCA), USB, microSD
Main functions	USB/SD player, Bluetooth, recording, echo, equalizer, light animation
Remote control	Yes (AAA batteries not included)
Controls	Master volume, microphone volume, bass/treble, echo, equalizer (presets)
Maintenance	Clean with a dry cloth; avoid humidity and extreme temperatures
Safety	Do not open the casing; use indoors; do not expose to rain
Spare parts / Repairability	No user-replaceable parts; contact customer service
Battery warranty	Not covered (lead-acid battery)
Included accessories	Remote control, power cable

Frequently Asked Questions - PS 6000 BOOST

How to pair the speaker via Bluetooth?

Press the MODE or BLUE button until 'BT' appears on the screen. Enable Bluetooth on your phone and search for 'BOOST-PS6000' in the list. Select it to pair.

How to charge the battery?

Plug the power cord into an outlet. The battery charges even if the speaker is off. The charging symbol shows 1 to 3 cells. Full charging takes several hours.

Can I use the speaker while charging?

Yes, the speaker can operate while charging the battery. However, if it is in standby via the remote control, the battery does not charge.

How to connect a microphone?

Insert the 6.35 mm jack plug of the microphone into one of the two microphone inputs (MIC1 or MIC2) located on the top. Use the 'Micro Volume' buttons to adjust the level and 'Echo' for the effect.

What to do if the remote control does not work?

Check that AAA batteries are installed correctly and are new. Point the remote control towards the speaker's receiver and ensure there is no obstacle.

How to switch between sources?

Use the 'MODE' button on the speaker or remote control to switch between Bluetooth, Line, USB and TF (SD card). The display shows the active source.

Can I record my voice or music?

Yes, in USB or TF mode, press the 'REC' button (on the speaker or remote) to record. Files are saved on the inserted media.

How to adjust bass and treble?

Press the 'MENU' button: turn the volume knob to adjust treble (t), then press again for bass (b). You can also use the BASS+/TREBLE+ buttons on the remote control.

The speaker turns off automatically, is this normal?

Yes, after 30 minutes of inactivity, the speaker goes into automatic standby. To wake it up, use the remote control or the M/A button.

How to clean the speaker?

Unplug the device and wipe it with a soft, dry cloth. Do not use chemical or abrasive products. Avoid liquids entering the interior.

USER MANUAL PS 6000 BOOST

with BLUETOOTH, USB, TF & REMOTE CONTROL

ENCEINTE ACTIVE AUTONOME 600W

Congratulations to the purchase of your new speaker.

WARNING

CAUTION DO NOT OPEN THE HOUSING SHOCK HAZARD

EXPLANATION OF SIGNS

The triangle containing a lightning symbol is used to indicate whenever your health is at risk (due to electrocution, for example).

An exclamation mark in a triangle indicates particular risks in handling or operating the appliance.

Accordance with the requirements of CE standard

Class II protection without earth connection

The product is for indoor use only

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use return and collection systems or contact the retailer where the product was purchased. They can take this duct for environmental safe recycling.

IMPORTANT SAFETY INSTRUCTIONS AND DANGER WARNINGS

• Please read the manual carefully and keep it for future reference.
• The unit shall be connected to a power supply only of the type described.
• To reduce the risk of fire or electrical shock, do not expose this unit to rain or moisture.
• Unplug the unit from the wall socket when it is not to be used for a long period of time.
• Adequate care shall be taken so that foreign objects do not fall, or liquids are not spilled into the enclosure through openings.
• Do not remove the cover or back, as there are no user-serviceable parts inside.
• The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
• Do not place on the apparatus as naked flame source, such as lighted candles.
• Do not use the unit in a tropical climate. Only for use in temperate climates.
• A minimum distance of 0.5m around the unit must be kept to ensure sufficient ventilation and avoid overheating.
• Never place the appliance on an unstable or mobile surface. Persons could be injured or the appliance damaged by it falling down.
• All safety instructions and warnings must be adhered to. They are part of the manual and must be kept with the manual.
• Any guarantee claims are rendered invalid if damage occurs due to non-observation of these operating instructions. We assume no liability for any consequent damage.
• The appliance is approved for operation in dry, closed rooms only. Do not operate the device nearby water, such as in bathrooms or nearby swimming pools.
• The appliance may not be exposed to extreme temperatures (< +5^ / > +35^) in operation.
• The appliance may not be subject to strong vibrations or heavy mechanical strain.
• DISCONNECT DEVICE: Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

CHARGING THE BATTERY

1. Connect the mains power plug to an AC outlet and the built-in battery will start charging, no matter if the speaker is on or off. On the display, the battery charging symbol will run from 1 to 3 cells.
2. Once the battery is fully charged, it will display steadily 3 cells.

PLEASE NOTE: If the speaker has been switched into standby mode via the remote control, the built-in battery will NOT charge.

After 30 minutes of inactivity, the unit will switch automatically into standby mode.

IMPORTANT NOTE ON LEAD-ACID BATTERIES

1. PRIOR TO USING THE UNIT FOR THE FIRST TIME, PLEASE CHARGE FULLY THE BATTERY WITHOUT ANY INTER- RUIPTION.
2. CHARGE THE BATTERY REGULARLY AFTER EACH USE. DON'T WAIT UNTIL IT IS DISCHARGED!
3. DON'T ALLOW THE BATTERY TO DISCHARGE COMPLETELY! ONCE THE BATTERY IS FULLY DISCHARGED, THE CURRENT DRAIN FOR RECHARGING WILL BE SO HIGH THAT IT WILL DAMAGE THE CHARGER AND/OR THE POWER SUPPLY OF THE UNIT.
4. IF YOU DON'T USE THE UNIT FOR A LONGER PERIOD OF TIME, PLEASE CHARGE THE BATTERY COMPLETELY AT 100% AND CHECK/CHARGE IT ONCE PER MONTH OTHERWISE THE BATTERY WILL BE OUT OF USE. THE LIFE TIME OF THE BATTERY DEPENDS ON THE OBSERVANCE OF THESE RECOMMENDATIONS.

** BATTERIES ARE NOT COVERED BY THE WARRANTY **

WE CANNOT BE HELD RESPONSIBLE FOR DAMAGED BATTERIES FURTHER TO THE NON-OBSERVANCE OF THESE BASIC RULES.

DESCRIPTION OF THE TOP PANEL CONTROLS & CONNECTORS

1. Microphone input
2. Microphone input
3. Line in
4. USB input
5. TF card input
6. Power ON/OFF
7. LED Light Switch
8. MIC Volume
9. Main Volume
10. Echo-
11. Echo+
12. Record function
13. Change Light mode
14. Repeat function
15. Previous song
16. Next song
17. Pause/Play
18. Mode: Line in, USB mode, TF Card, Wireless BT
19. Wireless BT function
20. Mega Bass
21. Menu: Allows to adjust high, low frequencies, EQ and mic echo. Press once to display (t). Rotate the volume control (9) to set the high frequencies between -7 and 7. Press again to display (b). Rotate the volume control (9) to adjust the low frequencies between -7 and 7. Press again to display EQ. Rotate the volume control (9) to select the desired preprogrammed equalizer curve. Press again and adjust mic echo effect. Press again to

adjust the main volume via the VOLUME control (9). To adjust the overall volume, you can also rotate directly the VOLUME control (9).

INSTALLING THE BATTERIES IN THE REMOTE CONTROL

Remove the battery cover from the back of the remote control as shown and insert 2x AAA size batteries ensuring correct polarity

RECOMMENDATIONS FOR BATTERIES

This symbol indicates that used batteries should not be disposed of with household waste but deposed correctly in accordance with your local regulations..

Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

When the internal batteries are not to be used, remove them to avoid damage caused by battery leakage or corrosion.

ATTENTION: Danger of explosion if battery is incorrectly placed.Only replace by the same or equivalent type.

WARNING :Do not swallow the battery. Danger of chemical burns.Keep new and old batteries out of the reach of children.

If the battery compartment doesn't close properly, stop using the product and keep it out of the reach of children.

If you are in doubt whether the batteries have been swallowed or introduced into any other part of the body, contact immediately a doctor.

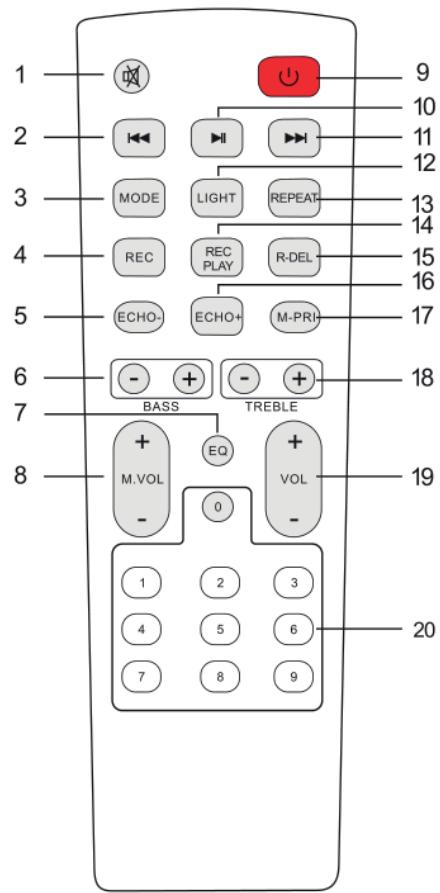

REMOTE CONTROL

1. Mute: Mutes the sound in any mode
2. Previous Song
3. Mode: Press shortly to skip to Wireless BT/LINE IN/USB/TF mode.
4. Record function: In USB/TF mode, press "REC" button to record
5. Echo-
6. BASS+/-
7. EQ function
8. Microphone Volume+/-
9. Stand by
10. Pause / Play
11. Next song
12. Changes the light mode: press to cycle through the various modes
13. Repeat function
14. Play the recorded file
15. Delete the recorded file
16. Echo+
17. Microphone priority
18. Treble+/-
19. Main Volume
20. Number buttons: In USB/TF mode enter directly the number of the desired songs

BLUETOOTH PAIRING PROCEDURE

Press MODE or Blue button on the unit or the remote control until BT is displayed.

1. Put the cell phone within 10 meters
2. Activate the BT search function on your cell phone to search for the BT device. Please refer to the user manual for details
3. Select BOOST-PS6000 in the list of found devices.

1. Shortly press the PLAY/PAUSE button to play or pause the music. Shortly press the "▶" or "▶" button to select the previous or next track.

LINE IN MODE:

Press the MODE button on the unit or the remote control until LINE is selected. Play the music of the device connected to the LINE input.

USB MODE:

1. Press MODE to select "USB" and insert the USB device. The unit will automatically read and play the music in the USB device.
2. Press "▶ II" button shortly to pause or play.
3. Shortly press "▶" button to go to the previous song.
4. Shortly press "▶" button to go to the next song.

SPECIFICATIONS

Power supply. 100-240V~50/60Hz 1A
Consumption 65W
Woofer 2x8"20cm
Tweeter 2
Max. power 600W
Battery. Lead-acid 12V = 4.5Ah
BT frequency band. 2402-2480MHz
Max. Bluetooth RF emission power...........BT4.2 EDR: 1.958dBm & BT4.2 BLE : 1.483dBm
Dimensions 320 x 300 x 630mm
Weight. 10.6kg

The above specifications are for reference only.

Design and specifications are subject to change for improvement without prior notice.

ENCEINTE ACTIVE AUTONOME 600W AVEC BLUETOOTH, USB, MICRO-SD & TELEMANDE

INTRODUCTION

RECOMMANDATIONS POUR LES PILES

EU Declaration of Conformity

Hereby we,

LOTRONIC SA

Avenue Zénobe Gramme, 9

1480 SAINTES

Belgium

+32.2.390.91.91

Certify and declare under our sole responsibility that the following product:

Trade name:

BOOST

Product name:

SPEAKER WITH BLUETOOTH, USB, SD and BATTERY

Type or model:

BOOST-PS6000

Conforms with the essential requirements of

RED directive 2014/53/EU, 2011/65/EU RoHS directive and the Commission Delegated Directive (EU) 2015/863

Based on the following specifications applied:

EN 60065:2014

EN 62479:2010

EN 55032 : 2015

ETSI EN 301 489-1 V2.1.1 (2017-02)

ETSI EN 301 489-17 V3.1.1 (2017-02)

Place and date of issue: Saintes (Belgium), on 31/10/2019

Manuel De Sousa

Quality manager

CE

Check the product on our website

Imported from China by LOTRONIC S.A.

Avenue Zénobe Gramme 9

B-1480 Saintes
